Pixhawk 2.4.8 support the latest official ardupilot firmware and PX4 firmware.

1. The advanced 32-bit ARM CortexM4 high-performance processors STM32F427VIT6(2MB flash), can run NuttX CHIBOS RTOS real-time operating system;

2. 14 PWM / servo output;

3. Bus interface (UART, I2C, SPI, CAN);

4. The integrated backup power and backup controller fails, the primary controller fails over to the backup control is safe;

5. Provide automatic and manual modes;

6. Provide redundant power input and failover;

7. Multicolor LED lights;

8. Provide multi-tone buzzer Interface

9. Micro SD recording flight data;

Specifications:

Interface

1 .5 high voltage compatible UART 1, 2 with hardware flow control

2. 2 CAN

3.Spektrum DSM / DSM2 / DSM-X satellite receiver compatible input

4.Futaba SBUS compatible inputs and outputs

5.PPM Signal Input

6.RSSI (PWM or voltage) Input

7.I2C

8.SPI

9.3.3 and 6.6VADC input

10. External MICRO USB Interface

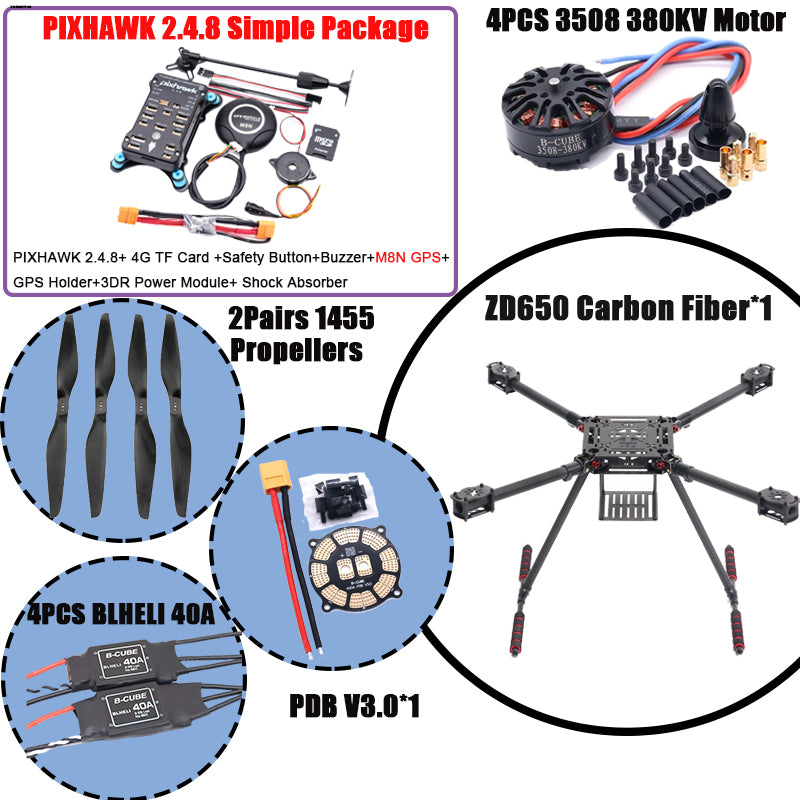

Simple Package:

F650 + 4 PCS BLHELI 40A + 2 pairs self-locking 1455 Propellers + 4 PCS 3508 380KV Motor + PDB V3.0

PIXHAWK 2.4.8(white or black shell)+ 4G TF Card + Safety Button + Buzzer +M8N GPS+ GPS Holder+3DR Power Module+ Shock Absorber+ 3 Line(4Pin 1.25 ,6Pin 1.25 ,3Pin 2.5.4)

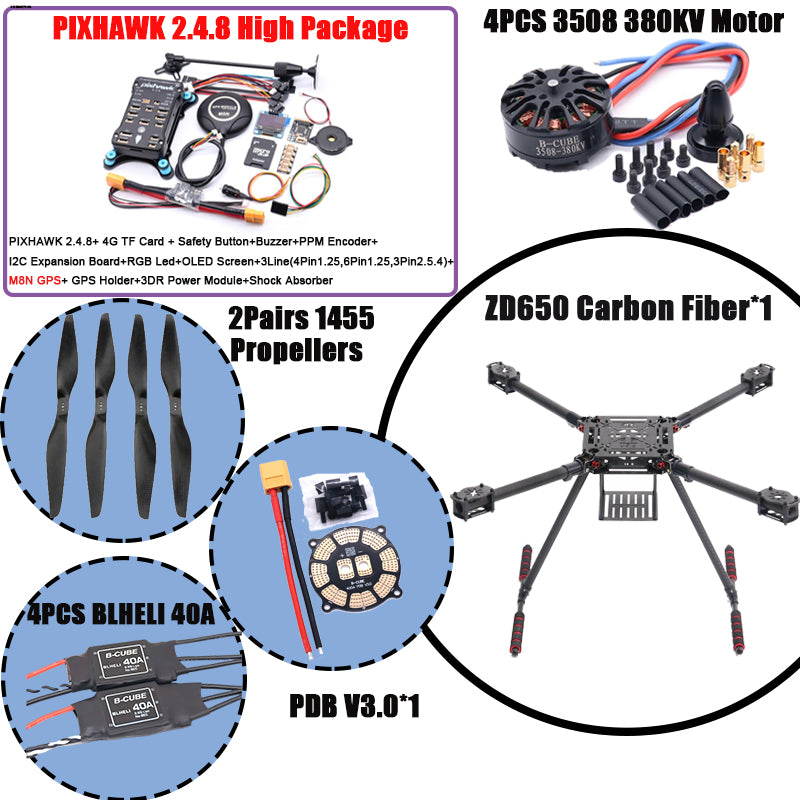

High Package:

F650 + 4 PCS BLHELI 40A + 2 pairs self-locking 1455 Propellers + 4 PCS 3508 380KV Motor + PDB V3.0

PIXHAWK 2.4.8(white or black shell)+ 4G TF Card + Safety Button + Buzzer + PPM Encoder + I2C Expansion Board+ RGB Led + OLED Screen+M8N GPS+ GPS Holder+ 3DR Power Module+ Shock Absorber+3 Line(4Pin 1.25 ,6Pin 1.25 ,3Pin 2.5.4)

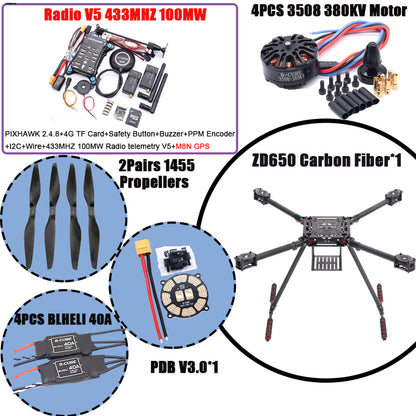

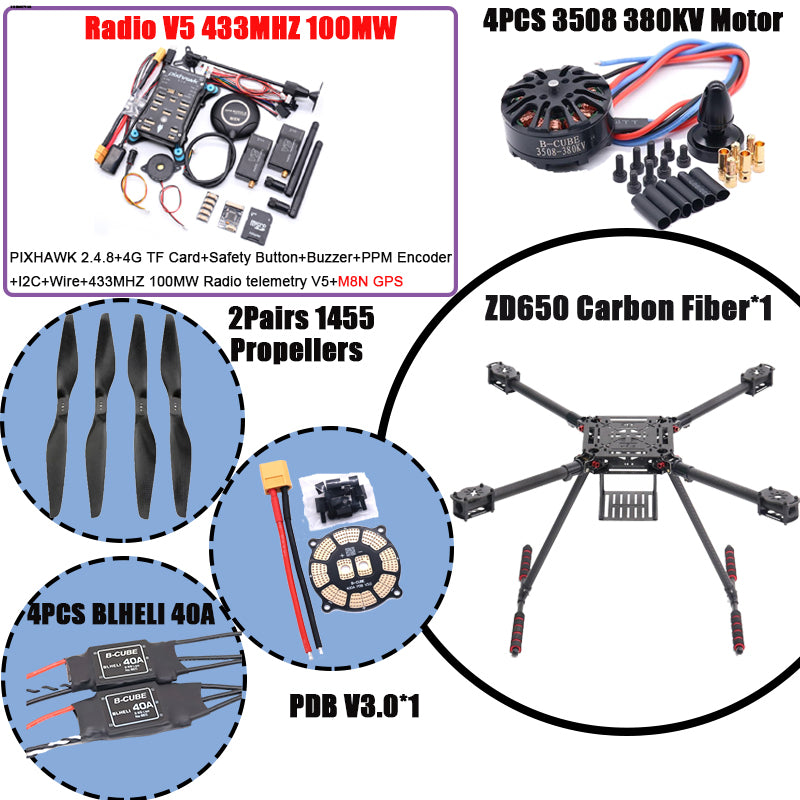

433MHZ 100MW V5:

F650 + 4 PCS BLHELI 40A + 2 pairs self-locking 1455 Propellers + 4 PCS 3508 380KV Motor + PDB V3.0

PIXHAWK 2.4.8(white or black shell)+ 4G TF Card + Safety Button + Buzzer + PPM Encoder + I2C Expansion Board+M8N GPS+ GPS Holder+ 3DR Power Module+ Shock Absorber+433MHZ 100MW Radio telemetry V5+3 Line(4Pin 1.25 ,6Pin 1.25 ,3Pin 2.5.4)

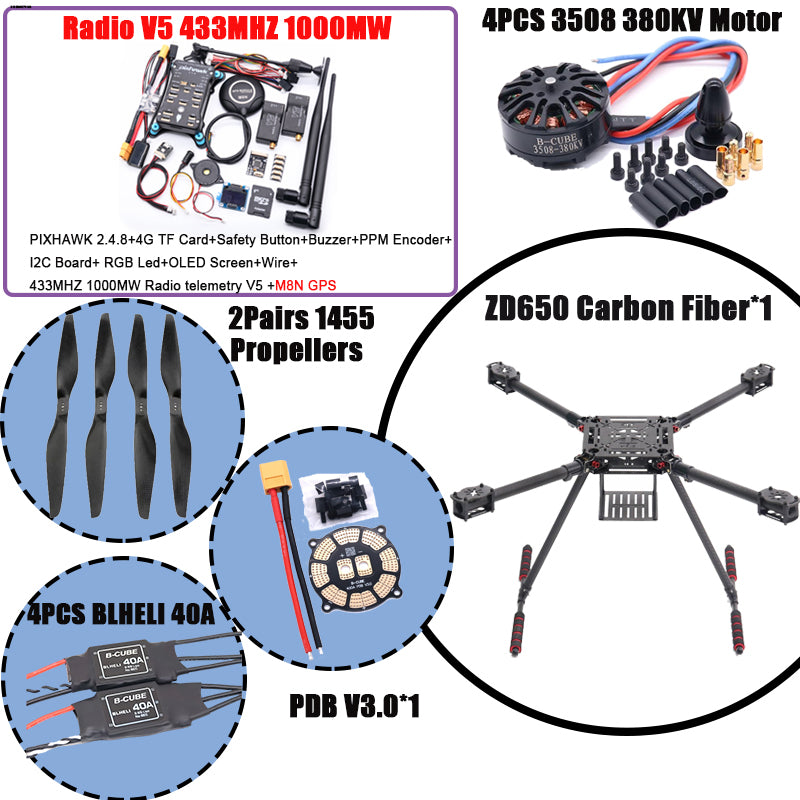

433MHZ 1000MW :

F650 + 4 PCS BLHELI 40A + 2 pairs self-locking 1455 Propellers + 4 PCS 3508 380KV Motor + PDB V3.0

PIXHAWK 2.4.8(white or black shell)+ 4G TF Card + Safety Button + Buzzer + PPM Encoder + I2C Expansion Board+ RGB LED + OLED Screen+M8N GPS+ GPS Holder+3DR Power Module+Shock Absorber+433MHZ 1000MW Radio telemetry V5+3 Line(4Pin 1.25 ,6Pin 1.25 ,3Pin 2.5.4)

PIXHAWK PRO

Features:

Pixhawk PRO support the latest official ardupilot firmware and PX4 firmware.

1. The advanced 32-bit ARM CortexM4 high-performance processors(2MB flash), can run NuttX RTOS real-time operating system;

2. 14 PWM / servo output;

3. Bus interface (UART, I2C, SPI, CAN);

4. The integrated backup power and backup controller fails, the primary controller fails over to the backup control is safe;

5. Provide automatic and manual modes;

6. Provide redundant power input and failover;

7. Multicolor LED lights;

8. Provide multi-tone buzzer Interface

9. Micro SD recording flight data;

10.TYPE-C USB port

11.GH1.25 port

Specifications:

Interface

1.5 high voltage compatible UART 1, 2 with hardware flow control

2. 2 CAN

3.Spektrum DSM / DSM2 / DSM-X satellite receiver compatible input

4.Futaba SBUS compatible inputs and outputs

5.PPM Signal Input

6.RSSI (PWM or voltage) Input

7.I2C

8.SPI

9.3.3 and 6.6VADC input

10. External TYPEC USB Interface

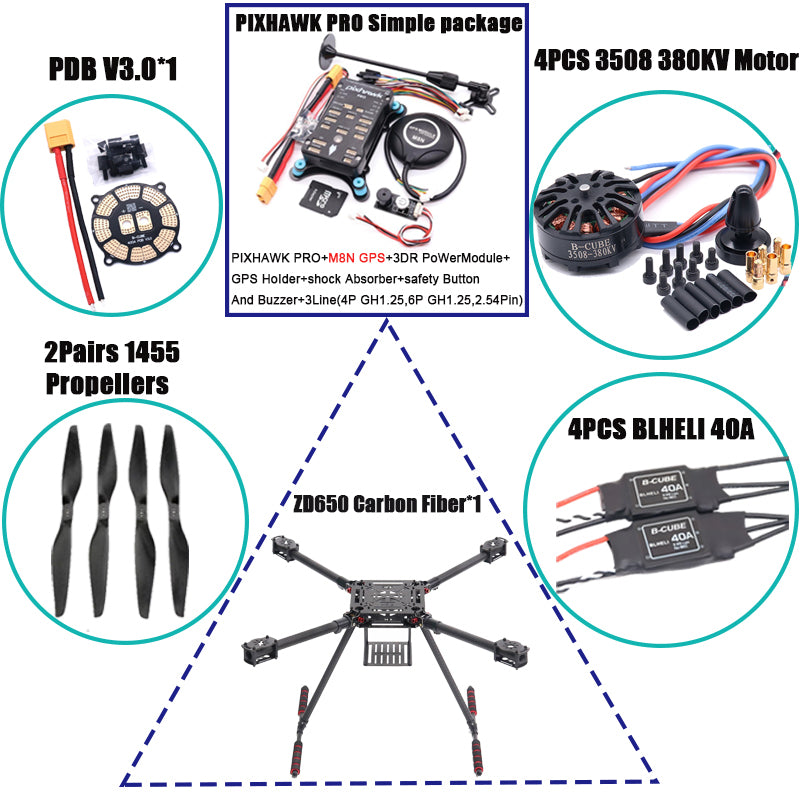

Simple Package:

F650 + 4 PCS BLHELI 40A + 2 pairs self-locking 1455 Propellers + 4 PCS 3508 380KV Motor + PDB V3.0

PIXHAWK PRO(white or black shell)+ 4G TF Card + Safety Button + Buzzer +M8N GPS+ GPS Holder+ 3DR Power Module+ Shock Absorber+3 Line(4Pin 1.25 ,6Pin 1.25 ,3Pin 2.5.4)

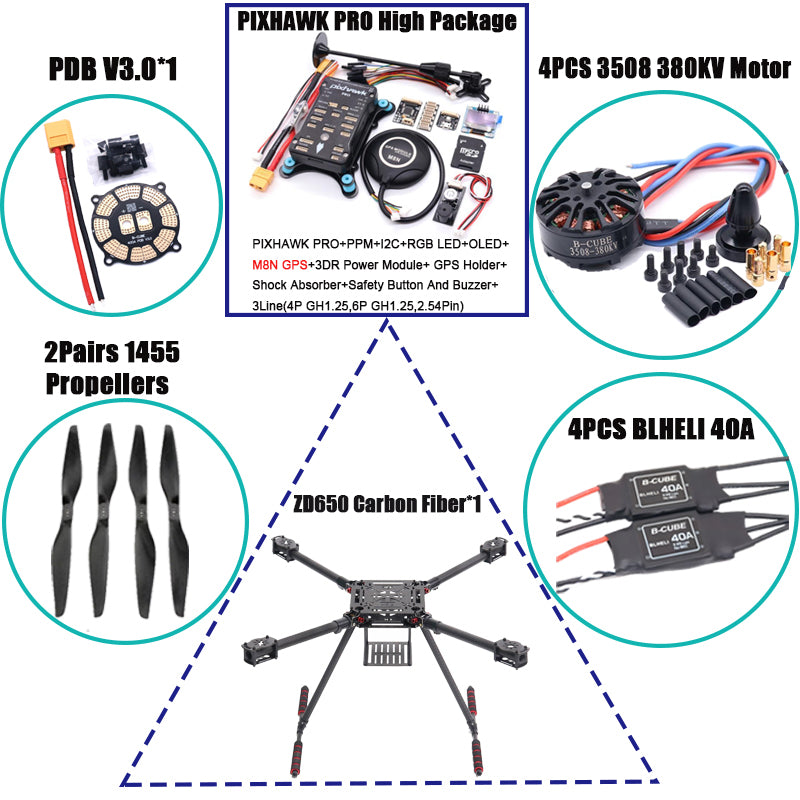

High Package:

F650 + 4 PCS BLHELI 40A + 2 pairs self-locking 1455 Propellers + 4 PCS 3508 380KV Motor + PDB V3.0

PIXHAWK PRO(white or black shell)+ 4G TF Card + Safety Button + Buzzer + PPM Encoder + I2C Expansion Board+ RGB Led + OLED Screen+M8N GPS+ GPS Holder+ 3DR Power Module+ Shock Absorber+3 Line(4Pin 1.25 ,6Pin 1.25 ,3Pin 2.5.4)

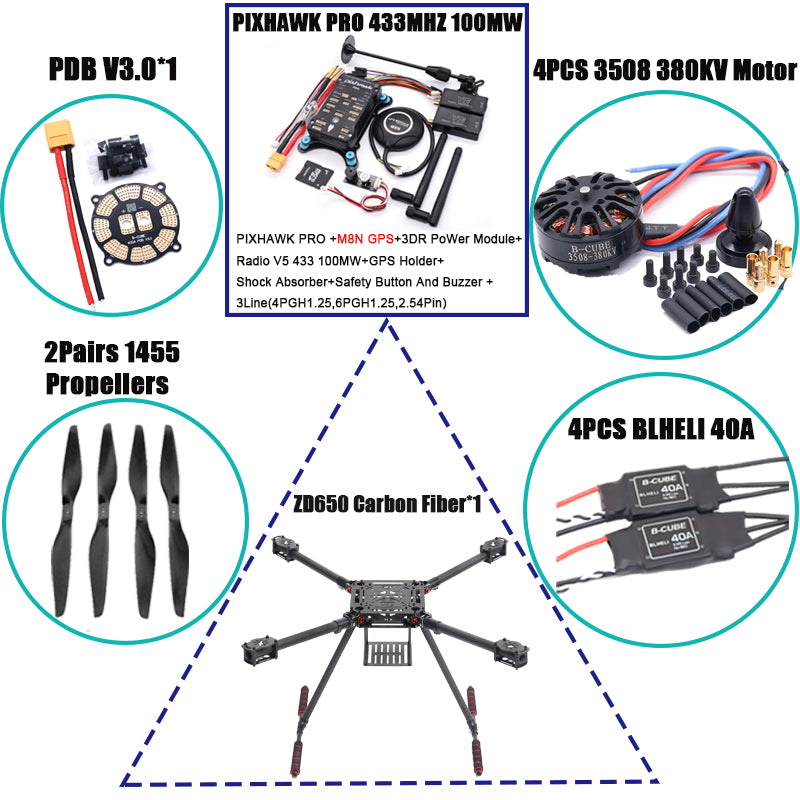

433MHZ 100MW :

F650 + 4 PCS BLHELI 40A + 2 pairs self-locking 1455 Propellers + 4 PCS 3508 380KV Motor + PDB V3.0

PIXHAWK PRO(white or black shell)+ 4G TF Card + Safety Button + Buzzer+M8N GPS+ GPS Holder+ 3DR Power Module+ Shock Absorber+433MHZ 100MW Radio telemetry V5+3 Line(4Pin 1.25 ,6Pin 1.25 ,3Pin 2.5.4)

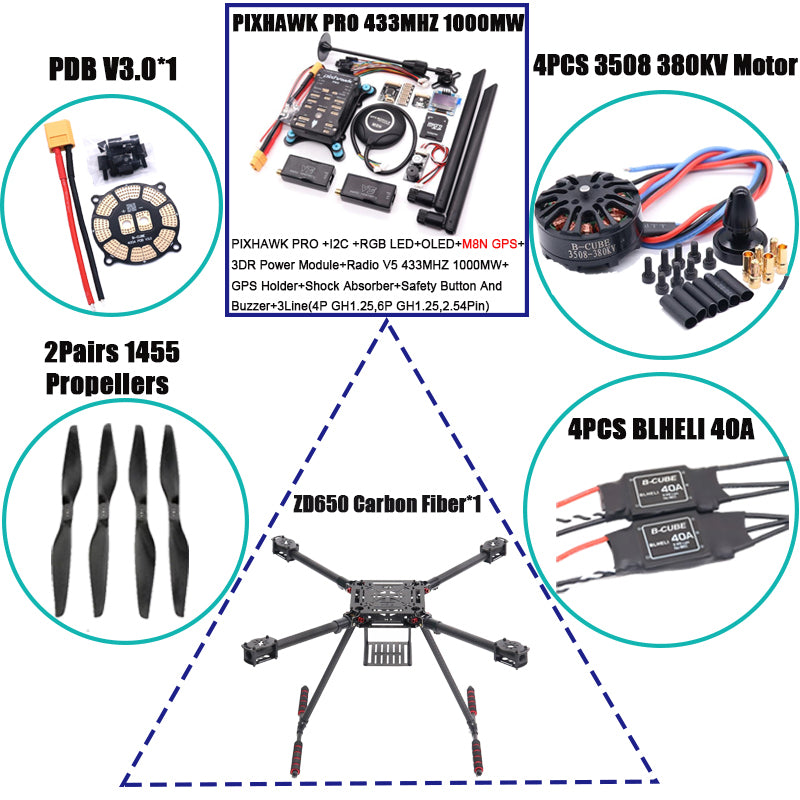

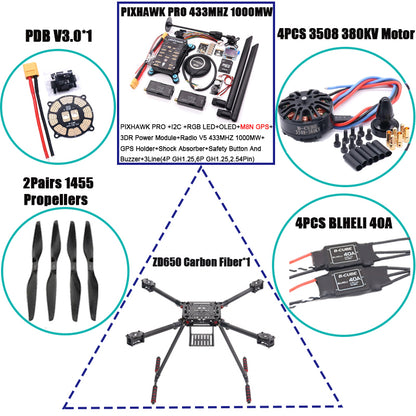

433MHZ 1000MW :

F650 + 4 PCS BLHELI 40A + 2 pairs self-locking 1455 Propellers + 4 PCS 3508 380KV Motor + PDB V3.0

PIXHAWK PRO(white or black shell)+ 4G TF Card + Safety Button + Buzzer + PPM Encoder + I2C Expansion Board+ RGB LED + OLED Screen+M8N GPS+ GPS Holder+3DR Power Module+Shock Absorber+433MHZ 1000MW Radio telemetryV5+3 Line(4Pin 1.25 ,6Pin 1.25 ,3Pin 2.5.4)

PIXHAWK 6C PRO

The Pixhawk® 6C PRO is the latest update to the successful family of Pixhawk® flight controllers, based on the Pixhawk® FMUv6C Open Standard and Connector Standard. It comes with PX4 Autopilot® pre-installed. STMicroelectronics® based STM32H743, paired with sensor technology from Bosch® & InvenSense®, giving you flexibility and reliability for controlling any autonomous vehicle, suitable for both academic and commercial applications.

The Pixhawk® 6C PRO's H7 microcontroller contain the Arm® Cortex®-M7 core running up to 480 MHz, has 2MB flash memory and 1MB RAM. Thanks to the updated processing power, developers can be more productive and efficient with their development work, allowing for complex algorithms and models.

The Pixhawk 6C PRO includes high-performance, low-noise IMUs on board, designed to be cost effective while having IMU redundancy. A vibration isolation System to filter out high-frequency vibration and reduce noise to ensure accurate readings, allowing vehicles to reach better overall flight performances.

The Pixhawk® 6C PRO is perfect for developers at corporate research labs, startups, academics (research, professors, students), and commercial application.

Key Design Points

High performance STM32H743 Processor with more computing power & RAM
Build-in Buzzer,Build-in RGB LED,support Independent external Safety Button,With Plastic Case
New cost-effective design with low-profile form factor
Newly designed integrated vibration isolation system to filter out high frequency vibration and reduce noise to ensure accurate readings

IMUs are temperature-controlled by onboard heating resistors, allowing optimum working temperature of IMUs

Technical Specification

Processors & Sensors
FMU Processor: STM32H743
32 Bit Arm® Cortex®-M7, 480MHz, 2MB memory, 1MB SRAM
IO Processor: STM32F103
32 Bit Arm® Cortex®-M3, 72MHz, 64KB SRAM
On-board sensors
Accel/Gyro: ICM-42688-P
Accel/Gyro: BMI055
Mag: IST8310
Barometer: MS5611

Electrical data
Voltage Ratings:
Max input voltage: 6V
USB Power Input: 4.75~5.25V
Servo Rail Input: 0~36V

Current Ratings:
TELEM1 Max output current limiter: 1.5A
All other port combined output current limiter: 1.5A
Mechanical data
Dimensions: 85 * 45 * 10 mm
Weight (Plastic Case) : 33g

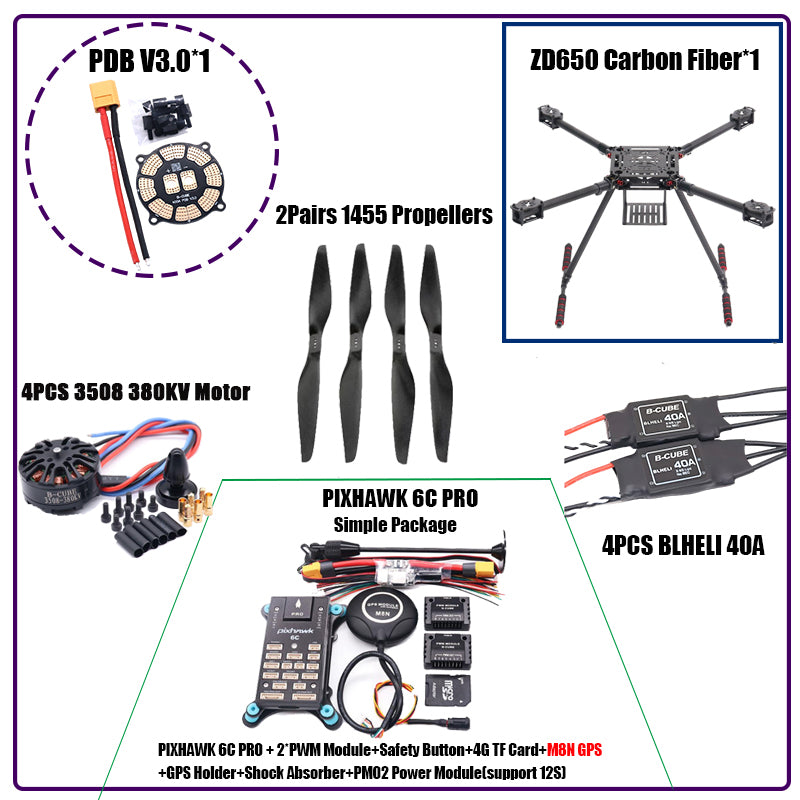

Simple Package:
F650 + 4 PCS BLHELI 40A + 2 pairs self-locking 1455 Propellers + 4 PCS 3508 380KV Motor + PDB V3.0

PIXHAWK 6C PRO(white or black shell)+ 4G TF Card + Safety Button + Buzzer +M8N GPS+GPS Holder+PM02 Power Module+ Shock Absorber

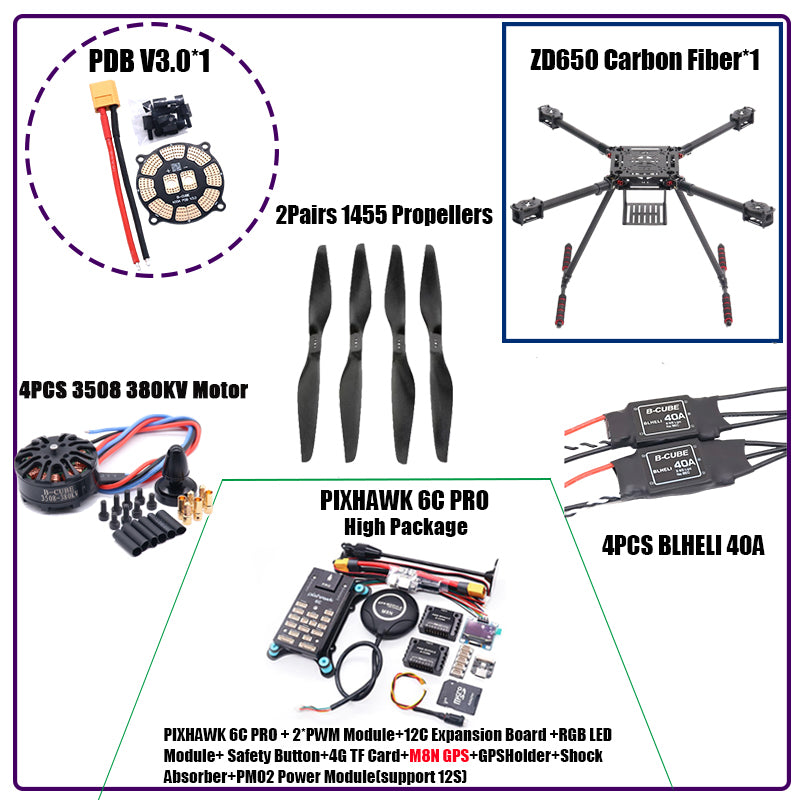

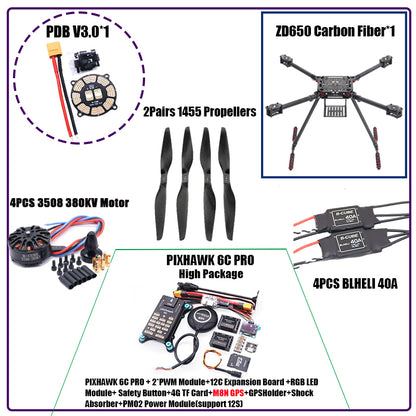

High Package:
F650 + 4 PCS BLHELI 40A + 2 pairs self-locking 1455 Propellers + 4 PCS 3508 380KV Motor + PDB V3.0

PIXHAWK 6C PRO(white or black shell)+ 4G TF Card + Safety Button + Buzzer+I2C Expansion Board+ RGB Led + OLED Screen+M8N GPS+GPS Holder+PM02 Power Module+ Shock Absorber

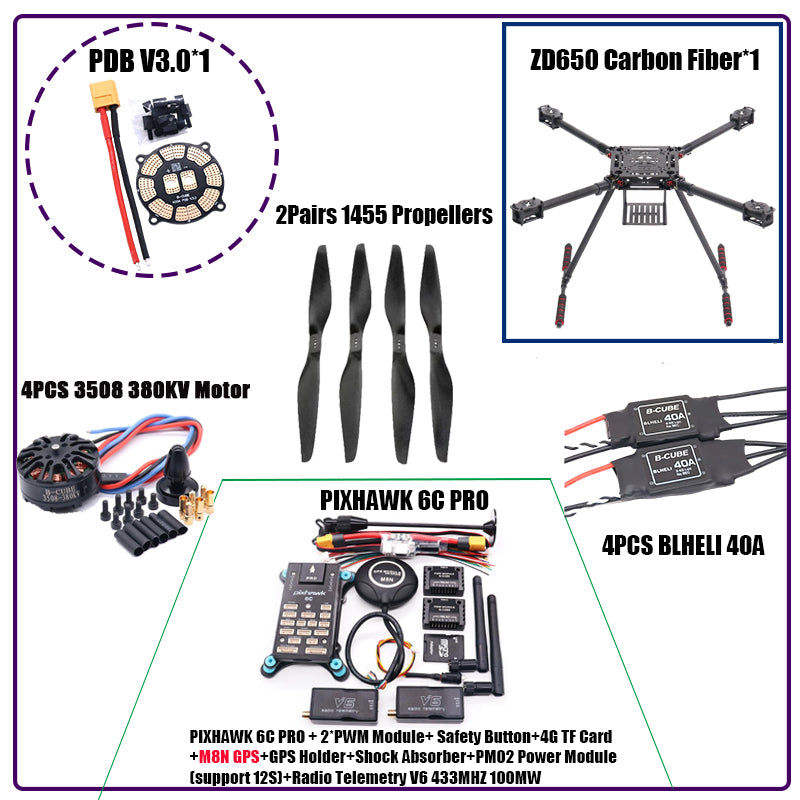

433MHZ 100MW :
F650 + 4 PCS BLHELI 40A + 2 pairs self-locking 1455 Propellers + 4 PCS 3508 380KV Motor + PDB V3.0

PIXHAWK 6C PRO(white or black shell)+ 4G TF Card + Safety Button + Buzzer+M8N GPS+ GPS Holder+ PM02 Power Module+ Shock Absorber+433MHZ 100MW Radio telemetry V6

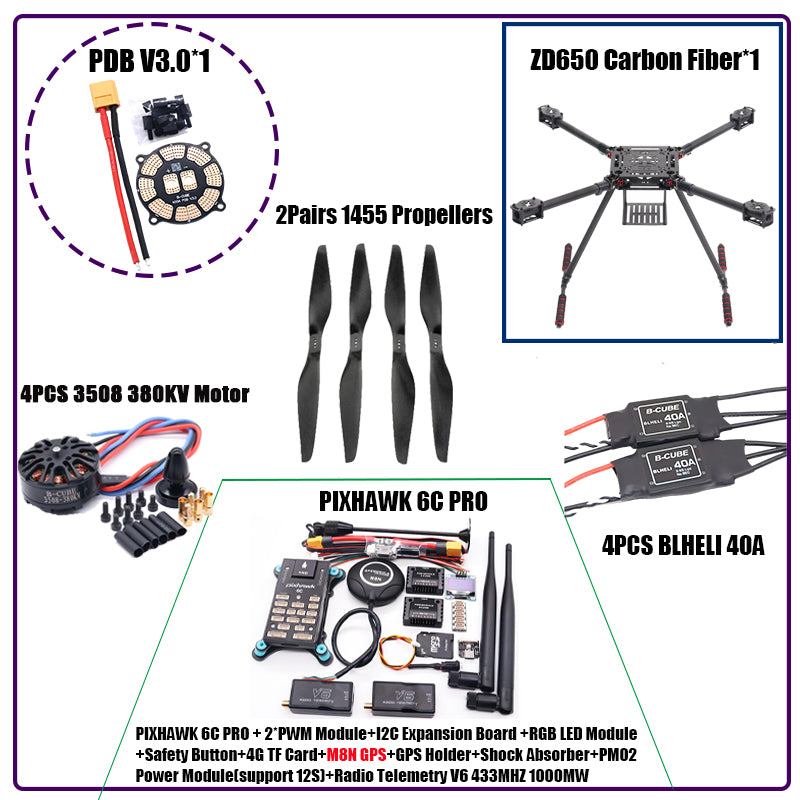

433MHZ 1000MW :
F650 + 4 PCS BLHELI 40A + 2 pairs self-locking 1455 Propellers + 4 PCS 3508 380KV Motor + PDB V3.0

PIXHAWK 6C PRO(white or black shell)+ 4G TF Card + Safety Button + Buzzer+I2C Expansion Board+ RGB LED + OLED Screen+M8N GPS+ GPS Holder+PM02 Power Module+Shock Absorber+433MHZ 1000MW Radio telemetry V6

M8N GPS:

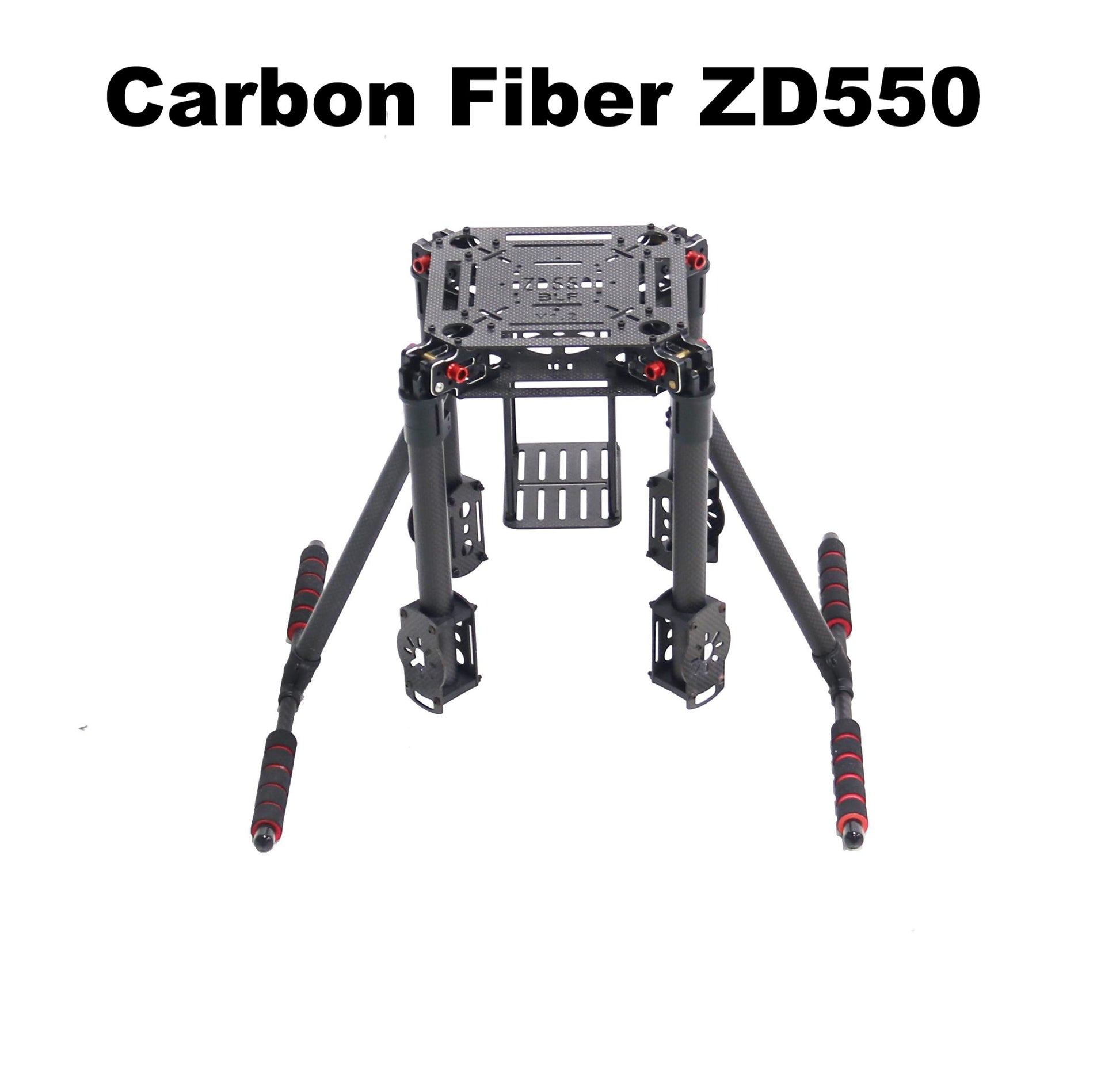

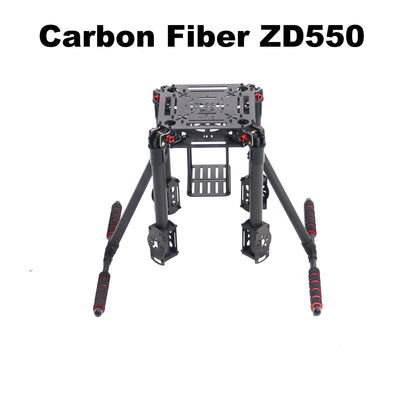

ZD550 Carbon Fiber

Parameters:

- Diagonal wheelbase: 550mm

- Landing gear height: 255mm

- Weight: 658 ±2 g

- Material of the main board : 3k full carbon fiber

- thickness of the main board : 1.5mm

- Arm diameter: 20MM

Recommended configuration: (Not inlcuded)

- Motor: 3508

- Prop: 12-14 inch CW CCW

- ESC: 30A(2-6s) ; 40A (2-4S)

- Flight control: APM opensource flight control

- Battery: 4-6S Lipo

Package includes:

- Carbon Fiber Quadcopter frame kits with Landing Gear x 1 (just a frmae kit, not assembled)

(note: the color of the landing gear pad is differenct because of the different prodcution batch, send the color at random)

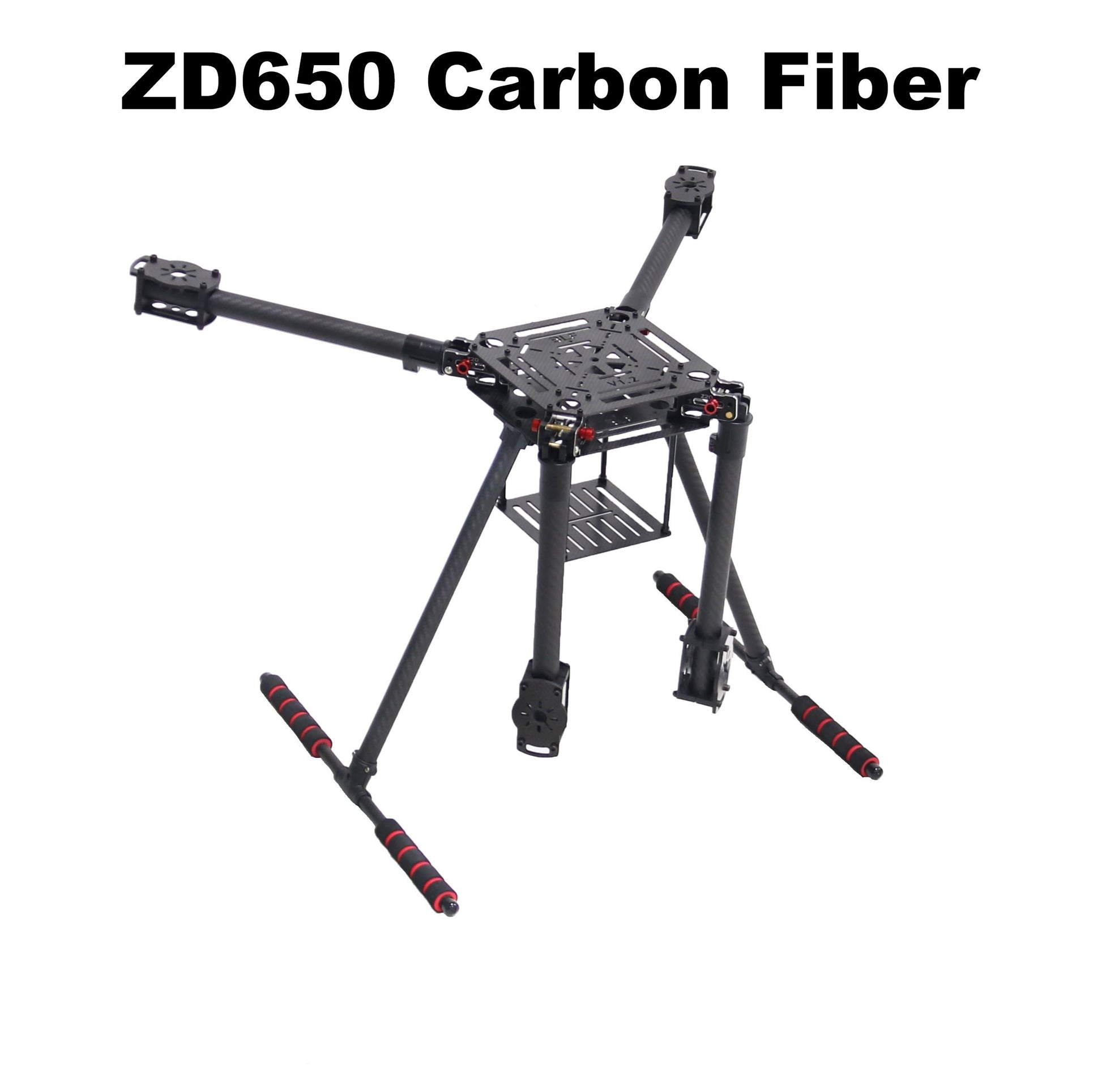

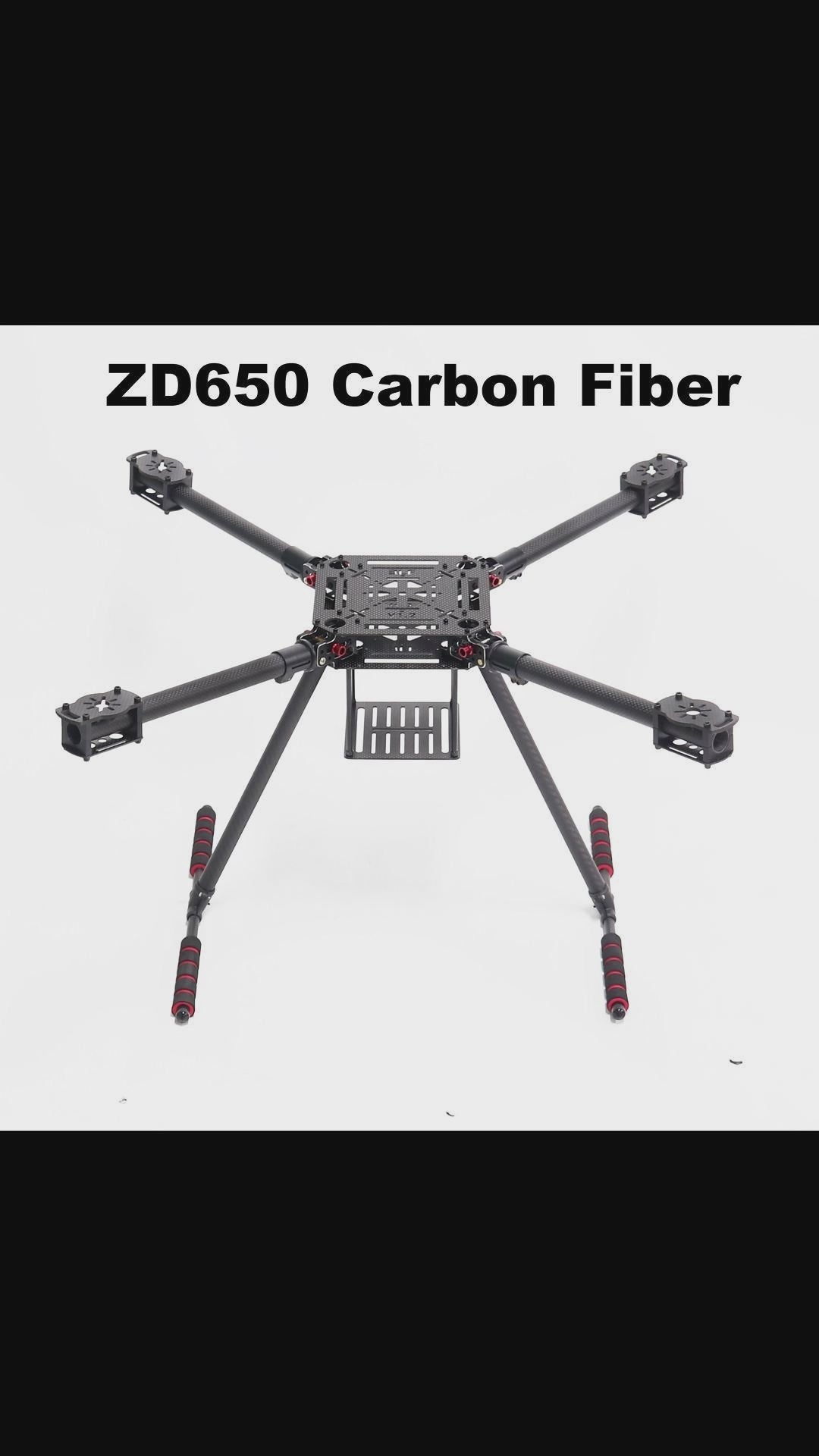

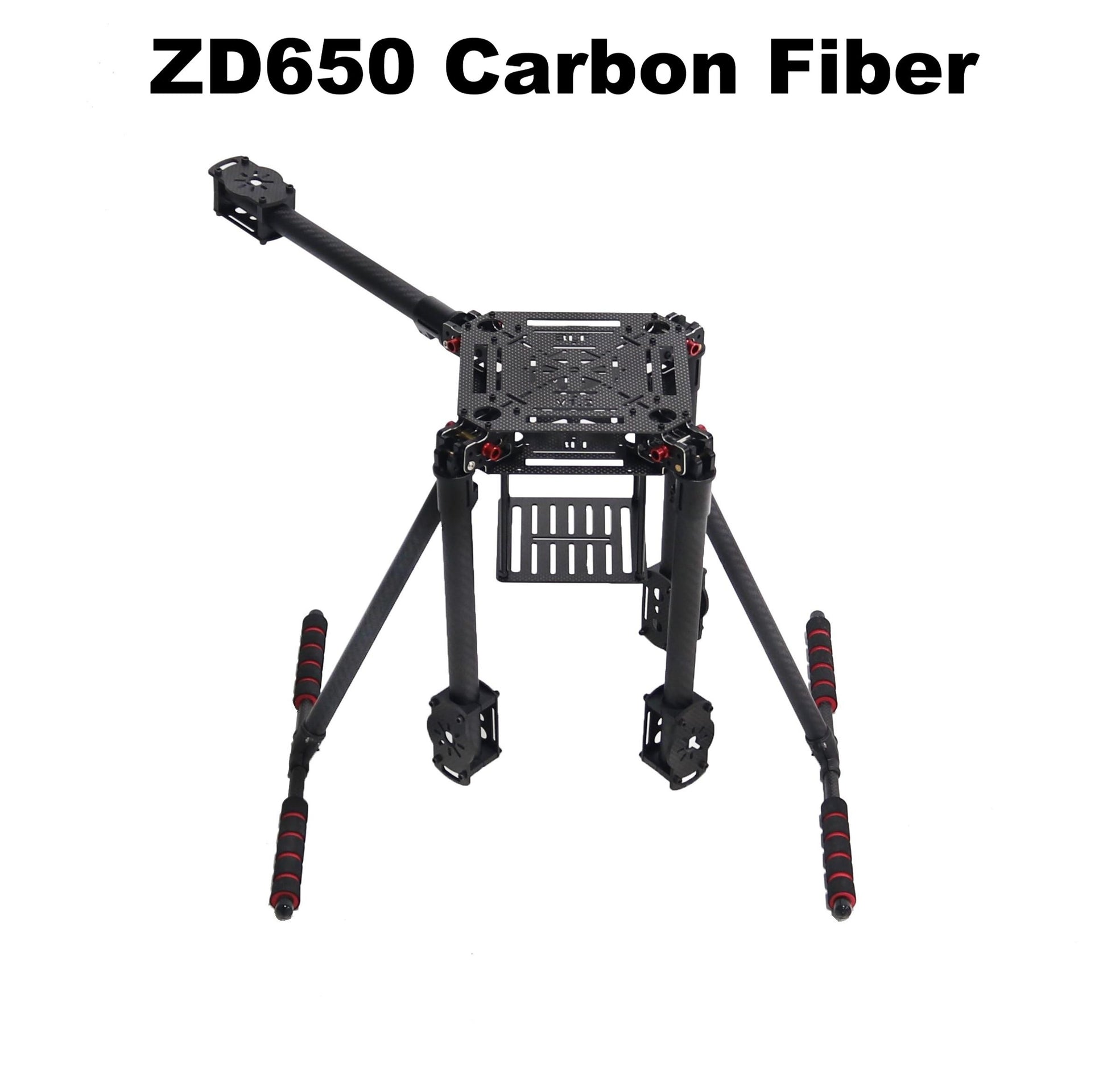

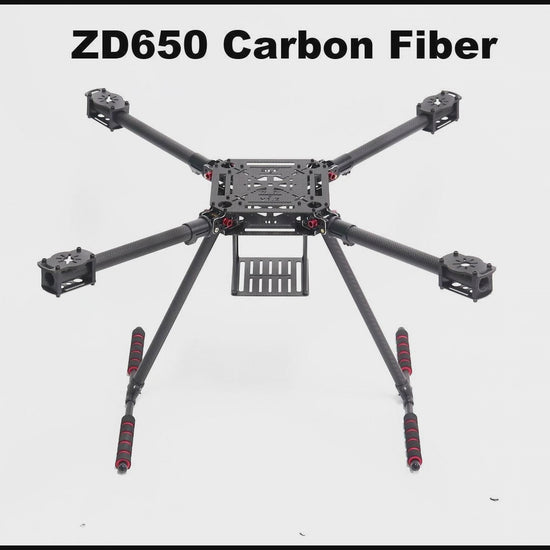

ZD650 Carbon Fiber

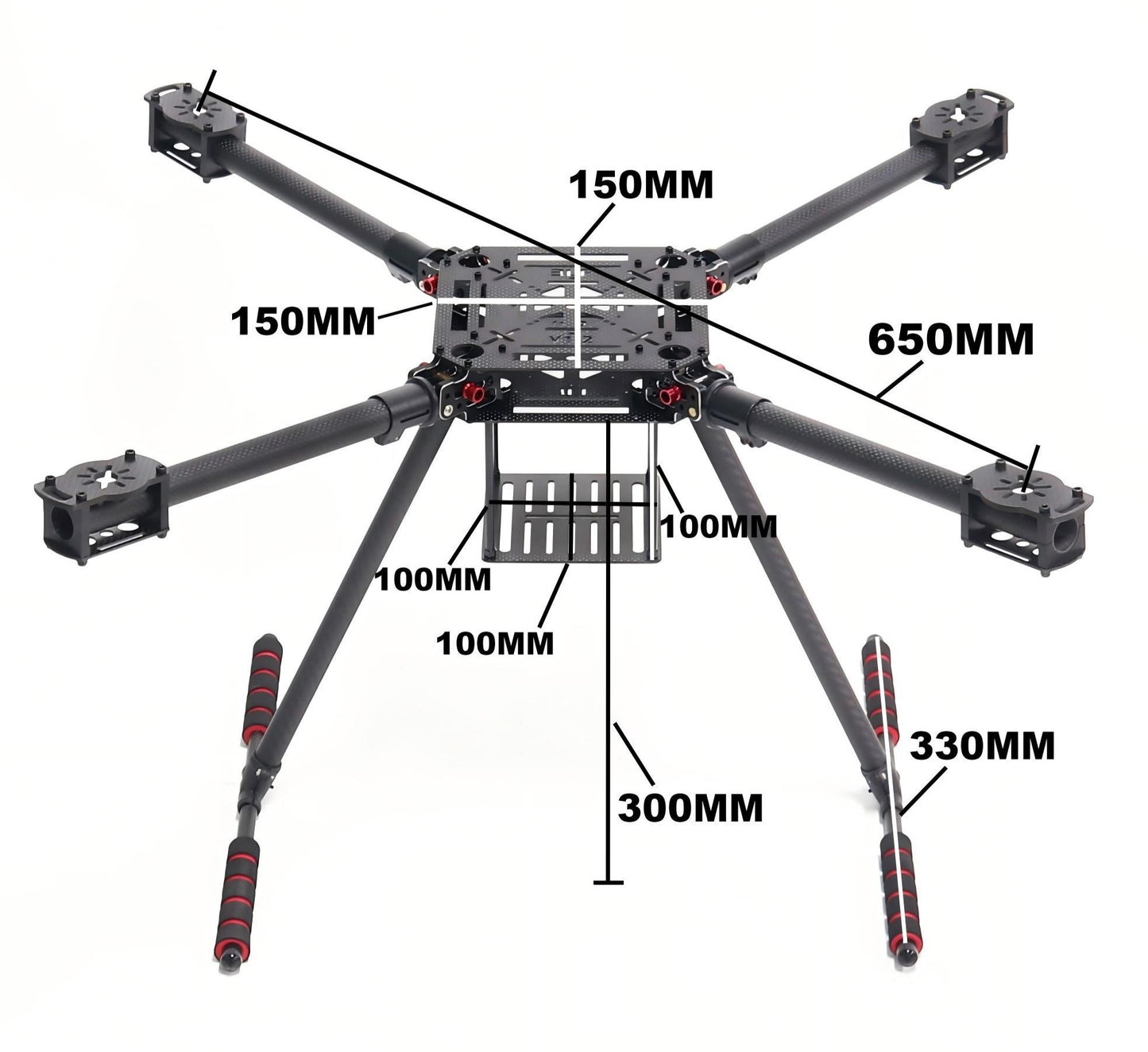

Parameters:

- Diagonal wheelbase: 650mm

- Landing gear height: 300mm

- Weight: 689 ±2 g

- Material of the main board : 3k full carbon fiber

- thickness of the main board : 1.5mm

- Arm diameter: 20MM

Recommended configuration: (Not inlcuded)

- Motor: 3508/D4114

- Prop: 14-16 inch CW CCW

- ESC: 40A (2-6S)

- Flight control:PIXHAWK Fightl Control

- Battery: 4-6S Lipo

Package includes:

- Carbon Fiber Quadcopter frame kits with Landing Gear x 1 (just a frmae kit, not assembled)

(note: the color of the landing gear pad is differenct because of the different prodcution batch, send the color at random)

4PCS 3508 380KV Motor

Color Classification:Black

Motor Technical Parameters:

KV Value:KV380
Model:MX3508
Motor Diameter:42mm
Motor Length (No Shaft):24mm
Stator Diameter:35mm
Stator Length:8mm
Shaft Diameter:4mm
Weight:90g
Recommended Battery:4-6 Cells
Idle Current:0.3A
Top Mounting Hole:12mm x 12mm
Bottom Mounting Hole:25mm x 25mm

Suitable for:

Quadcopters
Hexacopters
Octocopters
Agricultural drones (plant protection machines)

Regarding Dynamic Balance:

We will test each motor before shipping to ensure it meets our factory standards. So, you don't need to worry about dynamic balance.

Note:No 3-socket pad is provided. Please refer to the diagram for specific components.

MX3508 Motor Features:

Flat design
Multiple slot extreme outer brushless motor
High torque and efficiency
Competitive price
Compatible with most market-leading drone frames (with multiple mounting holes)
Aesthetically pleasing design

Propeller Installation:

We use a hub-less propeller installation method, which provides more stability. The carbon propellers are installed without using propeller clamps, ensuring better protection and preventing damage.

Motor Dynamic Test Results:

Our motors have been tested by multiple professional drone photographers and videographers, and they all received excellent feedback.

4PCS BLHELI 40A

Features:

- Using Multicopter special program, fast throttle response,surpasses all kinds of open source software;

- Firmware was optimized specifically for disc motor, and it has a very good compatibility;

- Highly intelligent, strong adaptive capacity, reserve the timing setting item (height/middle timing), easy to use;

- Throttle signal line is twisted wire to reduce crosstalk within the transmission signal generated by the copper, so that more stable flight;

- Supports refresh rates up to 621Hz throttle signal, compatible with various flight controllers. (Note: the throttle signal over 500Hz are all non-standard throttle signal);

- Using MOSFET special driver IC, its performance and stability far surpass the driving circuit with discrete components built;

- Ultra-low resistance MOSFET, strong flow capacity.

2Pairs T-Motor 3K Carbon Fiber Propeller 1455

The new T-motor propeller-type aerial dedicated full carbon paddle paddle-type three-hole installationUsing carbon content of 100% pure imported Toray carbon fiber 3K woven, high temperature and pressure precast precision machining, hardness higher than conventional products market.
