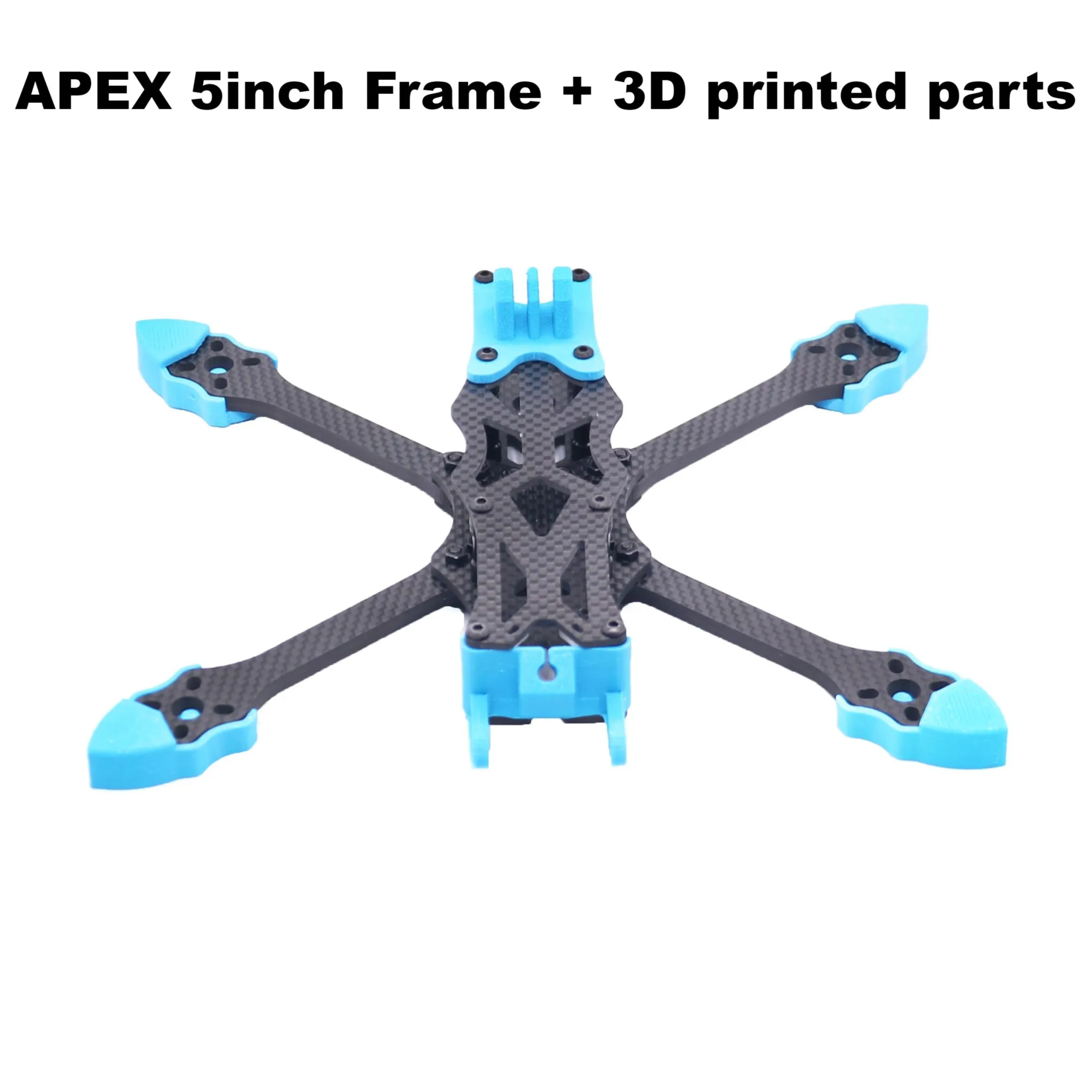

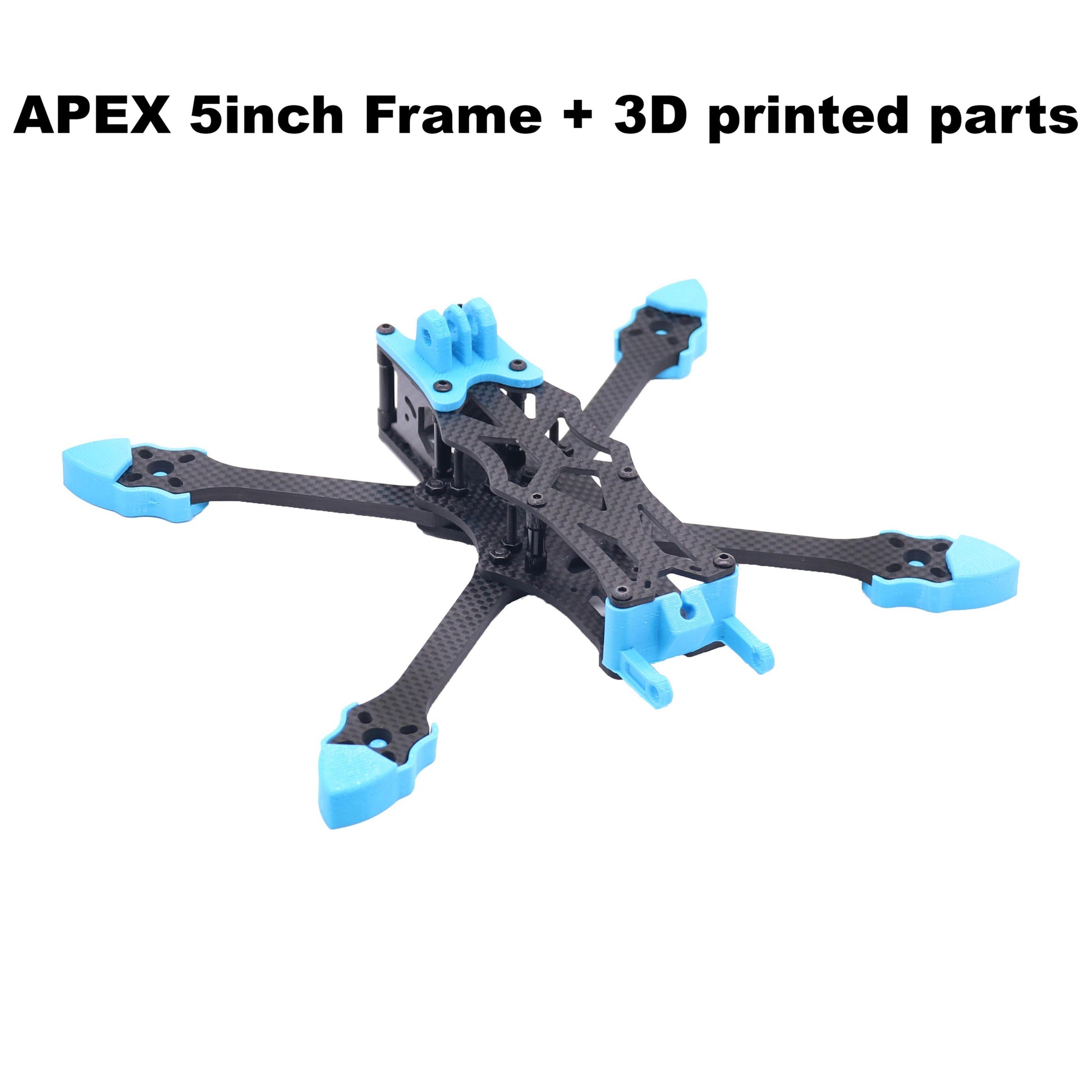

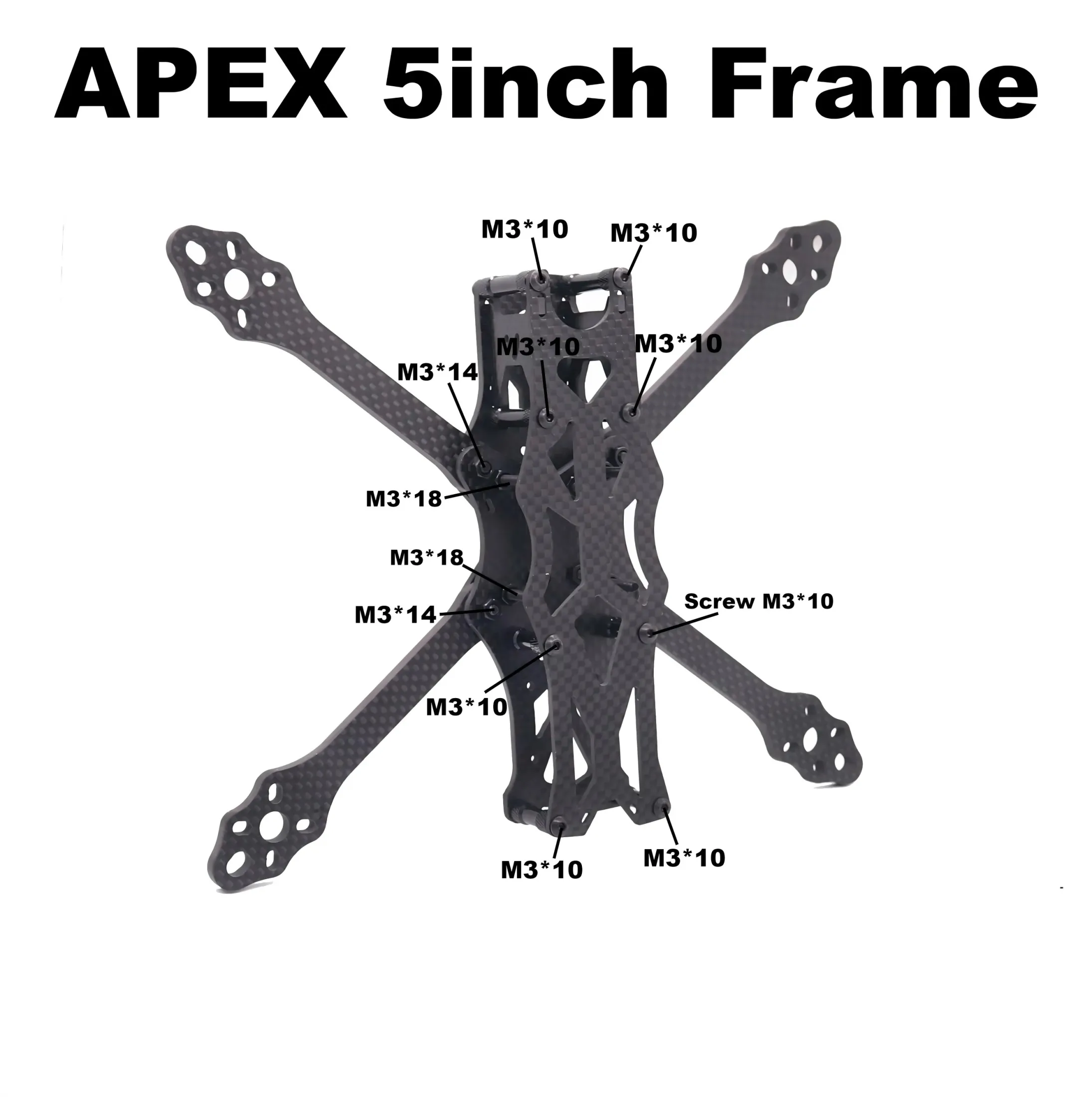

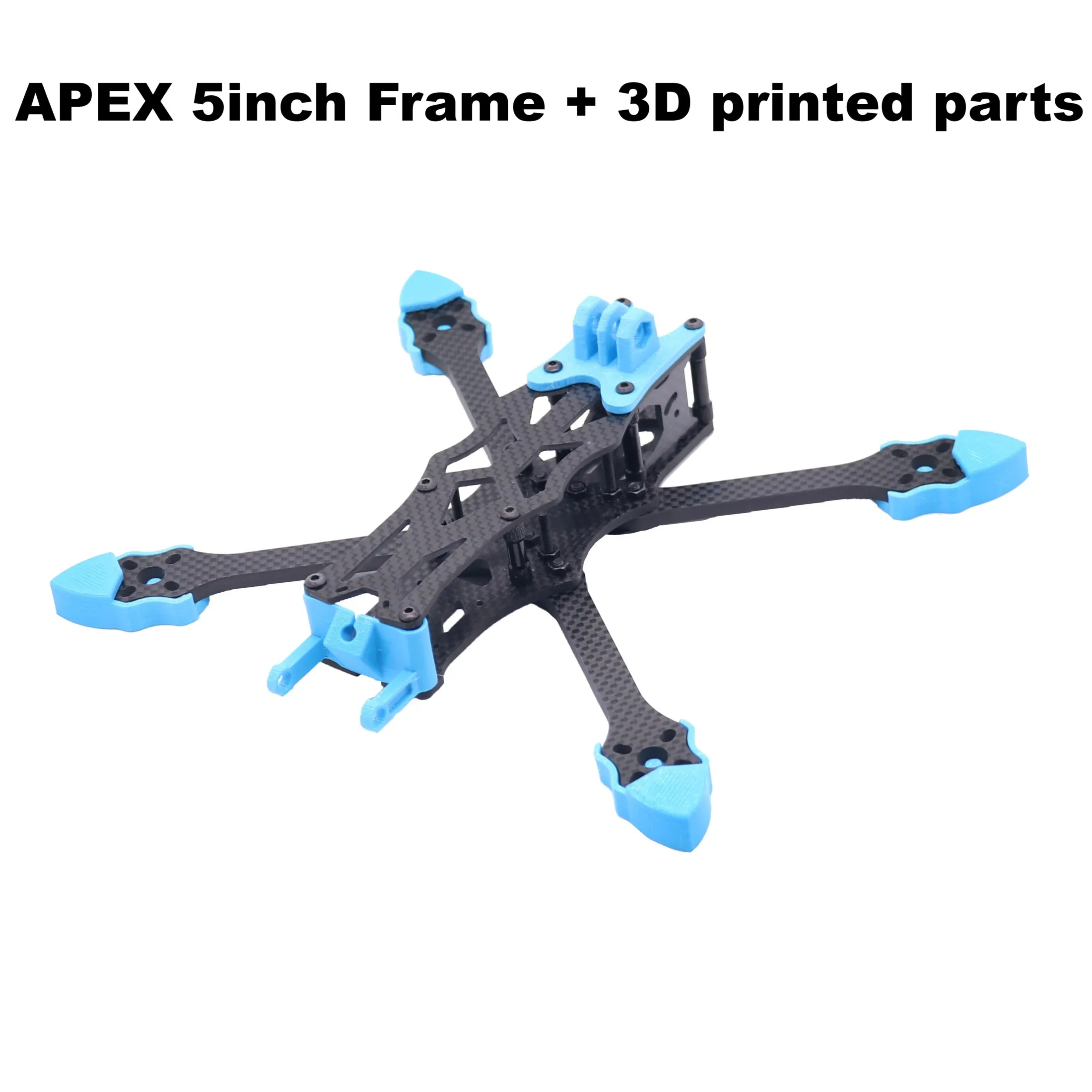

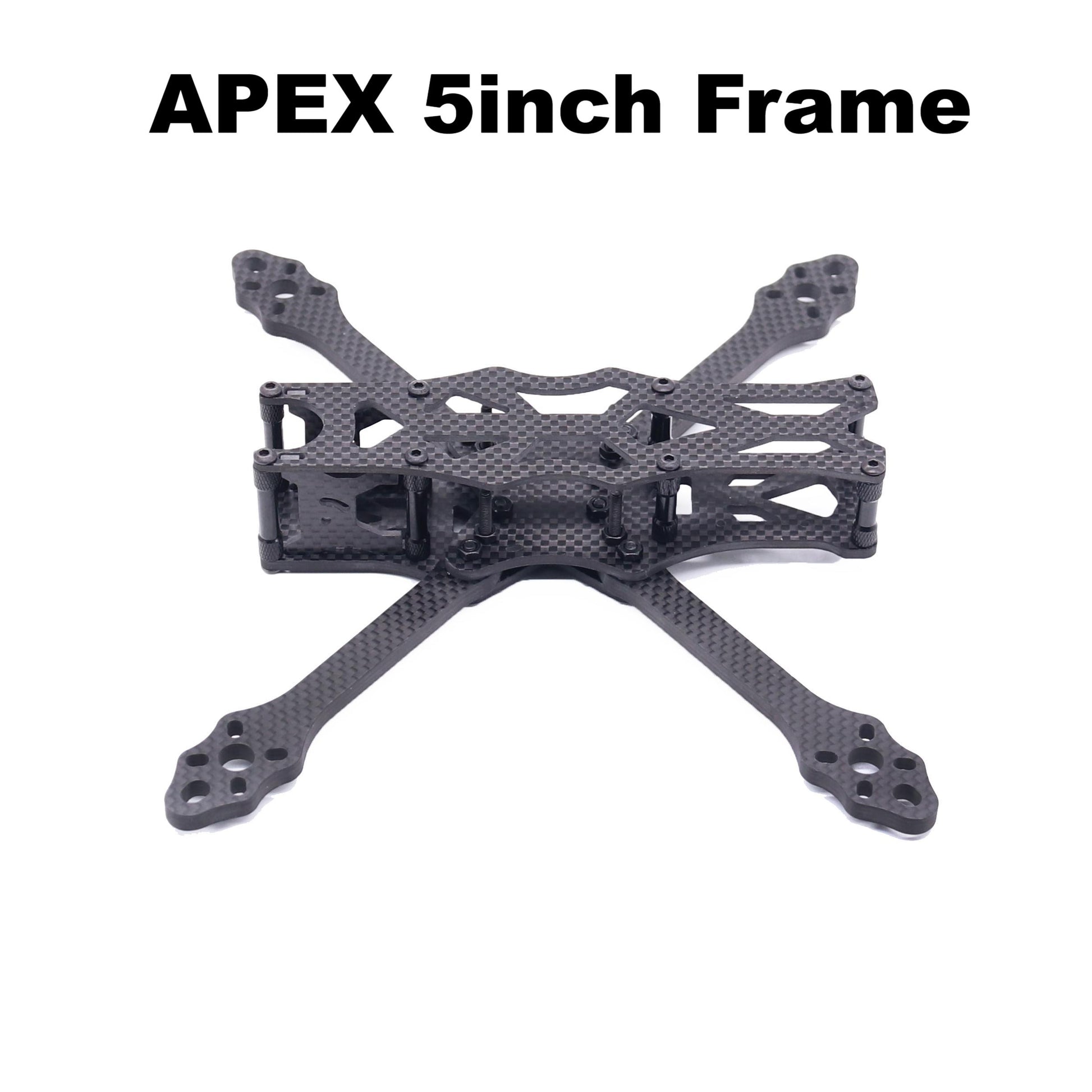

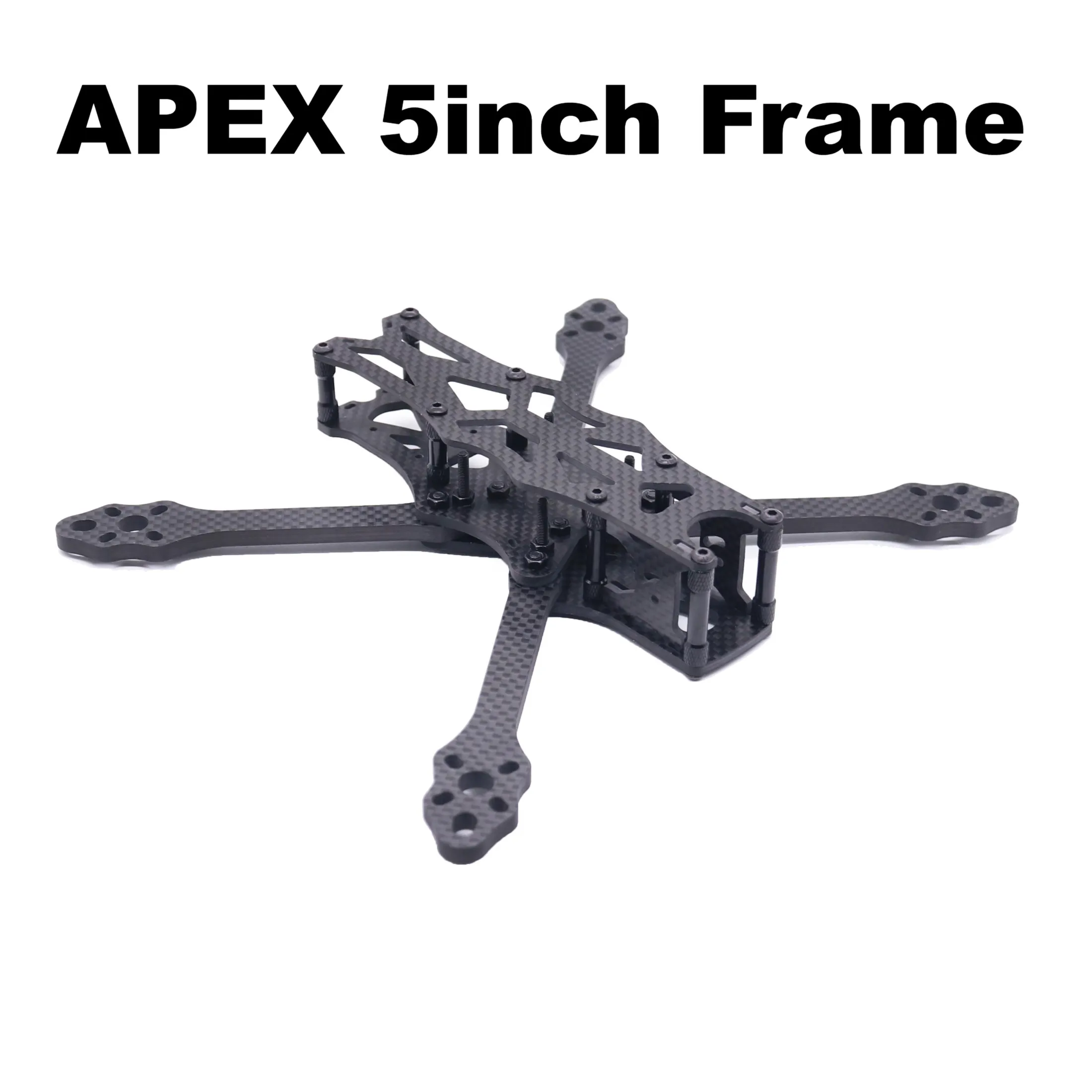

APEX 5inch Frame

Wheelbase: 215mm (4inch)

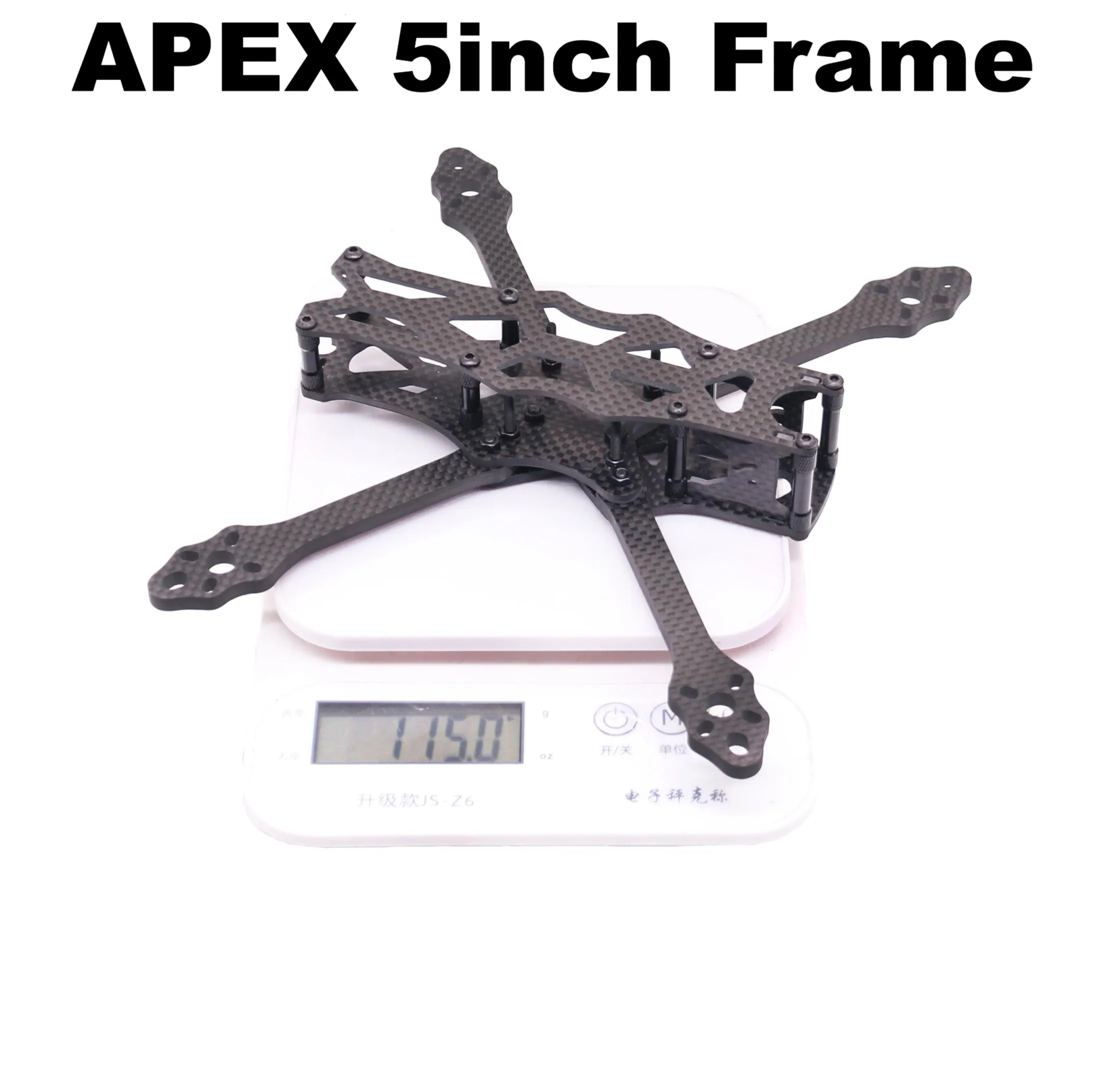

Weight: Approximately 115g (including printed copies)

Thickness: Bottom plate 3.0mm, upper plate 2.0mm, arm 5.0mm

Paddle: 5-inch paddle

Flight control hole spacing: 30.6 * 30.6mm (M3)

Hole spacing for image transmission: 20 * 20mm (M2)

Camera installation width: 19mm

Motor installation hole positions: 9 * 9mm (M2) and 12mm * 12mm (M2)

Battery: 3S/4S 2600mAh

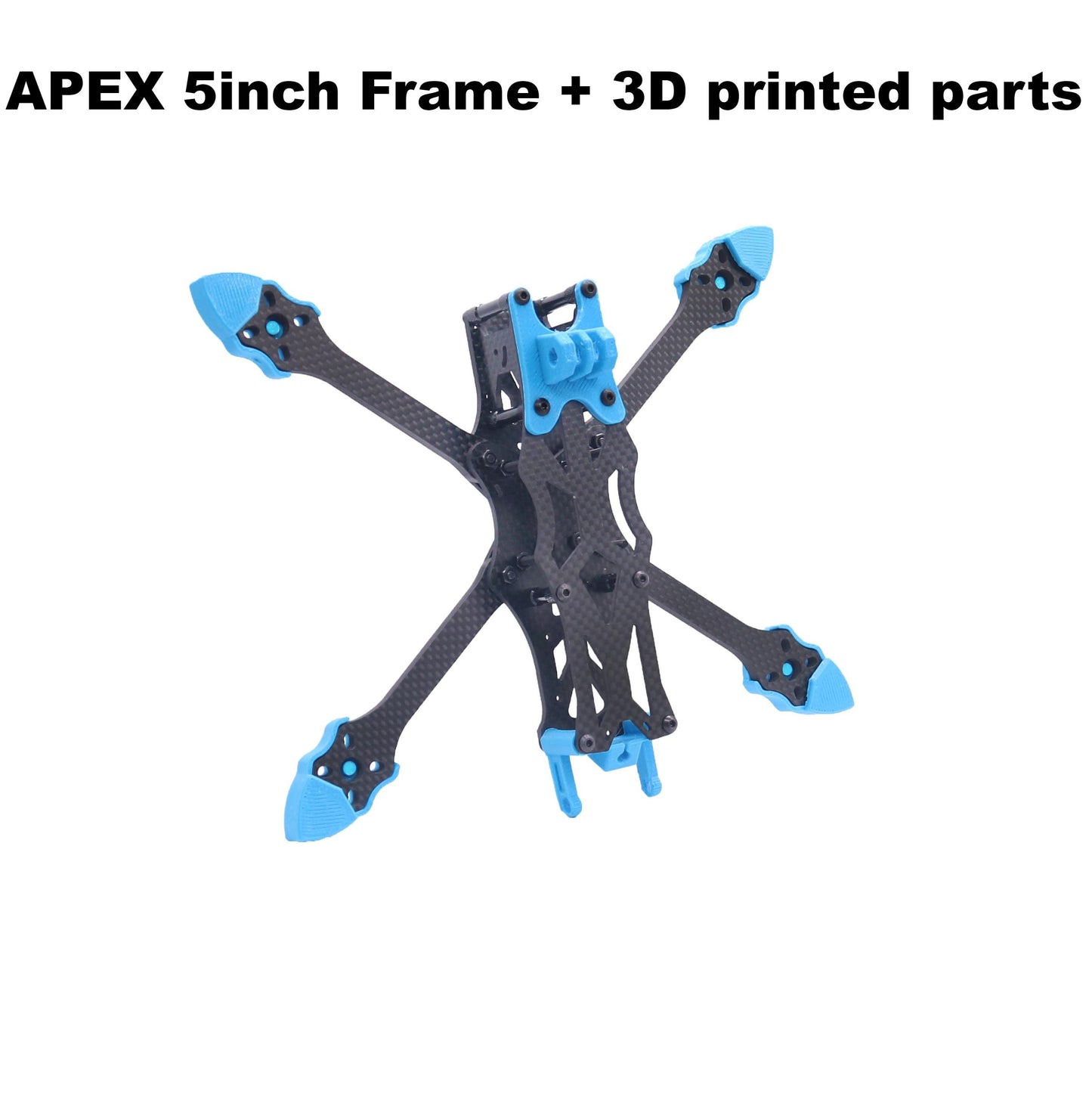

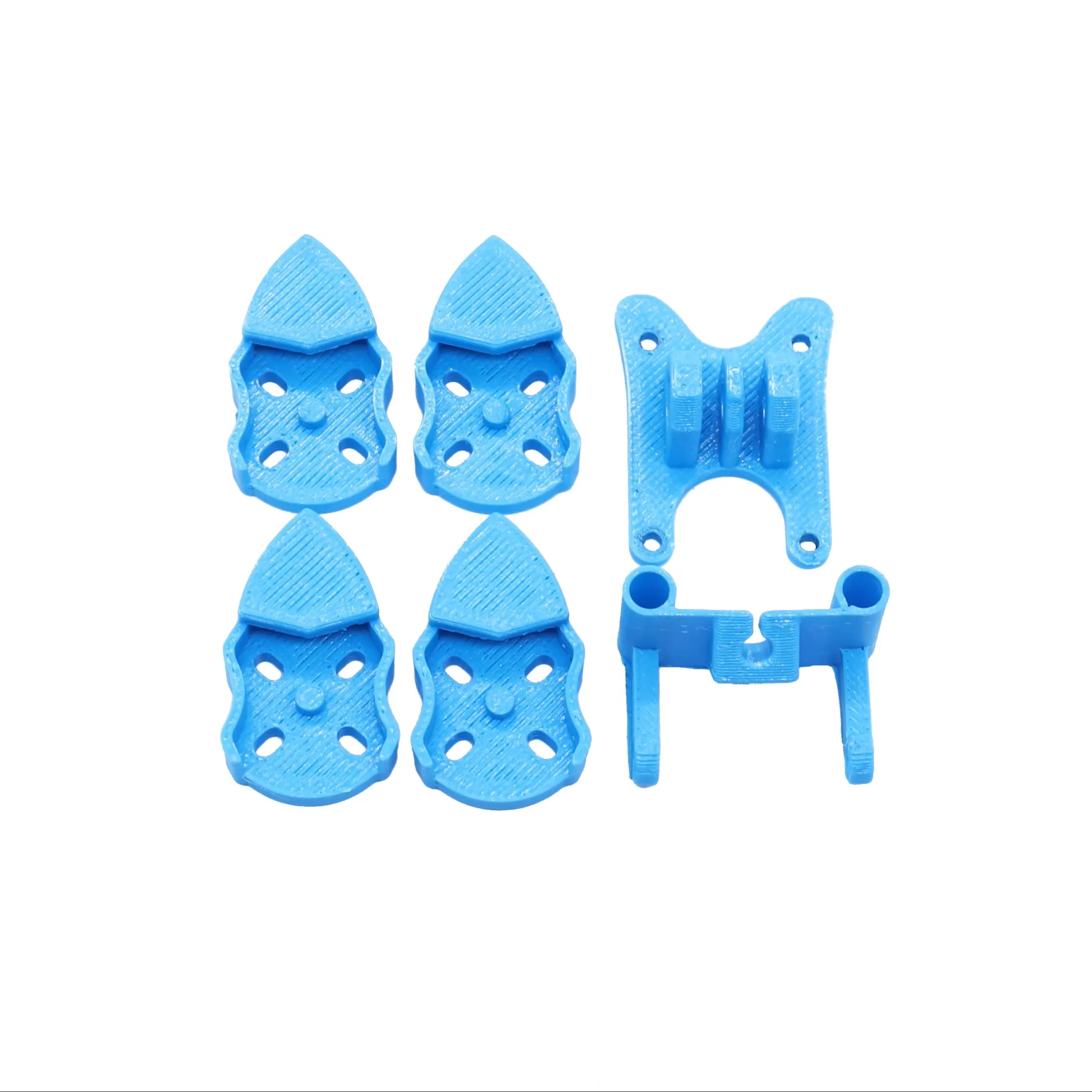

3D print(should choose with 3D Print):

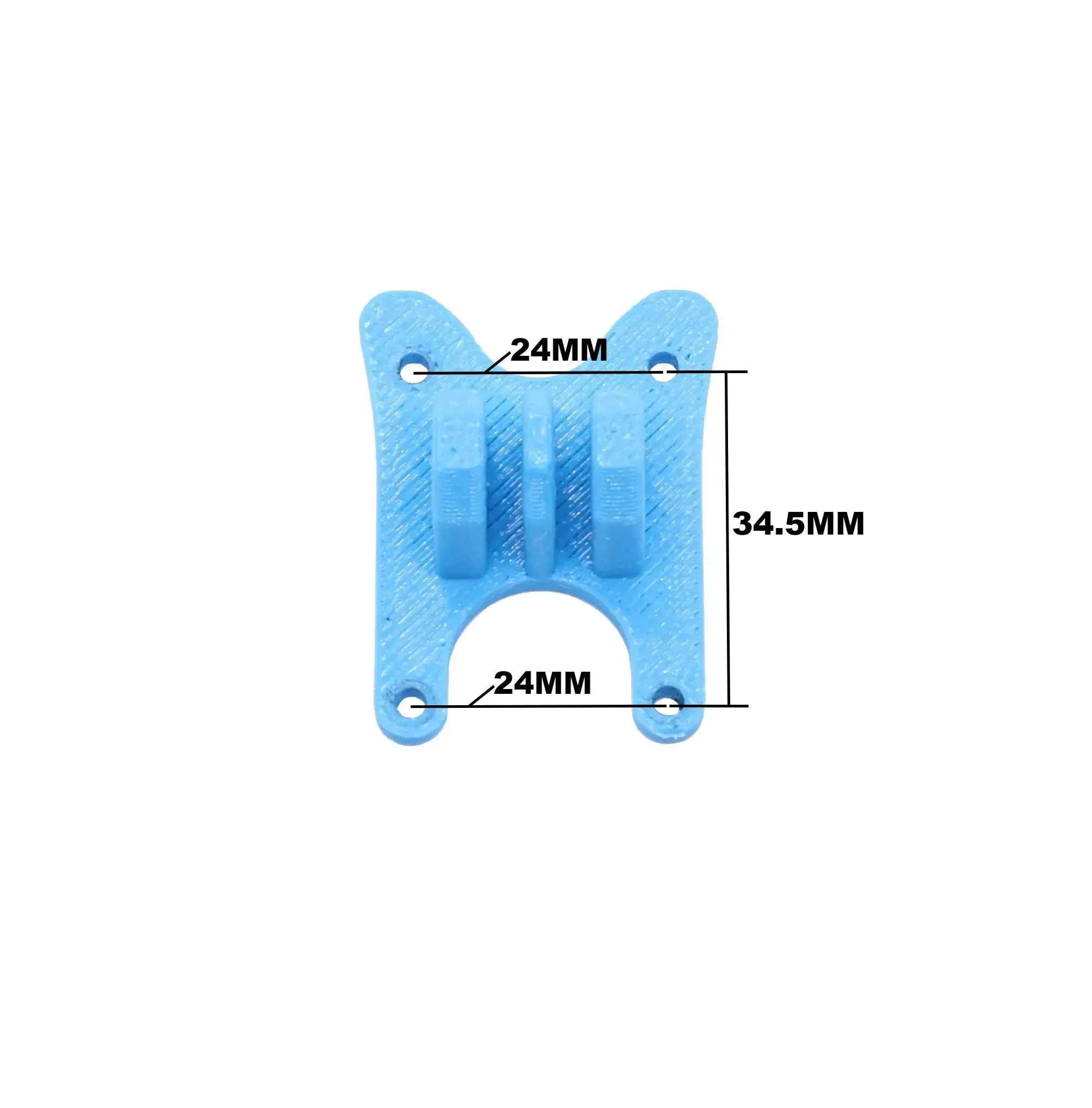

1 camera brackets,

4 arm tripod,

1 antenna pedestal,

Print color: Blue TPU

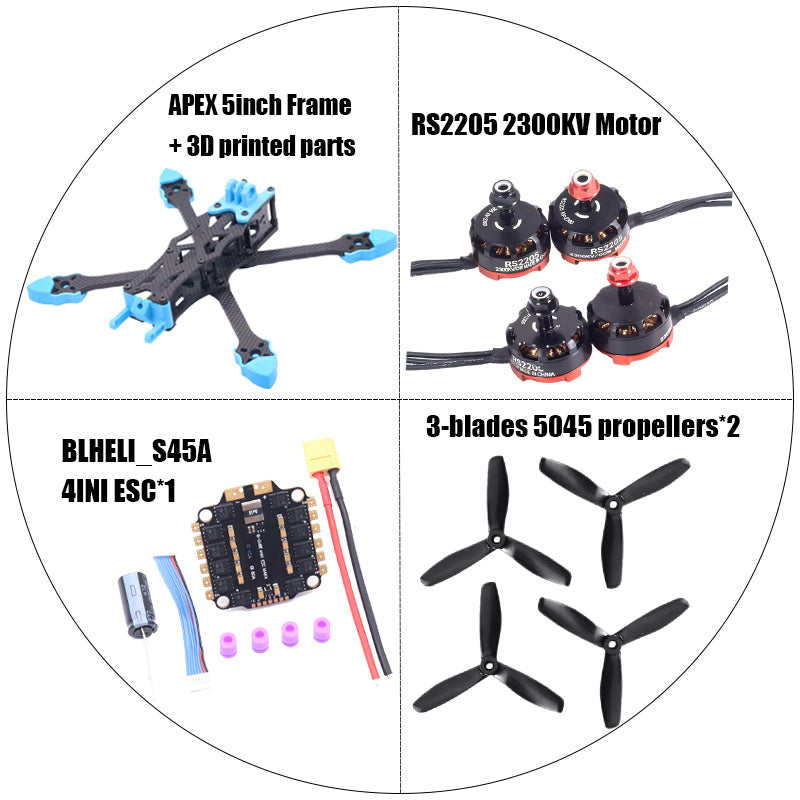

Recommended configuration:

Motor: 2205 2300KV motor

ESC: B-CUBE 4IN1-30MM 45A

Battery: 3S-4S

Paddle: 5045

Image transfer: B-CUBE VTX1000

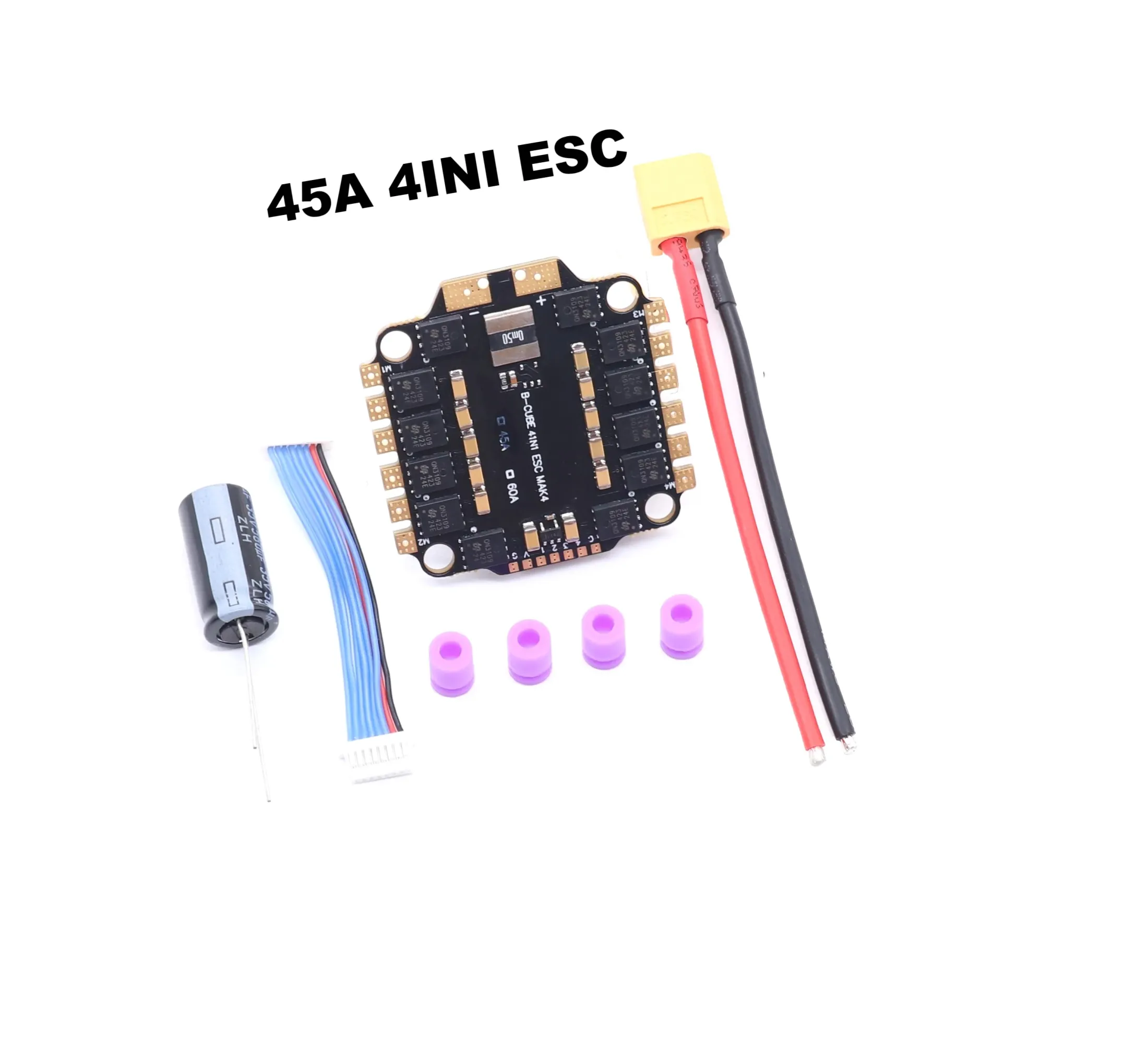

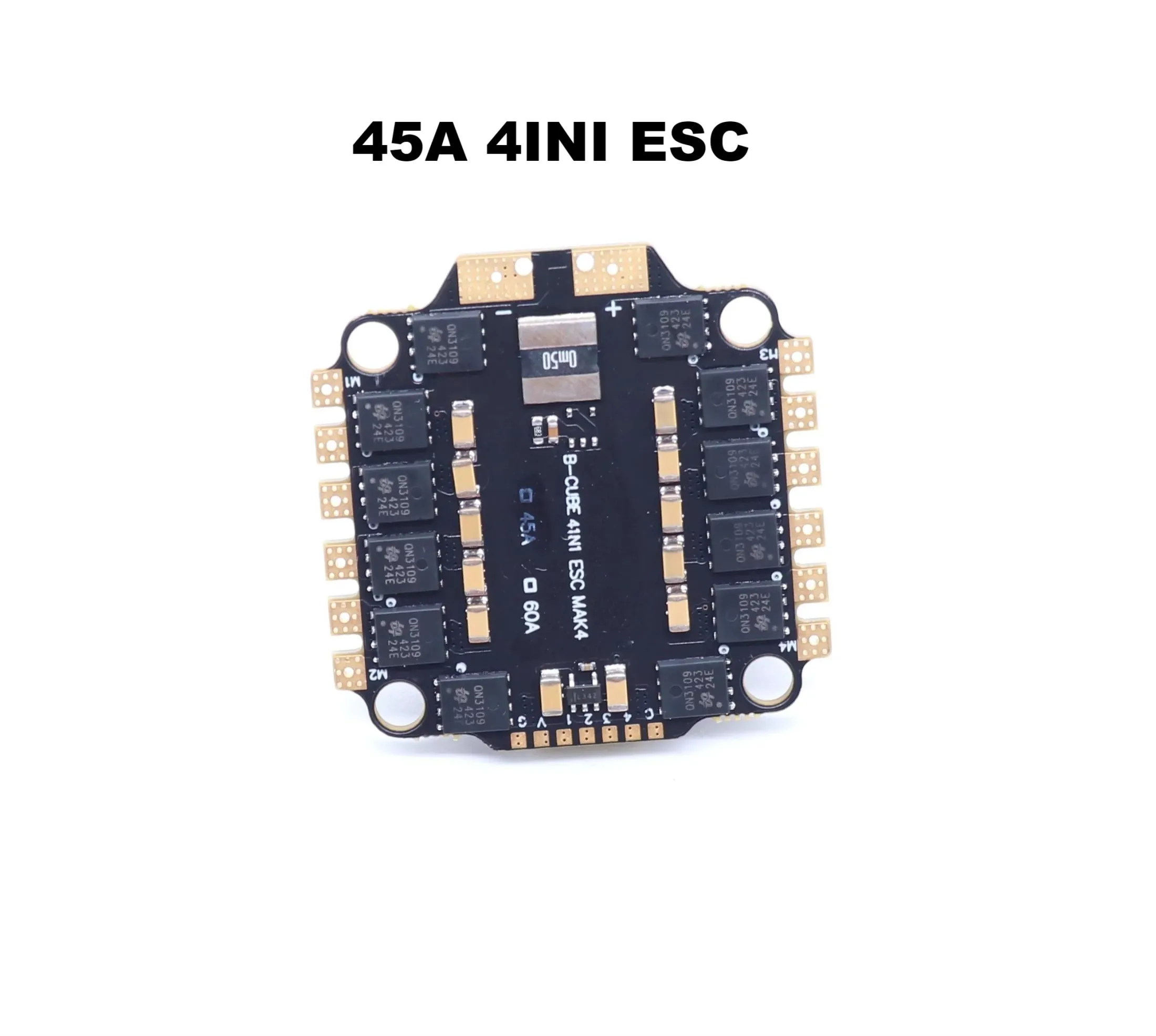

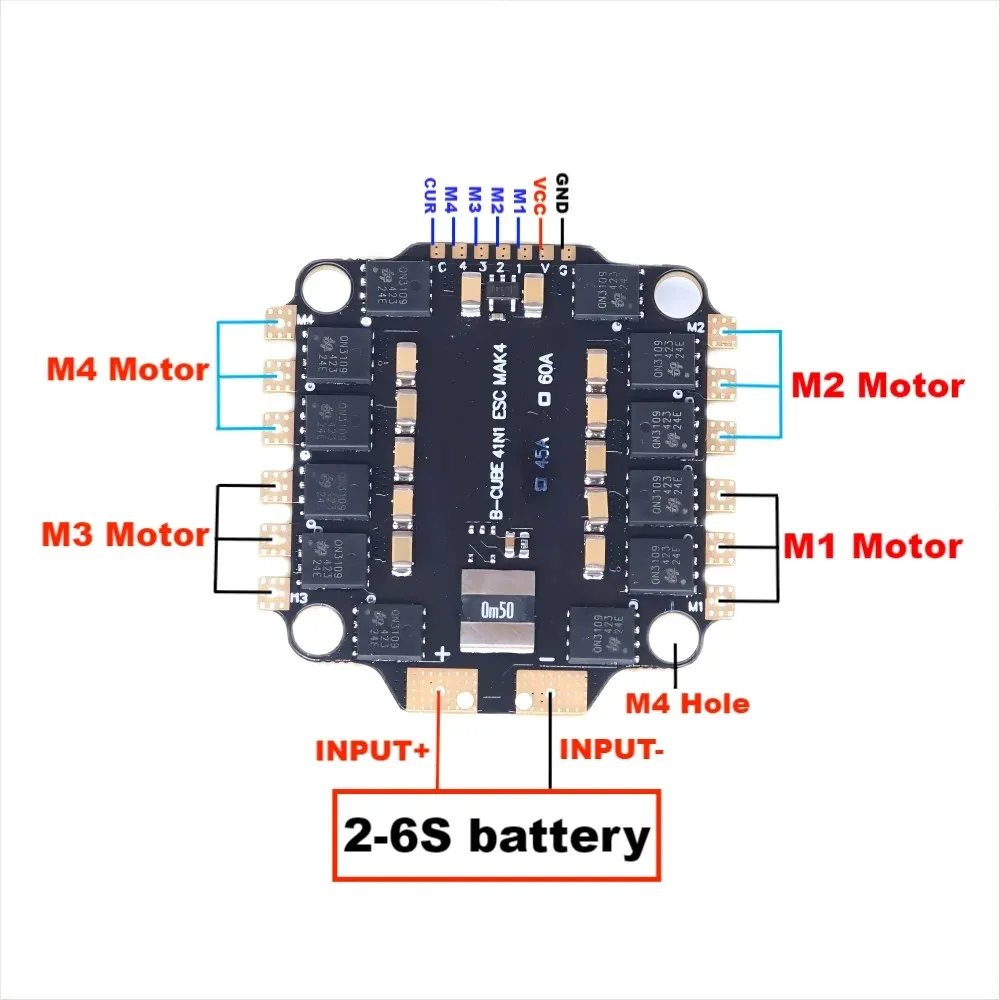

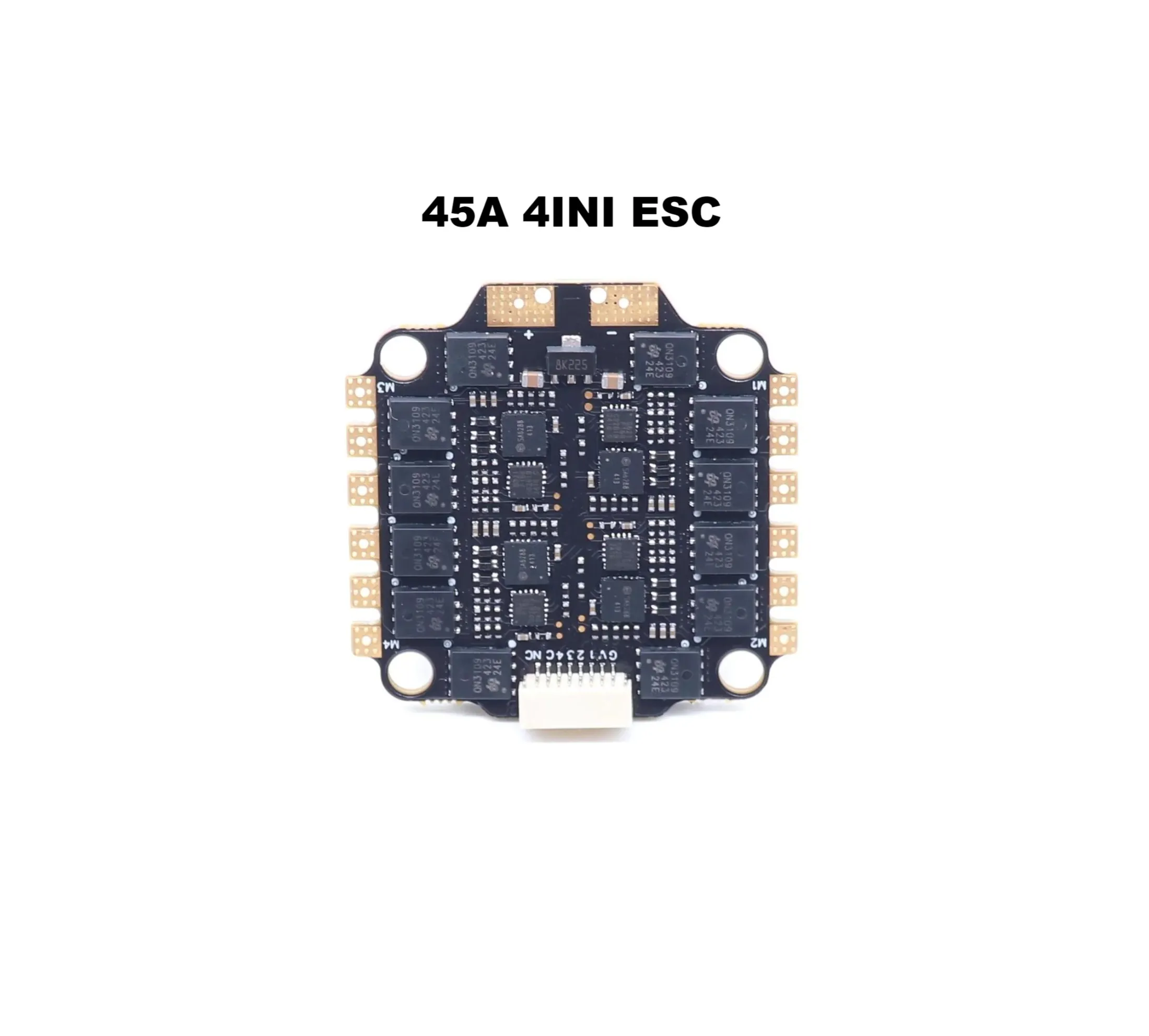

BLHELI_S 45A 4INI 3-6S Brushless ESC

BLHELI_S 45A 4INI 3-6S Brushless ESC

Size: 41*39.5*5mm

Hole distance: 30.5*30.5/5mm

Weight: 13g

Input voltage: LIPO 2-6S

Continuous current: 45A

Maximum current: 50A (10 seconds)

Processor: EFM8BB21F16G

Firmware: BLS J_H_30_REV16_7

Drive signal support: DShot300-600/Multishot/Oneshot/PWM

Current sensor: Support

The ESC has filter capacitors on board to suppress the electromotive power transmission, stabilize the battery voltage and protect the components of ESC vuelo control precision

FVT LITTLEBEE Little bee BLHeli-s20A ESC:

1: initial tension: 2-4 s lipo

2: NO BEC

3: continue current: 20A, burst current: 25A up to 10S

4: size: 23.5 * 12mm.

5: weight: 4g (include power and signal wire)

6: Support Muted mode, Oneshot125, Oneshot42 and Multshot and DSHOT

7: Main IC: SILABS EFM8BB21F16, MCU run 48MHz

8: MOS: Both low and high side fets are Nfets

9: switching speed is very fast, it has dedicated driver chip

10: BLHeli S Bootloader & Firmware

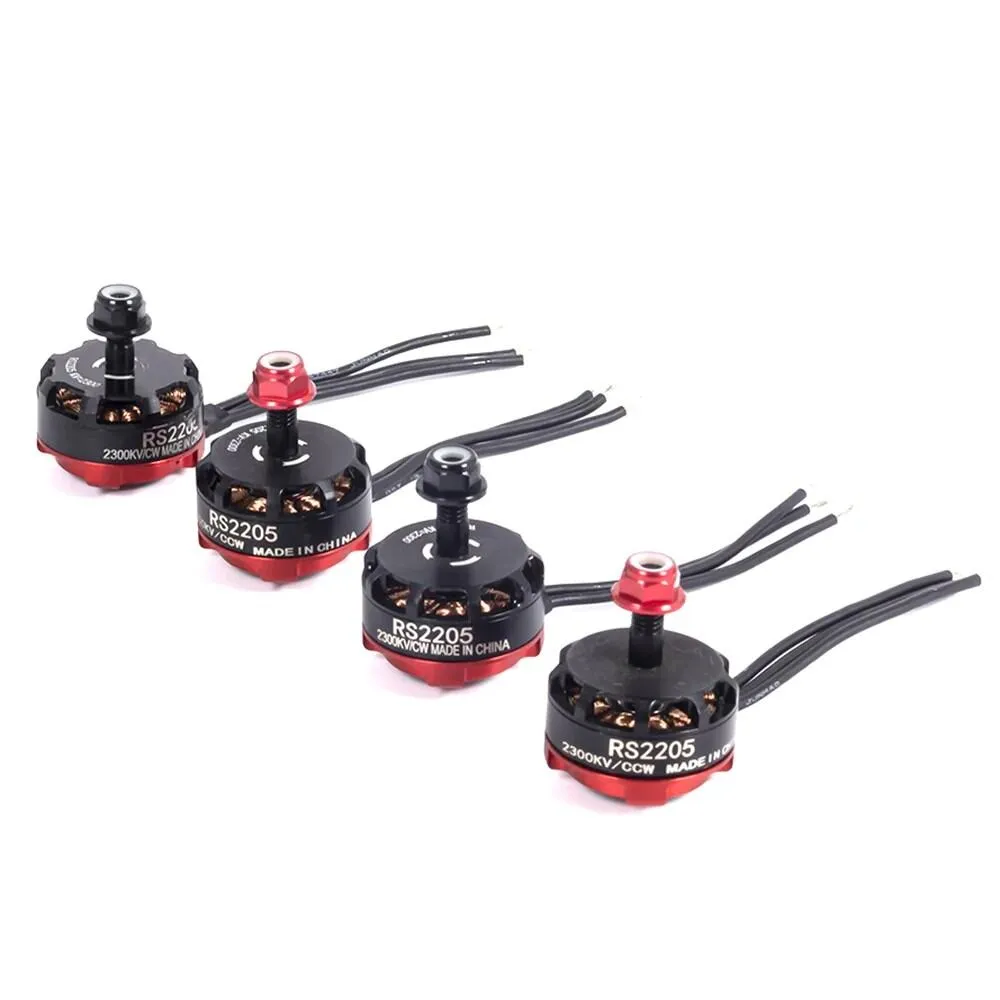

RS2205 2300kv Motor:

Model: RS2205-2300

Framework: 12N14P

No. of Cells: 3 - 4S

Length:31.7mm

Shaft: M5

KV: 2300

Max Thrust: 1024g

Diameter: 27.9mm

Propeller Suggested: HQ 5045 BN

Weight: 30g

Features:

1. Race Spec Performances

2. High Strength N52 Neodyum Magnets

3. Active Cooling Fins Greatly Reduce Motor Temeratures

4. Low CG, Light Weight Design

5. Japanese Bearing For Performances

6. Enchance Anti Off U Ring For Safety & Stablility

7. Dual Lock CW / CCW Locknuts

3-blades 5045 propellers*2
