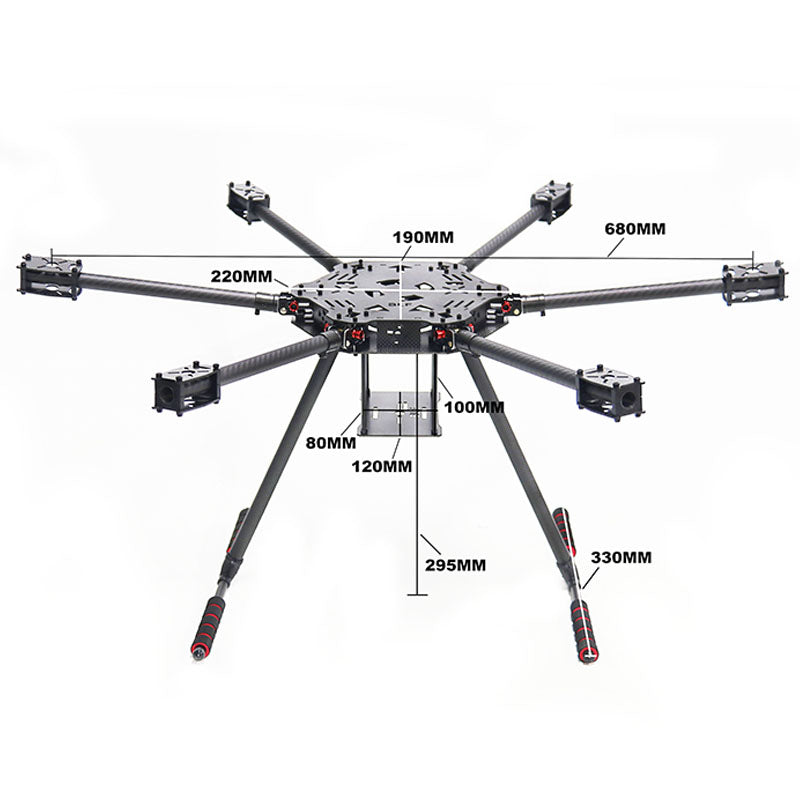

B-CUBE ZD680 6C PRO M10 Full Carbon Fiber Hexa-Rotor Foldable Arm Hexacopter Frame Kit PIXHAWK with Unflodable Landing Gear

B-CUBE ZD680 6C PRO M10 Full Carbon Fiber Hexa-Rotor Foldable Arm Hexacopter Frame Kit PIXHAWK with Unflodable Landing Gear

$448.23 USD

~~$448.23 USD~~ $448.23 USD

Sale Sold out

Color M10 Simple package M10 High package 433MHZ 100MW M10 433MHZ 500MW M10 433MHZ 1000MW M10 915MHZ 100MW M10 915MHZ 500MW M10 915MHZ 1000MW M10

Quantity

PIXHAWK 6C PRO

Build-in Buzzer,Build-in RGB LED,support Independent external Safety Button,With Plastic Case

Technical Specification

Processors & Sensors

FMU Processor: STM32H743

32 Bit Arm® Cortex®-M7, 480MHz, 2MB memory, 1MB SRAM

IO Processor: STM32F103

32 Bit Arm® Cortex®-M3, 72MHz, 64KB SRAM

On-board sensors

Accel/Gyro: ICM-42688-P

Accel/Gyro: BMI055

Mag: IST8310

Barometer: MS5611

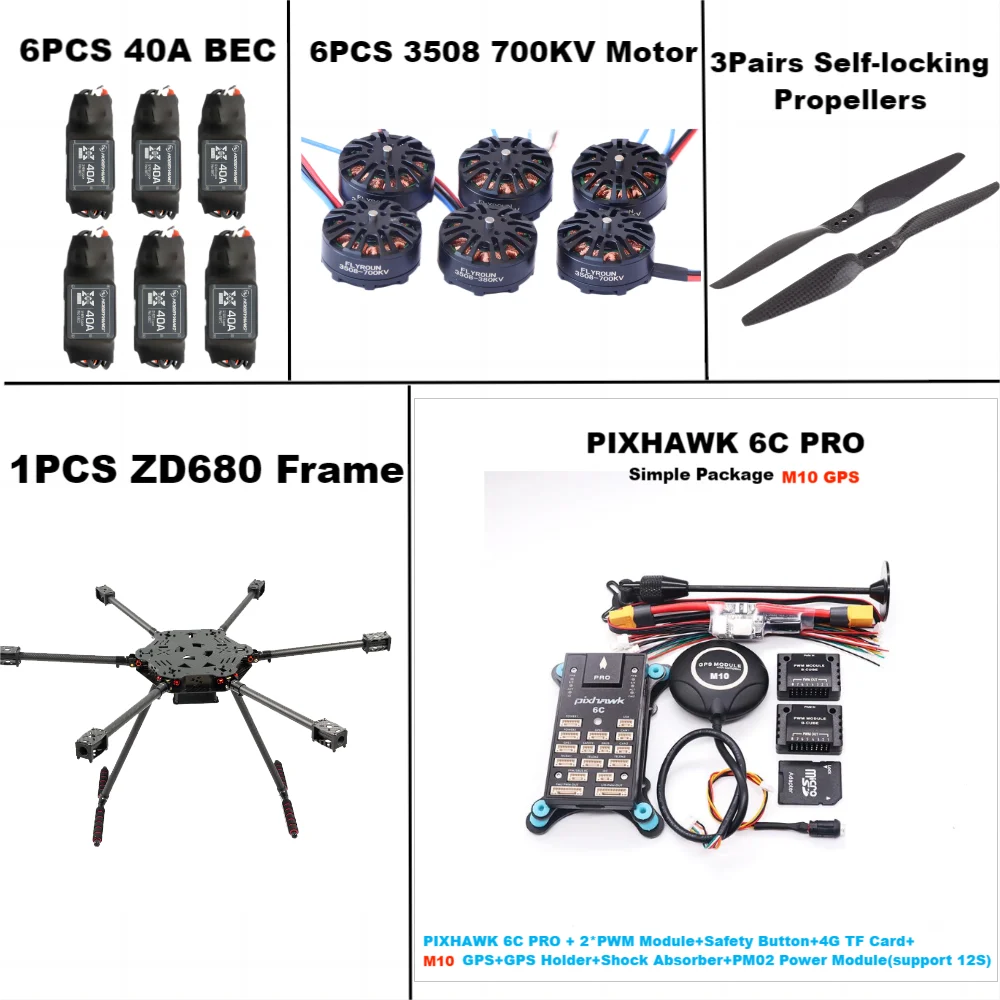

Simple Package:

ZD680 Full Carbon Fiber+ 6 pcs BLHELI 40A Brushless ESC+

3 Pairs 3K Carbon Fiber Propeller 1255 + 6 PCS 3508 700KV Motor +

PIXHAWK 6C PRO+2'PWM Module+Safety Button+4G TF Card+M10 GPS+GPS Holder+Shock Absorber+PM02 Power Module(support 12S

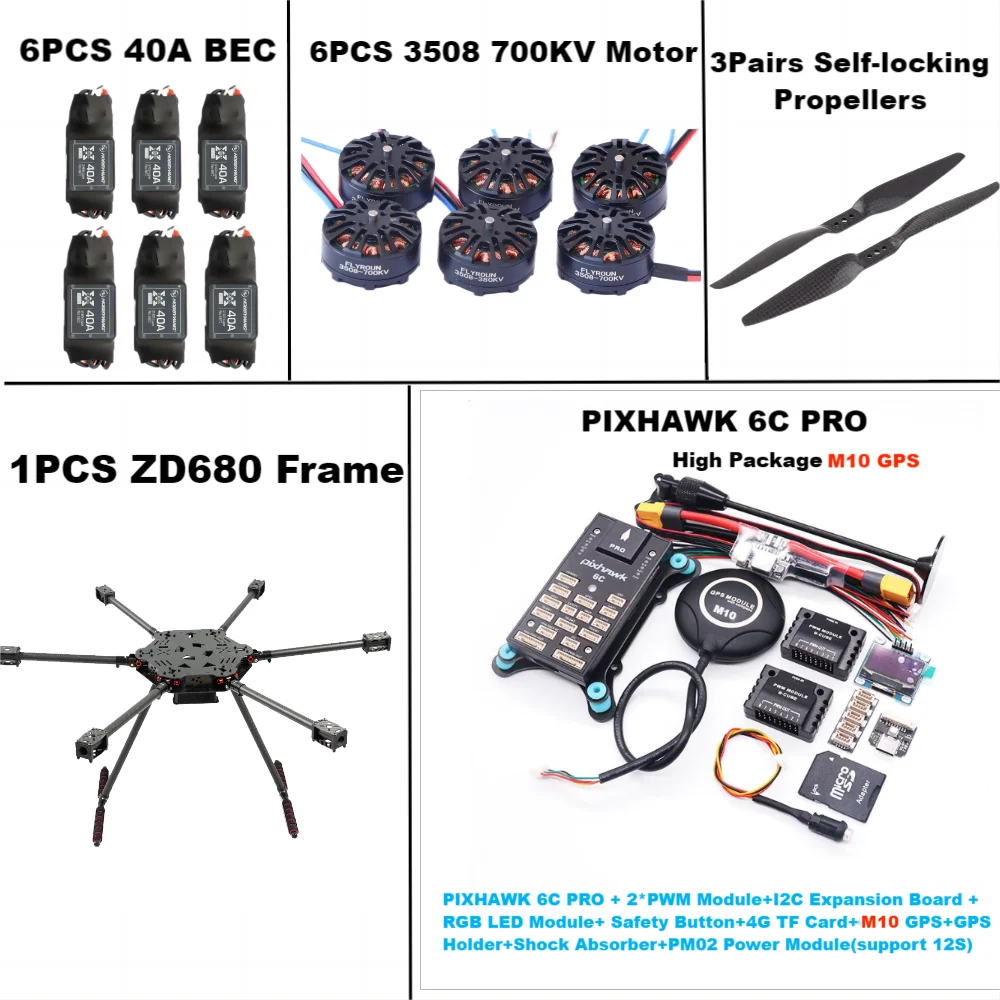

High Package:

ZD680 Full Carbon Fiber+ 6 pcs BLHELI 40A Brushless ESC+

3 Pairs 3K Carbon Fiber Propeller 1255 + 6 PCS 3508 700KV Motor +

PIXHAWK 6C PRO+2*PWM Module+I2C Expansion Board +RGB LED Module+ Safety Button+4G TF Card+M10 GPS+GPS Holder+Shock Absorber+PM02 Power Module(support 12s)

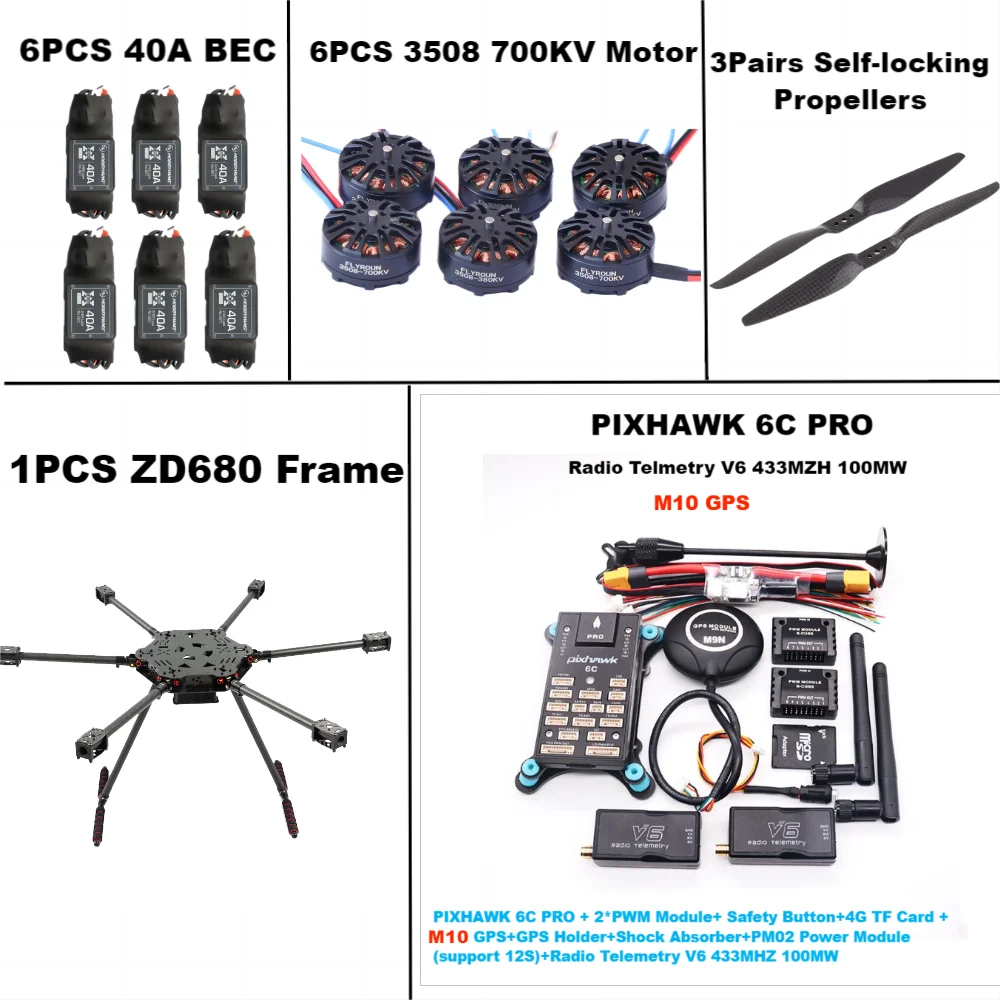

433/915MHZ 100MW :

ZD680 Full Carbon Fiber+ 6 pcs BLHELI 40A Brushless ESC+

3 Pairs 3K Carbon Fiber Propeller 1255 + 6 PCS 3508 700KV Motor +

PIXHAWK 6C PRO+ 2*PWM Module+ Safety Button+4G TF Card M10 GPS+GPS Holder+Shock Absorber+PM02 Power Module (support 12S)+Radio Telemetry V6 433/915MHZ 100MW

433/915MHZ 500MW :

ZD680 Full Carbon Fiber+ 6 pcs BLHELI 40A Brushless ESC+

3 Pairs 3K Carbon Fiber Propeller 1255 + 6 PCS 3508 700KV Motor +

PIXHAWK 6C PRO+ 2*PWM Module+ Safety Button+4G TF Card M10 GPS+GPS Holder+Shock Absorber+PM02 Power Module (support 12S)+Radio Telemetry V6 433/915MHZ 500MW

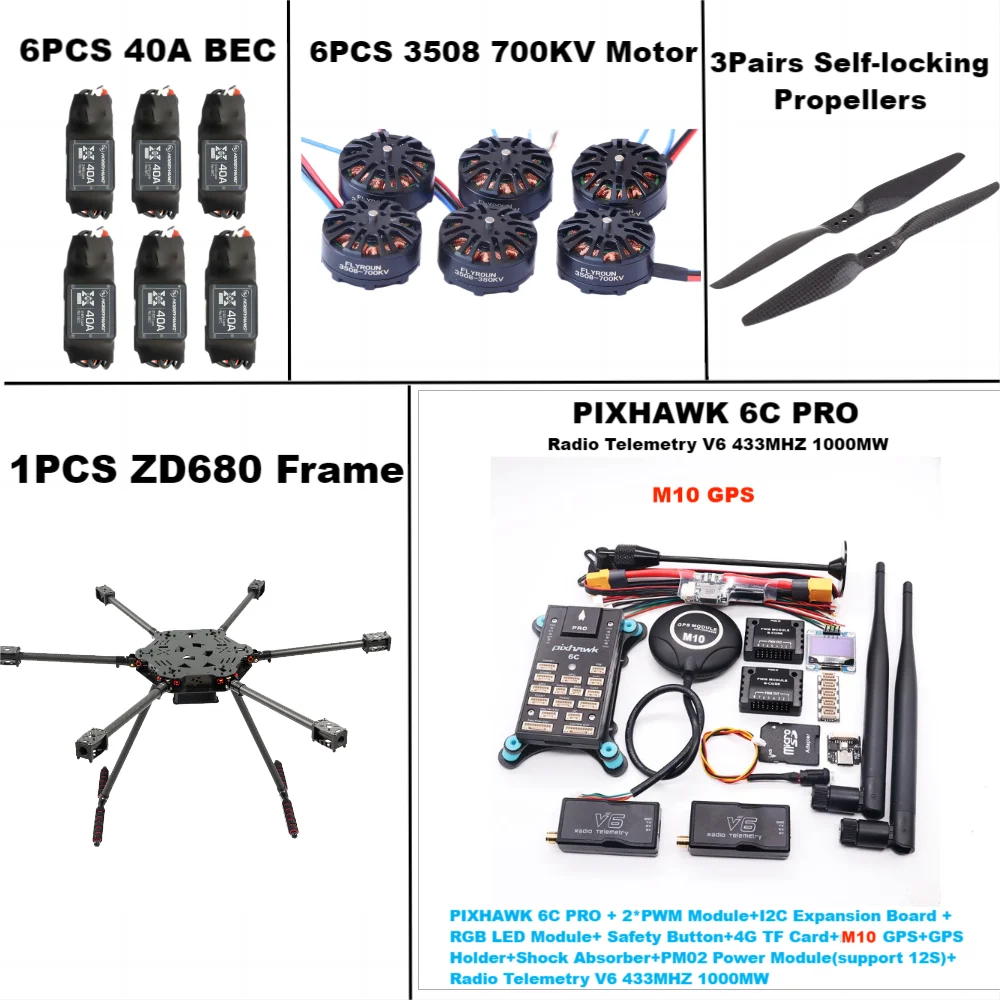

433/915MHZ 1000MW :

ZD680 Full Carbon Fiber+ 6 pcs BLHELI 40A Brushless ESC+

3 Pairs 3K Carbon Fiber Propeller 1255 + 6 PCS 3508 700KV Motor +

PIXHAWK 6C PRO+ 2*PWM Module+ Safety Button+4G TF Card M10 GPS+GPS Holder+Shock Absorber+PM02 Power Module(support 12S)+Radio Telemetry V6 433/915MHZ 1000MW

The M10 GPS uses multi-constellation GNSS powered by u-blox M10 series, a concurrent GNSS receiver which can receive and track multiple GNSS systems. Owing to the multi-band RF front-end architecture all four major GNSS constellations, GPS,Galileo, GLONASS and BeiDou can be received concurrently.

It also comes with the IST8310 compass.This module ships with a baud rate of 115200 5Hz.

The high-gain 25 x 25 mm patch antenna provides excellent performance and the omnidirectional antenna radiation pattern increases flexibility for device installation. It features active circuitry for the ceramic patch antenna, rechargeable backup battery for warm starts.

Firmware Support for M10 GPS:

PX4 1.14, ArduPilot 4.3, or newer is required.

Specification

	M10 GPS	M9N GPS
GNSS Receiver	Ublox M10	Ublox M9N
Number of Concurrent GNSS	Up to 4 GNSS	Up to 4 GNSS
	BeiDou	BeiDou
	Galileo	Galileo
	GLONASS	GLONASS
	GPS	GPS
	QZSS	QZSS
Frequency Band	GPS L1	GPS L1
	Galileo E1	Galileo E1
	GLONASS L1	GLONASS L1
	BeiDou B1	BeiDou B1
	SBAS L1	SBAS L1
	QZSS L1	QZSS L1
Compass	IST8310	IST8310
Output Protocol	UBX (U-blox)	UBX (U-blox)
Output Protocol	NMEA	NMEA
Accuracy	2.0m CEP	1.5m CEP
Nav. Update Rate	Up to 25 Hz (single GNSS),	Up to 25 Hz (4 concerrent GNSS)
Nav. Update Rate	Up to 10 Hz (4 concurrent GNSS)	Up to 25 Hz (4 concerrent GNSS)
GNSS Augmentation System	EGNOS, GAGAN, MSAS and WAAS	EGNOS, GAGAN, MSAS and WAAS
GNSS Augmentation System	QZSS: L1S	QZSS: L1S
Default Baud Rate	115200	115200
Input Voltage	4.7-5.2V	4.7-5.2V
Port Type	JST-GH-6P	JST-GH-6P
Antenna	25 x 25 x 4 mm ceramic patch antenna	25 x 25 x 4 mm ceramic patch antenna
Power consumption	Less than 200mA @ 5V	Less than 200mA @ 5V
Operating Temperature	-40~80C	-40~80C
Dimension	φ50 x14.4 mm	φ50 x14.4 mm
Weight	32g	32g
Cable Length	26cm (42cm cable purchase separately)	26cm (42cm cable purchase separately)

3508 700KV Motor

Cable Lengt

Radio telemetry can be used for wireless communication between pixhawk and computer or mobile phone.

Features:

- Using Multicopter special program, fast throttle response,surpasses all kinds of open source software;

- Firmware was optimized specifically for disc motor, and it has a very good compatibility;

- Highly intelligent, strong adaptive capacity, reserve the timing setting item (height/middle timing), easy to use;

- Throttle signal line is twisted wire to reduce crosstalk within the transmission signal generated by the copper, so that more stable flight;

- Supports refresh rates up to 621Hz throttle signal, compatible with various flight controllers. (Note: the throttle signal over 500Hz are all non-standard throttle signal);

- Using MOSFET special driver IC, its performance and stability far surpass the driving circuit with discrete components built;

- Ultra-low resistance MOSFET, strong flow capacity.

3 Pairs T-Motor 3K Carbon Fiber Propeller 1255
