B-CUBE Storm32 BGC 32Bit 3-Axis Brushless Gimbal Controller V1.32 DRV8313 Motor Driver for RC Drone Aircraft Model

Storm32 BGC

- Processor: STM32F103RC at 72Mhz
- Motor driver: DRV8313 with short circuit, overheat protection
- Onboard gyro and acceleration sensor MPU6050
- IR LED Interface
- Futaba S-BUS
- Spektrum satellite port
- 7CH PWM/Sum-PPM input/output
- Each axis could connect analog joystick
- With I2C port, could use external 6050 to replace onboard sensor
- 3* AUX port

Specifications:

- Hardware : Storm32BGC

- Hardware Version: V1.32

- Firmware: o323bgc-release-v096
- Power supply: 9-18V(3-4S)
- Drive current: Max.1.5A
- Dimension: 5-5cm, M3 screw hole, 45mm pitch
- Weight: 10g





package including:

• 1 x  Strom32 3-Axis gimbal controller DRV8313 Driver

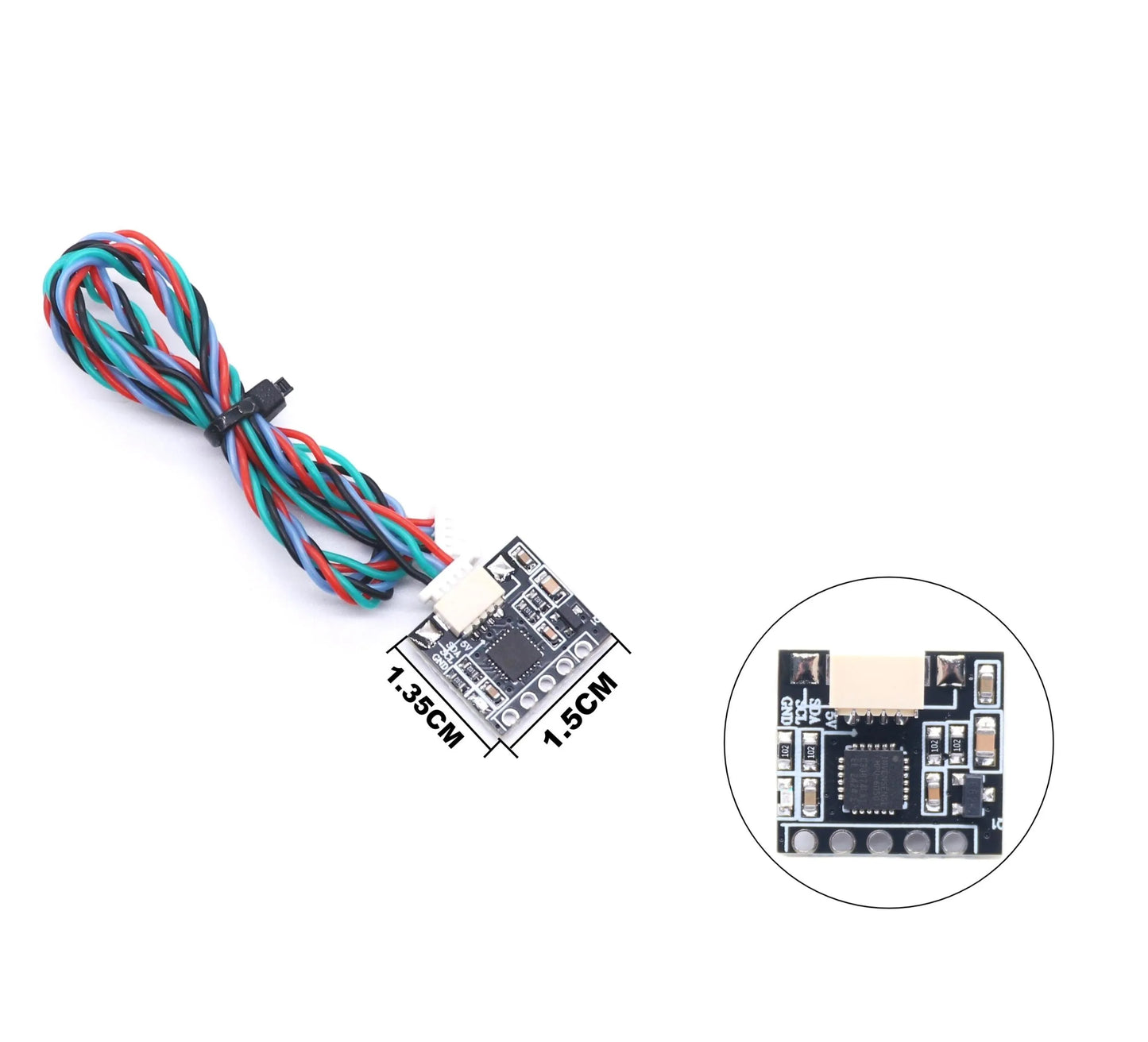

  1 x  Sensor



Software:

Download the GUI software from here,

https://github.com/olliw42/storm32bgc/blob/master/firmware%20binaries%20%26%20gui/o323bgc-release-v096-v20160319.zip



How to install:

1. Remove vibration ball, open at the mounting plate.

2. Lock mounting plate with screws at the bottom of the craft.

3. Install the shock absorber ball.

4. Install the camerawith a belt style compact camera.



Note:

Install the camera (be sure to install the camera properly, otherwise it will shake), power on the gimbal and stabilize it for above 30 seconds ,do not shake the gimbal, keep it hanging,do not touch the camera with hands, keep it suspended. After hearing the sound, it can be used normally.

More information please read here, https://blog.rctoysky.com/?p=831
