B-CUBE 550 Hexa Frame PIXHAWK2.4.8 M8N Flight Control Carbon Ardupilot Radio Telemetry Quadcopter BLHELI 40A 3508 380KV Motor ESC

B-CUBE 550 Hexa Frame PIXHAWK2.4.8 M8N Flight Control Carbon Ardupilot Radio Telemetry Quadcopter BLHELI 40A 3508 380KV Motor ESC

$435.61 USD
$435.61 USD $435.61 USD
Sale Sold out
Color

Pixhawk PX4 Autopilot PIX 2.4.8 32 Bit Flight Controller

Features:
Pixhawk 2.4.8 support the latest official ardupilot firmware and PX4 firmware.
1. The advanced 32-bit ARM CortexM4 high-performance processors STM32F427VIT6(2MB flash), can run NuttX CHIBOS RTOS real-time operating system;
2. 14 PWM / servo output;
3. Bus interface (UART, I2C, SPI, CAN);
4. The integrated backup power and backup controller fails, the primary controller fails over to the backup control is safe;
5. Provide automatic and manual modes;
6. Provide redundant power input and failover;
7. Multicolor LED lights;
8. Provide multi-tone buzzer Interface
9. Micro SD recording flight data;

Specifications:
Interface
1 .5 high voltage compatible UART 1, 2 with hardware flow control
2. 2 CAN
3.Spektrum DSM / DSM2 / DSM-X satellite receiver compatible input
4.Futaba SBUS compatible inputs and outputs
5.PPM Signal Input
6.RSSI (PWM or voltage) Input
7.I2C
8.SPI
9.3.3 and 6.6VADC input
10. External MICRO USB Interface

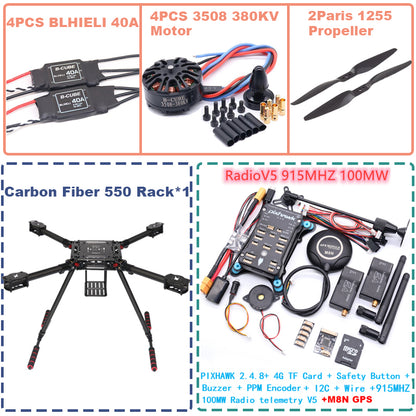

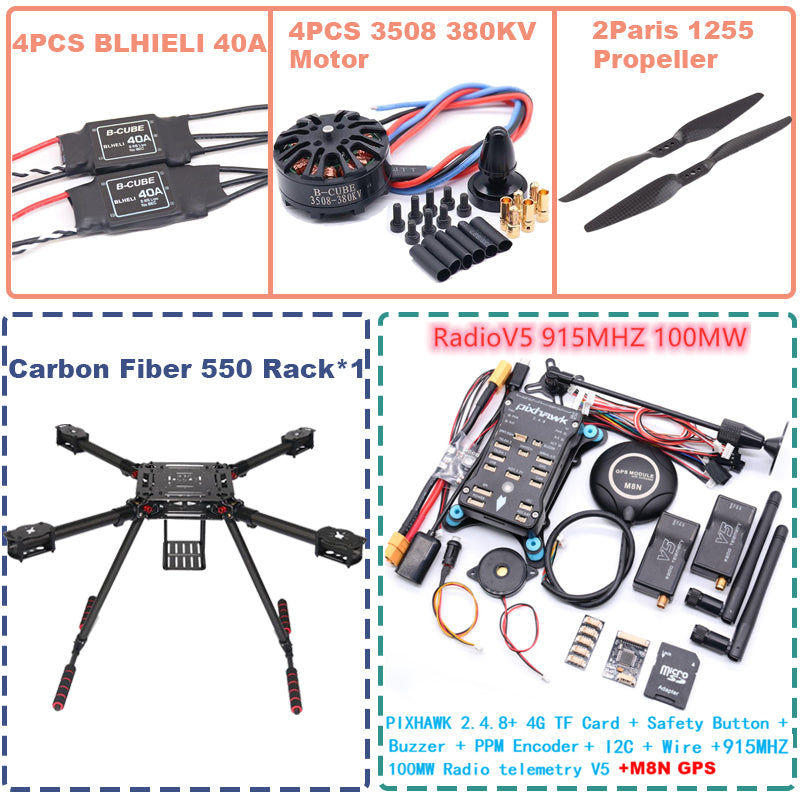

433/915MHZ 100MW  V5:

F550+4 PCS BLHELI 40A +2 pairs self-locking 1255 Propellers +4 PCS 3580 380KV motor

PIXHAWK 2.4.8 + 4G TF Card + Safety Button+ Buzzer + PPM Encoder + 12C + Wire + 433/915MHZ 100MW Radio telemetry V5 + M8N GPS

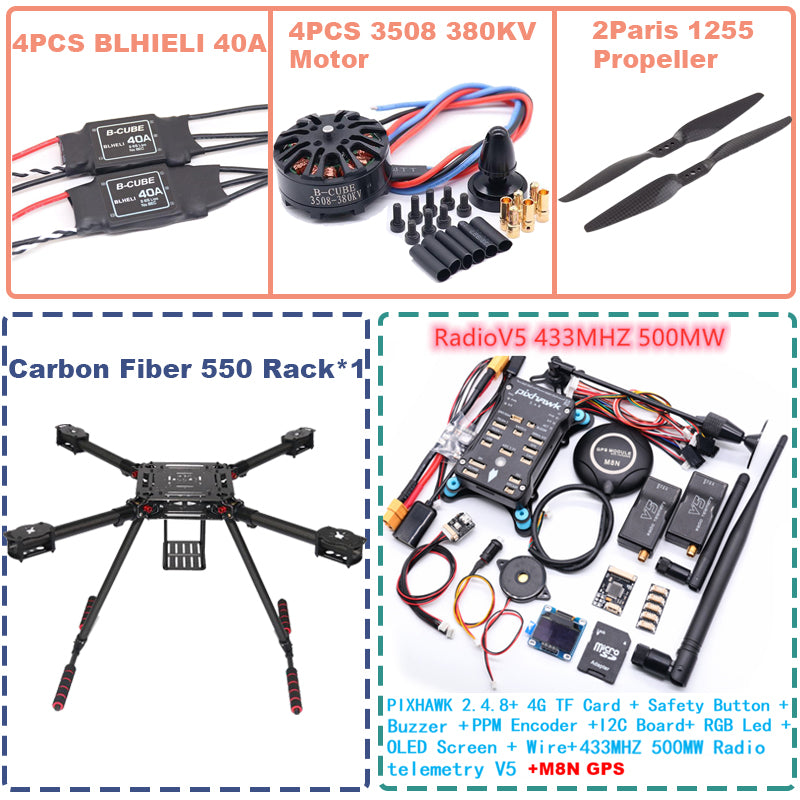

433/915MHZ 500MW  V5:

F550+4 PCS BLHELI 40A +2 pairs self-locking 1255 Propellers +4 PCS 3580 380KV motor

PIXHAWK2.4.8 + 4G TF Card + Safety Button + Buzzer + PPM Encoder  + I2C Board + RGB Led + OLED Screen + Wire+ 433/915MHZ 500MW Radio telemetry V5 +M8N GPS

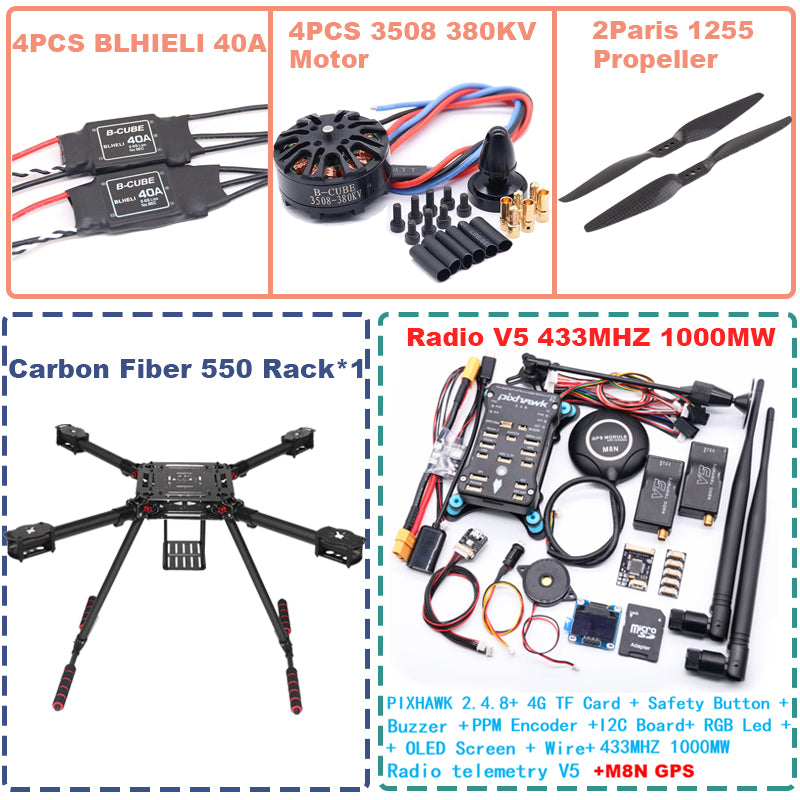

433/915MHZ 1000MW  V5:

F550+4 PCS BLHELI 40A +2 pairs self-locking 1255 Propellers +4 PCS 3580 380KV motor

PIXHAWK 2.4.8+ 4G TFCard+Safety Button+Buzzer+PPM Encoder +I2C Board+ RGBLed+0LED Screen+Wire+433/915MHZ 1000MW Radiotelemetry V5 +M8N GPS

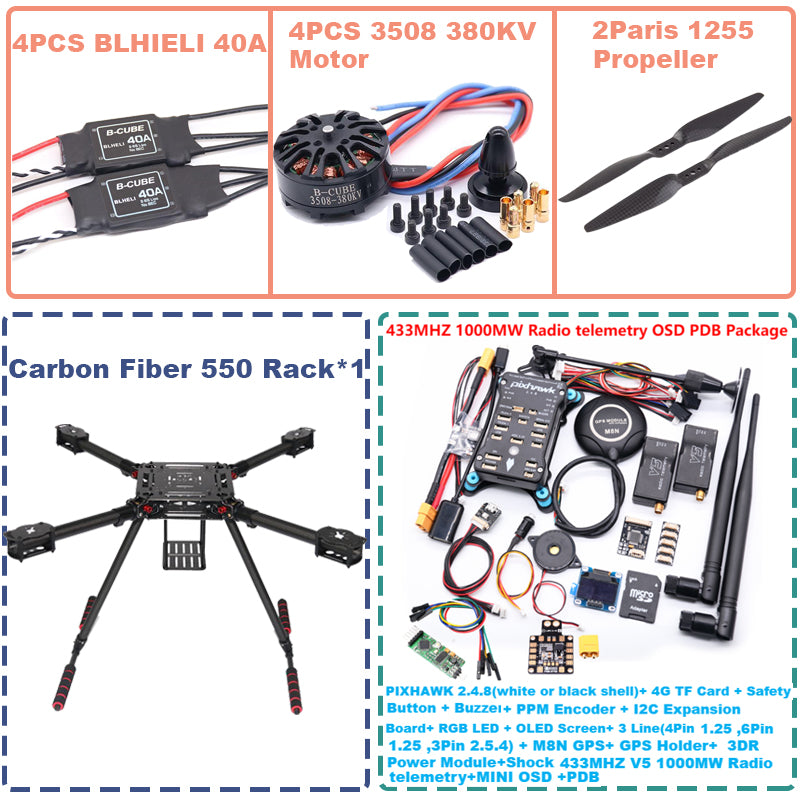

433MHZV5 1000MW OSD:

F550+4 PCS BLHELI 40A +2 pairs self-locking 1255 Propellers +4 PCS 3580 380KV motor

PIXHAWK 2.4.8(white or black shell)+ 4G TF Card + Safety Button + Buzzer + PPM Encoder + I2C Expansion Board+ RGB LED + OLED Screen+ 3 Line(4Pin 1.25 ,6Pin 1.25 ,3Pin 2.5.4) + M8N GPS+ GPS Holder+  3DR Power Module+Shock Absorber+433MHZ V5 1000MW Radio telemetry+MINI OSD +PDB

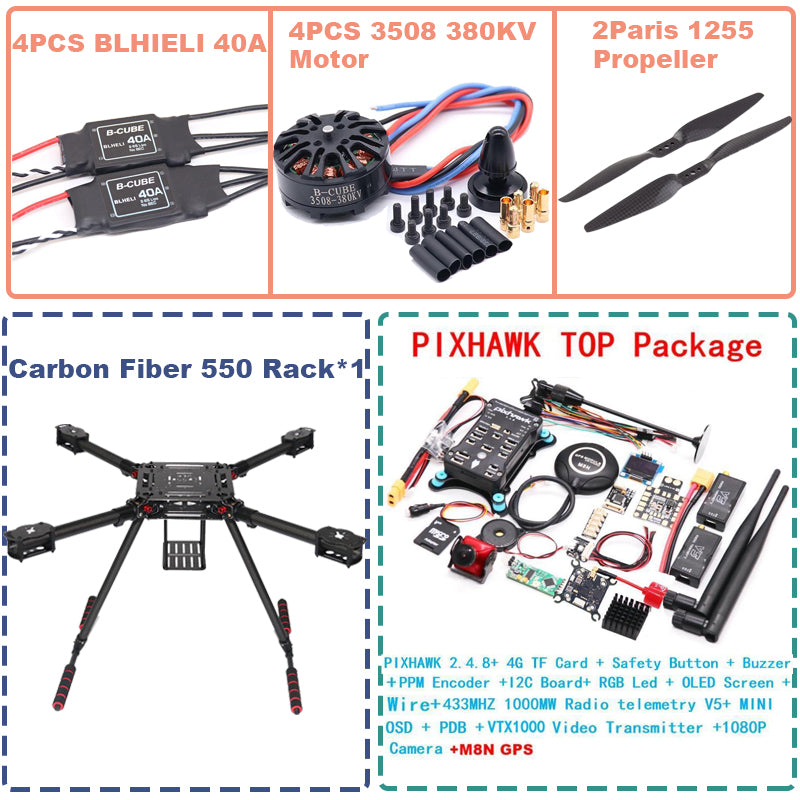

TOP Package:

F550+4 PCS BLHELI 40A +2 pairs self-locking 1255 Propellers +4 PCS 3580 380KV motor

P1XHAWK 2.4.8+4G TF Card+Safety Button+Buzzer+PPMEncoder+I2C Board+ RGBLed+0LED Screen+Wire+433MHZ 1000MW Radiotelemetry V5+MIN10SD+PDB +VTX1000 VideoTransmitter+1080P Camera+M8N GPS

metry

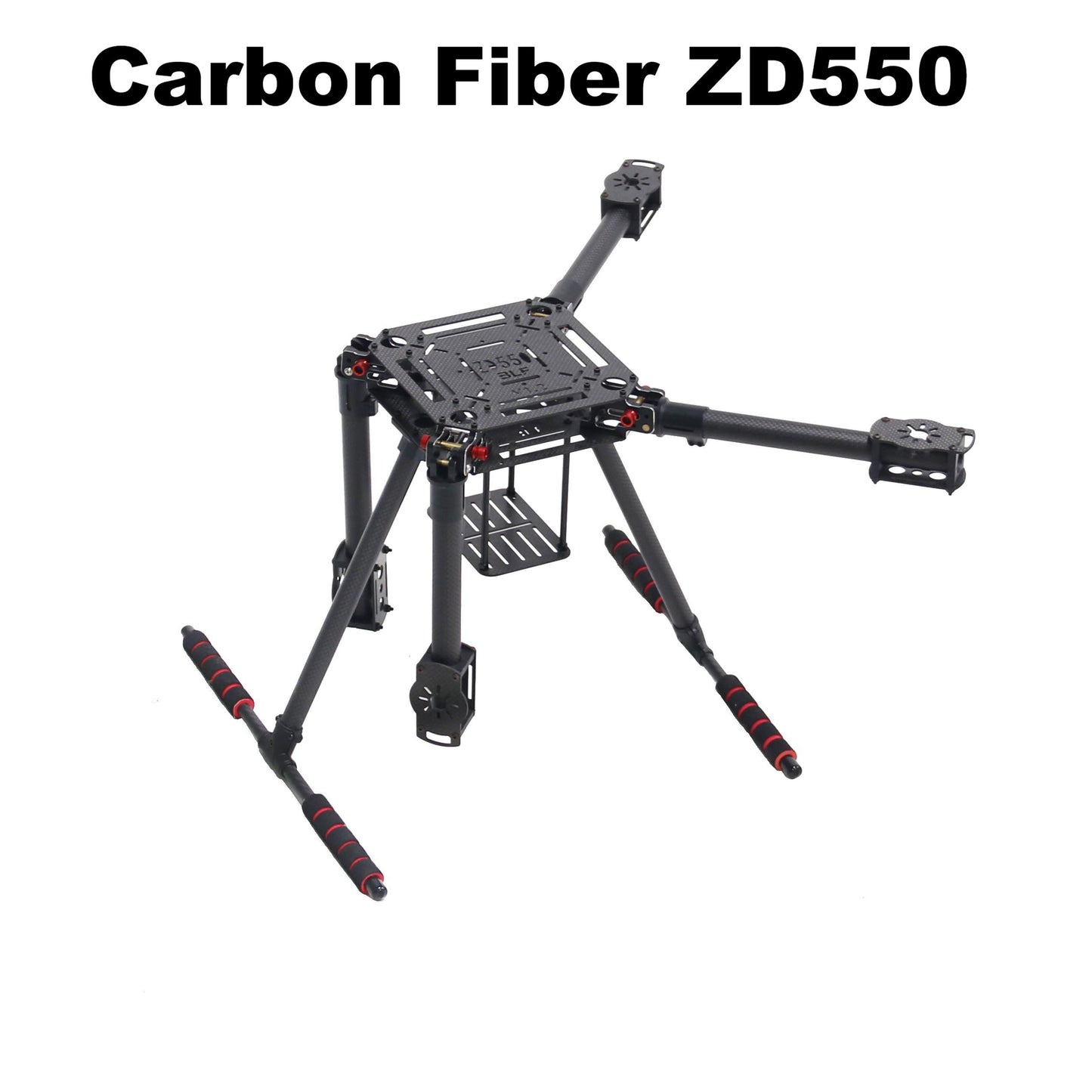

Carbon Fiber 550Frame*1

4PCS BLHELI 40A

Features:


- Using Multicopter special program, fast throttle response,surpasses all kinds of open source software;
- Firmware was optimized specifically for disc motor, and it has a very good compatibility;
- Highly intelligent, strong adaptive capacity, reserve the timing setting item (height/middle timing), easy to use;
- Throttle signal line is twisted wire to reduce crosstalk within the transmission signal generated by the copper, so that more stable flight;
- Supports refresh rates up to 621Hz throttle signal, compatible with various flight controllers. (Note: the throttle signal over 500Hz are all non-standard throttle signal);
- Using MOSFET special driver IC, its performance and stability far surpass the driving circuit with discrete components built;
- Ultra-low resistance MOSFET, strong flow capacity.

Brand:B-CUBE

Color Classification: Black
Motor Technical Parameters:

KV Value: KV380

Model: MX3508

Motor Diameter: 42mm

Motor Length (No Shaft): 24mm

Stator Diameter: 35mm

Stator Length: 8mm

Shaft Diameter: 4mm

Weight: 90g

Recommended Battery: 3-6 Cells

Idle Current: 0.3A

Top Mounting Hole: 12mm x 12mm

Bottom Mounting Hole: 25mm x 25mm

Suitable for:

Quadcopters

Hexacopters

Octocopters

Agricultural drones (plant protection machines)

Regarding Dynamic Balance:

We will test each motor before shipping to ensure it meets our factory standards. So, you don't need to worry about dynamic balance.

Note: No 3-socket pad is provided. Please refer to the diagram for specific components.

MX3508 Motor Features:

Flat design

Multiple slot extreme outer brushless motor

High torque and efficiency

Competitive price

Compatible with most market-leading drone frames (with multiple mounting holes)

Aesthetically pleasing design

Propeller Installation:

We use a hub-less propeller installation method, which provides more stability. The carbon propellers are installed without using propeller clamps, ensuring better protection and preventing damage.

Motor Dynamic Test Results:

Our motors have been tested by multiple professional drone photographers and videographers, and they all received excellent feedback.

M8N GPS:

2Paris 1255 Propeller

Radio telemetry V5
