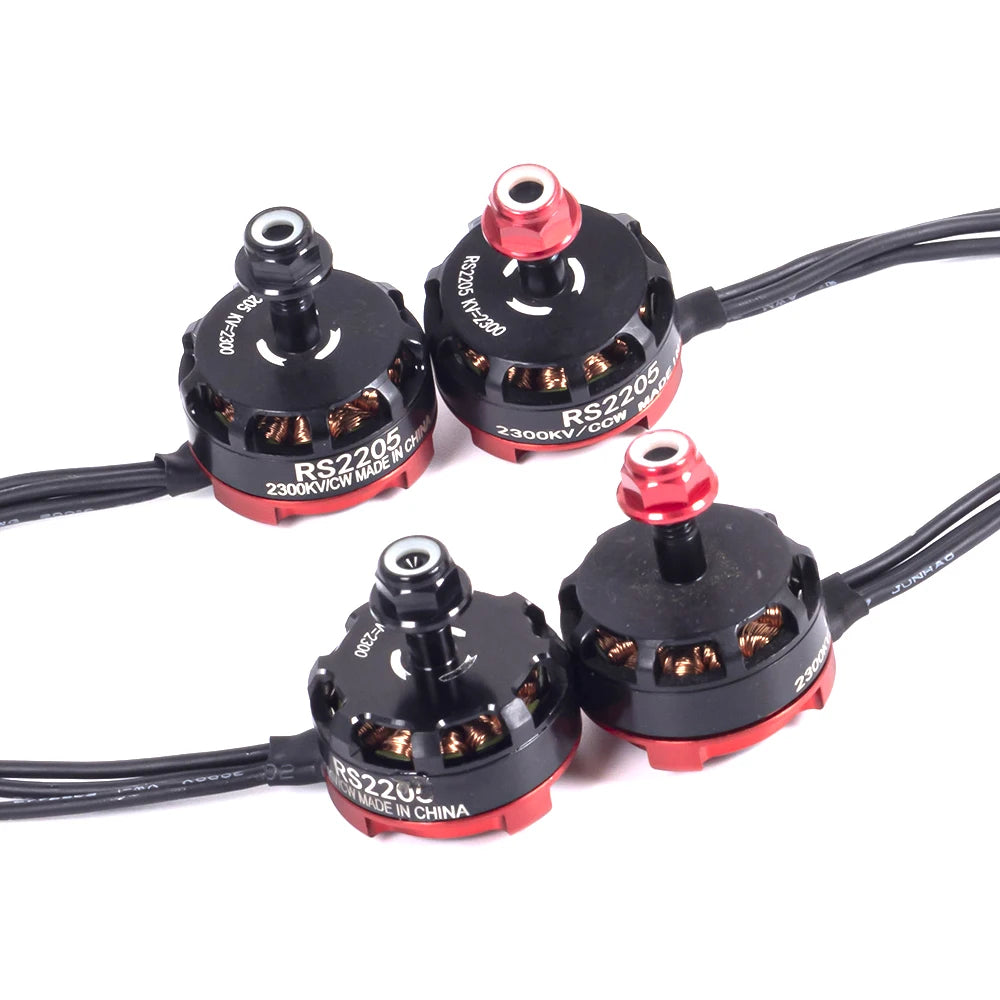

Model: RS2205-2300
Framework: 12N14P
No. of Cells: 3 - 4S
Length:31.7mm
Shaft: M5
KV: 2300
Max Thrust: 1024g
Diameter: 27.9mm
Propeller Suggested: HQ 5045 BN
Weight: 30g

Features:
1. Race Spec Performances
2. High Strength N52 Neodyum Magnets
3. Active Cooling Fins Greatly Reduce Motor Temeratures
4. Low CG, Light Weight Design
5. Japanese Bearing For Performances
6. Enchance Anti Off U Ring For Safety & Stablility
7. Dual Lock CW / CCW Locknuts

AM32-45A ESC Hardware:

ESC Firmware: AM32_NEUTRON_G071_1.91.hex

Processor: 32-bit ARM Cortex STM32G071GBU6TR, frequency up to 64 MHz

PWM carrier frequency: 48kHz

ESC protocol: PWM/DShot300/DShot600 (Recommended to use DShot300)

Power input support: 3-6S (11.1V-27V)

Maximum continuous operating current: 45A (requires adequate heat dissipation and cannot operate in a sealed environment)

MOSFET Parameters: 40V 0.75mΩ Ultra-Low On-Resistance

Galvanometer output: 12.75 mV/A

Weight: 3.2g（Not include Line),6.6g(include Line)

Board size: 35MM * 18MM

Recommended Usage Scenario: 3.5-10 inch FPV Racing Drone

AM32-MultiRotor-ESC Firmware

Firmware for ARM based speed controllers The AM32 firmware is designed for STM32 ARM processors to control a brushless motor (BLDC). The firmware is intended to be safe and fast with smooth fast startups and linear throttle. It is meant for use with multiple vehicle types and a flight controller. The firmware can also be built with support for crawlers. For crawler usage please read this wiki page Crawler Hardware

Features

AM32 has the following features:

Firmware upgradable via betaflight passthrough, single wire serial or arduino

Servo PWM, Dshot(300, 600) motor protocol support,Recommended to use Dshot300

Bi-directional Dshot

KISS standard ESC telemetry

Variable PWM frequency

Sinusoidal startup mode, which is designed to get larger motors up to speed
