B-CUBE Fiber 550 Hexa Frame Kit PIXHAWK2.4.8 Flight Control Ardupilot 1000MW V5 Radio Telemetry Quadcopter BLHELI 30A 2212 Motor ESC

B-CUBE Fiber 550 Hexa Frame Kit PIXHAWK2.4.8 Flight Control Ardupilot 1000MW V5 Radio Telemetry Quadcopter BLHELI 30A 2212 Motor ESC

$430.34 USD
$430.34 USD $430.34 USD
Sale Sold out
Color

Pixhawk 2.4.8 support the latest official ardupilot firmware and PX4 firmware.

1. The advanced 32-bit ARM CortexM4 high-performance processors(2MB flash), can run NuttX RTOS real-time operating system;

2. 14 PWM / servo output;

3. Bus interface (UART, I2C, SPI, CAN);

4. The integrated backup power and backup controller fails, the primary controller fails over to the backup control is safe;

5. Provide automatic and manual modes;

6. Provide redundant power input and failover;

7. Multicolor LED lights;

8. Provide multi-tone buzzer Interface

9. Micro SD recording flight data;

Specifications:

Interface

1 .5 high voltage compatible UART 1, 2 with hardware flow control

2. 2 CAN

3.Spektrum DSM / DSM2 / DSM-X satellite receiver compatible input

4.Futaba SBUS compatible inputs and outputs

5.PPM Signal Input

6.RSSI (PWM or voltage) Input

7.I2C

8.SPI

9.3.3 and 6.6VADC input

10. External MICRO USB Interface



TOP Package:

F550+6 PCS BLHELI 30A +6 pairs self-locking1045 Propellers +4 PCS 2212920KVmotor

PIXHAWK TOP package:PIXHAWK 2.4.8(white or black shell)+ 4G TF Card + Safety Button + Buzzer + PPM Encoder +OLED Module+RGB LED+I2C Expansion Board+ 3 Line(4Pin 1.25 ,6Pin 1.25 ,3Pin 2.5.4) + M8N GPS+ GPS Holder+  3DR Power Module+ Shock Absorber +
433MHZ1000MW 3DR Radio Telemetry V5+ MINIOSD + PDB +VTX5848 +1080P Camera





F550 Hexa Frame Drone


BLHELI ESC:

A.Features

A1: Use authentic electronic components to ensure high quality and enhance the current endurance ability of the ESC.

A2: Based on BLHeli firmware, optimized for high performance with great linearity and much quicker throttle response.

A3: Special designed for multirotors, and compatible with fixed-wing aircrafts and helicopters.

A4: Multiple protection features including Low-voltage cut-off protection / over-heat protection / throttle signal loss protection.

A5: Throttle range can be configured and is fully compatible with all receivers, providing smooth, linear and precise throttle response. A6: All parameters can be programmed via using a transmitter, including default settings.

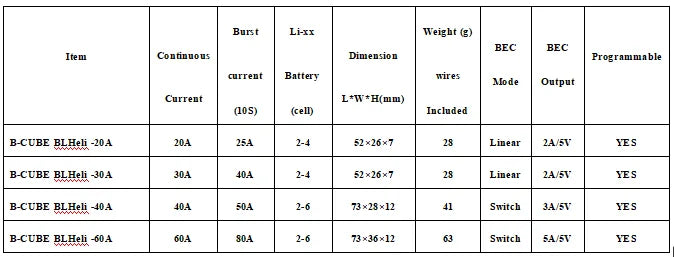

B. Productspecification


2212 920KV Motor

1045 Propellers





Radio telemetry can be used for wireless communication between pixhawk and computer or mobile phone.


Radio telemetry V1
WIFI V1.0 and V2.0 use 8bit CPU, only support UDP
WIFI V3.0 use 32 BIT CPU, support TCP and UDP.
WIFI V2.0 and V3.0 use external antenna (5DB)
OLED Module can display some message.
MINI OSD
PDB:

VTX1000 is video transmitter,support 25MW-600MW,48 channel (with heat sink abd 3DB antenna )

Description:
Model: MINI MS-1672 FPV cameras
Sensor: 1/1/8 "CMOS D1080H
Horizontal resolution: 2000TVL
Horizontal field of view: 165
Lens: 2.1mm lens
Video format: NTC&PAL (adjustable)
Image scale: 4:3&16:9 (automatic recognition)
Wide Dynamic Range: Super WDR
Noise reduction: 3DNR
Low illumination: 0.001LUX
Video output: CVBS
Day and night: external/internal/black and white/color
Language: (English/Chinese/Traditional Chinese/pyccnna)
ESOABIK/TTASSNO/FRABCAUS/
POSDIM/PORTUGUES/Japanese
Electronic Shutter: PAL: 1/50-100000NTSC: 1/60-100000
Wide voltage input: 5-36V
Working temperature: -20-60
Weight: 110g
Dimensions: 19 19 19mm
Resolution: 960 * 1080

Feature:
Upgraded Mista 2000TVL 2.1mm Wide Angle HD 1080P CCD PAL/NTSC Switchable 16:9 OSD FPV Camera.

Package included:
1 x Upgraded Mista FPV Camera
