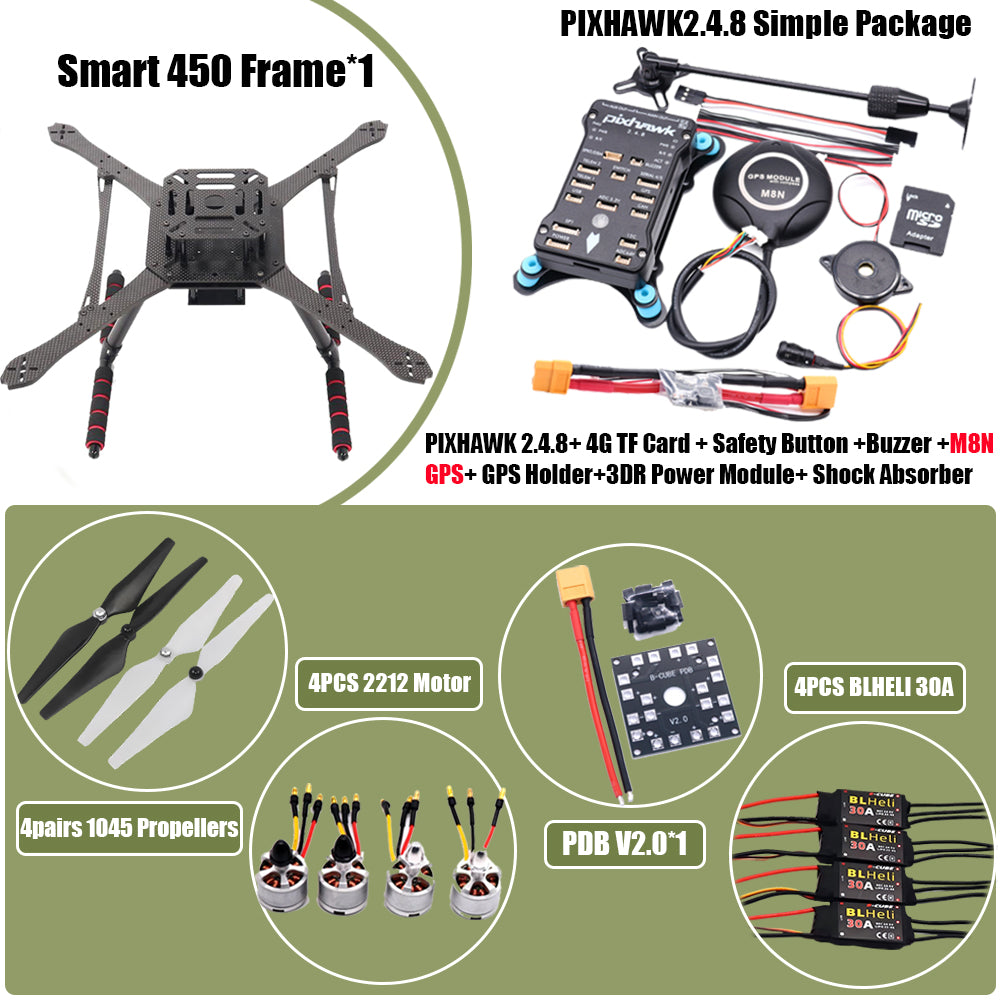

Pixhawk 2.4.8 support the latest official ardupilot firmware and PX4 firmware.

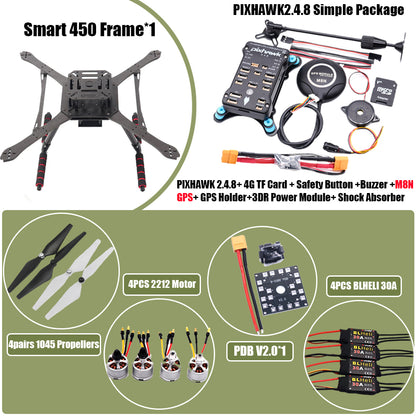

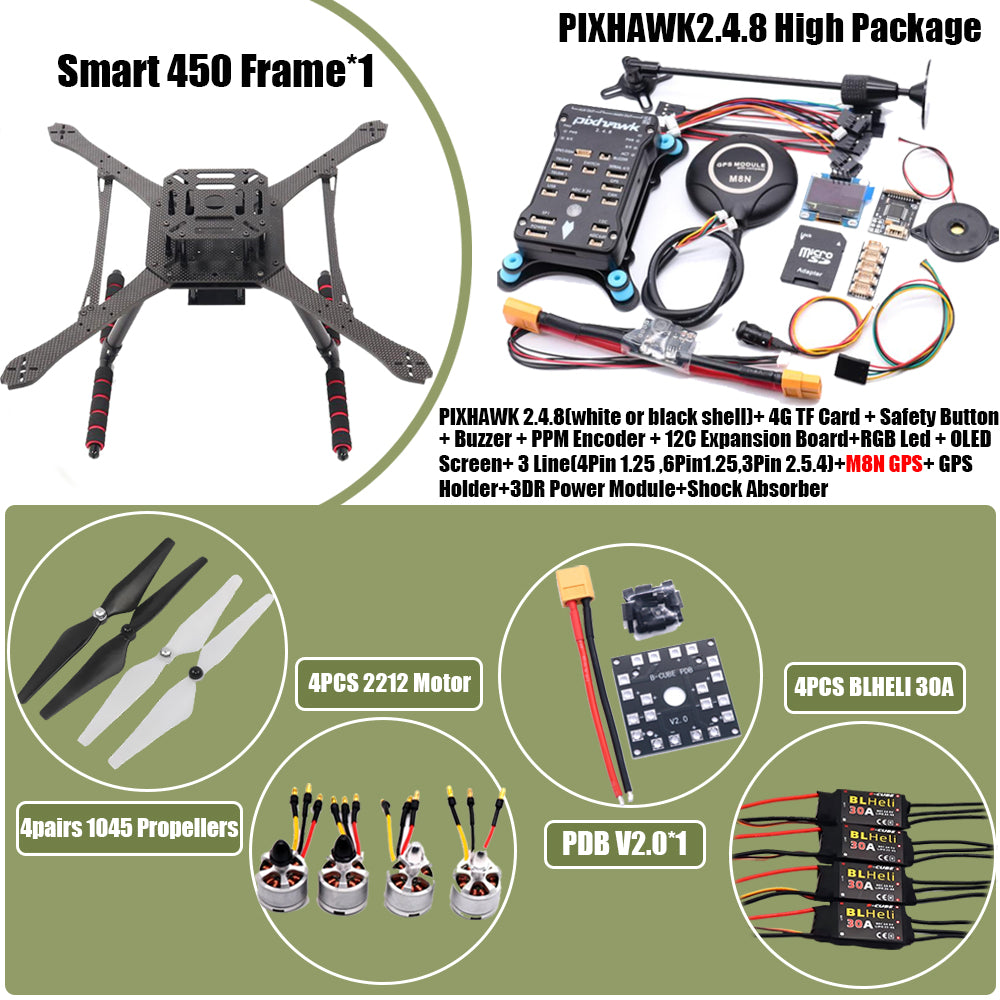

PIXHAWK 2.4.8(white or black shell)+ 4G TF Card + Safety Button + Buzzer + PPM Encoder + I2C Expansion Board+ RGB Led + OLED Screen+M8N GPS+ GPS Holder+  3DR Power Module+ Shock Absorber+ 3 Line(4Pin 1.25 ,6Pin 1.25 ,3Pin 2.5.4)

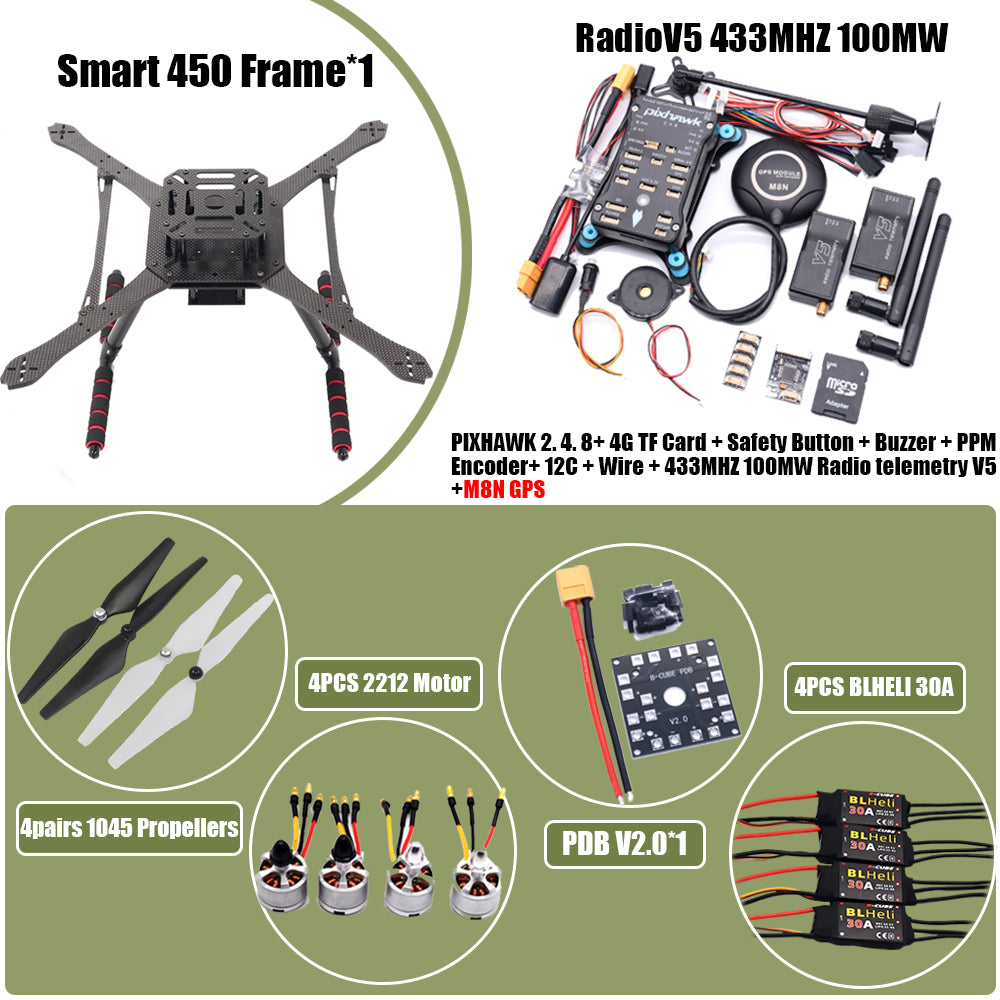

PIXHAWK 2.4.8(white or black shell)+ 4G TF Card + Safety Button + Buzzer + PPM Encoder + I2C Expansion Board+M8N GPS+ GPS Holder+  3DR Power Module+ Shock Absorber+433MHZ 100MW Radio telemetry V5+3 Line(4Pin 1.25 ,6Pin 1.25 ,3Pin 2.5.4)

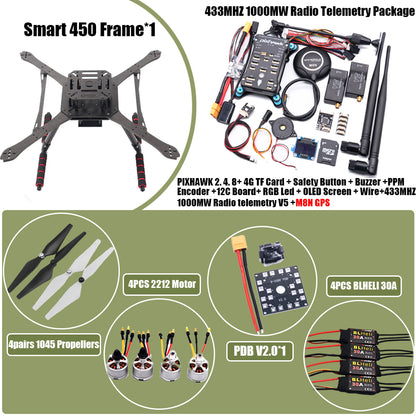

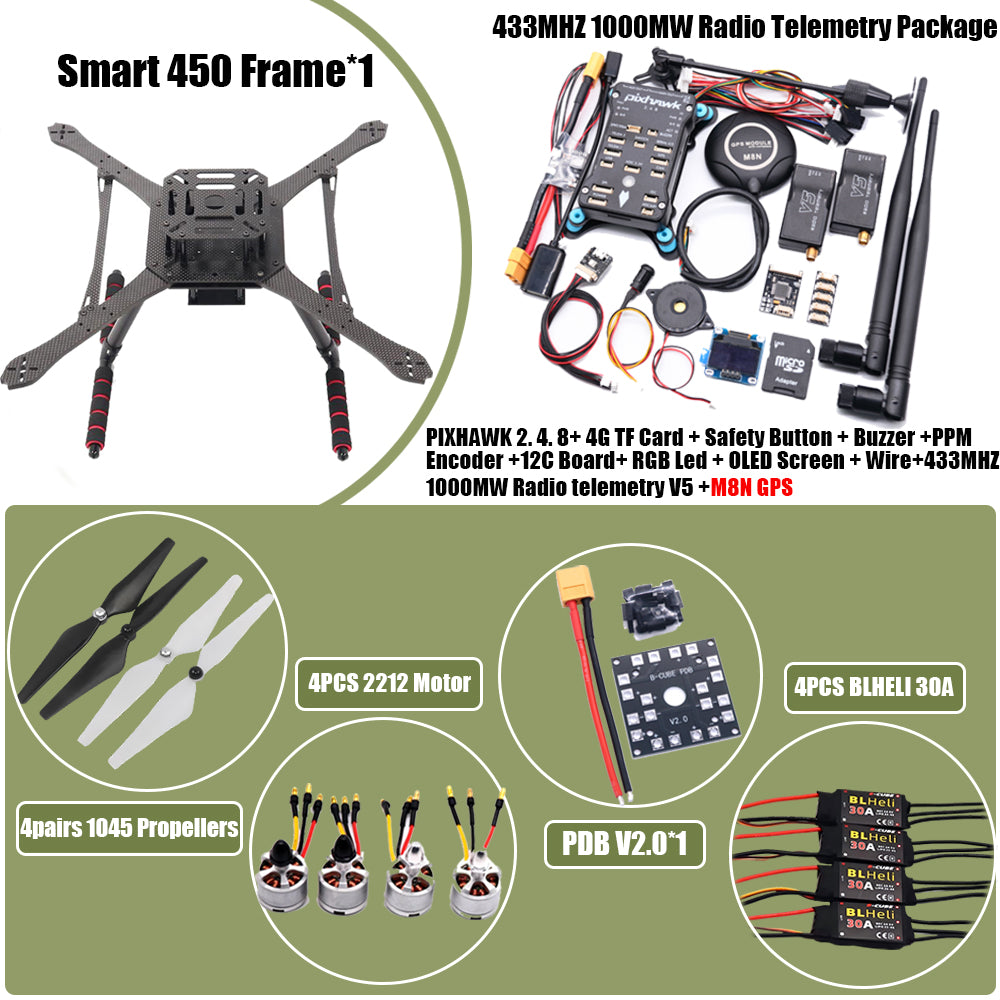

PIXHAWK 2.4.8(white or black shell)+ 4G TF Card + Safety Button + Buzzer + PPM Encoder + I2C Expansion Board+ RGB LED + OLED Screen+M8N GPS+ GPS Holder+3DR Power Module+Shock Absorber+433MHZ 1000MW Radio telemetry V5+3 Line(4Pin 1.25 ,6Pin 1.25 ,3Pin 2.5.4)

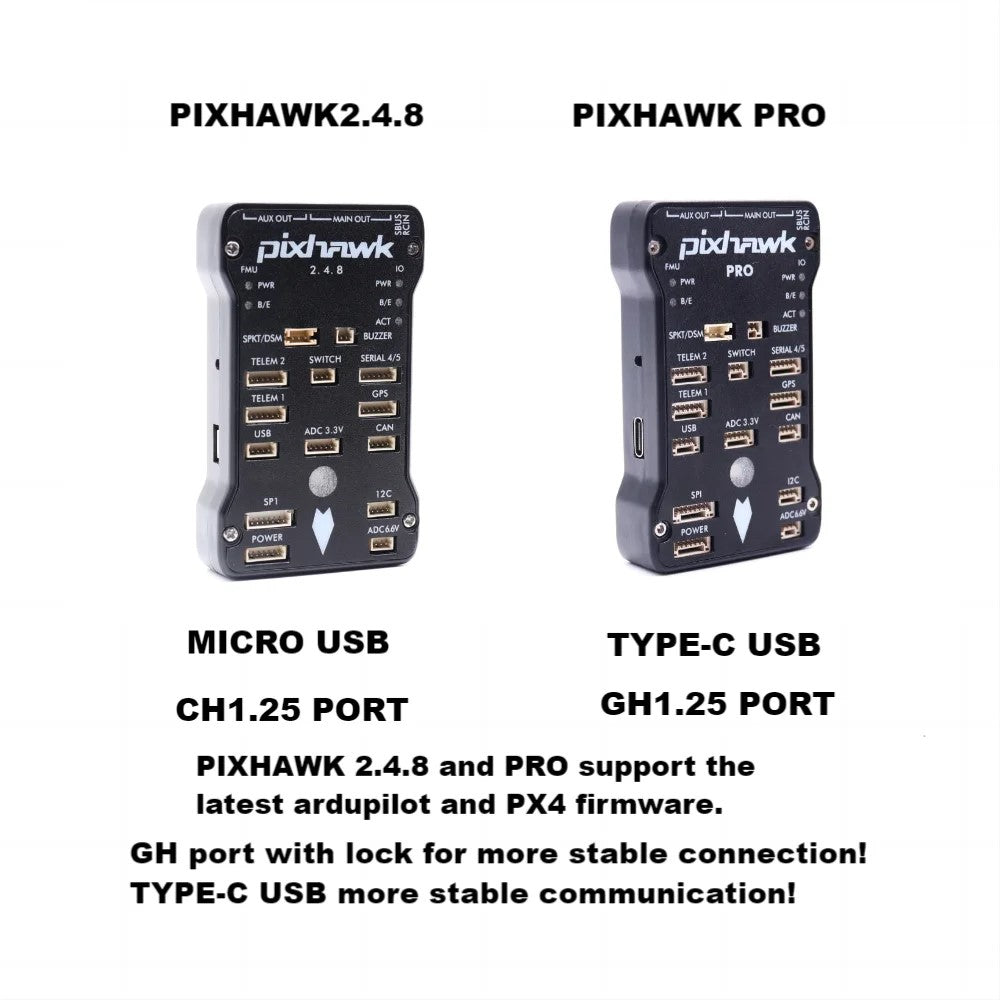

PIXHAWK PRO

Features:

Pixhawk PRO support the latest official ardupilot firmware and PX4 firmware.

1. The advanced 32-bit ARM CortexM4 high-performance processors(2MB flash), can run NuttX RTOS real-time operating system;

2. 14 PWM / servo output;

3. Bus interface (UART, I2C, SPI, CAN);

4. The integrated backup power and backup controller fails, the primary controller fails over to the backup control is safe;

5. Provide automatic and manual modes;

6. Provide redundant power input and failover;

7. Multicolor LED lights;

8. Provide multi-tone buzzer Interface

9. Micro SD recording flight data;

10.TYPE-C USB port

11.GH1.25 port

Specifications:

Interface

1.5 high voltage compatible UART 1, 2 with hardware flow control

2. 2 CAN

3.Spektrum DSM / DSM2 / DSM-X satellite receiver compatible input

4.Futaba SBUS compatible inputs and outputs

5.PPM Signal Input

6.RSSI (PWM or voltage) Input

7.I2C

8.SPI

9.3.3 and 6.6VADC input

10. External TYPEC USB Interface

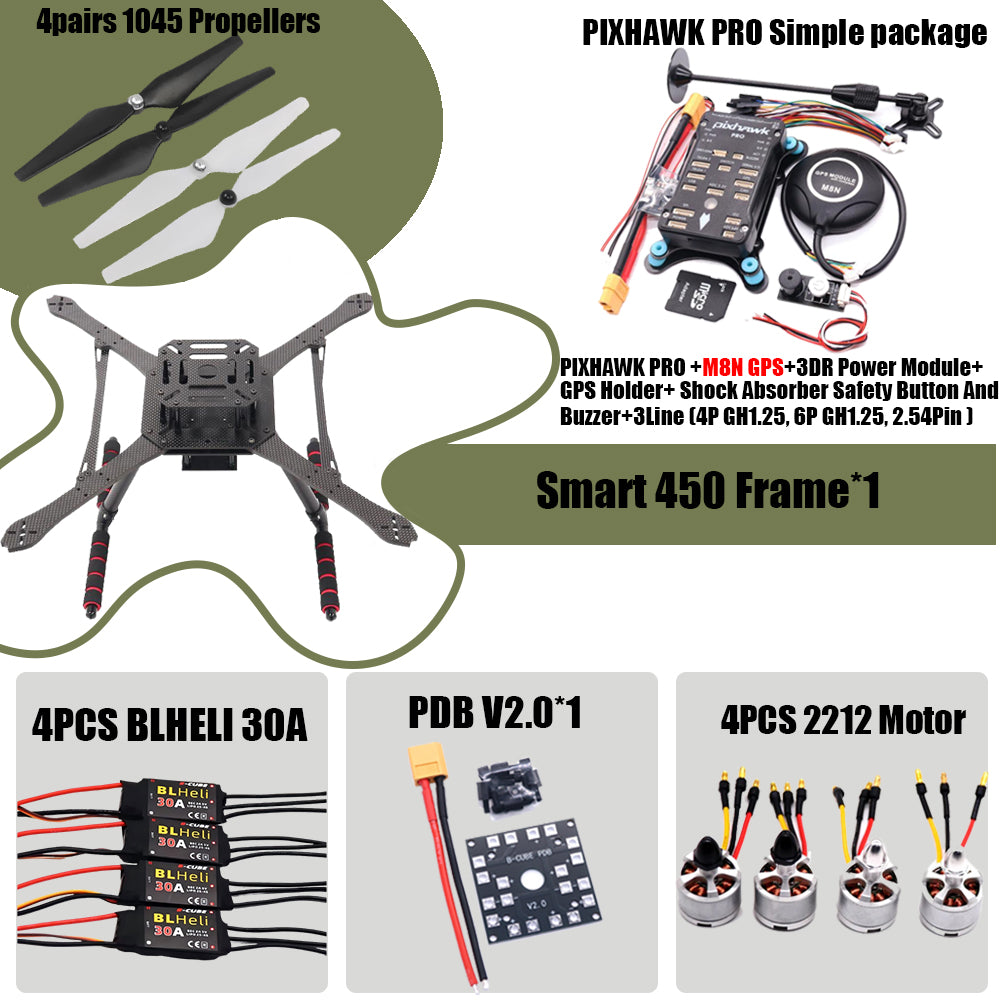

PIXHAWK PRO(white or black shell)+ 4G TF Card + Safety Button + Buzzer +M8N GPS+ GPS Holder+  3DR Power Module+ Shock Absorber+3 Line(4Pin 1.25 ,6Pin 1.25 ,3Pin 2.5.4)

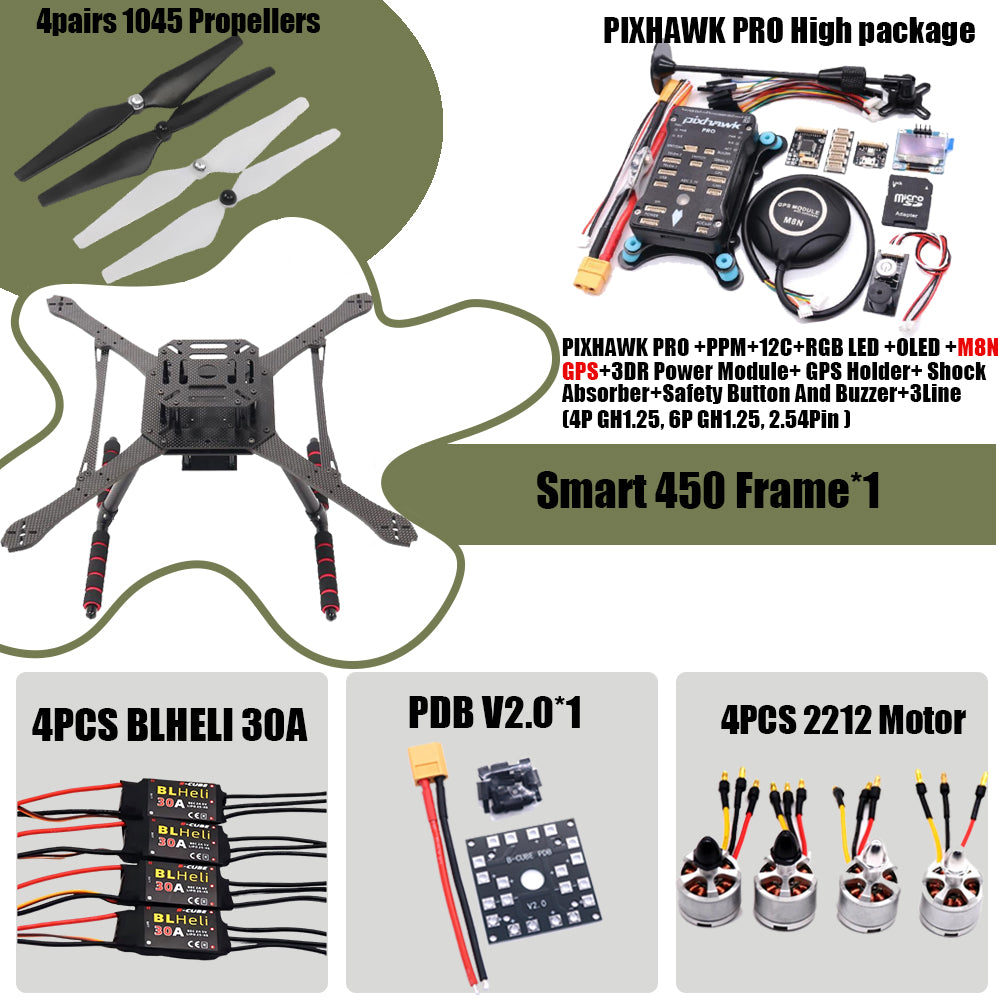

PIXHAWK PRO(white or black shell)+ 4G TF Card + Safety Button + Buzzer + PPM Encoder + I2C Expansion Board+ RGB Led + OLED Screen+M8N GPS+ GPS Holder+  3DR Power Module+ Shock Absorber+3 Line(4Pin 1.25 ,6Pin 1.25 ,3Pin 2.5.4)

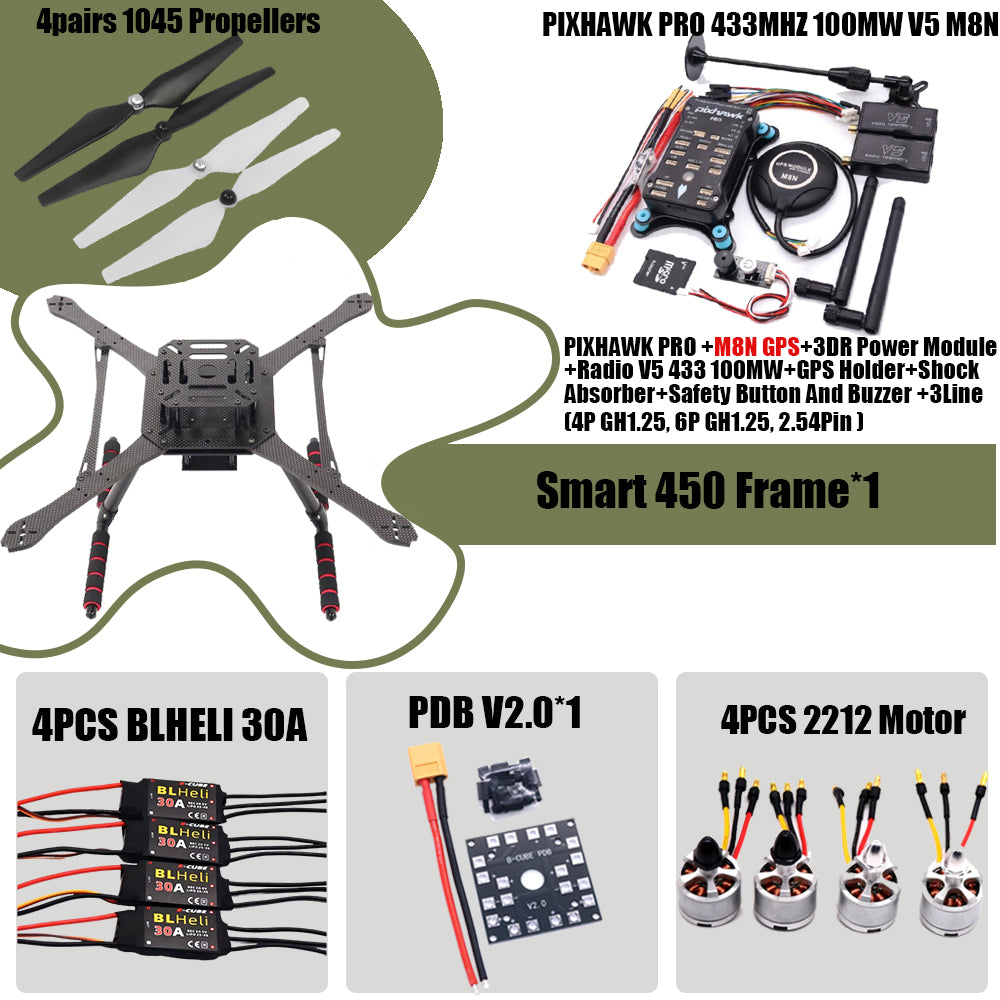

PIXHAWK PRO(white or black shell)+ 4G TF Card + Safety Button + Buzzer+M8N GPS+ GPS Holder+  3DR Power Module+ Shock Absorber+433MHZ 100MW Radio telemetry V5+3 Line(4Pin 1.25 ,6Pin 1.25 ,3Pin 2.5.4)

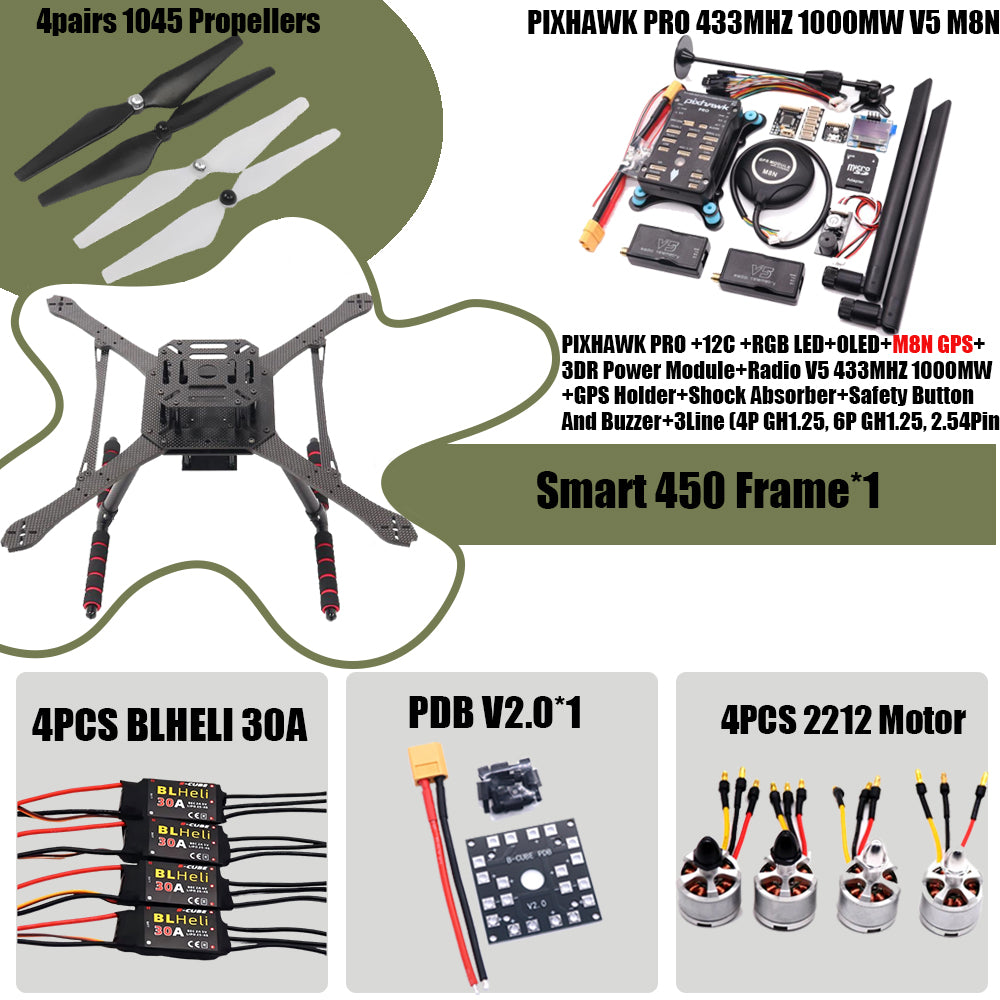

PIXHAWK PRO(white or black shell)+ 4G TF Card + Safety Button + Buzzer + PPM Encoder + I2C Expansion Board+ RGB LED + OLED Screen+M8N GPS+ GPS Holder+3DR Power Module+Shock Absorber+433MHZ 1000MW Radio telemetryV5+3 Line(4Pin 1.25 ,6Pin 1.25 ,3Pin 2.5.4)

PIXHAWK 6C PRO

The Pixhawk® 6C PRO is the latest update to the successful family of Pixhawk® flight controllers, based on the Pixhawk® FMUv6C Open Standard and Connector Standard. It comes with PX4 Autopilot® pre-installed. STMicroelectronics® based STM32H743, paired with sensor technology from Bosch® & InvenSense®, giving you flexibility and reliability for controlling any autonomous vehicle, suitable for both academic and commercial applications.

The Pixhawk® 6C PRO's H7 microcontroller contain the Arm® Cortex®-M7 core running up to 480 MHz, has 2MB flash memory and 1MB RAM. Thanks to the updated processing power, developers can be more productive and efficient with their development work, allowing for complex algorithms and models.

The Pixhawk 6C PRO includes high-performance, low-noise IMUs on board, designed to be cost effective while having IMU redundancy. A vibration isolation System to filter out high-frequency vibration and reduce noise to ensure accurate readings, allowing vehicles to reach better overall flight performances.

The Pixhawk® 6C PRO is perfect for developers at corporate research labs, startups, academics (research, professors, students), and commercial application.

Key Design Points

High performance STM32H743 Processor with more computing power & RAM

Build-in Buzzer,Build-in RGB LED,support Independent external Safety Button,With Plastic Case

New cost-effective design with low-profile form factor

Newly designed integrated vibration isolation system to filter out high frequency vibration and reduce noise to ensure accurate readings

IMUs are temperature-controlled by onboard heating resistors, allowing optimum working temperature of IMUs

Technical Specification

Processors & Sensors

FMU Processor: STM32H743

32 Bit Arm® Cortex®-M7, 480MHz, 2MB memory, 1MB SRAM

IO Processor: STM32F103

32 Bit Arm® Cortex®-M3, 72MHz, 64KB SRAM

On-board sensors

Accel/Gyro: ICM-42688-P

Accel/Gyro: BMI055

Mag: IST8310

Barometer: MS5611

Electrical data

Voltage Ratings:

Max input voltage: 6V

USB Power Input: 4.75~5.25V

Servo Rail Input: 0~36V

Current Ratings:

TELEM1 Max output current limiter: 1.5A

All other port combined output current limiter: 1.5A

Mechanical data

Dimensions: 85 * 45 * 10 mm

Weight (Plastic Case) : 33g

High Package:

PIXHAWK 6C PRO(white or black shell)+ 4G TF Card + Safety Button + Buzzer+I2C Expansion Board+ RGB Led + OLED Screen+M8N GPS+GPS Holder+PM02 Power Module+ Shock Absorber

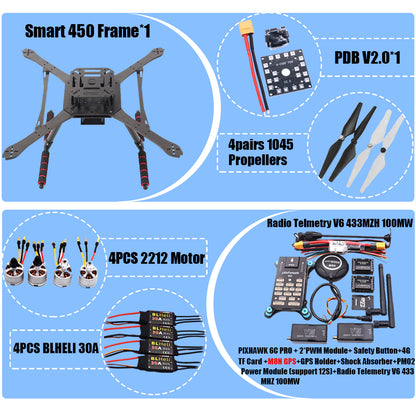

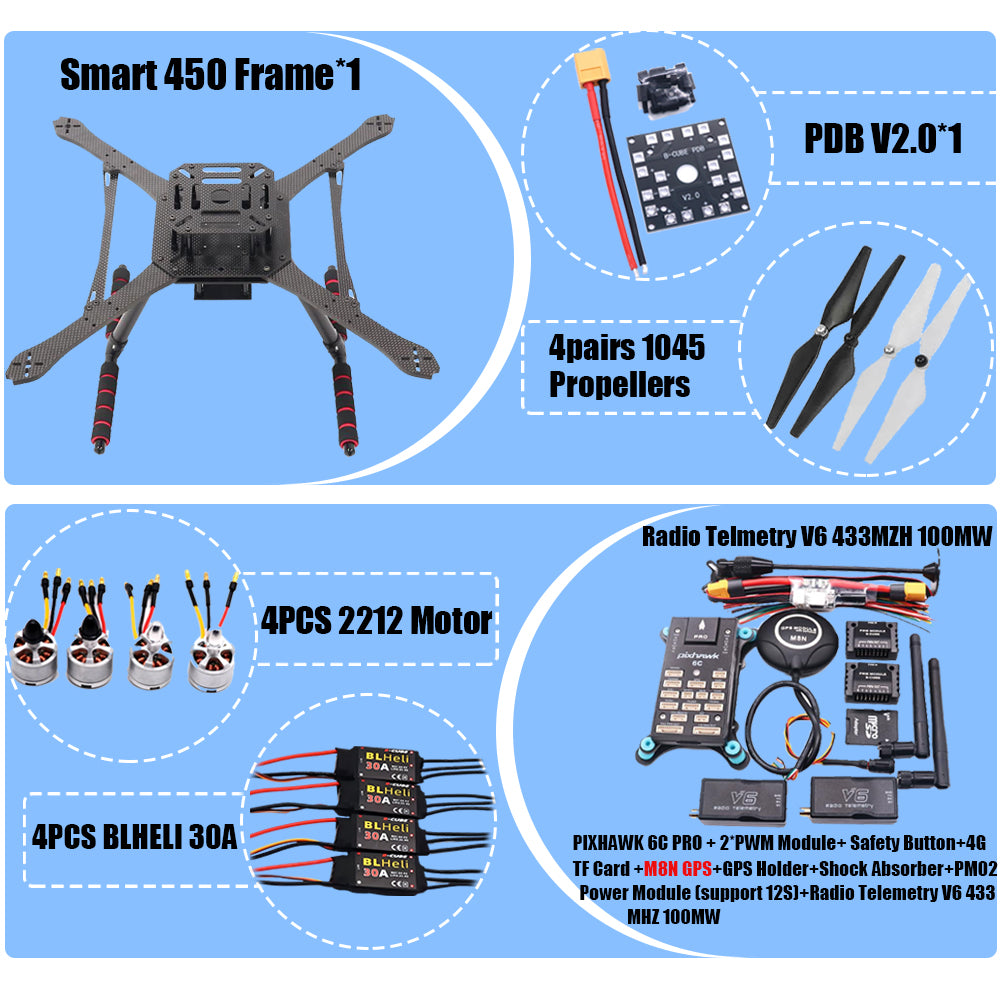

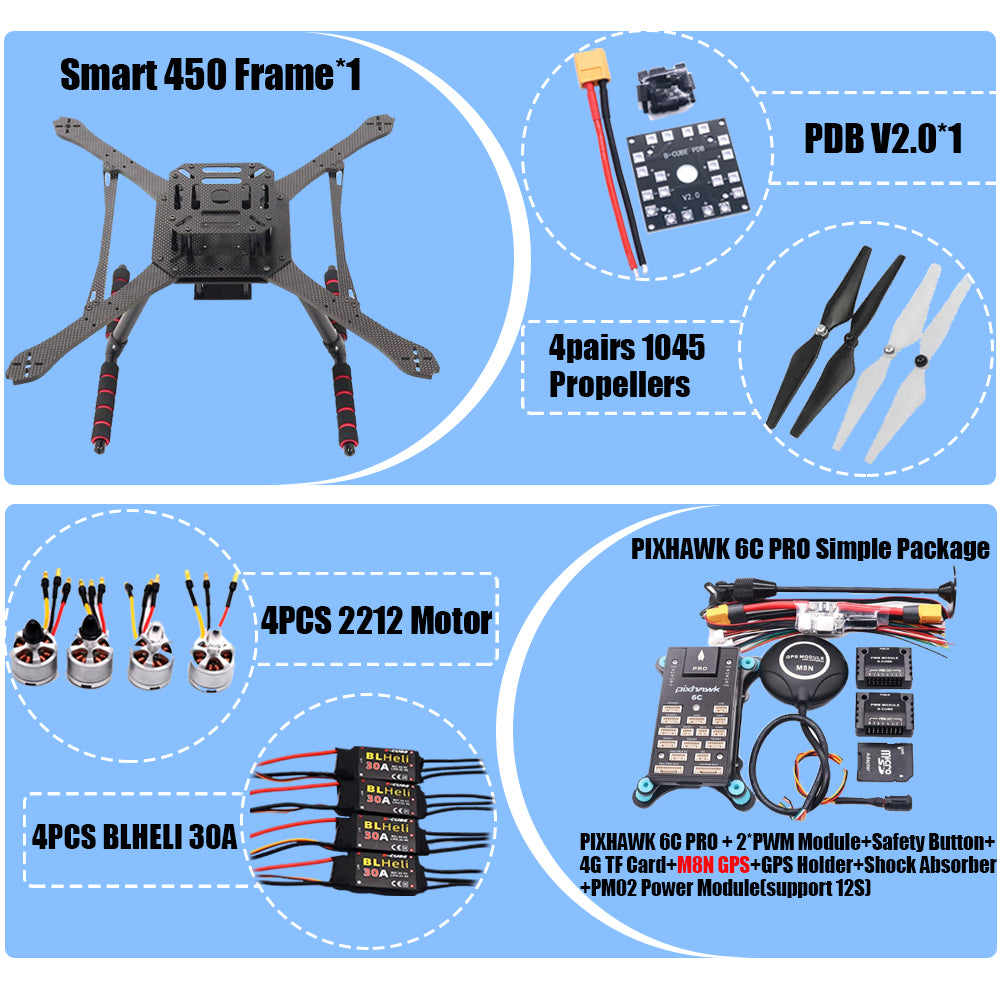

PIXHAWK 6C PRO(white or black shell)+ 4G TF Card + Safety Button + Buzzer+M8N GPS+ GPS Holder+ PM02 Power Module+ Shock Absorber+433MHZ 100MW Radio telemetry V6

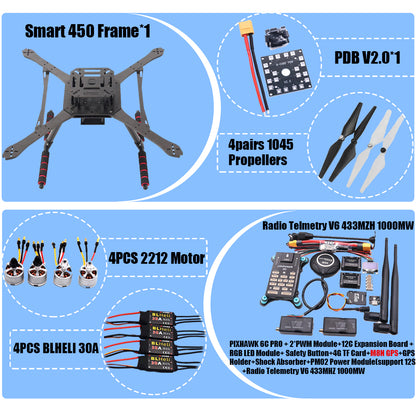

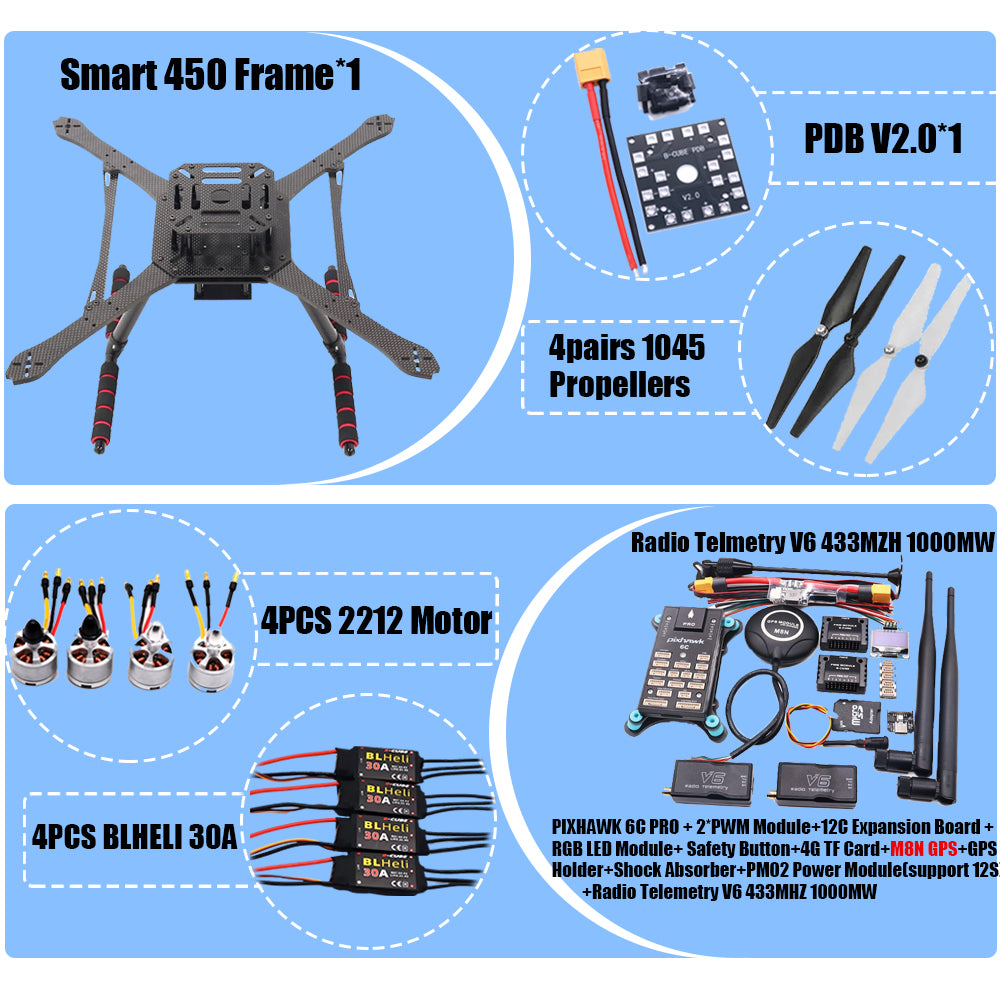

PIXHAWK 6C PRO(white or black shell)+ 4G TF Card + Safety Button + Buzzer+I2C Expansion Board+ RGB LED + OLED Screen+M8N GPS+ GPS Holder+PM02 Power Module+Shock Absorber+433MHZ 1000MW Radio telemetry V6

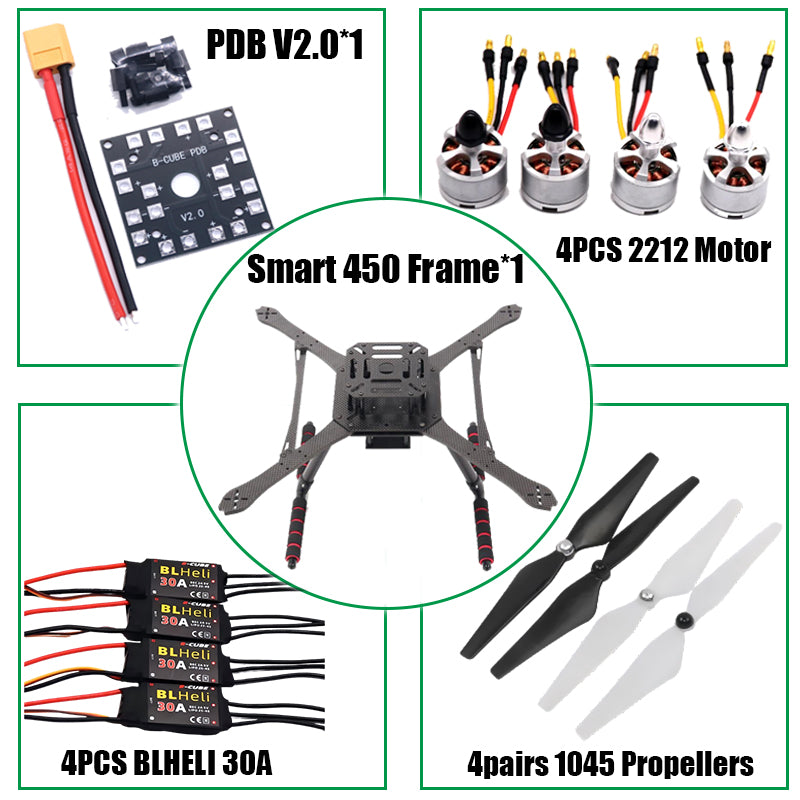

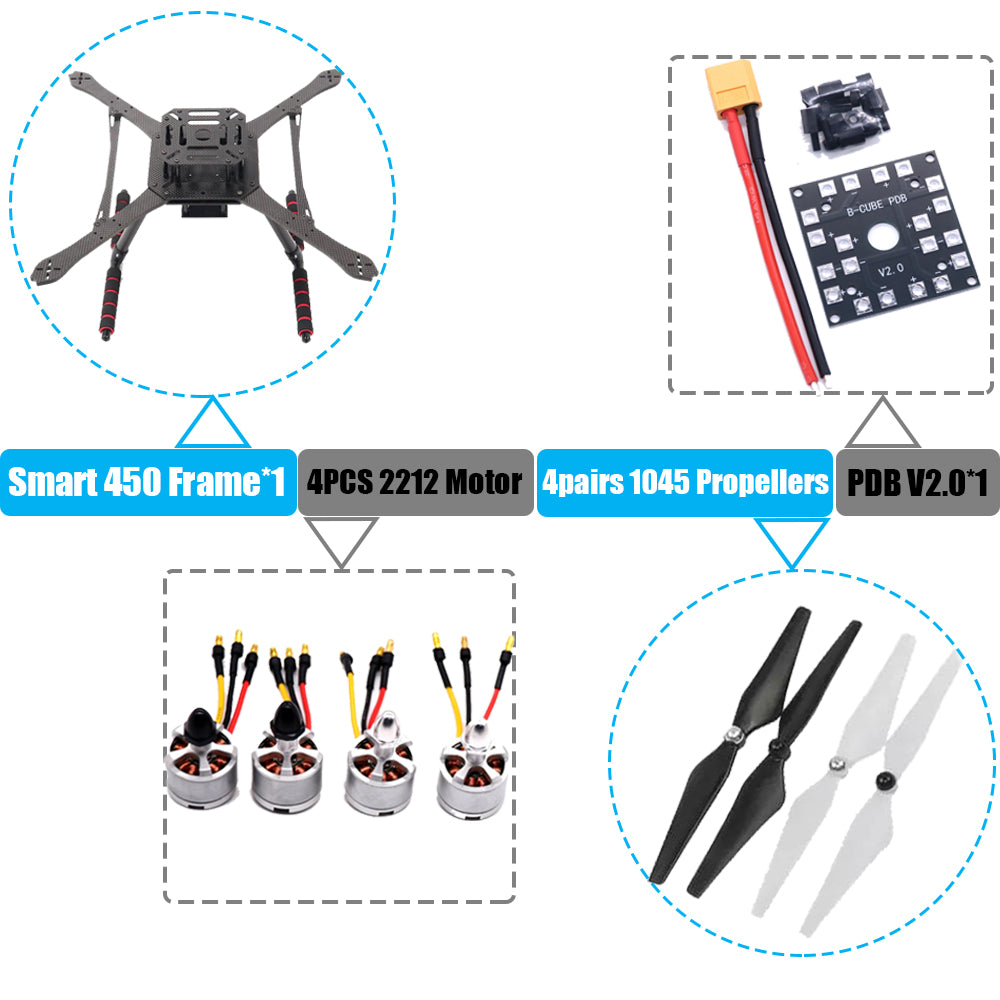

450 Motor：Smart 450 Frame + 4  pairs 1045 Propellers + 4 PCS 2212  920KV Motor+PDB V2.0

450 Motor ESC：Smart 450 Frame + 4 PCS BLHELI 30A + 4  pairs 1045 Propellers + 4 PCS 2212  920KV Motor+PDB V2.0

M8N GPS:

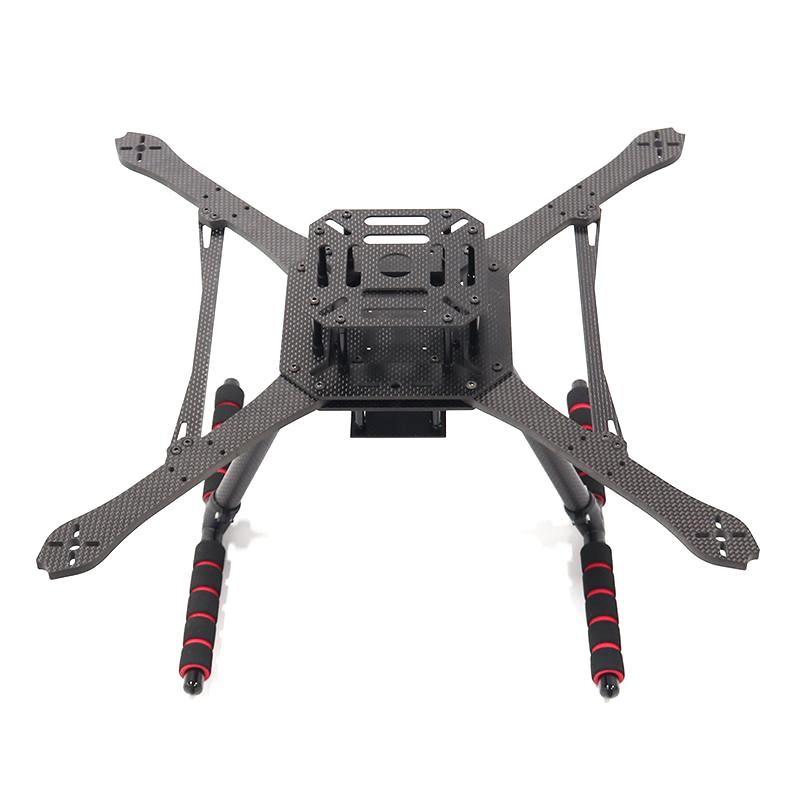

Smart 450 Frame

Parameters:

Body thickness: 450:2.5MM

Arm thickness: 450:6MM

weight: 330:450: 400g

The 450 rack has been optimized in terms of body and arm thickness for better stability and durability.

Recommended Components

Motors:4 x 2212 or 2216 Brushless Motors (22 series motors) – Powerful and efficient for smooth, responsive flight.

Electronic Speed Controllers (ESCs):4 x 30A ESCs or 1 x 4-in-1 ESC (supports 30.5mm pitch) – Reliable and high-performance for precise motor control.

Propellers:

Battery:2200–4000mAh, 3-4S LiPo Battery – Provides long-lasting power for extended flight times, compatible with standard connectors.

Flight Controller:Flight Control for Ardupilot (APM), Pixhawk, DJI, or similar – Ensures precise navigation and stability for your quadcopter.

BLHELI ESC:

A.Features

A1: Use authentic electronic components to ensure high quality and enhance the current endurance ability of the ESC.

A2: Based on BLHeli firmware, optimized for high performance with great linearity and much quicker throttle response.

A3: Special designed for multirotors, and compatible with fixed-wing aircrafts and helicopters.

A4: Multiple protection features including Low-voltage cut-off protection / over-heat protection / throttle signal loss protection.

A5: Throttle range can be configured and is fully compatible with all receivers, providing smooth, linear and precise throttle response. A6: All parameters can be programmed via using a transmitter, including default settings.

B. Productspecification

1045 Propellers

PDB V2.0
