Pixhawk PX4 PIX 2.4.8 32 Bit Flight Controller Autopilot with 4G SD Safety Switch Buzzer +XT60 3DR Power Module
Pixhawk PX4 PIX 2.4.8 32 Bit Flight Controller Autopilot with 4G SD Safety Switch Buzzer +XT60 3DR Power Module
Regular price
$64.23 USD
Regular price
$64.23 USD
Sale price
$64.23 USD
Unit price
per
Couldn't load pickup availability
The product has passed strict CE certification. If you need a PDF or more complete test certificate, please leave a message.
You can select White or Black shell of PIXHAWK flight controller, the hardware is same .White shell is more beautiful. If you need White shell,please leave a message.

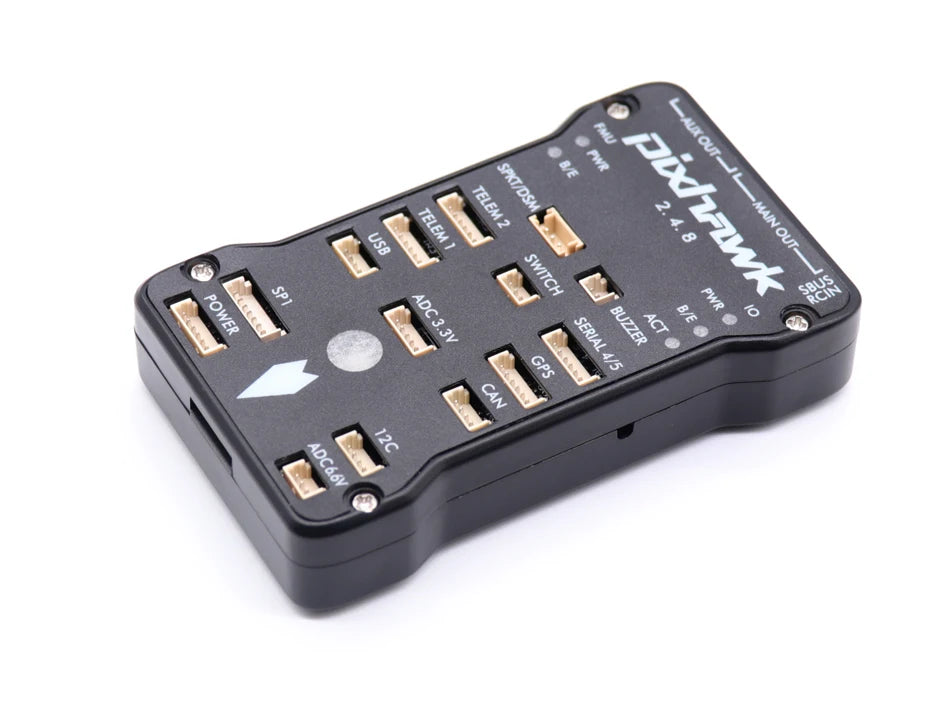

Pixhawk PX4 Autopilot PIX 2.4.8 32 Bit Flight Controller
Features:
Pixhawk 2.4.8 support the latest official ardupilot firmware and PX4 firmware.
1. The advanced 32-bit ARM CortexM4 high-performance processors(2MB flash), can run NuttX RTOS real-time operating system;
2. 14 PWM / servo output;
3. Bus interface (UART, I2C, SPI, CAN);
4. The integrated backup power and backup controller fails, the primary controller fails over to the backup control is safe;
5. Provide automatic and manual modes;
6. Provide redundant power input and failover;
7. Multicolor LED lights;
8. Provide multi-tone buzzer Interface
9. Micro SD recording flight data;
Specifications:
Interface
1 .5 high voltage compatible UART 1, 2 with hardware flow control
2. 2 CAN
3.Spektrum DSM / DSM2 / DSM-X satellite receiver compatible input
4.Futaba SBUS compatible inputs and outputs
5.PPM Signal Input
6.RSSI (PWM or voltage) Input
7.I2C
8.SPI
9.3.3 and 6.6VADC input
10. External MICRO USB Interface
If the package includes the 3DR Power Module, the current hardware of the 3DR Power Module has been fully upgraded. Previously, it only supported a maximum of 6S, but now it supports a maximum of 12S. By default, XT60 plug is sent. If XT90 plug is required, please leave a message.
