Pixhawk PX4 M9N GPS PIX 2.4.8 32 Bit Flight Controller With Autopilot Safety Switch Buzzer PPM I2C RC Quadcopter Ardupilot

Regular price $116.95 USD

Regular price ~~$116.95 USD~~ Sale price $116.95 USD

Unit price / per

Sale Sold out

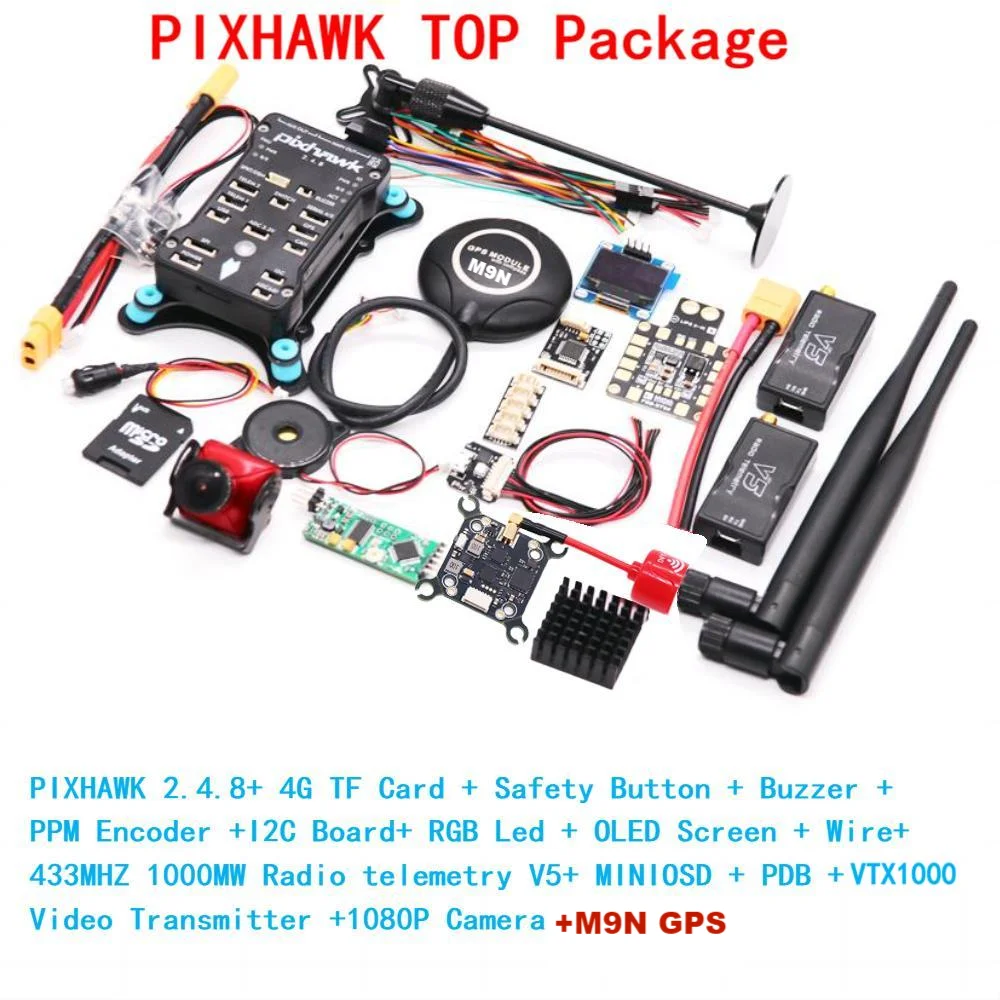

Color Simple M9NVariant sold out or unavailable Standard M9NVariant sold out or unavailable High M9NVariant sold out or unavailable WIFI V1.0 M9N BVariant sold out or unavailable WIFI V1.0 M9N CVariant sold out or unavailable WIFI V2.0 M9N BVariant sold out or unavailable WIFI V2.0 M9N CVariant sold out or unavailable WIFI V3.0 M9N BVariant sold out or unavailable WIFI V3.0 M9N CVariant sold out or unavailable 433V1 100MW M9N AVariant sold out or unavailable 433V1 500MW M9N BVariant sold out or unavailable 433V1 1000MW M9N CVariant sold out or unavailable 433V5 100MW M9N AVariant sold out or unavailable 433V5 500MW M9N BVariant sold out or unavailable 433V5 1000MW M9N CVariant sold out or unavailable 915V1 100MW M9N AVariant sold out or unavailable 915V1 500MW M9N BVariant sold out or unavailable 915V1 1000MW M9N CVariant sold out or unavailable 915V5 100MW M9N AVariant sold out or unavailable 915V5 500MW M9N BVariant sold out or unavailable 915V5 1000MW M9N CVariant sold out or unavailable TOP M9N PackageVariant sold out or unavailable

Quantity

(0 in cart)

This item is a recurring or deferred purchase. By continuing, I agree to the cancellation policy and authorize you to charge my payment method at the prices, frequency and dates listed on this page until my order is fulfilled or I cancel, if permitted.

The product has passed strict CE certification. If you need a PDF or more complete test certificate, please leave a message.

Note:

PIXHAWK 2.4.8 supports the latest FMUV3 ardupilot and PX4 firmware.

1.You can select White or Black shell of PIXHAWK flight controller, the hardware is same .White shell is more beautiful. If you need White shell,please leave a message.

2.If the package has 3DR power Module,by default we will send XT60 plug 3DR power Module,if you need T ,please leave a message.

3. Pixhawk has many packages.We will send the package as you select.

Pixhawk PX4 Autopilot PIX 2.4.8 32 Bit Flight Controller

Features:

Pixhawk 2.4.8 support the latest official ardupilot firmware and PX4 firmware.

1. The advanced 32-bit ARM CortexM4 high-performance processors(2MB flash), can run NuttX RTOS real-time operating system;

2. 14 PWM / servo output;

3. Bus interface (UART, I2C, SPI, CAN);

4. The integrated backup power and backup controller fails, the primary controller fails over to the backup control is safe;

5. Provide automatic and manual modes;

6. Provide redundant power input and failover;

7. Multicolor LED lights;

8. Provide multi-tone buzzer Interface

9. Micro SD recording flight data;

Specifications:

Interface

1.5 high voltage compatible UART 1, 2 with hardware flow control

2. 2 CAN

3.Spektrum DSM / DSM2 / DSM-X satellite receiver compatible input

4.Futaba SBUS compatible inputs and outputs

5.PPM Signal Input

6.RSSI (PWM or voltage) Input

7.I2C

8.SPI

9.3.3 and 6.6VADC input

10. External MICRO USB Interface

M9N GPS Module

M9N is a GPS module commonly used in unmanned aerial vehicles, with the following characteristics and applications:

High precision positioning: The M9N adopts advanced GNSS technology, supports multiple satellite navigation systems, and can provide high-precision position positioning information. For unmanned aerial vehicles, it can achieve accurate positioning and navigation.

Multi system support: The M9N supports multiple satellite navigation systems, including GPS, GLONASS, Galileo, BeiDou, etc. This allows drones to receive multiple satellite signals simultaneously, improving positioning accuracy and reliability.

Quick positioning: M9N has fast cold start and hot start times, which can quickly obtain satellite signals and perform positioning, making it crucial for the rapid takeoff and task execution of unmanned aerial vehicles.

Strong anti-interference ability: M9N has excellent anti-interference performance, which can work stably in complex electromagnetic environments and is not susceptible to interference from other electronic devices.

In drone applications, M9N can be used in the following aspects:

Positioning and Navigation: The M9N provides accurate position and speed information to help drones achieve precise navigation and flight control.

Waypoint navigation: By inputting pre-set waypoint information into M9N, unmanned aerial vehicles can automatically fly according to the route, achieving autonomous waypoint navigation tasks.

Multi aircraft collaboration: Multiple drones can use the M9N module for positioning and synchronization to achieve applications such as team collaborative flight and formation flight.

Return to return: The M9N can provide accurate return positioning information, enabling the drone to safely return to the takeoff point or preset return point.

M9N can search for more satellites outdoors with higher accuracy, faster search speed, and better stability.(The specific number of star searches is determined by the environment at that time.)

If the package includes the 3DR Power Module, the current hardware of the 3DR Power Module has been fully upgraded. Previously, it only supported a maximum of 6S, but now it supports a maximum of 12S. By default, XT60 plug is sent. If XT90 plug is required, please leave a message.
