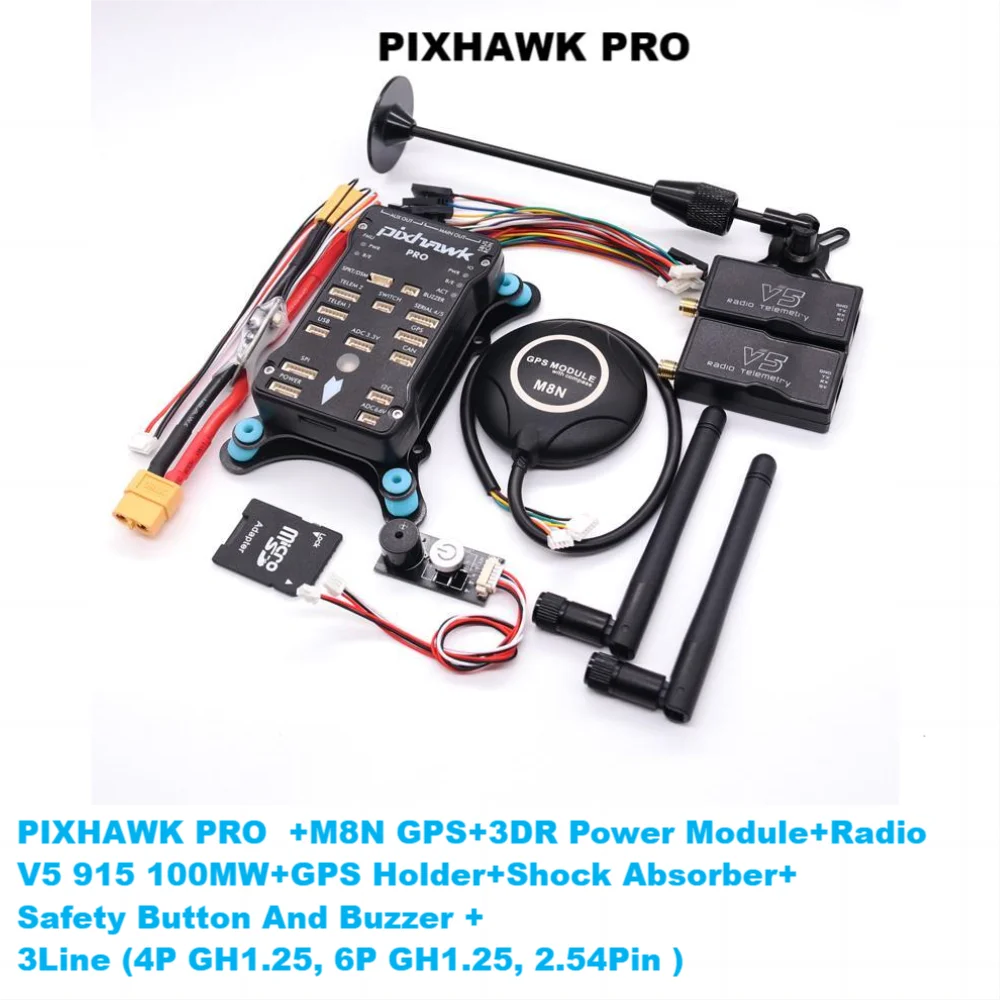

Pixhawk 2.4.8 PRO PX4 PIX 32 Bit Flight Controller+M8N GPS+ 433/915Mhz 100/500mw Radio Telemetry+Safety Switch+Buzzer+rgb+I2C

Pixhawk 2.4.8 PRO PX4 PIX 32 Bit Flight Controller+M8N GPS+ 433/915Mhz 100/500mw Radio Telemetry+Safety Switch+Buzzer+rgb+I2C

$61.48 USD
$61.48 USD $61.48 USD
Sale Sold out
Color

The product has passed strict CE certification. If you need a PDF or more complete test certificate, please leave a message.

Tips:

1.PIXHAWK PRO uses TYPEC USB port,PIXHAWK 2.4.8 uses micro USB port.

   PIXHAWK PRO uses GH1.25 port,PIXHAWK 2.4.8 uses CH1.25 port.



   GH port with lock for more stable connection!TYPEC USB more stable communication!

2.All PIXHAWK PRO Package accessories use GH interface.



3.If the package has 3DR power Module,by default we will send XT60 plug 3DR power     Module,if you need T ,please leave a message.



4.The items included in each package are on the corresponding package options picture.



PIXHAWK 2.4.8 and PRO support the latest ardupilot and PX4 firmware.

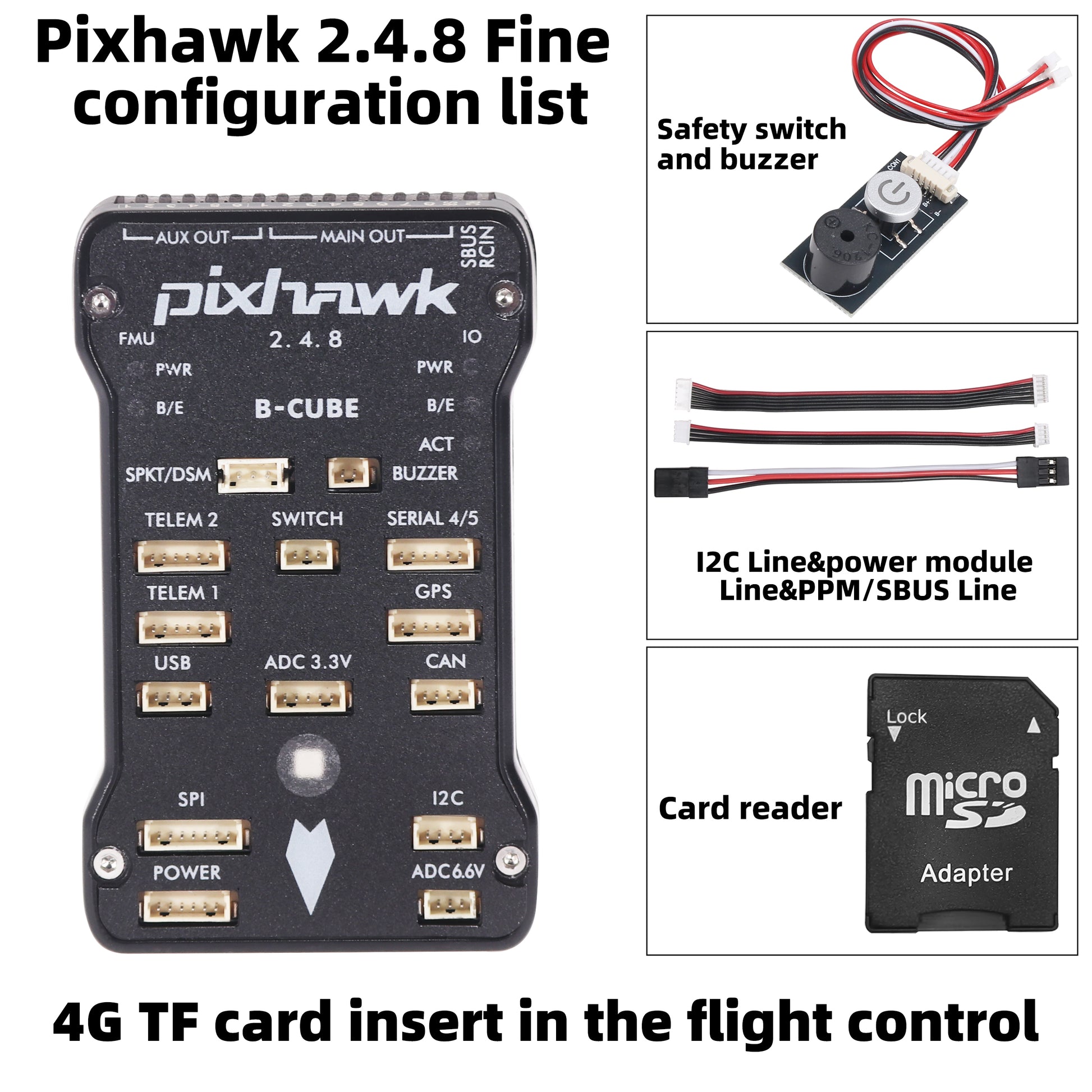

Pixhawk PX4 Autopilot PIX 2.4.8 32 Bit Flight Controller
Features:
1. The advanced 32-bit ARM CortexM4 high-performance processors, can run NuttX RTOS real-time operating system;
2. 14 PWM / servo output;
3. Bus interface (UART, I2C, SPI, CAN);
4. The integrated backup power and backup controller fails, the primary controller fails over to the backup control is safe;
5. Provide automatic and manual modes;
6. Provide redundant power input and failover;
7. Multicolor LED lights;
8. Provide multi-tone buzzer Interface
9. Micro SD recording flight data;
Specifications:
Interface
1 .5 high voltage compatible UART 1, 2 with hardware flow control
2. 2 CAN
3.Spektrum DSM / DSM2 / DSM-X satellite receiver compatible input
4.Futaba SBUS compatible inputs and outputs
5.PPM Signal Input
6.RSSI (PWM or voltage) Input
7.I2C
8.SPI
9. 3.3 and 6.6VADC input
10. External MICRO USB Interface


Pixhawk PRO PX4 Autopilot PIX32 Bit Flight Controller

Features:

1. The advanced 32-bit ARM CortexM4 high-performance processors, can run NuttX RTOS real-time operating system;

2. 14 PWM / servo output;

3. Bus interface (UART, I2C, SPI, CAN);

4. The integrated backup power and backup controller fails, the primary controller fails over to the backup control is safe;

5. Provide automatic and manual modes;

6. Provide redundant power input and failover;

7. Multicolor LED lights;

8. Provide multi-tone buzzer Interface

9. Micro SD recording flight data;

Specifications:

Interface

1 .5 high voltage compatible UART 1, 2 with hardware flow control

2. 2 CAN

3.Spektrum DSM / DSM2 / DSM-X satellite receiver compatible input

4.Futaba SBUS compatible inputs and outputs

5.PPM Signal Input

6.RSSI (PWM or voltage) Input

7.I2C

8.SPI

9.3.3 and 6.6VADC input

10. External TYPE-C USB Interface

11. TYPE-C USB port

12. GH1.25 with lock



If the package includes the 3DR Power Module, the current hardware of the 3DR Power Module has been fully upgraded. Previously, it only supported a maximum of 6S, but now it supports a maximum of 12S. By default, XT60 plug is sent. If XT90 plug is required, please leave a message.

M8N GPS Module

OLED Module can display some message.

XBEE S2C Radio telemetry (2.4G)

The updated Digi XBee S2C 802.15.4 module is built with the Silicon Labs EM357 SoC and offers improved power consumption, support for over-the-air firmware updates, and provides an upgrade path to DigiMesh® or Zigbee mesh protocols if desired.
Radio Telemetry V5
