B-CUBE NEW ZD680 PIXHAWK2.4.8 M9N Full Carbon Fiber Hexa-Rotor Foldable Arm Hexacopter Frame Kit forCopter with Unflodable Landing Gear
B-CUBE NEW ZD680 PIXHAWK2.4.8 M9N Full Carbon Fiber Hexa-Rotor Foldable Arm Hexacopter Frame Kit forCopter with Unflodable Landing Gear
Couldn't load pickup availability
Pixhawk PX4 Autopilot PIX 2.4.8 32 Bit Flight Controller

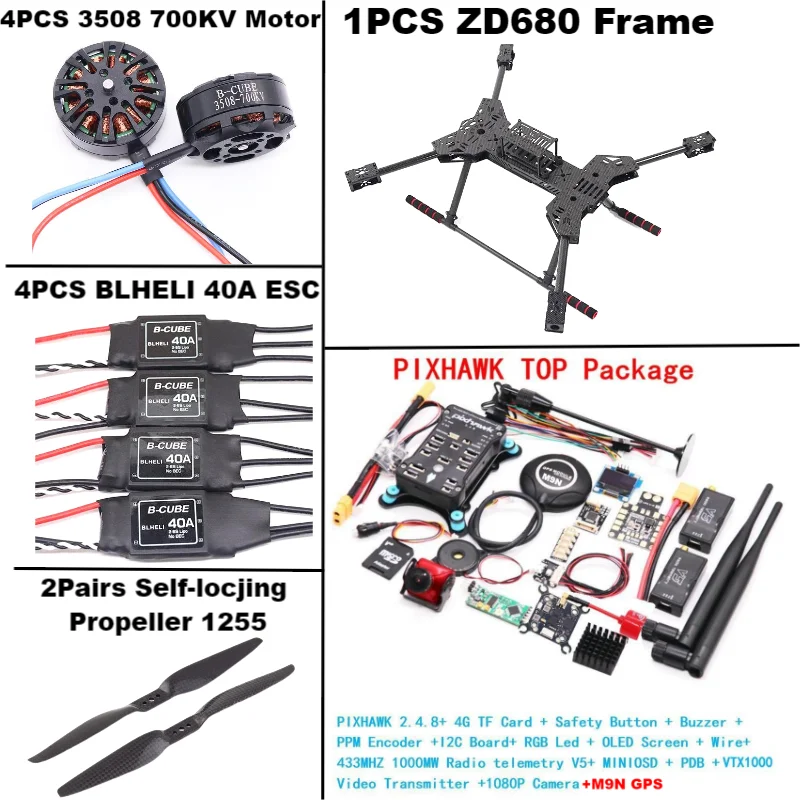

Simple Package:
Standard Package:
PIXHAWK 2.4.8(white or black shell)+ 4G TF Card + Safety Button + Buzzer + PPM Encoder + I2C Expansion Board+ 3 Line(4Pin 1.25 ,6Pin 1.25 ,3Pin 2.5.4)+M9N GPS+ GPS Holder+ 3DR Power Module+ Shock Absorber
High Package:
PIXHAWK 2.4.8(white or black shell)+ 4G TF Card + Safety Button + Buzzer + PPM Encoder + I2C Expansion Board+ RGB Led + OLED Screen+ 3 Line(4Pin 1.25 ,6Pin 1.25 ,3Pin 2.5.4)+M9N GPS+ GPS Holder+ 3DR Power Module+ Shock Absorber
WlFl V2.0/V3.0 B:
PIXHAWK2.4.8(white or black shell)+4G TF Card+Safety Button+Buzzer + PPM Encoder+ I2C Expansion Board+3Line(4Pin1.25,6Pin1.25,3Pin2.5.4)+M9N GPS+GPS Holder+3DR Power Module+Shock Absorber+WlFl V2.0/V3.0
WlFl V2.0/V3.0 C:
PIXHAWK2.4.8(white or black shell)+4G TF Card+Safety Button+Buzzer+PPM Encoder+I2C Expansion Board+RGB Led+OLED Screen+3Line(4Pin1.25,6Pin1.25,3Pin2.5.4)+M9N GPS+GPS Holder+3DR Power Module+Shock Absorber+WlFl V2.0/V3.0
433/915MHZ 100MW :
PIXHAWK 2.4.8(white or black shell)+ 4G TF Card + Safety Button + Buzzer + PPM Encoder + I2C Expansion Board+ 3 Line(4Pin 1.25 ,6Pin 1.25 ,3Pin 2.5.4) + M9N GPS+ GPS Holder+ 3DR Power Module+ Shock Absorber+433/915MHZ 100MW Radio telemetry
433/915MHZ 500MW :
PIXHAWK 2.4.8(white or black shell)+ 4G TF Card + Safety Button + Buzzer + PPM Encoder + I2C Expansion Board+ RGB LED + OLED Screen+ 3 Line(4Pin 1.25 ,6Pin 1.25 ,3Pin 2.5.4) +M9N GPS+ GPS Holder+3DR Power Module+Shock Absorber+433/915MHZ 500MW Radio telemetry
433/915MHZ 1000MW :
PIXHAWK 2.4.8(white or black shell)+ 4G TF Card + Safety Button + Buzzer + PPM Encoder + I2C Expansion Board+ RGB LED + OLED Screen+ 3 Line(4Pin 1.25 ,6Pin 1.25 ,3Pin 2.5.4) + M9N GPS+ GPS Holder+ 3DR Power Module+Shock Absorber+433/915MHZ 1000MW Radio telemetry
433MHZV5 1000MW OSD:
PIXHAWK 2.4.8(white or black shell)+ 4G TF Card + Safety Button + Buzzer + PPM Encoder + I2C Expansion Board+ RGB LED + OLED Screen+ 3 Line(4Pin 1.25 ,6Pin 1.25 ,3Pin 2.5.4) + M9N GPS+ GPS Holder+ 3DR Power Module+Shock Absorber+433MHZ V5 1000MW Radio telemetry+MINI OSD +PDB
TOP Package:
NEW ZD680 Full Carbon Fiber
Product Overview: FPV New F680 All 3K Carbon Fiber ZD 680 Foldable Arm Aircraft Frame Kit
High-Performance Design: A frame kit crafted for drone enthusiasts and professionals, made from high-strength 3K carbon fiber for exceptional durability and lightweight performance.
Foldable Arm Structure: Features a unique foldable arm design with 16MM carbon fiber tubes, allowing quick collapsing and deployment for enhanced portability and storage convenience while maintaining structural stability during flight.
Robust Body: Constructed with a 2MM carbon fiber body, ensuring strong support and rigidity.
Flight Control Recommendation: We recommend pairing with the PIXHAWK flight control system, renowned for its advanced navigation and stability, making the F680 ideal for FPV racing, aerial photography, and custom drone projects.
Recommended Configuration:
Flight Controller: PIXHAWK flight control system, offering precise navigation and stable performance.
ESC: 40A Electronic Speed Controller, ensuring reliable power management.
Motor: 3508 380KV motors, delivering powerful thrust and high efficiency.
Propeller: 12-inch (1255) propellers, achieving a perfect balance of lift and agility.
Battery: Supports 4S to 6S LiPo batteries, meeting diverse flight duration needs.
Key Benefits:
Material Strength: Benefits from the toughness of 3K carbon fiber and the convenience of foldable 16MM arms, combined with the rigidity of a 2MM carbon fiber body.
Versatile Application: An ideal platform for a wide range of applications, whether for racing enthusiasts or aerial photography experts.
Customizable Solution: Provides a high-quality, customizable drone solution for various projects.
M9N is a GPS module commonly used in unmanned aerial vehicles, with the following characteristics and applications:
High precision positioning: The M9N adopts advanced GNSS technology, supports multiple satellite navigation systems, and can provide high-precision position positioning information. For unmanned aerial vehicles, it can achieve accurate positioning and navigation.
Multi system support: The M9N supports multiple satellite navigation systems, including GPS, GLONASS, Galileo, BeiDou, etc. This allows drones to receive multiple satellite signals simultaneously, improving positioning accuracy and reliability.
Quick positioning: M9N has fast cold start and hot start times, which can quickly obtain satellite signals and perform positioning, making it crucial for the rapid takeoff and task execution of unmanned aerial vehicles.
Strong anti-interference ability: M9N has excellent anti-interference performance, which can work stably in complex electromagnetic environments and is not susceptible to interference from other electronic devices.
In drone applications, M9N can be used in the following aspects:
Positioning and Navigation: The M9N provides accurate position and speed information to help drones achieve precise navigation and flight control.
Waypoint navigation: By inputting pre-set waypoint information into M9N, unmanned aerial vehicles can automatically fly according to the route, achieving autonomous waypoint navigation tasks.
Multi aircraft collaboration: Multiple drones can use the M9N module for positioning and synchronization to achieve applications such as team collaborative flight and formation flight.
Return to return: The M9N can provide accurate return positioning information, enabling the drone to safely return to the takeoff point or preset return point.
M9N can search for more satellites outdoors with higher accuracy, faster search speed, and better stability.(The specific number of star searches is determined by the environment at that time.)
VTX1000 is video transmitter,support 25MW-600MW,48 channel (with heat sink abd 3DB antenna)
WIFI V1.0 and V2.0 use 8bit CPU, only support UDP
4PCS 3508 380KV Motor
Color Classification:Black
Motor Technical Parameters:
KV Value:KV380
Model:MX3508
Motor Diameter:42mm
Motor Length (No Shaft):24mm
Stator Diameter:35mm
Stator Length:8mm
Shaft Diameter:4mm
Weight:90g
Recommended Battery:4-6 Cells
Idle Current:0.3A
Top Mounting Hole:12mm x 12mm
Bottom Mounting Hole:25mm x 25mm
Suitable for:
Quadcopters
Hexacopters
Octocopters
Agricultural drones (plant protection machines)
Regarding Dynamic Balance:
We will test each motor before shipping to ensure it meets our factory standards. So, you don't need to worry about dynamic balance.
Note:No 3-socket pad is provided. Please refer to the diagram for specific components.
MX3508 Motor Features:
Flat design
Multiple slot extreme outer brushless motor
High torque and efficiency
Competitive price
Compatible with most market-leading drone frames (with multiple mounting holes)
Aesthetically pleasing design
Propeller Installation:
We use a hub-less propeller installation method, which provides more stability. The carbon propellers are installed without using propeller clamps, ensuring better protection and preventing damage.
Motor Dynamic Test Results:
Our motors have been tested by multiple professional drone photographers and videographers, and they all received excellent feedback.
Features:
