B-CUBE NEW Pixhawk White Shell PIX 2.4.8 M8N 32 Bit Flight Controller Autopilot with 4G SD Safety Switch Buzzer PPM I2C RC Quadcopter

B-CUBE NEW Pixhawk White Shell PIX 2.4.8 M8N 32 Bit Flight Controller Autopilot with 4G SD Safety Switch Buzzer PPM I2C RC Quadcopter

$91.73 USD
$91.73 USD $91.73 USD
Sale Sold out
Color

The product has passed strict CE certification. If you need a PDF or more complete test certificate, please leave a message.



Pixhawk 2.4.8 support the latest official ardupilot firmware and PX4 firmware.

1. The advanced 32-bit ARM CortexM4 high-performance processors STM32F427VIT6(2MB flash), can run NuttX CHIBOS RTOS real-time operating system;
2. 14 PWM / servo output;
3. Bus interface (UART, I2C, SPI, CAN);
4. The integrated backup power and backup controller fails, the primary controller fails over to the backup control is safe;
5. Provide automatic and manual modes;
6. Provide redundant power input and failover;
7. Multicolor LED lights;
8. Provide multi-tone buzzer Interface
9. Micro SD recording flight data;

Specifications:
Interface
1 .5 high voltage compatible UART 1, 2 with hardware flow control
2. 2 CAN
3.Spektrum DSM / DSM2 / DSM-X satellite receiver compatible input
4.Futaba SBUS compatible inputs and outputs
5.PPM Signal Input
6.RSSI (PWM or voltage) Input
7.I2C
8.SPI
9.3.3 and 6.6VADC input
10. External MICRO USB Interface

Simple Package:

PIXHAWK 2.4.8+ 4G TF Card + Safety Button + Buzzer +M8N GPS+ GPS Holder+  3DR Power Module+ Shock Absorber


Standard Package:

PIXHAWK 2.4.8(white or black shell)+ 4G TF Card + Safety Button + Buzzer + PPM Encoder + I2C Expansion Board+ 3 Line(4Pin 1.25 ,6Pin 1.25 ,3Pin 2.5.4)+M8N GPS+ GPS Holder+  3DR Power Module+ Shock Absorber



High Package:

PIXHAWK 2.4.8(white or black shell)+ 4G TF Card + Safety Button + Buzzer + PPM Encoder + I2C Expansion Board+ RGB Led + OLED Screen+ 3 Line(4Pin 1.25 ,6Pin 1.25 ,3Pin 2.5.4)+M8N GPS+ GPS Holder+  3DR Power Module+ Shock Absorber



433/915MHZ 100MW :

PIXHAWK 2.4.8+ 4G TF Card + Safety Button + Buzzer + PPM Encoder + I2C Expansion Board+ 3 Line(4Pin 1.25 ,6Pin 1.25 ,3Pin 2.5.4) + M8N GPS+ GPS Holder+  3DR Power Module+ Shock Absorber+433/915MHZ 100MW Radio telemetry V1


433/915MHZ 500MW :

PIXHAWK 2.4.8(white or black shell)+ 4G TF Card + Safety Button + Buzzer + PPM Encoder + I2C Expansion Board+ RGB LED + OLED Screen+ 3 Line(4Pin 1.25 ,6Pin 1.25 ,3Pin 2.5.4) + M8N GPS+ GPS Holder+  3DR Power Module+Shock Absorber+433/915MHZ 500MW Radio telemetry V1



433/915MHZ 1000MW :

PIXHAWK 2.4.8(white or black shell)+ 4G TF Card + Safety Button + Buzzer + PPM Encoder + I2C Expansion Board+ RGB LED + OLED Screen+ 3 Line(4Pin 1.25 ,6Pin 1.25 ,3Pin 2.5.4) +M8N GPS+ GPS Holder+  3DR Power Module+Shock Absorber+433/915MHZ 1000MW Radio telemetry V1

433/915MHZ 100MW V5:

PIXHAWK 2.4.8+ 4G TF Card+Safety Button+Buzzer+PPM Encode

+12C+Wire+433/915MHZ 100MW Radio telemetry V5+M8N GPS



433/915MHZ 500MW V5:

P1XHAWK2.4.8+4G TFCard+Safety Button+Buzzer+PPMEncoder+I2C Board+ RGB Led+OLED Screen+Wire+ 433/915MHZ 500MW Radio telemetry V5+M8N GPS



433/915MHZ 1000MW V5:

PIXHAWK 2.4.8+ 4G TF Card+Safety Button+Buzzer+PPM Encoder +I2C Board+ RGBLed+OLEDScreen+Wire+ 433/915MHZ 1000MW Radio telemetry V5+M8N GPS


433MHZV5 1000MW OSD:

PIXHAWK 2.4.8(white or black shell)+ 4G TF Card + Safety Button + Buzzer + PPM Encoder + I2C Expansion Board+ RGB LED + OLED Screen+ 3 Line(4Pin 1.25 ,6Pin 1.25 ,3Pin 2.5.4) + M8N GPS+ GPS Holder+  3DR Power Module+Shock Absorber+433MHZ V5 1000MW Radio telemetry+MINI OSD +PDB

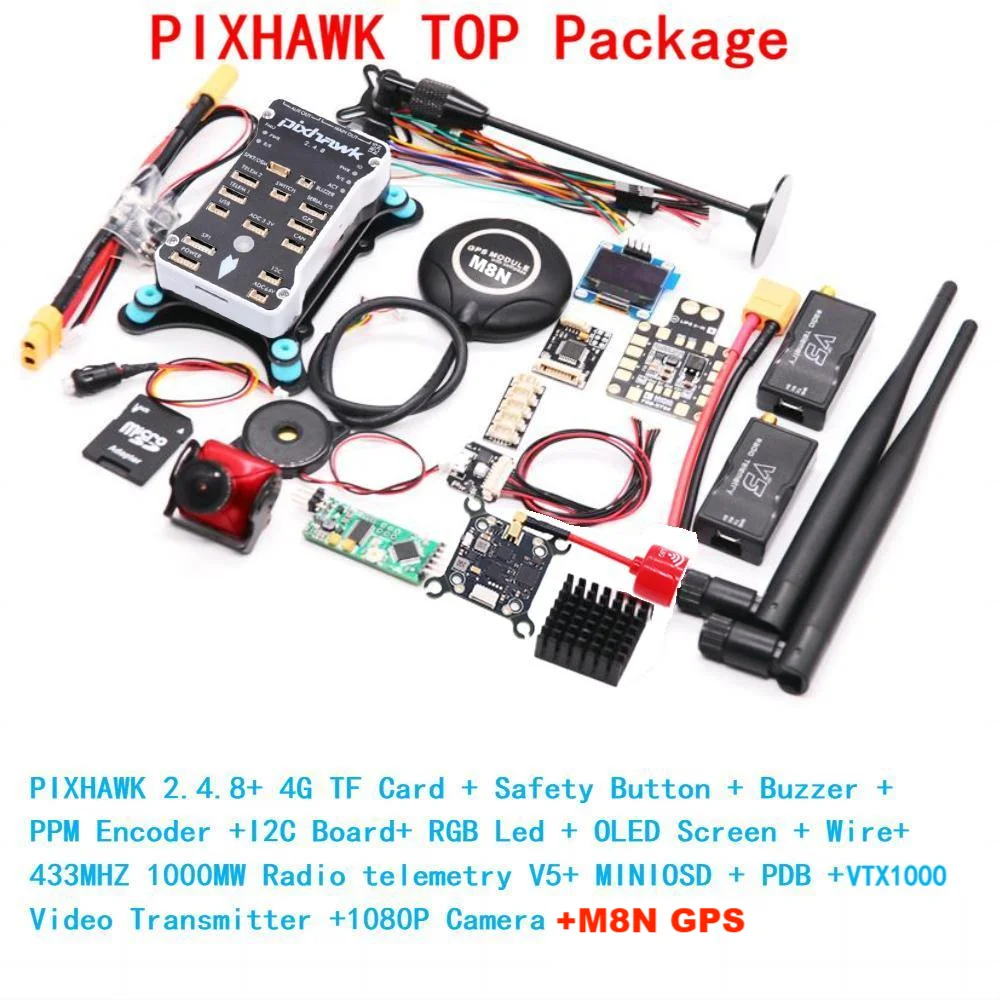

TOP Package:
PIXHAWK TOP package:PIXHAWK 2.4.8(white or black shell)+ 4G TF Card + Safety Button + Buzzer + PPM Encoder +OLED Module+RGB LED+I2C Expansion Board+ 3 Line(4Pin 1.25 ,6Pin 1.25 ,3Pin 2.5.4) +M8N GPS+ GPS Holder+  3DR Power Module+ Shock Absorber +
433MHZ1000MW 3DR Radio Telemetry V5+ MINIOSD + PDB +VTX1000 +1080P Camera

If the package includes the 3DR Power Module, the current hardware of the 3DR Power Module has been fully upgraded. Previously, it only supported a maximum of 6S, but now it supports a maximum of 12S. By default, XT60 plug is sent. If XT90 plug is required, please leave a message.









OLED Module can display some message.



WIFI V1.0 and V2.0 use 8bit CPU, only support UDP
WIFI V3.0 use 32 BIT CPU, support TCP and UDP.
WIFI V2.0 and V3.0 use external antenna (5DB)

Radio telemetry V1



Radio telemetry can be used for wireless communication between pixhawk and computer or mobile phone.

MINI OSD



PDB:

VTX1000 is video transmitter,support 25MW-600MW,48 channel (with heat sink abd 3DB antenna )



Description:
Model: MINI MS-1672 FPV cameras
Sensor: 1/1/8 "CMOS D1080H
Horizontal resolution: 2000TVL
Horizontal field of view: 165
Lens: 2.1mm lens
Video format: NTC&PAL (adjustable)
Image scale: 4:3&16:9 (automatic recognition)
Wide Dynamic Range: Super WDR
Noise reduction: 3DNR
Low illumination: 0.001LUX
Video output: CVBS
Day and night: external/internal/black and white/color
Language: (English/Chinese/Traditional Chinese/pyccnna)
ESOABIK/TTASSNO/FRABCAUS/
POSDIM/PORTUGUES/Japanese
Electronic Shutter: PAL: 1/50-100000NTSC: 1/60-100000
Wide voltage input: 5-36V
Working temperature: -20-60
Weight: 110g
Dimensions: 19 19 19mm
Resolution: 960 * 1080

Feature:
Upgraded Mista 2000TVL 2.1mm Wide Angle HD 1080P CCD PAL/NTSC Switchable 16:9 OSD FPV Camera.

Package included:
1 x Upgraded Mista FPV Camera
