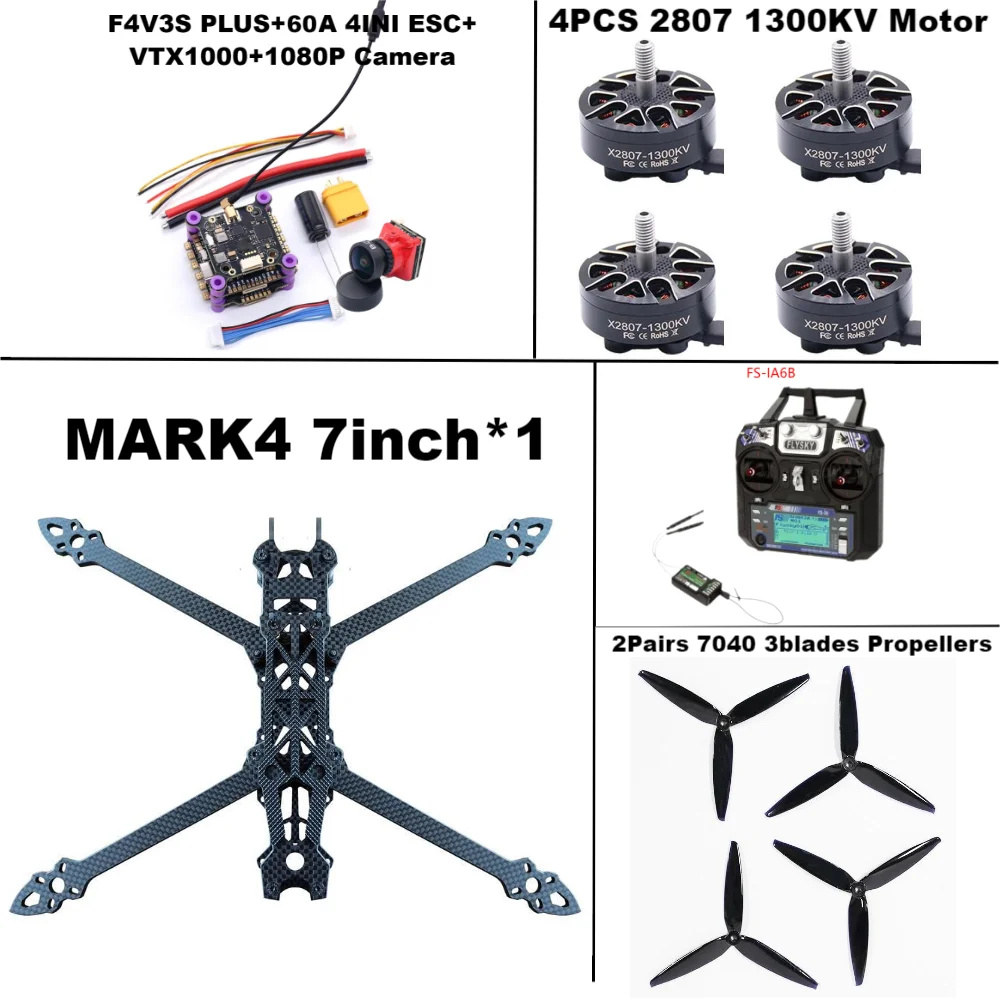

MARK4 V2 7-inch

F4V3S flight controller Item Specifics:
Product Name: F4 Flight Controller Board
Material: Electronic component
Standard Board Size: about 36x36mm
Standard Size of Mount Hole: 30.5x30.5mm

Features:
-STM32 F405 MCU
-Dshot support
-Drag and Drop OSD configured via Betaflight Configurator
-Smartaudio v2 support  Tune your PID's and configure the omnibus F C from your Transmitter
-MPU6500 6 axis SPI Gyro & Accelerometer (show as MPU6500 at inav-configurator if upload INAV firmware)
-SBUS/PPM AND Spketrum dsm-x Ports
-SD card blackbox
-Baro(BMP280)
-5V 3A SBEC
-On-board Video Filter(only can supply 5V to VTX and Camera)
-SmartAudio V2 via tx6 on J10
-4×3 pin ESC pin layout
-IR pins for lap timing transponder

F4V3S PLUS Flight Controller

Note : F4V3S PLUS uses a TYPE-C USB port. Please ensure that you have a TYPEC USB cable that can communicate normally. Some USB cables can only be charged and cannot communicate data with flight control. If the USB cable you use cannot recognize the flight control USB port, it indicates that your USB cable cannot communicate with data normally. We upload firmware to the flight control through USB and conduct testing, so it can be very guaranteed that the USB port of the flight control is normal.

If you are unable to confirm if your USB cable is communicating properly, please purchase one.

Specification:
Item name: F4V3S PLUS Flight Controller
Firmware:OMNIBUSF4SD(AIRB)
USB Port: TYPE-C
Size: 36x36mm
Mounting holes: 30.5x30.5mm
STM32 F405 MCU
Dshot support
Drag and Drop OSD configured via Betaflight
MPU6500 6 axis SPI gyro & accelerometer
SBUS / PPM AND Spketrum DSMX ports
MicroSD card blackbox
Baro (BMP280)
5V3A 9V3A BEC
On-board video filters
 Properties:
measured.

Boasting a F4 processor, on-board Betaflight OSD, MicroSD Black Box, 5v3a sbec, video filter, you'll be tuning PIDS with your transmitter and tear it to the track in no time!

Note ： F4V3S PLUS supports cleanflight ,betaflight and INAV firmware.

F4V3S:

F4V3S PLUS:

VTX1000 1W Video Transmitter
