B-CUBE ZD650 PRO+ 650mm Ardupilot Pixhawk Carbon fiber Quadcopter Frame FPV Quad with Carbon Fiber Landing Skid Motor 40A ESC
B-CUBE ZD650 PRO+ 650mm Ardupilot Pixhawk Carbon fiber Quadcopter Frame FPV Quad with Carbon Fiber Landing Skid Motor 40A ESC
Regular price
$109.39 USD
Regular price
Sale price
$109.39 USD
Quantity
Couldn't load pickup availability
Pixhawk 2.4.8 support the latest official ardupilot firmware and PX4 firmware.
1. The advanced 32-bit ARM CortexM4 high-performance processors STM32F427VIT6(2MB flash), can run NuttX CHIBOS RTOS real-time operating system;
2. 14 PWM / servo output;
3. Bus interface (UART, I2C, SPI, CAN);
4. The integrated backup power and backup controller fails, the primary controller fails over to the backup control is safe;
5. Provide automatic and manual modes;
6. Provide redundant power input and failover;
7. Multicolor LED lights;
8. Provide multi-tone buzzer Interface
9. Micro SD recording flight data;
Specifications:
Interface
1 .5 high voltage compatible UART 1, 2 with hardware flow control
2. 2 CAN
3.Spektrum DSM / DSM2 / DSM-X satellite receiver compatible input
4.Futaba SBUS compatible inputs and outputs
5.PPM Signal Input
6.RSSI (PWM or voltage) Input
7.I2C
8.SPI
9.3.3 and 6.6VADC input
10. External MICRO USB Interface
Simple Package:

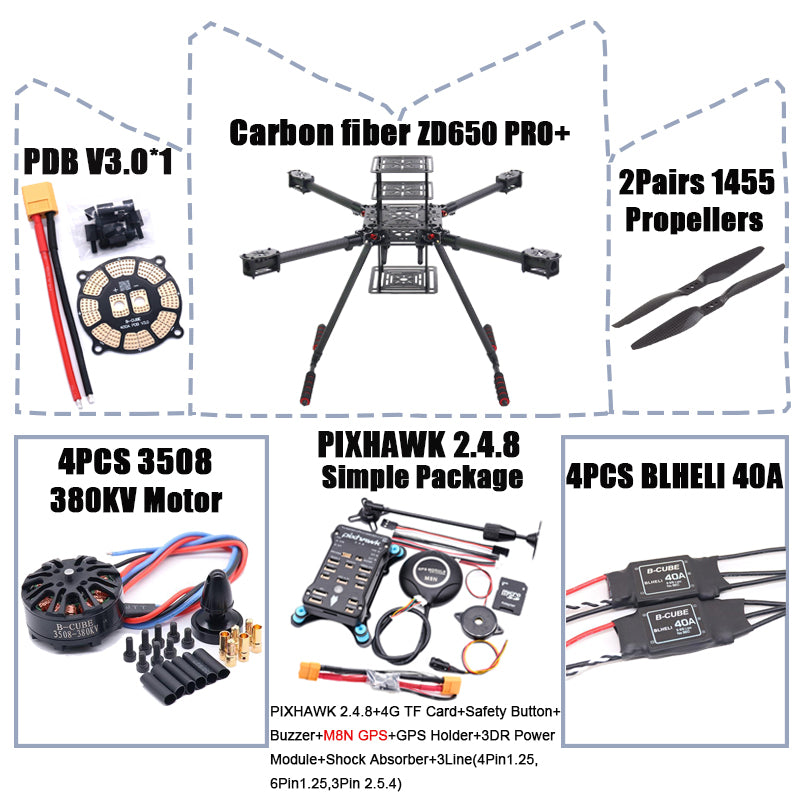

Carbon fiber ZD650 PRO S + 4 PCS BLHELI 40A + 2 pairs self-locking 1455 Propellers + 4 PCS 3508 380KV Motor + PDB V3.0
PIXHAWK 2.4.8(white or black shell)+ 4G TF Card + Safety Button + Buzzer +M8N GPS+ GPS Holder+3DR Power Module+ Shock Absorber+ 3 Line(4Pin 1.25 ,6Pin 1.25 ,3Pin 2.5.4)
High Package:
Carbon fiber ZD650 PRO S + 4 PCS BLHELI 40A + 2 pairs self-locking 1455 Propellers + 4 PCS 3508 380KV Motor + PDB V3.0
PIXHAWK 2.4.8(white or black shell)+ 4G TF Card + Safety Button + Buzzer + PPM Encoder + I2C Expansion Board+ RGB Led + OLED Screen+M8N GPS+ GPS Holder+ 3DR Power Module+ Shock Absorber+ 3 Line(4Pin 1.25 ,6Pin 1.25 ,3Pin 2.5.4)
433MHZ 100MW V5:
Carbon fiber ZD650 PRO S + 4 PCS BLHELI 40A + 2 pairs self-locking 1455 Propellers + 4 PCS 3508 380KV Motor + PDB V3.0
PIXHAWK 2.4.8(white or black shell)+ 4G TF Card + Safety Button + Buzzer + PPM Encoder + I2C Expansion Board+M8N GPS+ GPS Holder+ 3DR Power Module+ Shock Absorber+433MHZ 100MW Radio telemetry V5+3 Line(4Pin 1.25 ,6Pin 1.25 ,3Pin 2.5.4)
433MHZ 1000MW :
Carbon fiber ZD650 PRO S + 4 PCS BLHELI 40A + 2 pairs self-locking 1455 Propellers + 4 PCS 3508 380KV Motor + PDB V3.0
PIXHAWK 2.4.8(white or black shell)+ 4G TF Card + Safety Button + Buzzer + PPM Encoder + I2C Expansion Board+ RGB LED + OLED Screen+M8N GPS+ GPS Holder+3DR Power Module+Shock Absorber+433MHZ 1000MW Radio telemetry V5+3 Line(4Pin 1.25 ,6Pin 1.25 ,3Pin 2.5.4)
PIXHAWK PRO
Features:
Pixhawk PRO support the latest official ardupilot firmware and PX4 firmware.
1. The advanced 32-bit ARM CortexM4 high-performance processors(2MB flash), can run NuttX RTOS real-time operating system;
2. 14 PWM / servo output;
3. Bus interface (UART, I2C, SPI, CAN);
4. The integrated backup power and backup controller fails, the primary controller fails over to the backup control is safe;
5. Provide automatic and manual modes;
6. Provide redundant power input and failover;
7. Multicolor LED lights;
8. Provide multi-tone buzzer Interface
9. Micro SD recording flight data;
10.TYPE-C USB port
11.GH1.25 port
Specifications:
Interface
1.5 high voltage compatible UART 1, 2 with hardware flow control
2. 2 CAN
3.Spektrum DSM / DSM2 / DSM-X satellite receiver compatible input
4.Futaba SBUS compatible inputs and outputs
5.PPM Signal Input
6.RSSI (PWM or voltage) Input
7.I2C
8.SPI
9.3.3 and 6.6VADC input
10. External TYPEC USB Interface

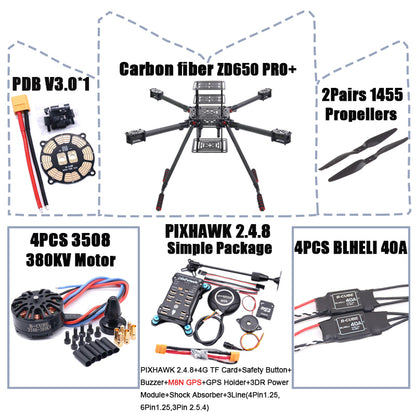

Simple Package:
Carbon fiber ZD650 PRO S + 4 PCS BLHELI 40A + 2 pairs self-locking 1455 Propellers + 4 PCS 3508 380KV Motor + PDB V3.0
PIXHAWK PRO(white or black shell)+ 4G TF Card + Safety Button + Buzzer +M8N GPS+ GPS Holder+ 3DR Power Module+ Shock Absorber+3 Line(4Pin 1.25 ,6Pin 1.25 ,3Pin 2.5.4)
High Package:
Carbon fiber ZD650 PRO S + 4 PCS BLHELI 40A + 2 pairs self-locking 1455 Propellers + 4 PCS 3508 380KV Motor + PDB V3.0
PIXHAWK PRO(white or black shell)+ 4G TF Card + Safety Button + Buzzer + PPM Encoder + I2C Expansion Board+ RGB Led + OLED Screen+M8N GPS+ GPS Holder+ 3DR Power Module+ Shock Absorber+3 Line(4Pin 1.25 ,6Pin 1.25 ,3Pin 2.5.4)
433MHZ 100MW :
Carbon fiber ZD650 PRO S + 4 PCS BLHELI 40A + 2 pairs self-locking 1455 Propellers + 4 PCS 3508 380KV Motor + PDB V3.0
PIXHAWK PRO(white or black shell)+ 4G TF Card + Safety Button + Buzzer+M8N GPS+ GPS Holder+ 3DR Power Module+ Shock Absorber+433MHZ 100MW Radio telemetry V5+3 Line(4Pin 1.25 ,6Pin 1.25 ,3Pin 2.5.4)

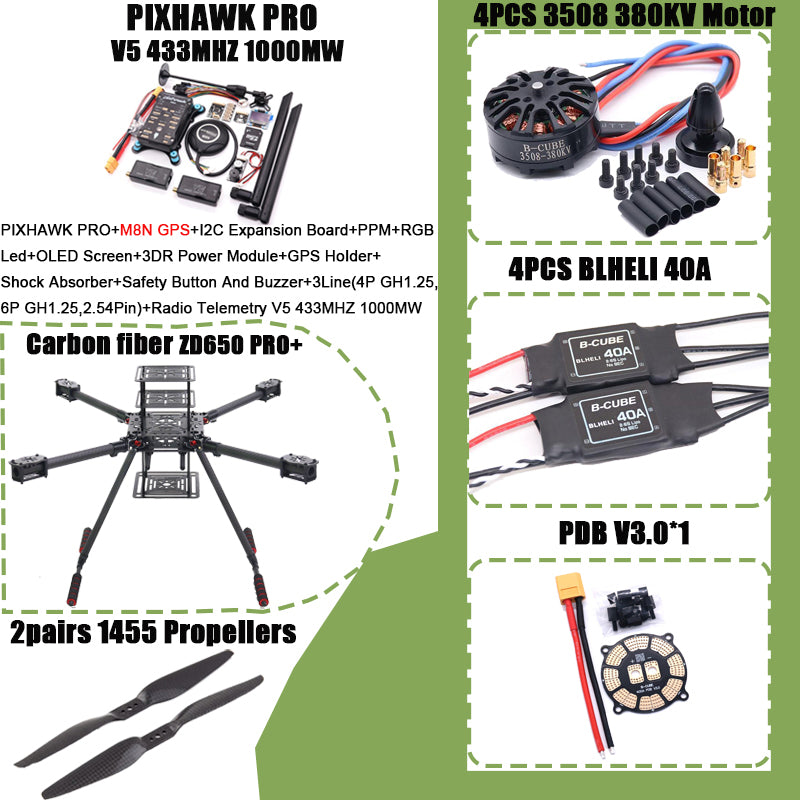

433MHZ 1000MW :
Carbon fiber ZD650 PRO S + 4 PCS BLHELI 40A + 2 pairs self-locking 1455 Propellers + 4 PCS 3508 380KV Motor + PDB V3.0
PIXHAWK PRO(white or black shell)+ 4G TF Card + Safety Button + Buzzer + PPM Encoder + I2C Expansion Board+ RGB LED + OLED Screen+M8N GPS+ GPS Holder+3DR Power Module+Shock Absorber+433MHZ 1000MW Radio telemetry V5+3 Line(4Pin 1.25 ,6Pin 1.25 ,3Pin 2.5.4)
PIXHAWK 6C PRO
The Pixhawk® 6C PRO is the latest update to the successful family of Pixhawk® flight controllers, based on the Pixhawk® FMUv6C Open Standard and Connector Standard. It comes with PX4 Autopilot® pre-installed. STMicroelectronics® based STM32H743, paired with sensor technology from Bosch® & InvenSense®, giving you flexibility and reliability for controlling any autonomous vehicle, suitable for both academic and commercial applications.
The Pixhawk® 6C PRO's H7 microcontroller contain the Arm® Cortex®-M7 core running up to 480 MHz, has 2MB flash memory and 1MB RAM. Thanks to the updated processing power, developers can be more productive and efficient with their development work, allowing for complex algorithms and models.
The Pixhawk 6C PRO includes high-performance, low-noise IMUs on board, designed to be cost effective while having IMU redundancy. A vibration isolation System to filter out high-frequency vibration and reduce noise to ensure accurate readings, allowing vehicles to reach better overall flight performances.
The Pixhawk® 6C PRO is perfect for developers at corporate research labs, startups, academics (research, professors, students), and commercial application.
Key Design Points
High performance STM32H743 Processor with more computing power & RAM
Build-in Buzzer,Build-in RGB LED,support Independent external Safety Button,With Plastic Case
New cost-effective design with low-profile form factor
Newly designed integrated vibration isolation system to filter out high frequency vibration and reduce noise to ensure accurate readings
IMUs are temperature-controlled by onboard heating resistors, allowing optimum working temperature of IMUs
Technical Specification
Processors & Sensors
FMU Processor: STM32H743
32 Bit Arm® Cortex®-M7, 480MHz, 2MB memory, 1MB SRAM
IO Processor: STM32F103
32 Bit Arm® Cortex®-M3, 72MHz, 64KB SRAM
On-board sensors
Accel/Gyro: ICM-42688-P
Accel/Gyro: BMI055
Mag: IST8310
Barometer: MS5611
Electrical data
Voltage Ratings:
Max input voltage: 6V
USB Power Input: 4.75~5.25V
Servo Rail Input: 0~36V
Current Ratings:
TELEM1 Max output current limiter: 1.5A
All other port combined output current limiter: 1.5A
Mechanical data
Dimensions: 85 * 45 * 10 mm
Weight (Plastic Case) : 33g

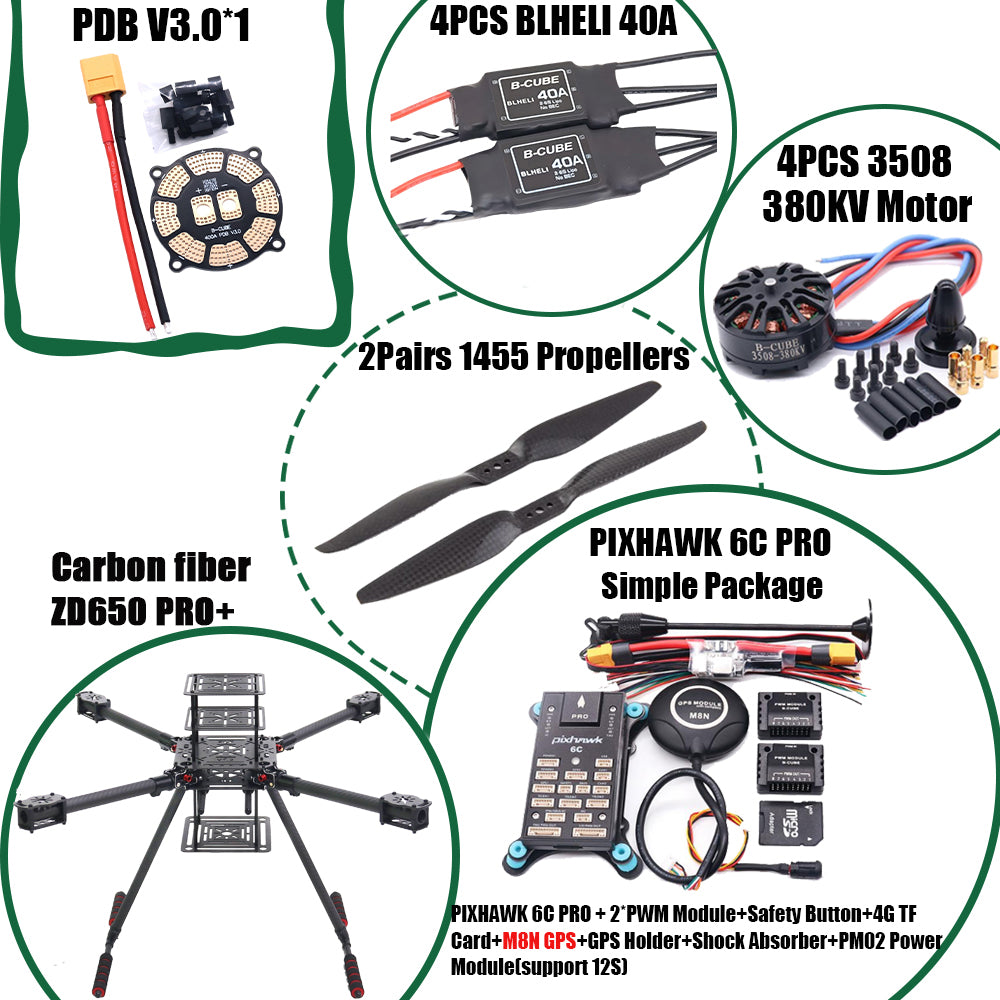

Simple Package:

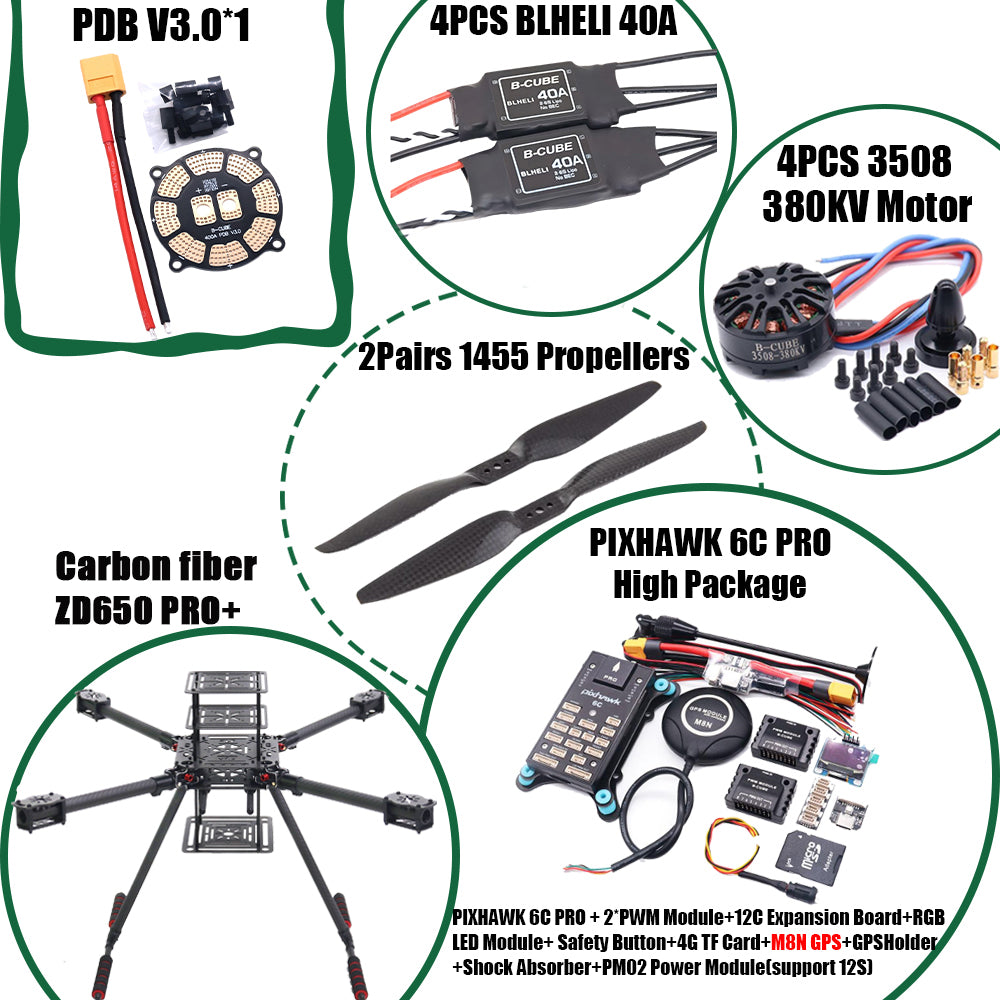

Carbon fiber ZD650 PRO S + 4 PCS BLHELI 40A + 2 pairs self-locking 1455 Propellers + 4 PCS 3508 380KV Motor + PDB V3.0
PIXHAWK 6C PRO(white or black shell)+ 4G TF Card + Safety Button + Buzzer +M8N GPS+GPS Holder+PM02 Power Module+ Shock Absorber
High Package:
Carbon fiber ZD650 PRO S + 4 PCS BLHELI 40A + 2 pairs self-locking 1455 Propellers + 4 PCS 3508 380KV Motor + PDB V3.0
PIXHAWK 6C PRO(white or black shell)+ 4G TF Card + Safety Button + Buzzer+I2C Expansion Board+ RGB Led + OLED Screen+M8N GPS+GPS Holder+PM02 Power Module+ Shock Absorber

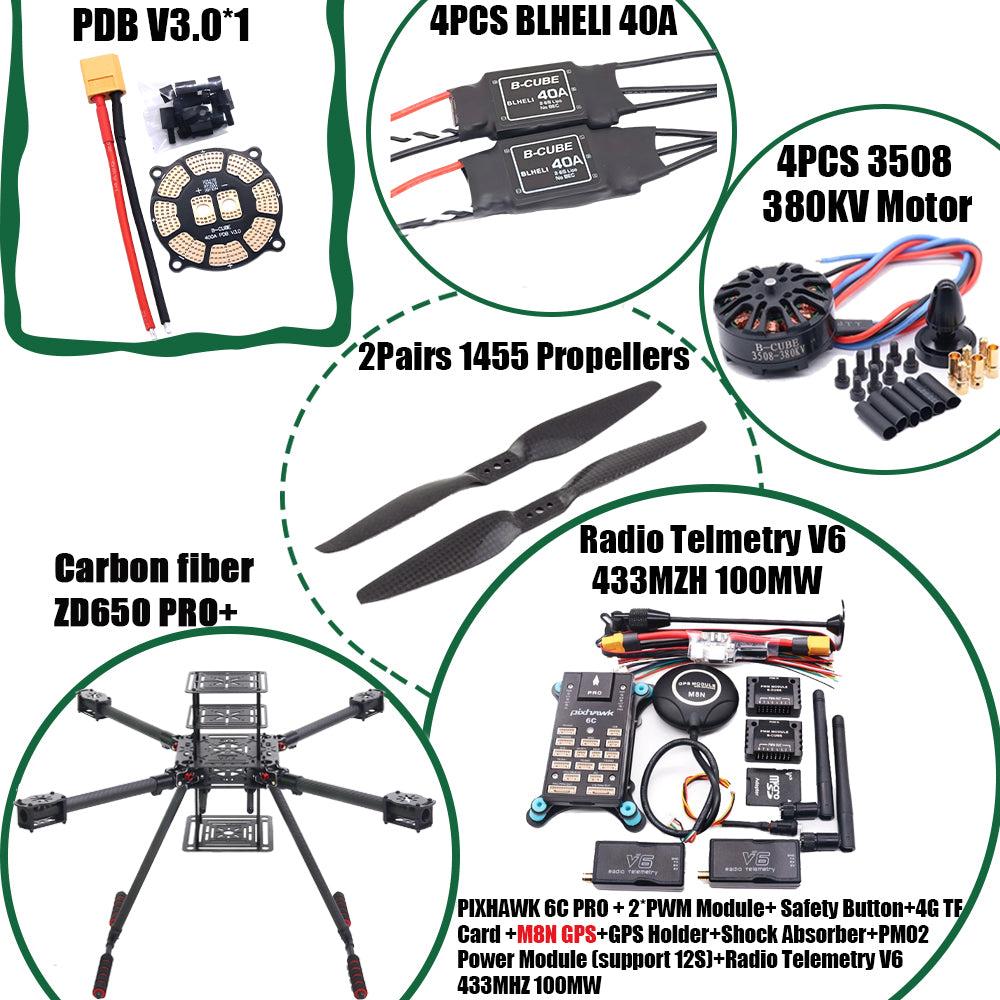

433MHZ 100MW :
Carbon fiber ZD650 PRO S + 4 PCS BLHELI 40A + 2 pairs self-locking 1455 Propellers + 4 PCS 3508 380KV Motor + PDB V3.0
PIXHAWK 6C PRO(white or black shell)+ 4G TF Card + Safety Button + Buzzer+M8N GPS+ GPS Holder+ PM02 Power Module+ Shock Absorber+433MHZ 100MW Radio telemetry V6
433MHZ 1000MW :
Carbon fiber ZD650 PRO S + 4 PCS BLHELI 40A + 2 pairs self-locking 1455 Propellers + 4 PCS 3508 380KV Motor + PDB V3.0
PIXHAWK 6C PRO(white or black shell)+ 4G TF Card + Safety Button + Buzzer+I2C Expansion Board+ RGB LED + OLED Screen+M8N GPS+ GPS Holder+PM02 Power Module+Shock Absorber+433MHZ 1000MW Radio telemetry V6
650 PRO S Motor: Carbon fiber ZD650 PRO+ +2 Pairs self-locking 1455 Propellers + 4 PCS 3508 380KV Motor+ PDB V3.0
650 PRO S Motor ESC: Carbon fiber ZD650 PRO+ +2 Pairs self-locking 1455 Propellers + 4 PCS 3508 380KV Motor+4 PCS BLHELI 40A+PDB V3.0
M8N GPS:
Carbon fiber ZD650 PRO+

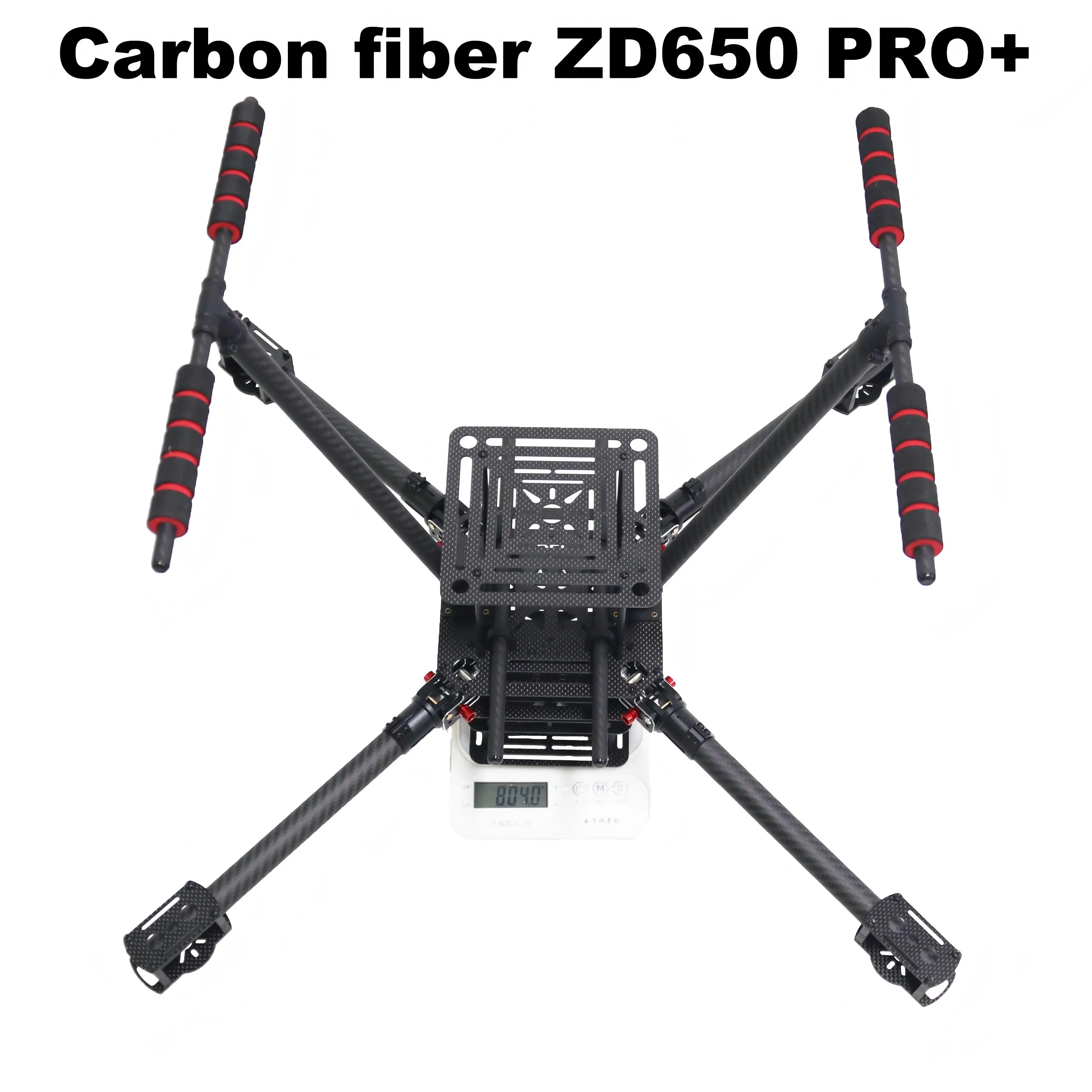

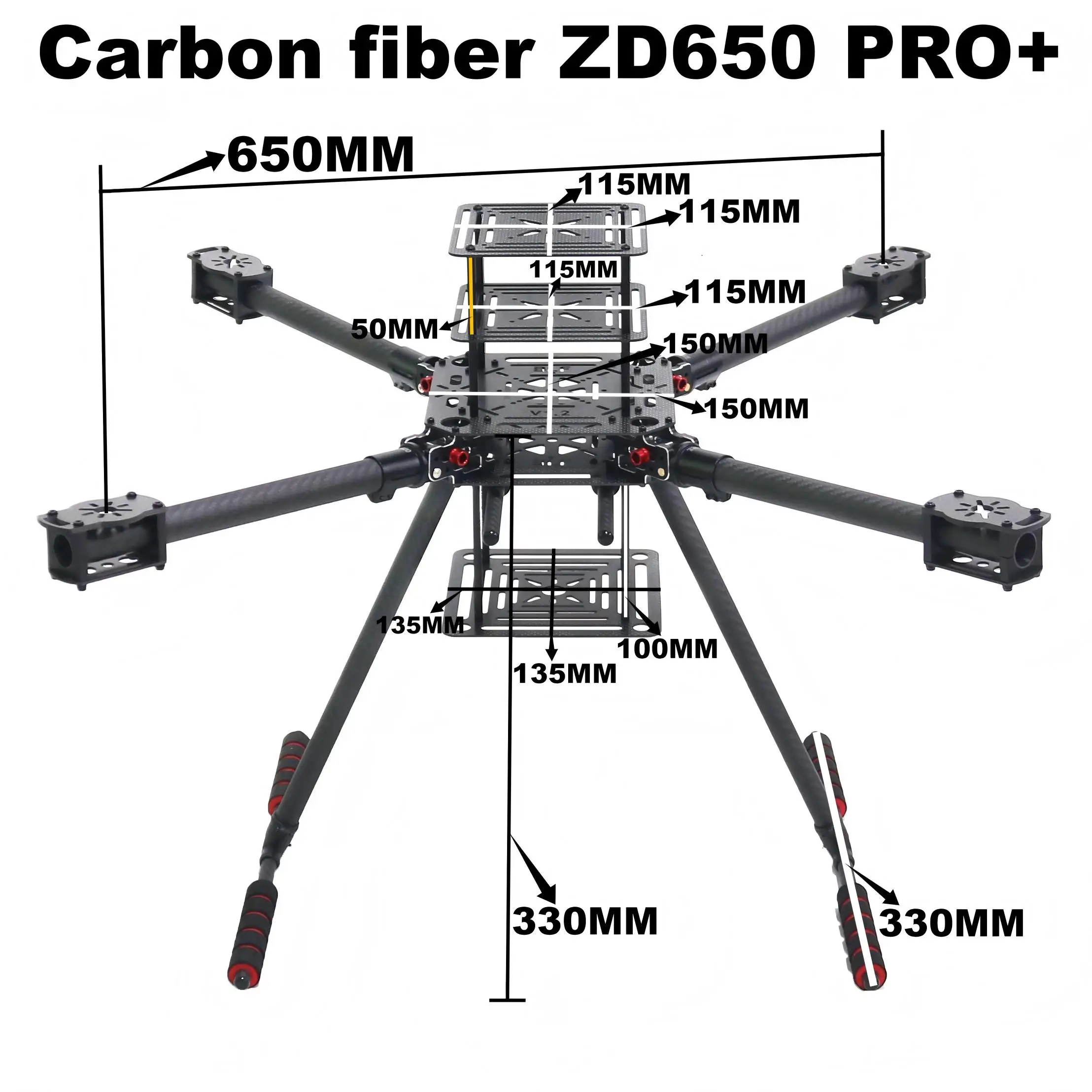

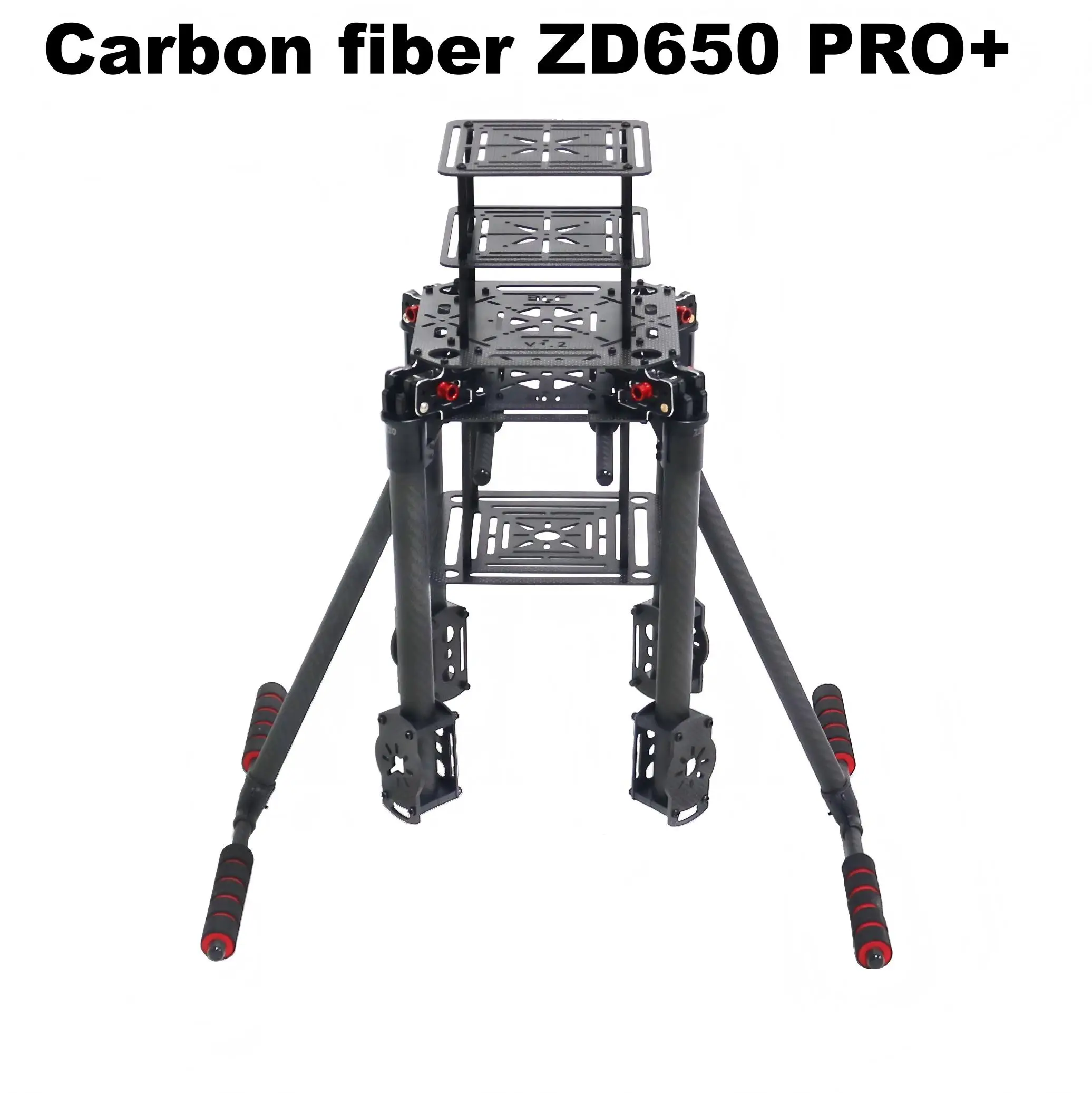

Parameters:

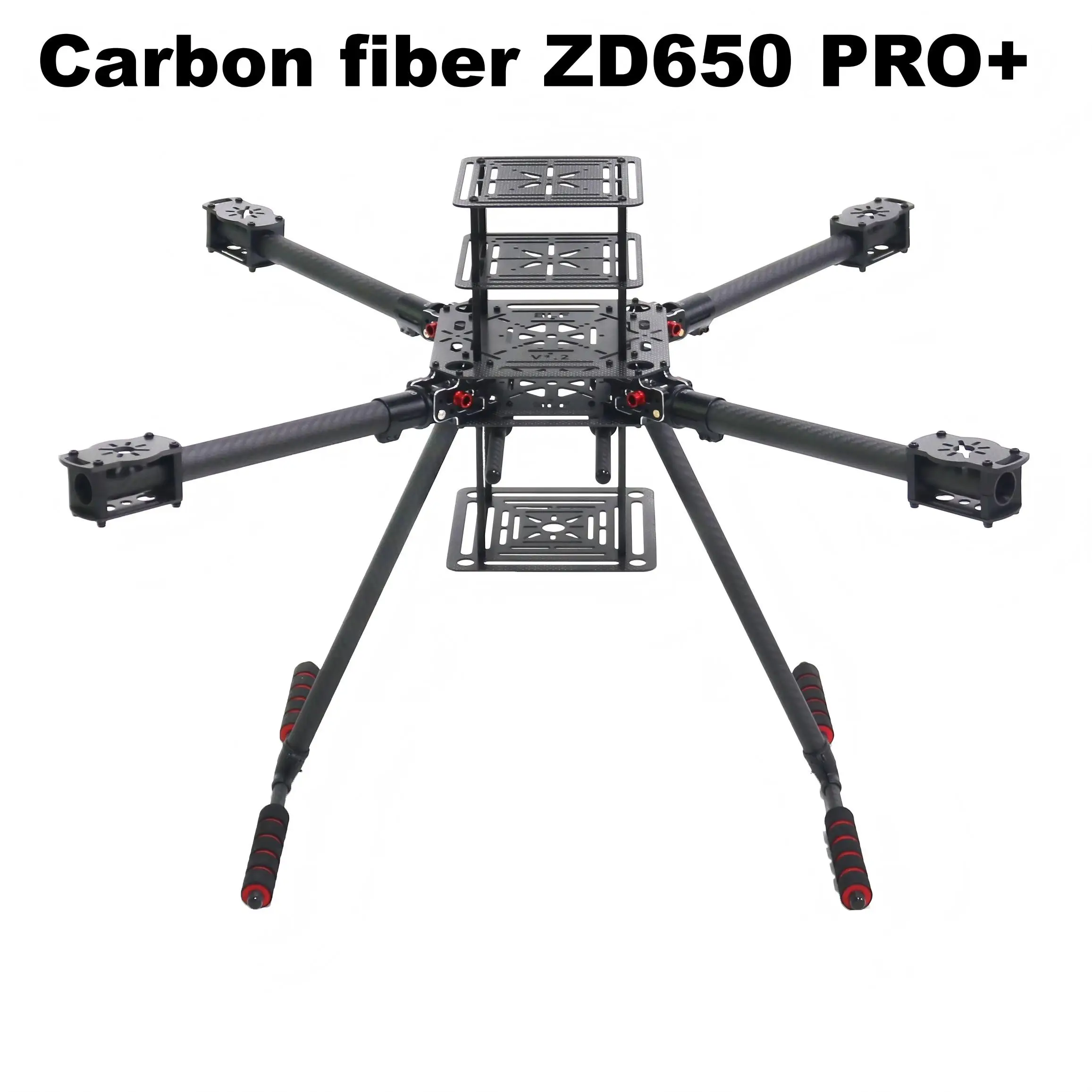

Diagonal wheelbase: 650mm
Landing gear height: 330mm
Weight: 800 ±4 g
Battery compartment size: 100MM * 100MM
Motherboard size: 150MM * 150MM
Top board size: 115MM * 115MM
Material of the main board : 3k full carbon fiber
thickness of the main board : 1.5mm
Arm diameter: 20MM
Folding component: CNC aluminum alloy Recommended configuration: (Not inlcuded)

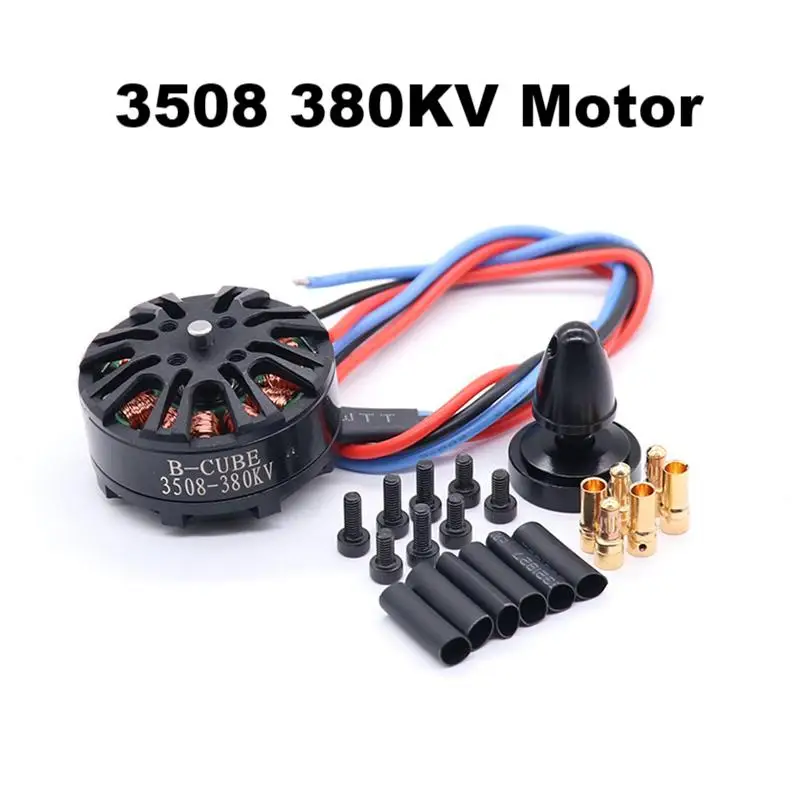

Motor: 3508 380KV
Prop: 12-14 inch CW CCW
ESC: 40A(2-6s)
Flight control: Pixhawk opensource flight control
Battery: 4-6S Lipo
Package includes: Carbon Fiber Quadcopter frame kits with Landing Gear x 1 (just a frmae kit, not assembled)
4PCS 3508 380KV Motor
Parameters:
Diagonal wheelbase: 650mm
Landing gear height: 330mm
Weight: 800 ±4 g
Battery compartment size: 100MM * 100MM
Motherboard size: 150MM * 150MM
Top board size: 115MM * 115MM
Material of the main board : 3k full carbon fiber
thickness of the main board : 1.5mm
Arm diameter: 20MM
Folding component: CNC aluminum alloy
Recommended configuration: (Not inlcuded)
Motor: 3508 380KV
Prop: 12-14 inch CW CCW
ESC: 40A(2-6s)
Flight control: Pixhawk opensource flight control
Battery: 4-6S Lipo
Package includes:
Carbon Fiber Quadcopter frame kits with Landing Gear x 1 (just a frmae kit, not assembled)
1.Connect OLED to I2C port of Pixhawk
2.Upload ardupilot firmware, at least 3.5 version, below 3.5 version will not be display.
3.Use Mission Planner to modify parameters NTF_DISPLAY_TYPE to 1. After modify, remember to click “Write Params” button.
4.Now the OLED is only supported for ardupilot firmware,can not be supported PX4 firmware
5. Reboot the board.
4PCS BLHELI 40A
Features:
- Using Multicopter special program, fast throttle response,surpasses all kinds of open source software;
- Firmware was optimized specifically for disc motor, and it has a very good compatibility;
- Highly intelligent, strong adaptive capacity, reserve the timing setting item (height/middle timing), easy to use;
- Throttle signal line is twisted wire to reduce crosstalk within the transmission signal generated by the copper, so that more stable flight;
- Supports refresh rates up to 621Hz throttle signal, compatible with various flight controllers. (Note: the throttle signal over 500Hz are all non-standard throttle signal);
- Using MOSFET special driver IC, its performance and stability far surpass the driving circuit with discrete components built;
- Ultra-low resistance MOSFET, strong flow capacity.
2Pairs T-Motor 3K Carbon Fiber Propeller 1455
The new T-motor propeller-type aerial dedicated full carbon paddle paddle-type three-hole installationUsing carbon content of 100% pure imported Toray carbon fiber 3K woven, high temperature and pressure precast precision machining, hardness higher than conventional products market.
PDB V3.0
Product Name:High-current ESC Power Distribution Board PDB V3.0
Number of Supported ESCs:8
Maximum Current Capacity:400A
Copper Thickness:7 oz
Weight:8.4g
Dimensions:Diameter 50mm, Mounting Hole Pattern 38mm
Screw Hole Size:M3
The upgraded V3.0 version has been improved based on the original design:
Copper thickness increased from 6 oz to 7 oz.
Output pad spacing enlarged to preent soldering errors.
Main current pad area enlarged.
Dimensions and mounting hole pattern remain unchanged.
