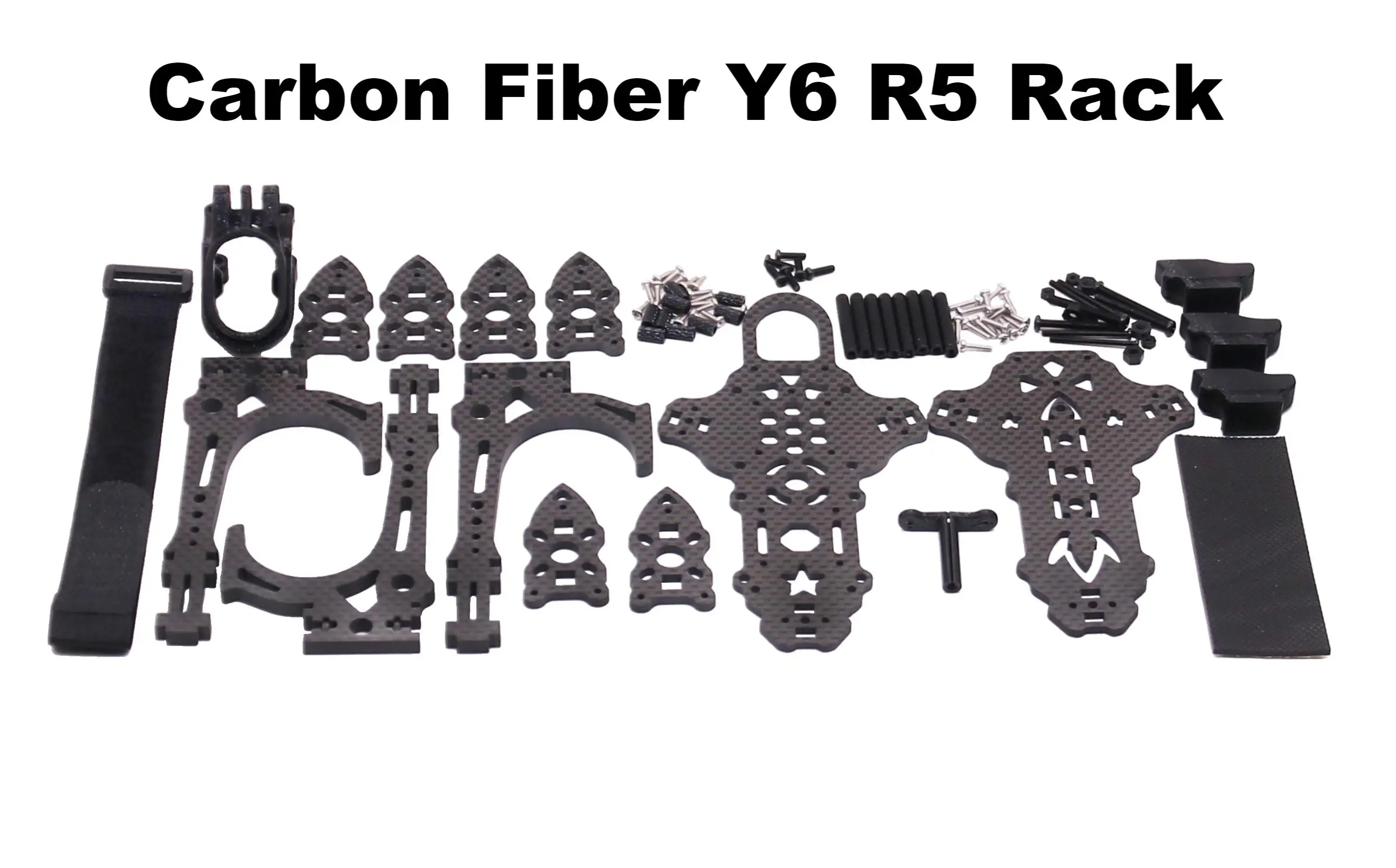

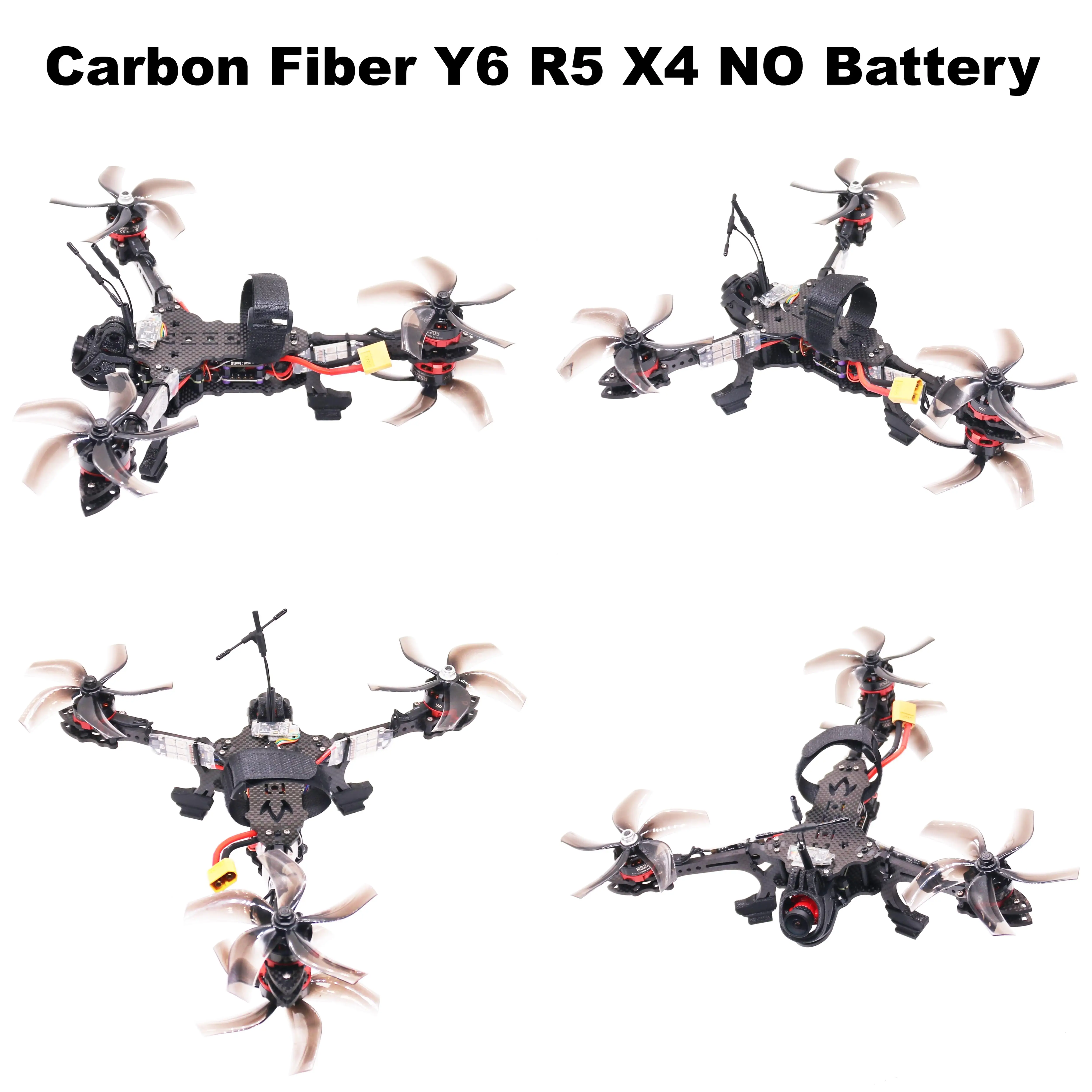

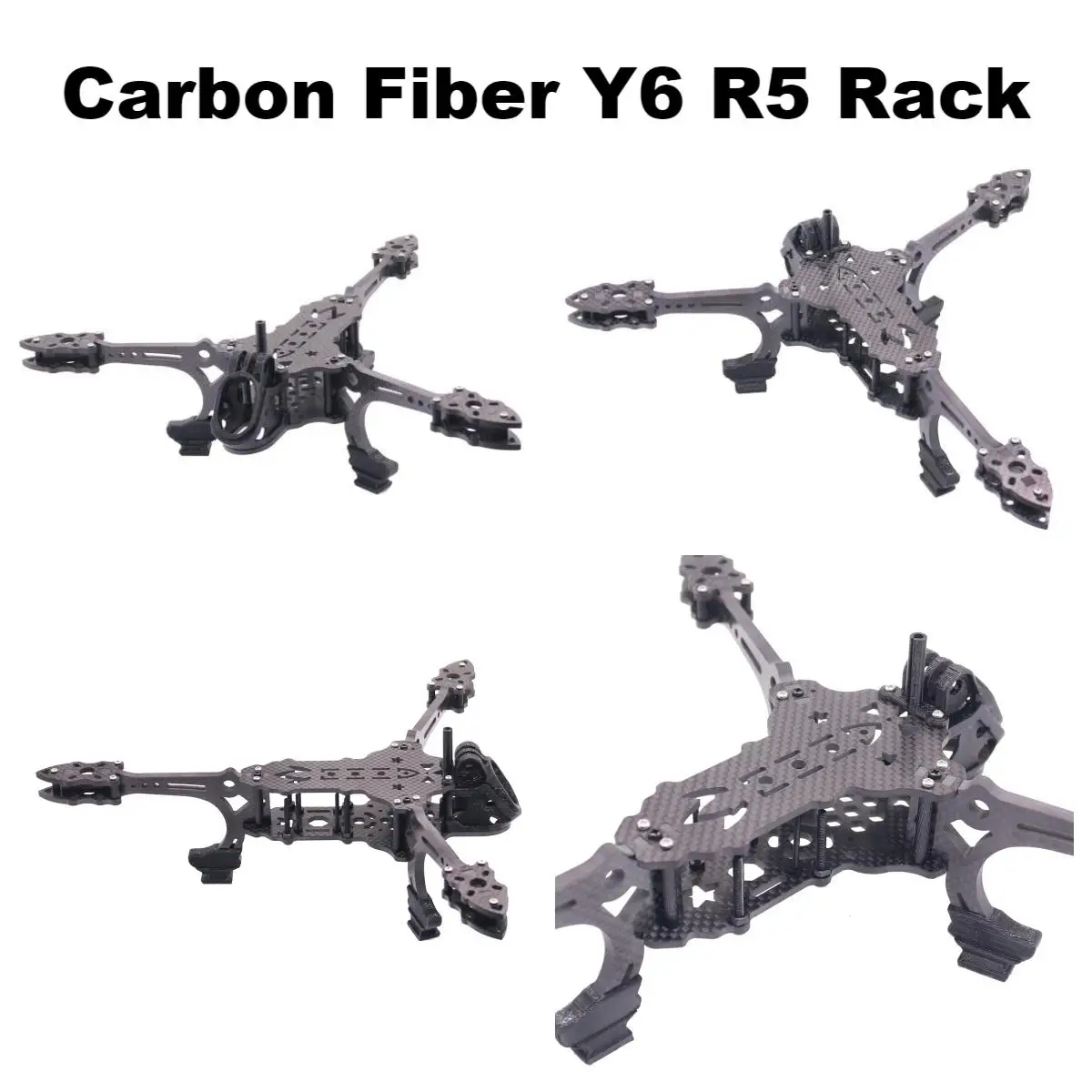

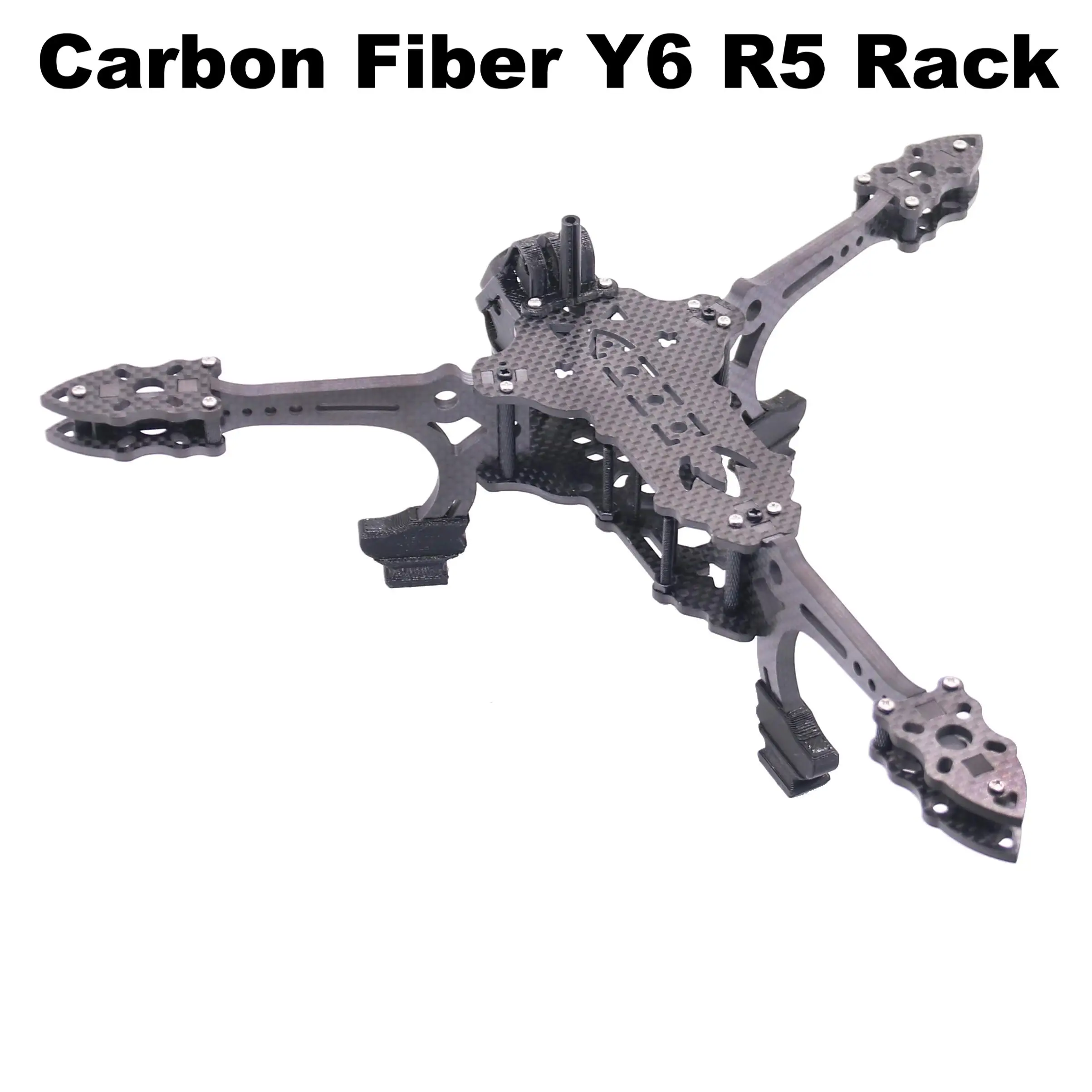

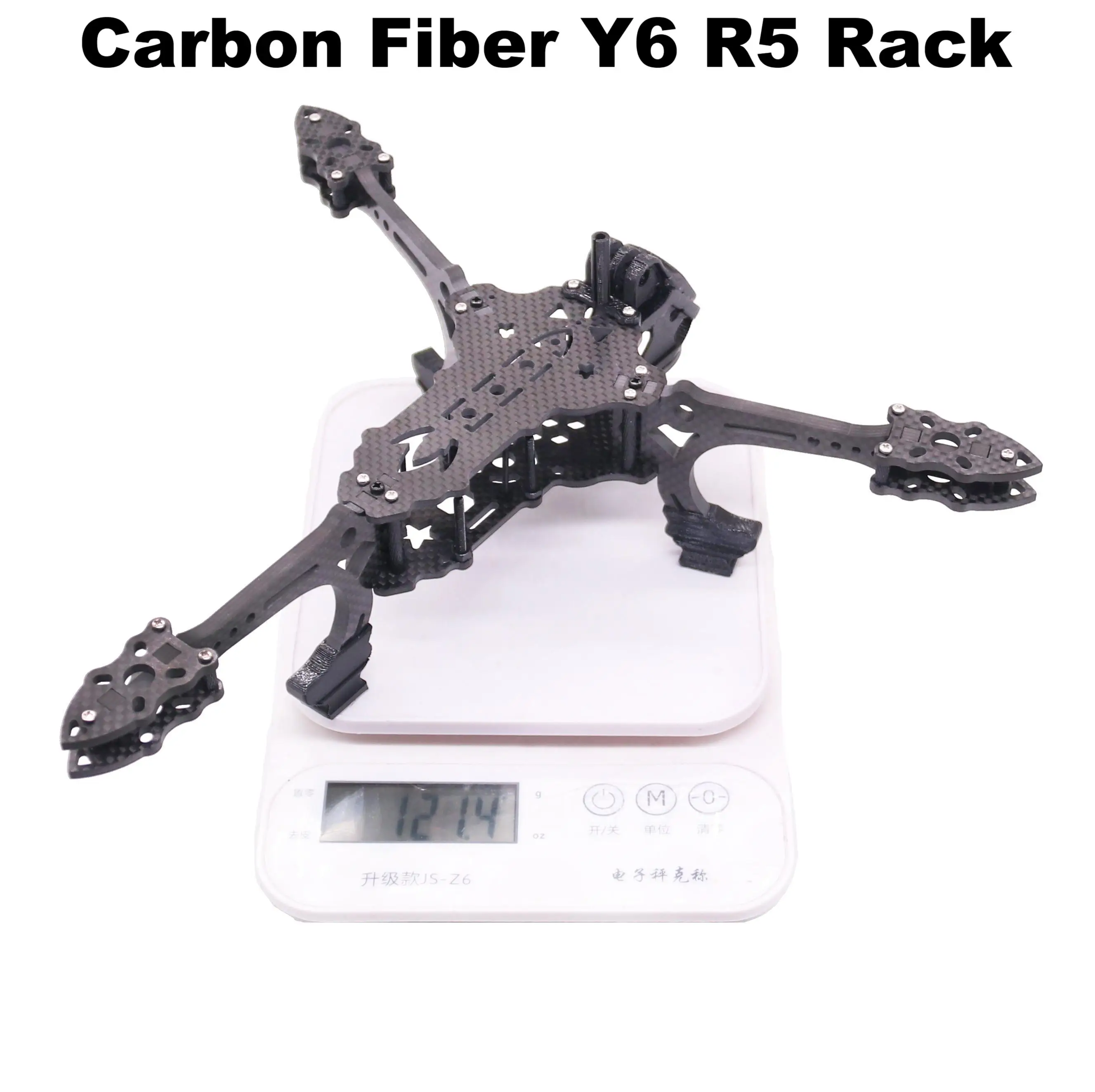

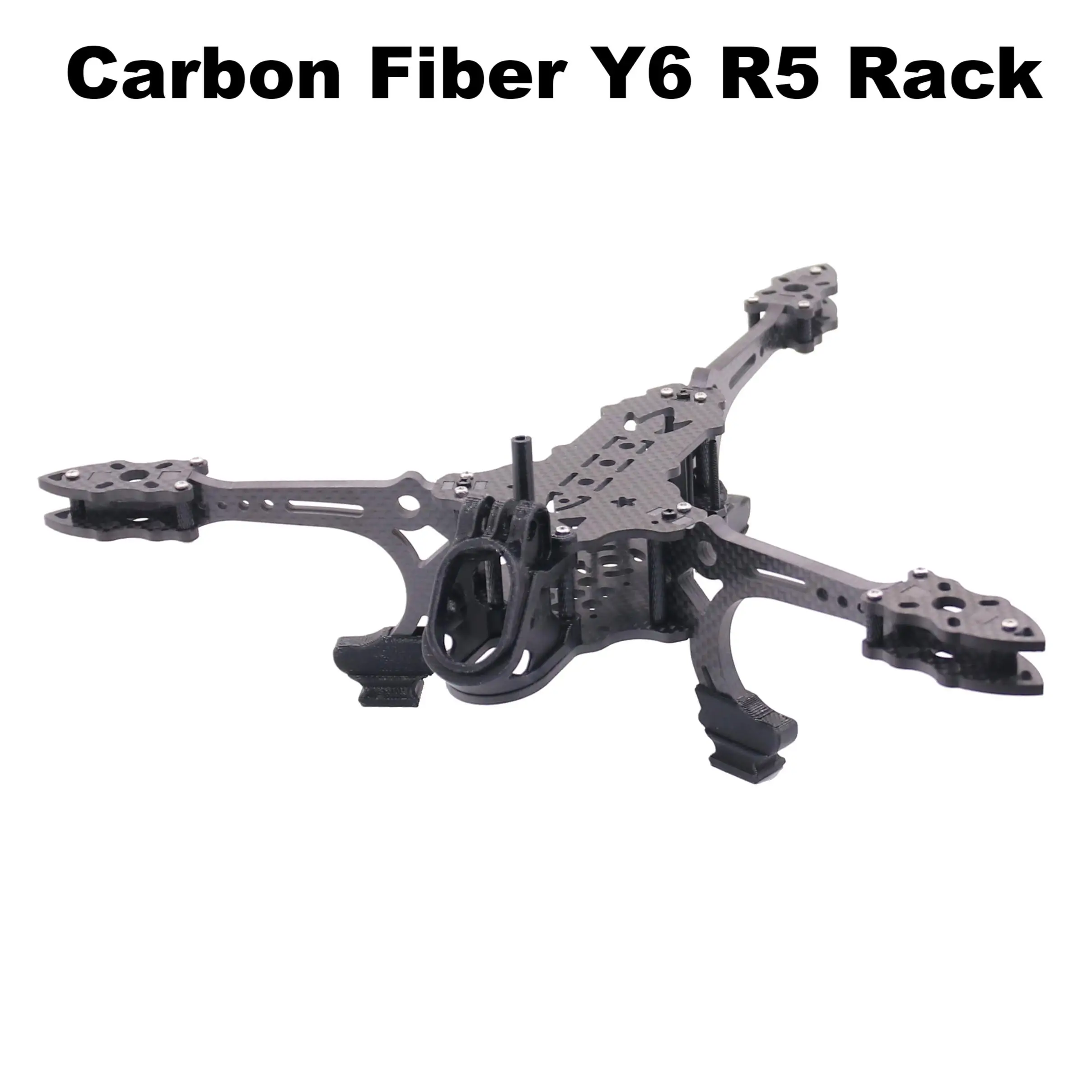

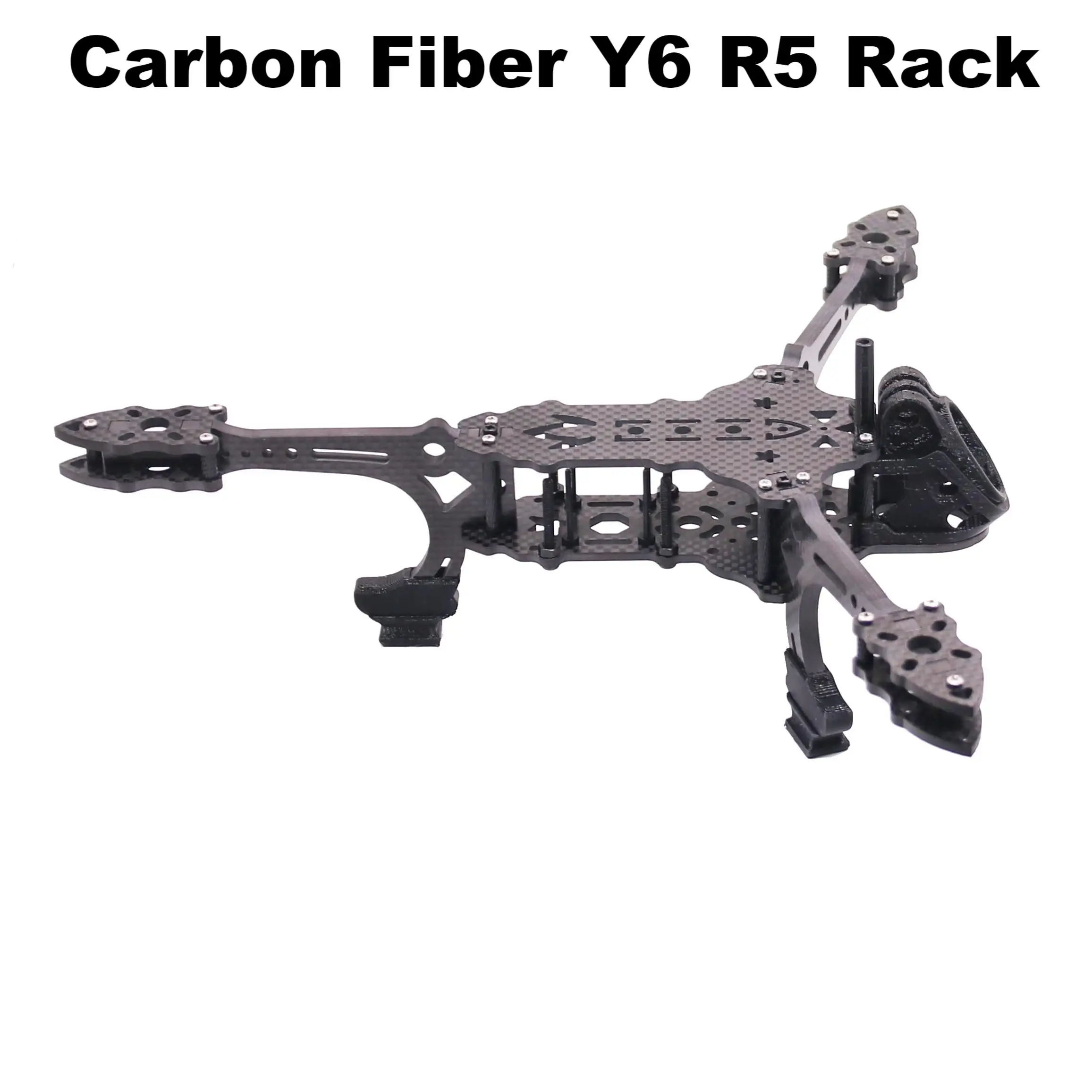

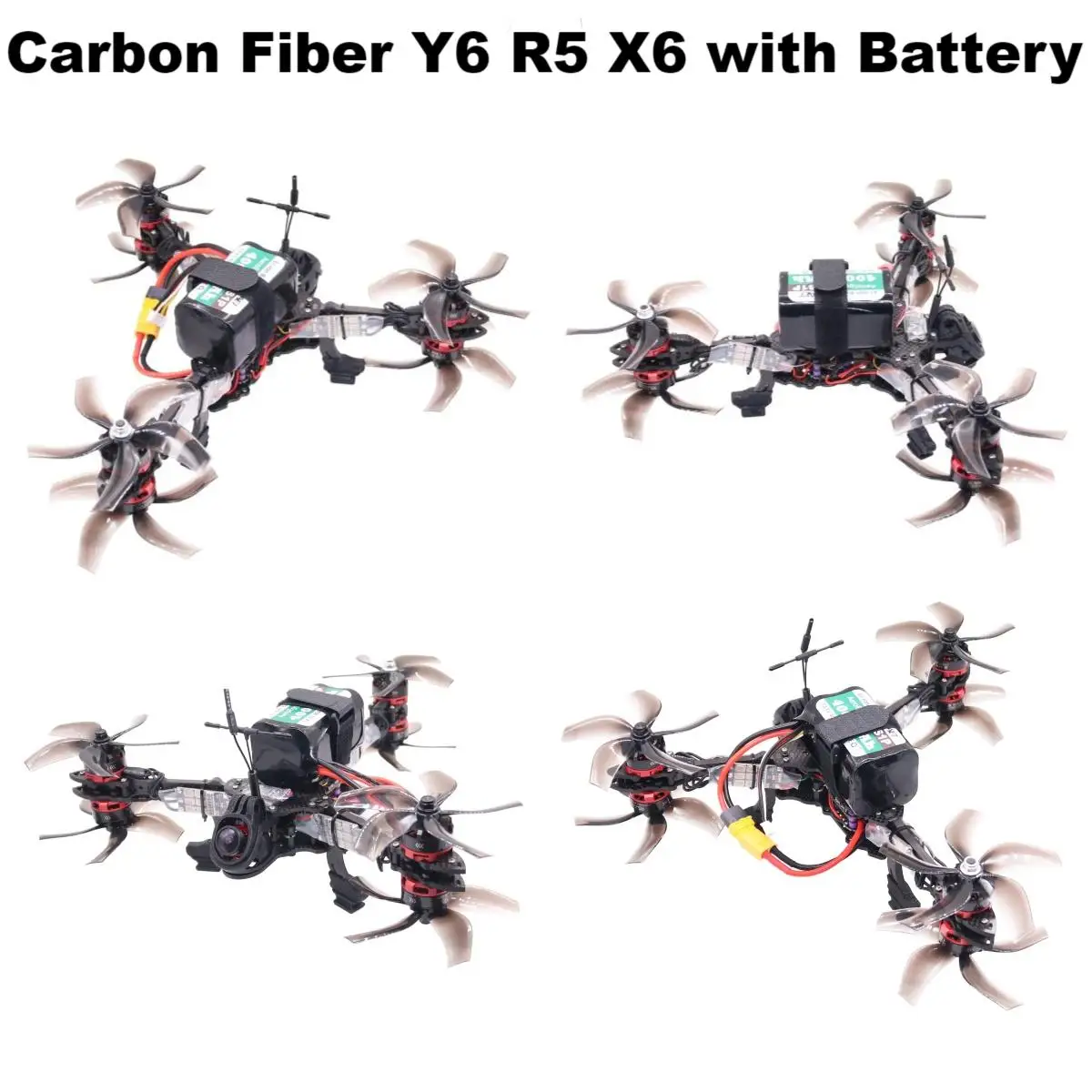

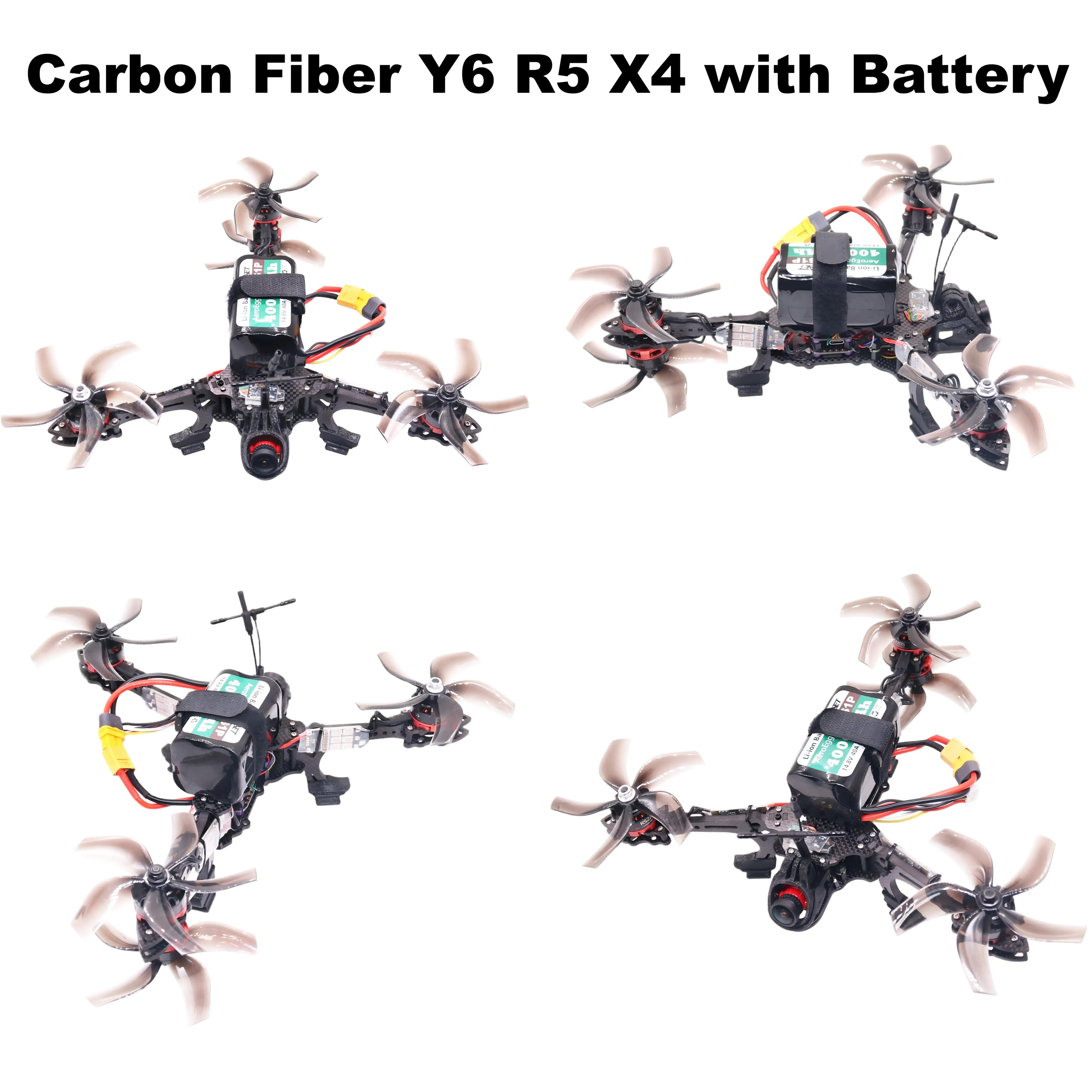

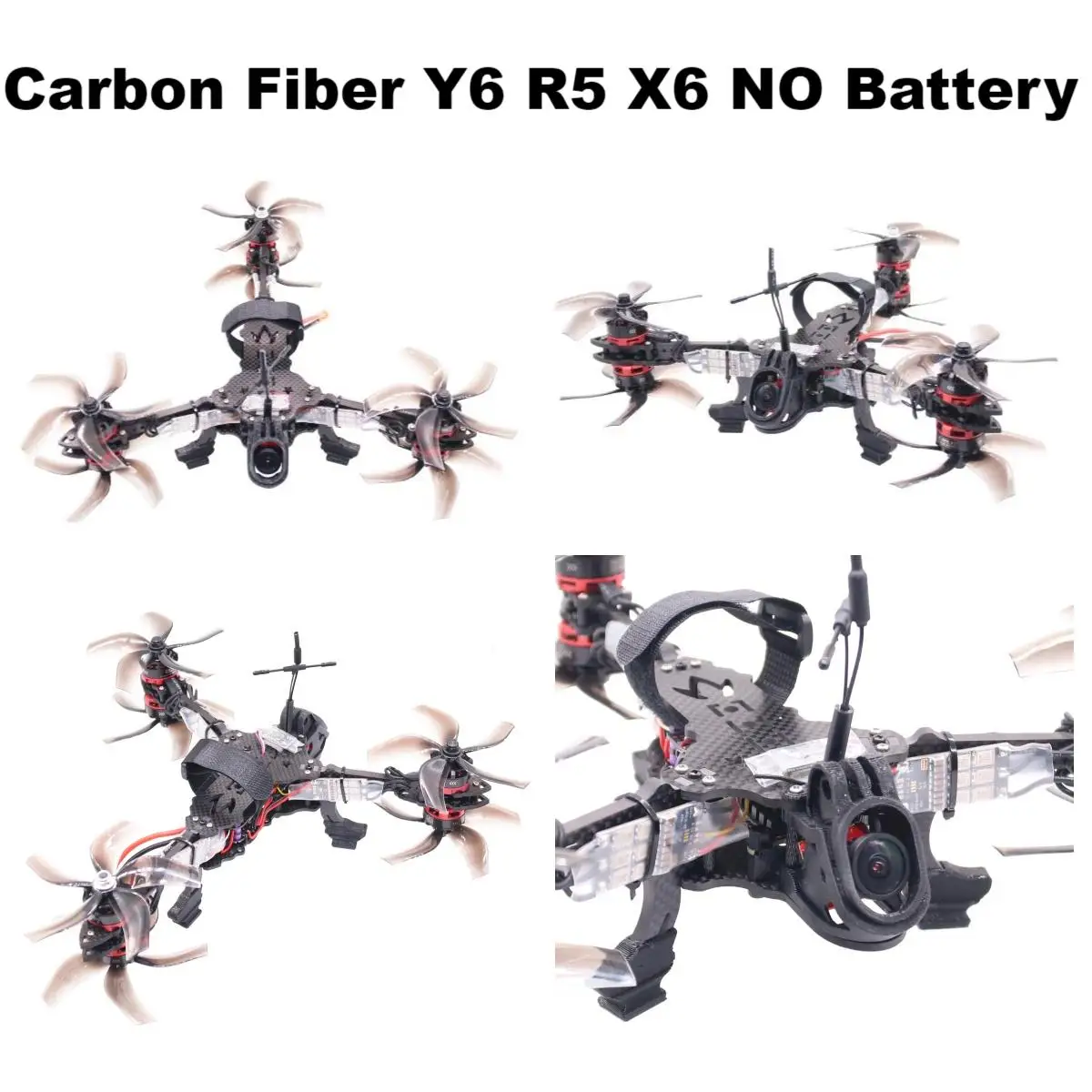

B-CUBE Carbon Fiber Y6R5 Rack

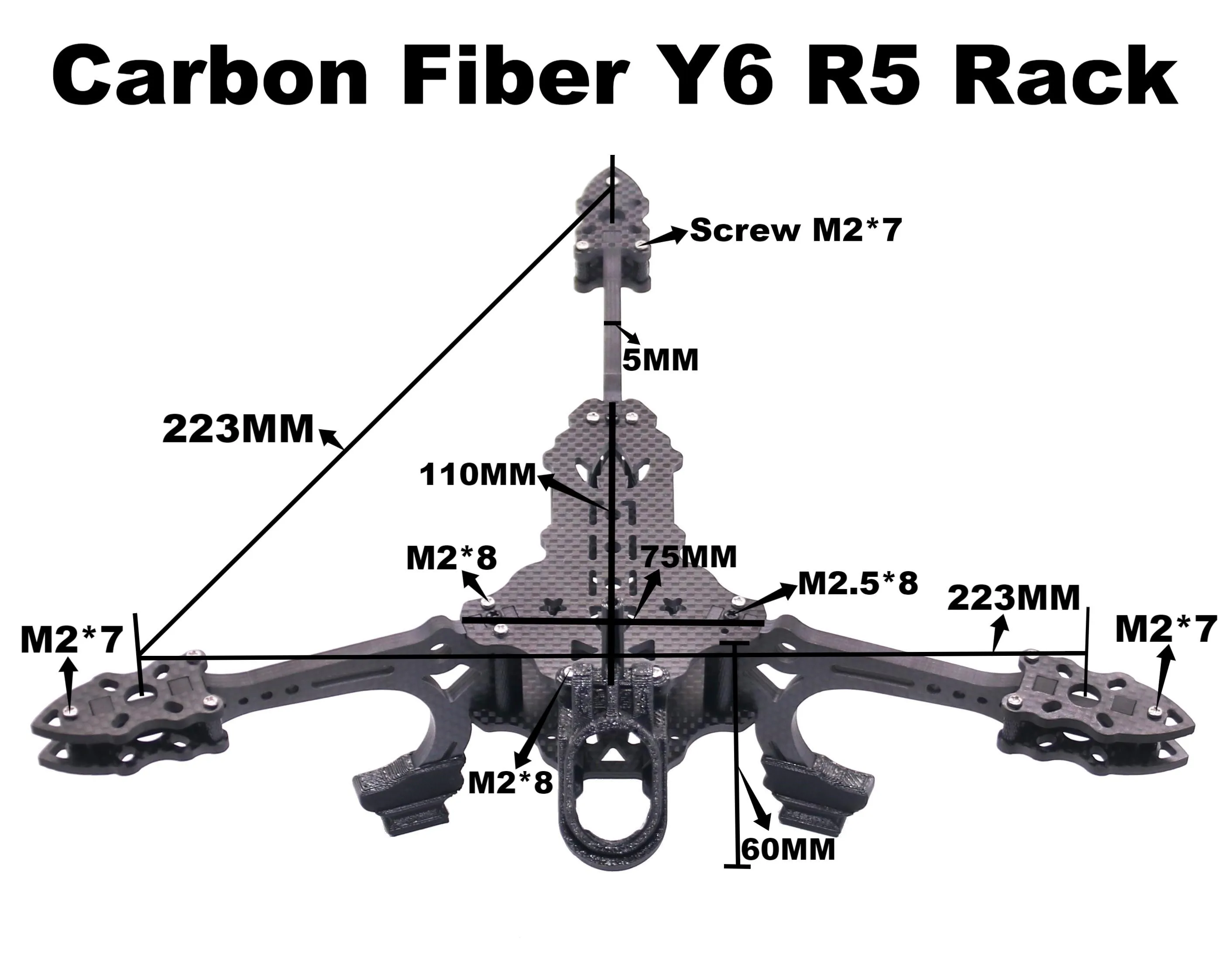

Product parameters:

• Wheelbase: 223mm (5inch)
• Weight: Approximately 120g (including printed copies)
• Thickness: Bottom plate 2.0mm, upper plate 2.0mm, arm 4.0mm
• Paddle: 5-inch paddle
• Flight control hole spacing: 20 * 20mm (M2)
• Hole spacing for image transmission: 20 * 20mm (M2)
• Camera installation width: 14mm
• Motor installation hole positions: 9 * 9mm (M2) and 12mm * 12mm (M2)
• Battery: 3S/4S 4000mAh
• 3D print: including 1 camera brackets
• Print color: Black TPU

Recommended configuration:

• Motor: 2205 2300KV motor
• ESC: B-CUBE 4IN1-20MM 50A
• Battery: 3S-4S
• Image transfer: B-CUBE VTX1000

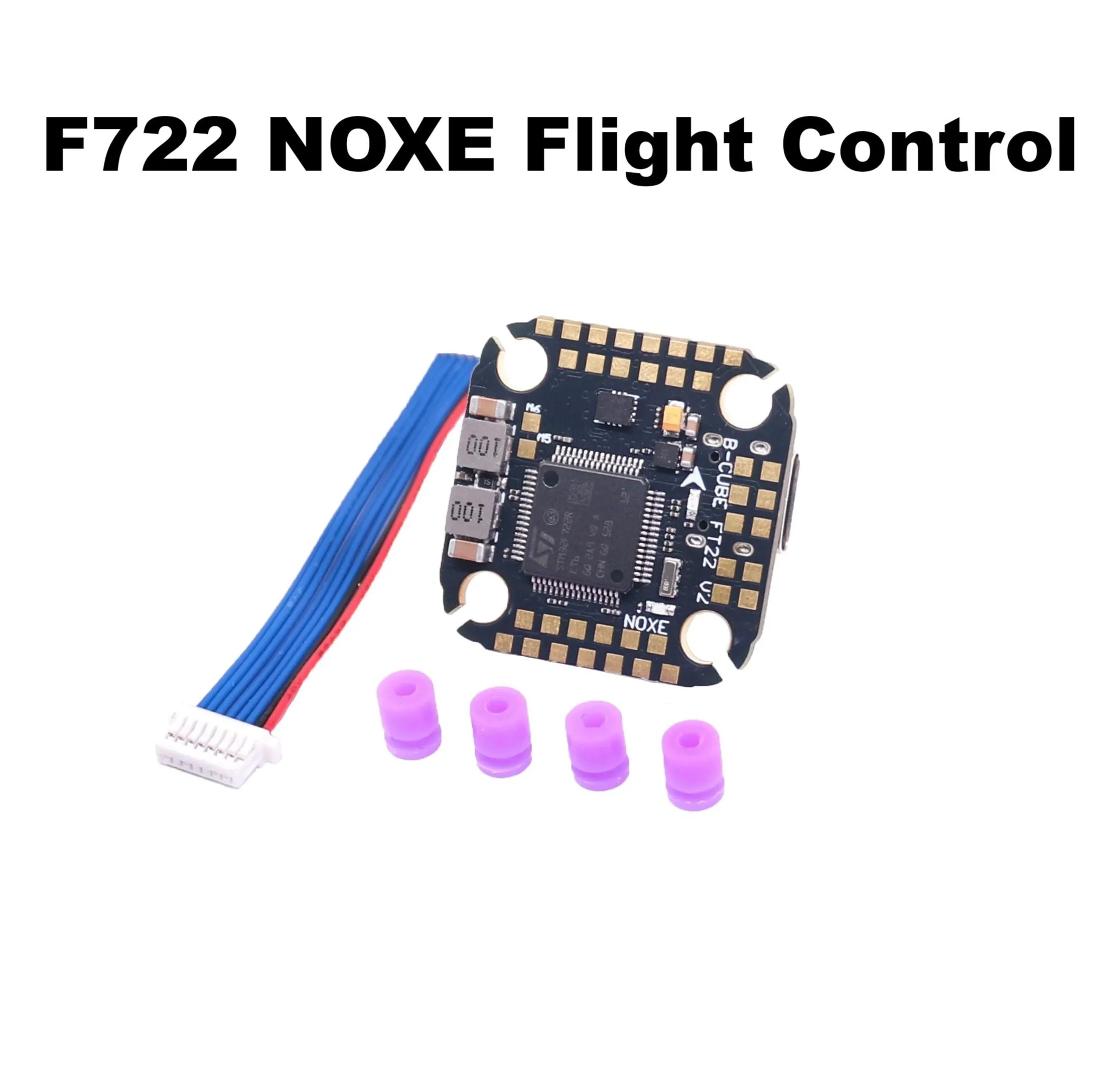

F722 NOXE Flight Control

Features:

1. The F722 NOXE is a 3-6S 20x20mm mini flight controller with a 16MB Blackbox flash memory, 5V 10V dual BEC. Designed for easy maintenance and low interference.
2.  The PCB adopts high-end composite material, which has stronger overcurrent capability and good heat dissipation. MOS adopts imported high current resistance mos, low energy consumption, long life and strong load capacity.
3. Using industrial grade LDO, high temperature resistance. High-quality capacitors, strong filtering performance.
4. Intelligent control: The controller has a built-in low-noise button, which can be controlled remotely by one button.
5. Maximum power: The OSD allows you to control your drone with maximum speed and accuracy, while providing a smoother flight.

Descriptions:

F722 NOXE Flight controller baro: the fpv-freestyle flight controller has been designed for optimal control of flight, which allows you to have more control over the flight. The controller is equipped with fpv, ac adapter, and a power cable. it can be used to connect the drone to the controller.

Specifications:

Main control: STM32F722RE (216MHZ) Gyroscope: ICM-42688-P Barometer: SPL06-01 OSD chip: AT7456E Black box: 16MB LED programming: supported BB sound: supported Input voltage: 3-6S I2C interface: supported BEC: 5V/2.5A BEC: 10V/2.0A Camera input: supported USART: UART1, UART2, UART3, UART4, UART5, UART6 Receiver: ELRS(CRSF),TBS(CRSF) ,SBUS,IBUS,DSM2,DSMX GPS: YES Compass: YES HD O3: YES ESC signal: Dshot150,Dshot300，Dshot600 USB: TYPE-C Current port: YES Voltage sensor : YES DFU button: YES Weight: 5g Flight control firmware: betaflight_4.5.2_STM32F7X2_JHEF7DUAL.hex / inav_8.0.1_JHEMCUF722.hex Installation hole spacing: 20MM * 20MM * 4MM Maximum overall size: 29MM * 29MM

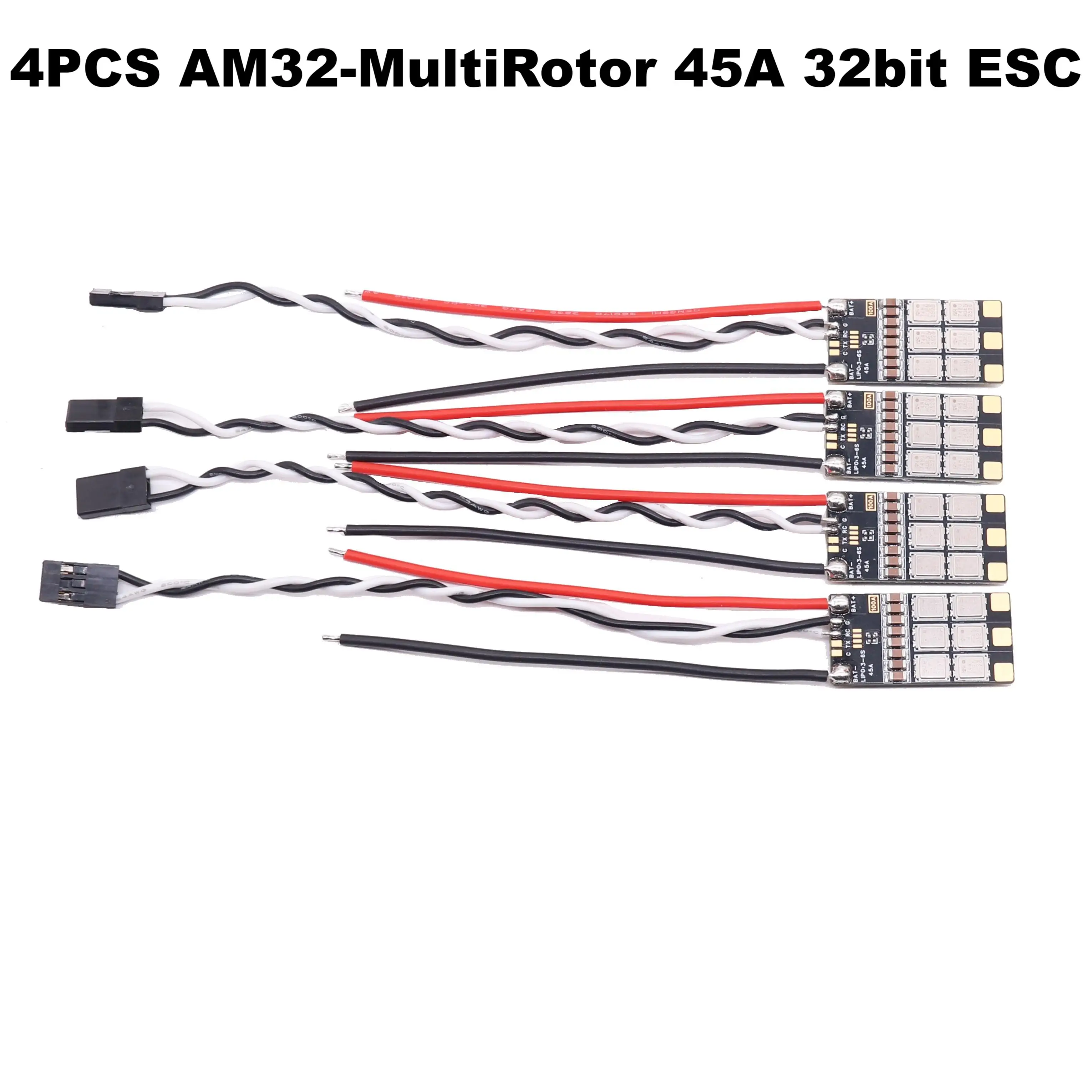

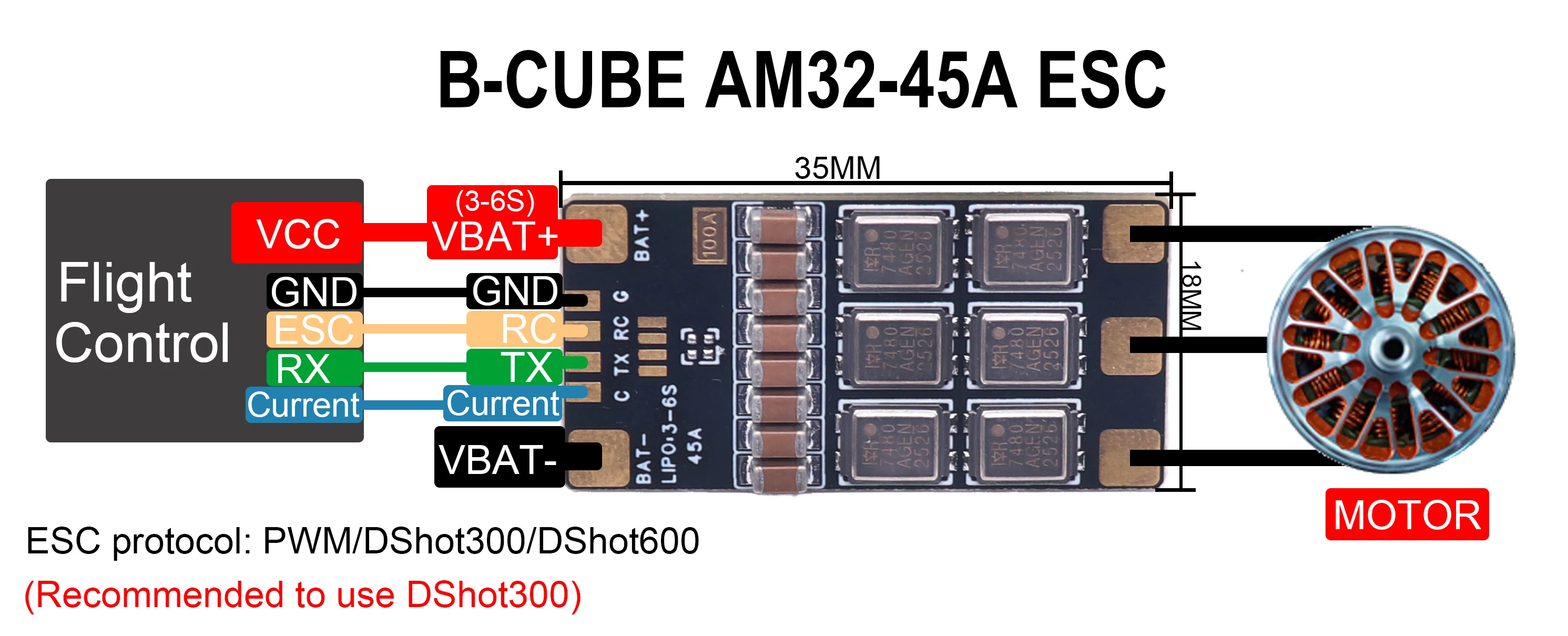

AM32-45A ESC Hardware:

• ESC Firmware: AM32_NEUTRON_G071_1.91.hex
• Processor: 32-bit ARM Cortex STM32G071GBU6TR, frequency up to 64 MHz
• PWM carrier frequency: 48kHz
• ESC protocol: PWM/DShot300/DShot600 (Recommended to use DShot300)
• Power input support: 3-6S (11.1V-27V)
• Maximum continuous operating current: 45A (requires adequate heat dissipation and cannot operate in a sealed environment)
• MOSFET Parameters: 40V 0.75mΩ Ultra-Low On-Resistance
• Galvanometer output: 12.75 mV/A
• Weight: 3.2g（Not include Line),6.6g(include Line)
• Board size: 35MM * 18MM
• Recommended Usage Scenario: 3.5-10 inch FPV Racing Drone

AM32-MultiRotor-ESC Firmware

Firmware for ARM based speed controllers The AM32 firmware is designed for STM32 ARM processors to control a brushless motor (BLDC). The firmware is intended to be safe and fast with smooth fast startups and linear throttle. It is meant for use with multiple vehicle types and a flight controller. The firmware can also be built with support for crawlers. For crawler usage please read this wiki page Crawler Hardware

Features

AM32 has the following features:

• Firmware upgradable via betaflight passthrough, single wire serial or arduino
• Servo PWM, Dshot(300, 600) motor protocol support,Recommended to use Dshot300
• Bi-directional Dshot
• KISS standard ESC telemetry
• Variable PWM frequency
• Sinusoidal startup mode, which is designed to get larger motors up to speed

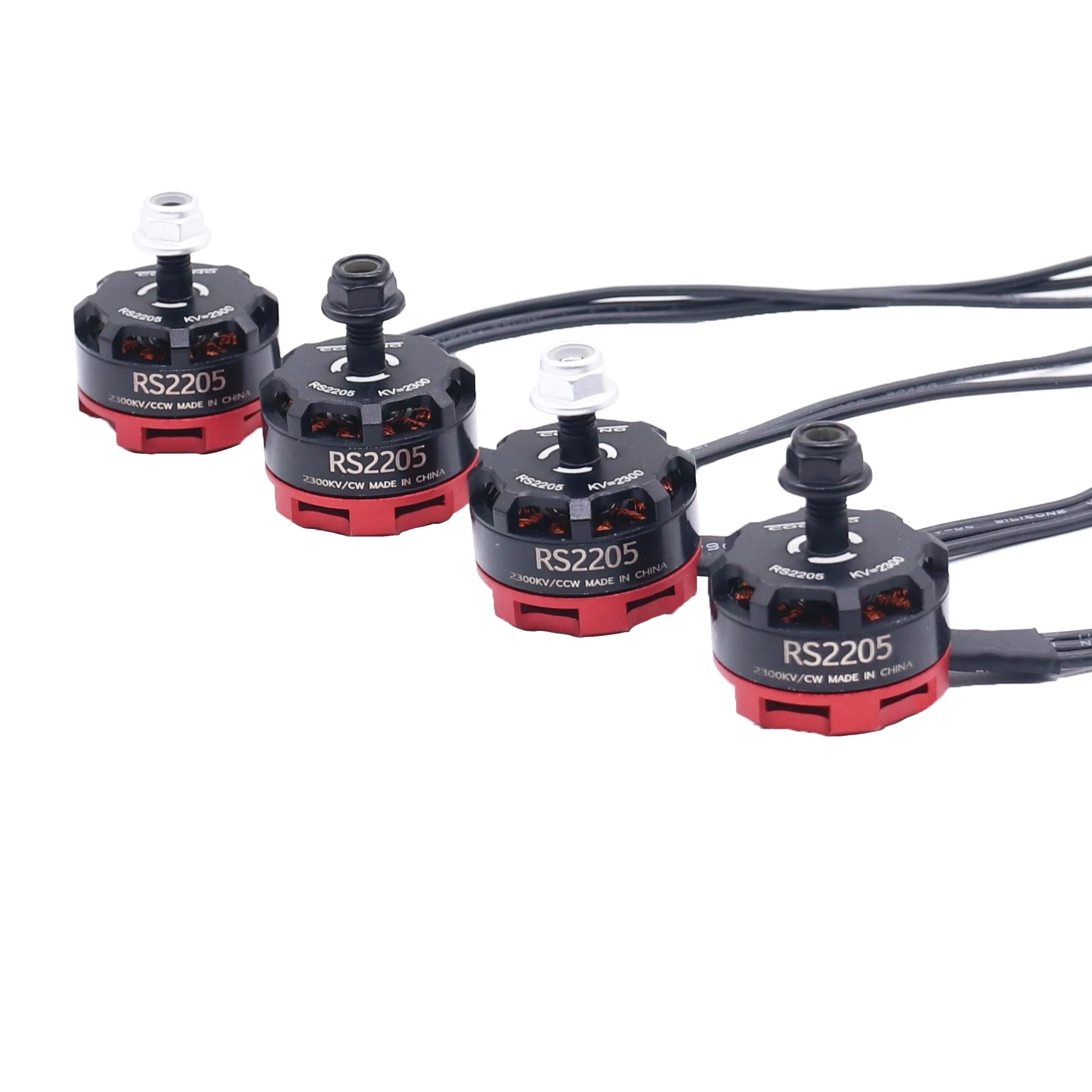

RS2205 2300kv Motor:

Model: RS2205-2300

Framework: 12N14P

No. of Cells: 3 - 4S

Length:31.7mm

Shaft: M5

KV: 2300

Max Thrust: 1024g

Diameter: 27.9mm

Propeller Suggested: HQ 5045 BN

Weight: 30g

Features:

• Race Spec Performances
• 2. High Strength N52 Neodyum Magnets
• 3. Active Cooling Fins Greatly Reduce Motor Temeratures
• 4. Low CG, Light Weight Design
• 5. Japanese Bearing For Performances
• 6. Enchance Anti Off U Ring For Safety & Stablility
• 7. Dual Lock CW / CCW Locknuts

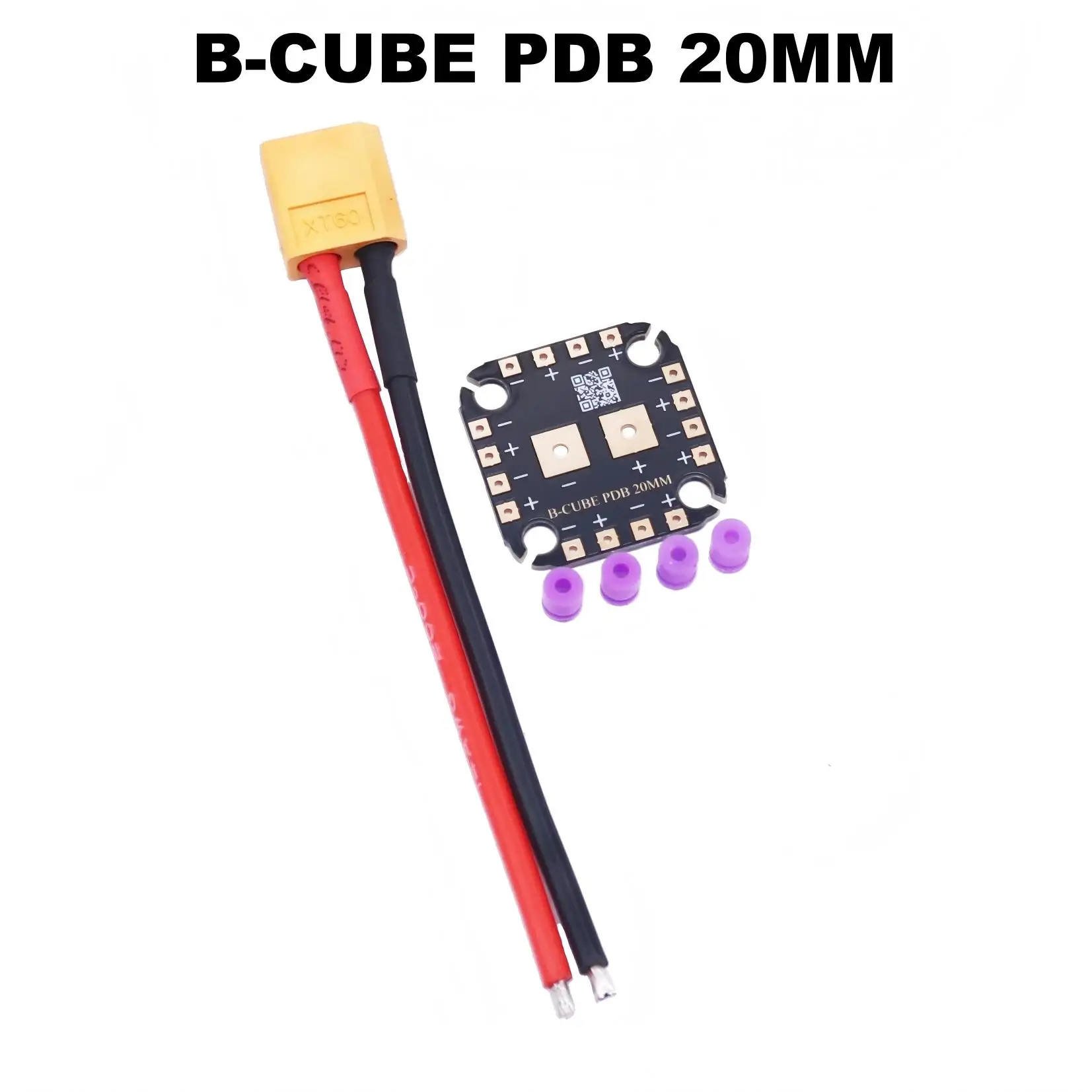

PDB 20MM

• Product Name: High-current ESC Power Distribution Board PDB 20MM
• Number of Supported ESCs: 8
• Maximum Current Capacity: 400A
• Copper Thickness: 2.5 oz
• Weight: 13.8g (including wires)
• Dimensions: Diameter 30mm, Mounting Hole Pattern 20mm
• Screw Hole Size: M3

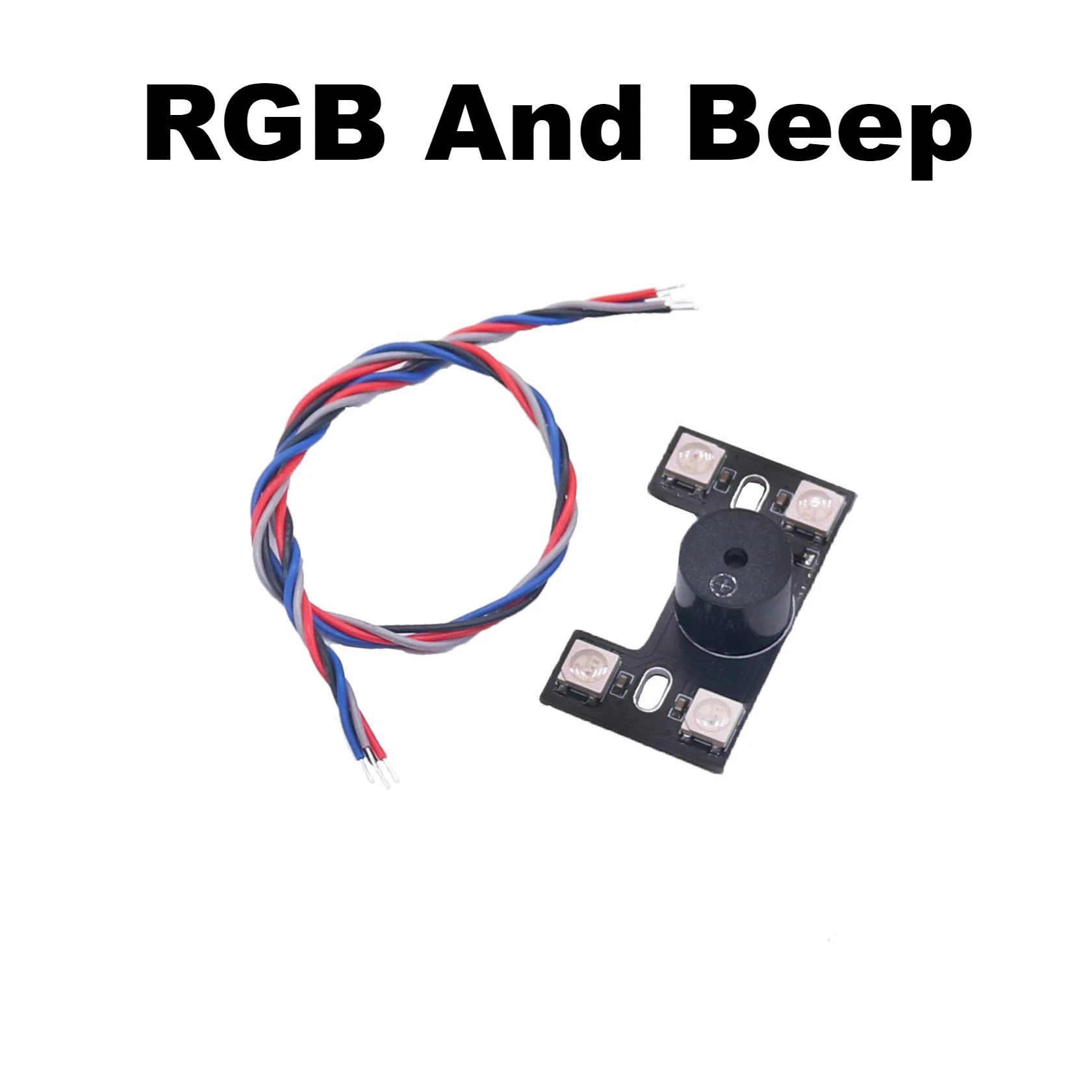

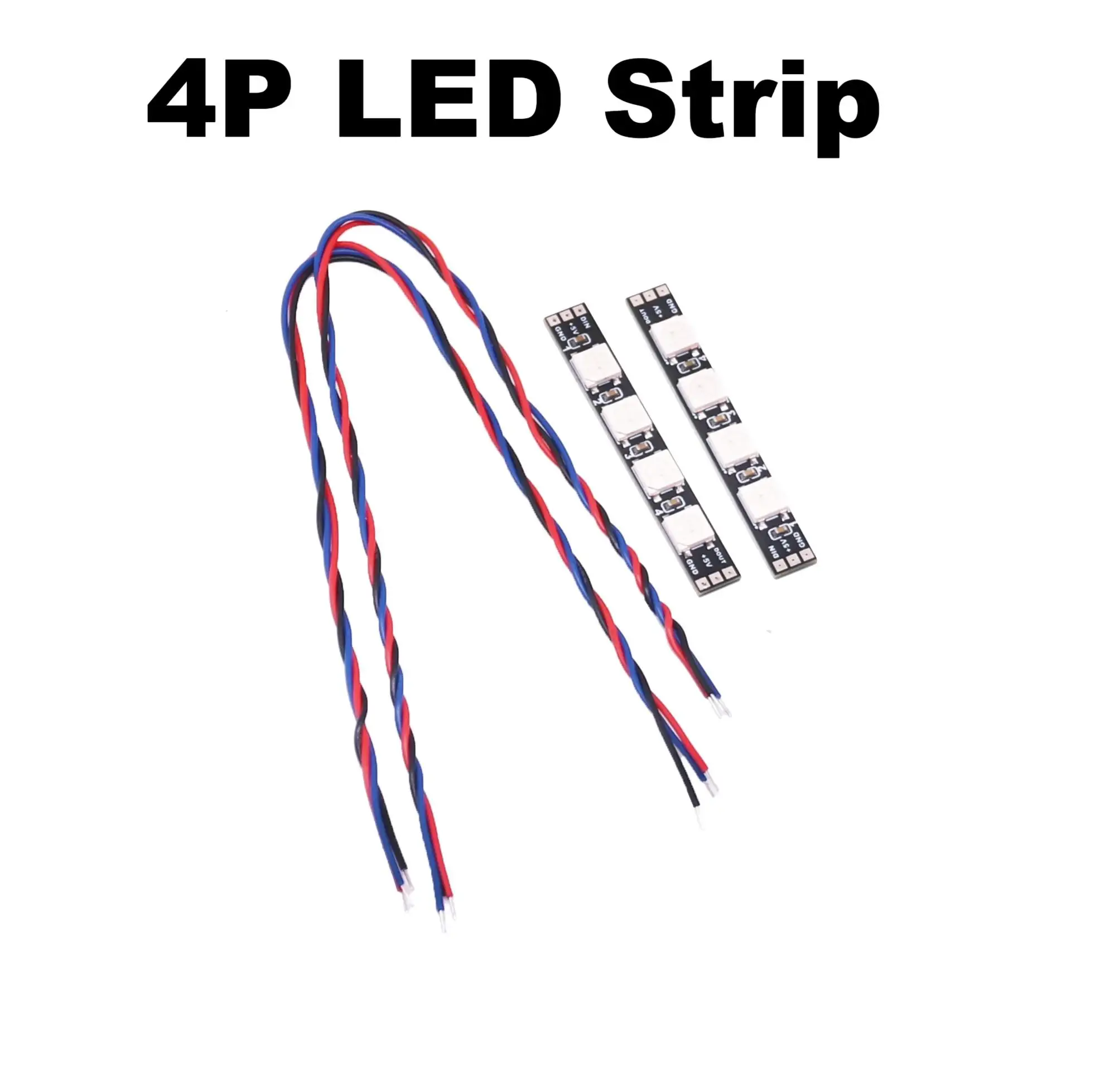

RGB And Beep

Support flight control such as for NAZE32/F3/F4/F7.

Adopt four WS2812B LED lamp beads with integrated loud buzzer.

Cooperate with flight control, can display various color and flashing suitable for tail light of classical crossing aircraft.

CF-BF flight control support for CC3D, Naze32, SPRachingF3, F4, F7 and other flight control with CleanFlight and BetaFlight firmware.

Specifications:

Item Name: LED Tail Light with Buzzer

Material: ABS

Length: about 36mm/1.42inch

Applicable Models: Suitable for F3 F4 F7 CC3D NAZE32 Flight Control FPV-Drones

Working-voltage: DC4.5~5.2V

Package Includes:

1Pc LED Tail Light with Buzzer

VTX1000 1W Video Transmitter

Description:

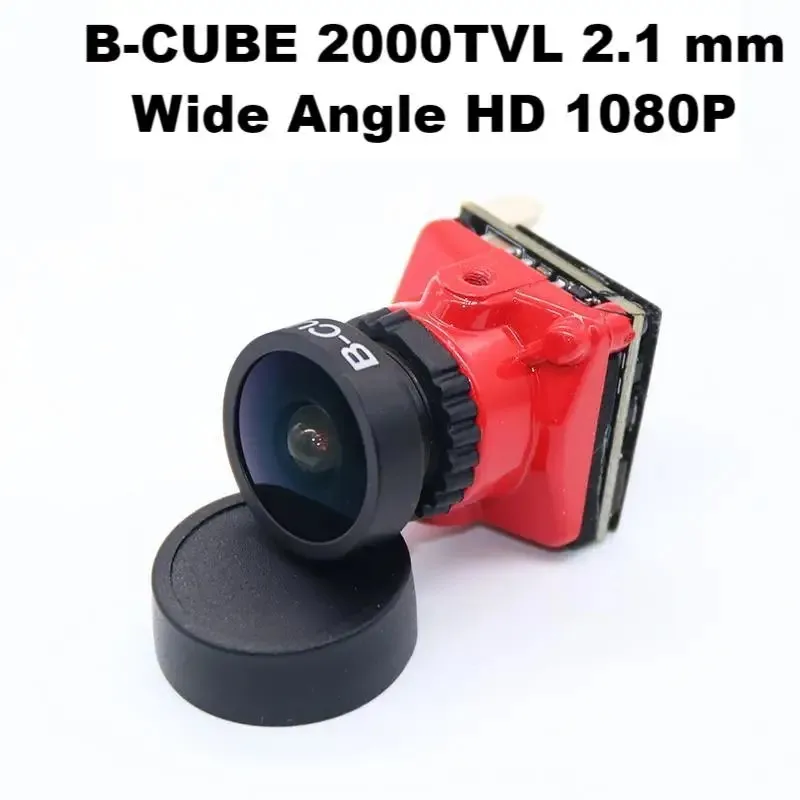

Model: MINI MS-1672 FPV cameras

Sensor: 1/1/8 "CMOS D1080H

Horizontal resolution: 2000TVL

Horizontal field of view: 165

Lens: 2.1mm lens

Video format: NTC&PAL (adjustable)

Image scale: 4:3&16:9 (automatic recognition)

Wide Dynamic Range: Super WDR

Noise reduction: 3DNR

Low illumination: 0.001LUX

Video output: CVBS

Day and night: external/internal/black and white/color

Language: (English/Chinese/Traditional Chinese/pyccnna)

ESOABIK/TTASSNO/FRABCAUS/

POSDIM/PORTUGUES/Japanese

Electronic Shutter: PAL: 1/50-100000NTSC: 1/60-100000

Wide voltage input: 5-36V

Working temperature: -20-60

Weight: 110g

Dimensions: 19 19 19mm

Resolution: 960 * 1080

Feature:

Upgraded Mista 2000TVL 2.1mm Wide Angle HD 1080P CCD PAL/NTSC Switchable 16:9 OSD FPV Camera.

Package included:

1 x Upgraded Mista FPV Camera

ELRS 2.4G Receiver RX

Product Description:

ExpressLRS aims to provide the best completely open, high refresh radio control link while maintaining a maximum achievable range at that rate with low latency.

SPECIFICATIONS 1

• Brand:B-CUBE
• Model:ELRS 2.4G NANO
• RF Freq:2.4Ghz
• IC:SX1281+ESP8285
• TX Power:100mW
• Color:Black
• Connector:IPEX 1
• Input Power:3.6-5.5V
• Weight:0.4g(receiver only)
• Size:11mm*18mm
• Firmware: BETAFPV Nano 2400 RX 3.3.0

Package Included:

Nano Receiver x 1

T type receiver antenna x 1

Heat shrink tube x 1

30AWG Silicone Wire x 4

LiteRadio 3 Radio Transmitter

LiteRadio 3 is a remote control radio transmitter designed primarily for RC models, including multirotor, airplanes. It gives you more than you ever thought possible from an entry-level 8-channel radio.

8 channels in total.

USB Joystick support for most practice simulators.

Nano module bay for external TX module.

Newly designed joystick gimbal for longer usage life.

Support BETAFPV Configurator for updating, configuring, and tuning.

Provide ExpressLRS 2.4G protocol version .

Built-in 2000mAh battery and USB charge supported.

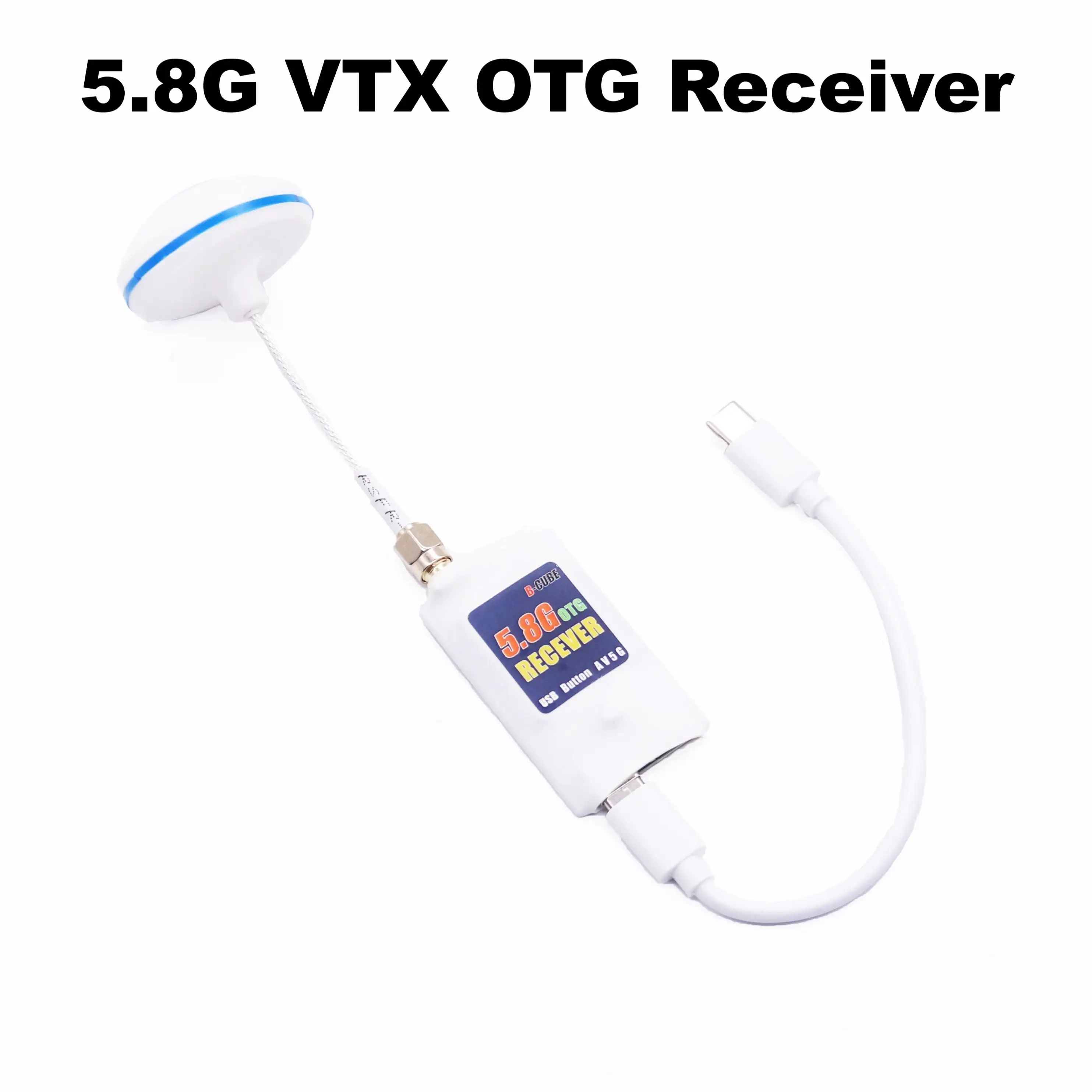

5.8G VTX OTG Receiver

Note:

If you use a 2.4G remote control, some remote controls may interfere with the 5.8G signal after increasing the frequency through the 2.4G frequency band. Using a high-frequency band frequency of 5945MHz for video transmitters can avoid this problem. Or keep the video receiver away from the 2.4G remote control.

Features:

1.150CH 5.8Ghz analog signal, 1500 scans cover all bands. 2.Resolution 640*480 30fps. 3.Mushroom RX antenna, omnidirectional pointing, strong transmission signal. It can greatly improve the stability and distance of 5.8G image to video transmission. 4.Can display frequency spectrum, to check the signal strength of antenna or transmitter. 5.Support dual display on smartphone, can be used as VR goggles. 6.Please calibrate it in open area, and keep away from transmitter more than 30m. Long press the menu button and power on receiver, enter into calibration mode.

Descriptions:

1.Support OTG cable connect to android smartphone or tablet. 2.Single Antenna FPV receiver for Android Tablet PC Monitor.

Specifications:

Frequency: 5645MHz-5945MHz Resolution: 640480 30fps Working Current: USB 5V 190mA Connector: RP-SMA USB: Type-C Working Temp.: -10°~65° Size: 50MM30MM Weight: 26g

Working Methods

Install APP:

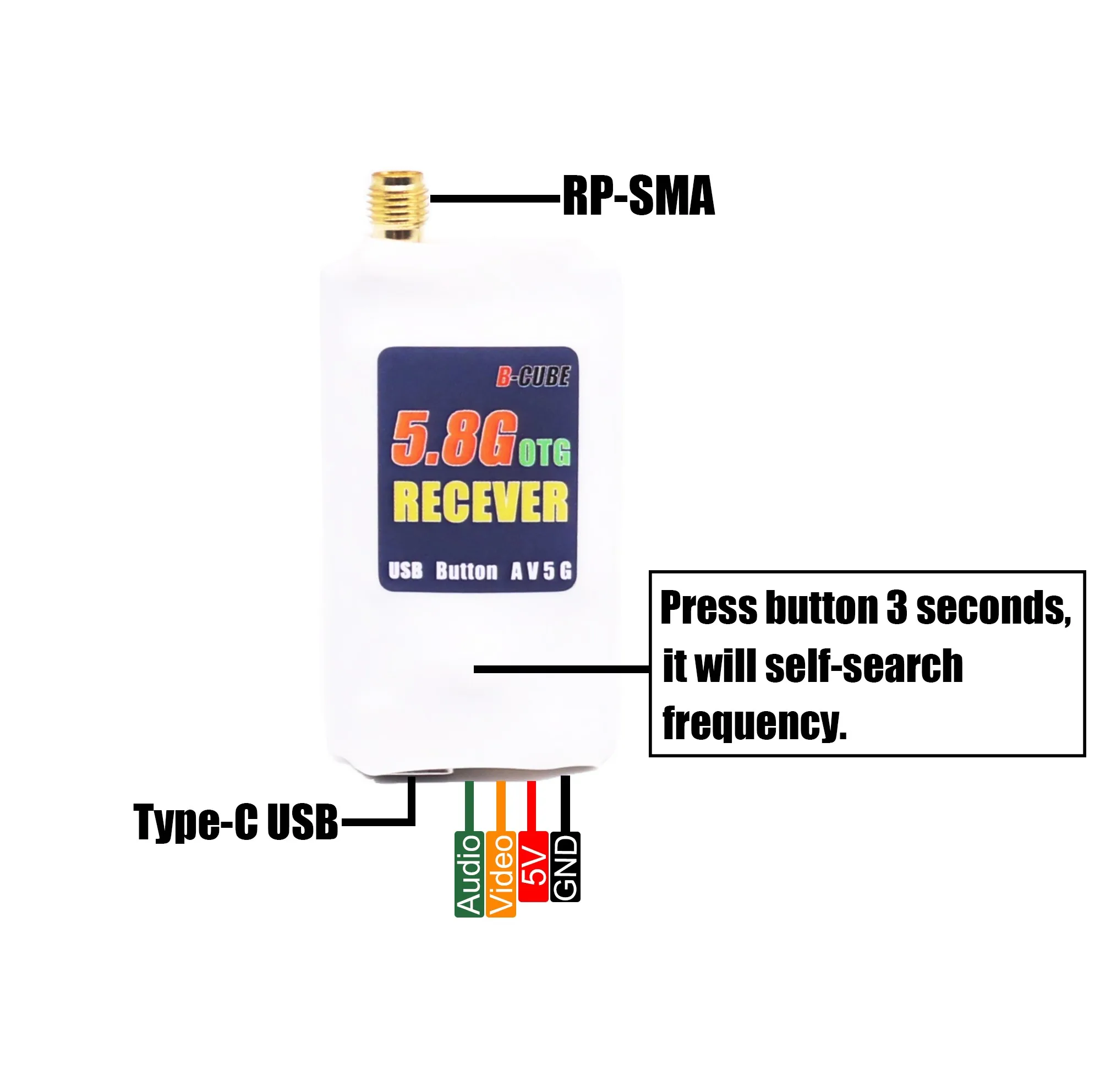

1.Download apk app from here,https://github.com/BCUBE-RC/VTX-OTG/ 2.Use OTG cable connect with receiver 3.After it power on, press the menu button for 3 seconds,it will self-search frequency and lock the strongest signal automatically.

PC:

1.Use usb cable to connect it with PC. 2.XP: open the camera;WIN7: install AMCP camera software;WIN10: open camera. Or MP groundstation. 3.After it power on, press the menu button for 3 seconds,it will self-search frequency and lock the strongest signal.

AV:

1.Use 4P cable (should DIY by player), 5V power input. 2.After it power on, press the menu button for 3 seconds,it will self-search frequency and lock the strongest signal.

Note:

1.Do not support IOS system. 2.Some smartphones should open the otg function before use. 3.Some players have complained that it has the issue of flicker or short distance. After testing in open area, the reason has been found to be its high scanning accuracy,that the transmitted frequency is reflected by wall indoors and make the real frequency detected by receiver higher than it should be. So it is quite important to operate it in an open area and keep the receiver and transmitter more than 30m.

Package Included:

1 x 5.8Ghz 150ch Receiver 1 x Type-C OTG cable 1 x Mushroom head RX Antenna

Gemfan D4-5Size: 4 inches

Pitch: 3.8 inches

Weight: 5.5g

Aperture: M5

Color: Midnight Grey

Recommended motor: 24082506

Takeoff weight: 600g

Packaging method: 2CW+2CCW

Material: PC

Features:

Suitable for 4-inch culvert machines

Can provide high tensile strength

The noise of the propeller blade is low
