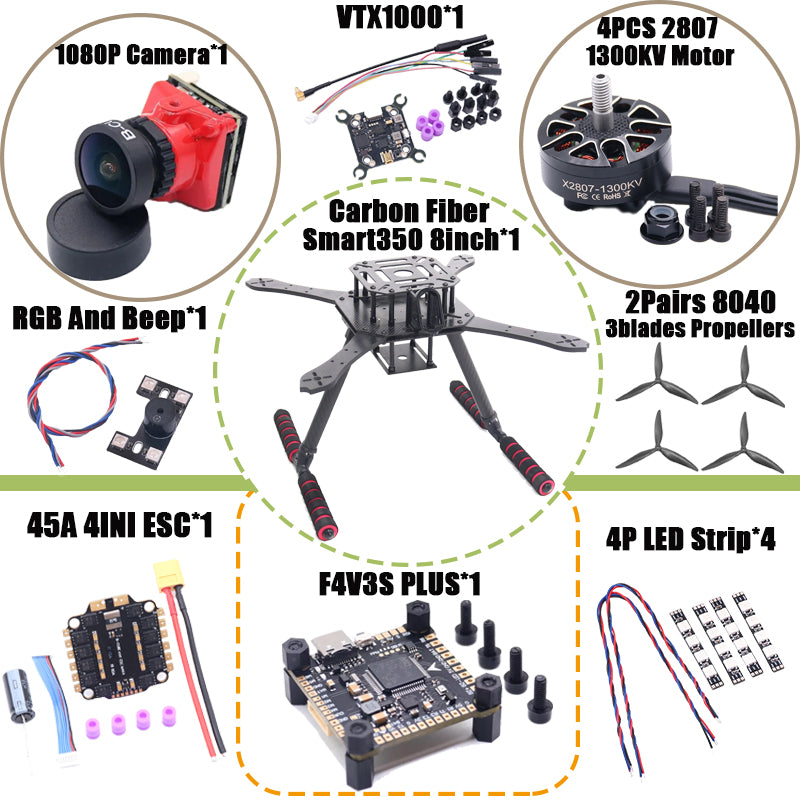

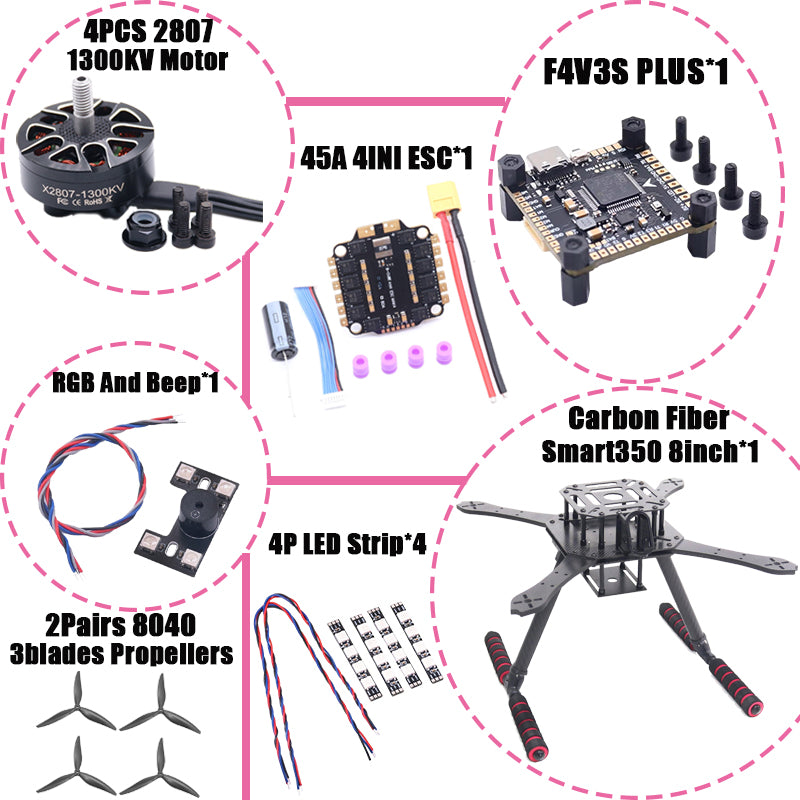

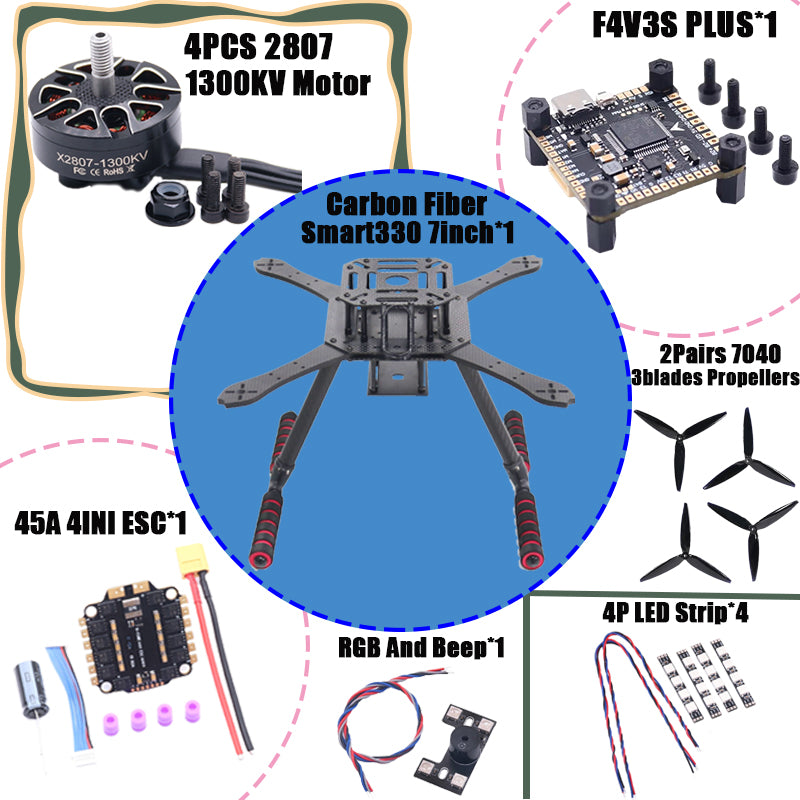

F4V3S PLUS Flight Controller

Note : F4V3S PLUS uses a TYPE-C USB port. Please ensure that you have a TYPEC USB cable that can communicate normally. Some USB cables can only be charged and cannot communicate data with flight control. If the USB cable you use cannot recognize the flight control USB port, it indicates that your USB cable cannot communicate with data normally. We upload firmware to the flight control through USB and conduct testing, so it can be very guaranteed that the USB port of the flight control is normal.

If you are unable to confirm if your USB cable is communicating properly, please purchase one.

Specification:
Item name: F4V3S PLUS Flight Controller
Firmware:OMNIBUSF4SD(AIRB)
USB Port: TYPE-C
Size: 36x36mm
Mounting holes: 30.5x30.5mm
STM32 F405 MCU
Dshot support
Drag and Drop OSD configured via Betaflight
MPU6500 6 axis SPI gyro & accelerometer
SBUS / PPM AND Spketrum DSMX ports
MicroSD card blackbox
Baro (BMP280)
5V3A 9V3A BEC
On-board video filters
Properties:
measured.
Boasting a F4 processor, on-board Betaflight OSD, MicroSD Black Box, 5v3a sbec, video filter, you'll be tuning PIDS with your transmitter and tear it to the track in no time!

Note ： F4V3S PLUS supports cleanflight ,betaflight and INAV firmware.



Use UART1 for external GPS if you use GPS.

Use UART6 for remote control receiver (PPMor SBUS)

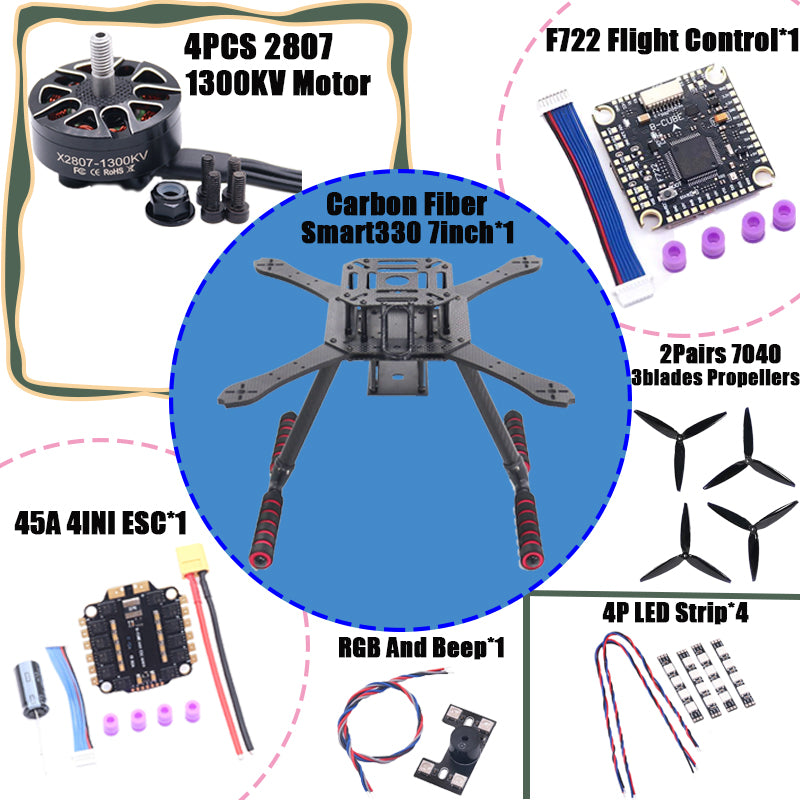

B-CUBE F722 Flight Controller

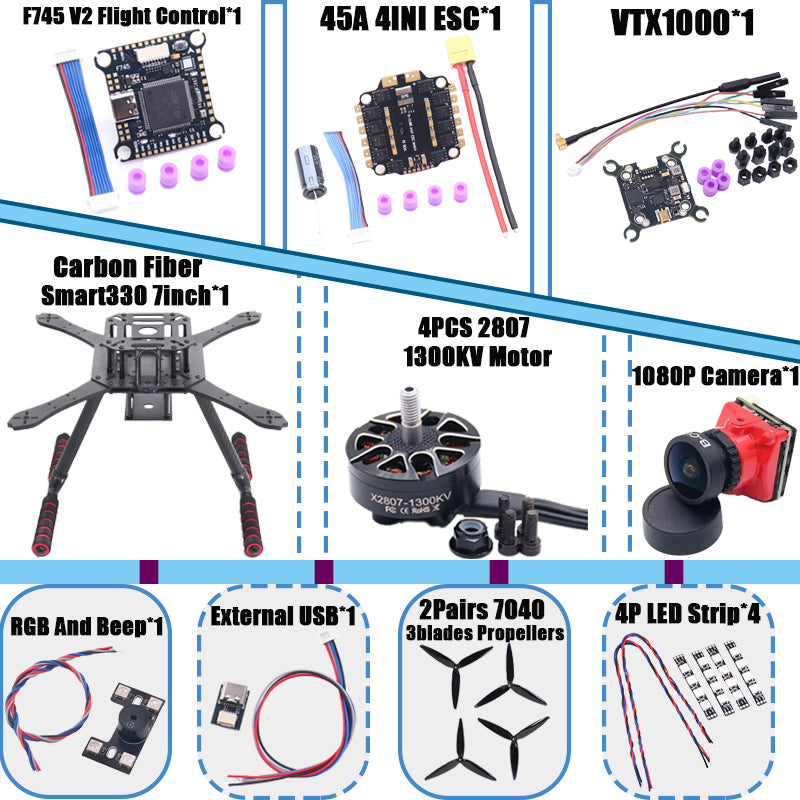

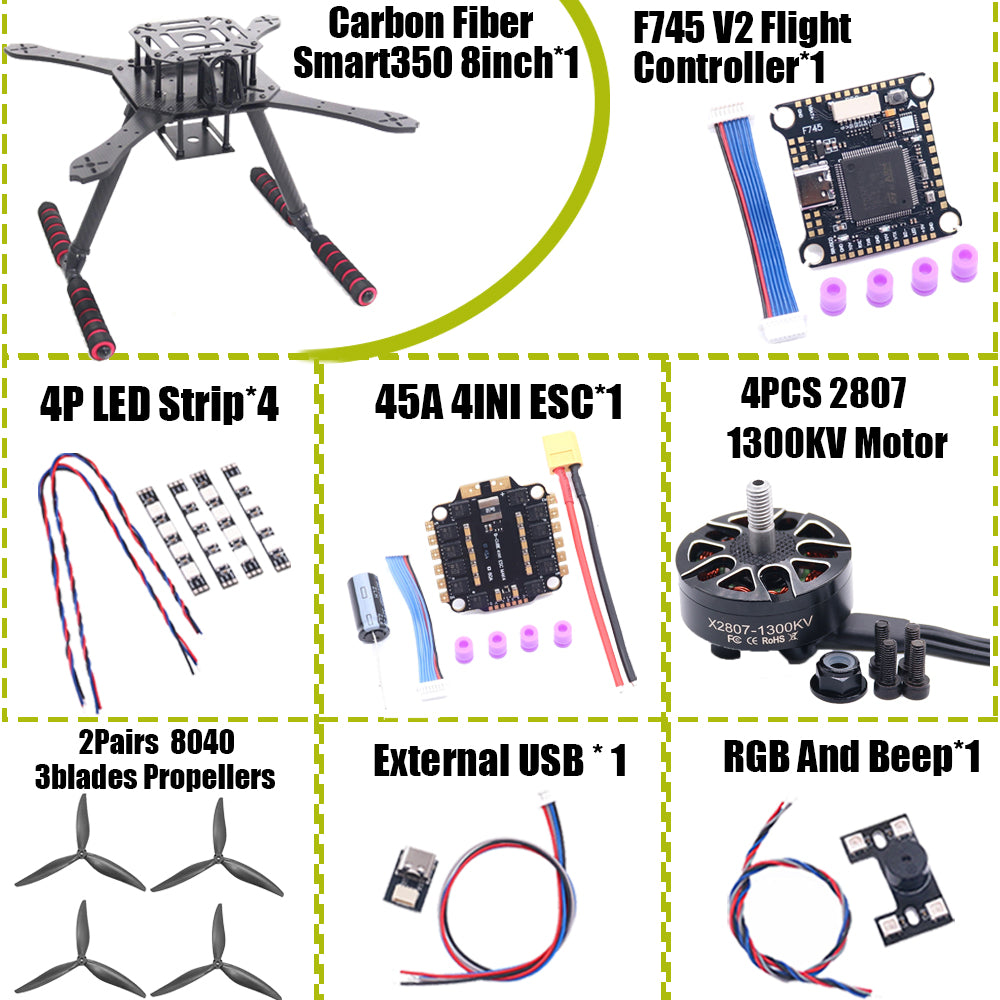

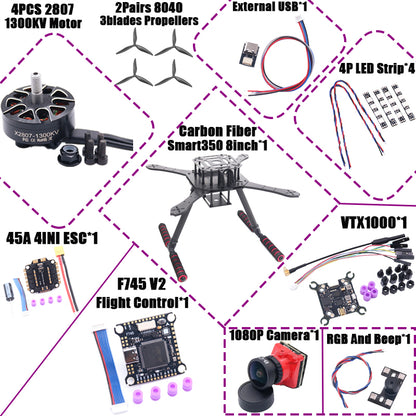

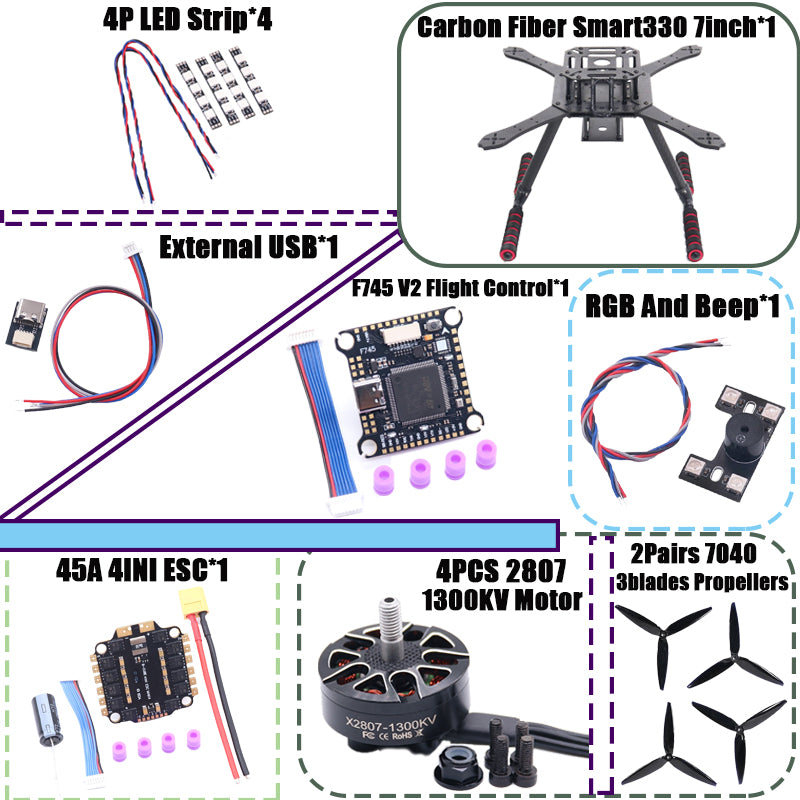

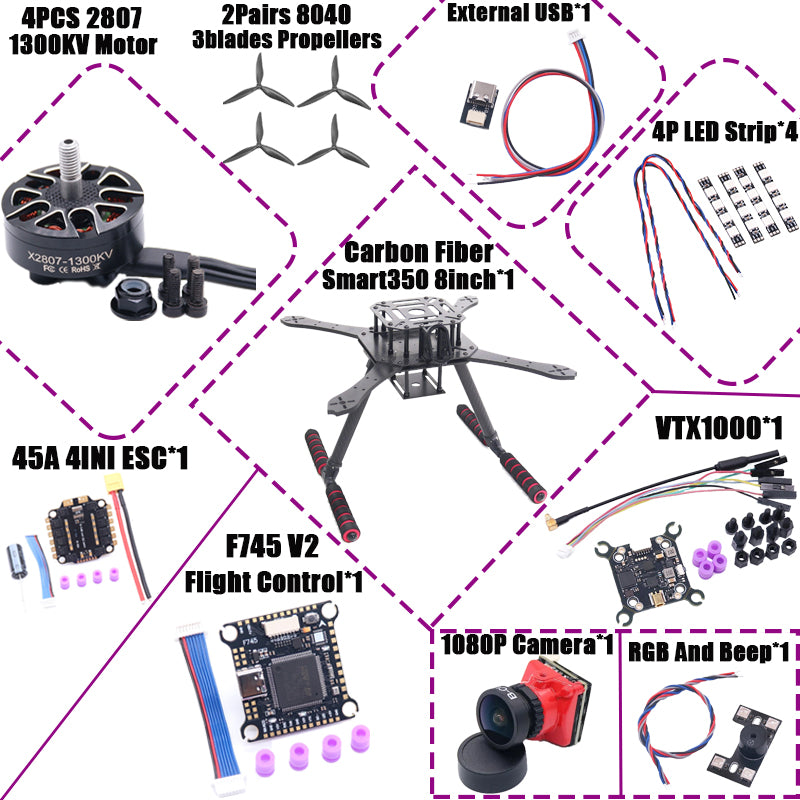

B-CUBE F745 V2 Flight Controller

Features:
1. The F745 V2 is a 3-8S 36x36mm mini flight controller with a 16MB Blackbox flash memory, 5V 10V dual BEC. Designed for easy maintenance and low interference.
2. The PCB adopts high-end composite material, which has stronger overcurrent capability and good heat dissipation. MOS adopts imported high current resistance mos, low energy consumption, long life and strong load capacity.
3. Using industrial grade LDO, high temperature resistance. High-quality capacitors, strong filtering performance.
4. Intelligent control: The controller has a built-in low-noise button, which can be controlled remotely by one button.
5. Maximum power: The OSD allows you to control your drone with maximum speed and accuracy, while providing a smoother flight.

Descriptions:
F745 V2 is a major upgrade, offering enhanced performance and precision. It features a CPU upgrade from STM32F745VG to STM32F746VG, boosting processing power for faster response and improved flight stability. The IMU has been upgraded from MPU6000 to ICM-42688-P, providing lower noise, higher sensitivity, and better vibration resistance. These enhancements ensure more accurate flight control, superior gyro performance, and greater reliability. Designed for high-speed FPV applications, V2 delivers smoother flights, faster responsiveness, and exceptional handling in demanding conditions.

Specifications:
Chip:STM32F746VG(216MHZ)
Gyro:ICM-42688-P
Barometer:DPS310
OSD Chip:AT7456E
Black box:16MM
LED Program:Support
BB buzzer:Support
Input voltage:3-6S
I2C Connector:Support
BEC:5V/2.5A
BEC:10V/2.0A
Cam Input:Support
USART:UART1,UART2.UART3.UART4.UART6.UART7
Receiver:ELRS(CRSF).TBS(CRSF).SBUS.IBUS.DSM2.DSMX
GPS:YES
COMPASS:YES
HD O3:YES
ESC Signal:Dshoot150.Dshot300,Dshot600
USB:TYPE-C
Current Port:Yes.
Voltage Sensor:Yes
DFU Button:YES
FC firmware:betaflight_4.4.2_JHEF745V2.HEX / inav_8.0.0_JHEMCUF745.HEX
Install hole:30.5*30.5*4MM
Board size:36*36MM
Weight:7.5g

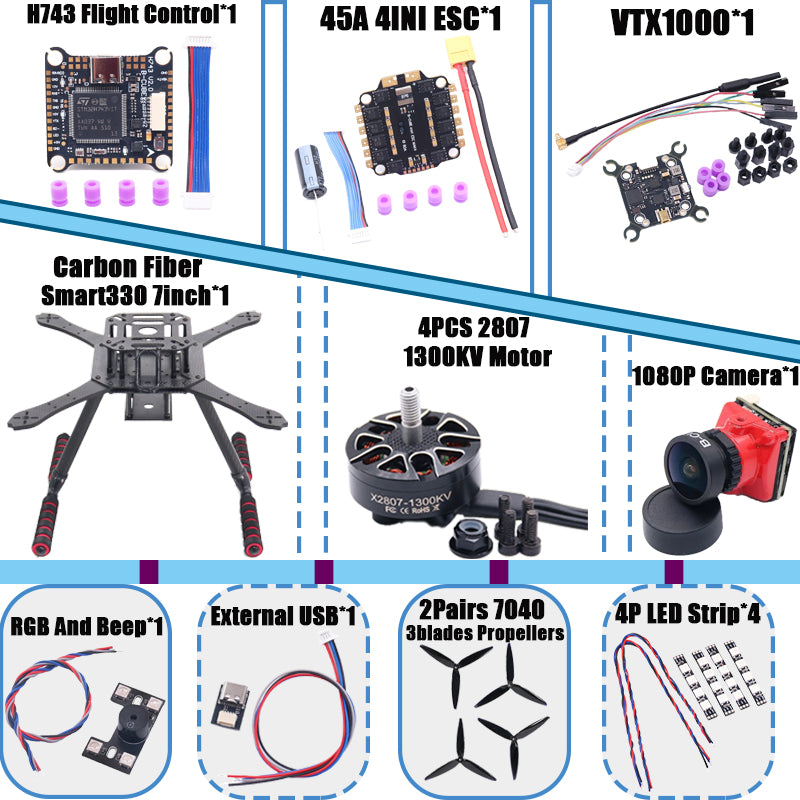

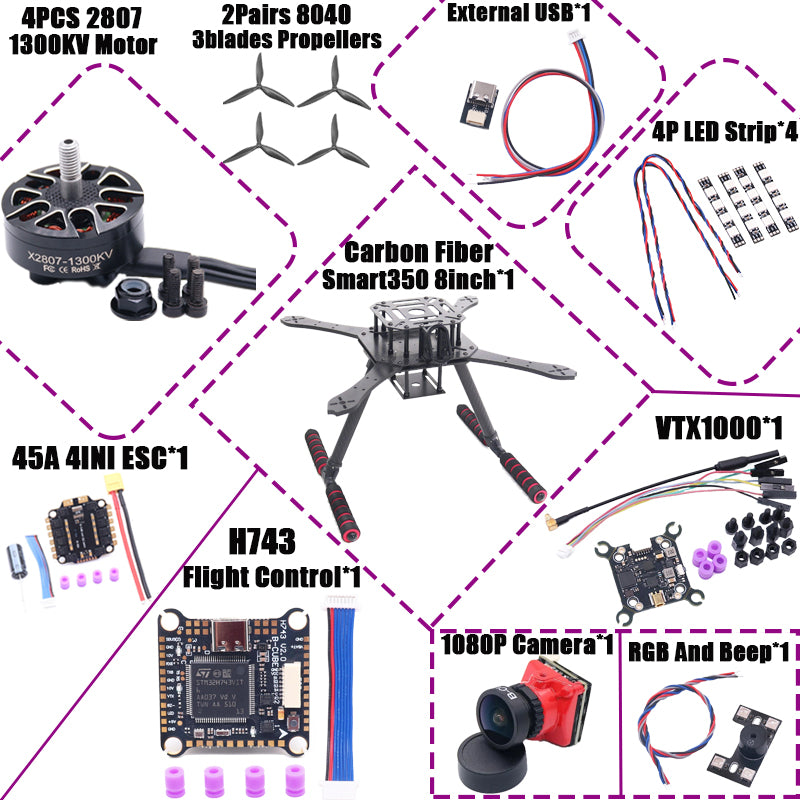

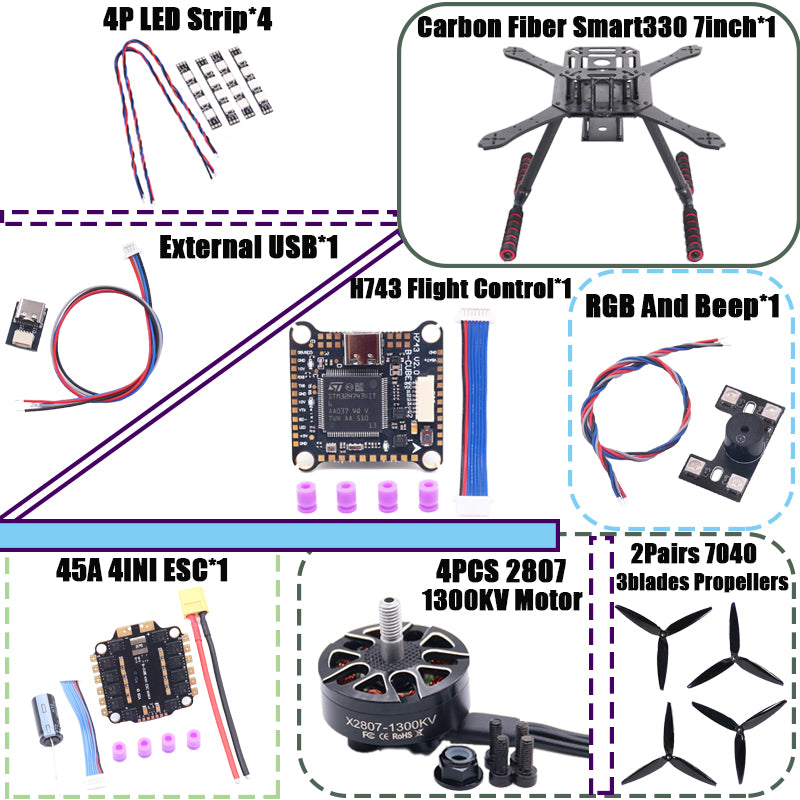

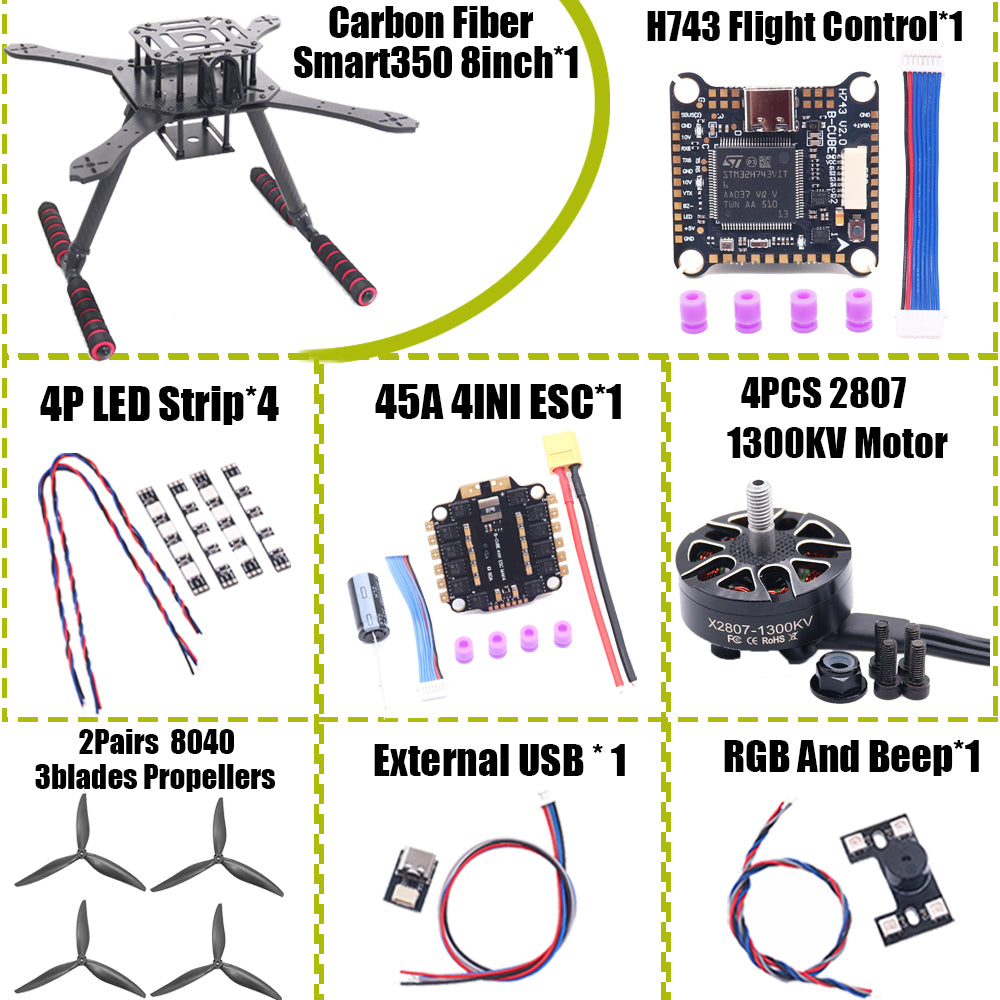

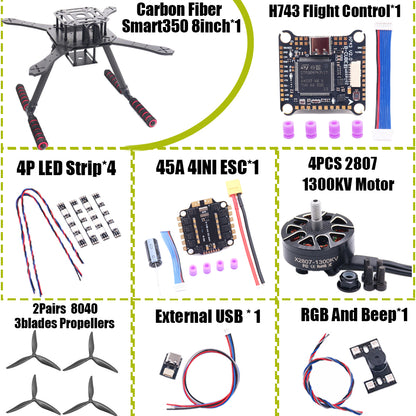

B-CUBE H743 Flight Controller



Features:
The H743 is a 3-6S 36x36mm mini flight controller with a 128MB Blackbox flash memory, 5V 10V dual BEC. Designed for easy maintenance and low interference.
The PCB adopts high-end composite material, which has stronger overcurrent capability and good heat dissipation. MOS adopts imported high current resistance mos, low energy consumption, long life and strong load capacity.
Using industrial grade LDO, high temperature resistance. High-quality capacitors, strong filtering performance.
Intelligent control: The controller has a built-in low-noise button, which can be controlled remotely by one button.
Maximum power: The OSD allows you to control your drone with maximum speed and accuracy, while providing a smoother flight.

Descriptions:
H743 is a major upgrade, offering enhanced performance and precision.Boosting processing power for faster response and improved flight stability. The IMU has been upgraded todouble ICM-42688-P, providing lower noise, higher sensitivity, and better vibration resistance. These enhancements ensure more accurate flight control, superior gyro performance, and greater reliability. Designed for high-speed FPV applications, H743delivers smoother flights, faster responsiveness, and exceptional handling in demanding conditions.

Specifications:
l Chip:STM32H743VIT6(480MHZ)
l Gyro:ICM-42688-P*2
l Barometer:DPS310
l OSD Chip:AT7456E
l Black box:128MM
l LED Program:Support
l BB buzzer:Support
l Input voltage:3-6S
l I2C Connector:Support
l BEC:5V/2.5A
l BEC:10V/2.0A
l Cam Input:Support
lUSART:UART1,UART2.UART3.UART4.UART6.UART7
lReceiver:ELRS(CRSF).TBS(CRSF).SBUS.IBUS.DSM2.DSMX
l GPS:YES
l COMPASS:YES
l HD O3:YES
l ESC Signal:Dshoot150.Dshot300,Dshot600
l USB:TYPE-C
l Current Port:Yes.
l Voltage Sensor:Yes
l Firmware: cleanflight/betaflight/inav/ardupilot
lFCfirmware:betaflight_4.5.2_STM32H743_JHEH743_HD.hex/ inav_8.0.1_JHEMCUH743HD.hex / arducopter4.6_with_bl.hex
l Install hole:30.5*30.5*4MM
l Board size:36*36MM
l Weight:7.9g

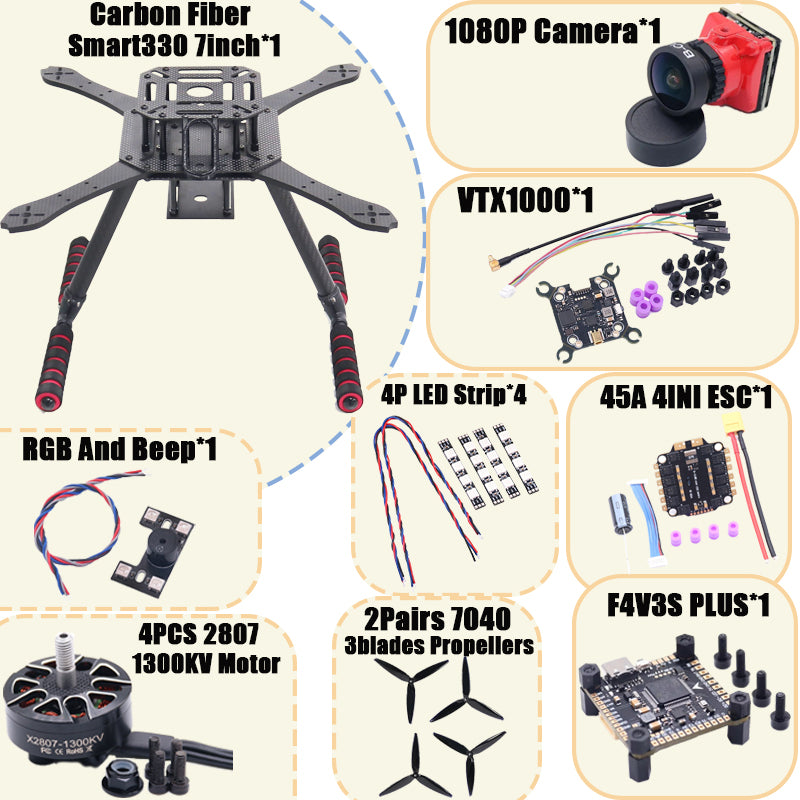

VTX1000 1W Video Transmitter

Description:

Model: MINI MS-1672 FPV cameras

Sensor: 1/1/8 "CMOS D1080H

Horizontal resolution: 2000TVL

Horizontal field of view: 165

Lens: 2.1mm lens

Video format: NTC&PAL (adjustable)

Image scale: 4:3&16:9 (automatic recognition)

Wide Dynamic Range: Super WDR

Noise reduction: 3DNR

Low illumination: 0.001LUX

Video output: CVBS

Day and night: external/internal/black and white/color

Language: (English/Chinese/Traditional Chinese/pyccnna)

ESOABIK/TTASSNO/FRABCAUS/

POSDIM/PORTUGUES/Japanese

Electronic Shutter: PAL: 1/50-100000NTSC: 1/60-100000

Wide voltage input: 5-36V

Working temperature: -20-60

Weight: 110g

Dimensions: 19 19 19mm

Resolution: 960 * 1080

Feature:

Upgraded Mista 2000TVL 2.1mm Wide Angle HD 1080P CCD PAL/NTSC Switchable 16:9 OSD FPV Camera.

Package included:

1 x Upgraded Mista FPV Camera

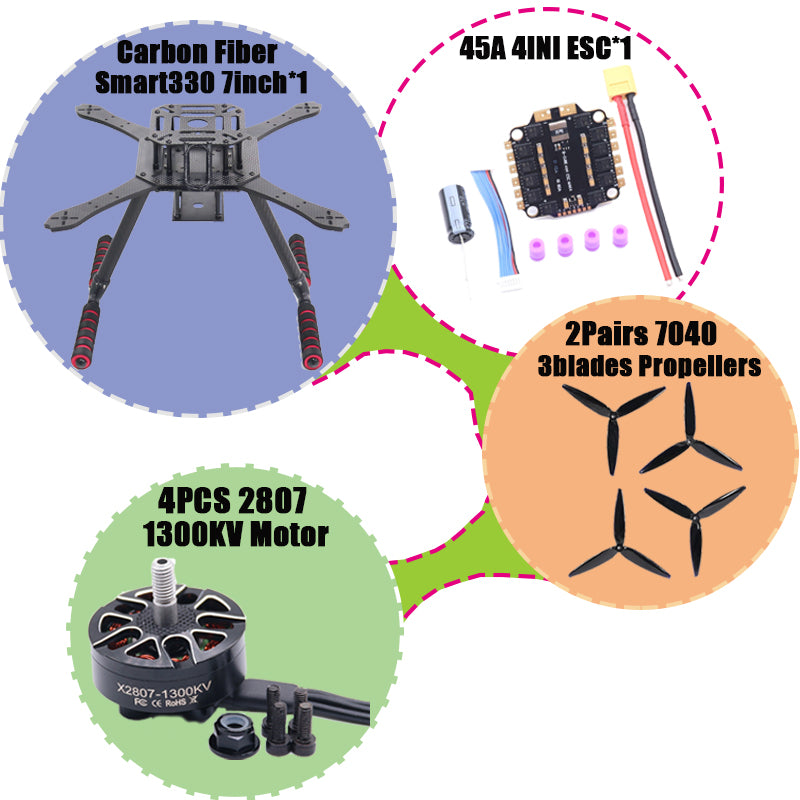

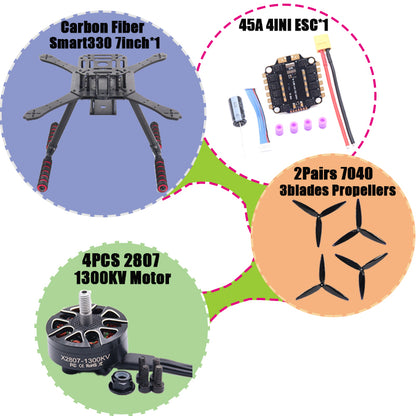

BLHELI_S 45A 4IN1 3-6S Brushless ESC

BLHELI_S 45A 4IN1 3-6S Brushless ESC
Size: 41*39.5*5mm
Hole distance: 30.5*30.5/5mm
Weight: 13g
Input voltage: LIPO 2-6S
Continuous current: 45A
Maximum current: 50A (10 seconds)
Processor: EFM8BB21F16G
Firmware: BLS J_H_30_REV16_7
Drive signal support: DShot300-600/Multishot/Oneshot/PWM
Current sensor: Support

The ESC has filter capacitors on board to suppress the electromotive power transmission, stabilize the battery voltage and protect the components of ESC vuelo control precision

ELRS 2.4G Receiver RX

Product Description:
ExpressLRS aims to provide the best completely open, high refresh radio control link while maintaining a maximum achievable range at that rate with low latency.

SPECIFICATIONS 1
●Brand:B-CUBE
●Model:ELRS 2.4G NANO
●RF Freq:2.4Ghz
●IC:SX1281+ESP8285
●TX Power:100mW
●Color:Black
●Connector:IPEX 1
●Input Power:3.6-5.5V
●Weight:0.4g(receiver only)
●Size:11mm*18mm
●Firmware: BETAFPV Nano 2400 RX 3.3.0

Package Included:
Nano Receiver x 1
T type receiver antenna x 1
Heat shrink tube x 1
30AWG Silicone Wire x 4

 LiteRadio 3 Radio Transmitter

LiteRadio 3 is a remote control radio transmitter designed primarily for RC models, including multirotor, airplanes. It gives you more than you ever thought possible from an entry-level 8-channel radio.
8 channels in total.
USB Joystick support for most practice simulators.
Nano module bay for external TX module.
Newly designed joystick gimbal for longer usage life.
Support BETAFPV Configurator for updating, configuring, and tuning.
Provide ExpressLRS 2.4G protocol version .
Built-in 2000mAh battery and USB charge supported.

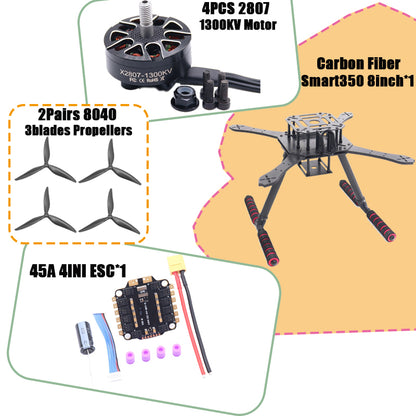

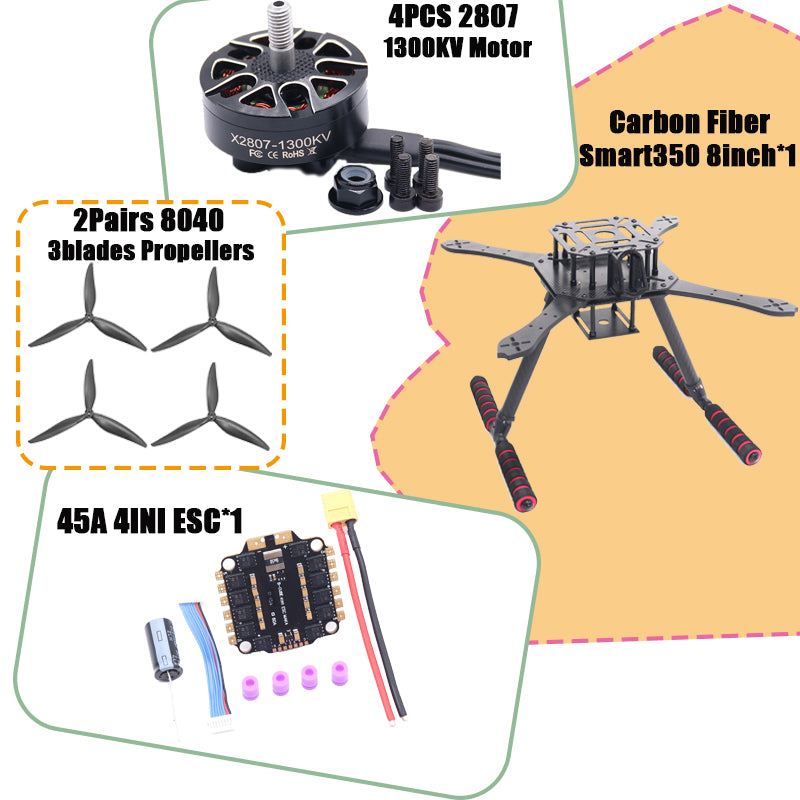

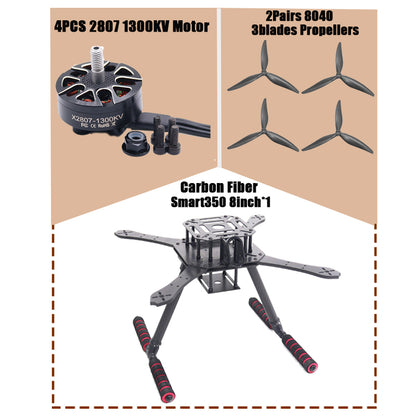

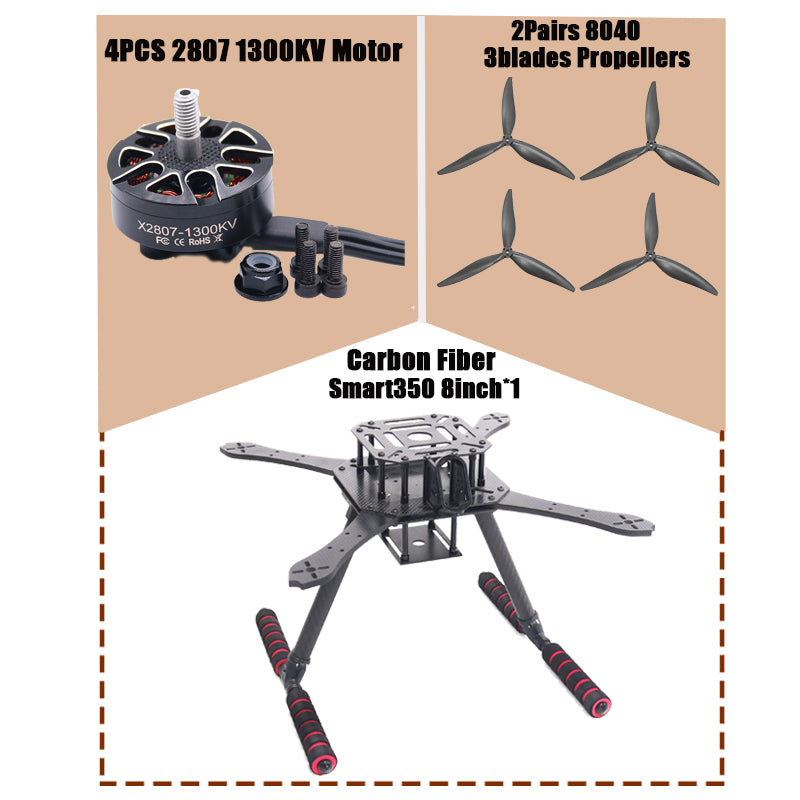

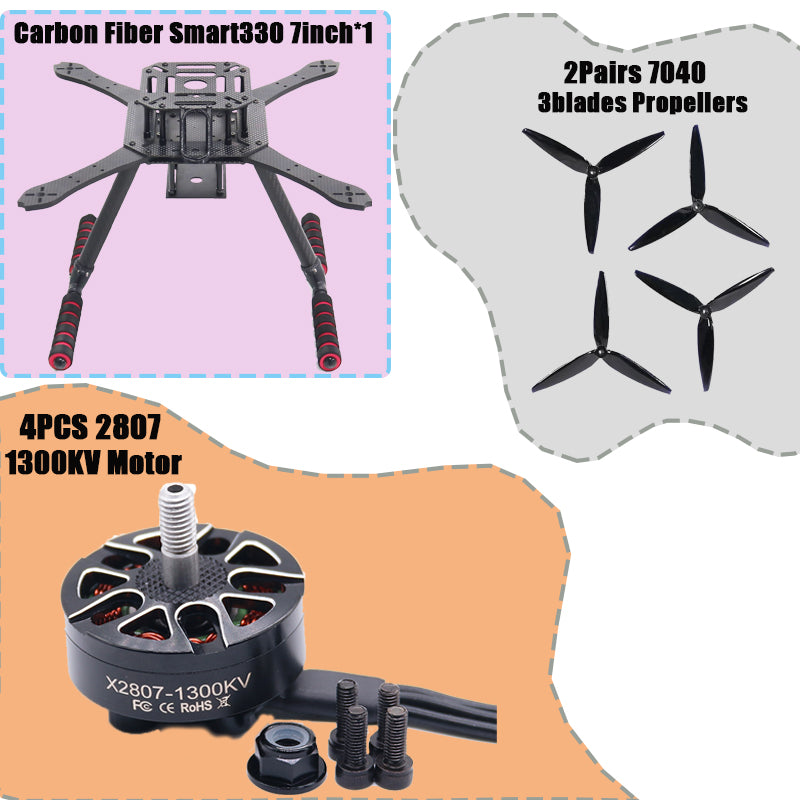

4PCS 2807 1300KV Motor:

Shaft Diameter:4.Omm

Motor Mount:19*19mm（M2*4）

Configuration:12N14P

Motor Cable:18#AWG 220mm

KV Value:1300KV,1500KV and 1800KV or customed KV

Recommend:7"inch prop application

A2807KV 1300KV Motor Specification

Max pull:1996g

Volts:24V(6S)

Suggested ESC:40A~60A

Maximum Power:895.7W

Suggested Prop:GF7043 inch prop

4P LED Strip*4

RGB And Beep

Support flight control such as for NAZE32/F3/F4/F7.
Adopt four WS2812B LED lamp beads with integrated loud buzzer.
Cooperate with flight control, can display various color and flashing suitable for tail light of classical crossing aircraft.
CF-BF flight control support for CC3D, Naze32, SPRachingF3, F4, F7 and other flight control with CleanFlight and BetaFlight firmware.

Specifications:
Item Name: LED Tail Light with Buzzer
Material: ABS
Length: about 36mm/1.42inch
Applicable Models: Suitable for F3 F4 F7 CC3D NAZE32 Flight Control FPV-Drones
Working-voltage: DC4.5~5.2V

Package Includes:
1Pc LED Tail Light with Buzzer



External USB

5.8G VTX OTG Receive

Key Point:
When using a 2.4 GHz remote controller, certain models may introduce interference to the 5.8 GHz video signal due to harmonic emissions or spurious signals generated when operating at elevated power levels within the 2.4 GHz band. To mitigate this, configure the video transmitter to a higher-frequency channel such as 5945 MHz. Alternatively, ensure adequate physical separation between the video receiver and the 2.4 GHz remote controller.

Features:
1.150CH 5.8Ghz analog signal, 1500 scans cover all bands.
2.Resolution 640*480 30fps.
3.Mushroom RX antenna, omnidirectional pointing, strong transmission signal. It can greatly improve the stability and distance of 5.8G image to video transmission.
4.Can display frequency spectrum, to check the signal strength of antenna or transmitter.
5.Support dual display on smartphone, can be used as VR goggles.
6.To ensure accurate calibration, perform the procedure in an open area while maintaining a distance of at least 30 meters between the receiver and the transmitter. To enter calibration mode, long-press the menu button while powering on the receiver.

Descriptions:
1.Support OTG cable connect to android smartphone or tablet.
2.Single Antenna FPV receiver for Android Tablet PC Monitor.

Specifications:
Frequency: 5645MHz-5945MHz
Resolution: 640 * 480 30fps
Working Current: USB 5V 190mA
Connector: RP-SMA Male
USB: Type-C
Working Temp.: -10°~65°
Size: 50MM*30MM
Weight: 26g

Using Methods
Install APP:
1.Download apk app from here,https://github.com/BCUBE-RC/VTX-OTG/
2.Use OTG cable connect with receiver
3.After it power on, press the menu button for 3 seconds,it will self-search frequency and lock the strongest signal automatically.

PC:
1.Use usb cable to connect it with PC.
2.XP: open the camera;WIN7: install AMCP camera software;WIN10: open camera. Or MP groundstation.
3.After it power on, press the menu button for 3 seconds,it will self-search frequency and lock the strongest signal.

AV:
1.Use 4P cable (should DIY by player), 5V power input.
2.After it power on, press the menu button for 3 seconds,it will self-search frequency and lock the strongest signal.

Note:
1.Do not support IOS system.
2.For certain smartphones, the OTG (On-The-Go) function must be enabled prior to use.
3.Some users have reported issues with screen flickering or limited range. After conducting tests in open areas, we've identified the cause: the device's high scanning precision results in frequency reflections off indoor walls, causing the receiver to detect a higher frequency than intended. Therefore, it is crucial to operate the device in open environments and maintain a distance of at least 30 meters between the receiver and transmitter.

Package Included:
1 x 5.8Ghz 150ch Receiver
1 x Type-C OTG cable
1 x Mushroom RX Antenna
1 x 1.0 4P cable
