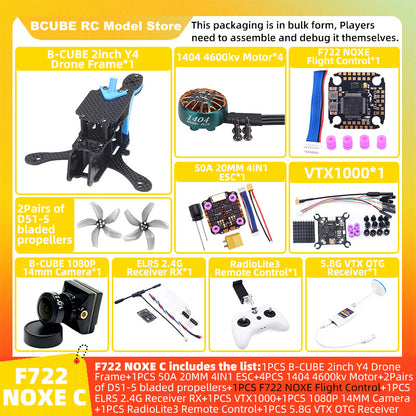

LiteRadio 3 is a remote control radio transmitter designed primarily for RC models, including multirotor, airplanes. It gives you more than you ever thought possible from an entry-level 8-channel radio.

• 8 channels in total.
• USB Joystick support for most practice simulators.
• Nano module bay for external TX module.
• Newly designed joystick gimbal for longer usage life.
• Support BETAFPV Configurator for updating, configuring, and tuning.
• Provide ExpressLRS 2.4G protocol version .
• Built-in 2000mAh battery and USB charge supported.

5.8G VTX OTG Receiver

Note:

If you use a 2.4G remote control, some remote controls may interfere with the 5.8G signal after increasing the frequency through the 2.4G frequency band. Using a high-frequency band frequency of 5945MHz for video transmitters can avoid this problem. Or keep the video receiver away from the 2.4G remote control.

Features:

1.150CH 5.8Ghz analog signal, 1500 scans cover all bands.
2.Resolution 640*480 30fps.
3.Mushroom RX antenna, omnidirectional pointing, strong transmission signal. It can greatly improve the stability and distance of 5.8G image to video transmission.
4.Can display frequency spectrum, to check the signal strength of antenna or transmitter.
5.Support dual display on smartphone, can be used as VR goggles.
6.Please calibrate it in open area, and keep away from transmitter more than 30m. Long press the menu button and power on receiver, enter into calibration mode.

Descriptions:

1.Support OTG cable connect to android smartphone or tablet.
2.Single Antenna FPV receiver for Android Tablet PC Monitor.

Specifications:

Frequency: 5645MHz-5945MHz
Resolution: 640480 30fps
Working Current: USB 5V 190mA
Connector: RP-SMA
USB: Type-C
Working Temp.: -10°~65°
Size: 50MM30MM
Weight: 26g

Working Methods

Install APP:

1.Download apk app from here,https://github.com/BCUBE-RC/VTX-OTG/
2.Use OTG cable connect with receiver
3.After it power on, press the menu button for 3 seconds,it will self-search frequency and lock the strongest signal automatically.

PC:

1.Use usb cable to connect it with PC.
2.XP: open the camera;WIN7: install AMCP camera software;WIN10: open camera. Or MP groundstation.
3.After it power on, press the menu button for 3 seconds,it will self-search frequency and lock the strongest signal.

AV:

1.Use 4P cable (should DIY by player), 5V power input.
2.After it power on, press the menu button for 3 seconds,it will self-search frequency and lock the strongest signal.

Note:

1.Do not support IOS system.
2.Some smartphones should open the otg function before use.
3.Some players have complained that it has the issue of flicker or short distance. After testing in open area, the reason has been found to be its high scanning accuracy,that the transmitted frequency is reflected by wall indoors and make the real frequency detected by receiver higher than it should be. So it is quite important to operate it in an open area and keep the receiver and transmitter more than 30m.

Package Included:

1 x 5.8Ghz 150ch Receiver
1 x Type-C OTG cable
1 x Mushroom head RX Antenna

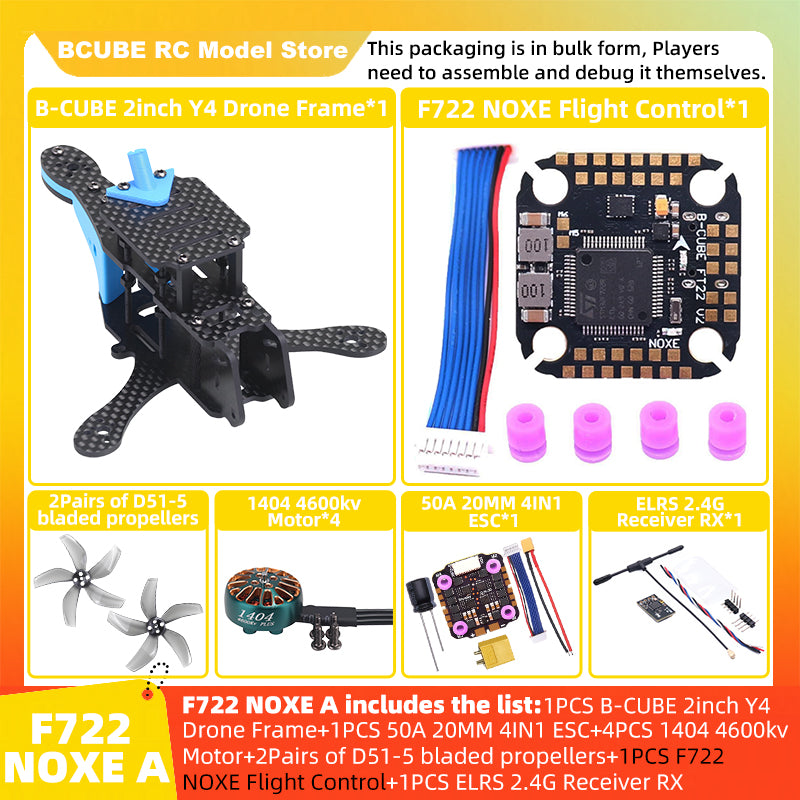

ELRS 2.4G Receiver RX

Product Description:
ExpressLRS aims to provide the best completely open, high refresh radio control link while maintaining a maximum achievable range at that rate with low latency.

SPECIFICATIONS 1
●Brand:B-CUBE
●Model:ELRS 2.4G NANO
●RF Freq:2.4Ghz
●IC:SX1281+ESP8285
●TX Power:100mW
●Color:Black
●Connector:IPEX 1
●Input Power:3.6-5.5V
●Weight:0.4g(receiver only)
●Size:11mm*18mm
●Firmware: BETAFPV Nano 2400 RX 3.3.0

Package Included:
Nano Receiver x 1
T type receiver antenna x 1
Heat shrink tube x 1
