B-CUBE ZD960 PIXHAWK2.4.8 M10 Full Carbon Fiber Hexa-Rotor Frame BLHELI 40A ESC Flight Comtrol Rado Telemetry Set

B-CUBE ZD960 PIXHAWK2.4.8 M10 Full Carbon Fiber Hexa-Rotor Frame BLHELI 40A ESC Flight Comtrol Rado Telemetry Set

$744.64 USD
$744.64 USD $744.64 USD
Sale Sold out
Color

Pixhawk 2.4.8 support the latest official ardupilot firmware and PX4 firmware.

1. The advanced 32-bit ARM CortexM4 high-performance processors STM32F427VIT6(2MB flash), can run NuttX CHIBOS RTOS real-time operating system;
2. 14 PWM / servo output;
3. Bus interface (UART, I2C, SPI, CAN);
4. The integrated backup power and backup controller fails, the primary controller fails over to the backup control is safe;
5. Provide automatic and manual modes;
6. Provide redundant power input and failover;
7. Multicolor LED lights;
8. Provide multi-tone buzzer Interface
9. Micro SD recording flight data;

Specifications:
Interface
1 .5 high voltage compatible UART 1, 2 with hardware flow control
2. 2 CAN
3.Spektrum DSM / DSM2 / DSM-X satellite receiver compatible input
4.Futaba SBUS compatible inputs and outputs
5.PPM Signal Input
6.RSSI (PWM or voltage) Input
7.I2C
8.SPI
9.3.3 and 6.6VADC input
10. External MICRO USB Interface


Simple  Package:

ZD960 Full Carbon Fiber+ 6 pcs BLHELI 40A Brushless ESC+

1755 3 Pairs 3K Carbon Fiber Propeller  + 6 PCS D4114 400KV Motor  +

PIXHAWK 2.4.8+ 4G TF Card + Safety Button + Buzzer +M10 GPS+ GPS Holder+  3DR Power Module+ Shock Absorber

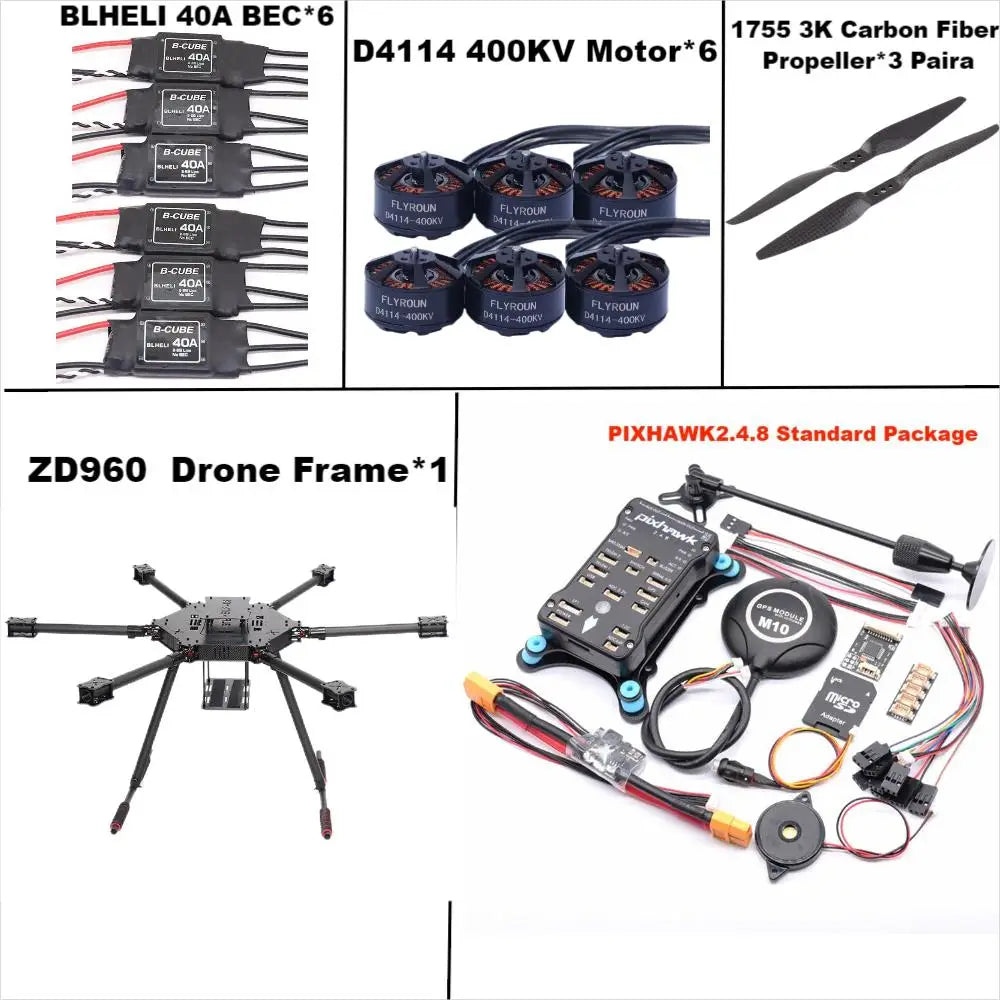

Standard Package:

ZD960 Full Carbon Fiber+ 6 pcs BLHELI 40A Brushless ESC+

1755 3 Pairs 3K Carbon Fiber Propeller  + 6 PCS D4114 400KV Motor  +

PIXHAWK 2.4.8(white or black shell)+ 4G TF Card + Safety Button + Buzzer + PPM Encoder + I2C Expansion Board+ 3 Line(4Pin 1.25 ,6Pin 1.25 ,3Pin 2.5.4)+M10 GPS+ GPS Holder+  3DR Power Module+ Shock Absorber

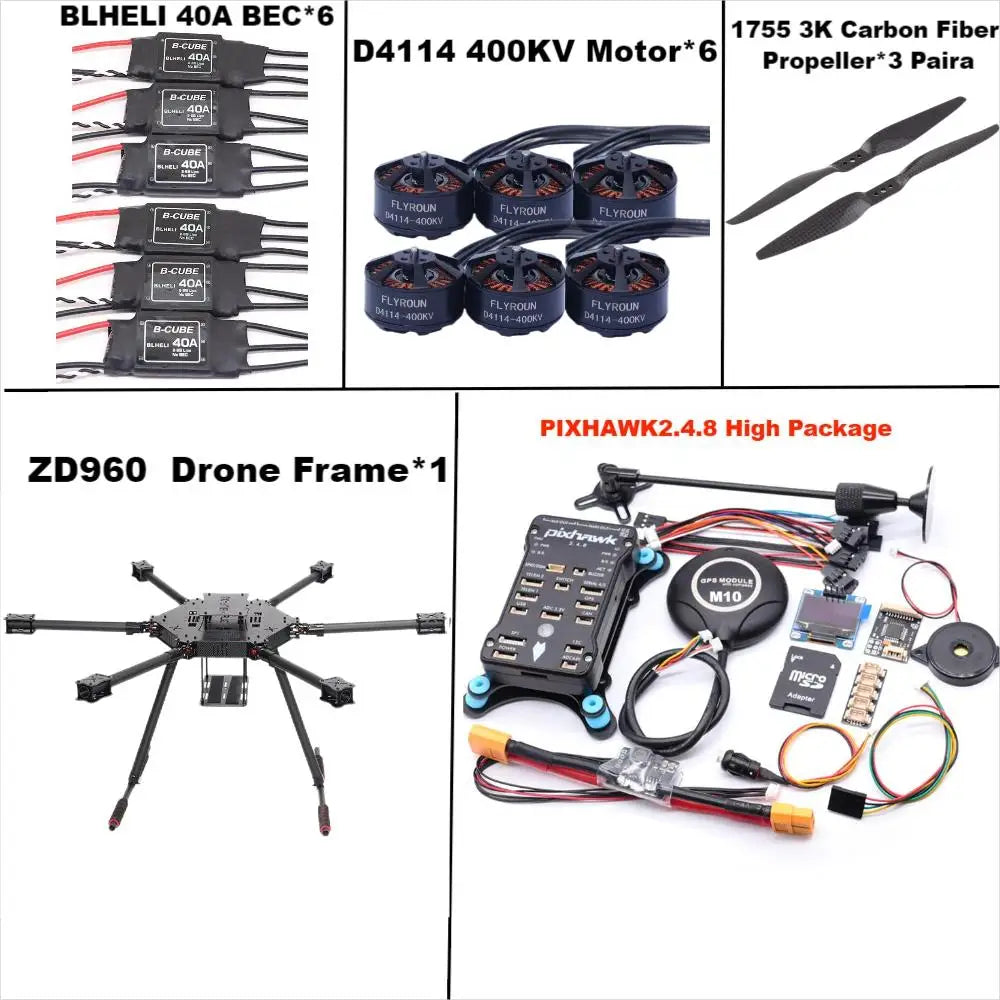

High Package:

ZD960 Full Carbon Fiber+ 6 pcs BLHELI 40A Brushless ESC+

1755 3 Pairs 3K Carbon Fiber Propeller  + 6 PCS D4114 400KV Motor  +

 PIXHAWK 2.4.8(white or black shell)+ 4G TF Card + Safety Button + Buzzer + PPM Encoder + I2C Expansion Board+ RGB Led + OLED Screen+ 3 Line(4Pin 1.25 ,6Pin 1.25 ,3Pin 2.5.4)+M10 GPS+ GPS Holder+  3DR Power Module+ Shock Absorber

433/915MHZ 100MW :

ZD960 Full Carbon Fiber+ 6 pcs BLHELI 40A Brushless ESC+

1755 3 Pairs 3K Carbon Fiber Propeller  + 6 PCS D4114 400KV Motor  +

PIXHAWK 2.4.8+ 4G TF Card + Safety Button + Buzzer + PPM Encoder + I2C Expansion Board+ 3 Line(4Pin 1.25 ,6Pin 1.25 ,3Pin 2.5.4) +M10 GPS+ GPS Holder+  3DR Power Module+ Shock Absorber+433/915MHZ 100MW Radio telemetry

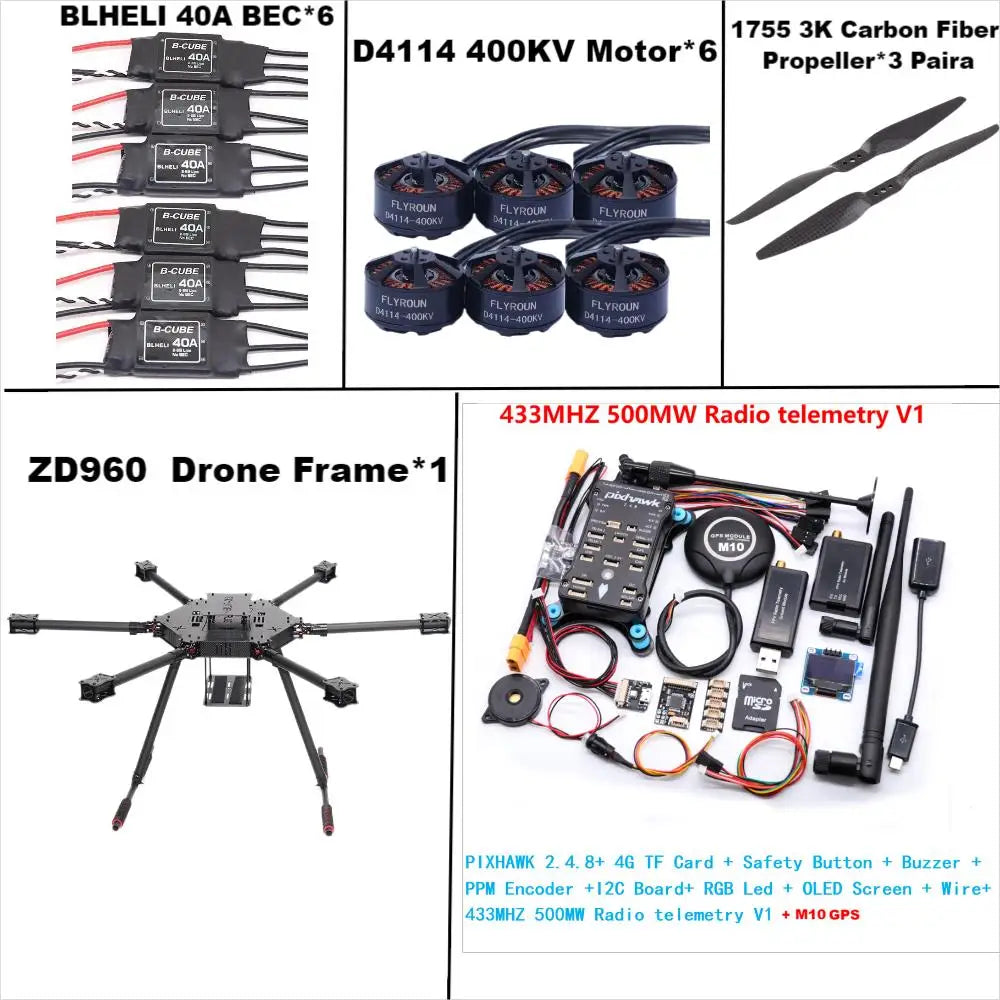

433/915MHZ 500MW :

ZD960 Full Carbon Fiber+ 6 pcs BLHELI 40A Brushless ESC+

1755 3 Pairs 3K Carbon Fiber Propeller  + 6 PCS D4114 400KV Motor  +

PIXHAWK 2.4.8(white or black shell)+ 4G TF Card + Safety Button + Buzzer + PPM Encoder + I2C Expansion Board+ RGB LED + OLED Screen+ 3 Line(4Pin 1.25 ,6Pin 1.25 ,3Pin 2.5.4) + M10 GPS+ GPS Holder+  3DR Power Module+Shock Absorber+433/915MHZ 500MW Radio telemetry

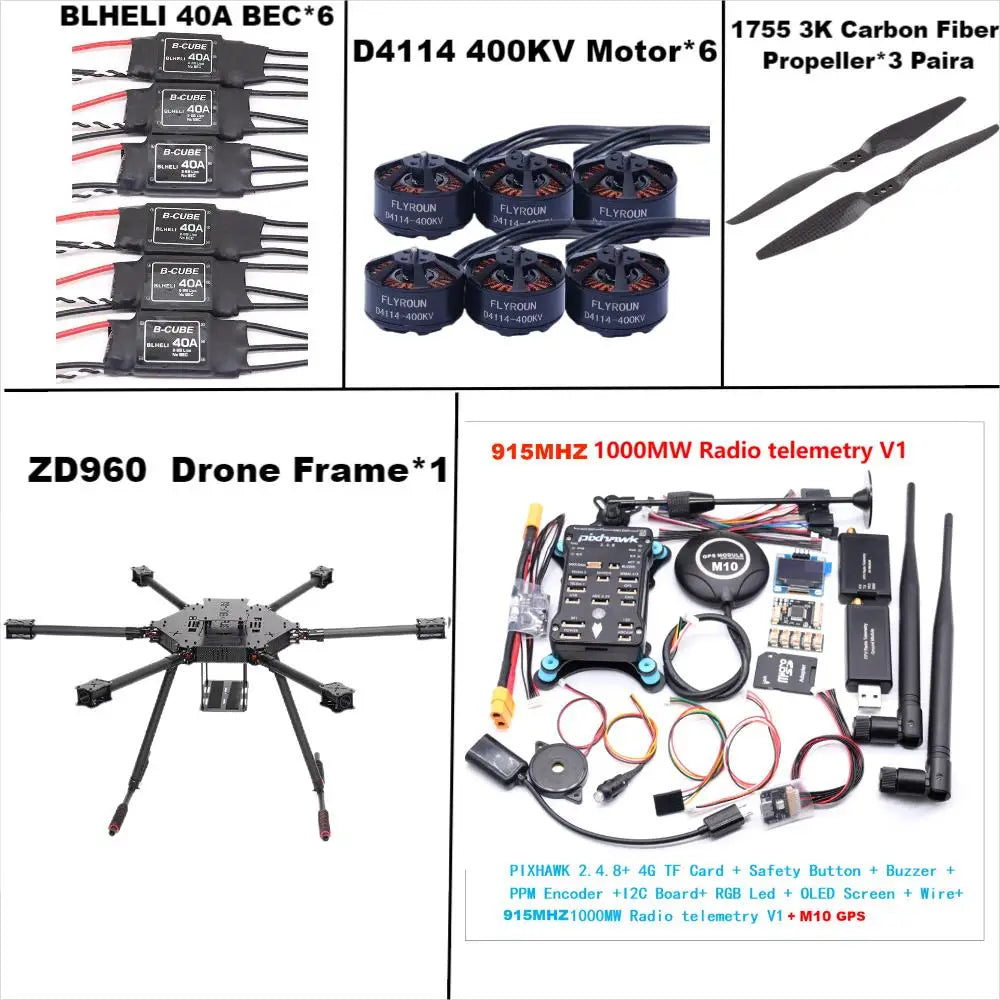

433/915MHZ 1000MW :

ZD960 Full Carbon Fiber+ 6 pcs BLHELI 40A Brushless ESC+

1755 3 Pairs 3K Carbon Fiber Propeller  + 6 PCS D4114 400KV Motor  +

PIXHAWK 2.4.8(white or black shell)+ 4G TF Card + Safety Button + Buzzer + PPM Encoder + I2C Expansion Board+ RGB LED + OLED Screen+ 3 Line(4Pin 1.25 ,6Pin 1.25 ,3Pin 2.5.4) + M10 GPS+ GPS Holder+  3DR Power Module+Shock Absorber+433/915MHZ 1000MW Radio telemetry

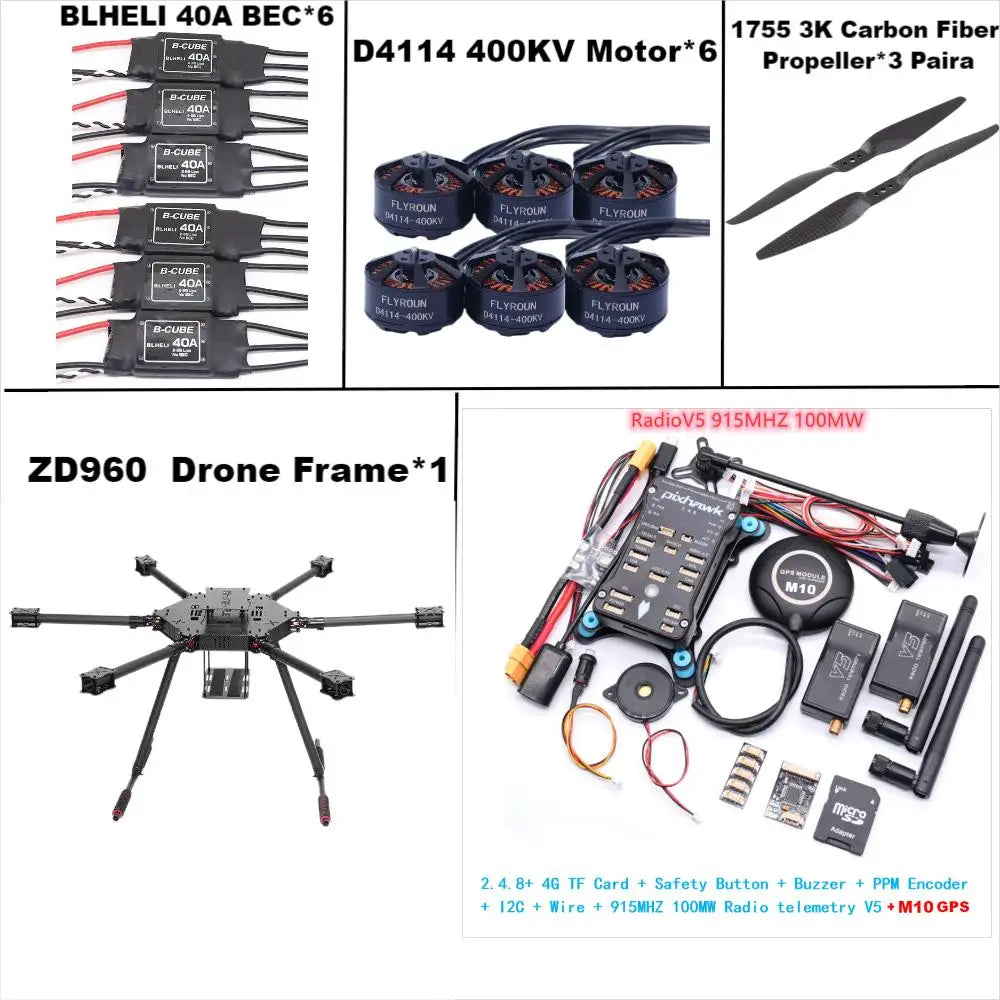

433/915MHZ 100MW  V5:

ZD960 Full Carbon Fiber+ 6 pcs BLHELI 40A Brushless ESC+

1755 3 Pairs 3K Carbon Fiber Propeller  + 6 PCS D4114 400KV Motor  +

PIXHAWK 2.4.8+ 4GTFCard+Safety Button+Buzzer+PPMEncoder +12C+Wire+433/915MHZ100MW Radiotelemetry V5+M10 GPS

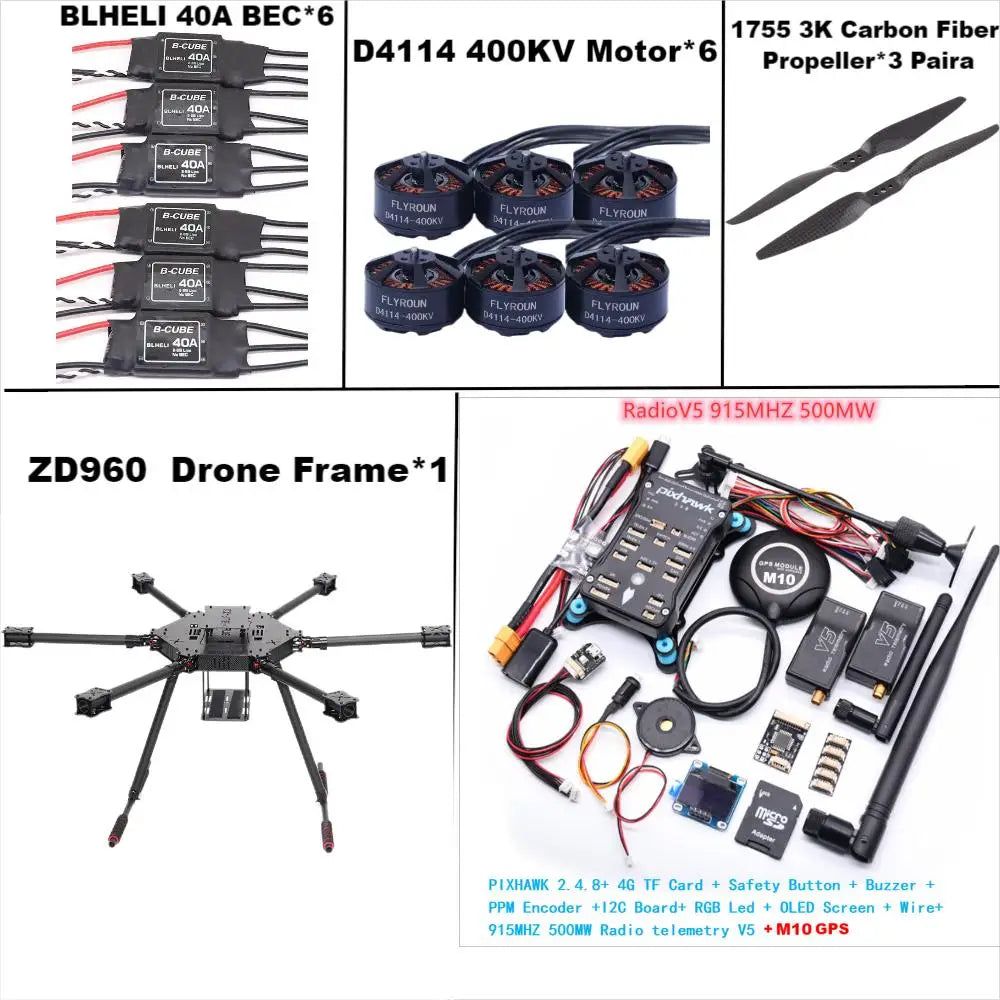

433/915MHZ 500MW  V5:

ZD960 Full Carbon Fiber+ 6 pcs BLHELI 40A Brushless ESC+

1755 3 Pairs 3K Carbon Fiber Propeller  + 6 PCS D4114 400KV Motor  +

PIXHAWK2.4.8+4G TF Card+Safety Button+Buzzer+PPM Encoder +I2C Board+ RGBLed +0LEDScreen+Wire+

433/915MHZ 500MW Radio telemetry V5 +M10 GPS

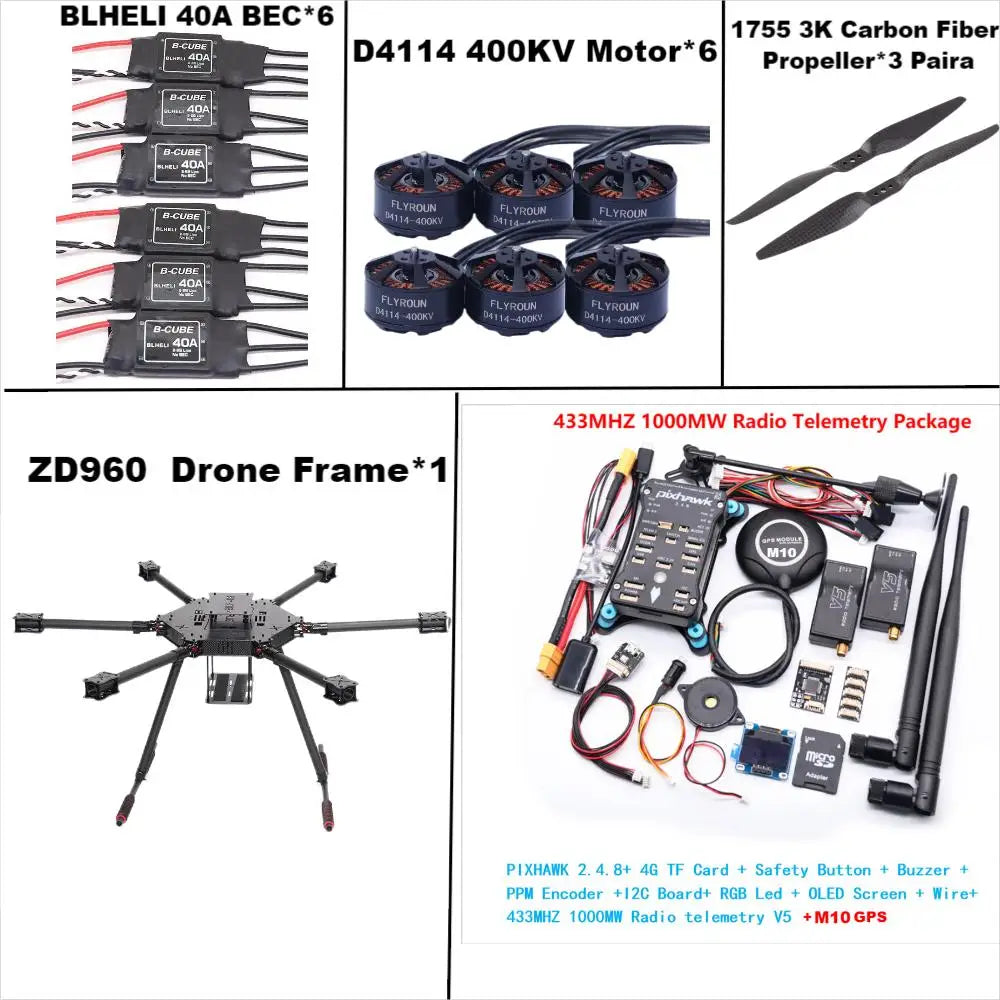

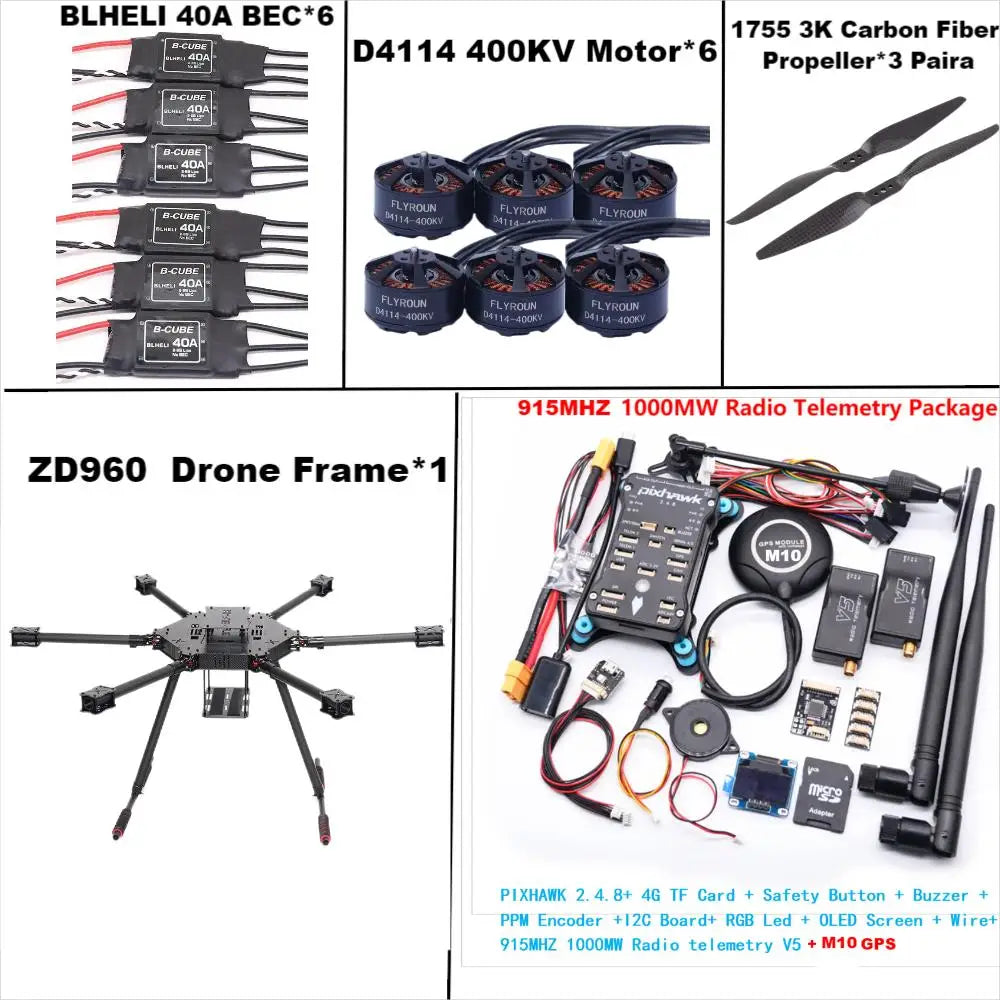

433/915MHZ 1000MW  V5:

ZD960 Full Carbon Fiber+ 6 pcs BLHELI 40A Brushless ESC+

1755 3 Pairs 3K Carbon Fiber Propeller  + 6 PCS D4114 400KV Motor  +

PIXHAWK 2.4.8+ 4G TFCard+Safety Button+Buzzer+PPM Encoder +I2C Board+ RGBLed+0LED Screen+Wire+

433/915MHZ 1000MW Radiotelemetry V5 +M10 GPS



433MHZV5 1000MW OSD:

ZD960 Full Carbon Fiber+ 6 pcs BLHELI 40A Brushless ESC+

1755 3 Pairs 3K Carbon Fiber Propeller  + 6 PCS D4114 400KV Motor  +

PIXHAWK 2.4.8(white or black shell)+ 4G TF Card + Safety Button + Buzzer + PPM Encoder + I2C Expansion Board+ RGB LED + OLED Screen+ 3 Line(4Pin 1.25 ,6Pin 1.25 ,3Pin 2.5.4) + M10 GPS+ GPS Holder+  3DR Power Module+Shock Absorber+433MHZ V5 1000MW Radio telemetry+MINI OSD +PDB

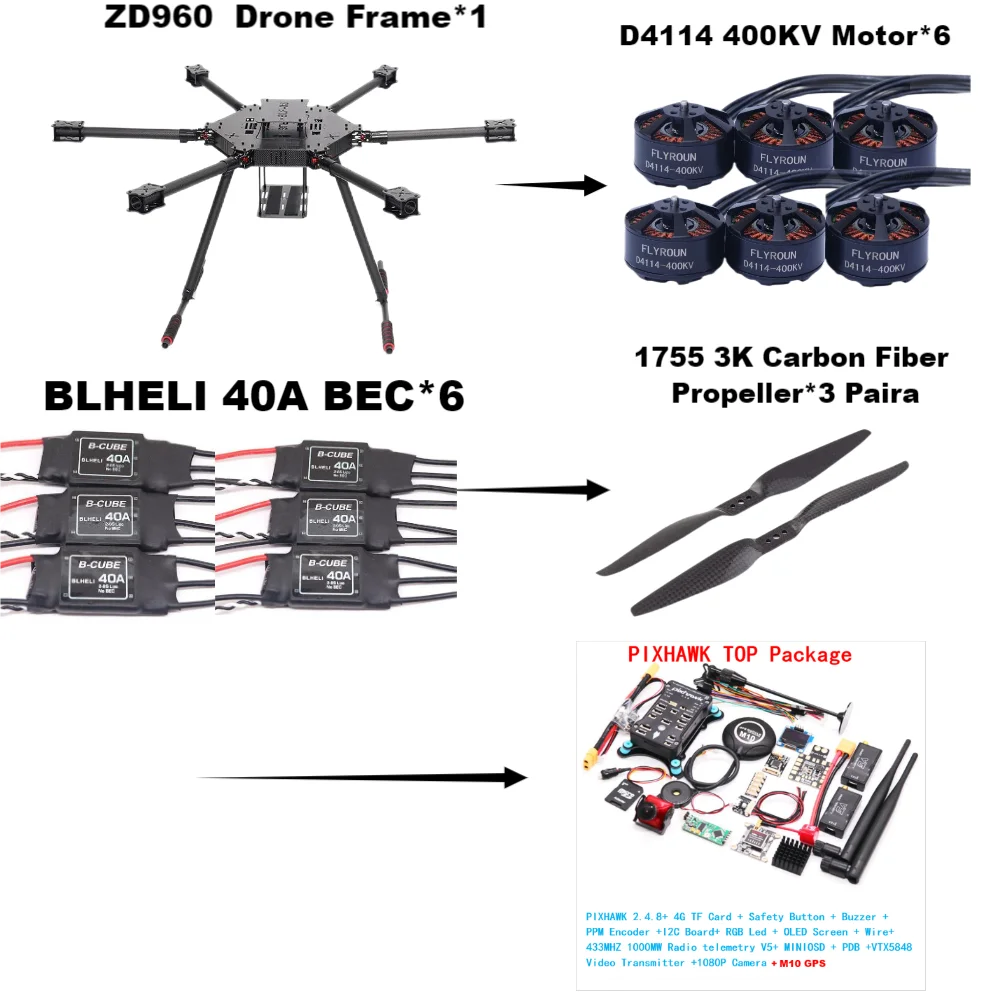

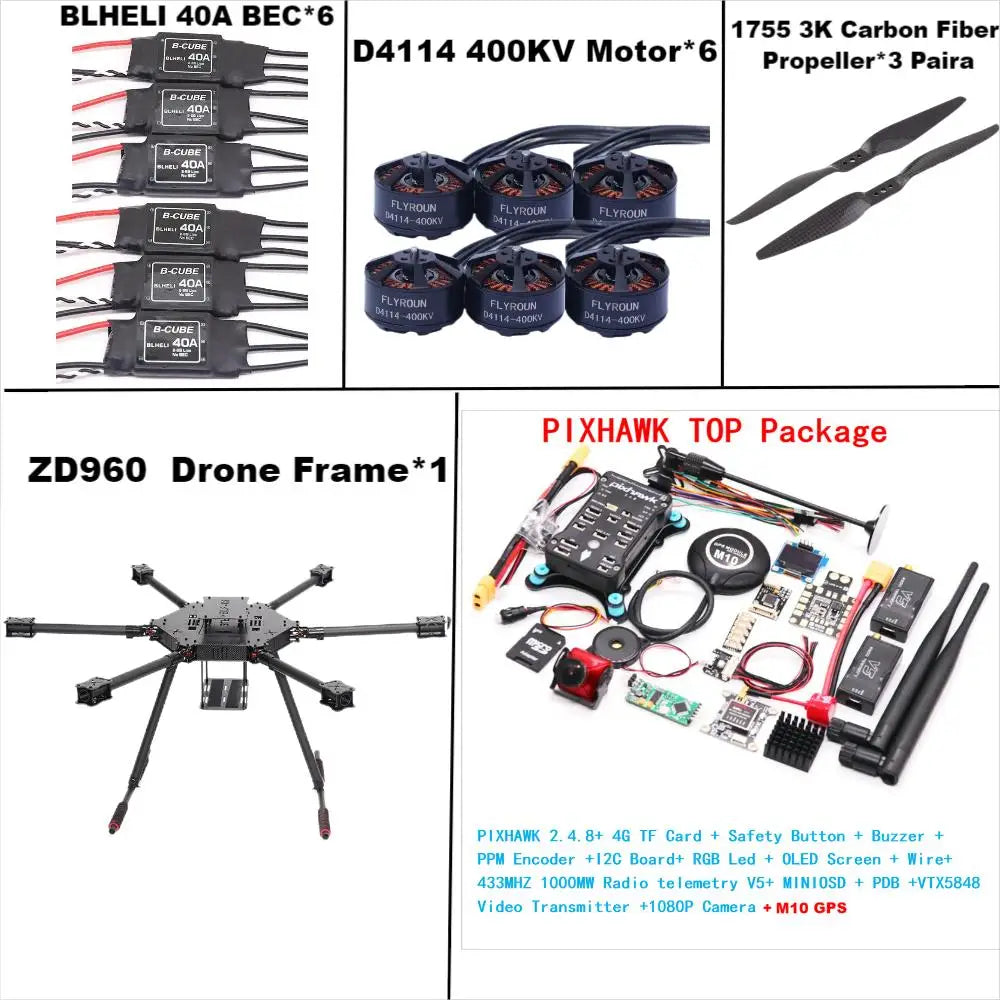

TOP Package:

ZD960 Full Carbon Fiber+ 6 pcs BLHELI 40A Brushless ESC+

1755 3 Pairs 3K Carbon Fiber Propeller  + 6 PCS D4114 400KV Motor  +

PIXHAWK 2.4.8(white or black shell)+ 4G TF Card + Safety Button + Buzzer + PPM Encoder +OLED Module+RGB LED+I2C Expansion Board+ 3 Line(4Pin 1.25 ,6Pin 1.25 ,3Pin 2.5.4) + M10 GPS+ GPS Holder+  3DR Power Module+ Shock Absorber +433MHZ1000MW 3DR Radio Telemetry V5+ MINIOSD + PDB +VTX5848 +1080P Camera





ZD960 Full Carbon Fiber

M10 GPS Module With IST8310 Compass





M10 GPS for Pixhawk2.4.8: used for Pixhawk2.4.8



The M10 GPS uses multi-constellation GNSS powered by u-blox M10 series, a concurrent GNSS receiver which can receive and track multiple GNSS systems. Owing to the multi-band RF front-end architecture all four major GNSS constellations, GPS,Galileo, GLONASS and BeiDou can be received concurrently.

It also comes with the IST8310 compass.This module ships with a baud rate of 115200 5Hz.

The high-gain 25 x 25 mm patch antenna provides excellent performance and the omnidirectional antenna radiation pattern increases flexibility for device installation. It features active circuitry for the ceramic patch antenna, rechargeable backup battery for warm starts.











1755 3 Pairs 3K Carbon Fiber Propeller

The new propeller-type aerial dedicated full carbon paddle paddle-type three-hole installation
Using carbon content of 100% pure imported Toray carbon fiber 3K woven, high temperature and pressure precast precision machining, hardness higher than conventional products market.




6PCS D4114 400KV Motor

Features:

- Using Multicopter special program, fast throttle response,surpasses all kinds of open source software;
- Firmware was optimized specifically for disc motor, and it has a very good compatibility;
- Highly intelligent, strong adaptive capacity, reserve the timing setting item (height/middle timing), easy to use;
- Throttle signal line is twisted wire to reduce crosstalk within the transmission signal generated by the copper, so that more stable flight;
- Supports refresh rates up to 621Hz throttle signal, compatible with various flight controllers. (Note: the throttle signal over 500Hz are all non-standard throttle signal);
- Using MOSFET special driver IC, its performance and stability far surpass the driving circuit with discrete components built;
- Ultra-low resistance MOSFET, strong flow capacity.
OLED Module can display some message.

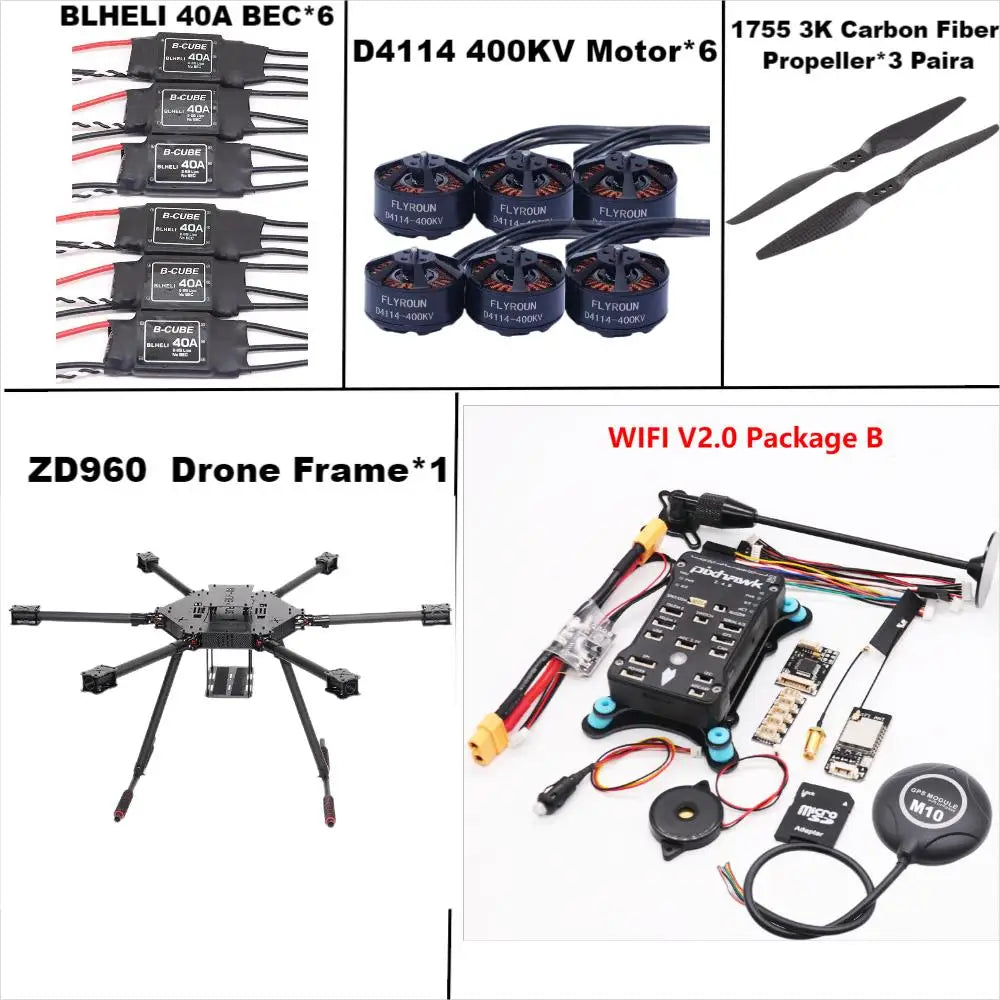

WIFI V1.0 and V2.0 use 8bit CPU, only support UDP

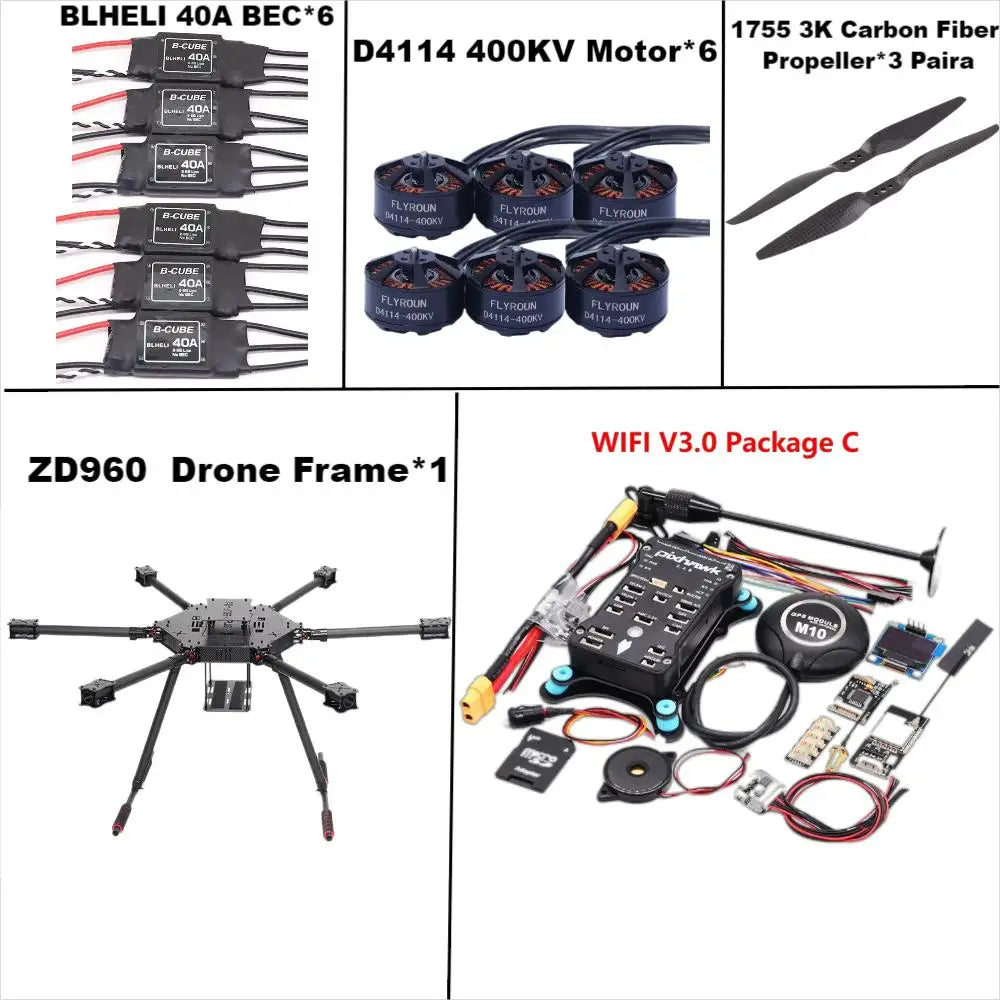

WIFI V3.0 use 32 BIT CPU, support TCP and UDP.
WIFI V2.0 and V3.0 use external antenna (5DB)

Radio telemetry can be used for wireless communication between pixhawk and computer or mobile phone.

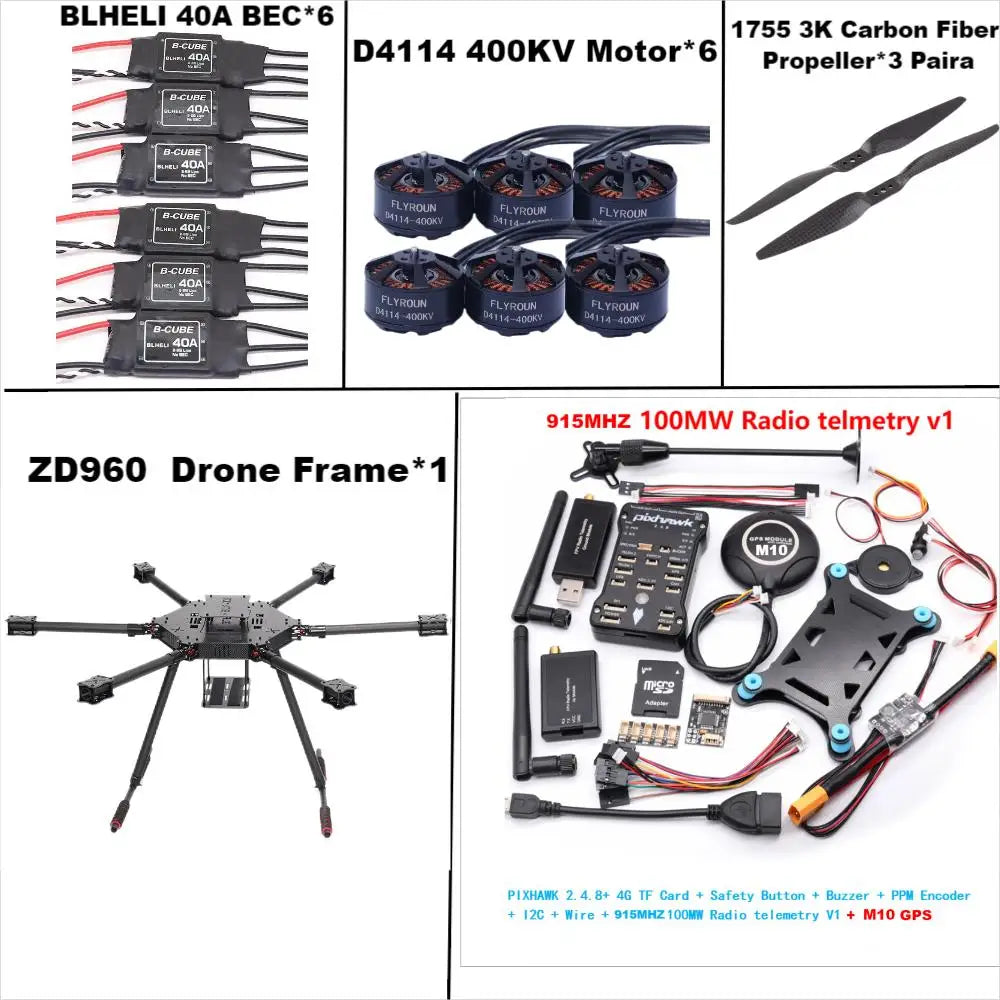

Radio telemetry V1
MINI OSD
PDB:

VTX1000 is video transmitter,support 25MW-600MW,48 channel (with heat sink abd 3DB antenna )

Description:
Model: MINI MS-1672 FPV cameras
Sensor: 1/1/8 "CMOS D1080H
Horizontal resolution: 2000TVL
Horizontal field of view: 165
Lens: 2.1mm lens
Video format: NTC&PAL (adjustable)
Image scale: 4:3&16:9 (automatic recognition)
Wide Dynamic Range: Super WDR
Noise reduction: 3DNR
Low illumination: 0.001LUX
Video output: CVBS
Day and night: external/internal/black and white/color
Language: (English/Chinese/Traditional Chinese/pyccnna)
ESOABIK/TTASSNO/FRABCAUS/
POSDIM/PORTUGUES/Japanese
Electronic Shutter: PAL: 1/50-100000NTSC: 1/60-100000
Wide voltage input: 5-36V
Working temperature: -20-60
Weight: 110g
Dimensions: 19 19 19mm
Resolution: 960 * 1080

Feature:
Upgraded Mista 2000TVL 2.1mm Wide Angle HD 1080P CCD PAL/NTSC Switchable 16:9 OSD FPV Camera.

Package included:
1 x Upgraded Mista FPV Camera
