B-CUBE PIXHAWK PRO M9N Open source new smart drone FLY350 300 380 450MMpix quadrotor upturned rack

B-CUBE PIXHAWK PRO M9N Open source new smart drone FLY350 300 380 450MMpix quadrotor upturned rack

$262.82 USD

~~$262.82 USD~~ $262.82 USD

Sale Sold out

Color Simple package Standard package High package 433MHZ 100MW M9N 433MHZ 500MW M9N 433MHZ 1000MW M9N 915MHZ 100MW M9N 915MHZ 500MW M9N 915MHZ 1000MW M9N

Quantity

PIXHAWK PRO

Pixhawk PRO support the latest official ardupilot firmware and PX4 firmware.

1. The advanced 32-bit ARM CortexM4 high-performance processors STM32F427VIT6(2MB flash), can run NuttX CHIBOS RTOS real-time operating system;

2. 14 PWM / servo output;

3. Bus interface (UART, I2C, SPI, CAN);

4. The integrated backup power and backup controller fails, the primary controller fails over to the backup control is safe;

5. Provide automatic and manual modes;

6. Provide redundant power input and failover;

7. Multicolor LED lights;

8. Provide multi-tone buzzer Interface

9. Micro SD recording flight data;

Specifications:

Interface

1 .5 high voltage compatible UART 1, 2 with hardware flow control

2. 2 CAN

3.Spektrum DSM / DSM2 / DSM-X satellite receiver compatible input

4.Futaba SBUS compatible inputs and outputs

5.PPM Signal Input

6.RSSI (PWM or voltage) Input

7.I2C

8.SPI

9.3.3 and 6.6VADC input

10. External MICRO USB Interface

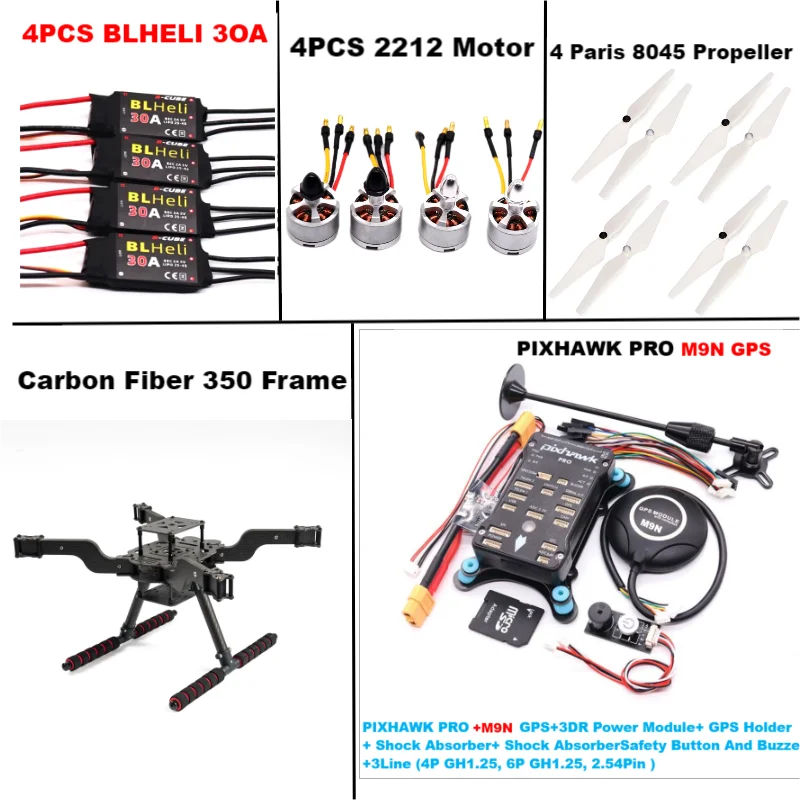

Simple Package:

F350+4 PCS BLHELI 30A +4 pairs self-locking 8045 Propellers +4 PCS 2212920KVmotor

PIXHAWK PRO +M9N GPS+3DR Power Module+ GPS Holder + Shock Absorber+ Shock AbsorberSafety Button And Buzze +3Line(4PGH1.25,6PGH1.25,2.54Pin)

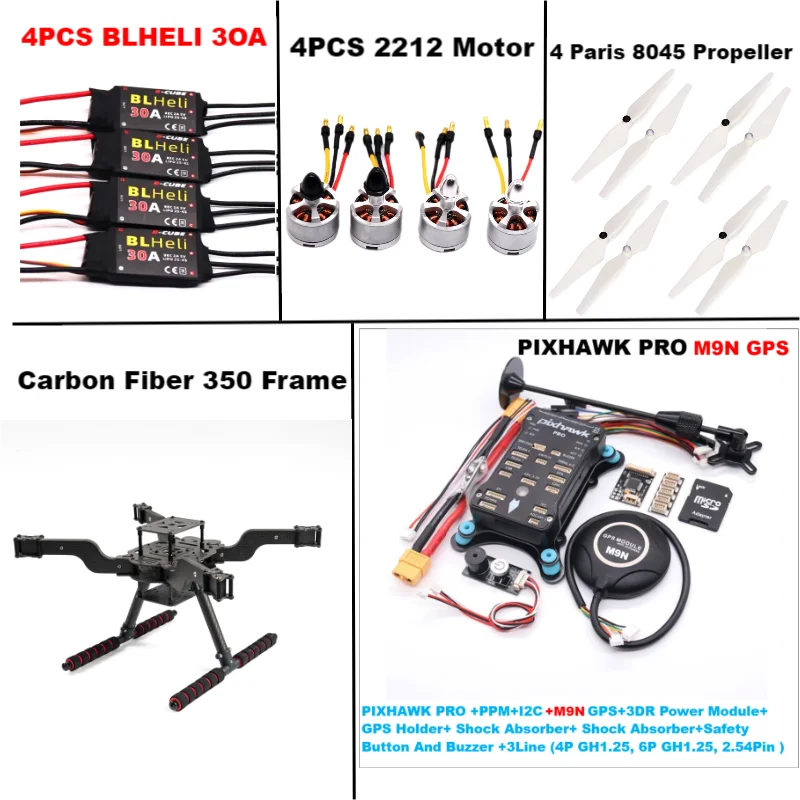

Stangard package:

F350+4 PCS BLHELI 30A +4 pairs self-locking 8045 Propellers +4 PCS 2212920KVmotor

PIXHAWK PRO+PPM+I2C+M9N GPS+3DR PoWer Module+GPS Holder+ Shock Absorber+ Shock Absorber+Safety Button And Buzzer+3Line(4P GH1.25,6PGH1.25,2.54Pin)

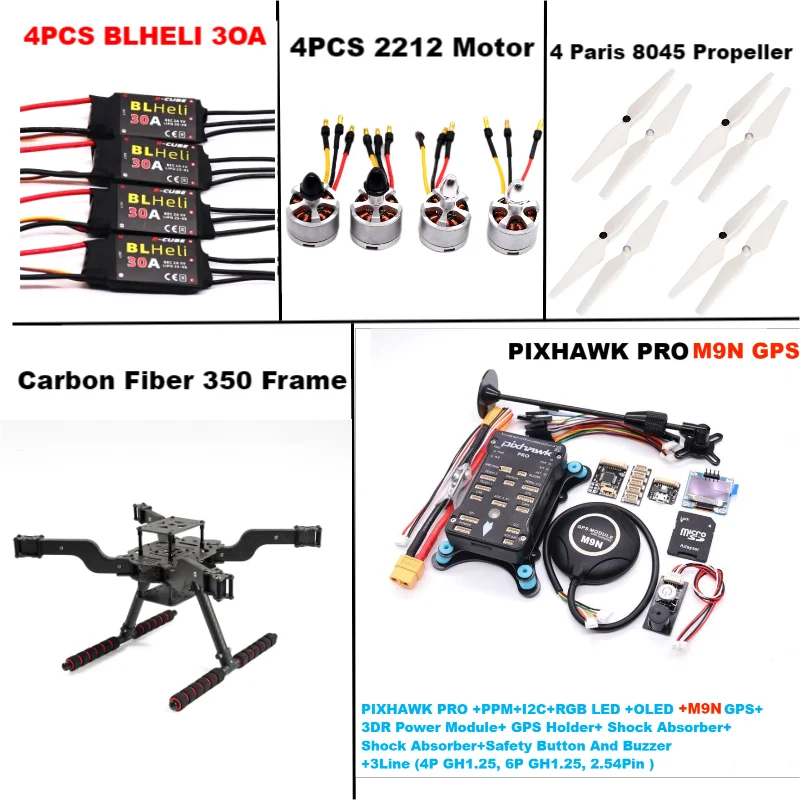

High Pacage:

F350+4 PCS BLHELI 30A +4 pairs self-locking 8045 Propellers +4 PCS 2212920KVmotor

PIXHAWK PRO+PPM+I2C+RGB LED+OLED+M9N GPS+3DR Power Module+ GPS Holder+ Shock Absorber+ Shock Absorber+Safety Button And Buzzer +3Line(4PGH1.25,6PGH1.25,2.54Pin)

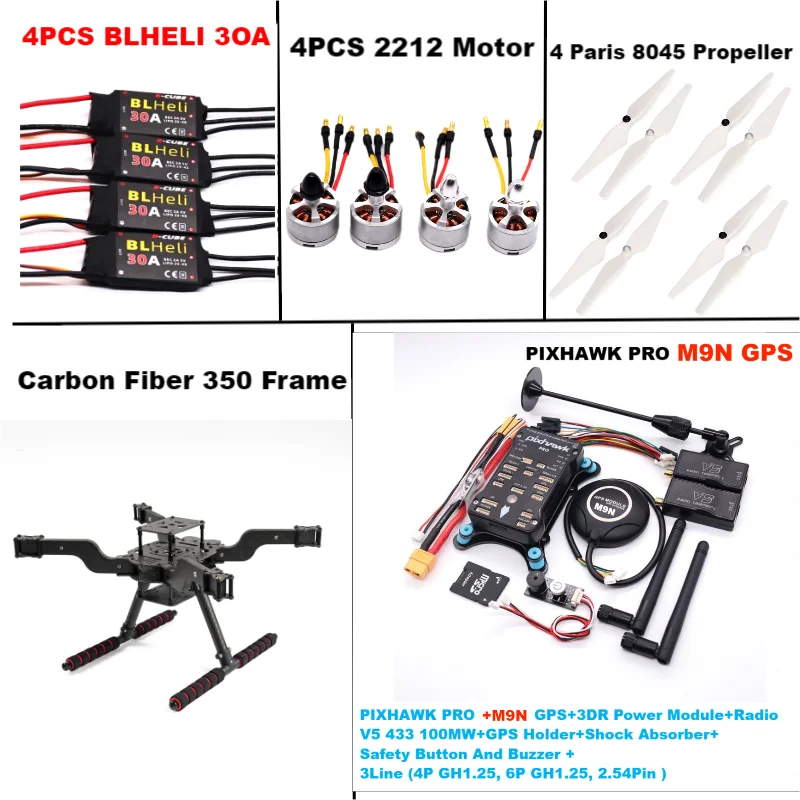

433MHZ 100MW :

F350+4 PCS BLHELI 30A +4 pairs self-locking 8045 Propellers +4 PCS 2212920KVmotor

PIXHAWK PRO +M9N GPS+3DR Power Module+Radio V5 433 100MW+GPS Holder+Shock Absorber+ Safety Button And Buzzer + 3Line(4PGH1.25,6PGH1.25,2.54Pin)

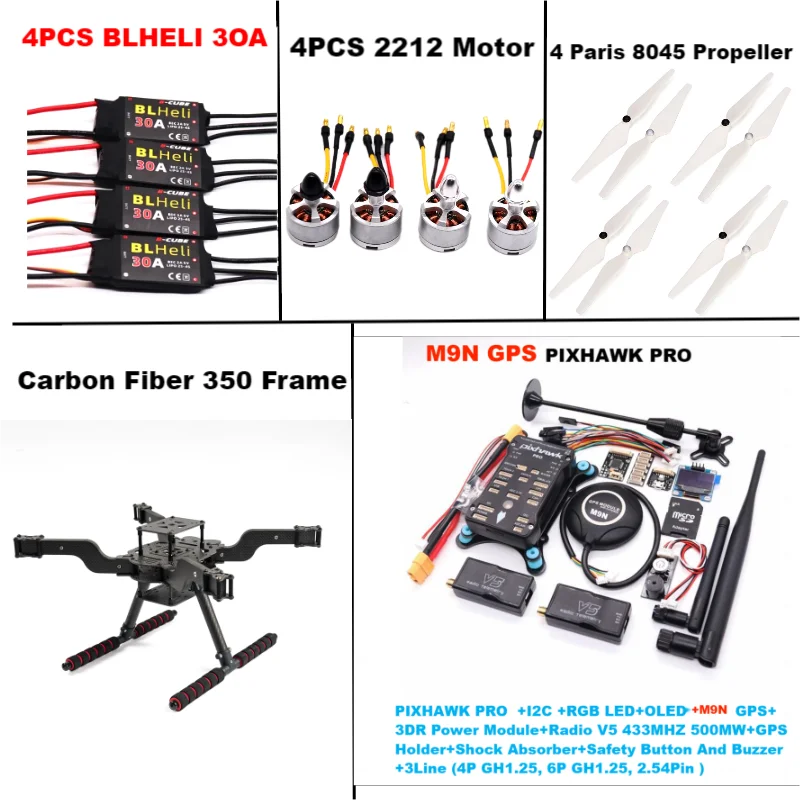

433MHZ 500MW :

F350+4 PCS BLHELI 30A +4 pairs self-locking 8045 Propellers +4 PCS 2212920KVmotor

PIXHAWK PRO +I2C +RGB LED+OLED+M9N GPS+3DR Power Module+Radio V5 433MHZ 500MW+GPS Holder+Shock Absorber+Safety Button And Buzzer +3Line(4PGH1.25,6PGH1.25,2.54Pin)

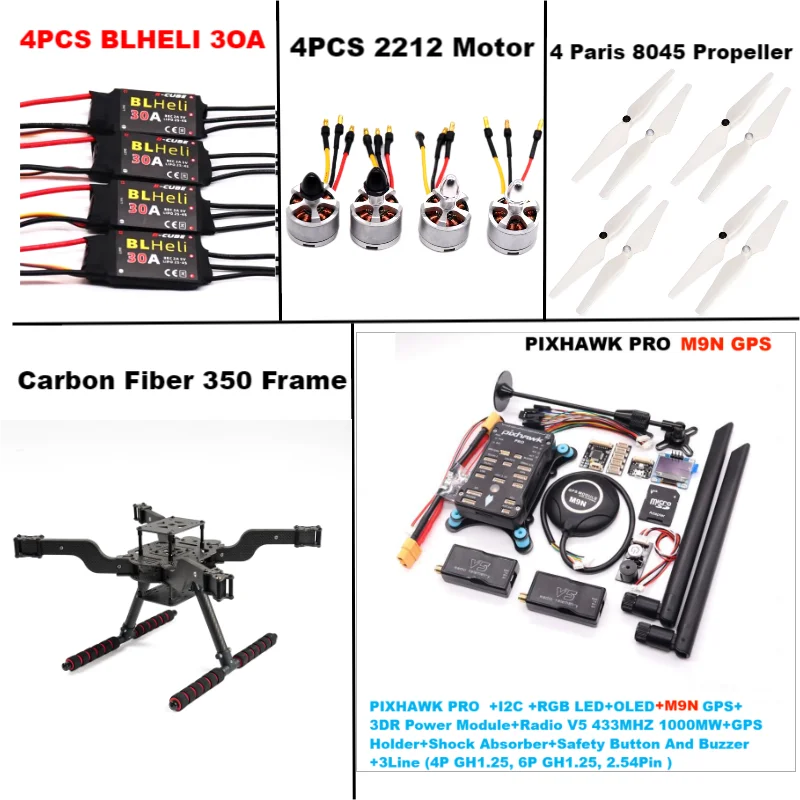

433MHZ 1000MW :

F350+4 PCS BLHELI 30A +4 pairs self-locking 8045 Propellers +4 PCS 2212920KVmotor

PIXHAWK PRO +I2C +RGB LED+OLED+M9N GPS+3DR Power Module+RadioV5 433MHZ 1000MW+GPS Holder+Shock Absorber+Safety Button And Buzzer +3Line(4P GH1.25,6PGH1.25,2.54Pin)

915MHZ 100MW :

F350+4 PCS BLHELI 30A +4 pairs self-locking 8045 Propellers +4 PCS 2212920KVmotor

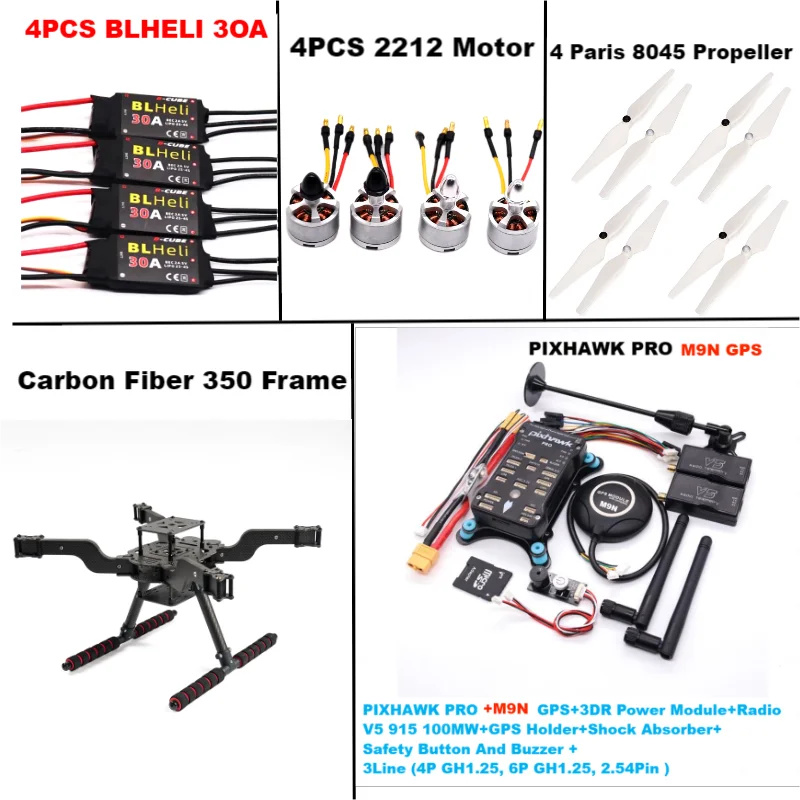

PIXHAWK PRO +M9N GPS+3DR Power Module+Radio V5 915 100MW+GPS Holder+Shock Absorber+ Safety Button And Buzzer + 3Line(4PGH1.25,6PGH1.25,2.54Pin)

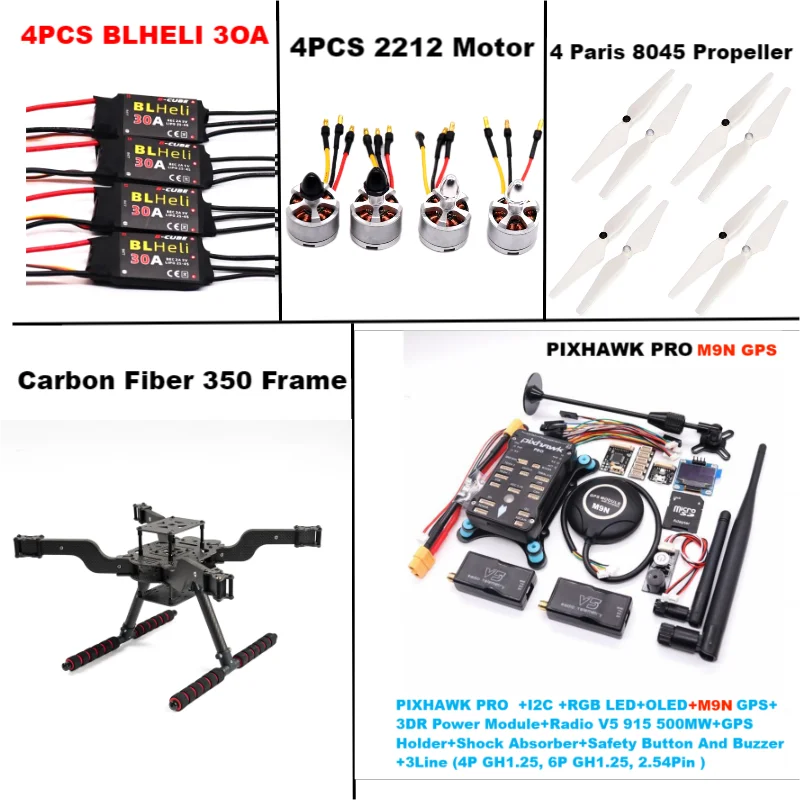

915MHZ 500MW :

F350+4 PCS BLHELI 30A +4 pairs self-locking 8045 Propellers +4 PCS 2212920KVmotor

PIXHAWK PRO +I2C +RGB LED+OLED+M9N GPS+3DR Power Module+Radio V5 915 500MW+GPS Holder+Shock Absorber+Safety Button And Buzzer +3Line(4PGH1.25,6PGH1.25,2.54Pin)

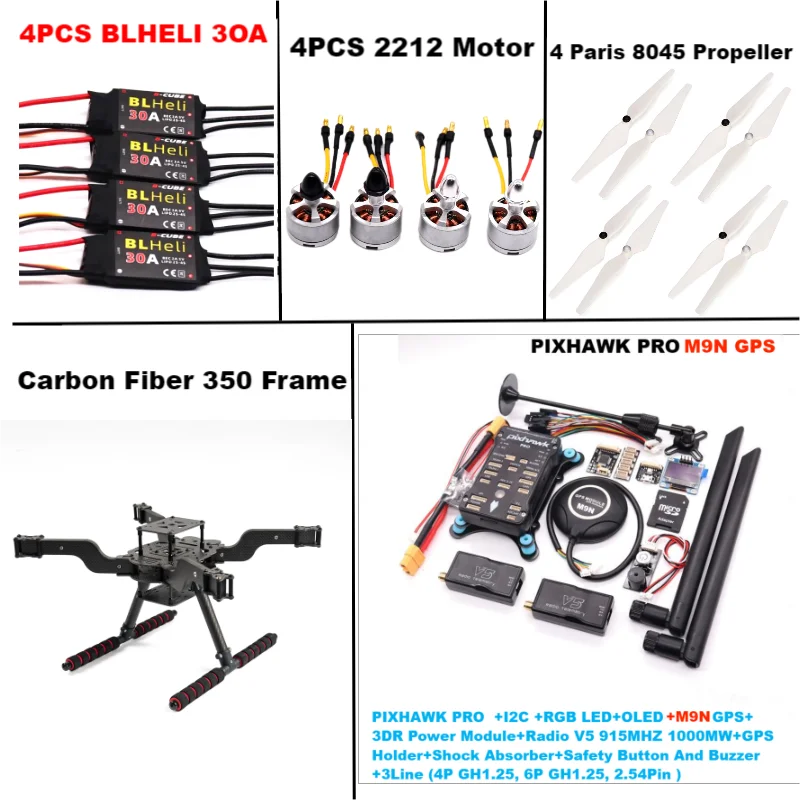

915MHZ 1000MW :

F350+4 PCS BLHELI 30A +4 pairs self-locking 8045 Propellers +4 PCS 2212920KVmotor

PIXHAWK PRO +I2C +RGB LED+OLED+M9N GPS+3DR Power Module+Radio V5 915MHZ 1000MW+GPS Holder+Shock Absorber+Safety Button And Buzzer +3Line(4P GH1.25,6PGH1.25,2.54Pin)

Carbon Fiber 350 Frame

M9N GPS Module

M9N is a GPS module commonly used in unmanned aerial vehicles, with the following characteristics and applications:

High precision positioning: The M9N adopts advanced GNSS technology, supports multiple satellite navigation systems, and can provide high-precision position positioning information. For unmanned aerial vehicles, it can achieve accurate positioning and navigation.

Multi system support: The M9N supports multiple satellite navigation systems, including GPS, GLONASS, Galileo, BeiDou, etc. This allows drones to receive multiple satellite signals simultaneously, improving positioning accuracy and reliability.

Quick positioning: M9N has fast cold start and hot start times, which can quickly obtain satellite signals and perform positioning, making it crucial for the rapid takeoff and task execution of unmanned aerial vehicles.

M9N can search for more satellites outdoors with higher accuracy, faster search speed, and better stability.(The specific number of star searches is determined by the environment at that time.)

BLHELI ESC:

A.Features

A1: Use authentic electronic components to ensure high quality and enhance the current endurance ability of the ESC.

A2: Based on BLHeli firmware, optimized for high performance with great linearity and much quicker throttle response.

A3: Special designed for multirotors, and compatible with fixed-wing aircrafts and helicopters.

A4: Multiple protection features including Low-voltage cut-off protection / over-heat protection / throttle signal loss protection.

A5: Throttle range can be configured and is fully compatible with all receivers, providing smooth, linear and precise throttle response. A6: All parameters can be programmed via using a transmitter, including default settings.

B. Productspecification

2212 920KV Motor

8045 Propellers

Radio telemetry can be used for wireless communication between pixhawk and computer or mobile phone.
