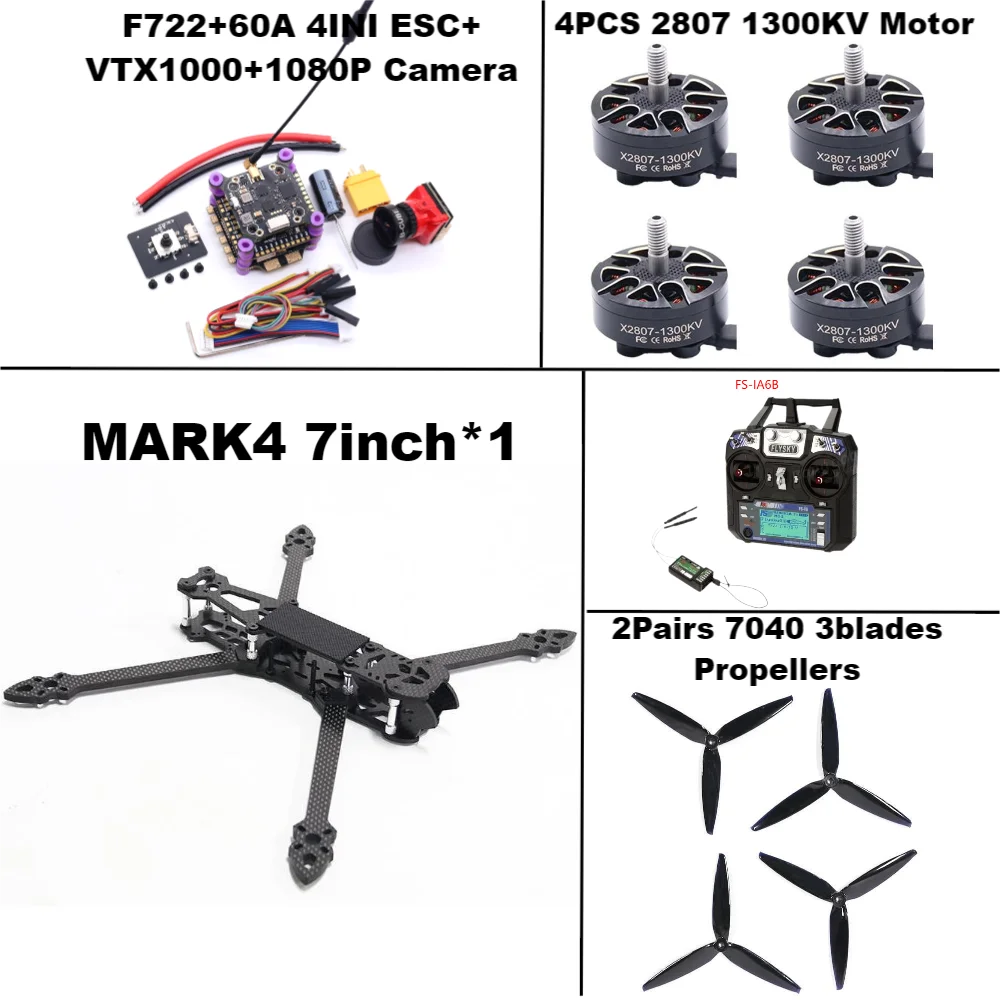

Rctosky MARK4 7inch F722 Flight Control 45/60A 4INI ESC rack drone FP

MARK4 7-inch HD

The rack uses external nuts, not nuts built into the carbon fiber board. Nuts built into the carbon fiber board are prone to loosening during flying , so using external nuts is more secure and safe.When fixing, please use external nuts to secure.

B-CUBE F722 Flight Controller

Features:
1. The F722is a 3-8S 36x36mm mini flight controller with a 16MB Blackbox flash memory, 5V 10V dual BEC. Designed for easy maintenance and low interference.
2. The PCB adopts high-end composite material, which has stronger overcurrent capability and good heat dissipation. MOS adopts imported high current resistance mos, low energy consumption, long life and strong load capacity.
3. Using industrial grade LDO, high temperature resistance. High-quality capacitors, strong filtering performance.
4. Intelligent control: The controller has a built-in low-noise button, which can be controlled remotely by one button.
5. Maximum power: The OSD allows you to control your drone with maximum speed and accuracy, while providing a smoother flight.

Descriptions:
F722 Flight controllerbaro: the fpv-freestyle flight controller has been designed for optimal control of flight, which allows you to have more control over the flight. The controller is equipped with fpv, ac adapter, and a power cable. it can be used to connect the drone to the controller.

Specifications:
(Model): F722 Flight Controller
(MCU) STM32F722RET6
(IMU) ICM-42688-P/Gyro/Accel
(OSD): AT7456E
(Baro) SPL06-001
(Blackbox): 16MB
(Input voltage): 3-8S Lipo(11.4-36V)
5V-BEC: 5V/2.5A ±0.1V
10V-BEC: 10V/2A(USER1)
IO2: USER2
(Receiver): ELRS(CRSF), TBS(CRSF), SBUS.IBUS.DSM2.DSMX
UART: UART1/2/3/4/5/6
IIC: 12C1
Led Strip:YES
(Buzzer): 5V
(ESCsignal): Support PWM, Oneshot125, Oneshot42. Multishot Dshot150, Dshot300, Dshot600
USB: TYPE-C
(Current port): YES
(Voltage sensor) YES
DFU (DFU button): YES
(Firmware): Betaflight 4.3.1 JHEF7DUAL.HEX , inav_7.1.0_JHEMCUF722.hex
(Size): 36*36MM
(Mounting Hole) 30.5*30.5*4MM
(Weight) 8.8g

BLHELI_S 45A /60A 4IN1 3-6S Brushless ESC

VTX1000 1W Video Transmitter

English Manual:

https://imgaz.staticbg.com/images/upload/2014/04/FS-i6%20Maniac.PDF

Description:

Brand Name:FlySky
Packing: original packing box

FS-i6 Transmitter Specifications:

Channels: 6 Channels
Model Type: Glider/Heli/Airplane
RF Range: 2.40-2.48GHz
ban dwidth: 500KHz
ban d: 142
RF Power: Less Than 20dBm
2.4ghz System: AFHDS 2A and AFHDS
Code Type: GFSK
Sensitivity: 1024
Low Voltage Warning: less than 4.2V
DSC Port: PS2;Output:PPM
Charger Port: No
ANT length: 26mm*2(dual antenna)
Transmitter Weight: 392g
Package Weight: 676g
Transmitter Size: 174x89x190mm
Package Size: 23.5x21.2x10.6cm
Power: 6V 1.5AA*4
Display mode: Transflective STN positive type, 128*64 dot matrix VA73*39mm,white backlight.
On-line update:yes
Color: Black
Certificate: CE0678,FCC
Model Memories: 20
Control Range: 500m

FS-iA6B Receiver Specifications:

Item Name: FS-iA6B
Channel: 6
Frequency Range: 2.4055--2.475GHZ
ban d Width Number: 140
Transmitting Power: ≤ 20dBm
RF Receiver Sensitivity: -105dbm
2.4G Mode: The second generation of an enhanced version of the automatic FM digital system
Encoding: GFSK
Antenna Length: 26mm * 2 (dual antenna)
Input Power: 4.0-6.5V DC
Dimension: 47 x 26.2 x 15mm
Weight: 14.9g
Package Weight
Color: Black
i-Bus Interface: Yes
Data Acquisition Interface: Yes
Model Type: Airplane / Glider / Helicopter
Compatible Transmitter: Compatible with FS-i4,FS-i6,FS-i10,FS-GT2E,FS-GT2G
