B-CUBE LX1100 Full Carbon Fiber 1100mm Octa-Rotor Frame BLHELI 40A ESC PX4 Pixhawk 2.4.8 M9N Flight Comtrol Set D4114 Motor

B-CUBE LX1100 Full Carbon Fiber 1100mm Octa-Rotor Frame BLHELI 40A ESC PX4 Pixhawk 2.4.8 M9N Flight Comtrol Set D4114 Motor

$668.12 USD
$668.12 USD $668.12 USD
Sale Sold out
Color

RCtoSky LX1100 8 Axle Octocopter

Features：

1. Simple folding parts, one-key folding, saving time and effort;

2. The super-large motor base can be built-in ESC to solve the messy wiring on the center board.

3.  2.0MM carbon fiber hollow design center board, saving time for disassembly and assembly.

4. Intelligent electric tripod, remote control one-key contraction, making the flight more beautiful.

Parameters：

Symmetrical motor wheelbase: 1100MM

Arm diameter: 25MM




Pixhawk PX4 Autopilot PIX 2.4.8 32 Bit Flight Controller

Features:
Pixhawk 2.4.8 support the latest official ardupilot firmware and PX4 firmware.
1. The advanced 32-bit ARM CortexM4 high-performance processors(2MB flash), can run NuttX RTOS real-time operating system;
2. 14 PWM / servo output;
3. Bus interface (UART, I2C, SPI, CAN);
4. The integrated backup power and backup controller fails, the primary controller fails over to the backup control is safe;
5. Provide automatic and manual modes;
6. Provide redundant power input and failover;
7. Multicolor LED lights;
8. Provide multi-tone buzzer Interface
9. Micro SD recording flight data;

Specifications:

Interface
1 .5 high voltage compatible UART 1, 2 with hardware flow control
2. 2 CAN
3.Spektrum DSM / DSM2 / DSM-X satellite receiver compatible input
4.Futaba SBUS compatible inputs and outputs
5.PPM Signal Input
6.RSSI (PWM or voltage) Input
7.I2C
8.SPI
9.3.3 and 6.6VADC input
10. External MICRO USB Interface

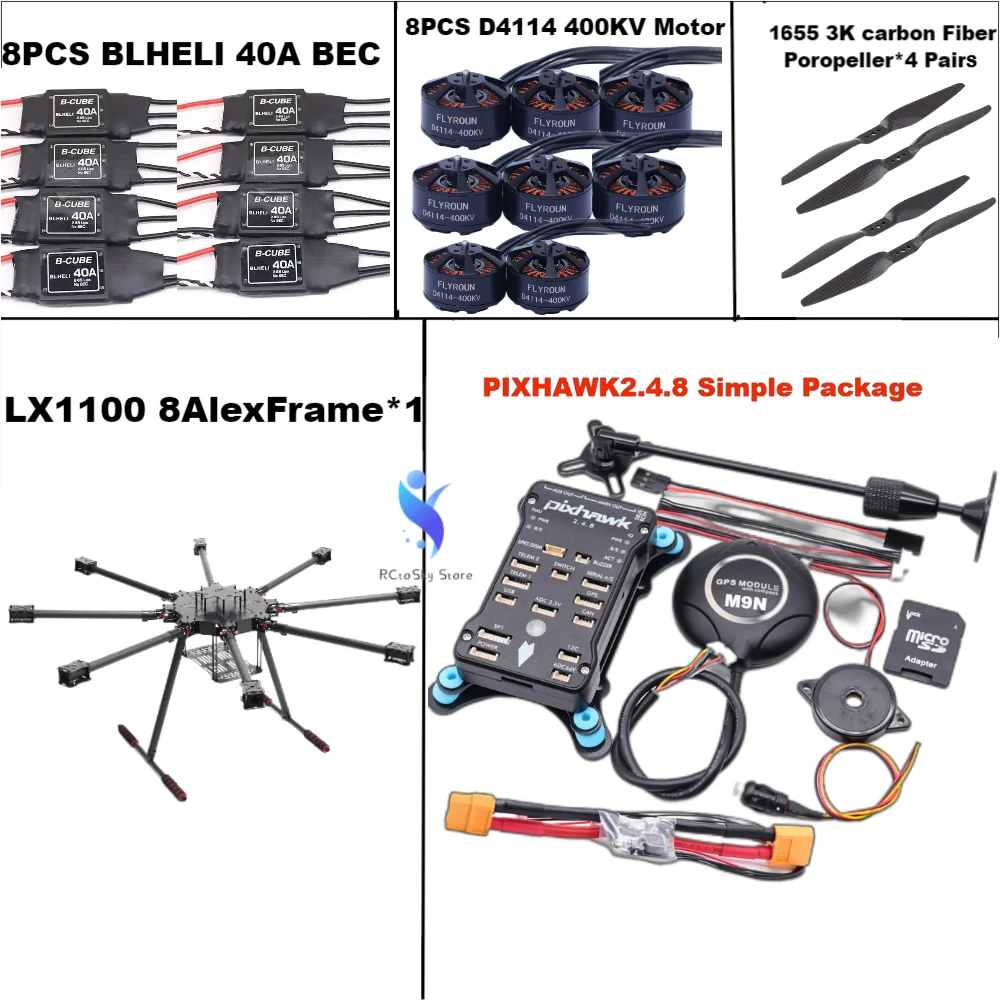

Simple Package:

LX1100 Full Carbon Fiber+ 8 pcs BLHELI 40A Brushless ESC+4 Pairs 3K Carbon Fiber Propeller 1655  + 8 PCS D4114 400KV Motor  +

PIXHAWK 2.4.8+ 4G TF Card + Safety Button + Buzzer +M9N GPS+ GPS Holder+  3DR Power Module+ Shock Absorber


Standard Package:

LX1100 Full Carbon Fiber+ 8 pcs BLHELI 40A Brushless ESC+4 Pairs 3K Carbon Fiber Propeller 1655  + 8 PCS D4114 400KV Motor  +

PIXHAWK 2.4.8(white or black shell)+ 4G TF Card + Safety Button + Buzzer + PPM Encoder + I2C Expansion Board+ 3 Line(4Pin 1.25 ,6Pin 1.25 ,3Pin 2.5.4)+M9N GPS+ GPS Holder+  3DR Power Module+ Shock Absorber



High Package:

LX1100 Full Carbon Fiber+ 8 pcs BLHELI 40A Brushless ESC+4 Pairs 3K Carbon Fiber Propeller 1655  + 8 PCS D4114 400KV Motor  +

PIXHAWK 2.4.8(white or black shell)+ 4G TF Card + Safety Button + Buzzer + PPM Encoder + I2C Expansion Board+ RGB Led + OLED Screen+ 3 Line(4Pin 1.25 ,6Pin 1.25 ,3Pin 2.5.4)+M9N GPS+ GPS Holder+  3DR Power Module+ Shock Absorber



433/915MHZ 100MW :

LX1100 Full Carbon Fiber+ 8 pcs BLHELI 40A Brushless ESC+4 Pairs 3K Carbon Fiber Propeller 1655  + 8 PCS D4114 400KV Motor  +

PIXHAWK 2.4.8+ 4G TF Card + Safety Button + Buzzer + PPMEncoder + I2C Expansion Board+ 3 Line(4Pin 1.25 ,6Pin 1.25 ,3Pin 2.5.4) +M8N GPS+ GPS Holder+  3DR Power Module+ Shock Absorber+433/915MHZ 100MW Radio telemetry V1


433/915MHZ 500MW :

LX1100 Full Carbon Fiber+ 8 pcs BLHELI 40A Brushless ESC+4 Pairs 3K Carbon Fiber Propeller 1655  + 8 PCS D4114 400KV Motor  +

PIXHAWK 2.4.8(white or black shell)+ 4G TF Card + Safety Button + Buzzer + PPM Encoder + I2C Expansion Board+ RGB LED + OLED Screen+ 3 Line(4Pin 1.25 ,6Pin 1.25 ,3Pin 2.5.4) +M9N GPS+ GPS Holder+  3DR Power Module+Shock Absorber+433/915MHZ 500MW Radio telemetry V1



433/915MHZ 1000MW :

LX1100 Full Carbon Fiber+ 8 pcs BLHELI 40A Brushless ESC+4 Pairs 3K Carbon Fiber Propeller 1655  + 8 PCS D4114 400KV Motor  +

PIXHAWK 2.4.8(white or black shell)+ 4G TF Card + Safety Button + Buzzer + PPM Encoder + I2C Expansion Board+ RGB LED + OLED Screen+ 3 Line(4Pin 1.25 ,6Pin 1.25 ,3Pin 2.5.4) + M9N GPS+ GPS Holder+  3DR Power Module+Shock Absorber+433/915MHZ 1000MW Radio telemetry V1



433/915MHZ 100MW V5:

LX1100 Full Carbon Fiber+ 8 pcs BLHELI 40A Brushless ESC+4 Pairs 3K Carbon Fiber Propeller 1655  + 8 PCS D4114 400KV Motor  +

PIXHAWK 2.4.8+ 4G TF Card + Safety Button + Buzzer + PPMEncoder + I2C Expansion Board+ 3 Line(4Pin 1.25 ,6Pin 1.25 ,3Pin 2.5.4) +M9N GPS+ GPS Holder+  3DR Power Module+ Shock Absorber+433/915MHZ 100MW Radio telemetry V5


433/915MHZ 500MW V5:

LX1100 Full Carbon Fiber+ 8 pcs BLHELI 40A Brushless ESC+4 Pairs 3K Carbon Fiber Propeller 1655  + 8 PCS D4114 400KV Motor  +

PIXHAWK 2.4.8(white or black shell)+ 4G TF Card + Safety Button + Buzzer + PPM Encoder + I2C Expansion Board+ RGB LED + OLED Screen+ 3 Line(4Pin 1.25 ,6Pin 1.25 ,3Pin 2.5.4) +M9N GPS+ GPS Holder+  3DR Power Module+Shock Absorber+433/915MHZ 500MW Radio telemetry V5

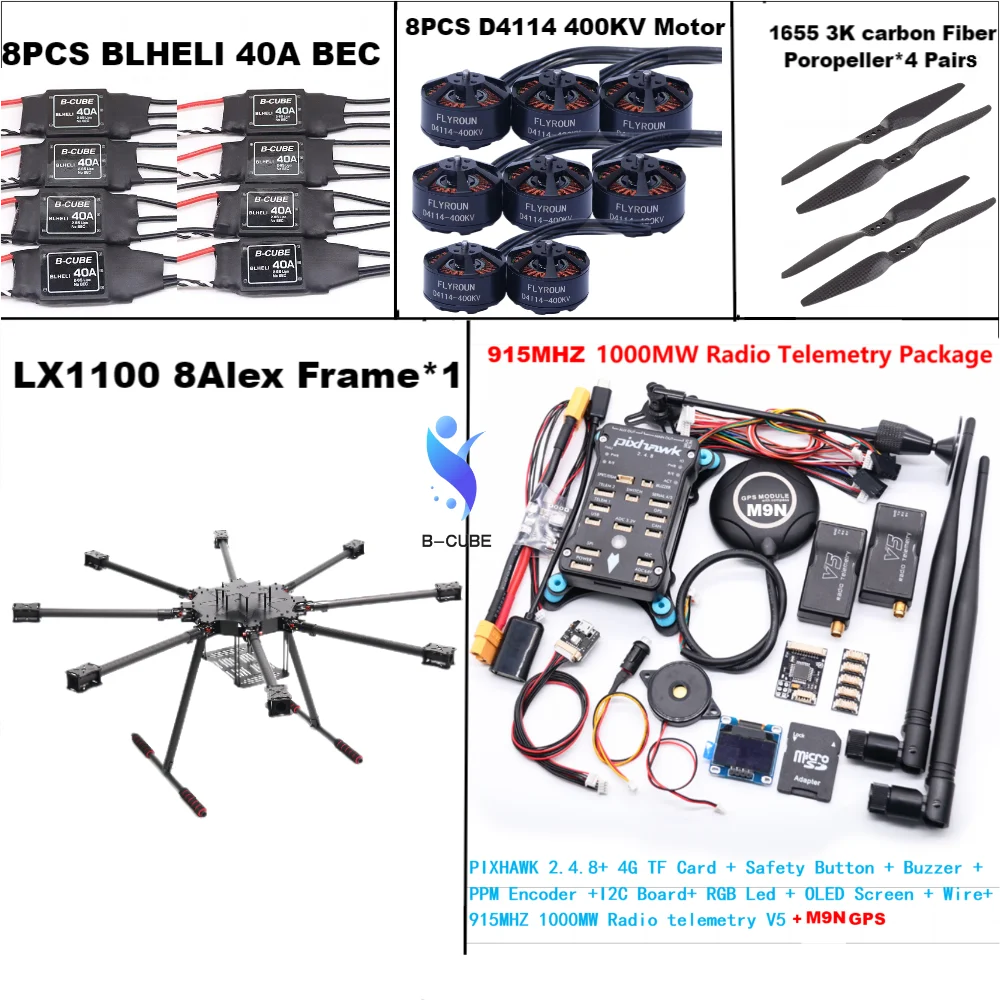

433/915MHZ 1000MW V5:

LX1100 Full Carbon Fiber+ 8 pcs BLHELI 40A Brushless ESC+4 Pairs 3K Carbon Fiber Propeller 1655  + 8 PCS D4114 400KV Motor  +

PIXHAWK 2.4.8(white or black shell)+ 4G TF Card + Safety Button + Buzzer + PPM Encoder + I2C Expansion Board+ RGB LED + OLED Screen+ 3 Line(4Pin 1.25 ,6Pin 1.25 ,3Pin 2.5.4) + M9N GPS+ GPS Holder+  3DR Power Module+Shock Absorber+433/915MHZ 1000MW Radio telemetry V5



433MHZV5 1000MW OSD:

LX1100 Full Carbon Fiber+ 8 pcs BLHELI 40A Brushless ESC+4 Pairs 3K Carbon Fiber Propeller 1655  + 8 PCS D4114 400KV Motor +

PIXHAWK 2.4.8(white or black shell)+ 4G TF Card + Safety Button + Buzzer + PPM Encoder + I2C Expansion Board+ RGB LED + OLED Screen+ 3 Line(4Pin 1.25 ,6Pin 1.25 ,3Pin 2.5.4) +M9N GPS+ GPS Holder+  3DR Power Module+Shock Absorber+433MHZ V5 1000MW Radio telemetry+MINI OSD +PDB


TOP Package:

LX1100 Full Carbon Fiber+ 8 pcs BLHELI 40A Brushless ESC+4 Pairs 3K Carbon Fiber Propeller 1655  + 8 PCS D4114 400KV Motor +

PIXHAWK TOP package:PIXHAWK 2.4.8(white or black shell)+ 4G TF Card + Safety Button + Buzzer + PPM Encoder +OLED Module+RGB LED+I2C Expansion Board+ 3 Line(4Pin 1.25 ,6Pin 1.25 ,3Pin 2.5.4) +M9N GPS+ GPS Holder+  3DR Power Module+ Shock Absorber +
433MHZ1000MW 3DR Radio Telemetry V5+ MINIOSD + PDB +VTX5848 +1080P Camera









LX1100 Full Carbon Fiber





M9N GPS

M9N is a GPS module commonly used in unmanned aerial vehicles, with the following characteristics and applications:

High precision positioning: The M9N adopts advanced GNSS technology, supports multiple satellite navigation systems, and can provide high-precision position positioning information. For unmanned aerial vehicles, it can achieve accurate positioning and navigation.

Multi system support: The M9N supports multiple satellite navigation systems, including GPS, GLONASS, Galileo, BeiDou, etc. This allows drones to receive multiple satellite signals simultaneously, improving positioning accuracy and reliability.

Quick positioning: M9N has fast cold start and hot start times, which can quickly obtain satellite signals and perform positioning, making it crucial for the rapid takeoff and task execution of unmanned aerial vehicles.

Strong anti-interference ability: M9N has excellent anti-interference performance, which can work stably in complex electromagnetic environments and is not susceptible to interference from other electronic devices.

In drone applications, M9N can be used in the following aspects:

Positioning and Navigation: The M9N provides accurate position and speed information to help drones achieve precise navigation and flight control.

Waypoint navigation: By inputting pre-set waypoint information into M9N, unmanned aerial vehicles can automatically fly according to the route, achieving autonomous waypoint navigation tasks.

Multi aircraft collaboration: Multiple drones can use the M9N module for positioning and synchronization to achieve applications such as team collaborative flight and formation flight.

Return to return: The M9N can provide accurate return positioning information, enabling the drone to safely return to the takeoff point or preset return point.



M9N can search for more satellites outdoors with higher accuracy, faster search speed, and better stability.(The specific number of star searches is determined by the environment at that time.)



3 Pairs 3K Carbon Fiber Propeller 1655


The new propeller-type aerial dedicated full carbon paddle paddle-type three-hole installation
Using carbon content of 100% pure imported Toray carbon fiber 3K woven, high temperature and pressure precast precision machining, hardness higher than conventional products market.








Features:


- Using Multicopter special program, fast throttle response,surpasses all kinds of open source software;
- Firmware was optimized specifically for disc motor, and it has a very good compatibility;
- Highly intelligent, strong adaptive capacity, reserve the timing setting item (height/middle timing), easy to use;
- Throttle signal line is twisted wire to reduce crosstalk within the transmission signal generated by the copper, so that more stable flight;
- Supports refresh rates up to 621Hz throttle signal, compatible with various flight controllers. (Note: the throttle signal over 500Hz are all non-standard throttle signal);
- Using MOSFET special driver IC, its performance and stability far surpass the driving circuit with discrete components built;
- Ultra-low resistance MOSFET, strong flow capacity.



D4114 400KV Motor





Radio telemetry can be used for wireless communication between pixhawk and computer or mobile phone.





OLED Module can display some message.
