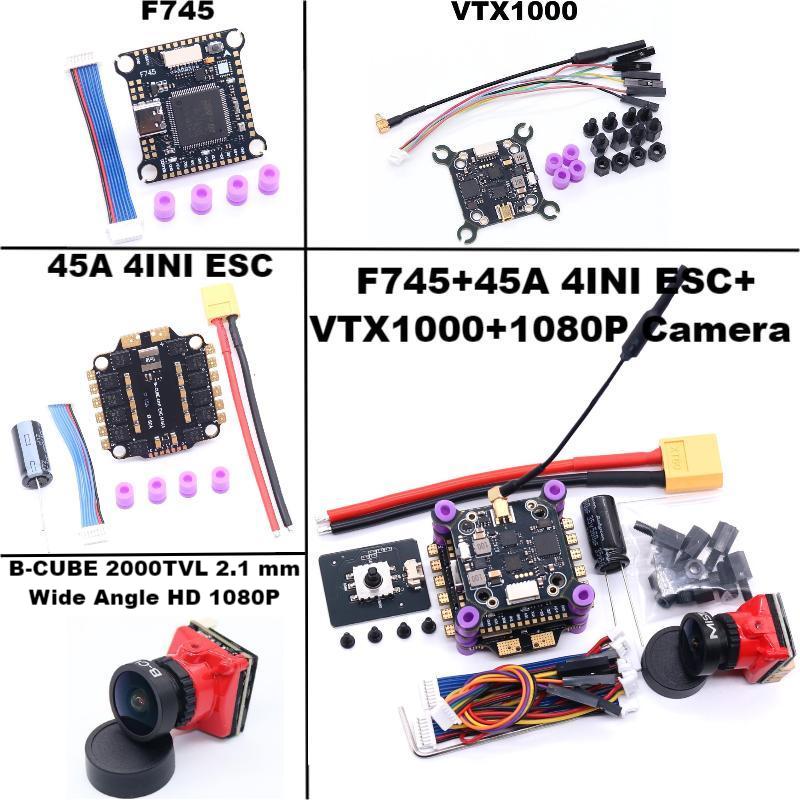

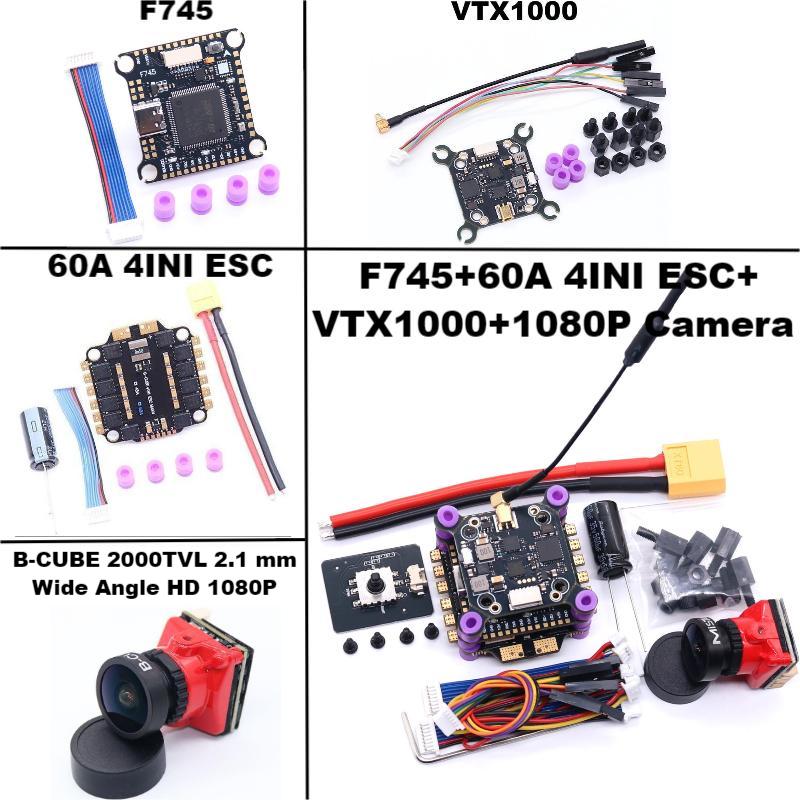

B-CUBE F745 V2 Flight Control 45A/60A 4INI ESC VTX1000 Video 1080P Camera INAV Betaflight Flight Controller RC Drone FPV Racing
B-CUBE F745 V2 Flight Control 45A/60A 4INI ESC VTX1000 Video 1080P Camera INAV Betaflight Flight Controller RC Drone FPV Racing
Couldn't load pickup availability
B-CUBE F745 V2 Flight Controller
Features:
1. The F745 V2 is a 3-8S 36x36mm mini flight controller with a 16MB Blackbox flash memory, 5V 10V dual BEC. Designed for easy maintenance and low interference.
2. The PCB adopts high-end composite material, which has stronger overcurrent capability and good heat dissipation. MOS adopts imported high current resistance mos, low energy consumption, long life and strong load capacity.
3. Using industrial grade LDO, high temperature resistance. High-quality capacitors, strong filtering performance.
4. Intelligent control: The controller has a built-in low-noise button, which can be controlled remotely by one button.
5. Maximum power: The OSD allows you to control your drone with maximum speed and accuracy, while providing a smoother flight.
Descriptions:
F745 V2 is a major upgrade, offering enhanced performance and precision. It features a CPU upgrade from STM32F745VG to STM32F746VG, boosting processing power for faster response and improved flight stability. The IMU has been upgraded from MPU6000 to ICM-42688-P, providing lower noise, higher sensitivity, and better vibration resistance. These enhancements ensure more accurate flight control, superior gyro performance, and greater reliability. Designed for high-speed FPV applications, V2 delivers smoother flights, faster responsiveness, and exceptional handling in demanding conditions.
Specifications:
Chip:STM32F746VG(216MHZ)
Gyro:ICM-42688-P
Barometer:DPS310
OSD Chip:AT7456E
Black box:16MM
LED Program:Support
BB buzzer:Support
Input voltage:3-6S
I2C Connector:Support
BEC:5V/2.5A
BEC:10V/2.0A
Cam Input:Support
USART:UART1,UART2.UART3.UART4.UART6.UART7
Receiver:ELRS(CRSF).TBS(CRSF).SBUS.IBUS.DSM2.DSMX
GPS:YES
COMPASS:YES
HD O3:YES
ESC Signal:Dshoot150.Dshot300,Dshot600
USB:TYPE-C
Current Port:Yes.
Voltage Sensor:Yes
DFU Button:YES
FC firmware:betaflight_4.4.2_JHEF745V2.HEX / inav_8.0.0_JHEMCUF745.HEX
Install hole:30.5*30.5*4MM
Board size:36*36MM
Weight:7.5g
BLHELI_S 45A 4IN1 3-6S Brushless ESC
Size: 41*39.5*5mm
Hole distance: 30.5*30.5/5mm
Weight: 13g
Input voltage: LIPO 2-6S
Continuous current: 45A
Maximum current: 50A (10 seconds)
Processor: EFM8BB21F16G
Firmware: BLS J_H_30_REV16_7
Drive signal support: DShot300-600/Multishot/Oneshot/PWM
Current sensor: Support
The ESC has filter capacitors on board to suppress the electromotive power transmission, stabilize the battery voltage and protect the components of ESC vuelo control precision
BLHELI_S 60A 4IN1 3-6S Brushless ESC
Size: 41*39.5*5mm
Hole distance: 30.5*30.5/5mm
Weight: 13g
Input voltage: LIPO 2-6S
Continuous current: 60A
Maximum current: 70A (5 seconds)
Firmware: BLS J_H_30_REV16_7
Drive signal support: DShot300-600/Multishot/Oneshot/PWM
Current sensor: Support
The ESC has filter capacitors on board to suppress the electromotive power transmission, stabilize the battery voltage and protect the components of ESC vuelo control precision
