B-CUBE F4V3S F4 V3 V3S PLUS Flight Controller Built-in Barometer OSD 5V 9V Dual Output for RC FPV Racing Drone Betaflight INAV

B-CUBE F4V3S F4 V3 V3S PLUS Flight Controller Built-in Barometer OSD 5V 9V Dual Output for RC FPV Racing Drone Betaflight INAV

$110.90 USD
$110.90 USD $110.90 USD
Sale Sold out
Color

F4V3S PLUS Flight Controller

Features:

  1. The F4V3S PLUSis a 3-6S 36x36mm mini flight controller with amicroSD card blackbox, 5V dual BEC. Designed for easy maintenance and low interference.
  2. 2.  The PCB adopts high-end composite material, which has stronger overcurrent capability and good heat dissipation. MOS adopts imported high current resistance mos, low energy consumption, long life and strong load capacity.
  3. 3. Using industrial grade LDO, high temperature resistance. High-quality capacitors, strong filtering performance.

Specifications:

  • Chip:STM32F405(168MHZ)
  • Gyro:BMI270
  • Barometer:BMP280
  • OSD Chip:AT7456E
  • Black box:MicroSD card blackbox
  • LED Program:Support
  • BB buzzer:Support
  • Input voltage:3-6S
  • I2C Connector:Support
  • BEC:5V/2.5A
  • Cam Input:Support
  • USART:UART1.UART3.UART6
  • Receiver:ELRS(CRSF).TBS(CRSF).SBUS.IBUS.DSM2.DSMX
  • GPS:YES
  • COMPASS:YES
  • ESC Signal:Dshoot150.Dshot300,Dshot600
  • USB:TYPE-C
  • Current Port:Yes.
  • Voltage Sensor:Yes
  • DFU Button:YES
  • FC firmware:OMNIBUSF4SD.hex(betaflight) / OMNIBUSF4V3.hex(inav)
  • Install hole:30.5*30.5*4MM
  • Board size:36*36MM
  • Weight:7.6g
If you want to upload Betaflight firmware, you should enter USE_ACCGYRO_BMI270 at Custom Defines

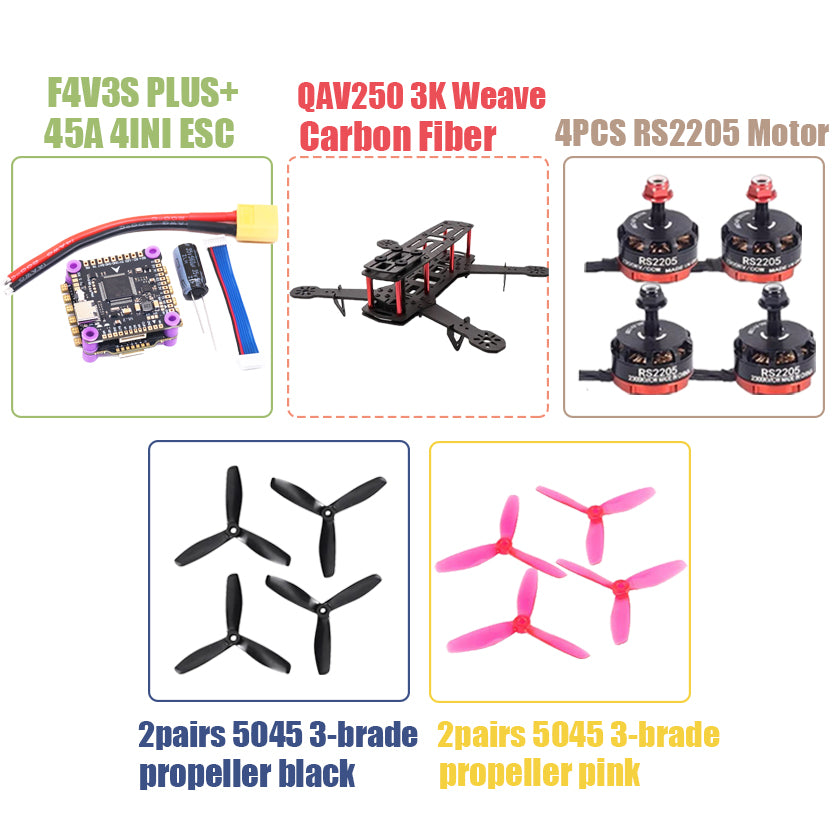

Package A:

F4V3S PLUS flight control+  3K Carbon fiber QAV250+ 45A 4INI ESC + 4  2205  2300KV Motor + 2pairs 5045 3-brad propeller black+2 pairs 5045 3-brade propeller pink

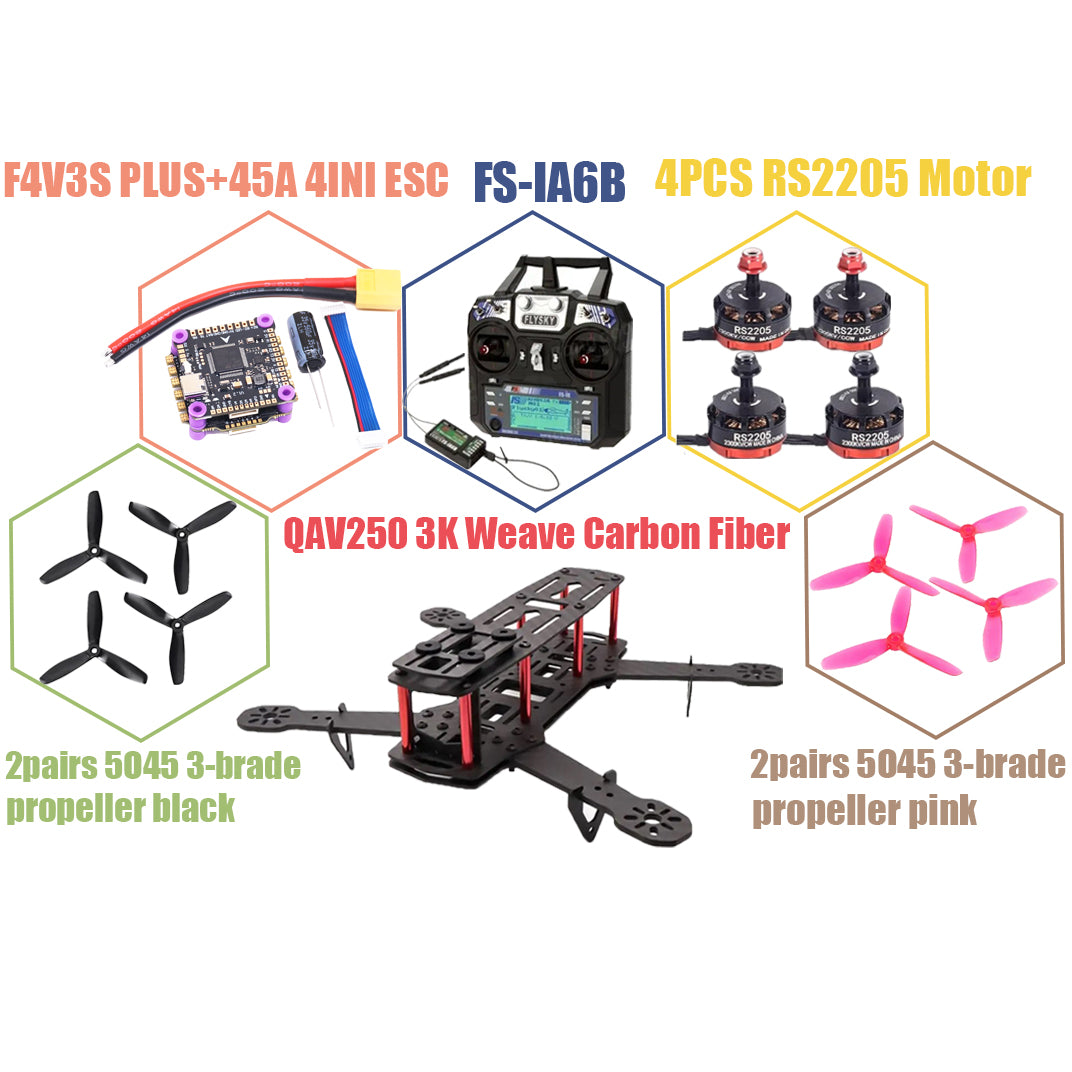

Package B:

F4V3S PLUS flight control+  3K Carbon fiber QAV250+ 45A 4INI ESC + 4  2205 2300KV Motor + 2pairs 5045 3-brad propeller black+2  pairs 5045 3-brade propeller pink+ELRS 2.4G Receiver RX + LiteRadio 3 Radio Transmitter

Package C:

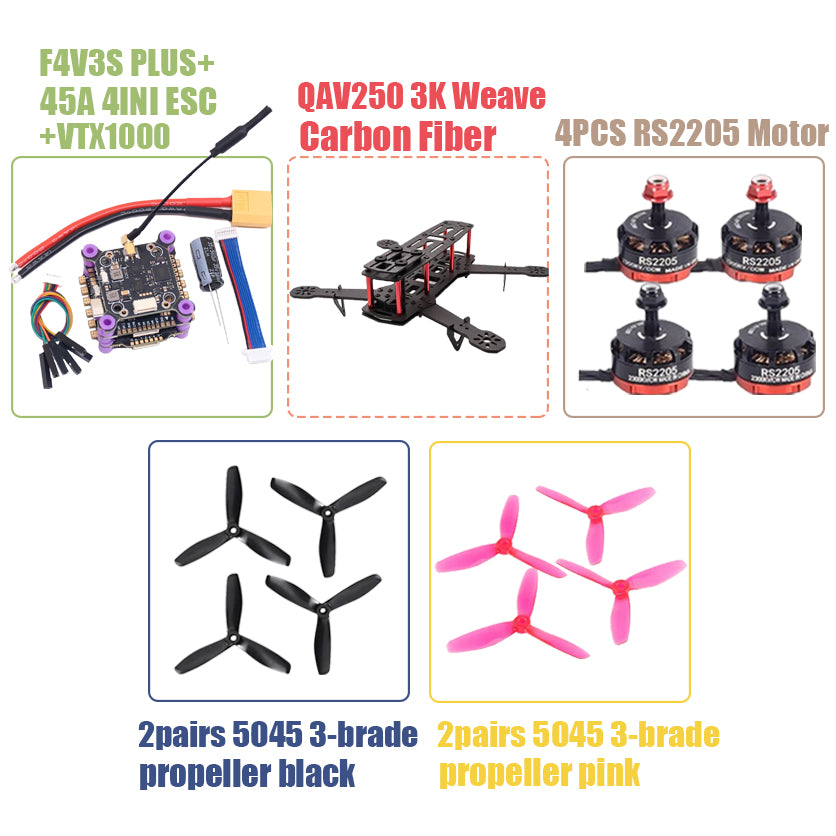

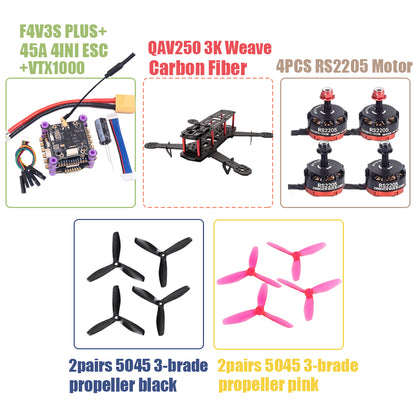

F4V3S PLUS flight control + VTX1000 + 3K Carbon fiber QAV250 + 45A 4INI ESC+ 4  2205  2300KV Motor + 2pairs 5045 3-brad propeller black+2  pairs 5045 3-brade propeller pink

Package D:

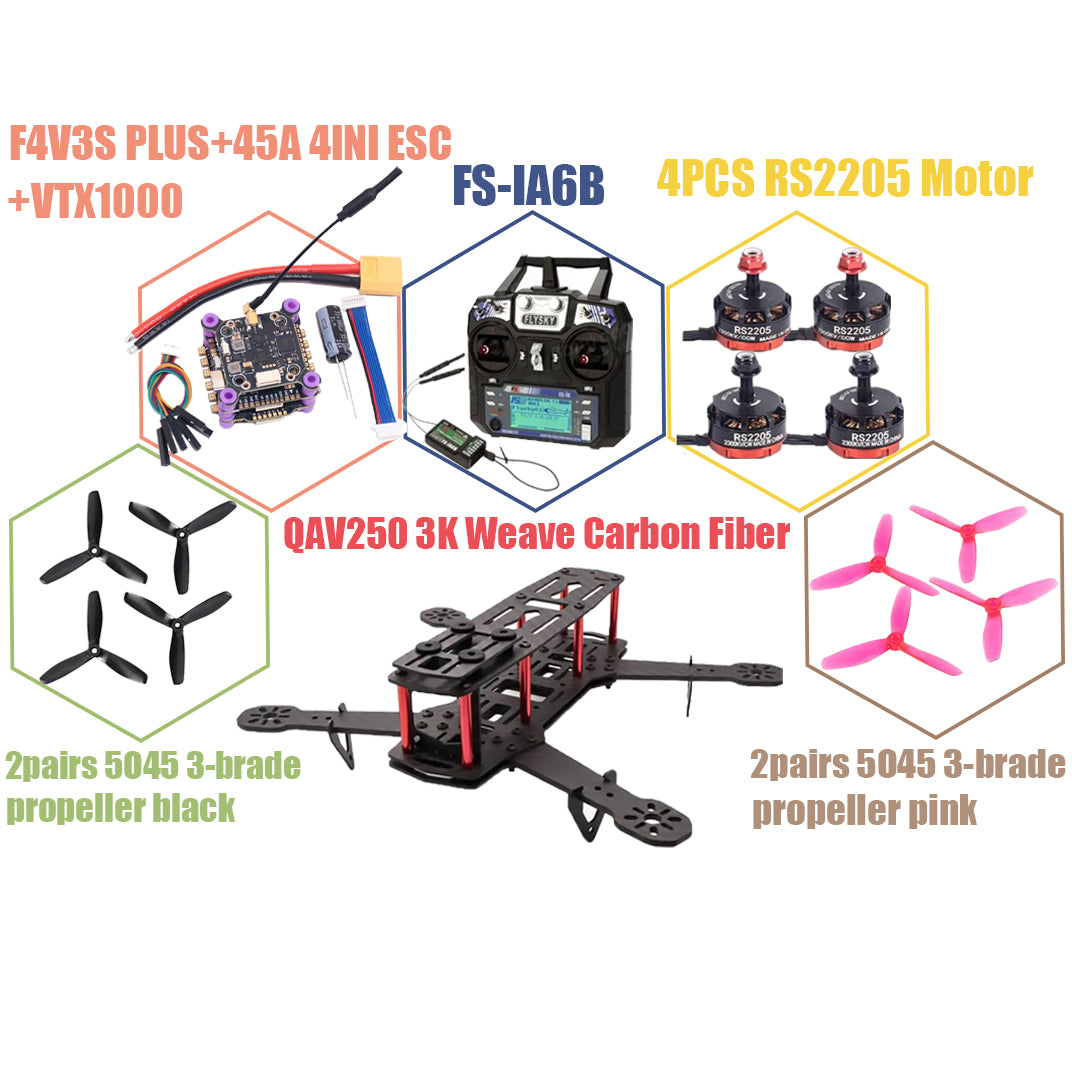

F4V3S PLUS flight control+ VTX1000 +  3K Carbon fiber QAV250+ 45A 4INI ESC + 4  2205  2300KV Motor + 2pairs 5045 3-brad propeller black+2  pairs 5045 3-brade propeller pink+ELRS 2.4G Receiver RX + LiteRadio 3 Radio Transmitter

Package E:

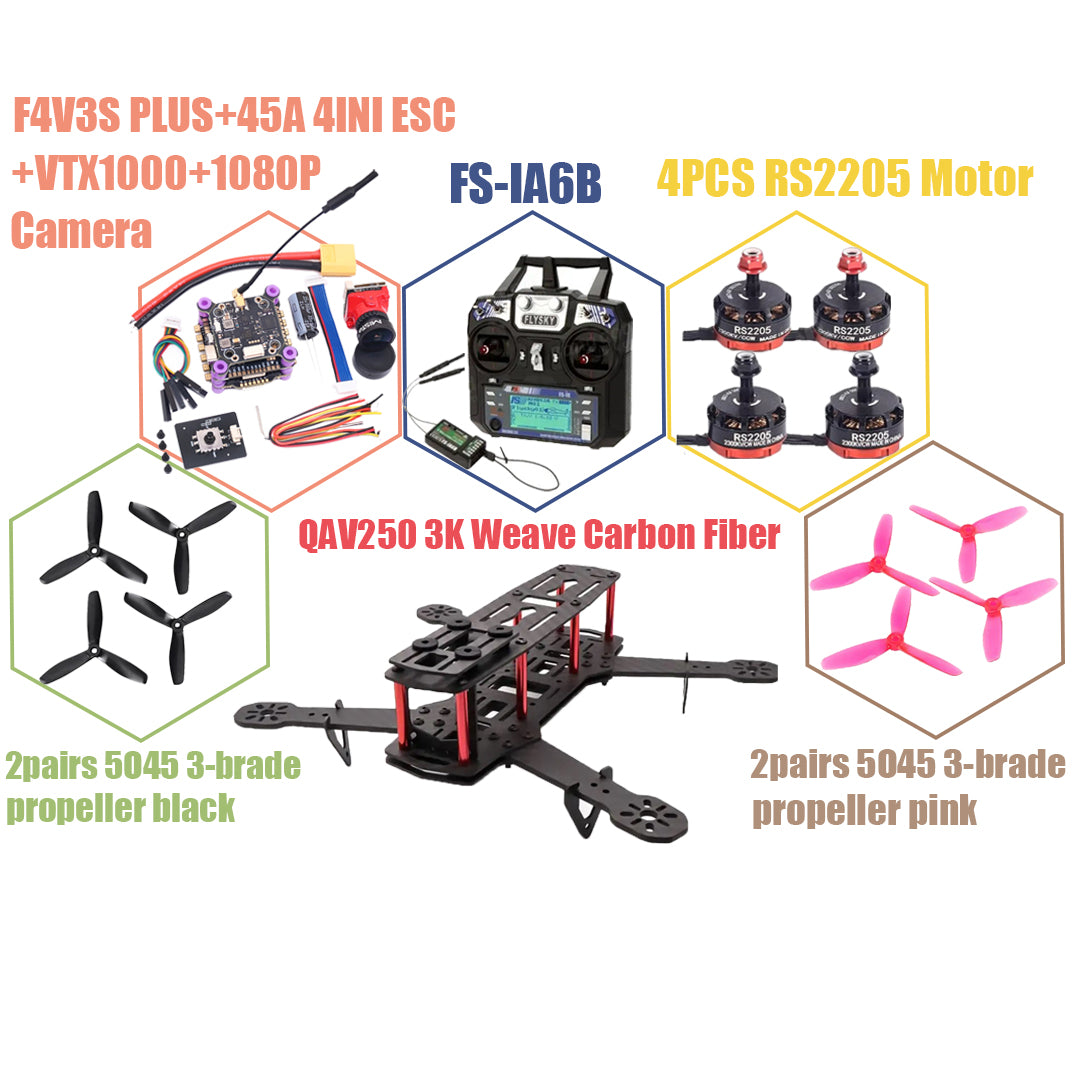

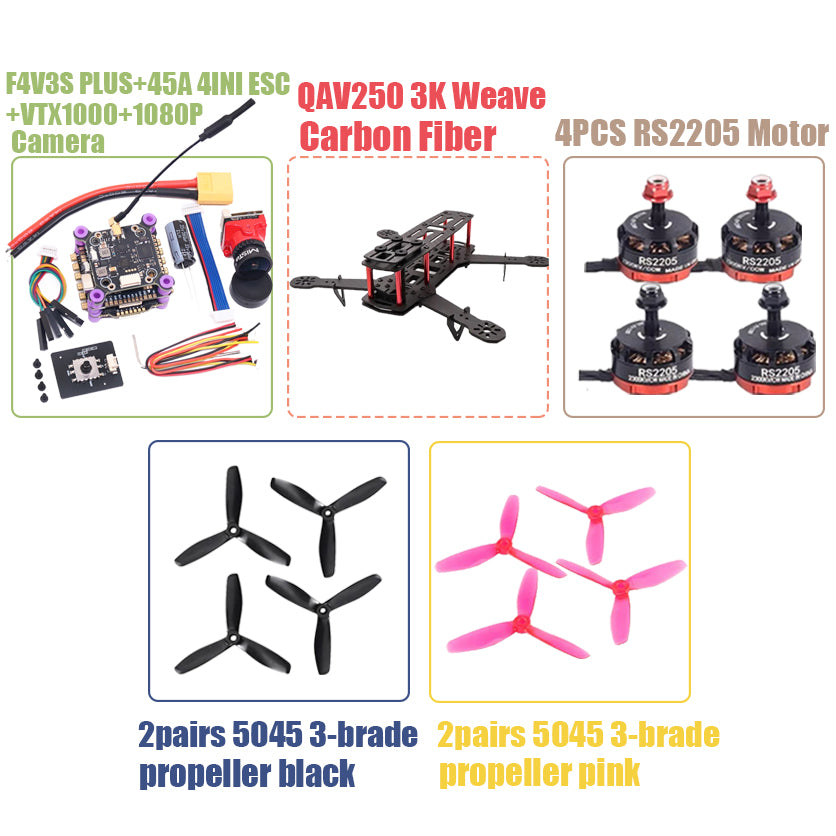

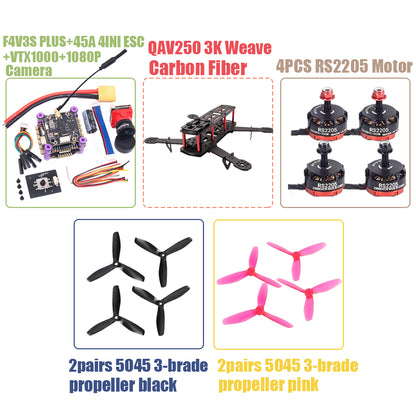

F4V3S PLUS flight control+ VTX1000 + 1080P Camera + 3K Carbon fiber QAV250+ 45A 4INI ESC + 4  2205  2300KV Motor + 2pairs 5045 3-brad propeller black+2  pairs 5045 3-brade propeller pink

Package F:

F4V3S PLUS flight control+ VTX1000 + 1080P Camera + 3K Carbon fiber QAV250+ 45A 4INI ESC + 4  2205  2300KV Motor + 2pairs 5045 3-brad propeller black+2  pairs 5045 3-brade propeller pink+ELRS 2.4G Receiver RX + LiteRadio 3 Radio Transmitter

QAV250 250mm Carbon Fiber 4 Axis Mini Quadcopter Frame Kit

Features:

Main material: 3K Weave Carbon fiber

Arm thickness: 3mm

Upper and lower plate:1.5mm

Wheelbase: 250mm

With rubber damper to decrease vibration during flight

Aluminum alloy spacer, light weight,reliable

Specifications:

Wheelbase: 250mm

Weight: About 139g

Prop suggest: 5*3

Motor suggest: 2205-2208

Battery suggest: 3S 1300-1800ma

it come with only a carbon frame.

BLHELI_S 45A 4IN1 3-6S Brushless ESC

Size: 41*39.5*5mm

Hole distance: 30.5*30.5/5mm

Weight: 13g

Input voltage: LIPO 2-6S

Continuous current: 45A

Maximum current: 50A (10 seconds)

Processor: EFM8BB21F16G

Firmware: BLS J_H_30_REV16_7

Drive signal support: DShot300-600/Multishot/Oneshot/PWM

Current sensor: Support


The ESC has filter capacitors on board to suppress the electromotive power transmission, stabilize the battery voltage and protect the components of ESC vuelo control precision

RS2205 2300kv Motor:
Model: RS2205-2300
Framework: 12N14P
No. of Cells: 3 - 4S
Length:31.7mm
Shaft: M5
KV: 2300
Max Thrust: 1024g
Diameter: 27.9mm
Propeller Suggested: HQ 5045 BN
Weight: 30g
Features:
1. Race Spec Performances
2. High Strength N52 Neodyum Magnets
3. Active Cooling Fins Greatly Reduce Motor Temeratures
4. Low CG, Light Weight Design
5. Japanese Bearing For Performances
6. Enchance Anti Off U Ring For Safety & Stablility
7. Dual Lock CW / CCW Locknuts

ELRS 2.4G Receiver RX

Product Description:

ExpressLRS aims to provide the best completely open, high refresh radio control link while maintaining a maximum achievable range at that rate with low latency.


SPECIFICATIONS 1

Brand:B-CUBE

Model:ELRS 2.4G NANO

RF Freq:2.4Ghz

IC:SX1281+ESP8285

TX Power:100mW

Color:Black

Connector:IPEX 1

Input Power:3.6-5.5V

Weight:0.4g(receiver only)

Size:11mm*18mm

Firmware: BETAFPV Nano 2400 RX 3.3.0

Package Included:

Nano Receiver x 1

T type receiver antenna x 1

Heat shrink tube x 1

30AWG Silicone Wire x 4LiteRadio 3 Radio Transmitter

LiteRadio 3 is a remote control radio transmitter designed primarily for RC models, including multirotor, airplanes. It gives you more than you ever thought possible from an entry-level 8-channel radio.

8 channels in total.

USB Joystick support for most practice simulators.

Nano module bay for external TX module.

Newly designed joystick gimbal for longer usage life.

Support BETAFPV Configurator for updating, configuring, and tuning.

Provide ExpressLRS 2.4G protocol version .

Built-in 2000mAh battery and USB charge supported.

2pairs 5045 3-brad propeller black
