B-CUBE Carbon Fiber 350 Frame Kit Pixracer R15 Flight Control Ardupilot Quadcopter BLHELI 30A 2212 Motor ESC

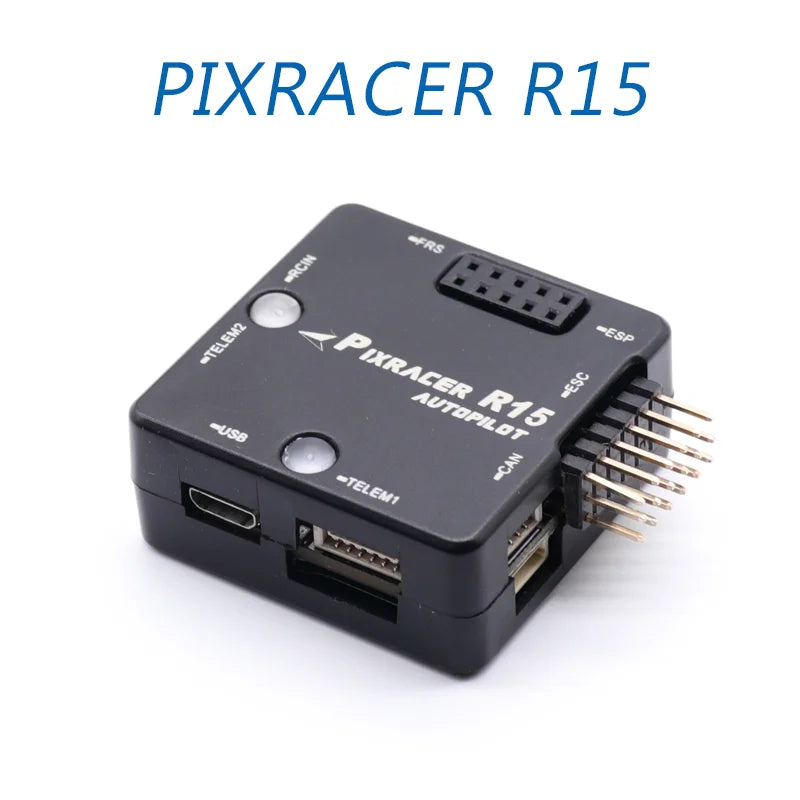

Pixracer R15 Autopilot xracer PX4  Flight Controller

ThePixraceris the common name for the FMUv4 generation of Pixhawk autopilots. It has been designed primarily for the demanding requirements of small multicopters, but of course can be used on planes and other vehicles which require no more than 6 pwm outputs for controlling escs and motors.

Many people will mistakenly believe that the PixRacer is just a standard "racer" controller that lacks many of the functionalities of a complete autopilot system. Well, don't be fooled! PixRacer has all the capabilities of the original PixHawk -including version 2- and even more! But is optimized in size and has just about the right amount of input/outputs that allows you to switch from a full enriched autopilot stack system -with autolanding and full navigation- to a high-performance racing platform. Yup, if you get tired of advanced waypoints, then flip the switch and race like a pro! R15 has an updated accelerometer/gyroscope, magnetometer and ROHS (Lead Free).
Includes an ESP8266 for easy WiFi Updates. Comes with the latest Ardupilot ESP8266 firmware developed by Andrew Tridge. This new firmware has a nice web interface, MavLink2 support and an easier way to do future updates via the web interface.

Interfaces/Connectivity

• Wifi: ESP-01 802.11bgn Flashed with MavESP8266

• MicroSD card reader

• Micro USB

• RGB LED

• GPS (serial + I2C)

• TELEM1/TELEM2

• Wifi serial

• FrSky Telemetry serial

• Debug connector (serial + SWD)

• Connectors: GPS+I2C, RC-IN, PPM-IN, RSSI, SBus-IN, Spektrum-IN, USART3 (TxD, RxD, CTS, RTS), USART2 (TxD, RxD, CTS, RTS), FRSky-IN, FRSky-OUT, CAN, USART8 (TxD, RxD), ESP8266 (full set), SERVO1-SERVO6, USART7 (TxD, RxD), JTAG (SWDIO, SWCLK), POWER-BRICK (VDD, Voltage, Current, GND), BUZZER-LED_BUTTON.

Power System:

5-5.5VDC from USB or PowerBrick connector. Optional/recommendedACSP4 +5V/+12V Power Supply.

Weight and Dimensions:
Weight: 10.54g (.37 oz)
Width: 36mm (1.42”)
Length: 36mm (1.42”)

Package includes,

Pixracer R15 Flight controller  x 1
Plastic  shell x 1
Safety switcher  and Buzzer  x 1
Micro 4G TF Card  x 1

Card reader  x1
Cables set (GH1.25 6P Line+GH1.25 4P Line + GH1.25 5P Line)  x1

ESP8266 Wifi module x 1

3DR Power Module x1

M8N GPS

GPS Holder

Shock Absorber

F350+4 PCS BLHELI 20A +4  pairs 8045 Propellers +4 PCS 2212 motor

 350 FRAME Wheelbase 4-Axle Frame for RCQuadcopterDrone

A.Features

A1: Use authentic electronic components to ensure high quality and enhance the current endurance ability of the ESC.

A2: Based on BLHeli firmware, optimized for high performance with great linearity and much quicker throttle response.

A3: Special designed for multirotors, and compatible with fixed-wing aircrafts and helicopters.

A4: Multiple protection features including Low-voltage cut-off protection / over-heat protection / throttle signal loss protection.

A5: Throttle range can be configured and is fully compatible with all receivers, providing smooth, linear and precise throttle response. A6: All parameters can be programmed via using a transmitter, including default settings.

B. Productspecification

1045 Propellers
