BLHELI_S 45A /60A 4IN1 3-6S Brushless ESC
BLHELI_S 45A 4IN1 3-6S Brushless ESC
Size: 41*39.5*5mm
Hole distance: 30.5*30.5/5mm
Weight: 13g
Input voltage: LIPO 2-6S
Continuous current: 45A
Maximum current: 50A (10 seconds)
Processor: EFM8BB21F16G
Firmware: BLS J_H_30_REV16_7
Drive signal support: DShot300-600/Multishot/Oneshot/PWM
Current sensor: Support
The ESC has filter capacitors on board to suppress the electromotive power transmission, stabilize the battery voltage and protect the components of ESC vuelo control precision

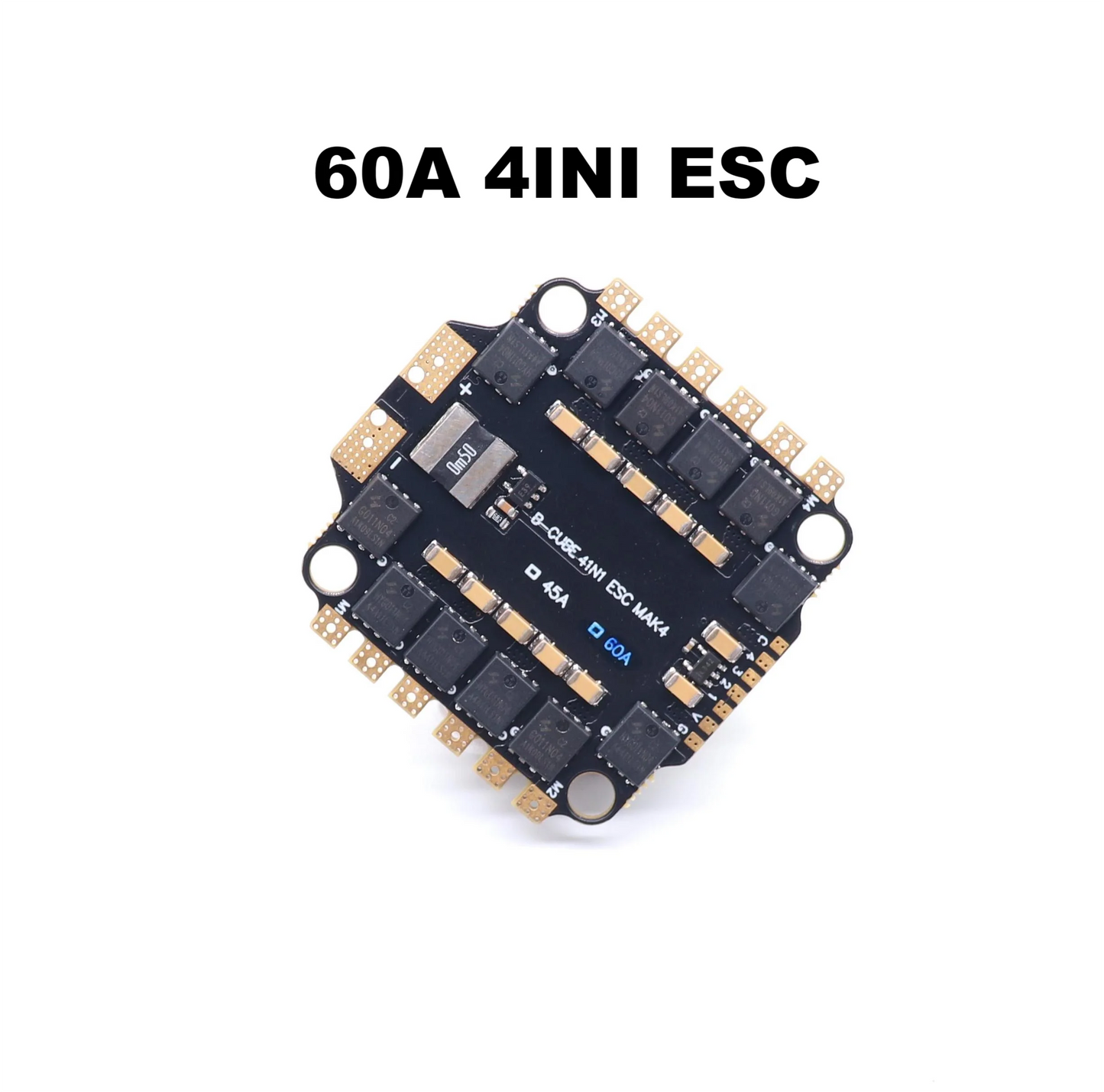

BLHELI_S 60A 4IN1 3-6S Brushless ESC
Size: 41*39.5*5mm
Hole distance: 30.5*30.5/5mm
Weight: 13g
Input voltage: LIPO 2-6S
Continuous current: 60A
Maximum current: 70A (5 seconds)
Firmware: BLS J_H_30_REV16_7
Drive signal support: DShot300-600/Multishot/Oneshot/PWM
Current sensor: Support
The ESC has filter capacitors on board to suppress the electromotive power transmission, stabilize the battery voltage and protect the components of ESC vuelo control precision
