B-CUBE 550 Hexa Frame PIXHAWK PRO M8N Flight Control Carbon Ardupilot Radio Telemetry Quadcopter BLHELI 40A 3508 700KVMotor ESC

B-CUBE 550 Hexa Frame PIXHAWK PRO M8N Flight Control Carbon Ardupilot Radio Telemetry Quadcopter BLHELI 40A 3508 700KVMotor ESC

$308.71 USD

~~$308.71 USD~~ $308.71 USD

Sale Sold out

Color Simple package Standard package High package 433MHZ 100MW M8N 433MHZ 500MW M8N 433MHZ 1000MW M8N 915MHZ 100MW M8N 915MHZ 500MW M8N 915MHZ 1000MW M8N

Quantity

PIXHAWK PRO

Pixhawk PRO support the latest official ardupilot firmware and PX4 firmware.

1. The advanced 32-bit ARM CortexM4 high-performance processors STM32F427VIT6(2MB flash), can run NuttX CHIBOS RTOS real-time operating system;

2. 14 PWM / servo output;

3. Bus interface (UART, I2C, SPI, CAN);

4. The integrated backup power and backup controller fails, the primary controller fails over to the backup control is safe;

5. Provide automatic and manual modes;

6. Provide redundant power input and failover;

7. Multicolor LED lights;

8. Provide multi-tone buzzer Interface

9. Micro SD recording flight data;

Specifications:

Interface

1 .5 high voltage compatible UART 1, 2 with hardware flow control

2. 2 CAN

3.Spektrum DSM / DSM2 / DSM-X satellite receiver compatible input

4.Futaba SBUS compatible inputs and outputs

5.PPM Signal Input

6.RSSI (PWM or voltage) Input

7.I2C

8.SPI

9.3.3 and 6.6VADC input

10. External MICRO USB Interface

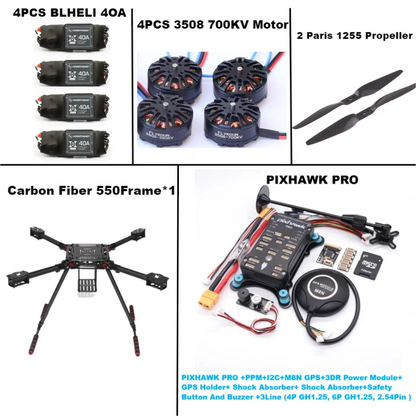

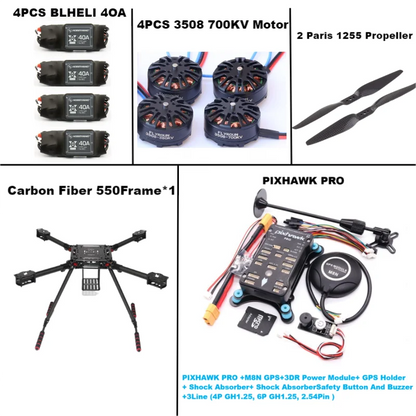

Simple Package:

F550+4 PCS BLHELI 40A +2 pairs self-locking 1255 Propellers +4 PCS 3580 700KV motor

PIXHAWK PRO +M8N GPS+3DR Power Module+ GPS Holder + Shock Absorber+ Shock AbsorberSafety Button And Buzze
+3Line(4PGH1.25,6PGH1.25,2.54Pin)

Stangard package:

F550+4 PCS BLHELI 40A +2 pairs self-locking 1255 Propellers +4 PCS 3580 700KV motor

PIXHAWK PRO+PPM+I2C+M8N GPS+3DR PoWer Module+GPS Holder+ Shock Absorber+ Shock Absorber+Safety
Button And Buzzer+3Line(4P GH1.25,6PGH1.25,2.54Pin)

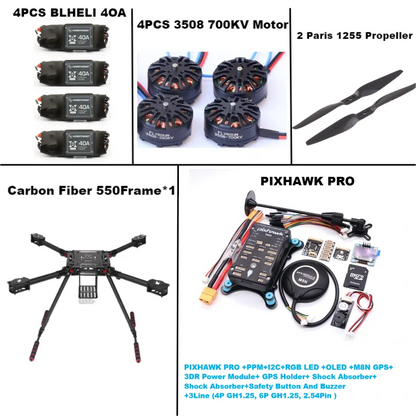

High Pacage:

F550+4 PCS BLHELI 40A +2 pairs self-locking 1255 Propellers +4 PCS 3580 700KV motor

PIXHAWK PRO+PPM+I2C+RGB LED+OLED+M8N GPS+3DR Power Module+ GPS Holder+ Shock Absorber+
Shock Absorber+Safety Button And Buzzer
+3Line(4PGH1.25,6PGH1.25,2.54Pin)

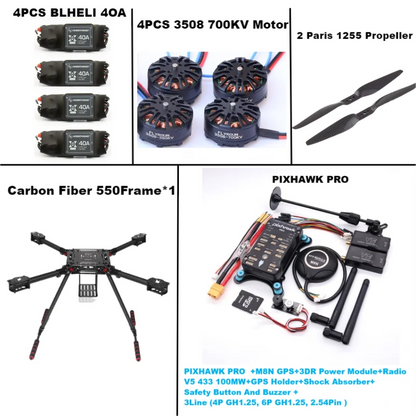

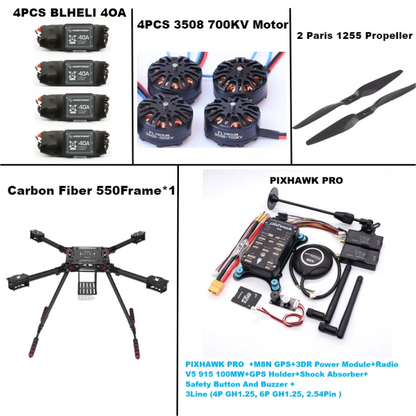

433/915MHZ 100MW :

F550+4 PCS BLHELI 40A +2 pairs self-locking 1255 Propellers +4 PCS 3580 700KV motor

PIXHAWK PRO +M8N GPS+3DR Power Module+Radio V5 433/915 100MW+GPS Holder+Shock Absorber+
Safety Button And Buzzer +
3Line(4PGH1.25,6PGH1.25,2.54Pin)

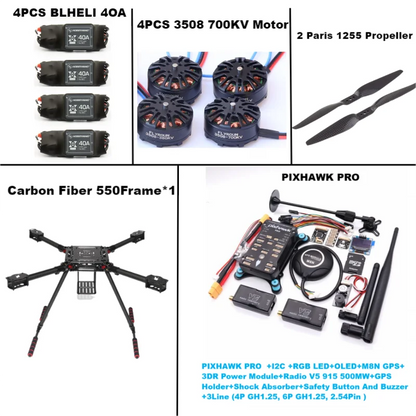

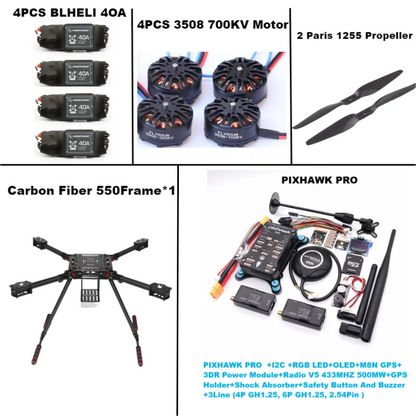

433/915MHZ 500MW :

F550+4 PCS BLHELI 40A +2 pairs self-locking 1255 Propellers +4 PCS 3580 700KV motor

PIXHAWK PRO +I2C +RGB LED+OLED+M8N GPS+3DR Power Module+Radio V5 433/915MHZ 500MW+GPS
Holder+Shock Absorber+Safety Button And Buzzer
+3Line(4PGH1.25,6PGH1.25,2.54Pin)

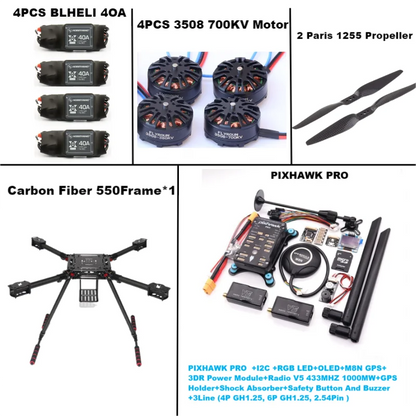

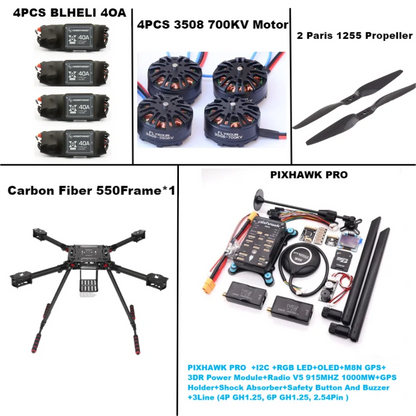

433/915MHZ 1000MW :

F550+4 PCS BLHELI 40A +2 pairs self-locking 1255 Propellers +4 PCS 3580 700KV motor

PIXHAWK PRO +I2C +RGB LED+OLED+M8N GPS+3DR Power Module+RadioV5 433/915MHZ 1000MW+GPS
Holder+Shock Absorber+Safety Button And Buzzer
+3Line(4P GH1.25,6PGH1.25,2.54Pin)

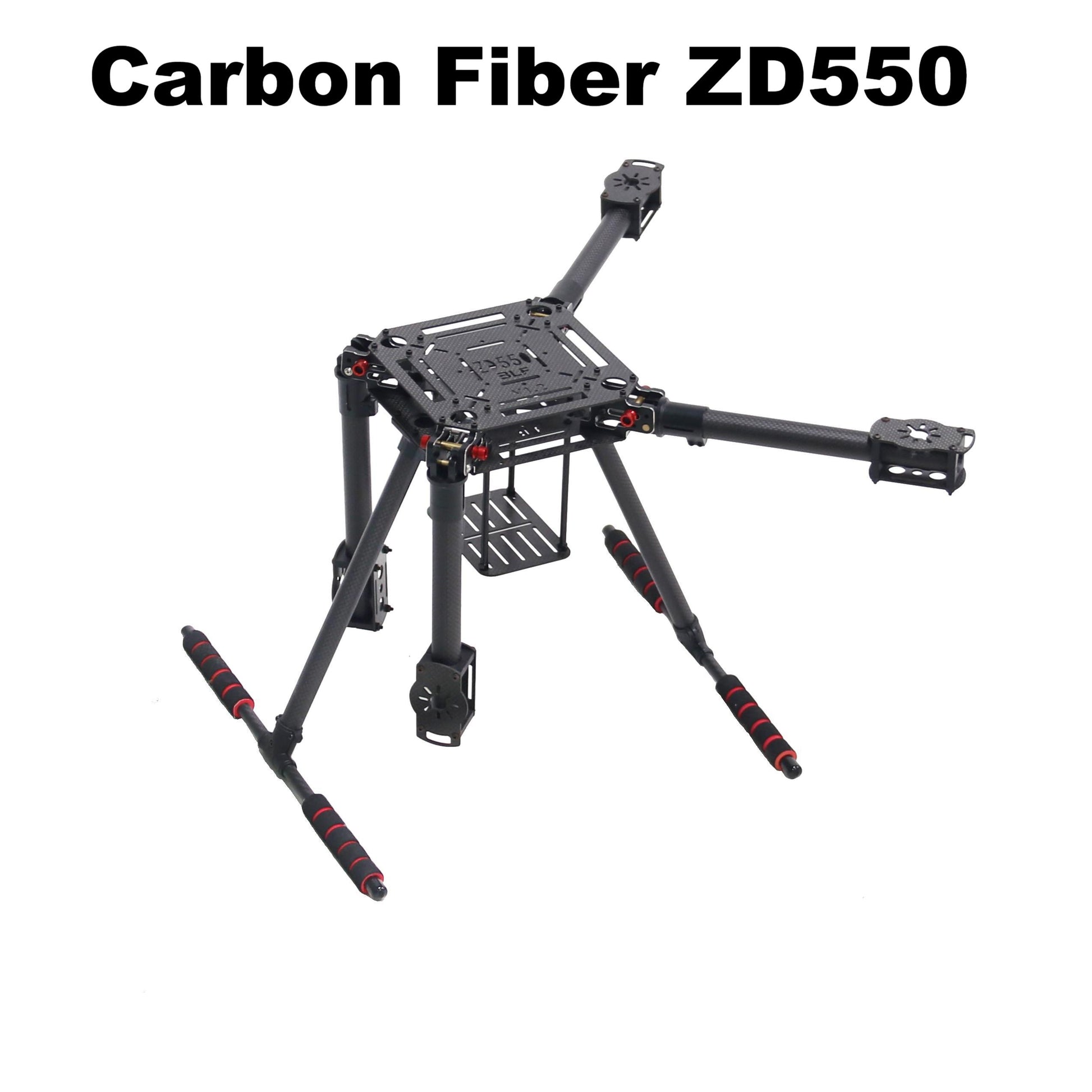

Carbon Fiber 550Frame*1

4PCS BLHELI 40A

Features:

- Using Multicopter special program, fast throttle response,surpasses all kinds of open source software;

- Firmware was optimized specifically for disc motor, and it has a very good compatibility;

- Highly intelligent, strong adaptive capacity, reserve the timing setting item (height/middle timing), easy to use;

- Throttle signal line is twisted wire to reduce crosstalk within the transmission signal generated by the copper, so that more stable flight;

- Supports refresh rates up to 621Hz throttle signal, compatible with various flight controllers. (Note: the throttle signal over 500Hz are all non-standard throttle signal);

- Using MOSFET special driver IC, its performance and stability far surpass the driving circuit with discrete components built;

- Ultra-low resistance MOSFET, strong flow capacity.

4Pcs 3508 700KV Motor

2Paris 1255 Propeller
