B-CUBE 550 Hexa Frame PIXHAWK 6C PRO M10 Flight Control Carbon Ardupilot Radio Telemetry Quadcopter 40A 3508 700KV Motor ESC

B-CUBE 550 Hexa Frame PIXHAWK 6C PRO M10 Flight Control Carbon Ardupilot Radio Telemetry Quadcopter 40A 3508 700KV Motor ESC

$382.94 USD

~~$382.94 USD~~ $382.94 USD

Sale Sold out

Color Simple package High package 433MHZ 100MW M10 433MHZ 500MW M10 433MHZ 1000MW M10 915MHZ 100MW M10 915MHZ 500MW M10 915MHZ 1000MW M10

Quantity

PIXHAWK 6C PRO

The Pixhawk® 6C PRO is the latest update to the successful family of Pixhawk® flight controllers, based on the Pixhawk® FMUv6C Open Standard and Connector Standard. It comes with PX4 Autopilot® pre-installed. STMicroelectronics® based STM32H743, paired with sensor technology from Bosch® & InvenSense®, giving you flexibility and reliability for controlling any autonomous vehicle, suitable for both academic and commercial applications.

The Pixhawk® 6C PRO's H7 microcontroller contain the Arm® Cortex®-M7 core running up to 480 MHz, has 2MB flash memory and 1MB RAM. Thanks to the updated processing power, developers can be more productive and efficient with their development work, allowing for complex algorithms and models.

The Pixhawk 6C PRO includes high-performance, low-noise IMUs on board, designed to be cost effective while having IMU redundancy. A vibration isolation System to filter out high-frequency vibration and reduce noise to ensure accurate readings, allowing vehicles to reach better overall flight performances.

The Pixhawk® 6C PRO is perfect for developers at corporate research labs, startups, academics (research, professors, students), and commercial application.

Key Design Points

High performance STM32H743 Processor with more computing power & RAM
Build-in Buzzer,Build-in RGB LED,support Independent external Safety Button,With Plastic Case
New cost-effective design with low-profile form factor
Newly designed integrated vibration isolation system to filter out high frequency vibration and reduce noise to ensure accurate readings
IMUs are temperature-controlled by onboard heating resistors, allowing optimum working temperature of IMUs

Technical Specification

Processors & Sensors

FMU Processor: STM32H743
32 Bit Arm® Cortex®-M7, 480MHz, 2MB memory, 1MB SRAM
IO Processor: STM32F103
32 Bit Arm® Cortex®-M3, 72MHz, 64KB SRAM

On-board sensors

Accel/Gyro: ICM-42688-P
Accel/Gyro: BMI055
Mag: IST8310
Barometer: MS5611

Electrical data

Voltage Ratings:

Max input voltage: 6V
USB Power Input: 4.75~5.25V
Servo Rail Input: 0~36V

Current Ratings:

TELEM1 Max output current limiter: 1.5A
All other port combined output current limiter: 1.5A

Mechanical data

Dimensions: 85 * 45 * 10 mm
Weight (Plastic Case) : 33g

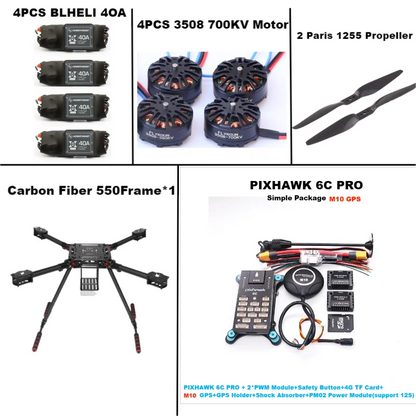

Simple Package:

F550+4 PCS BLHELI 40A +2 pairs self-locking 1255 Propellers +4 PCS 3580 700KV motor

PIXHAWK 6C PRO+2'PWM Module+Safety Button+4G TF Card+M10 GPS+GPS Holder+Shock Absorber+PM02 Power Module(support 12S

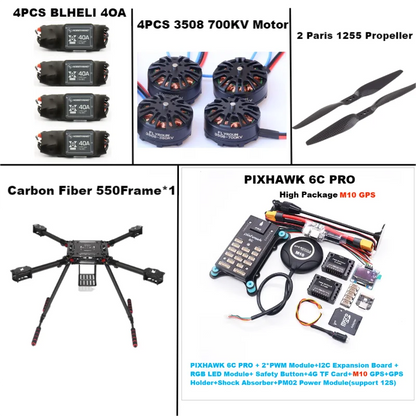

High Package:

F550+4 PCS BLHELI 40A +2 pairs self-locking 1255 Propellers +4 PCS 3580 700KV motor

PIXHAWK 6C PRO+2*PWM Module+I2C Expansion Board +RGBLED Modulo+Safoty Button+4GTF Card+M10 GPS+GPs

Holder+Shock Absorber+PM02 Power Module(support 12S)

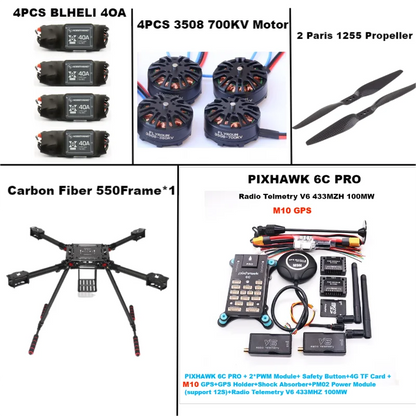

433MHZ 100MW :

F550+4 PCS BLHELI 40A +2 pairs self-locking 1255 Propellers +4 PCS 3580 700KV motor

PIXHAWK 6C PRO+2*PWM Module+ Safety Button+4G TF Card M10 GPS+GPS Holder+Shock Absorber+PM02 Power Module

(support 12S)+RadioTelemetry V6 433MHZ 100MW

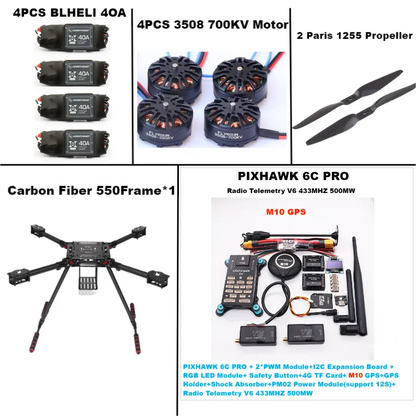

433MHZ 500MW :

F550+4 PCS BLHELI 40A +2 pairs self-locking 1255 Propellers +4 PCS 3580 700KV motor

PIXHAWK 6C PRO+2*PWM Module+I2C Expansion Board RGB LED Module+ Safety Button+4G TF Card+M10 GPS+GP8

Holder+Shock Absorber+PM02 Power Module(support 12S)+Radio Telemetry V6 433MHZ 500MW

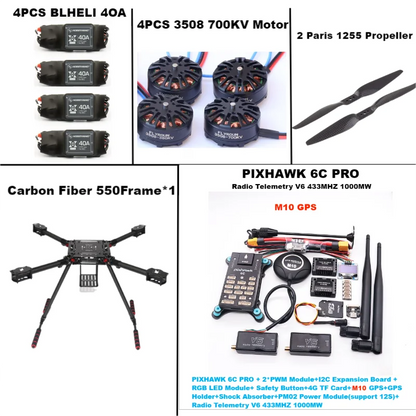

433MHZ 1000MW :

F550+4 PCS BLHELI 40A +2 pairs self-locking 1255 Propellers +4 PCS 3580 700KV motor

PIXHAWK 6C PRO+2*PWM Module+I2C Expansion Board+RGB LED Module+ Safety Button+4G TF Card+M10 GPS+GPS

Holder+Shock Absorber+PM02 Power Module(support 12S)+Radio Telemetry V6 433MHZ 1000MW

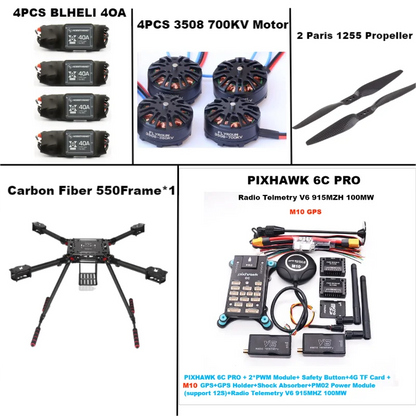

915MHZ 100MW :

F550+4 PCS BLHELI 40A +2 pairs self-locking 1255 Propellers +4 PCS 3580 700KV motor

PIXHAWK 6C PRO+2*PWM Modulo+ Safoty Button+4G TF Card M10 GPS+GPS Holder+Shock Absorber+PM02 Power Module

(support 12S)+RadloTelemetry V6 915MHZ 100MW

915MHZ 500MW :

F550+4 PCS BLHELI 40A +2 pairs self-locking 1255 Propellers +4 PCS 3580 700KV motor

PIXHAWK 6C PR0+2*PWM Module+I2C Expansion Board +RGB LED Modulo+Safety Button+4G TF Card+M10 GPS+GPs

Holder+Shock Absorber+PM02 Power Module(support 12S)+Radio Tclemctry V6 915MHZ 500MW

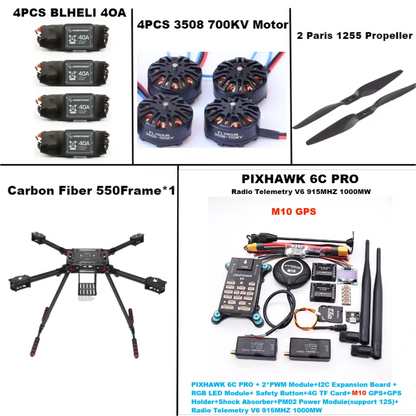

915MHZ 1000MW :

F550+4 PCS BLHELI 40A +2 pairs self-locking 1255 Propellers +4 PCS 3580 700KV motor

PIXHAWK 6C PRO+2*PWM Module+I2CExpanslon Board+RGB LED Module+ Safety Button+4G TF Card+M10 GPS+GPs

Holder+Shock Absorber+PM02 Power Module(support 12S)+Radio Telemetry V6 915MHZ 1000MW

Carbon Fiber 550Frame*1

4PCS BLHELI 40A

Features:

- Using Multicopter special program, fast throttle response,surpasses all kinds of open source software;

- Firmware was optimized specifically for disc motor, and it has a very good compatibility;

- Highly intelligent, strong adaptive capacity, reserve the timing setting item (height/middle timing), easy to use;

- Throttle signal line is twisted wire to reduce crosstalk within the transmission signal generated by the copper, so that more stable flight;

- Supports refresh rates up to 621Hz throttle signal, compatible with various flight controllers. (Note: the throttle signal over 500Hz are all non-standard throttle signal);

- Using MOSFET special driver IC, its performance and stability far surpass the driving circuit with discrete components built;

- Ultra-low resistance MOSFET, strong flow capacity.

4Pcs 3508 700KV Motor

2Paris 1255 Propeller

Radio Telemetry V6:
