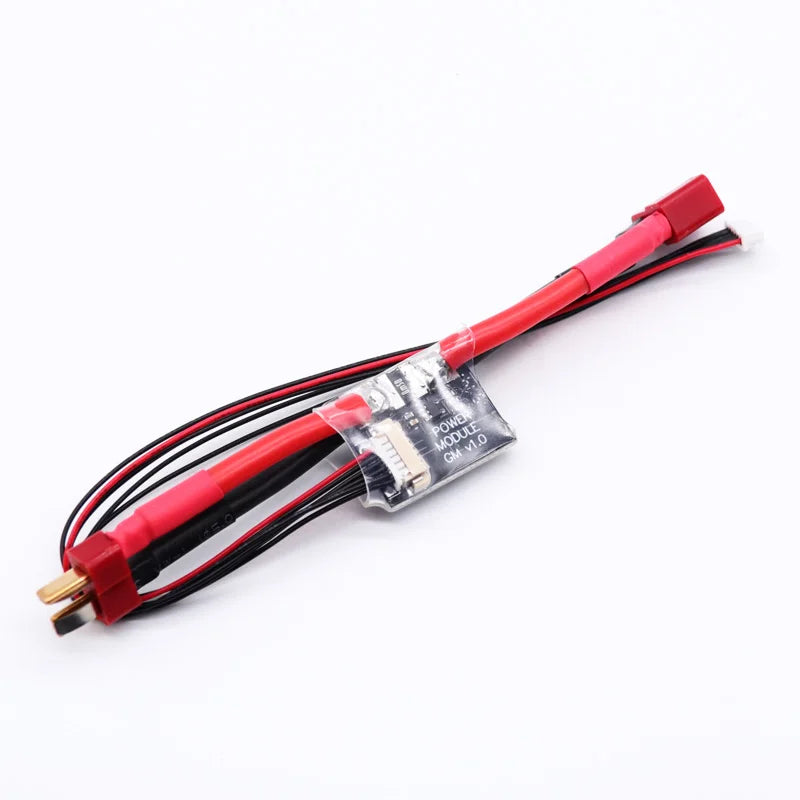

Power Module with 5.3V DC BEC with XT60 / XT90 / T Plug Connector For APM2.8 2.5 2.6 2.8 Pixhawk2.4.8 PIX RC Drone Part

3DR Power Module can use 3S-6S batteries.3DR Power Module can be used for pixhawk and APM. the port is same.

3DR Power Module can use 3S-6S batteries. It is recommended to use 3-4S batteries, if you use 6S batteries, you must pay attention to the following operations:
The 3DR Power Module supports up to 6S batteries. The 3DR Power Module must be connected to the ESCS or PDB first. If the 6S batteries are connected withoutESCS or PDB first, it may cause the 3DR Power Module to breakdown and burn due to excessive current! This means that if you are using a 6S battery, the 3DR Power Module must be connected to the PDB(the power distribution board is connected to the ESC, and the ESC is connected to the motor) and then the battery. You cannot directly plug in the battery without connecting the PDB!

FOR PX4 2.4.8: Used for PIXHAWK2.4.8 Flight Control

FOR PIXHAWK PRO: Used for PIXHAWK PRO Flight Control

FOR PIXHAWK 6C : Used for PIXHAWK 6C Flight Control

1. How to connect？

2.How to calibrate it?

Before calibrating 3DR Power Module ,you should connect the 3DR Power Module to PIXHAWK and insert the batterie into 3DR Power Module .

Choose the right parameters.

Note： Measured batter voltage this value you should measure the voltage value of your current battery and fill in.Fill in the Batter Capcity of your battery .Please fill in Measured batter voltage correctly, this value must measure the battery voltage.

then reboot Pixhawk board,you will see the value at Mission planner Screen.
