PM02 V3.2 Power Module 12S For PIXHAWK 2.4.8 6C PRO V6 PX4 Ardupilot RC Flight Control RC FPV Racing Drone XT60 Plug PIX32

PM02 V3.2 Power Module

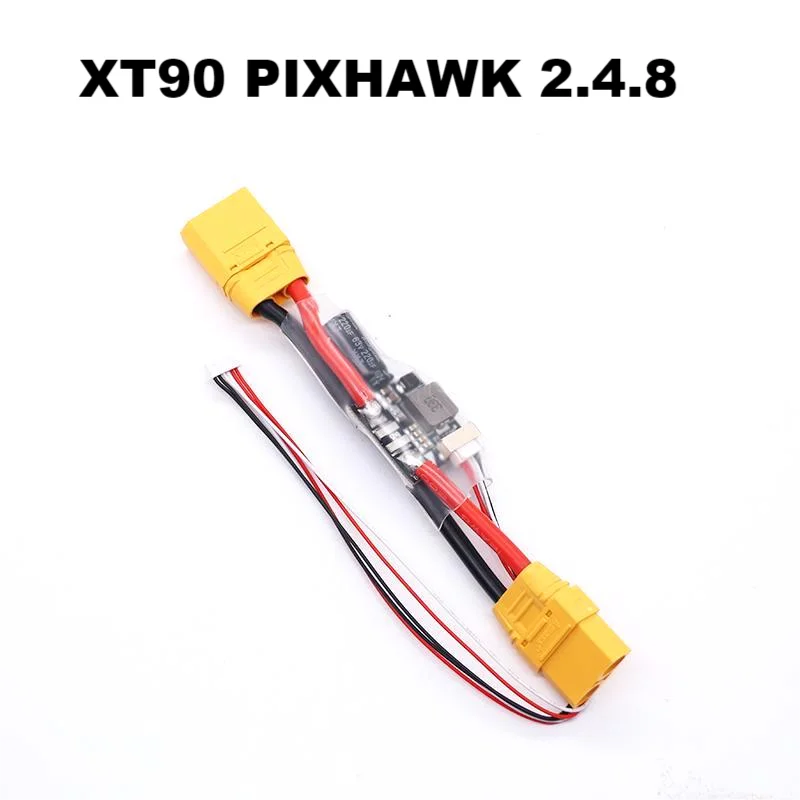

For PIXHAWK 2.4.8 :used for PIXHAWK2.4.8 Flight Control

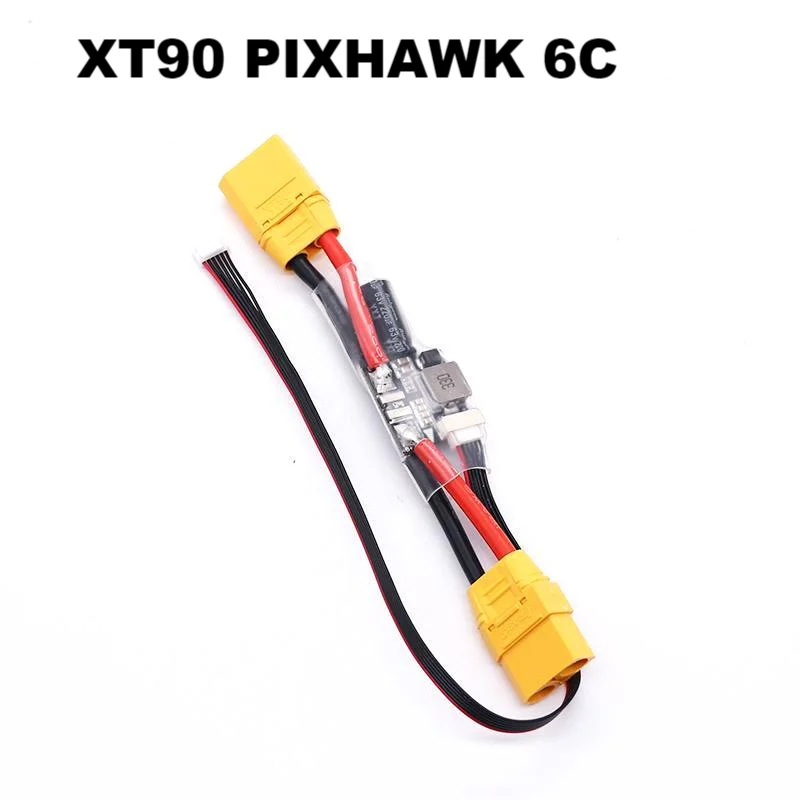

For PIXHAWK 6C :used for PIXHAWK 6C Flight Control

Description:

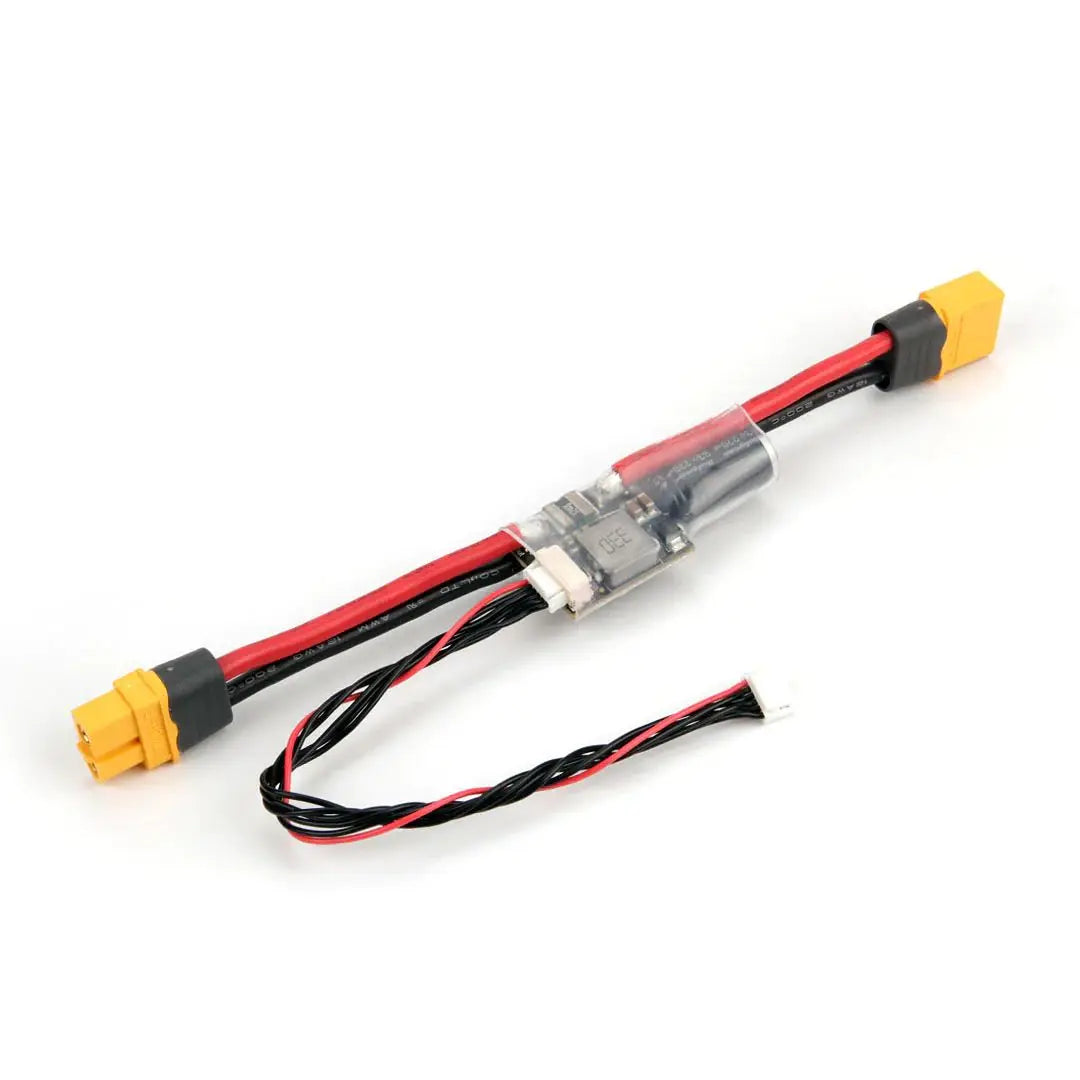

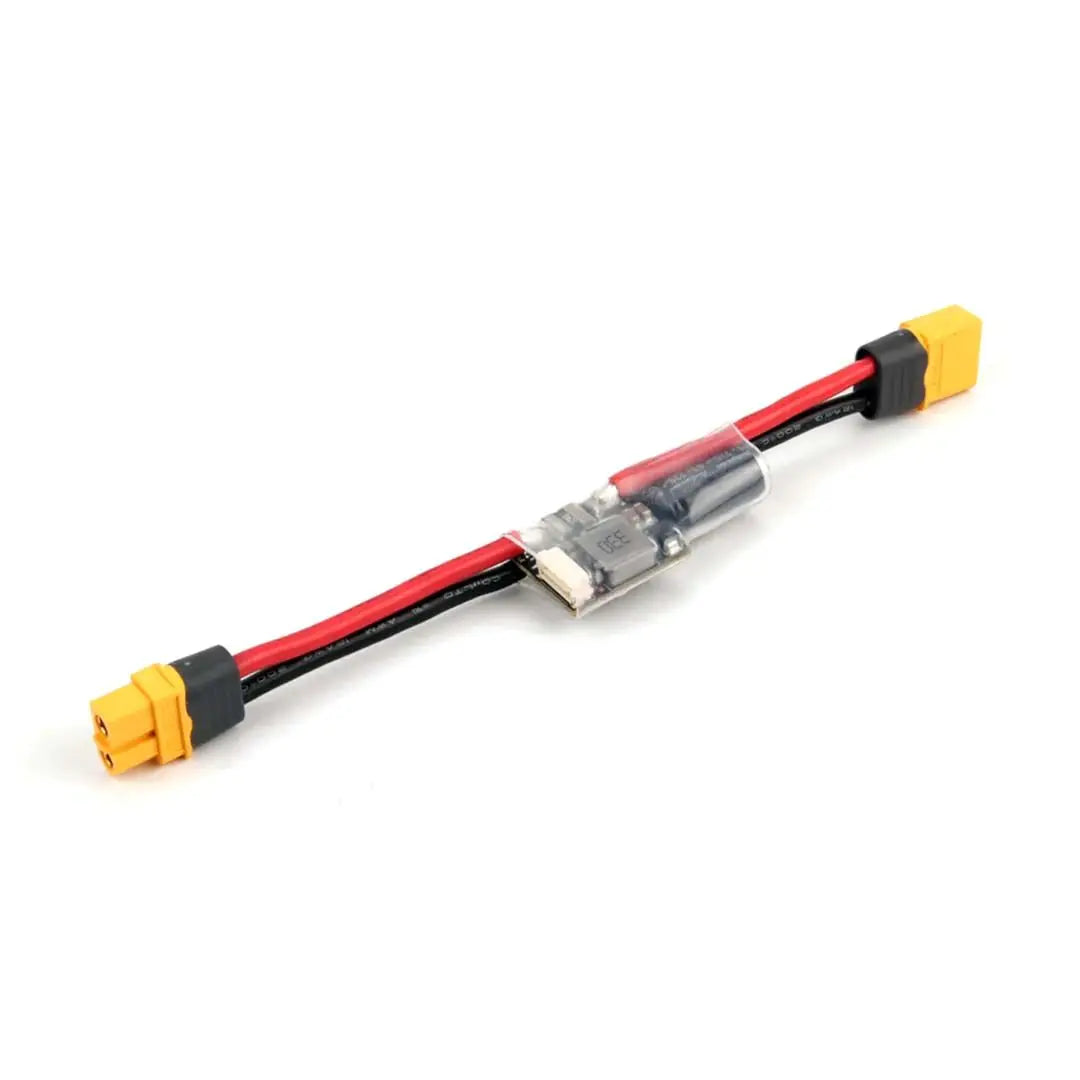

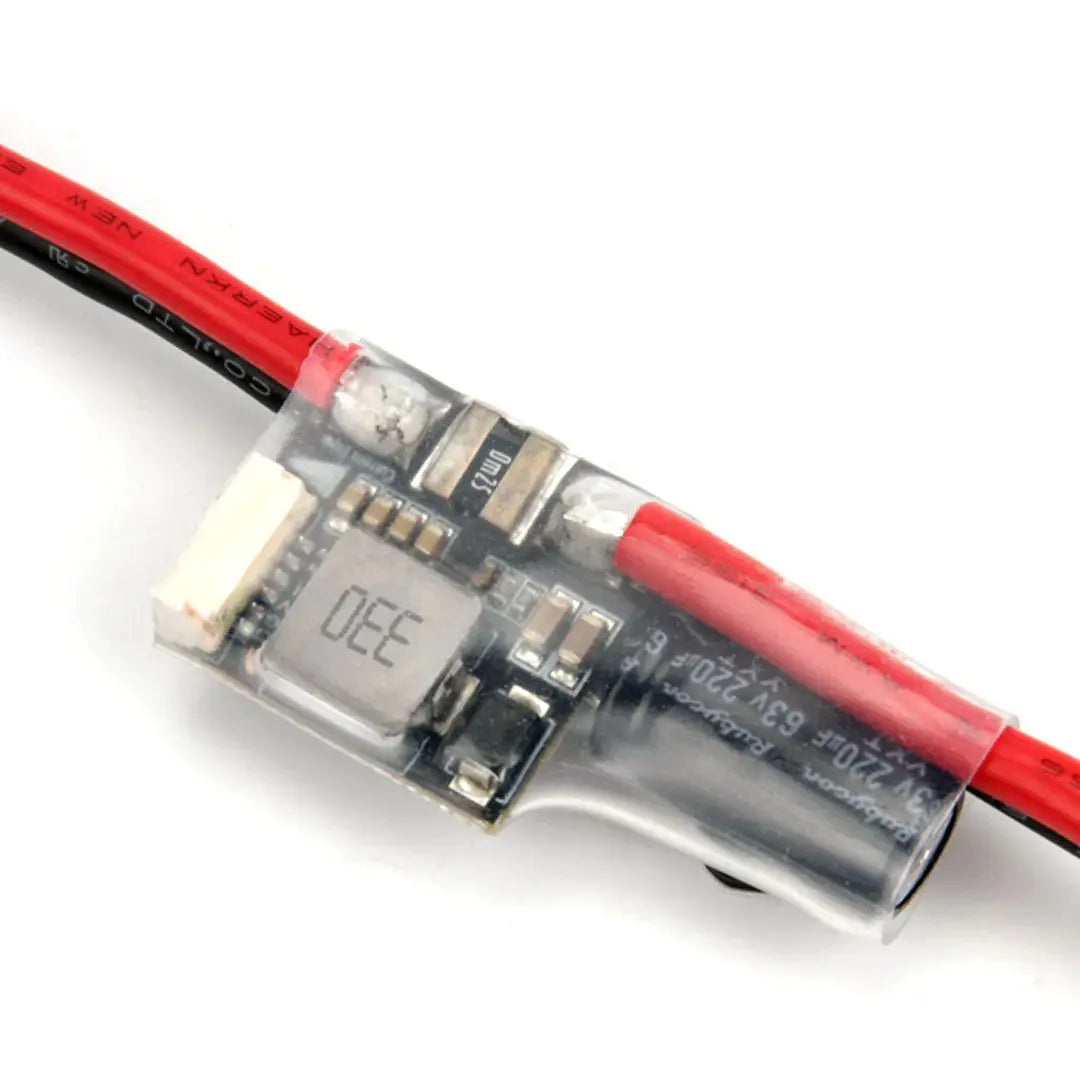

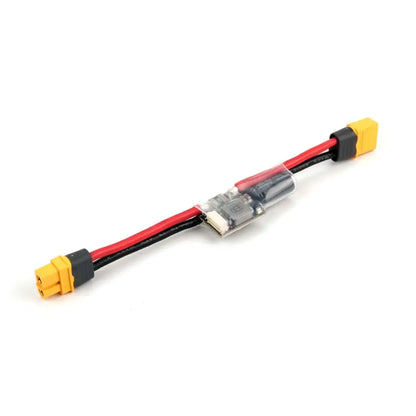

This PM02 Power Module provides a simple way to supply regulated 5.2V to flight controller from the battery while providing current consumption and battery voltage measurements via analog signal through a 6 Pin JST-GH cable. It comes with pre-soldered wires, capacitor, and XT60 connector on both ends, along with shrink tubing on the PCBA for physical protection.

Specification:

• Input Voltage: 2S-12S

• PCB Cont. Current Rating: 60A

• PCB Burst Current Rating: 100A (<60 Sec)

• Max Current Sensing: 120A

• Output: DC 5.2V & 3A Max

• Voltage Divider: 18.182

• Amperes per Volt: 36.364

• Weight: 20g

Please Note:

- The XT60 Plug and 12AWG wire that are pre-soldered on the board is rating for 30A continuous current and 60A burst current (< 60 Seconds). If a higher current is being used, the plug type and wire size should be changed accordingly. You can refer to this chart for reference.
