Pixracer R15 Autopilot xracer PX4  Flight Controller



The Pixracer is the common name for the FMUv4 generation of Pixhawk autopilots. It has been designed primarily for the demanding requirements of small multicopters, but of course can be used on planes and other vehicles which require no more than 6 pwm outputs for controlling escs and motors.

Includes an ESP8266 for easy WiFi Updates. Comes with the latest Ardupilot ESP8266 firmware developed by Andrew Tridge. This new firmware has a nice web interface, MavLink2 support and an easier way to do future updates via the web interface.

Interfaces/Connectivity

• Wifi: ESP-01 802.11bgn Flashed with MavESP8266

• MicroSD card reader

• Micro USB

• RGB LED

• GPS (serial + I2C)

• TELEM1/TELEM2

• Wifi serial

• FrSky Telemetry serial

• Debug connector (serial + SWD)

• Connectors: GPS+I2C, RC-IN, PPM-IN, RSSI, SBus-IN, Spektrum-IN, USART3 (TxD, RxD, CTS, RTS), USART2 (TxD, RxD, CTS, RTS), FRSky-IN, FRSky-OUT, CAN, USART8 (TxD, RxD), ESP8266 (full set), SERVO1-SERVO6, USART7 (TxD, RxD), JTAG (SWDIO, SWCLK), POWER-BRICK (VDD, Voltage, Current, GND), BUZZER-LED_BUTTON.

Power System:

5-5.5VDC from USB or PowerBrick connector. Optional/recommendedACSP4 +5V/+12V Power Supply.

Weight and Dimensions:
Weight: 10.54g (.37 oz)
Width: 36mm (1.42”)
Length: 36mm (1.42”)

Description

R15 Simple Set Package Included:
Pixracer R15 Flight controller  x 1
Plastic  shell x 1
Safety switcher  and Buzzer  x 1
Micro4G TFCard  x 1

Card reader  x1
Cables set (GH1.25 6P Line+GH1.25 4P Line + GH1.25 5P Line)  x1

ESP8266 Wifi module x 1





R15 standard Set Package Included:
Pixracer R15 Flight controller  x 1
Plastic  shell x 1
Safety switcher  and Buzzer  x 1
Micro4G TFCard  x 1

Card reader  x1
Cables set (GH1.25 6P Line+GH1.25 4P Line + GH1.25 5P Line)  x1

ESP8266 Wifi module x 1

PM02 V3.2 Power Module x1

433/915MHZ 100MW:

Pixracer R15 Flight controller +Plastic shelI+Safety switcher and Buzzer + Micro4G

TFCard+Cardreader+Cables set(GH1.25 6PLine +GH1.25 4PLine+GH1.25 5PLine)+

ESP8266Wifimodule+PM02 V3.2 Power Module+M8N/M9N/M10 GPS+GPSHolder+Shock Absorber+

433/915MHZ 100MW V6

433/915MHZ 500MW:

Pixracer R15 Flight controller +Plastic shelI+Safety switcher and Buzzer + Micro4G

TFCard+Cardreader+Cables set(GH1.25 6PLine +GH1.25 4PLine+GH1.25 5PLine)+

ESP8266Wifimodule+PM02 V3.2 Power Module+M8N/M9N/M10 GPS+GPSHolder+Shock Absorber+

433/915MHZ 500MW V6

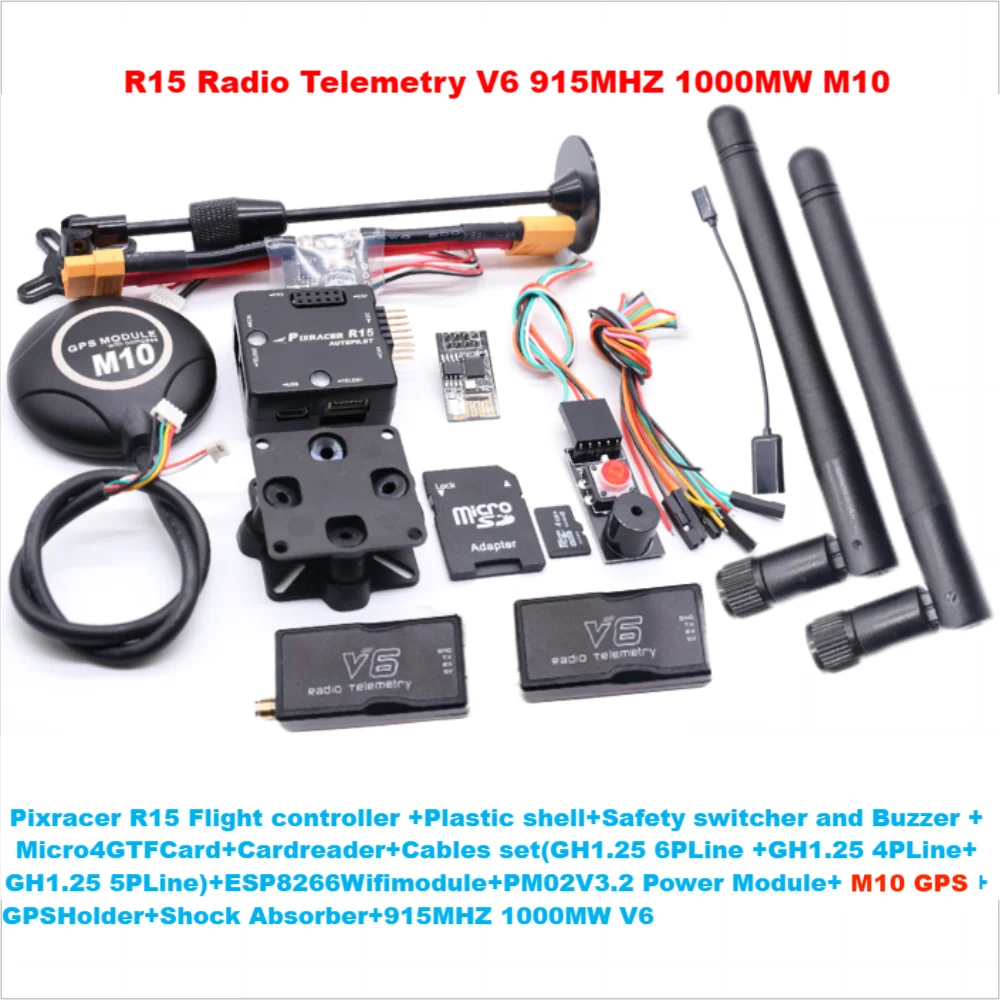

433/915MHZ 500MW:

Pixracer R15 Flight controller +Plastic shelI+Safety switcher and Buzzer + Micro4G

TFCard+Cardreader+Cables set(GH1.25 6PLine +GH1.25 4PLine+GH1.25 5PLine)+

ESP8266Wifi module+PM02 V3.2 Power Module+M8N/M9N/M10 GPS+GPS Holder+Shock Absorber+

433/915MHZ 1000MW V6





















• M9N GPS Module

  M9N is a GPS module commonly used in unmanned aerial vehicles, with the following characteristics and applications:

  High precision positioning: The M9N adopts advanced GNSS technology, supports multiple satellite navigation systems, and can provide high-precision position positioning information. For unmanned aerial vehicles, it can achieve accurate positioning and navigation.

  Quick positioning: M9N has fast cold start and hot start times, which can quickly obtain satellite signals and perform positioning, making it crucial for the rapid takeoff and task execution of unmanned aerial vehicles.



  M9N can search for more satellites outdoors with higher accuracy, faster search speed, and better stability.(The specific number of star searches is determined by the environment at that time.)








This PM02 Power Module provides a simple way to supply regulated 5.2V to flight controller from the battery while providing current consumption and battery voltage measurements via analog signal through a 6 Pin JST-GH cable. It comes with pre-soldered wires, capacitor, and XT60 connector on both ends, along with shrink tubing on the PCBA for physical protection.

Radio Telemetry V6
