Pixhawk PX4 PRO M8N PX4FLOW PIX 32 Flight Controller Autopilot with 4G SD RC Quadcopter Ardupilot ArduPlane ArduRover

$152.84 USD

~~$152.84 USD~~ $152.84 USD

Sale Sold out

Color Simple package Standard package High package 433MHZ 100MW M8N 433MHZ 500MW M8N 433MHZ 1000MW M8N 915MHZ 100MW M8N 915MHZ 500MW M8N 915MHZ 1000MW M8N

Quantity

The product has passed strict CE certification. If you need a PDF or more complete test certificate, please leave a message.

PIXHAWK PRO

Features:

Pixhawk PRO support the latest official ardupilot firmware and PX4 firmware.

1. The advanced 32-bit ARM CortexM4 high-performance processors(2MB flash), can run NuttX RTOS real-time operating system;

2. 14 PWM / servo output;

3. Bus interface (UART, I2C, SPI, CAN);

4. The integrated backup power and backup controller fails, the primary controller fails over to the backup control is safe;

5. Provide automatic and manual modes;

6. Provide redundant power input and failover;

7. Multicolor LED lights;

8. Provide multi-tone buzzer Interface

9. Micro SD recording flight data;

10.TYPE-C USB port

11.GH1.25 port

Specifications:

Interface

1.5 high voltage compatible UART 1, 2 with hardware flow control

2. 2 CAN

3.Spektrum DSM / DSM2 / DSM-X satellite receiver compatible input

4.Futaba SBUS compatible inputs and outputs

5.PPM Signal Input

6.RSSI (PWM or voltage) Input

7.I2C

8.SPI

9.3.3 and 6.6VADC input

10. External TYPEC USB Interface

Simple Package:

PIXHAWK PRO+ 4G TF Card + Safety Button + Buzzer +M8N GPS+ GPS Holder+ 3DR Power Module+ Shock Absorber

Standard Package:

PIXHAWK PRO(white or black shell)+ 4G TF Card + Safety Button + Buzzer + PPM Encoder + I2C Expansion Board+ 3 Line(4Pin 1.25 ,6Pin 1.25 ,3Pin 2.5.4)+M8N GPS+ GPS Holder+ 3DR Power Module+ Shock Absorber

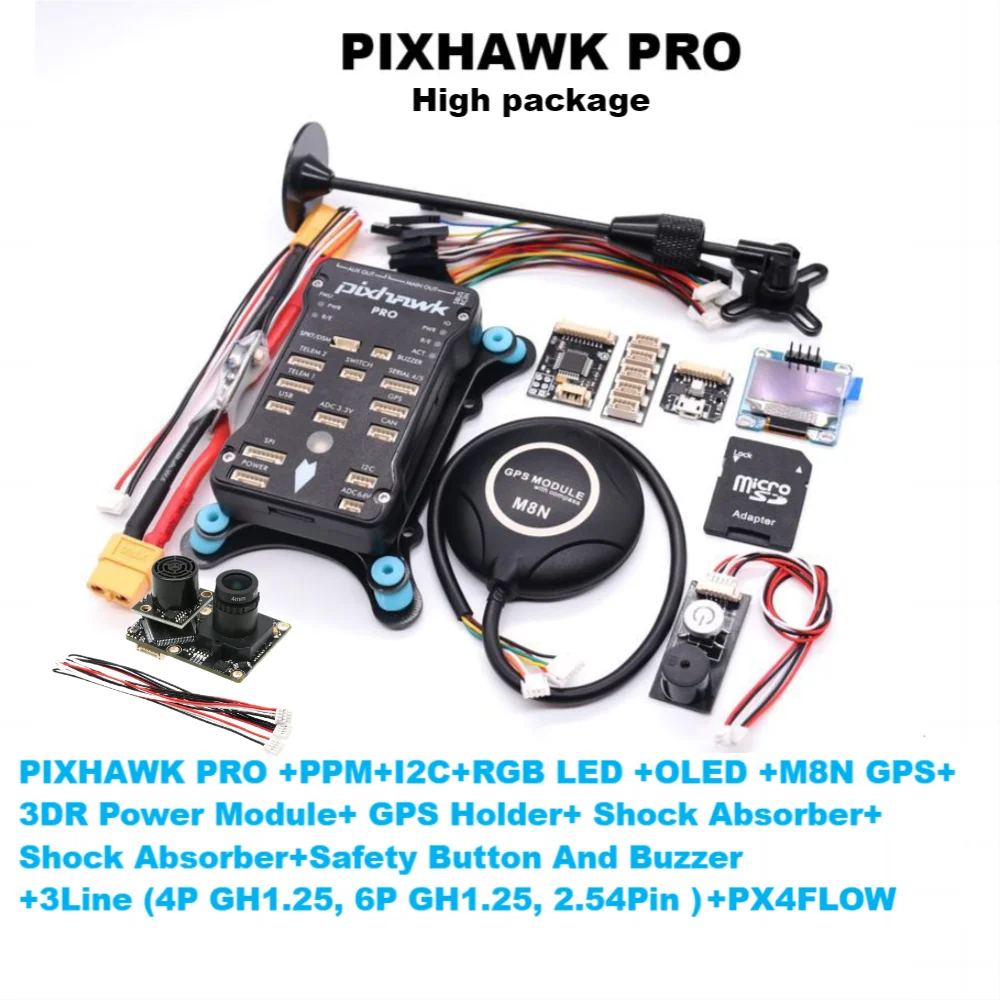

High Package:

PIXHAWK PRO(white or black shell)+ 4G TF Card + Safety Button + Buzzer + PPM Encoder + I2C Expansion Board+ RGB Led + OLED Screen+ 3 Line(4Pin 1.25 ,6Pin 1.25 ,3Pin 2.5.4)+M8N GPS+ GPS Holder+ 3DR Power Module+ Shock Absorber

433/915MHZ 100MW :

PIXHAWK PRO+ 4G TF Card + Safety Button + Buzzer + PPM Encoder + I2C Expansion Board+ 3 Line(4Pin 1.25 ,6Pin 1.25 ,3Pin 2.5.4) + M8N GPS+ GPS Holder+ 3DR Power Module+ Shock Absorber+433/915MHZ 100MW Radio telemetry V5

433/915MHZ 500MW :

PIXHAWK PRO(white or black shell)+ 4G TF Card + Safety Button + Buzzer + PPM Encoder + I2C Expansion Board+ RGB LED + OLED Screen+ 3 Line(4Pin 1.25 ,6Pin 1.25 ,3Pin 2.5.4) + M8N GPS+ GPS Holder+ 3DR Power Module+Shock Absorber+433/915MHZ 500MW Radio telemetry V5

433/915MHZ 1000MW :

PX4FLOW Optical Flow Sensor Smart Camera for PX4 PIXHAWK Flight Control System MB1043

Introduction:

- PX4Flow is an optical flow smart camera. It has a native resolution of 752Ã-480 pixels and calculates optical flow on a 4x binned and cropped area at 250 Hz (bright, outdoors), giving it a very high light sensitivy. Unlike many mouse sensors, it also works indoors and in low outdoor light conditions without the need for an illumination LED at 120 Hz (dark, indoors). It can be freely reprogrammed to do any other basic, efficient low-level computer vision task.

Hardware Specifications:

- STM32F405, 168 MHz Cortex M4F (GFLOPS 128 + 64 KB RAM)

- 752Ã-480 MT9V034 image sensor, L3GD20 3-axis Gyro

- 4 mm M12 lens (IR block filter)

- Size 45.5 mm x 35mm

- Power consumption 115mA / 5V

Package list:

- PX4FLOW Optical Flow Sensor Smart Camera ,MB1043 ultrasonic moudle x 1

- Connecting cable x 1

If the package includes the 3DR Power Module, the current hardware of the 3DR Power Module has been fully upgraded. Previously, it only supported a maximum of 6S, but now it supports a maximum of 12S. By default, XT60 plug is sent. If XT90 plug is required, please leave a message.
