Pixhawk PX4 PIX 2.4.8 32 Bit Flight Controller Autopilot with 4G SD Safety Switch Buzzer PPM I2C RC Quadcopter Ardupilot

Pixhawk PX4 PIX 2.4.8 32 Bit Flight Controller Autopilot with 4G SD Safety Switch Buzzer PPM I2C RC Quadcopter Ardupilot

$67.62 USD
$67.62 USD $67.62 USD
Sale Sold out
Color
The product has passed strict CE certification. If you need a PDF or more complete test certificate, please leave a message.
Note:
1.You can select White or Black shell of PIXHAWK flight controller, the hardware is same .White shell is more beautiful. If you need White shell,please leave a message.



2.If the package has 3DR power Module,by default we will send XT60 plug 3DR power Module,if you need XT90 ,please leave a message.

3. Pixhawk has many packages.We will send the package as you select.

Pixhawk PX4 Autopilot PIX 2.4.8 32 Bit Flight Controller

Features:
Pixhawk 2.4.8 support the latest official ardupilot firmware and PX4 firmware.
1. The advanced 32-bit ARM CortexM4 high-performance processors STM32F427VIT6(2MB flash), can run NuttX CHIBOS RTOS real-time operating system;
2. 14 PWM / servo output;
3. Bus interface (UART, I2C, SPI, CAN);
4. The integrated backup power and backup controller fails, the primary controller fails over to the backup control is safe;
5. Provide automatic and manual modes;
6. Provide redundant power input and failover;
7. Multicolor LED lights;
8. Provide multi-tone buzzer Interface
9. Micro SD recording flight data;

Specifications:

Interface
1 .5 high voltage compatible UART 1, 2 with hardware flow control
2. 2 CAN
3.Spektrum DSM / DSM2 / DSM-X satellite receiver compatible input
4.Futaba SBUS compatible inputs and outputs
5.PPM Signal Input
6.RSSI (PWM or voltage) Input
7.I2C
8.SPI
9.3.3 and 6.6VADC input
10. External MICRO USB Interface
If the package includes the 3DR Power Module, the current hardware of the 3DR Power Module has been fully upgraded. Previously, it only supported a maximum of 6S, but now it supports a maximum of 12S. By default, XT60 plug is sent. If XT90 plug is required, please leave a message.

Radio telemetry V5 can be used for wireless communication between pixhawk and computer or mobile phone.
Radio telemetry V1
WIFI V1.0 and V2.0 use 8bit CPU, only support UDP
WIFI V3.0 use 32 BIT CPU, support TCP and UDP.
WIFI V2.0 and V3.0 use external antenna (5DB)
M9N GPS Module

M9N is a GPS module commonly used in unmanned aerial vehicles, with the following characteristics and applications:

High precision positioning: The M9N adopts advanced GNSS technology, supports multiple satellite navigation systems, and can provide high-precision position positioning information. For unmanned aerial vehicles, it can achieve accurate positioning and navigation.

Multi system support: The M9N supports multiple satellite navigation systems, including GPS, GLONASS, Galileo, BeiDou, etc. This allows drones to receive multiple satellite signals simultaneously, improving positioning accuracy and reliability.

PX4FLOW Optical Flow Sensor Smart Camera
PX4FLOW Optical Flow Sensor Smart Camera for PX4 PIXHAWK Flight Control System  MB1043

Introduction:
- PX4Flow is an optical flow smart camera. It has a native resolution of 752Ã-480 pixels and calculates optical flow on a 4x binned and cropped area at 250 Hz (bright, outdoors), giving it a very high light sensitivy. Unlike many mouse sensors, it also works indoors and in low outdoor light conditions without the need for an illumination LED at 120 Hz (dark, indoors). It can be freely reprogrammed to do any other basic, efficient low-level computer vision task.

Hardware Specifications:
- STM32F405, 168 MHz Cortex M4F (GFLOPS  128 + 64 KB RAM)
- 752Ã-480 MT9V034 image sensor, L3GD20 3-axis Gyro
- 4 mm M12 lens (IR block filter)
- Size 45.5 mm x 35mm
- Power consumption 115mA / 5V

Package list:
- PX4FLOW  Optical Flow Sensor Smart Camera ,MB1043 ultrasonic moudle x 1
- Connecting cable x 1

OLED Module can display some message.
MINI OSD
PDB:

VTX1000 is video transmitter,support 25MW-600MW,48 channel (with heat sink abd 3DB antenna )

FPV Camera

450 Carbon Fiber Frame


BLHELI ESC:

A. Features

A1: Use authentic electronic components to ensure high quality and enhance the current endurance ability of the ESC.

A2: Based on BLHeli firmware, optimized for high performance with great linearity and much quicker throttle response.

A3: Special designed for multirotors, and compatible with fixed-wing aircrafts and helicopters.

A4: Multiple protection features including Low-voltage cut-off protection / over-heat protection / throttle signal loss protection.

A5: Throttle range can be configured and is fully compatible with all receivers, providing smooth, linear and precise throttle response. A6: All parameters can be programmed via using a transmitter, including default settings.

B. Productspecification


2212  920KV Motor

1045 Propellers

Packing list: (full set as your choose)

Simple Collocation: PIXHAWK 2.4.8(white or black shell)+ 4G TF Card + Safety Button + Buzzer + 3 Line(4Pin 1.25 ,6Pin 1.25 ,3Pin 2.5.4)
Standard Collocation: PIXHAWK 2.4.8(white or black shell)+ 4G TF Card + Safety Button + Buzzer + PPM Encoder + I2C Expansion Board+ 3 Line(4Pin 1.25 ,6Pin 1.25 ,3Pin 2.5.4)
High Collocation: PIXHAWK 2.4.8(white or black shell)+ 4G TF Card + Safety Button + Buzzer + PPM Encoder + I2C Expansion Board+ RGB Led + OLED Screen+ 3 Line(4Pin 1.25 ,6Pin 1.25 ,3Pin 2.5.4)

WIFI Package A: PIXHAWK 2.4.8(white or black shell)+ 4G TF Card + Safety Button + Buzzer + Wifi Telemetry  +3DR Power Module + 3 Line(4Pin 1.25 ,6Pin 1.25 ,3Pin 2.5.4) (Wifi Telemetry is same as 3DR radio telemetry)

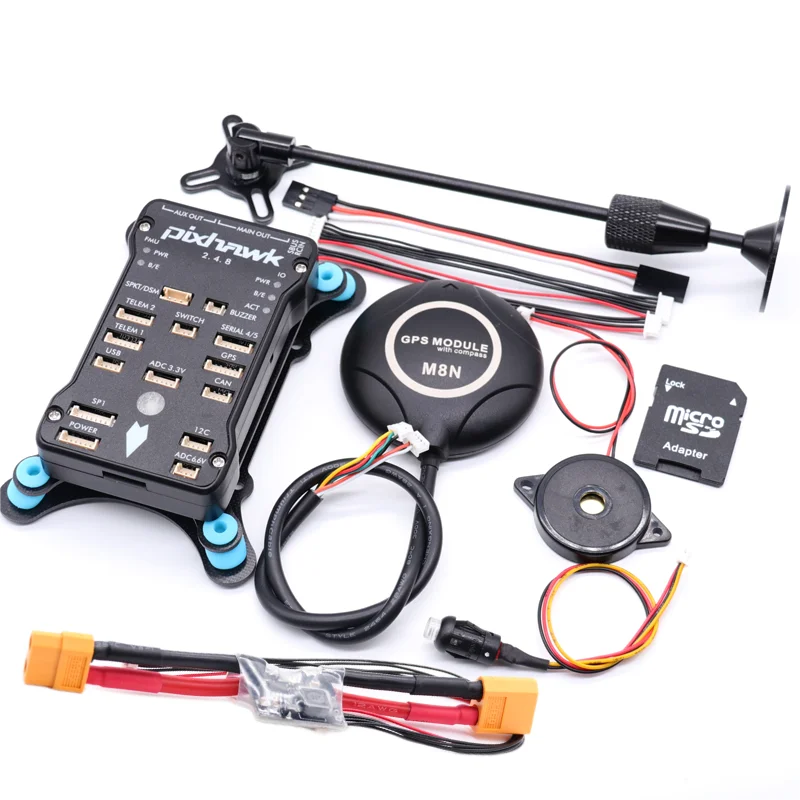

Standard Package:PIXHAWK 2.4.8(white or black shell)+ 4G TF Card + Safety Button + Buzzer + PPM Encoder + I2C Expansion Board+ 3 Line(4Pin 1.25 ,6Pin 1.25 ,3Pin 2.5.4) + M8N GPS+ GPS Holder+  3DR Power Module+ Shock Absorber
Wifi Package:PIXHAWK 2.4.8(white or black shell)+ 4G TF Card + Safety Button + Buzzer + PPM Encoder + I2C Expansion Board+ 3 Line(4Pin 1.25 ,6Pin 1.25 ,3Pin 2.5.4) + M8N GPS
+ GPS Holder+  3DR Power Module+ Shock Absorber Wifi Telemetry   (Wifi Telemetry is same as 3DR radio telemetry)
High Package:PIXHAWK 2.4.8(white or black shell)+ 4G TF Card + Safety Button + Buzzer + PPM Encoder + I2C Expansion Board+ RGB LED + OLED Screen+ 3 Line(4Pin 1.25 ,6Pin 1.25 ,3Pin 2.5.4) + M8N GPS+ GPS Holder+  3DR Power Module+Shock Absorber
433MHZ 1000MW Package:PIXHAWK 2.4.8(white or black shell)+ 4G TF Card + Safety Button + Buzzer + PPM Encoder +OLED Module+RGB LED+I2C Expansion Board+ 3 Line(4Pin 1.25 ,6Pin 1.25 ,3Pin 2.5.4) + M8N GPS+ GPS Holder+  3DR Power Module+ Shock Absorber +
433MHZ 1000MW 3DR Radio Telemetry V5
433MHZ 1000MW OSD package:PIXHAWK 2.4.8(white or black shell)+ 4G TF Card + Safety Button + Buzzer + PPM Encoder +OLED Module+RGB LED+I2C Expansion Board+ 3 Line(4Pin 1.25 ,6Pin 1.25 ,3Pin 2.5.4) + M8N GPS+ GPS Holder+  3DR Power Module+ Shock Absorber +
433MHZ 1000MW 3DR Radio Telemetry V5+ MINIOSD + PDB

PIXHAWK TOP package:PIXHAWK 2.4.8(white or black shell)+ 4G TF Card + Safety Button + Buzzer + PPM Encoder +OLED Module+RGB LED+I2C Expansion Board+ 3 Line(4Pin 1.25 ,6Pin 1.25 ,3Pin 2.5.4) + M8N GPS+ GPS Holder+  3DR Power Module+ Shock Absorber +
433MHZ 1000MW 3DR Radio Telemetry V5+ MINIOSD + PDB +VTX1000 Video Transmitter +1080P Camera
