PIXhawk PRO PX4 PIX 32 Bit Flight Controller white shell PPM Encode I2C Autopilot RC Quadcopter Ardupilot ArduPlane ArduRover
PIXhawk PRO PX4 PIX 32 Bit Flight Controller white shell PPM Encode I2C Autopilot RC Quadcopter Ardupilot ArduPlane ArduRover
Regular price
$62.32 USD
Regular price
$62.32 USD
Sale price
$62.32 USD
Unit price
per
Couldn't load pickup availability
The product has passed strict CE certification. If you need a PDF or more complete test certificate, please leave a message.

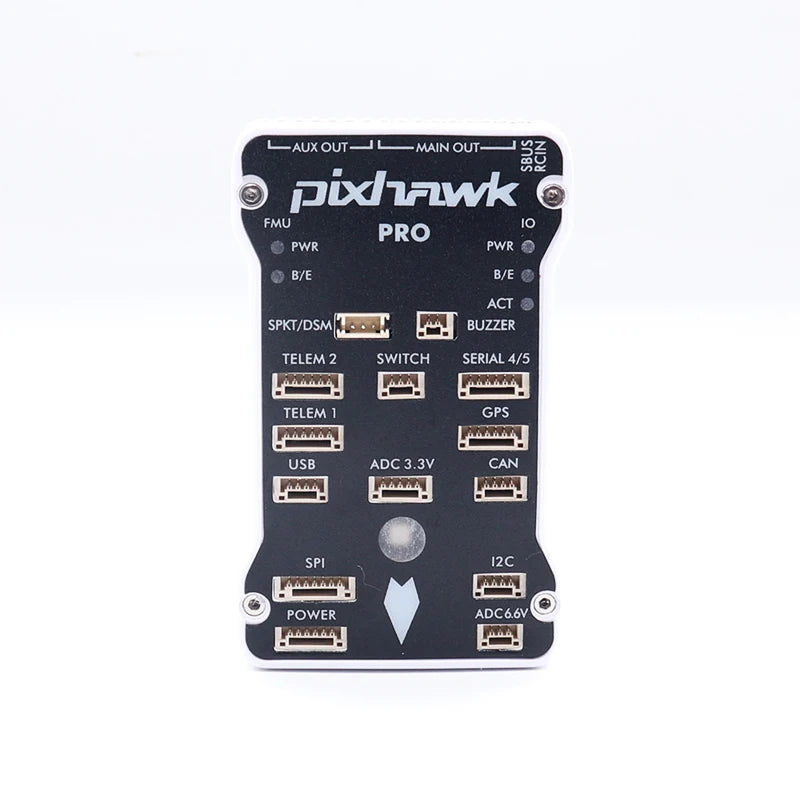

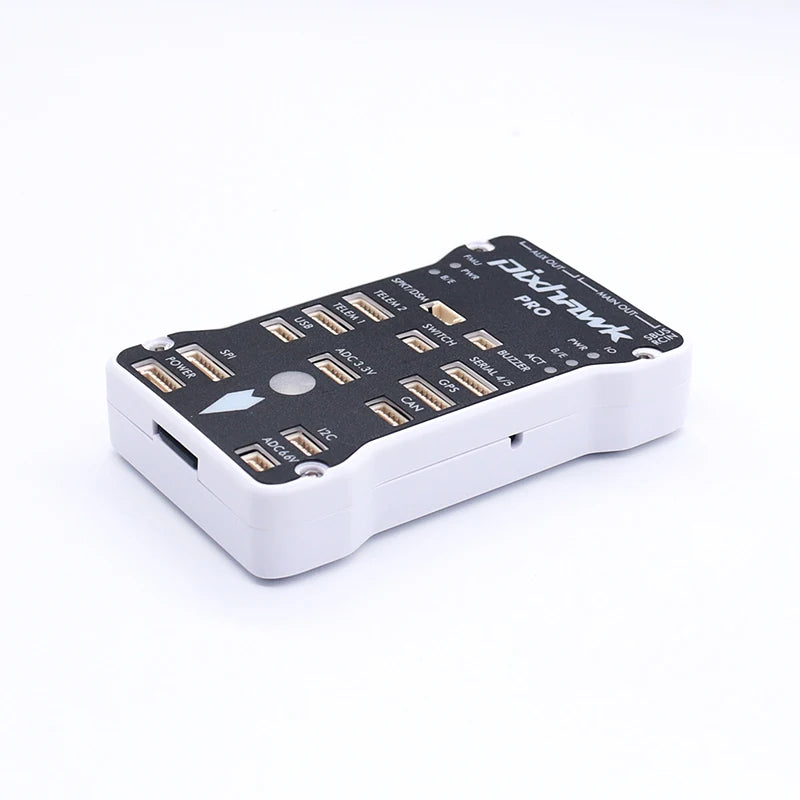

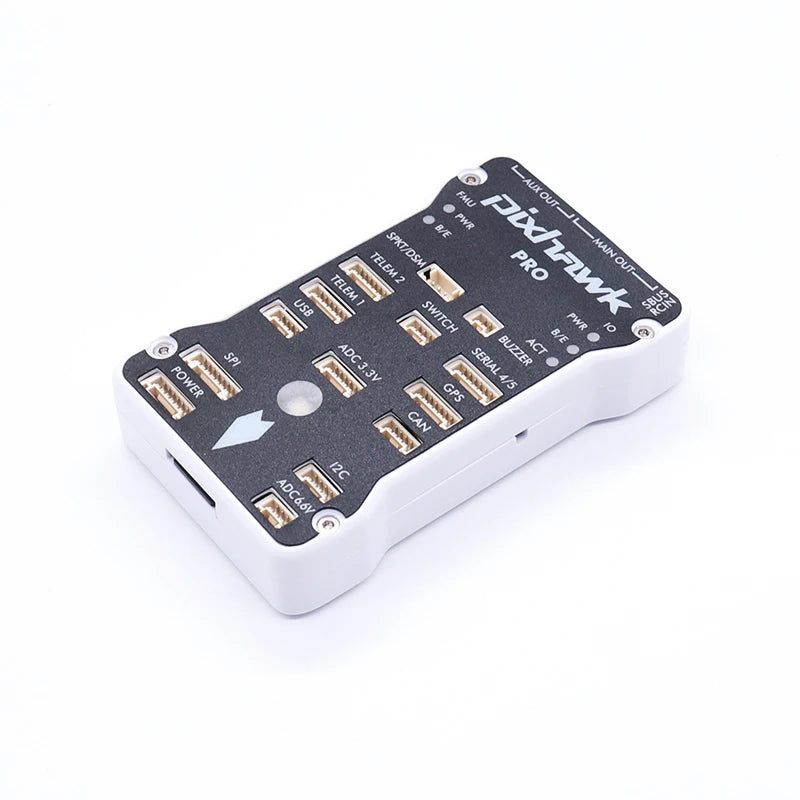

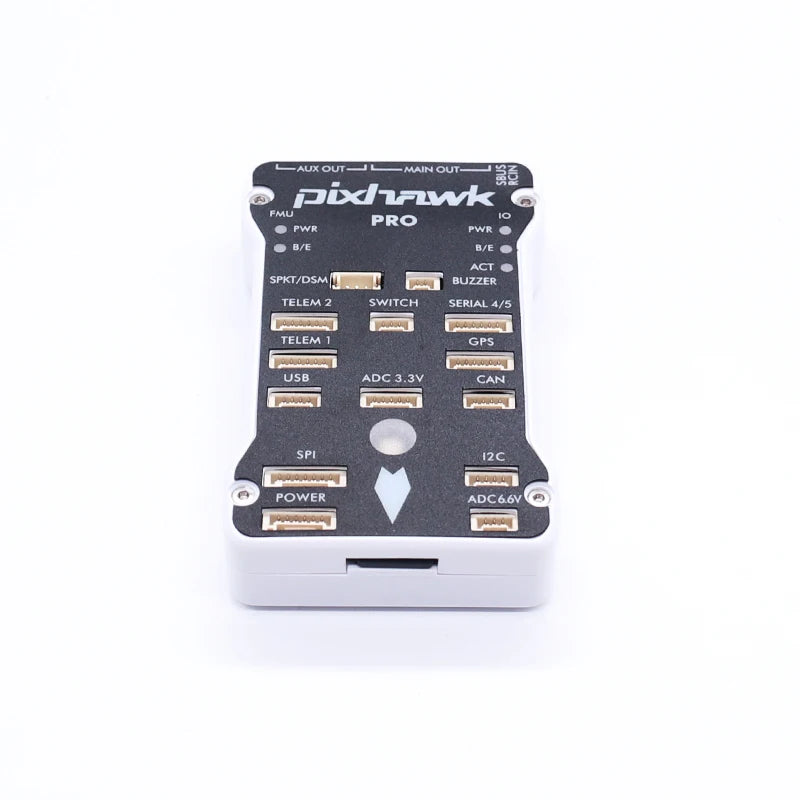

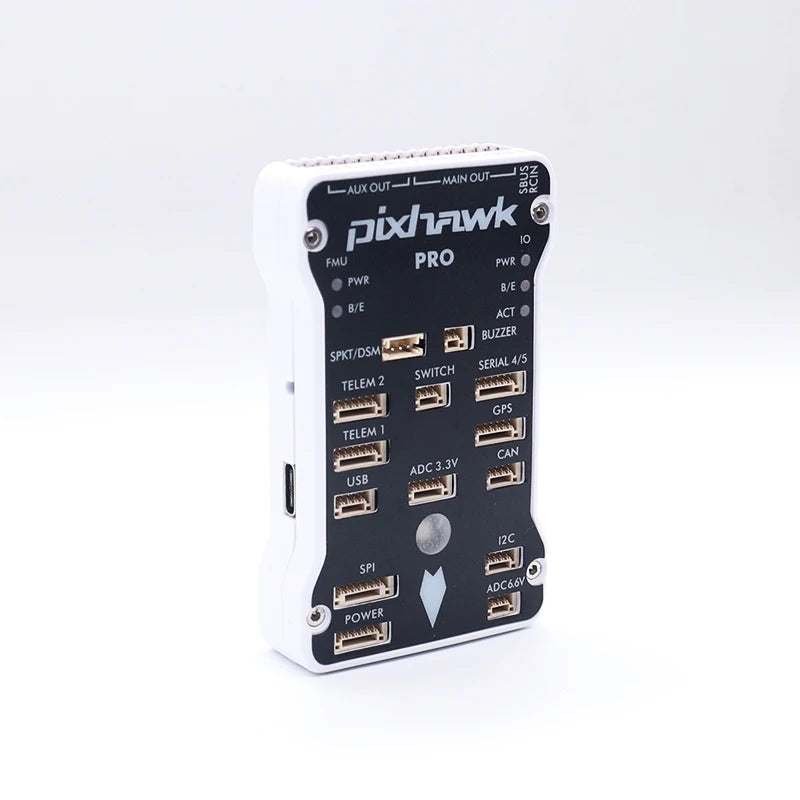

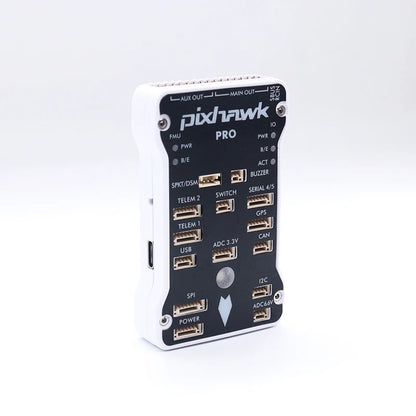

PIXHAWK PRO
Features:
Pixhawk PRO support the latest official ardupilot firmware and PX4 firmware.
1. The advanced 32-bit ARM CortexM4 high-performance processors(2MB flash), can run NuttX RTOS real-time operating system;
2. 14 PWM / servo output;
3. Bus interface (UART, I2C, SPI, CAN);
4. The integrated backup power and backup controller fails, the primary controller fails over to the backup control is safe;
5. Provide automatic and manual modes;
6. Provide redundant power input and failover;
7. Multicolor LED lights;
8. Provide multi-tone buzzer Interface
9. Micro SD recording flight data;
10.TYPE-C USB port
11.GH1.25 port
Specifications:
Interface
1.5 high voltage compatible UART 1, 2 with hardware flow control
2. 2 CAN
3.Spektrum DSM / DSM2 / DSM-X satellite receiver compatible input
4.Futaba SBUS compatible inputs and outputs
5.PPM Signal Input
6.RSSI (PWM or voltage) Input
7.I2C
8.SPI
9.3.3 and 6.6VADC input
10. External MICRO USB Interface

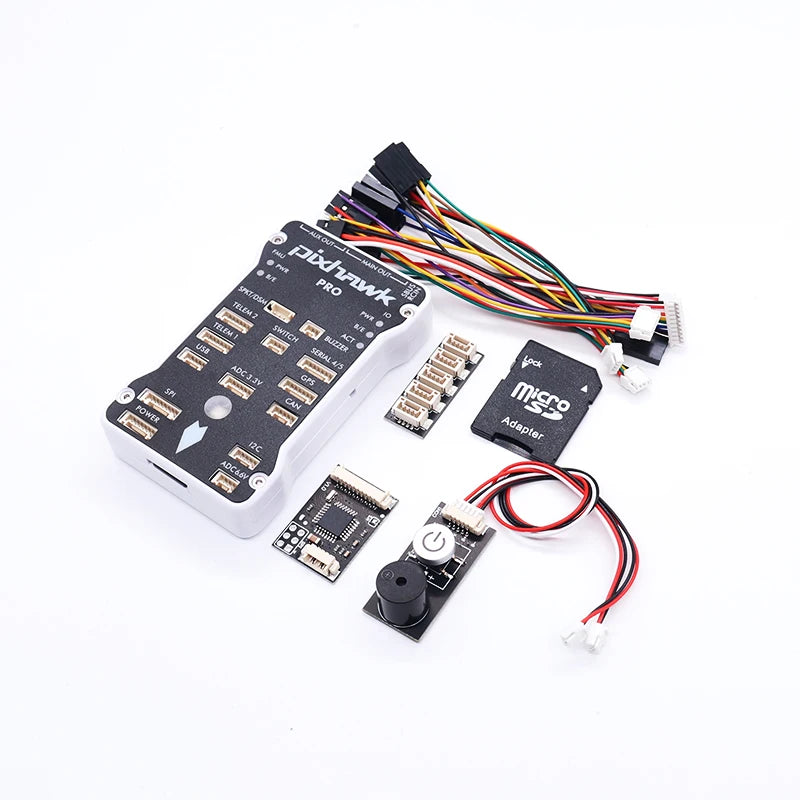

Package include:
PIXHAWK PRO x1
Safety Button And Buzzer X1
PPM Encoder Module X1
I2C GH1.25 Port Module X1
3Line (4P GH1.25, 6P GH1.25, 2.54Pin )
