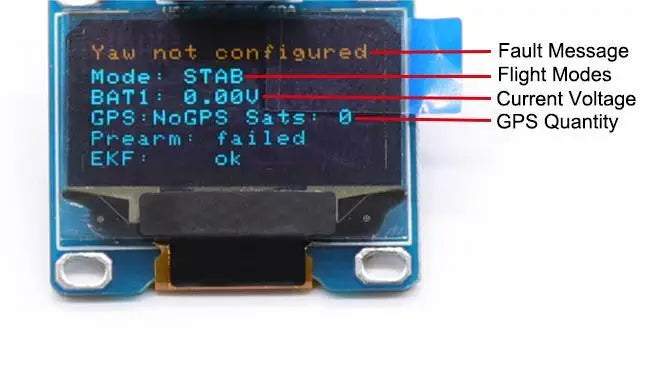

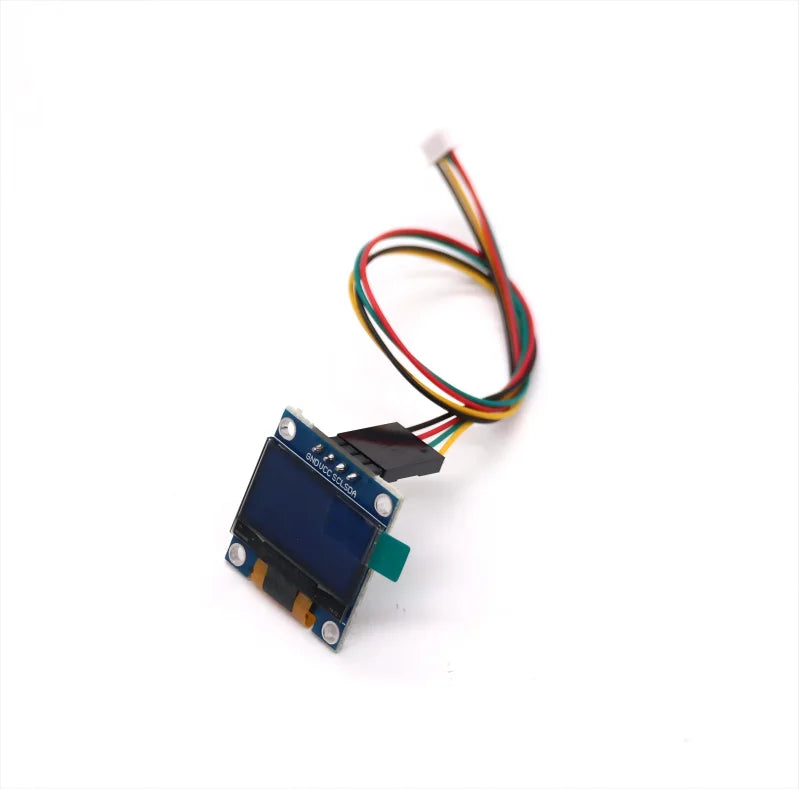

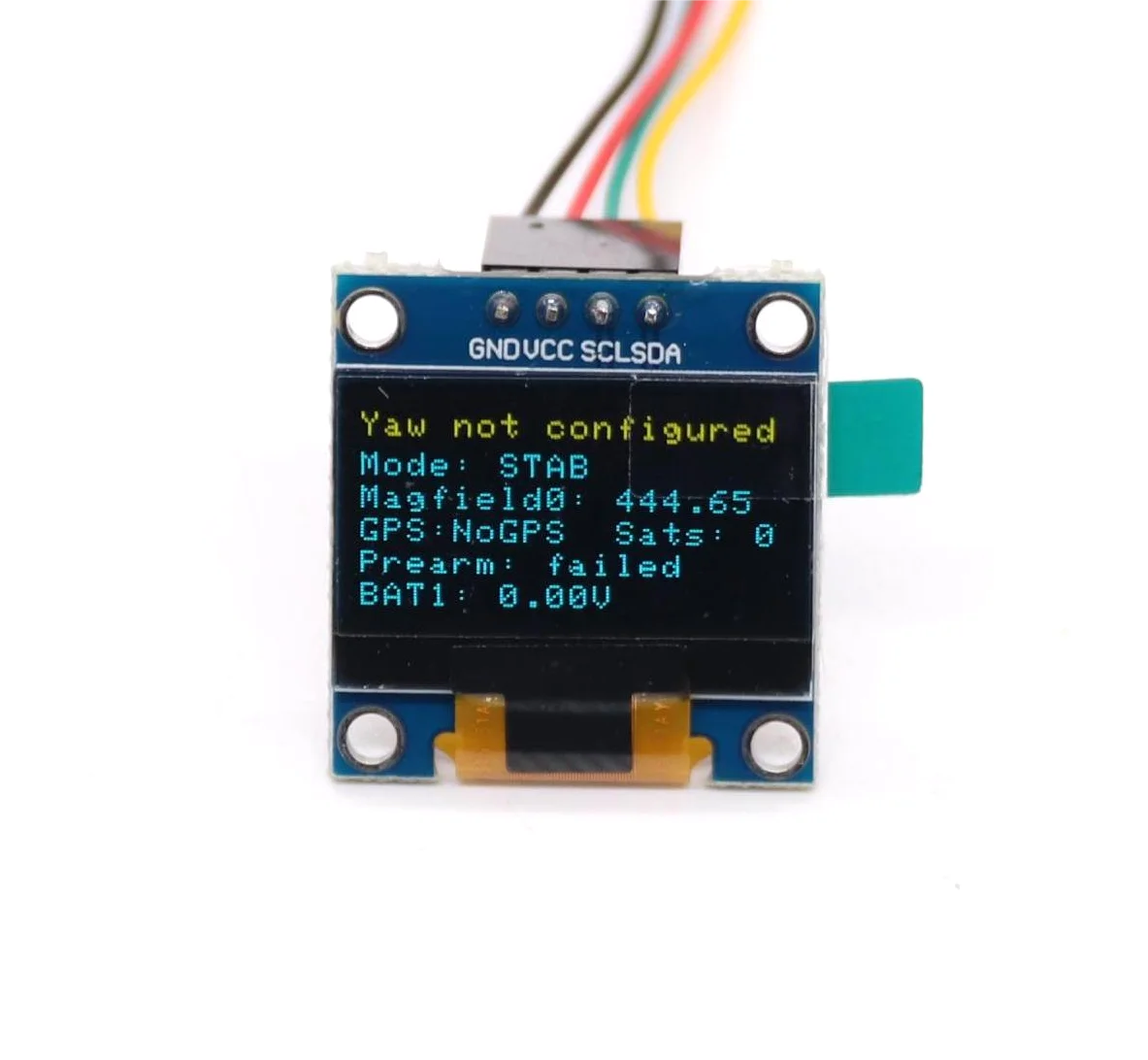

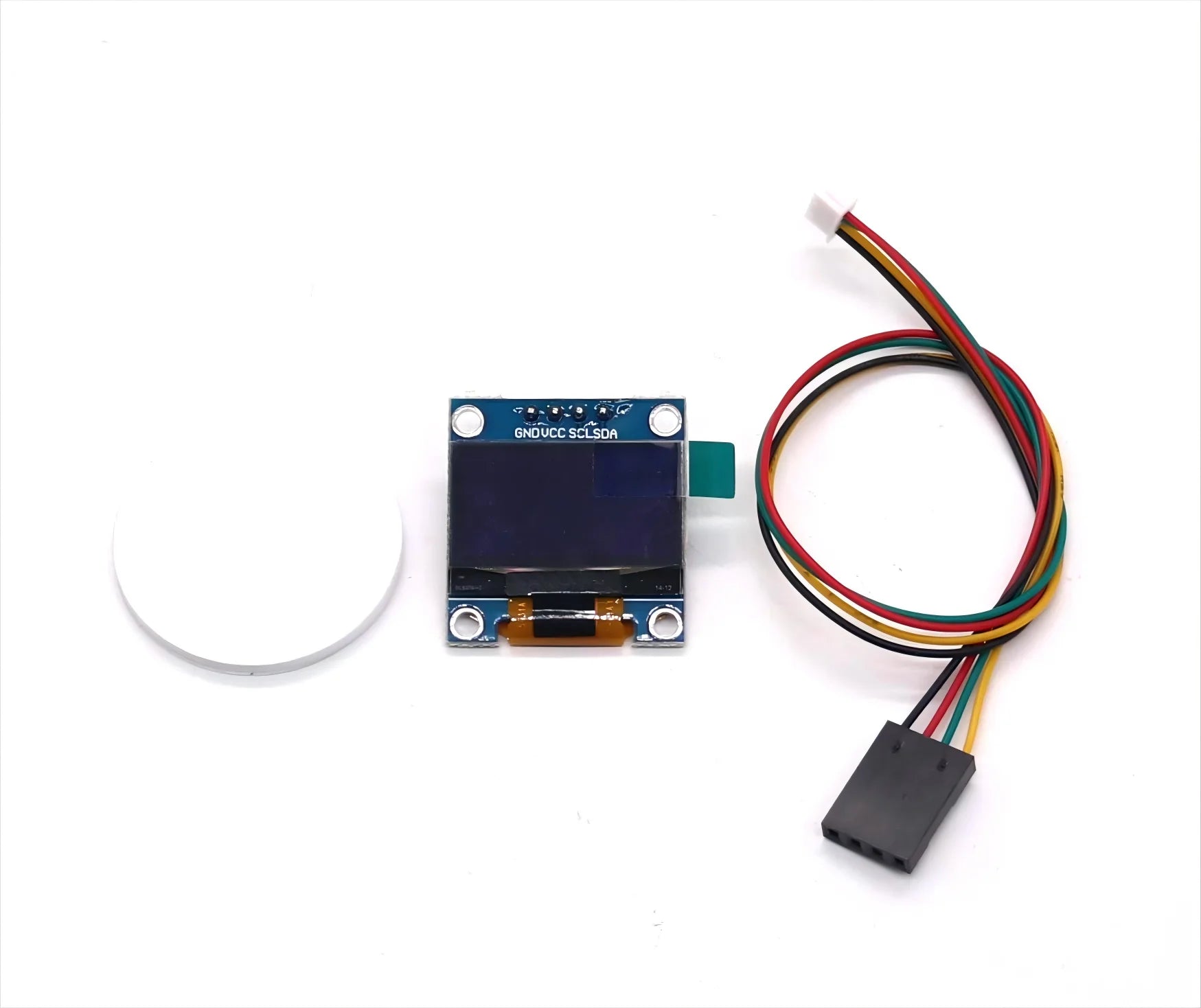

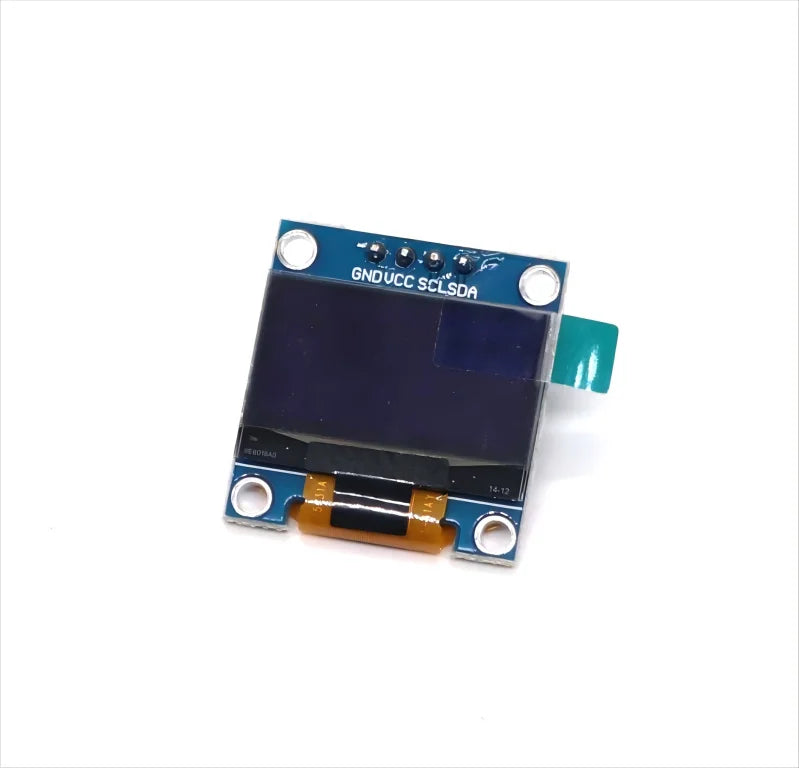

OSD OLED Display for Pixhawk 2.4.8 PIX PX4 Flight Control Flight display flight status Connected to I2C Interface of Pixhawk
OSD OLED Display for Pixhawk 2.4.8 PIX PX4 Flight Control Flight display flight status Connected to I2C Interface of Pixhawk
Regular price
$6.93 USD
Regular price
$6.93 USD
Sale price
$6.93 USD
Unit price
per
Couldn't load pickup availability
Use OLED for PIXHAWK, must follow these steps,
-

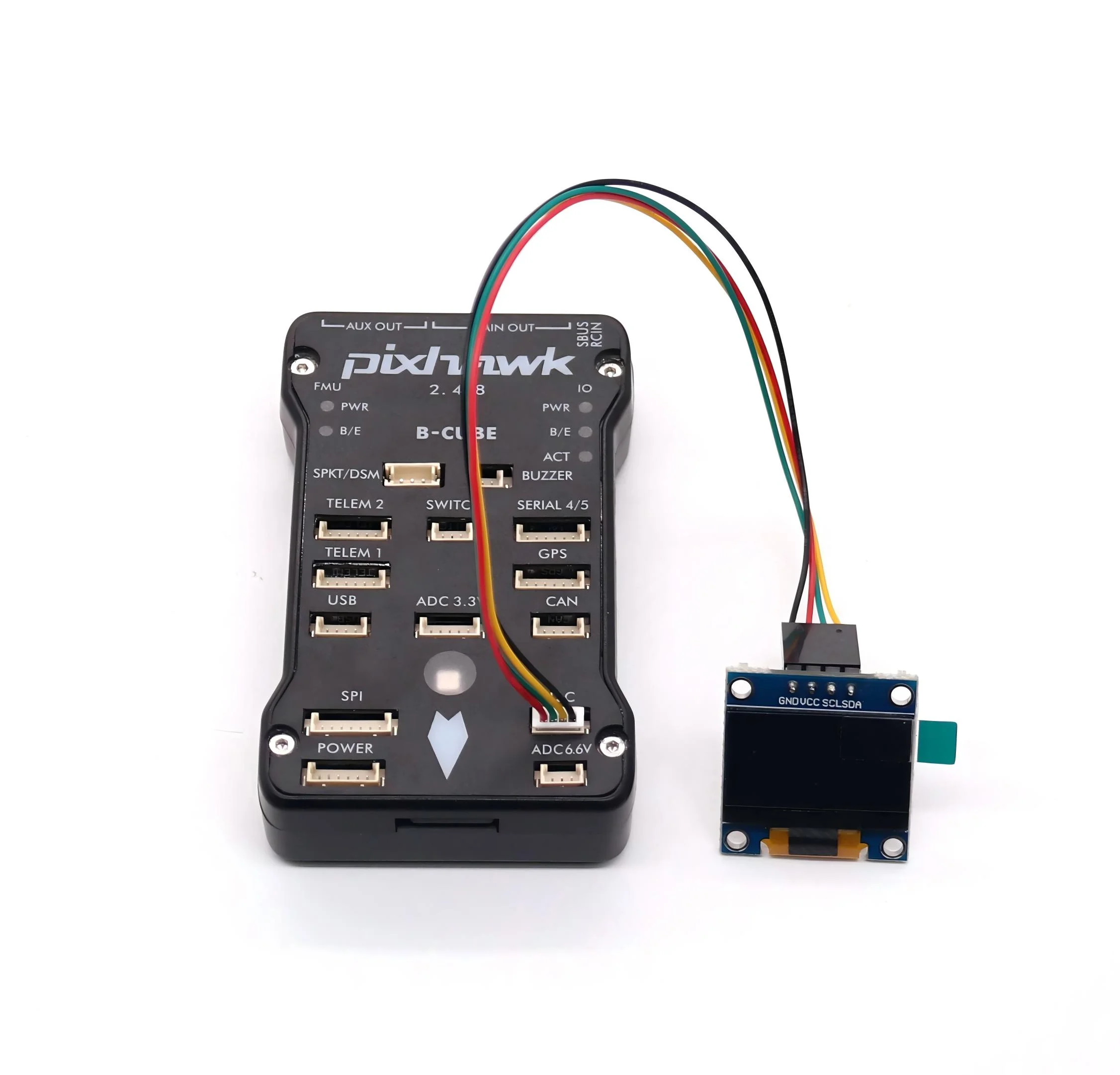

Connect OLED to I2C port of Pixhawk
-
Upload ardupilot firmware, at least 3.5 version, below 3.5 version will not be display.
-
Use Mission Planner to modify parameters NTF_DISPLAY_TYPE to 1. After modify, remember to click “Write Params” button.
-
Now the OLED is only supported for ardupilot firmware,can not be supported PX4 firmware
5. Reboot the board.
