B-CUBE NEW ZD680 PIXHAWK2.4.8 M8N Full Carbon Fiber Hexa-Rotor Foldable Arm Hexacopter Frame Kit forCopter with Unflodable Landing Gear
B-CUBE NEW ZD680 PIXHAWK2.4.8 M8N Full Carbon Fiber Hexa-Rotor Foldable Arm Hexacopter Frame Kit forCopter with Unflodable Landing Gear
Regular price
$417.04 USD
Regular price
$417.04 USD
Sale price
$417.04 USD
Quantity
Couldn't load pickup availability
Pixhawk PX4 Autopilot PIX 2.4.8 32 Bit Flight Controller
Features:
Pixhawk 2.4.8 support the latest official ardupilot firmware and PX4 firmware.
1. The advanced 32-bit ARM CortexM4 high-performance processors STM32F427VIT6(2MB flash), can run NuttX CHIBOS RTOS real-time operating system;
2. 14 PWM / servo output;
3. Bus interface (UART, I2C, SPI, CAN);
4. The integrated backup power and backup controller fails, the primary controller fails over to the backup control is safe;
5. Provide automatic and manual modes;
6. Provide redundant power input and failover;
7. Multicolor LED lights;
8. Provide multi-tone buzzer Interface
9. Micro SD recording flight data;
Specifications:
Interface
1 .5 high voltage compatible UART 1, 2 with hardware flow control
2. 2 CAN
3.Spektrum DSM / DSM2 / DSM-X satellite receiver compatible input
4.Futaba SBUS compatible inputs and outputs
5.PPM Signal Input
6.RSSI (PWM or voltage) Input
7.I2C
8.SPI
9.3.3 and 6.6VADC input
10. External MICRO USB Interface
Simple Package:
NEW ZD680 Full Carbon Fiber+ 4pcs BLHELI 40A Brushless ESC+
2Pairs 3K Carbon Fiber Propeller 1255 +4PCS 3508 380KV Motor +
PIXHAWK 2.4.8+ 4G TF Card + Safety Button + Buzzer +M8N GPS+ GPS Holder+ 3DR Power Module+ Shock Absorber
Standard Package:
NEW ZD680 Full Carbon Fiber+ 4pcs BLHELI 40A Brushless ESC+
2Pairs 3K Carbon Fiber Propeller 1255 +4PCS 3508 380KV Motor +
PIXHAWK 2.4.8(white or black shell)+ 4G TF Card + Safety Button + Buzzer + PPM Encoder + I2C Expansion Board+ 3 Line(4Pin 1.25 ,6Pin 1.25 ,3Pin 2.5.4)+M8N GPS+ GPS Holder+ 3DR Power Module+ Shock Absorber
High Package:
NEW ZD680 Full Carbon Fiber+ 4pcs BLHELI 40A Brushless ESC+
2Pairs 3K Carbon Fiber Propeller 1255 +4PCS 3508 380KV Motor +
PIXHAWK 2.4.8(white or black shell)+ 4G TF Card + Safety Button + Buzzer + PPM Encoder + I2C Expansion Board+ RGB Led + OLED Screen+ 3 Line(4Pin 1.25 ,6Pin 1.25 ,3Pin 2.5.4)+M8N GPS+ GPS Holder+ 3DR Power Module+ Shock Absorber
WIFI V2.0 B/V2.0 C :
NEW ZD680 Full Carbon Fiber+ 4pcs BLHELI 40A Brushless ESC+
2Pairs 3K Carbon Fiber Propeller 1255 +4PCS 3508 380KV Motor +
PIXHAWK2.4.8(white or black shell)+4G TF Card+ Safety Button+Buzzer + PPM Encoder+ I2C Expansion Board
+3Line(4Pin1.25,6Pin1.25,3Pin2.5.4)+M8N GPS+GPS Holder +3DR Power Module+Shock Absorber+WlFl V2.0 B/V2.0 C
WIFI V3.0 B/V3.0 C :
NEW ZD680 Full Carbon Fiber+ 4pcs BLHELI 40A Brushless ESC+
2Pairs 3K Carbon Fiber Propeller 1255 +4PCS 3508 380KV Motor +
PIXHAWK2.4.8(white or black shell)+4G TF Card+Safety Button +Buzzer+PPM Encoder+I2C Expansion Board+
RGB Led+OLED Screen +3Line(4Pin1.25,6Pin1.25,3Pin2.5.4)+M8N GPS+ GPS Holder+3DR Power Module
+Shock Absorber+WlFl V3.0 B/V3.0 C
433/915MHZ 100MW V1 :
NEW ZD680 Full Carbon Fiber+ 4pcs BLHELI 40A Brushless ESC+
2Pairs 3K Carbon Fiber Propeller 1255 +4PCS 3508 380KV Motor +
PIXHAWK 2.4.8(white or black shell)+ 4G TF Card + Safety Button + Buzzer + PPM Encoder + I2C Expansion Board+ 3 Line(4Pin 1.25 ,6Pin 1.25 ,3Pin 2.5.4) + M8N GPS+ GPS Holder+ 3DR Power Module+ Shock Absorber+433/915MHZ 100MW Radio telemetry V1
433/915MHZ 500MW V1:
NEW ZD680 Full Carbon Fiber+ 4pcs BLHELI 40A Brushless ESC+
2Pairs 3K Carbon Fiber Propeller 1255 +4PCS 3508 380KV Motor +
PIXHAWK 2.4.8(white or black shell)+ 4G TF Card + Safety Button + Buzzer + PPM Encoder + I2C Expansion Board+ RGB LED + OLED Screen+ 3 Line(4Pin 1.25 ,6Pin 1.25 ,3Pin 2.5.4) + M8N GPS+ GPS Holder+ 3DR Power Module+Shock Absorber+433/915MHZ 500MW Radio telemetry V1
433/915MHZ 1000MW V1:
NEW ZD680 Full Carbon Fiber+ 4pcs BLHELI 40A Brushless ESC+
2Pairs 3K Carbon Fiber Propeller 1255 +4PCS 3508 380KV Motor +
PIXHAWK 2.4.8(white or black shell)+ 4G TF Card + Safety Button + Buzzer + PPM Encoder + I2C Expansion Board+ RGB LED + OLED Screen+ 3 Line(4Pin 1.25 ,6Pin 1.25 ,3Pin 2.5.4) + M8N GPS+ GPS Holder+ 3DR Power Module+Shock Absorber+433/915MHZ 1000MW Radio telemetry V1
433/915MHZ 100MW V5:
NEW ZD680 Full Carbon Fiber+ 4pcs BLHELI 40A Brushless ESC+
2Pairs 3K Carbon Fiber Propeller 1255 +4PCS 3508 380KV Motor +
PIXHAWK 2.4.8+ 4G TF Card + Safety Button + Buzzer + PPM Encoder + I2C Expansion Board+ 3 Line(4Pin 1.25 ,6Pin 1.25 ,3Pin 2.5.4) + M8N GPS+ GPS Holder+ 3DR Power Module+ Shock Absorber+433/915MHZ 100MW Radio telemetry V5
433/915MHZ 500MW V5:
NEW ZD680 Full Carbon Fiber+ 4pcs BLHELI 40A Brushless ESC+
2Pairs 3K Carbon Fiber Propeller 1255 +4PCS 3508 380KV Motor +
PIXHAWK 2.4.8(white or black shell)+ 4G TF Card + Safety Button + Buzzer + PPM Encoder + I2C Expansion Board+ RGB LED + OLED Screen+ 3 Line(4Pin 1.25 ,6Pin 1.25 ,3Pin 2.5.4) + M8N GPS+ GPS Holder+ 3DR Power Module+Shock Absorber+433/915MHZ 500MW Radio telemetry V5
433/915MHZ 1000MW V5:
NEW ZD680 Full Carbon Fiber+ 4pcs BLHELI 40A Brushless ESC+
2Pairs 3K Carbon Fiber Propeller 1255 +4PCS 3508 380KV Motor +
PIXHAWK 2.4.8(white or black shell)+ 4G TF Card + Safety Button + Buzzer + PPM Encoder + I2C Expansion Board+ RGB LED + OLED Screen+ 3 Line(4Pin 1.25 ,6Pin 1.25 ,3Pin 2.5.4) + M8N GPS+ GPS Holder+ 3DR Power Module+Shock Absorber+433/915MHZ 1000MW Radio telemetry V5
433MHZV5 1000MW OSD:
NEW ZD680 Full Carbon Fiber+ 4pcs BLHELI 40A Brushless ESC+
2Pairs 3K Carbon Fiber Propeller 1255 +4PCS 3508 380KV Motor +
PIXHAWK 2.4.8(white or black shell)+ 4G TF Card + Safety Button + Buzzer + PPM Encoder + I2C Expansion Board+ RGB LED + OLED Screen+ 3 Line(4Pin 1.25 ,6Pin 1.25 ,3Pin 2.5.4) + M8N GPS+ GPS Holder+ 3DR Power Module+Shock Absorber+433MHZ V5 1000MW Radio telemetry+MINI OSD +PDB

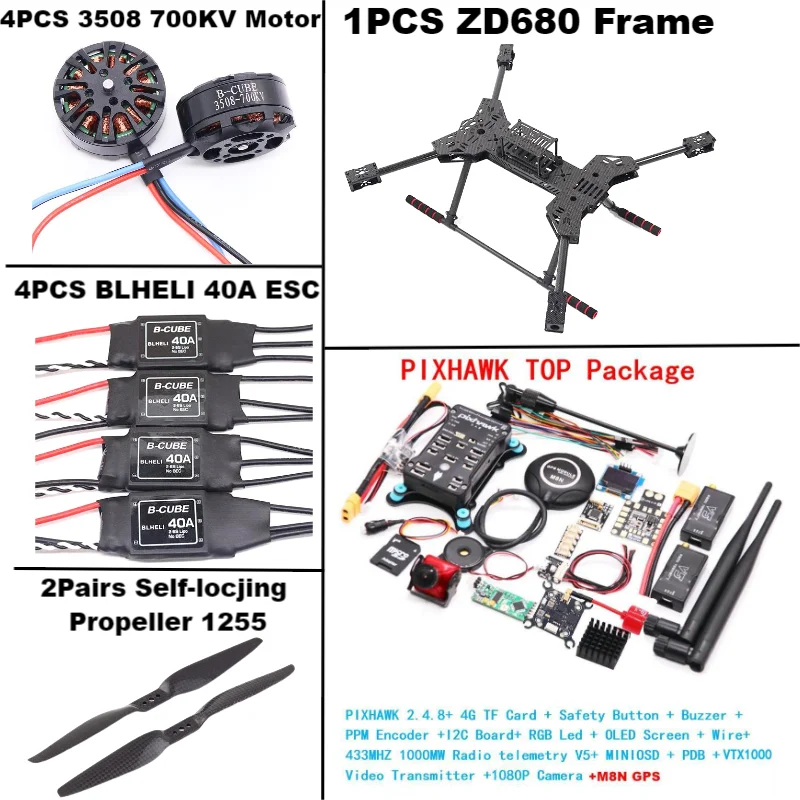

TOP Package:
NEW ZD680 Full Carbon Fiber+ 4pcs BLHELI 40A Brushless ESC+
2Pairs 3K Carbon Fiber Propeller 1255 +4PCS 3508 380KV Motor +
PIXHAWK TOP package:PIXHAWK 2.4.8(white or black shell)+ 4G TF Card + Safety Button + Buzzer + PPM Encoder +OLED Module+RGB LED+I2C Expansion Board+ 3 Line(4Pin 1.25 ,6Pin 1.25 ,3Pin 2.5.4) + M8N GPS+ GPS Holder+ 3DR Power Module+ Shock Absorber +
433MHZ1000MW 3DR Radio Telemetry V5+ MINIOSD + PDB +VTX1000 +1080P Camera
NEW ZD680 Full Carbon Fiber
Product Overview: FPV New F680 All 3K Carbon Fiber ZD 680 Foldable Arm Aircraft Frame Kit
High-Performance Design: A frame kit crafted for drone enthusiasts and professionals, made from high-strength 3K carbon fiber for exceptional durability and lightweight performance.
Foldable Arm Structure: Features a unique foldable arm design with 16MM carbon fiber tubes, allowing quick collapsing and deployment for enhanced portability and storage convenience while maintaining structural stability during flight.
Robust Body: Constructed with a 2MM carbon fiber body, ensuring strong support and rigidity.
Flight Control Recommendation: We recommend pairing with the PIXHAWK flight control system, renowned for its advanced navigation and stability, making the F680 ideal for FPV racing, aerial photography, and custom drone projects.
Recommended Configuration:
Flight Controller: PIXHAWK flight control system, offering precise navigation and stable performance.
ESC: 40A Electronic Speed Controller, ensuring reliable power management.
Motor: 3508 380KV motors, delivering powerful thrust and high efficiency.
Propeller: 12-inch (1255) propellers, achieving a perfect balance of lift and agility.
Battery: Supports 4S to 6S LiPo batteries, meeting diverse flight duration needs.
Key Benefits:
Material Strength: Benefits from the toughness of 3K carbon fiber and the convenience of foldable 16MM arms, combined with the rigidity of a 2MM carbon fiber body.
Versatile Application: An ideal platform for a wide range of applications, whether for racing enthusiasts or aerial photography experts.
Customizable Solution: Provides a high-quality, customizable drone solution for various projects.
Radio telemetry V1
OLED Module can display some message.
MINI OSD
VTX1000 is video transmitter,support 25MW-600MW,48 channel (with heat sink abd 3DB antenna)
Description:

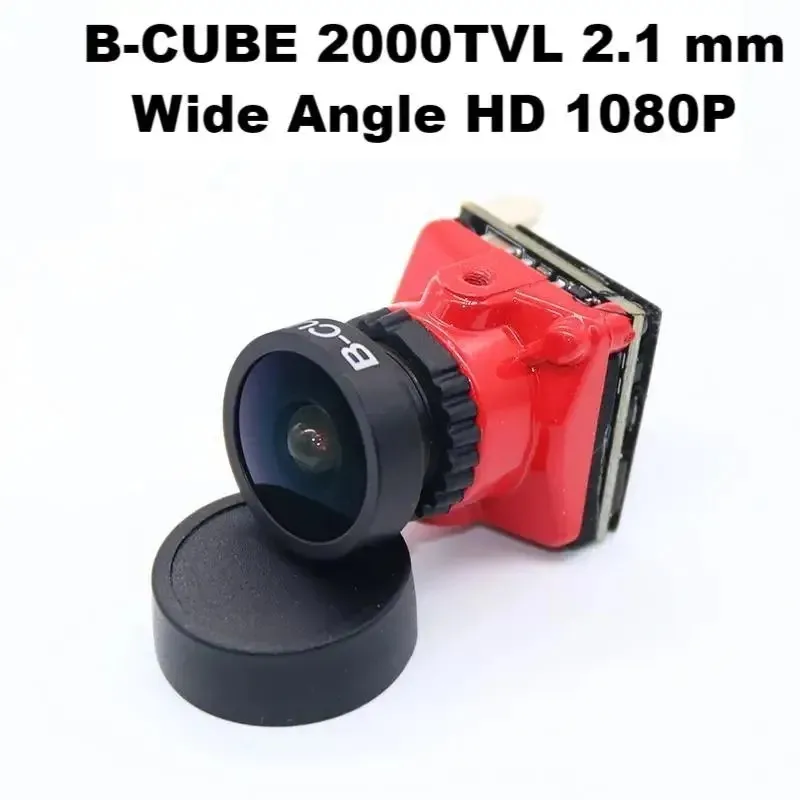

Model: MINI MS-1672 FPV cameras
Sensor: 1/1/8 "CMOS D1080H
Horizontal resolution: 2000TVL
Horizontal field of view: 165
Lens: 2.1mm lens
Video format: NTC&PAL (adjustable)
Image scale: 4:3&16:9 (automatic recognition)
Wide Dynamic Range: Super WDR
Noise reduction: 3DNR
Low illumination: 0.001LUX
Video output: CVBS
Day and night: external/internal/black and white/color
Language: (English/Chinese/Traditional Chinese/pyccnna)
ESOABIK/TTASSNO/FRABCAUS/
POSDIM/PORTUGUES/Japanese
Electronic Shutter: PAL: 1/50-100000NTSC: 1/60-100000
Wide voltage input: 5-36V
Working temperature: -20-60
Weight: 110g
Dimensions: 19 19 19mm
Resolution: 960 * 1080
Feature:
Upgraded Mista 2000TVL 2.1mm Wide Angle HD 1080P CCD PAL/NTSC Switchable 16:9 OSD FPV Camera.
Package included:
1 x Upgraded Mista FPV Camera
Radio telemetry V5:
WIFI V1.0 and V2.0 use 8bit CPU, only support UDP
WIFI V3.0 use 32 BIT CPU, support TCP and UDP.
WIFI V2.0 and V3.0 use external antenna (5DB)
4PCS 3508 380KV Motor
Color Classification:Black
Motor Technical Parameters:
KV Value:KV380
Model:MX3508
Motor Diameter:42mm
Motor Length (No Shaft):24mm
Stator Diameter:35mm
Stator Length:8mm
Shaft Diameter:4mm
Weight:90g
Recommended Battery:4-6 Cells
Idle Current:0.3A
Top Mounting Hole:12mm x 12mm
Bottom Mounting Hole:25mm x 25mm
Suitable for:
Quadcopters
Hexacopters
Octocopters
Agricultural drones (plant protection machines)
Regarding Dynamic Balance:
We will test each motor before shipping to ensure it meets our factory standards. So, you don't need to worry about dynamic balance.
Note:No 3-socket pad is provided. Please refer to the diagram for specific components.
MX3508 Motor Features:
Flat design
Multiple slot extreme outer brushless motor
High torque and efficiency
Competitive price
Compatible with most market-leading drone frames (with multiple mounting holes)
Aesthetically pleasing design
Propeller Installation:
We use a hub-less propeller installation method, which provides more stability. The carbon propellers are installed without using propeller clamps, ensuring better protection and preventing damage.
Motor Dynamic Test Results:
Our motors have been tested by multiple professional drone photographers and videographers, and they all received excellent feedback.
Features:
- Using Multicopter special program, fast throttle response,surpasses all kinds of open source software;
- Firmware was optimized specifically for disc motor, and it has a very good compatibility;
- Highly intelligent, strong adaptive capacity, reserve the timing setting item (height/middle timing), easy to use;
- Throttle signal line is twisted wire to reduce crosstalk within the transmission signal generated by the copper, so that more stable flight;
- Supports refresh rates up to 621Hz throttle signal, compatible with various flight controllers. (Note: the throttle signal over 500Hz are all non-standard throttle signal);
- Using MOSFET special driver IC, its performance and stability far surpass the driving circuit with discrete components built;
- Ultra-low resistance MOSFET, strong flow capacity.
2Pairs T-Motor 3K Carbon Fiber Propeller 1255
The new T-motor propeller-type aerial dedicated full carbon paddle paddle-type three-hole installation
Using carbon content of 100% pure imported Toray carbon fiber 3K woven, high temperature and pressure precast precision machining, hardness higher than conventional products market.
