MARK4-HD Mark 4 HD 5inch 240mm / 7inch 295mm FPV Frame Kit Carbon Fiber w/ 5mm Arm For O3 FPV Racing Drone Quadcopter Freestyle

$20.18 USD

~~$20.18 USD~~ $20.18 USD

Sale Sold out

Color Mark4-HD 5Inch Mark4-HD 7Inch

Quantity

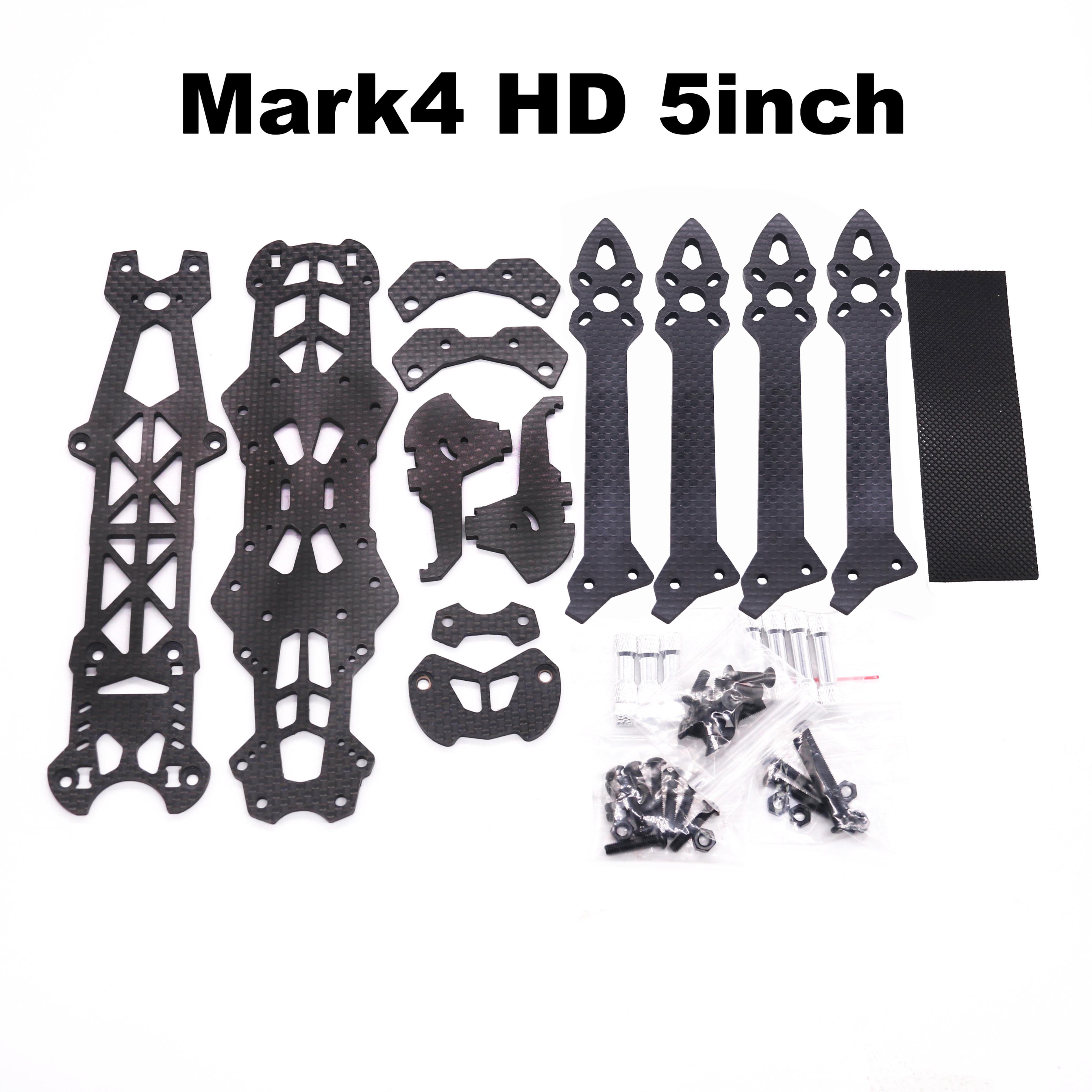

MARK4 HD 5 Inch 240mm Frame Kit Compatible with DJI FPV Air Unit
Recommended Configuration: -Flight control:RF/Kiss/F4/F3/F7
-Motor:2204/2205/2206/2207/2305/2306/2407
-ESC:20A-50A
-Battery:3S-6S 1500-2200mAh
-Material: 3K Carbon Fiber
-Frame Type: H
-Wheelbase: 240mm
-Propeller Size: 5 Inch
-Size: 145*172mm
-Weight: 120g
-Top Plate: 2.5mm
-Bottom Plate: 2.5mm
-Arm: 5mm
- Camera installation distance: 19mm-20mm
-Image transmission installation hole distance: compatible 30.5mm/20mm
-Flight control installation hole distance: compatible 30.5mm/20mm

MARK4 HD 7 Inch 295mm Frame Kit Compatible with DJI FPV Air Unit O3 Recommended Configuration:
-Flight control:RF/Kiss/F4/F3/F7
-Motor:2204/2205/2206/2207/2305/2306/2407
-ESC:20A-50A
-Battery:3S-6S 1500-2200mAh
-Material: 3K Carbon Fiber
-Frame Type: H
-Wheelbase: 295mm
-Propeller Size: 7 Inch
-Size: 182*232mm
-Weight: 130g
-Top Plate: 2.5mm
-Bottom Plate: 2.5mm
-Arm: 5mm
- Camera installation distance: 20mm
-Image transmission installation hole distance: compatible 30.5mm/20mm
-Flight control installation hole distance: compatible 30.5mm/20mm

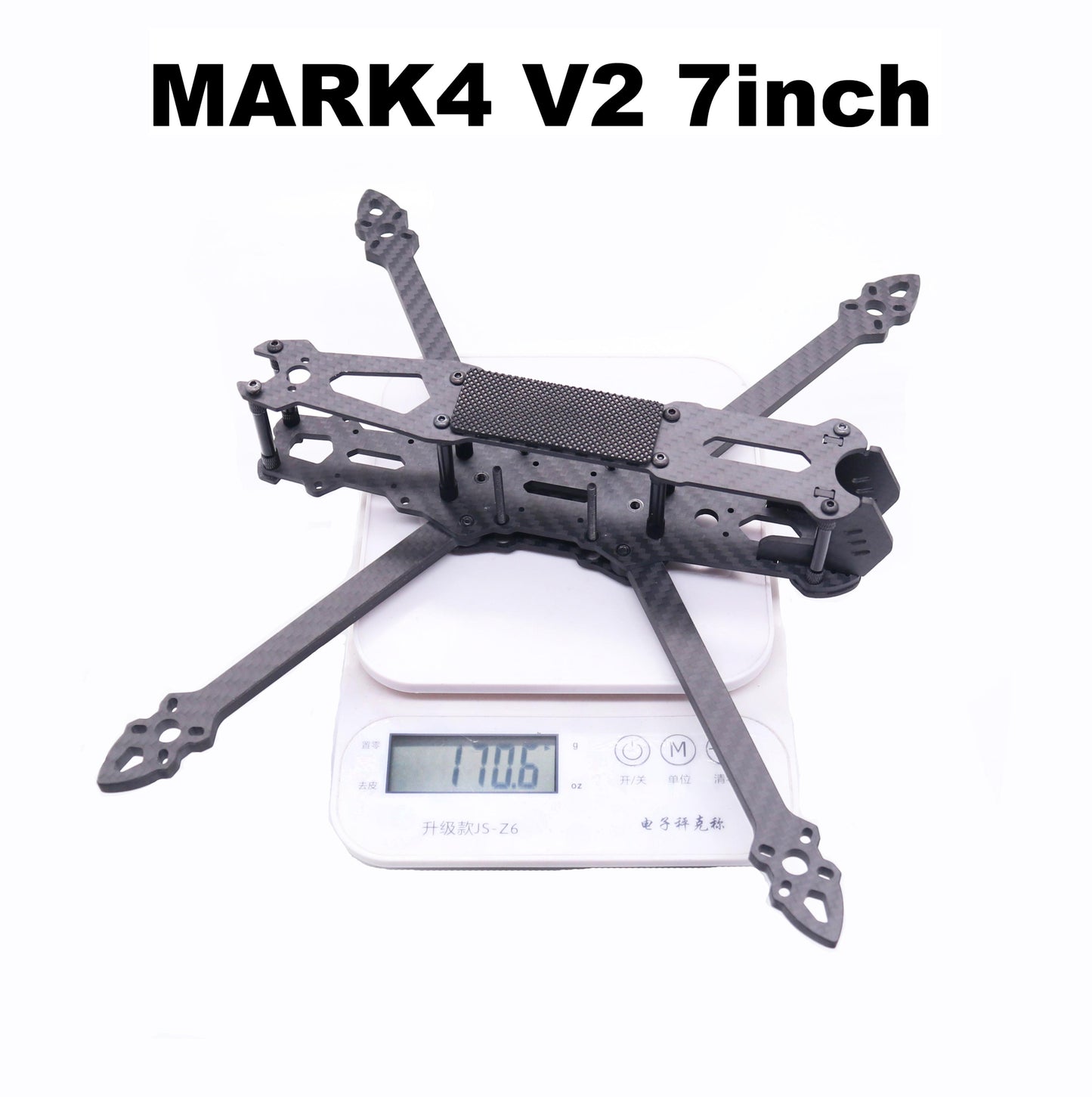

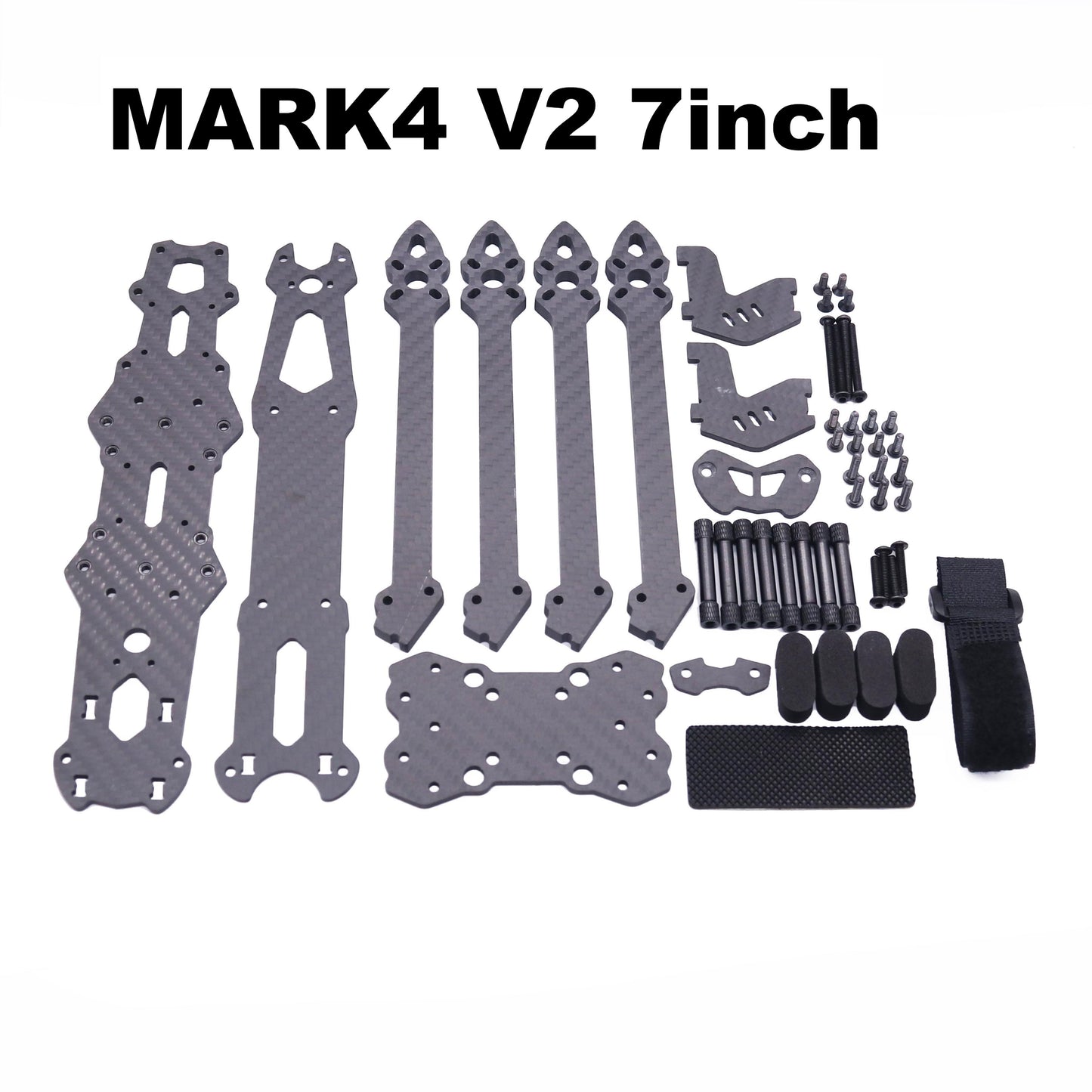

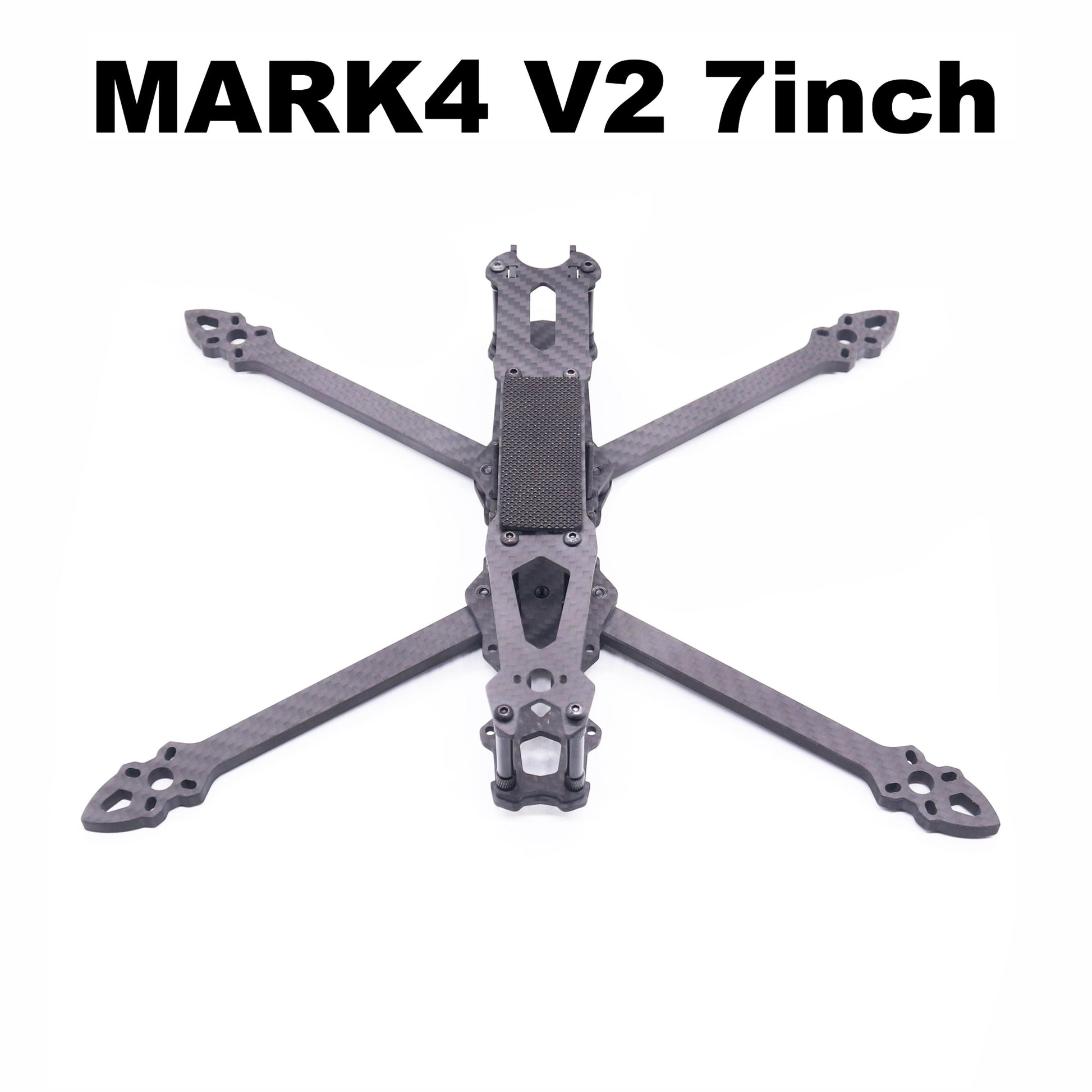

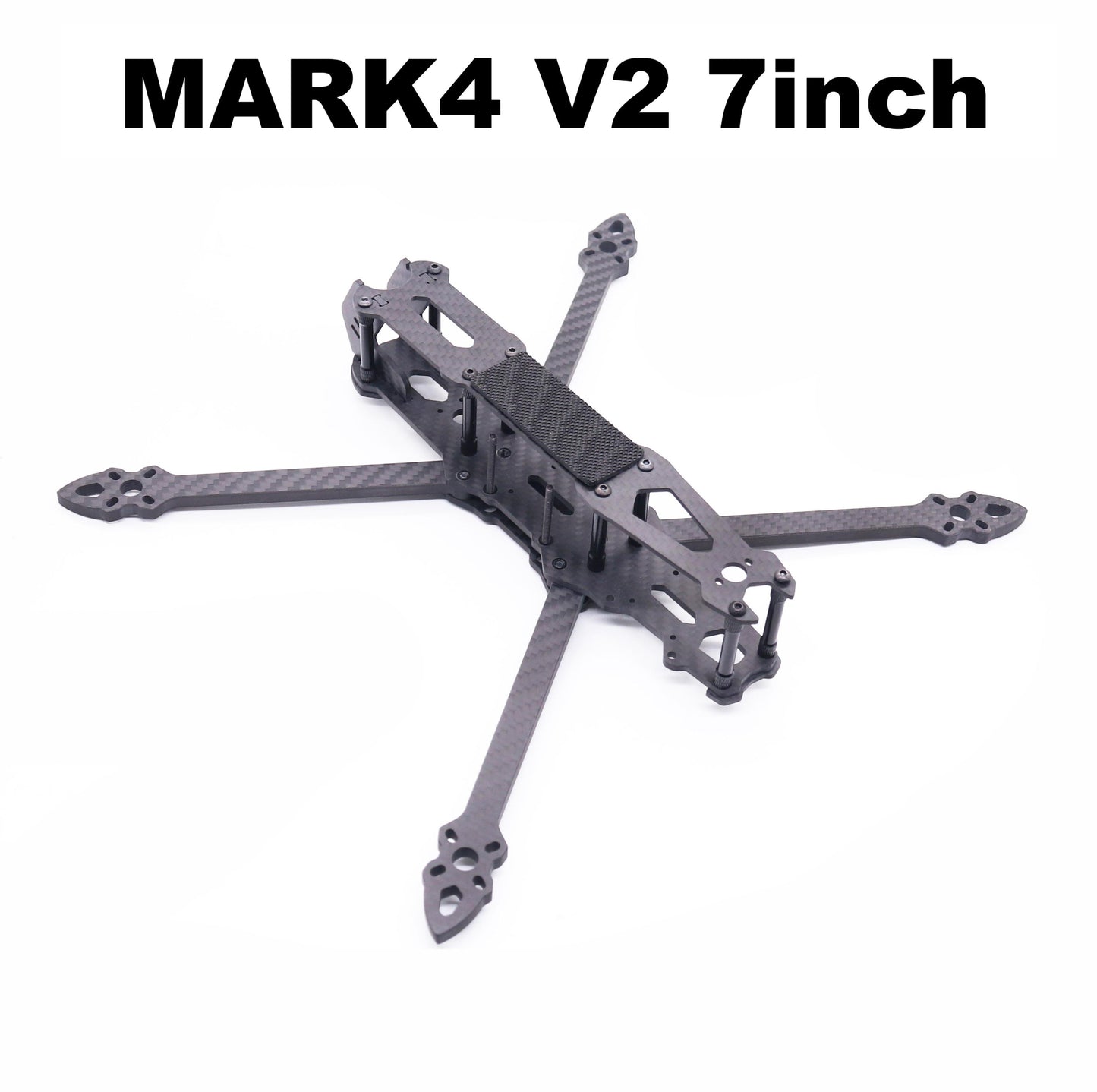

MARK4 7-inch HD

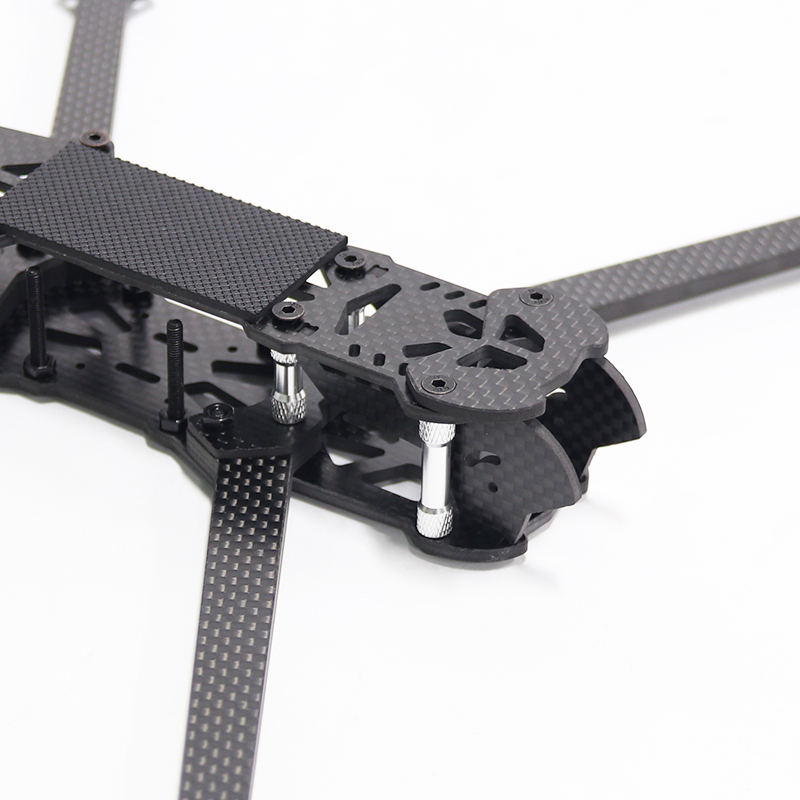

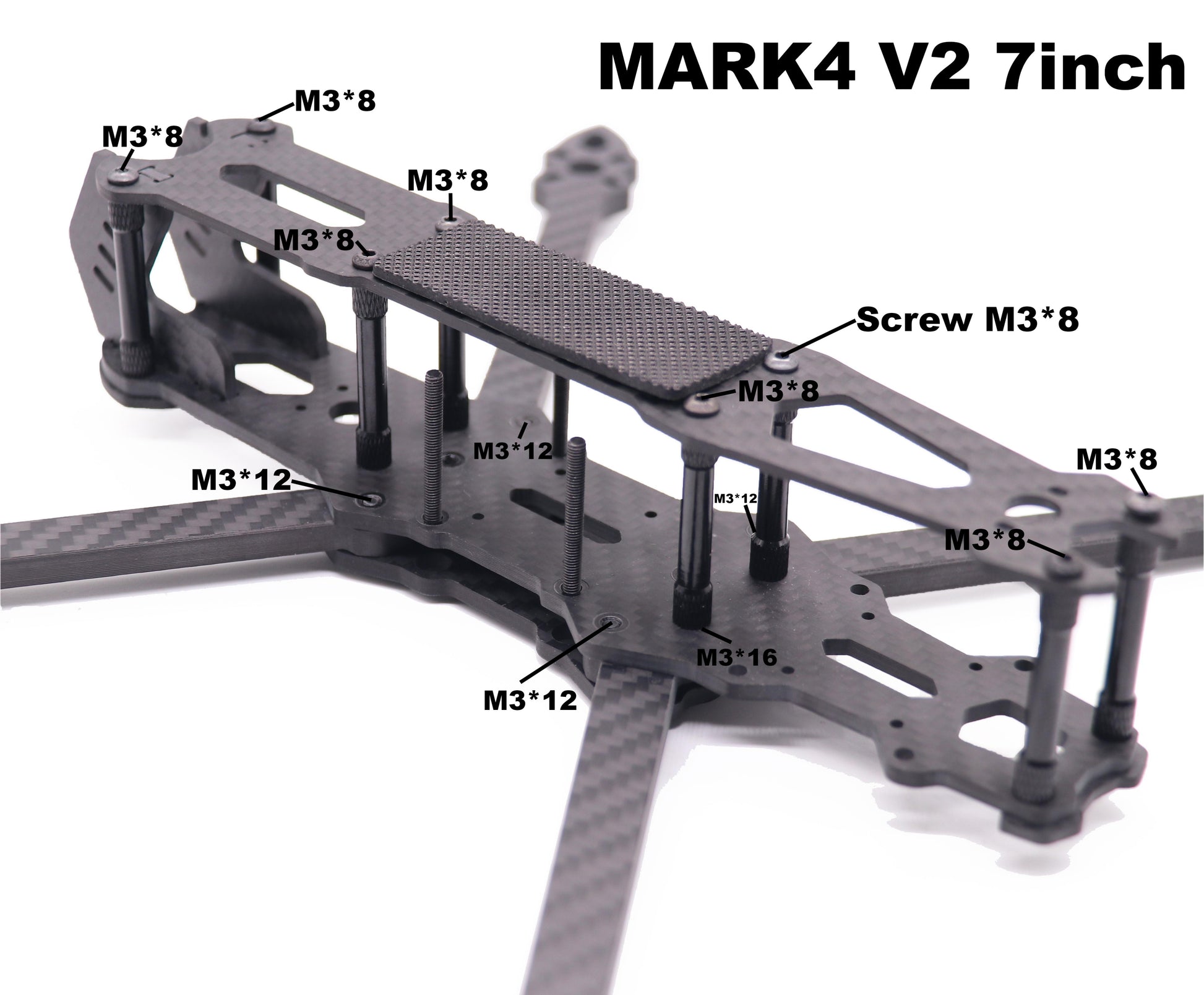

The rack uses external nuts, not nuts built into the carbon fiber board. Nuts built into the carbon fiber board
are prone to loosening during flying , so using external nuts is more secure and safe.When fixing, please use external nuts to secure.
