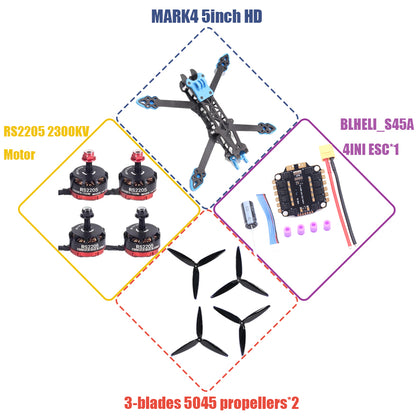

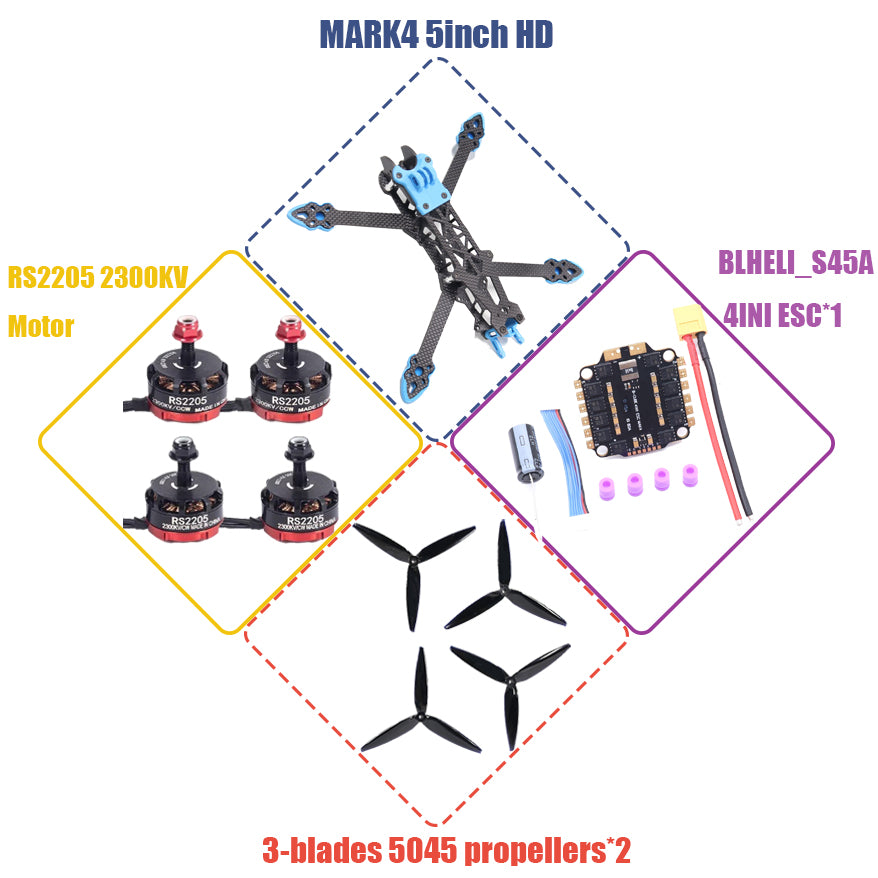

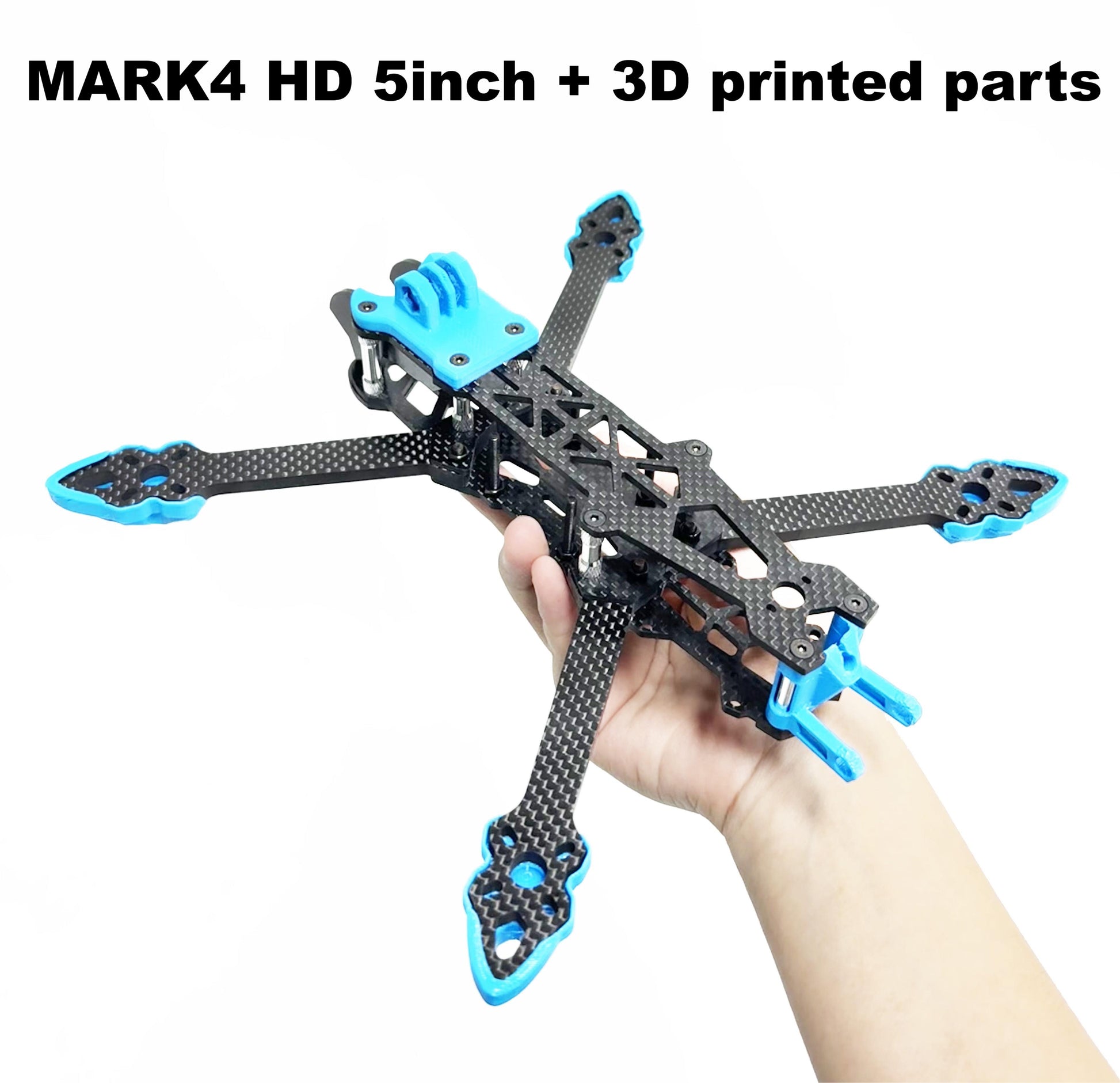

MARK4 HD 5 Inch 240mm Frame Kit Compatible with DJI FPV Air Unit

Recommended Configuration:

-Flight control:RF/Kiss/F4/F3/F7

-Motor:2204/2205/2206/2207/2305/2306/2407

-ESC:20A-50A

-Battery:3S-6S 1500-2200mAh

-Material: 3K Carbon Fiber

-Frame Type: H

-Wheelbase: 240mm

-Propeller Size: 5 Inch

-Size: 145*172mm

-Weight: 120g

-Top Plate: 2.5mm

-Bottom Plate: 2.5mm

-Arm: 5mm

Camera installation distance: 19mm-20mm

-Image transmission installation hole distance: compatible 30.5mm/20mm

-Flight control installation hole distance: compatible 30.5mm/20mm

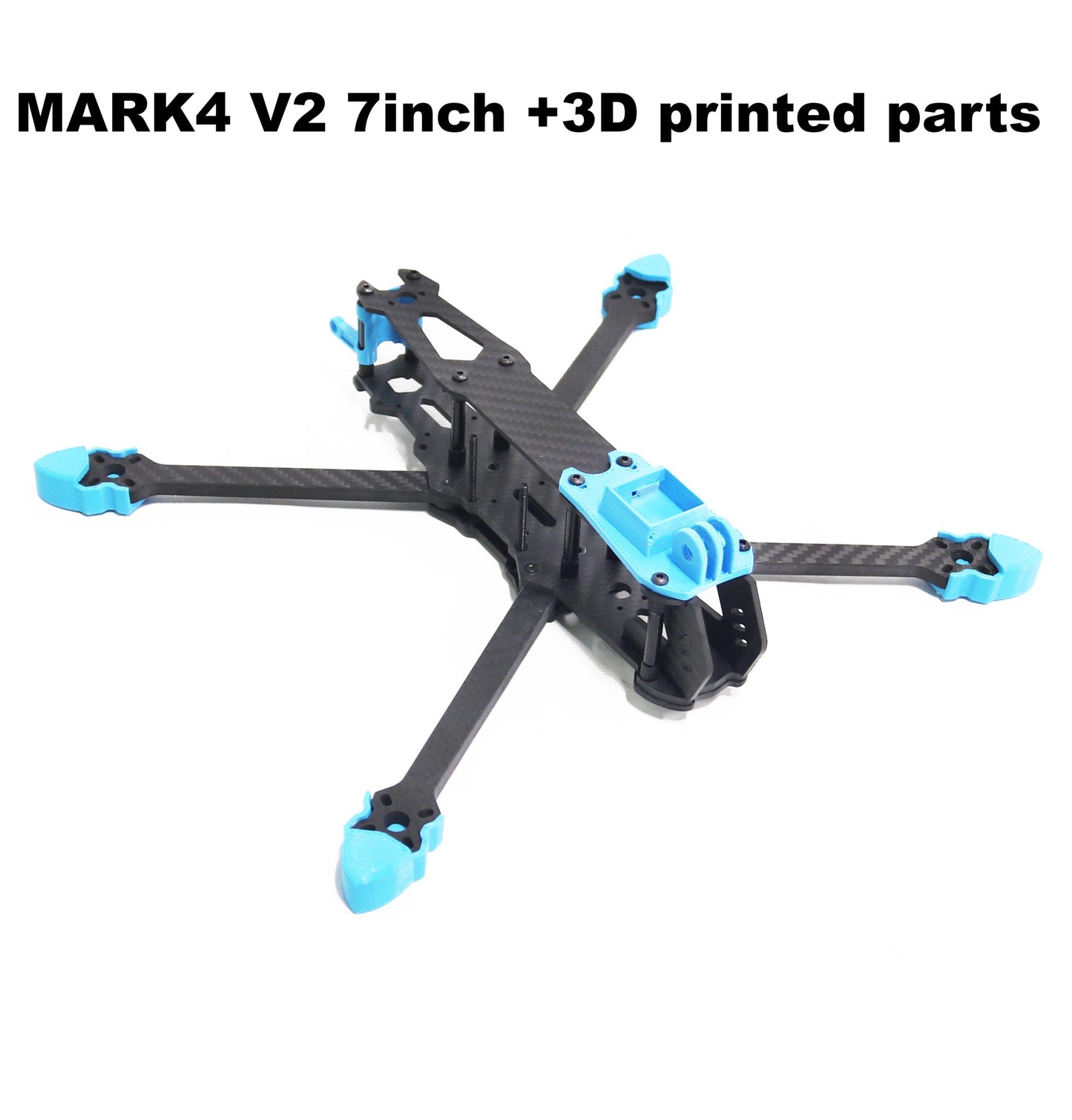

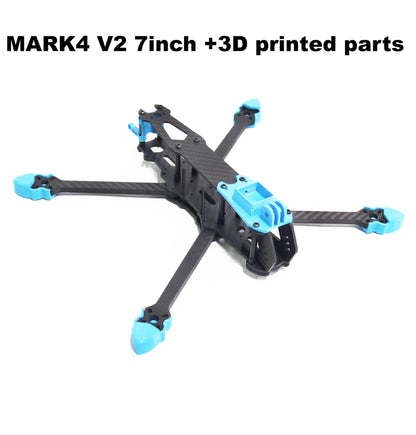

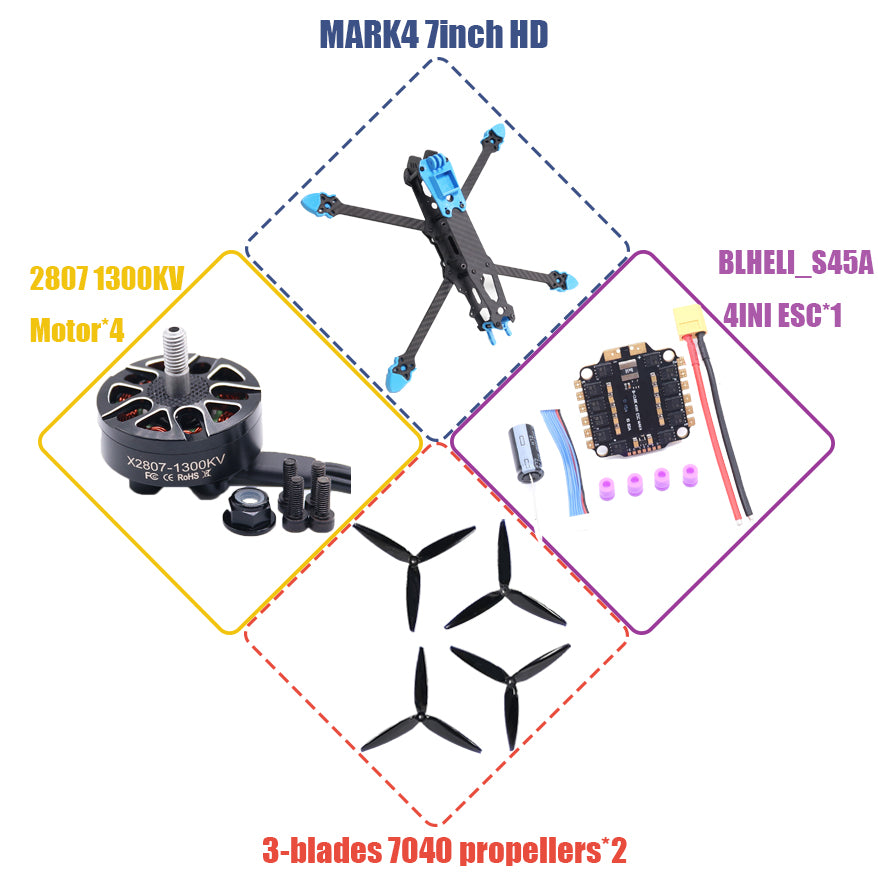

MARK4 V2 7

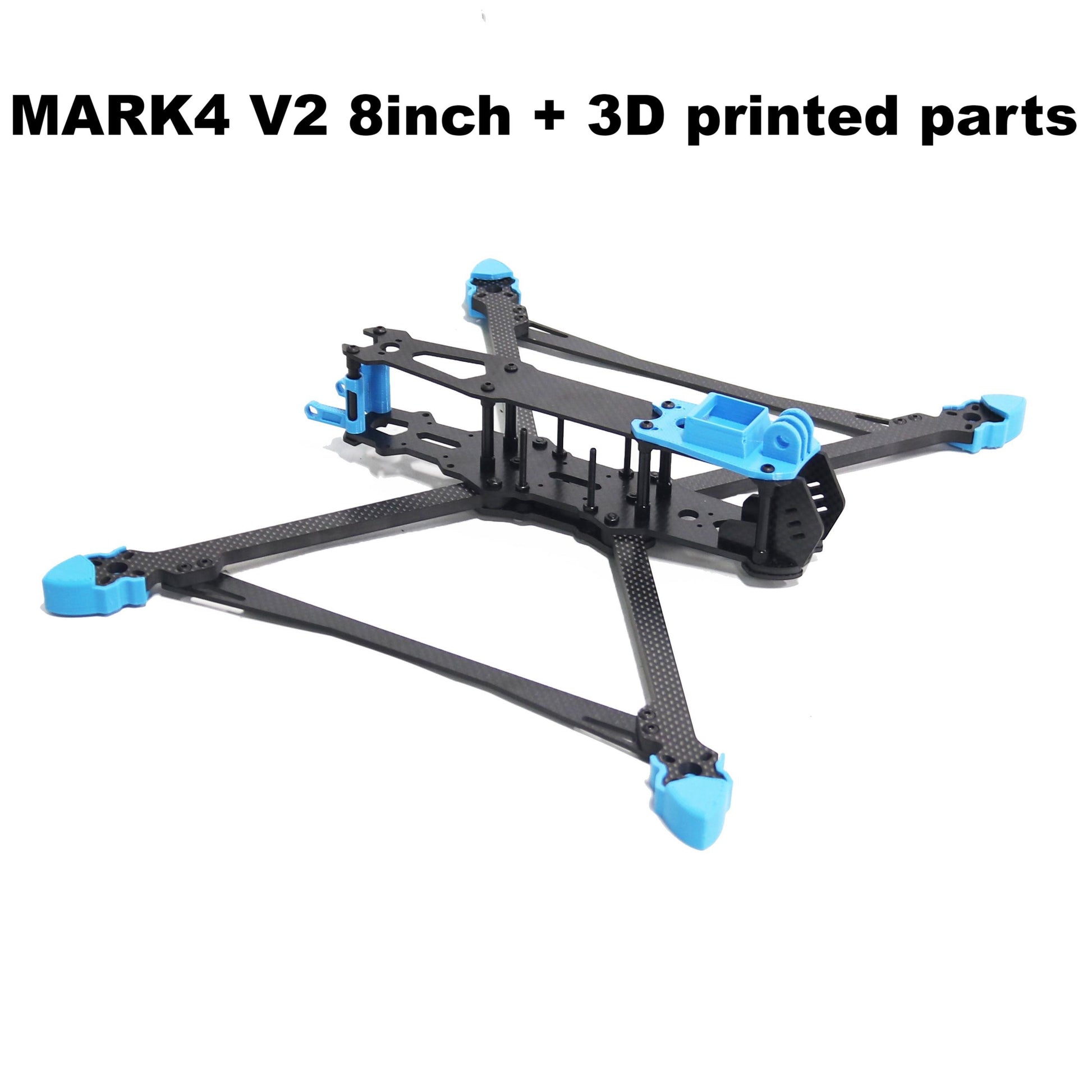

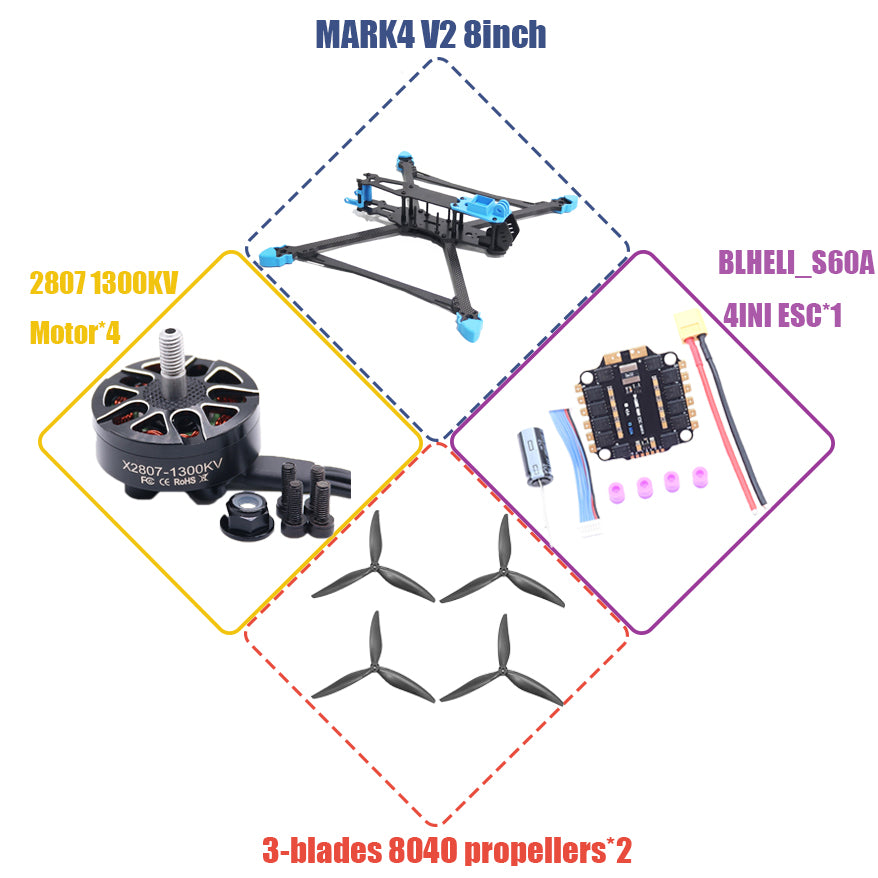

MARK4 V2 8inch

3K Carbon Fiber Frame MARK4 V2 8inch 367mm WheelBase RC FPV Freestyle Racing Drone Frame Kit

The rack uses external nuts, not nuts built into the carbon fiber board. Nuts built into the carbon fiber board are prone to loosening during flying , so using external nuts is more secure and safe.When fixing, please use external nuts to secure.

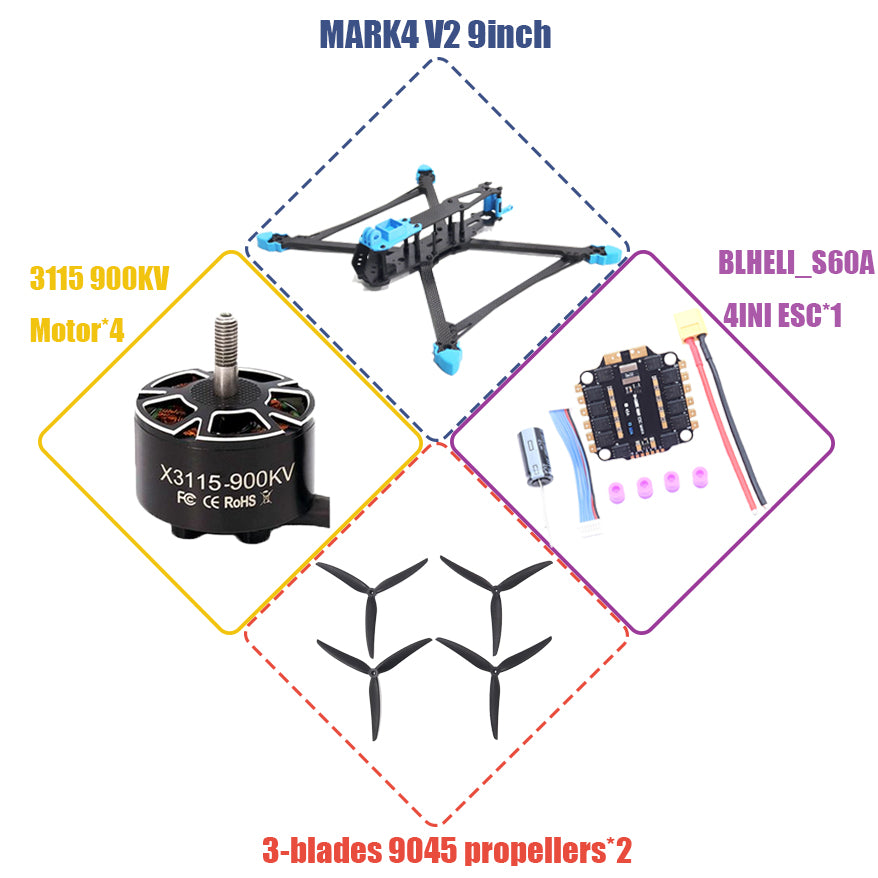

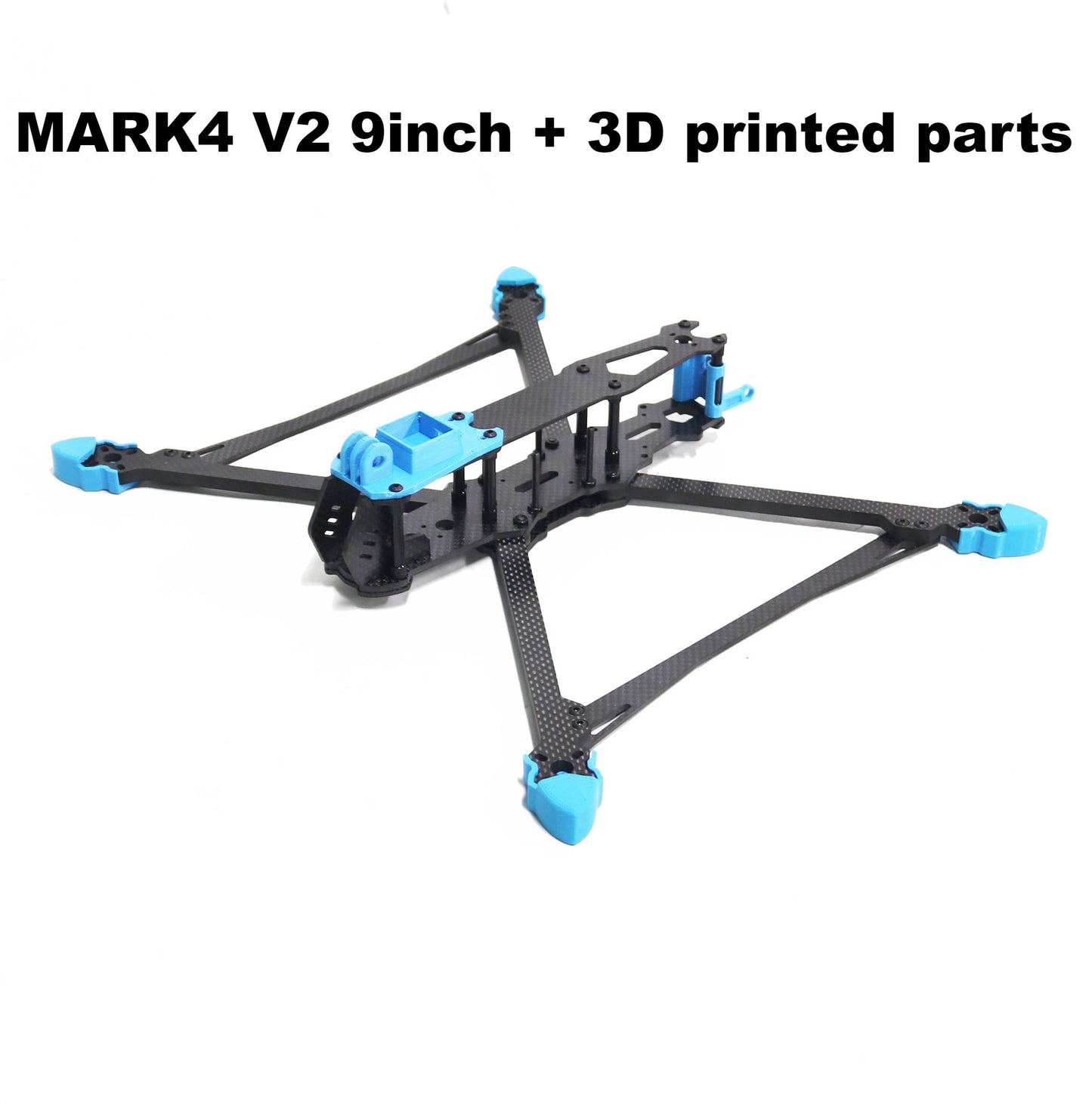

MARK4 V2 9inch

3K Carbon Fiber Frame MARK4 V2 9inch 387mm WheelBase RC FPV Freestyle Racing Drone Frame Kit

Model: MAK4 V2 9inch

Wheelbase: 387mm

Weight: about 220g

Thickness of bottom plate: 3mm

Thickness of top plate: 2mm

Thickness of camera arm: 6mm

Camera side panel thickness: 2.5mm

Camera mounting hole spacing: 19 mm

Mapping mounting hole spacing 20*20mm & 30.5*30.5mm

Flight Control Mounting Pitch: 30.5*30.5mm

Inner space height: 35mm

Motor mounting hole pitch: 16*16mm & 19*19mm

The rack uses external nuts, not nuts built into the carbon fiber board. Nuts built into the carbon fiber board are prone to loosening during flying , so using external nuts is more secure and safe.When fixing, please use external nuts to secure.

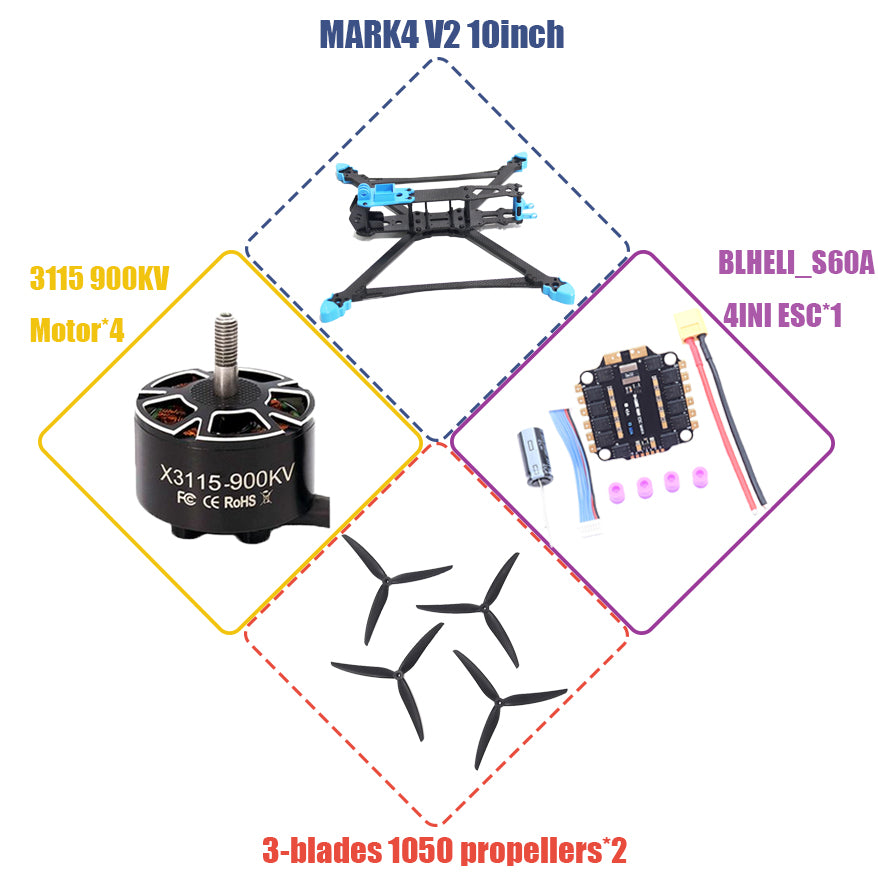

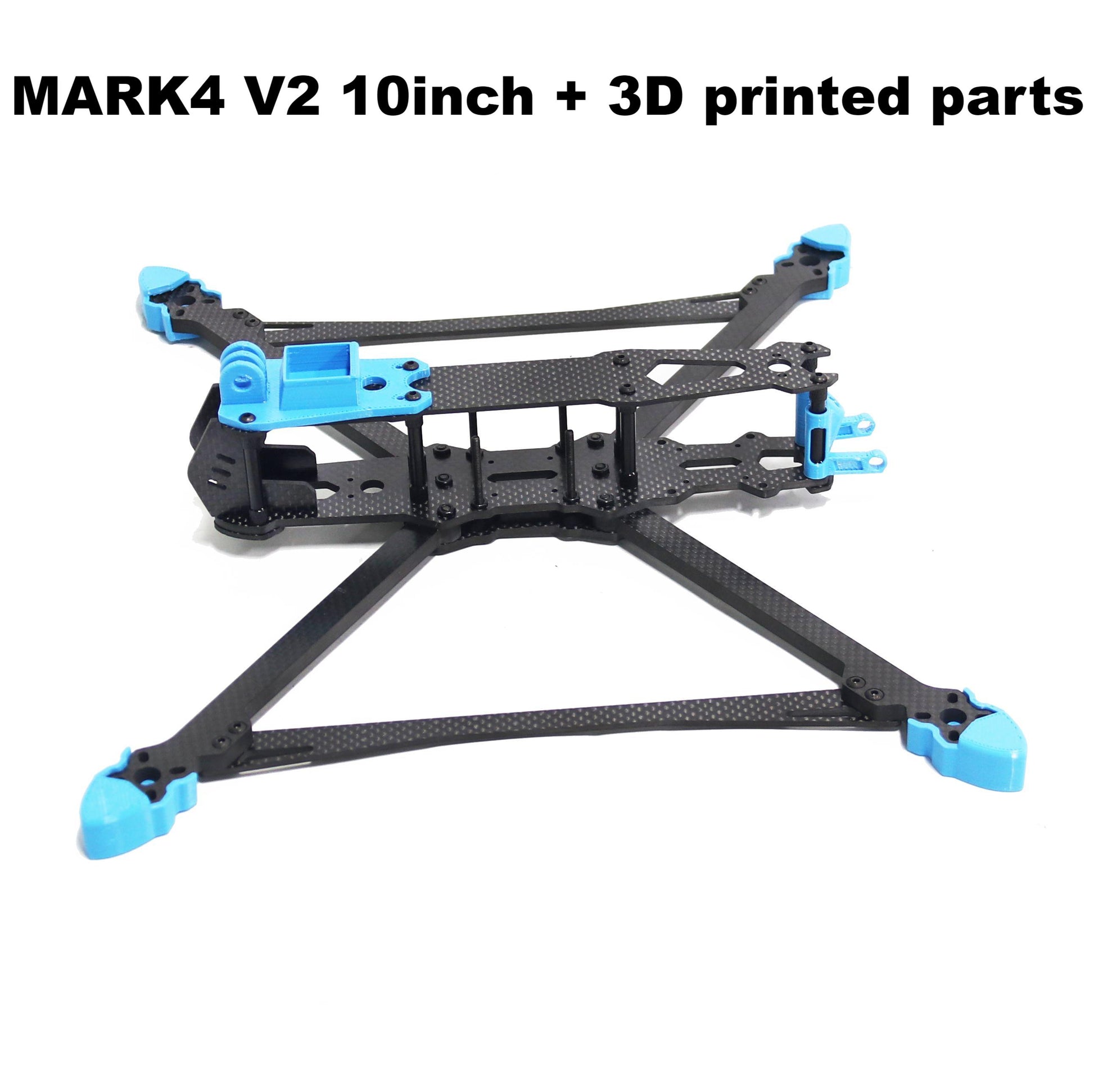

MARK4 V2 10inch

3K Carbon Fiber Frame MARK4 V2 10inch 427mm WheelBase RC FPV Freestyle Racing Drone Frame Kit

Description:

Model: MAK4 V2 10inch

Wheelbase: 427mm

Weight: about 227g

Thickness of bottom plate: 3mm

Thickness of top plate: 2mm

Thickness of camera arm: 6mm

Camera side panel thickness: 2.5mm

Camera mounting hole spacing: 19 mm

Mapping mounting hole spacing 20*20mm & 30.5*30.5mm

Flight Control Mounting Pitch: 30.5*30.5mm

Inner space height: 35mm

Motor mounting hole pitch: 16*16mm & 19*19mm

The rack uses external nuts, not nuts built into the carbon fiber board. Nuts built into the carbon fiber board are prone to loosening during flying , so using external nuts is more secure and safe.When fixing, please use external nuts to secure.

BLHELI_S 45A /60A 4IN1 3-6S Brushless ESC

BLHELI_S 45A 4IN1 3-6S Brushless ESC

Size: 41*39.5*5mm

Hole distance: 30.5*30.5/5mm

Weight: 13g

Input voltage: LIPO 2-6S

Continuous current: 45A

Maximum current: 50A (10 seconds)

Processor: EFM8BB21F16G

Firmware: BLS J_H_30_REV16_7

Drive signal support: DShot300-600/Multishot/Oneshot/PWM

Current sensor: Support

The ESC has filter capacitors on board to suppress the electromotive power transmission, stabilize the battery voltage and protect the components of ESC vuelo control precision

BLHELI_S 60A 4IN1 3-6S Brushless ESC
