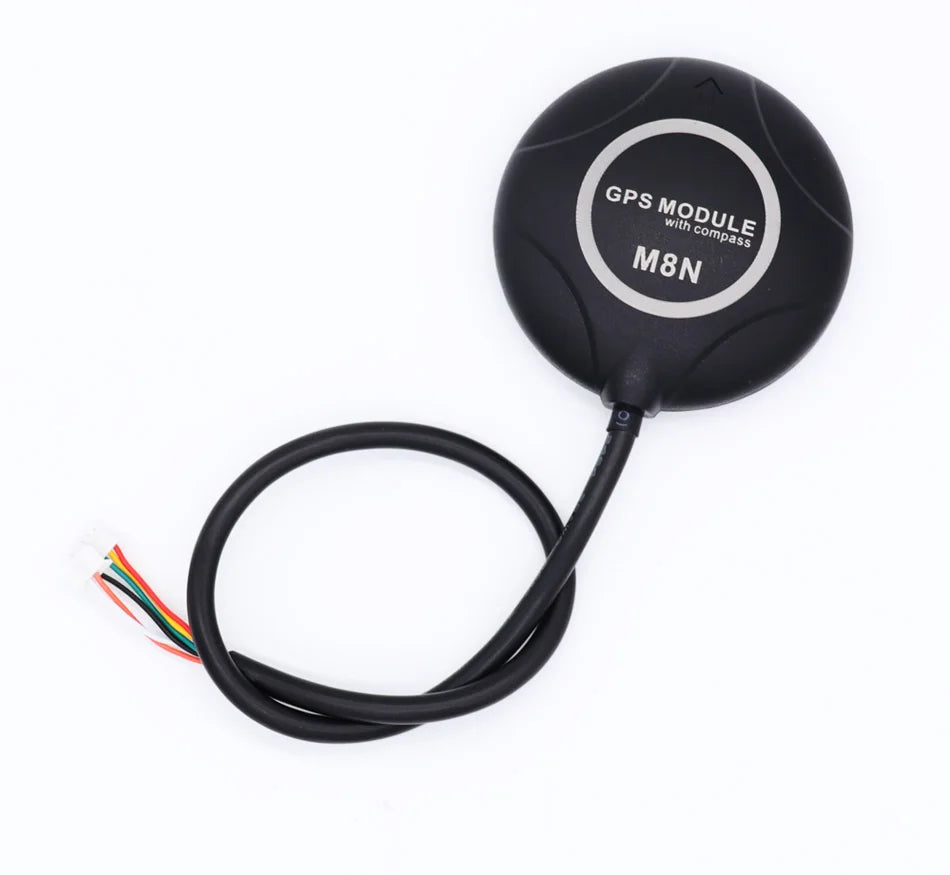

M8N GPS With external compass for AMP2.6 APM 2.8 Pixhawk 2.4.8 PIXRACER R15 for RC Quadcopter

A new generation GPS M8N,with low power consumption and high precision, the ultimate accuracy is 1.5-2 meters, support GPS/QZSS L1 C/A, GLONASS L10F, BeiDou B1 protocol and mode or more.

GPS Chip parameters:
Receiver type 72-channel M8 engine
GPS/QZSS L1 C/A, GLONASS L10F, BeiDou B1
SBAS L1 C/A: WAAS, EGNOS, MSAS
Galileo-ready E1B/C (M8N)
Nav. update rate1 Single GNSS: up to 18 HZ
Concurrent GNSS: up to 10 Hz
Position accuracy2 2.0 m CEP
Acquisition2 Cold starts: 26 s
Aided starts: 2 s
Reacquisition: 1.5 s
Sensitivity2 Tracking & Nav: –167 dBm
Cold starts: –148 dBm
Hot starts: –156 dBm
Assistance AssistNow GNSS Online
AssistNow GNSS Offline (up to 35 days)3
AssistNow Autonomous (up to 6 days)
OMA SUPL & 3GPP compliant
Oscillator TCXO (M8N/Q),
Crystal (M8M)
RTC crystal Built-In
Noise figure On-chip LNA (M8M). Extra LNA for
lowest noise figure (M8N/Q)
Anti jamming Active CW detection and removal. Extra
onboard SAW band pass filter (M8N/Q)
Odometer Travelled distance
Data-logger For position, velocity, and time (M8N)

Operating temp. –40° C to 85° C
Storage temp. –40° C to 85° C (M8N/Q)
–40° C to 105° C (M8M)
RoHS compliant (lead-free)
Qualification according to ISO 16750
Manufactured and fully tested in ISO/TS 16949 certified production sites
Uses u-blox M8 chips qualified according to AEC-Q100

Supply voltage 1.65 V to 3.6 V (M8M)
2.7 V to 3.6 V (M8N/Q)
Power consumption4 23 mA @ 3.0 V (continuous)
5 mA @ 3.0 V Power Save Mode
(1 Hz, GPS mode only)
Backup Supply 1.4 to 3.6 V


Package included:

1 x M8N GPS Module with Shell


Note:The firmware of GPS is fixed , do not need to revise it; You can use it directly after receiving the GPS
