LX1100 PRO M8N Full Carbon Fiber 1100mm Hexa-Rotor Frame B-CUBE 80A ESC PX4 Pixhawk Flight Control Set 6215 Motor

LX1100 PRO M8N Full Carbon Fiber 1100mm Hexa-Rotor Frame B-CUBE 80A ESC PX4 Pixhawk Flight Control Set 6215 Motor

$887.00 USD
$887.00 USD $887.00 USD
Sale Sold out
Color

RCtoSky LX1100 6 Axle Hexacopter

Features：

1. Simple folding parts, one-key folding, saving time and effort;

2. The super-large motor base can be built-in ESC to solve the messy wiring on the center board.

3.  2.0MM carbon fiber hollow design center board, saving time for disassembly and assembly.

4. Intelligent electric tripod, remote control one-key contraction, making the flight more beautiful.


Parameters：

Symmetrical motor wheelbase: 1100MM

Arm diameter: 25MM


LX1100 6 Axle Package can lift 10KG(use 6S or 12S Battery)


PIXHAWK PRO

Features:
Pixhawk PRO support the latest official ardupilot firmware and PX4 firmware.
1. The advanced 32-bit ARM CortexM4 high-performance processors(2MB flash), can run NuttX RTOS real-time operating system;
2. 14 PWM / servo output;
3. Bus interface (UART, I2C, SPI, CAN);
4. The integrated backup power and backup controller fails, the primary controller fails over to the backup control is safe;
5. Provide automatic and manual modes;
6. Provide redundant power input and failover;
7. Multicolor LED lights;
8. Provide multi-tone buzzer Interface
9. Micro SD recording flight data;
10.TYPE-C USB port
11.GH1.25 port

Specifications:
Interface
1.5 high voltage compatible UART 1, 2 with hardware flow control
2. 2 CAN
3.Spektrum DSM / DSM2 / DSM-X satellite receiver compatible input
4.Futaba SBUS compatible inputs and outputs
5.PPM Signal Input
6.RSSI (PWM or voltage) Input
7.I2C
8.SPI
9.3.3 and 6.6VADC input
10. External TYPEC USB Interface

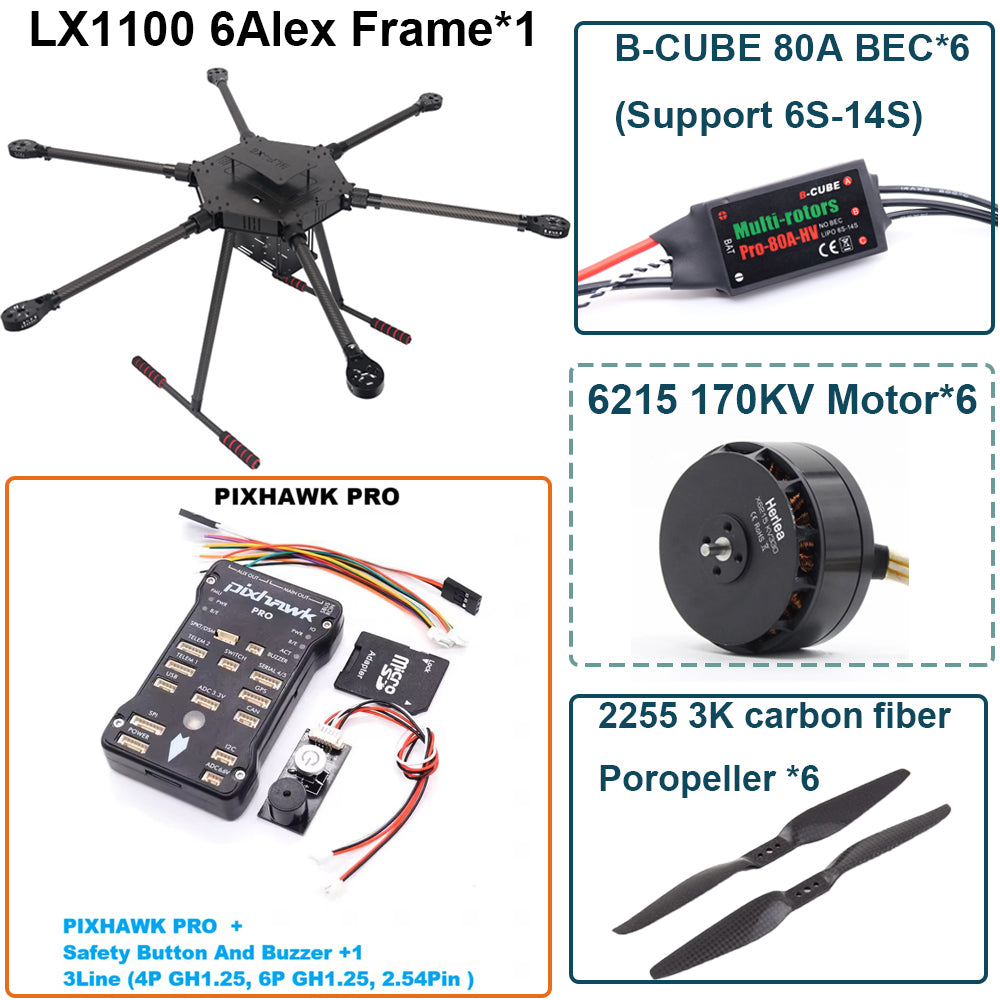

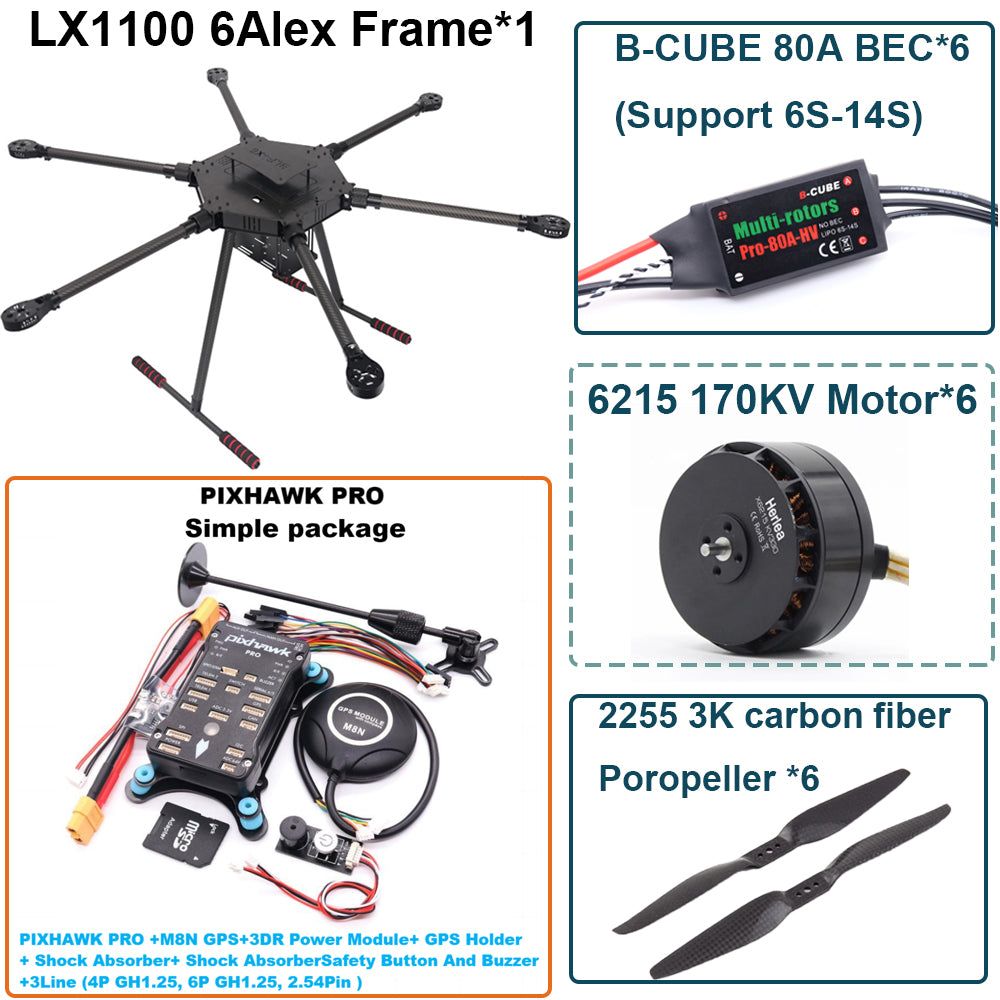

Simple Package:

LX1100 Full Carbon Fiber+ 6 pcs B-CUBE 80A Brushless ESC+

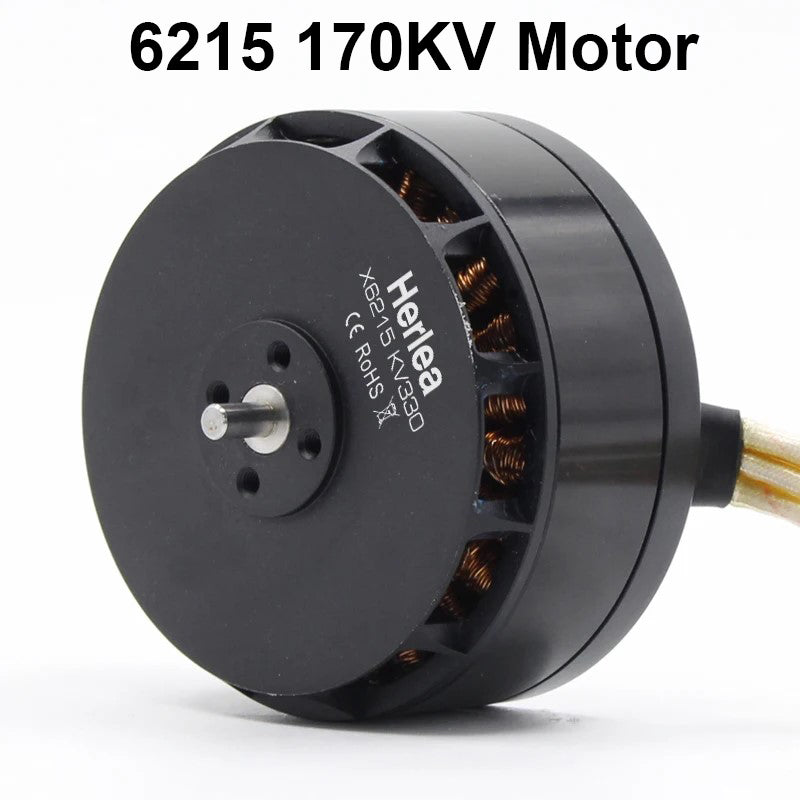

3 Pairs 3K Carbon Fiber Propeller 2255+6 PCS 6215 170KV Motor  +

PIXHAWK PRO+M8N GPS+3DR Power Module+ GPS Holder + Shock Absorber+Safety Button And Buzzer+3Line(4PGH1.25,6PGH1.25,2.54Pin)

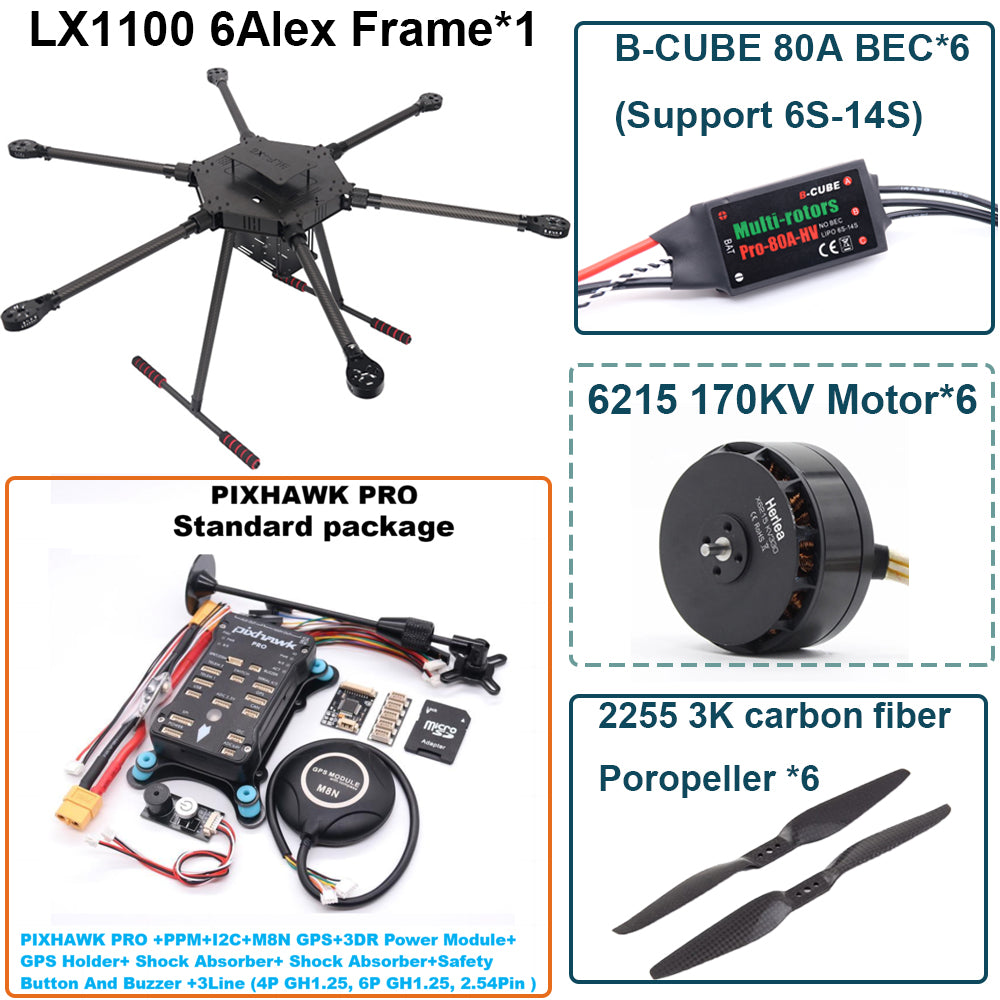

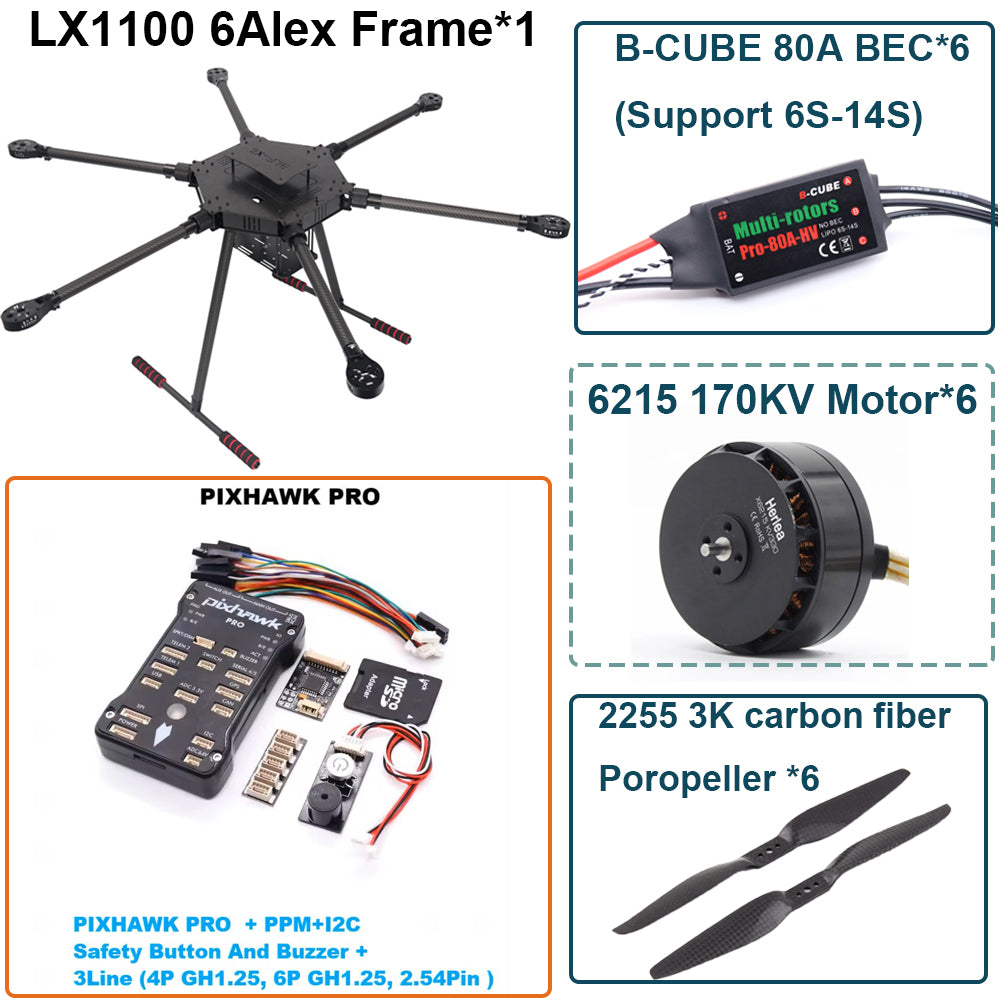

Standard package:

LX1100 Full Carbon Fiber+ 6 pcs B-CUBE 80A Brushless ESC+

3 Pairs 3K Carbon Fiber Propeller 2255+6 PCS 6215 170KV Motor  +

PIXHAWK PRO+PPM Encoder+I2C Expansion Board +M8N GPS+3DR Power Module+GPS Holder+ Shock Absorber+Safety Button And Buzzer+3Line(4P GH1.25,6PGH1.25,2.54Pin)

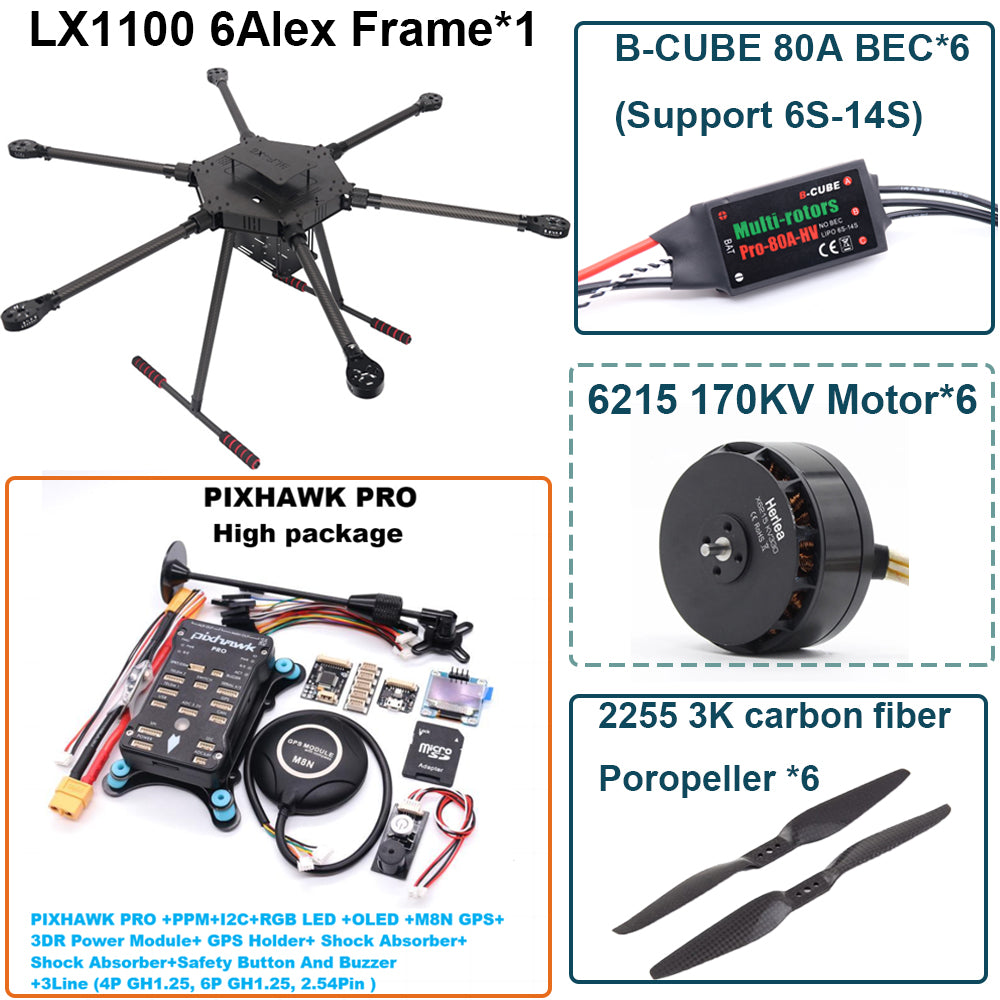

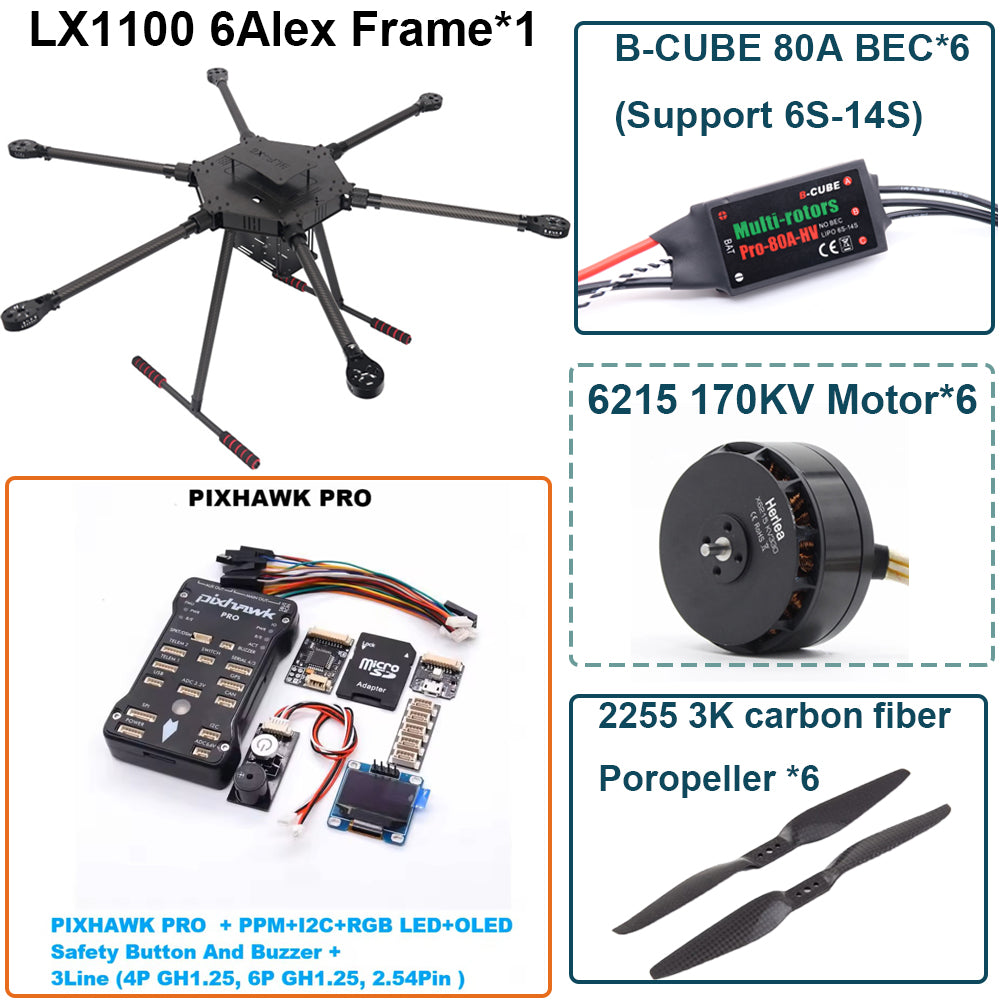

High Package:

LX1100 Full Carbon Fiber+ 6 pcs B-CUBE 80A Brushless ESC+

3 Pairs 3K Carbon Fiber Propeller 2255+6 PCS 6215 170KV Motor  +

PIXHAWK PRO+PPM Encoder+I2C Expansion Board+RGB LED+OLED Screen+M8N GPS+3DR Power Module+ GPS Holder+ Shock Absorber+Safety Button And Buzzer+3Line(4PGH1.25,6PGH1.25,2.54Pin)

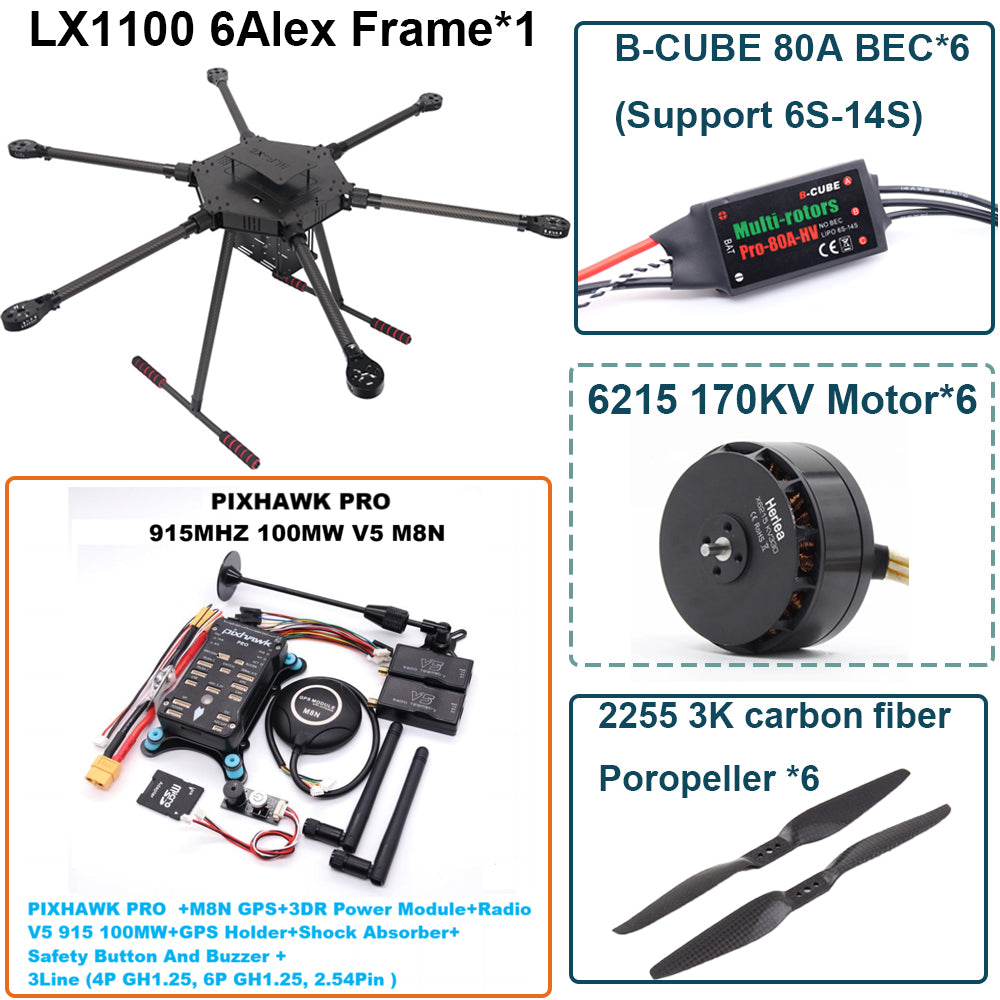

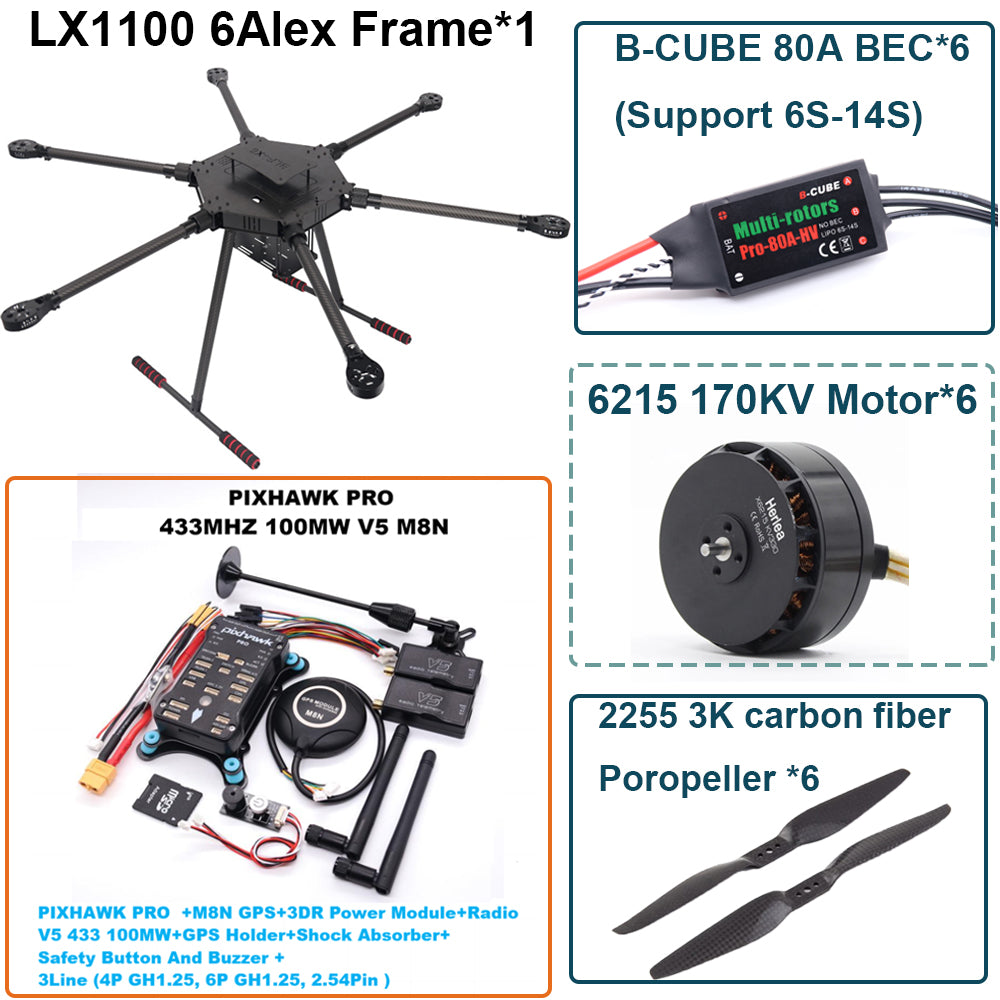

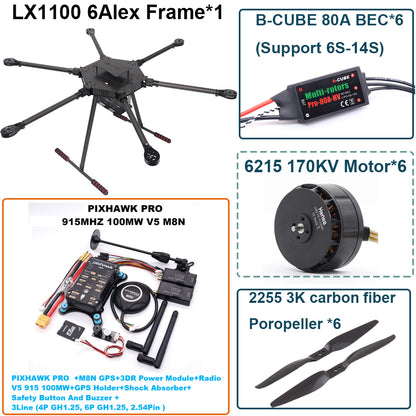

433/915MHZ 100MW :

LX1100 Full Carbon Fiber+ 6 pcs B-CUBE 80A Brushless ESC+

3 Pairs 3K Carbon Fiber Propeller 2255+6 PCS 6215 170KV Motor  +

PIXHAWK PRO +M8N GPS+3DR Power Module+Radio telemetry V5 433/915MHZ 100MW+GPS Holder+Shock Absorber+Safety Button And Buzzer +3Line(4PGH1.25,6PGH1.25,2.54Pin)

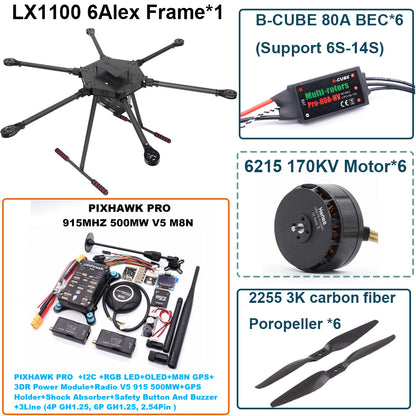

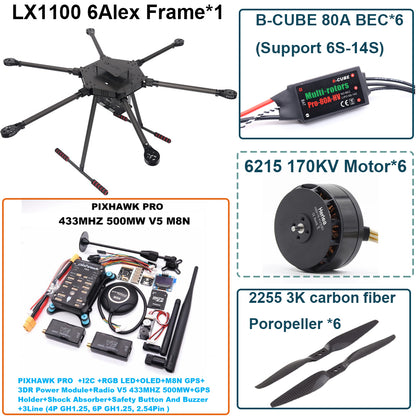

433/915MHZ 500MW :

LX1100 Full Carbon Fiber+ 6 pcs B-CUBE 80A Brushless ESC+

3 Pairs 3K Carbon Fiber Propeller 2255+6 PCS 6215 170KV Motor  +

PIXHAWK PRO +PPM Encoder+I2C Expansion Board+RGB LED+OLED Screen+M8N GPS+3DR Power Module+Radio telemetry V5 433/915MHZ 500MW+GPS Holder+Shock Absorber+Safety Button And Buzzer+3Line(4PGH1.25,6PGH1.25,2.54Pin)

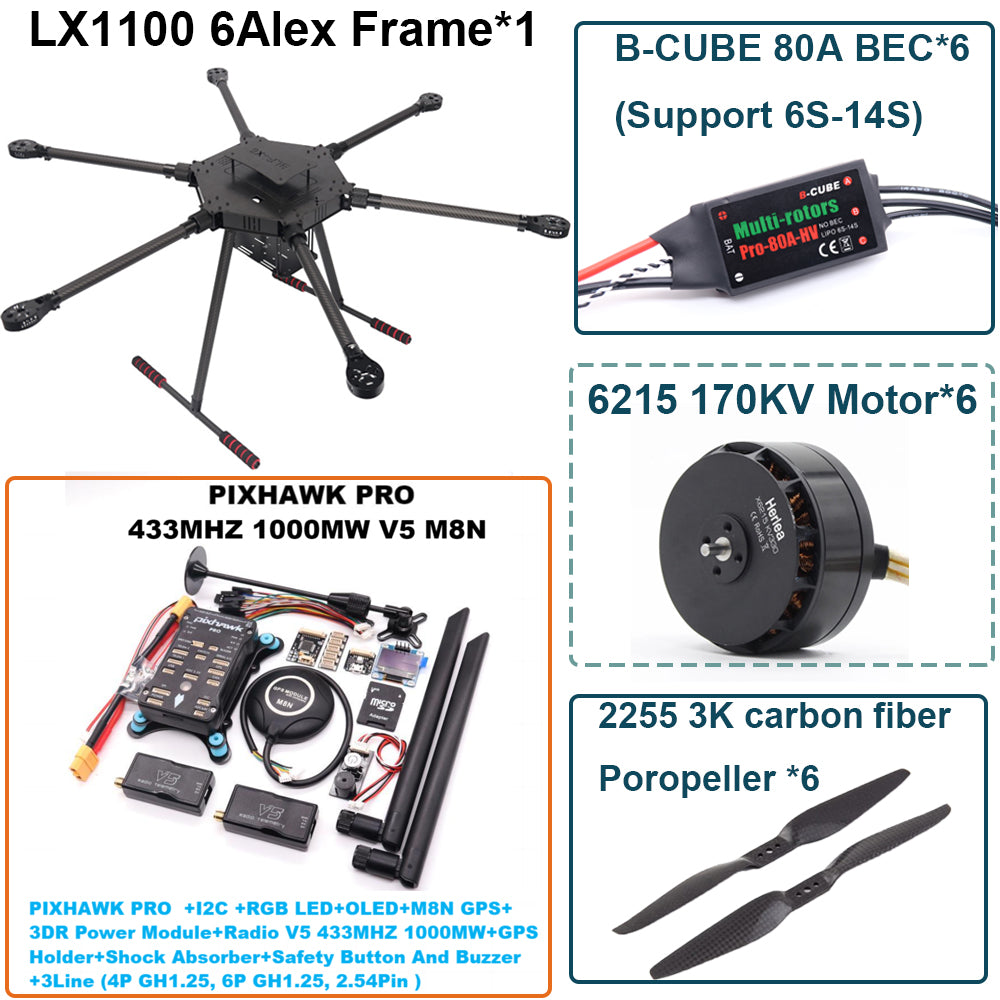

433/915MHZ 1000MW :

LX1100 Full Carbon Fiber+ 6 pcs B-CUBE 80A Brushless ESC+

3 Pairs 3K Carbon Fiber Propeller 2255+6 PCS 6215 170KV Motor  +

PIXHAWK PRO+PPM Encoder+I2C Expansion Board+RGB LED+OLED Screen+M8N GPS+3DR Power Module+Radio V5 433/915MHZ 1000MW+GPS Holder+Shock Absorber+Safety Button And Buzzer+3Line(4P GH1.25,6PGH1.25,2.54Pin)

M8N GPS:

LX1100 6Axle


B-CUBE-Pro-80A-HV V3 ESC
B-CUBE-Pro-80A-HV V3 for Multicopter
Specification:
Voltage: 6-14S lithium battery. Current 80A. Weight 195g
Without BEC. Without fan (no need for fan)
Power cord (red and black line) No. 12 silicone wire, length: 14cm.
Motor line (3 black lines) No. 14 silicone wire, length: 70cm
Signal line (black and white line) Length: 25cm
Shell waterproof.
Model: B-CUBE-Pro-80A-HV V3 ESC
Drive mode: BLDC
Continues Current :80A
Instantaneous Current (10 seconds) : 100A
Output lithium battery Section number : 6-14s
Parameter Programming Features: Automatic angle (High / medium)

01 Warnings

 Ensure all wires and connections are well insulated before connecting the ESC to related devices, as short circuit will damage your ESC.

 Ensure all devices are well connected to prevent poor connection that may cause your multi-rotor to lose control or other unpredictable issues such
as damage to the device.
 Read through the manuals of all power devices and ensure the power configuration is rational before using this unit.
 Please use a soldering iron (ensuring it’s connected to a GND wire) with the power of at least 60W to solder all input/output wires and connectors.
 Stop using the ESC when its casing temperature exceeds 100℃, otherwise your ESC will get destroyed and may also get your motor damaged.
 Please swap any two ESC-to-motor wires if the motor runs in reverse.
02 Features
 Special core program for multi-rotor controllers greatly improves throttle response.
 Specially optimized software for excellent compatibility with multi-rotor motors.
 Microprocessor powered by independent DC regulator has better anti-interference performance greatly reduces the risk of losing control.
 Separate signal wires for reminding user of RPM output & error states.
 All settings except the timing are preset, making usage simple, high intelligent and adaptive.
 Compatible with various flight-controller and supports a signal frequency of up to 621Hz.
 DEO (Driving Efficiency Optimization) technology for better throttle linearity and higher driving efficiency.
 PWM frequency of 18KHz.

3 Pairs 3K Carbon Fiber Propeller

The new propeller-type aerial dedicated full carbon paddle paddle-type three-hole installation
Using carbon content of 100% pure imported Toray carbon fiber 3K woven, high temperature and pressure precast precision machining, hardness higher than conventional products market.

Radio telemetry can be used for wireless communication between pixhawk and computer or mobile phone.
