LX1100 Pixhawk 2.4.8 M8N Flight Control Set Full Carbon Fiber 1100mm Hexa-Rotor Frame B-CUBE 80A ESC PX4 6215 Motor

LX1100 Pixhawk 2.4.8 M8N Flight Control Set Full Carbon Fiber 1100mm Hexa-Rotor Frame B-CUBE 80A ESC PX4 6215 Motor

$896.67 USD
$896.67 USD $896.67 USD
Sale Sold out
Color


Pixhawk PX4 Autopilot PIX 2.4.8 32 Bit Flight Controlle

Features:Pixhawk 2.4.8 support the latest official ardupilot firmware and PX4 firmware.
1. The advanced 32-bit ARM CortexM4 high-performance processors STM32F427VIT6(2MB flash), can run NuttX CHIBOS RTOS real-time operating system;
2. 14 PWM / servo output;
3. Bus interface (UART, I2C, SPI, CAN);
4. The integrated backup power and backup controller fails, the primary controller fails over to the backup control is safe;
5. Provide automatic and manual modes;
6. Provide redundant power input and failover;
7. Multicolor LED lights;
8. Provide multi-tone buzzer Interface
9. Micro SD recording flight data;

Specifications:
Interface
1 .5 high voltage compatible UART 1, 2 with hardware flow control
2. 2 CAN
3.Spektrum DSM / DSM2 / DSM-X satellite receiver compatible input
4.Futaba SBUS compatible inputs and outputs
5.PPM Signal Input
6.RSSI (PWM or voltage) Input
7.I2C
8.SPI
9.3.3 and 6.6VADC input
10. External MICRO USB Interface

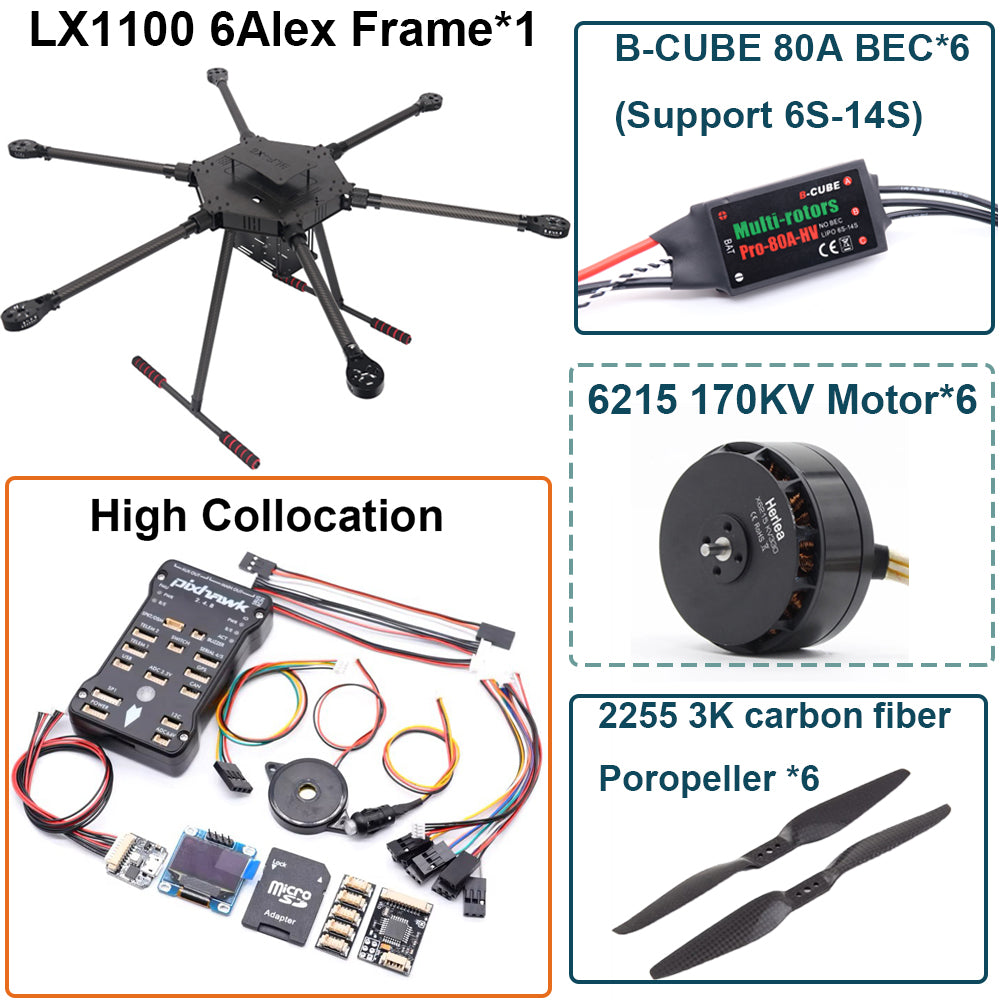

High Collocation:

3 Pairs 3K Carbon Fiber Propeller 2255  + 6 PCS 6215 170KV Motor  +LX1100 Full Carbon Fiber+ 6 pcs B-CUBE 80A Brushless ESC+

PIXHAWK 2.4.8(white or black shell)+ 4G TF Card + Safety Button + Buzzer + PPM Encoder + I2C Expansion Board+ RGB Led + OLED Screen+ 3 Line(4Pin 1.25 ,6Pin 1.25 ,3Pin 2.5.4)+M8N GPS+ GPS Holder+  3DR Power Module+ Shock Absorber

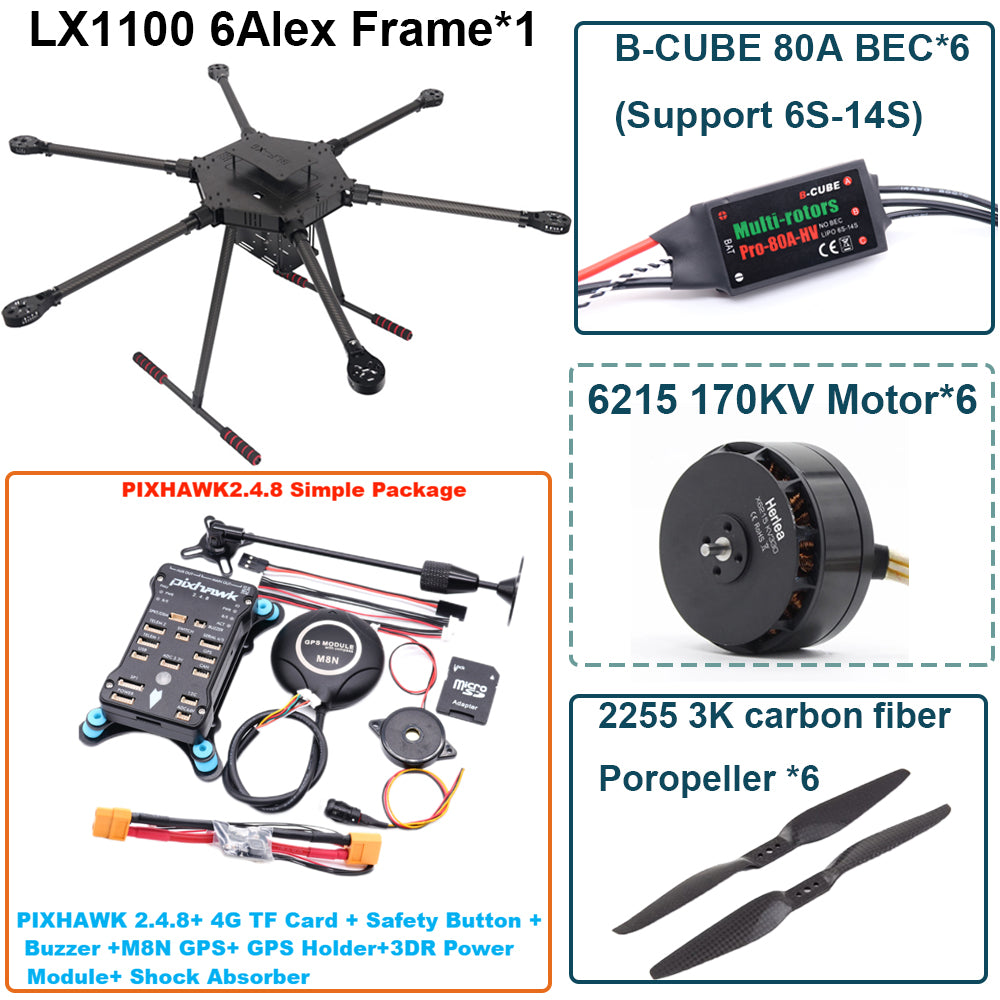

Simple Package:

3 Pairs 3K Carbon Fiber Propeller 2255  + 6 PCS 6215 170KV Motor  +LX1100 Full Carbon Fiber+ 6 pcs B-CUBE 80A Brushless ESC+

PIXHAWK 2.4.8(white or black shell)+ 4G TF Card + Safety Button + Buzzer +M8N GPS+ GPS Holder+3DR Power Module+ Shock Absorber

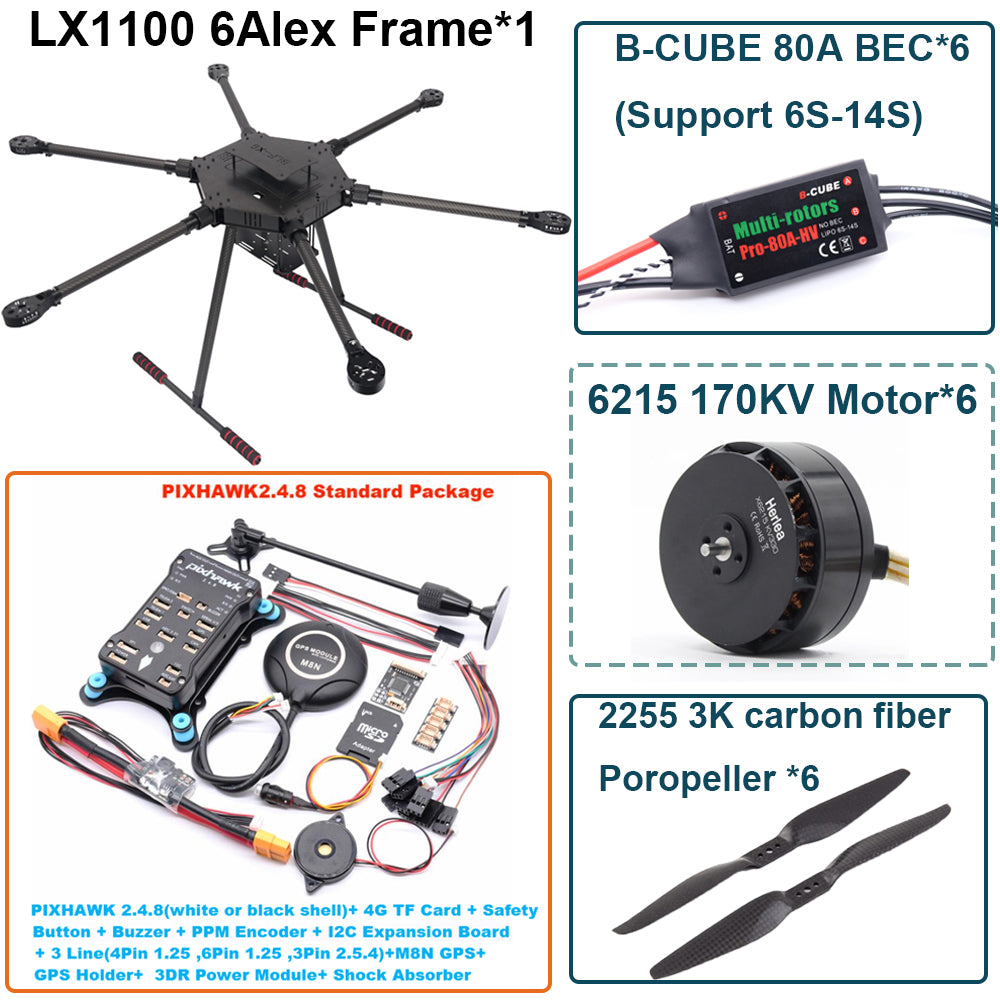

Standard Package:

3 Pairs 3K Carbon Fiber Propeller 2255  + 6 PCS 6215 170KV Motor  +LX1100 Full Carbon Fiber+ 6 pcs B-CUBE 80A Brushless ESC+

PIXHAWK 2.4.8(white or black shell)+ 4G TF Card + Safety Button + Buzzer + PPM Encoder + I2C Expansion Board+ 3 Line(4Pin 1.25 ,6Pin 1.25 ,3Pin 2.5.4)+M8N GPS+ GPS Holder+  3DR Power Module+ Shock Absorber

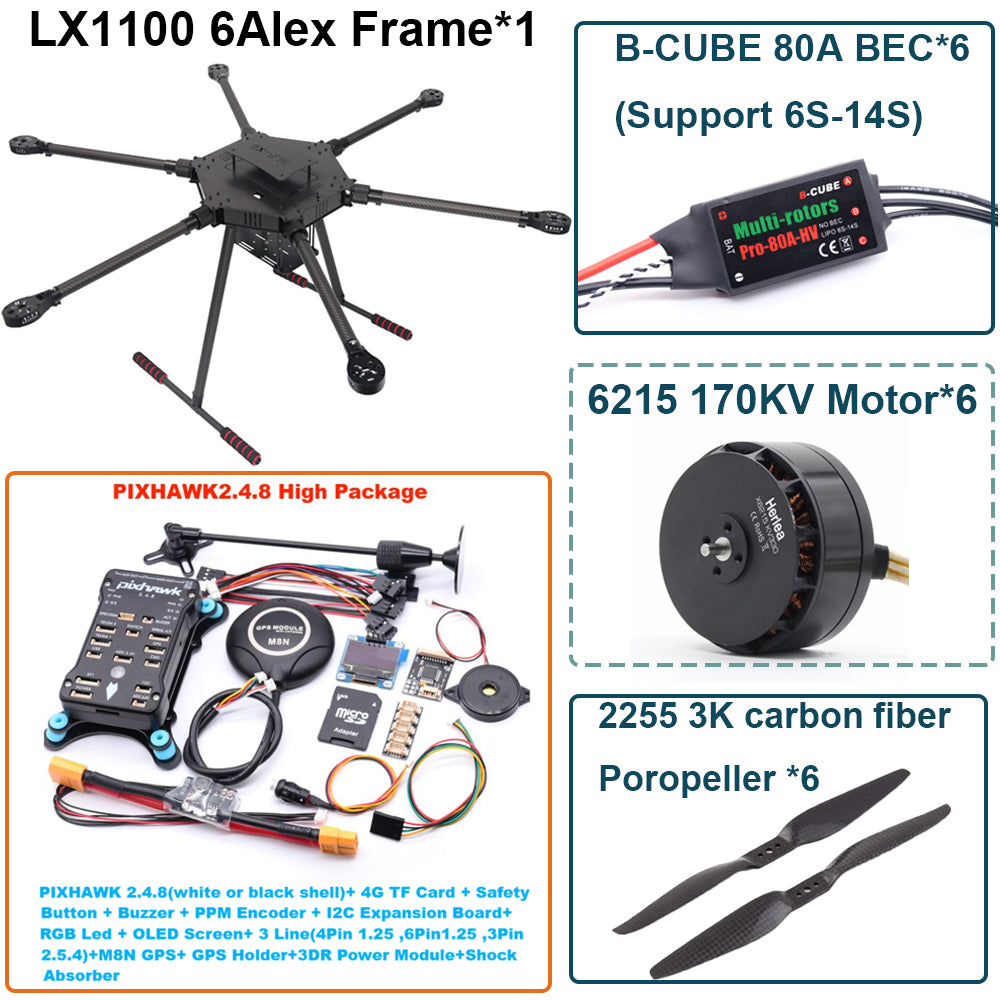

High Package:

3 Pairs 3K Carbon Fiber Propeller 2255  + 6 PCS 6215 170KV Motor  +LX1100 Full Carbon Fiber+ 6 pcs B-CUBE 80A Brushless ESC+

PIXHAWK 2.4.8(white or black shell)+ 4G TF Card + Safety Button + Buzzer + PPM Encoder + I2C Expansion Board+ RGB Led + OLED Screen+ 3 Line(4Pin 1.25 ,6Pin 1.25 ,3Pin 2.5.4)+M8N GPS+ GPS Holder+  3DR Power Module+ Shock Absorber

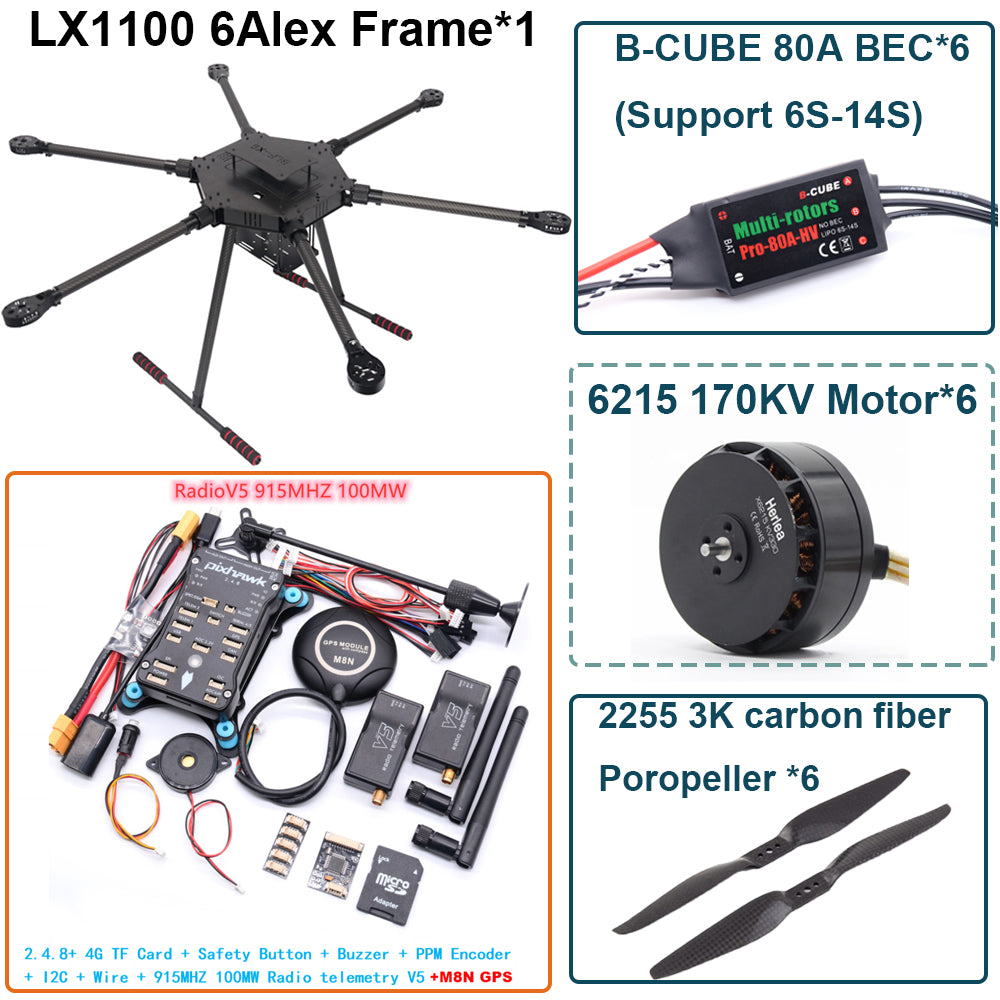

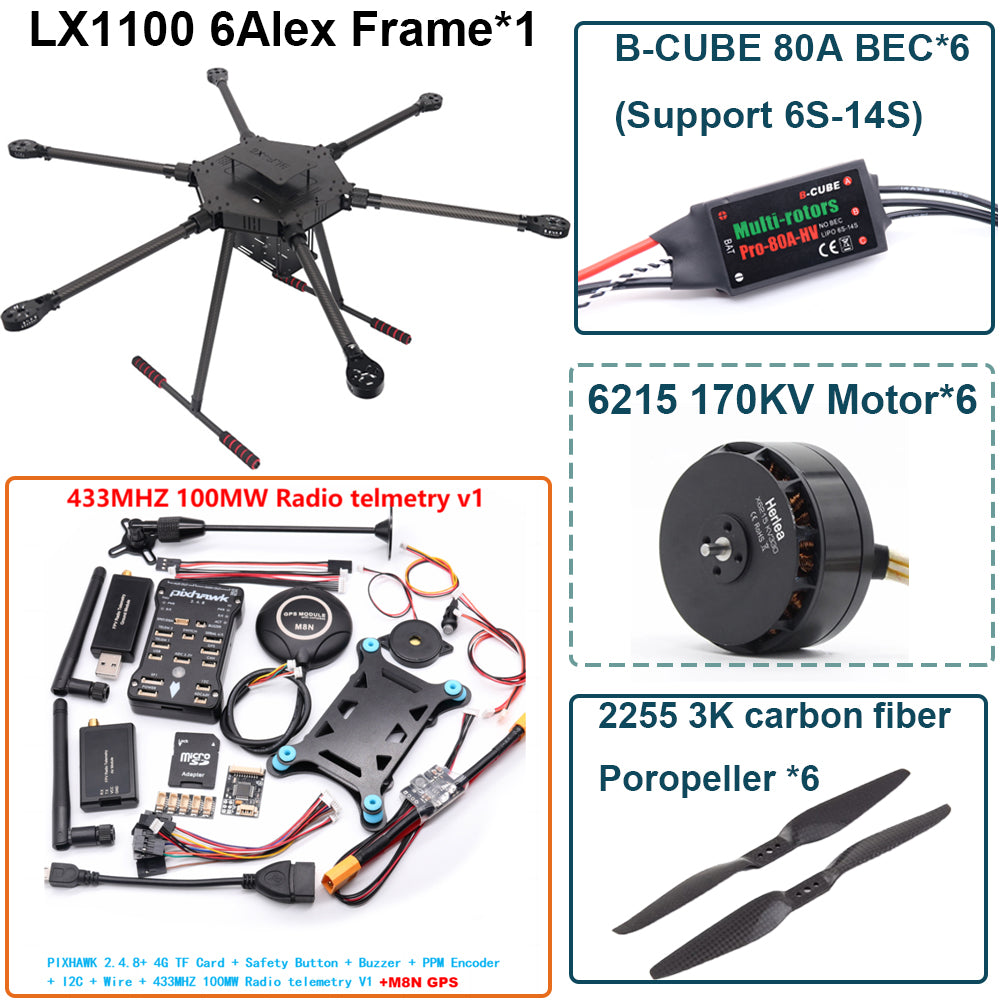

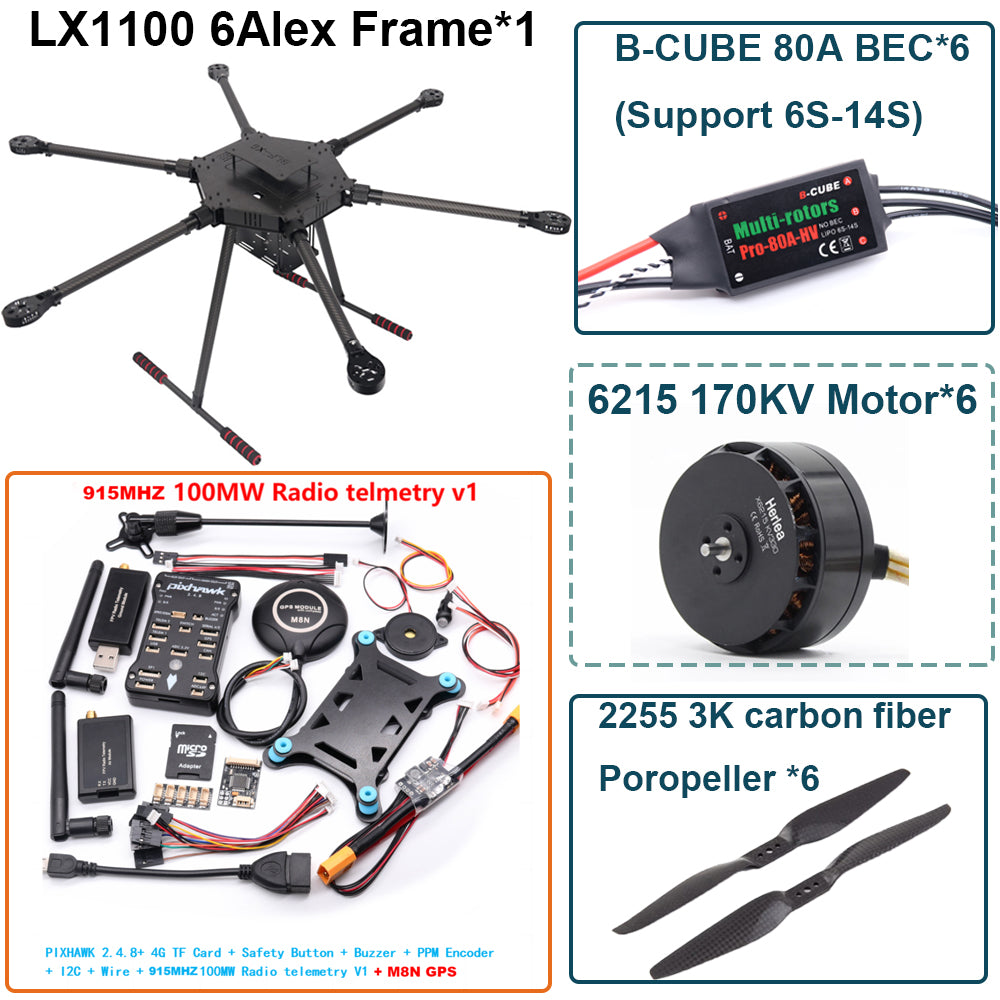

433/915MHZ 100MW :

3 Pairs 3K Carbon Fiber Propeller 2255  + 6 PCS 6215 170KV Motor  +LX1100 Full Carbon Fiber+ 6 pcs B-CUBE 80A Brushless ESC+

PIXHAWK 2.4.8(white or black shell)+ 4G TF Card + Safety Button + Buzzer + PPM Encoder + I2C Expansion Board+ 3 Line(4Pin 1.25 ,6Pin 1.25 ,3Pin 2.5.4) + M8N GPS+ GPS Holder+  3DR Power Module+ Shock Absorber+433/915MHZ 100MW Radio telemetry

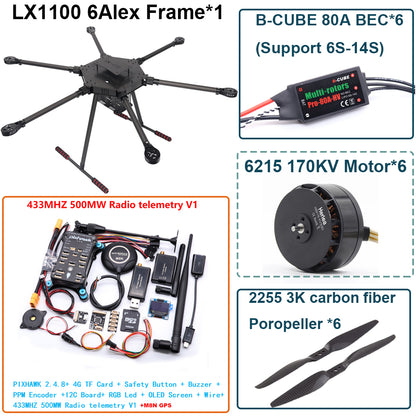

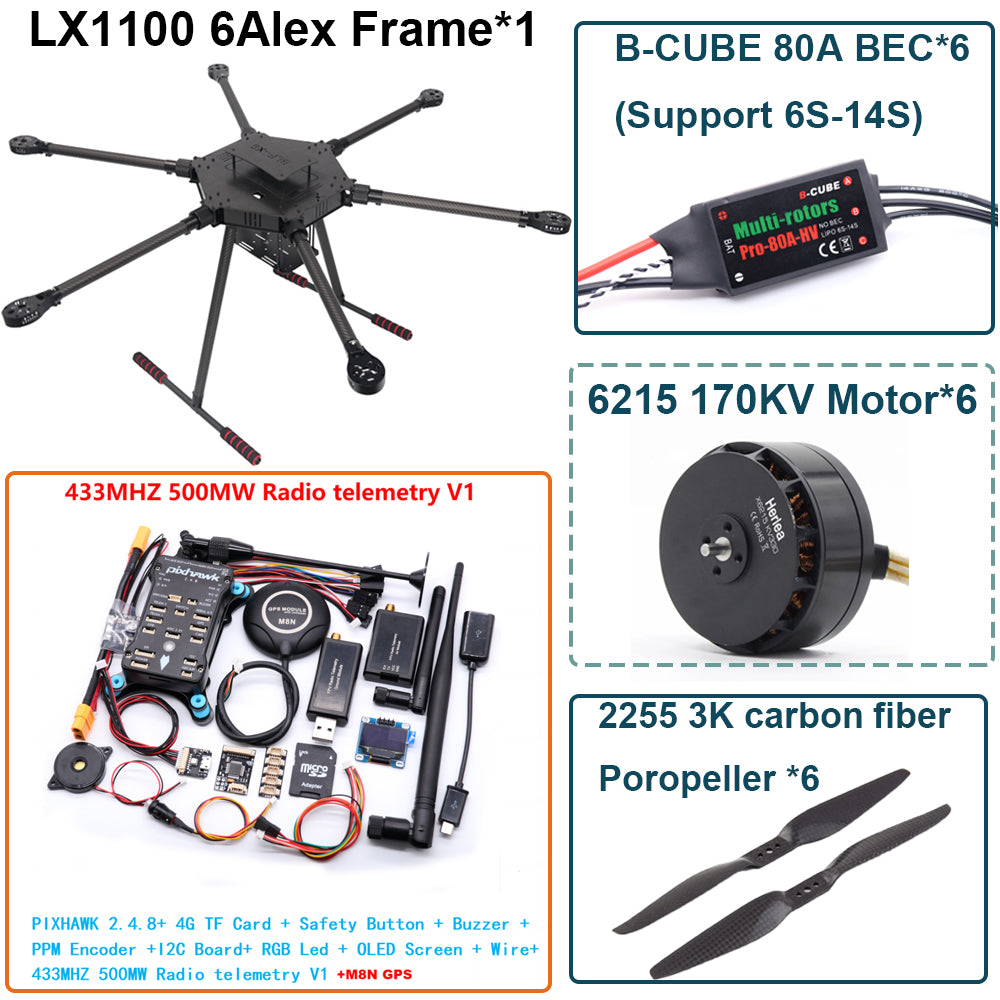

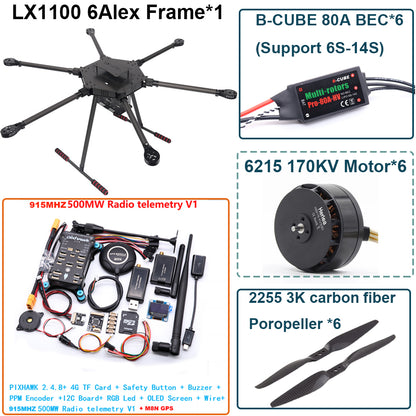

433/915MHZ 500MW :

3 Pairs 3K Carbon Fiber Propeller 2255  + 6 PCS 6215 170KV Motor  +LX1100 Full Carbon Fiber+ 6 pcs B-CUBE 80A Brushless ESC+

PIXHAWK 2.4.8(white or black shell)+ 4G TF Card + Safety Button + Buzzer + PPM Encoder + I2C Expansion Board+ RGB LED + OLED Screen+ 3 Line(4Pin 1.25 ,6Pin 1.25 ,3Pin 2.5.4) + M8N GPS+ GPS Holder+  3DR Power Module+Shock Absorber+433/915MHZ 500MW Radio telemetry

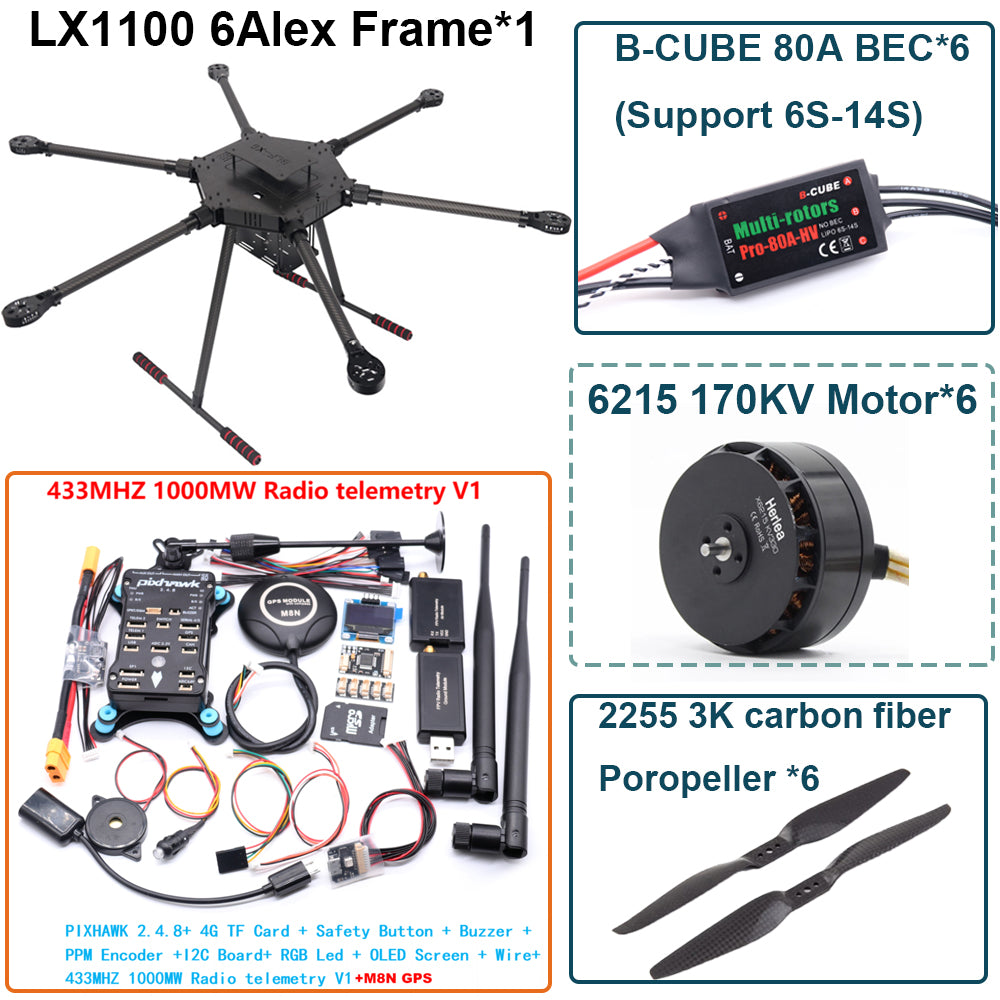

433/915MHZ 1000MW :

3 Pairs 3K Carbon Fiber Propeller 2255  + 6 PCS 6215 170KV Motor  +LX1100 Full Carbon Fiber+ 6 pcs B-CUBE 80A Brushless ESC+

PIXHAWK 2.4.8(white or black shell)+ 4G TF Card + Safety Button + Buzzer + PPM Encoder + I2C Expansion Board+ RGB LED + OLED Screen+ 3 Line(4Pin 1.25 ,6Pin 1.25 ,3Pin 2.5.4) + M8N GPS+ GPS Holder+  3DR Power Module+Shock Absorber+433/915MHZ 1000MW Radio telemetry

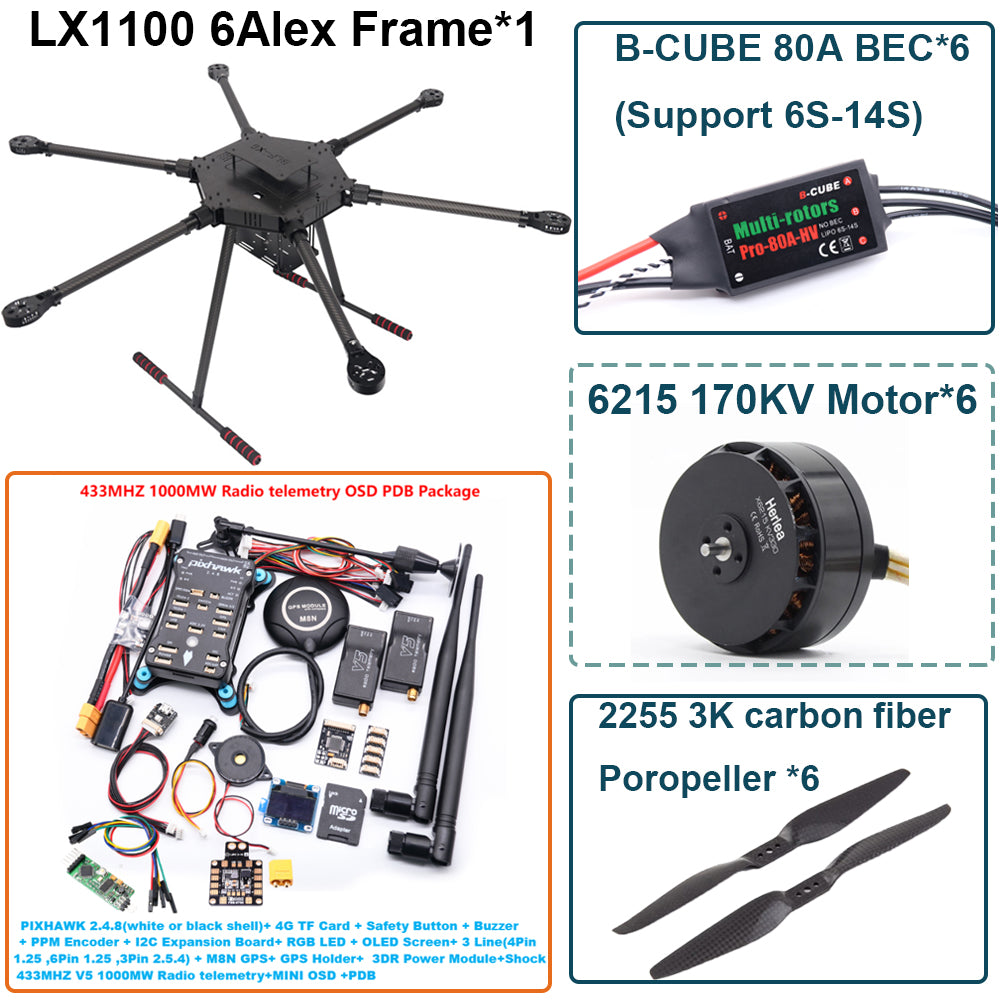

433MHZV5 1000MW OSD:

3 Pairs 3K Carbon Fiber Propeller 2255 + 6 PCS 6215 170KV Motor  +LX1100 Full Carbon Fiber+ 6 pcs B-CUBE 80A Brushless ESC+

PIXHAWK 2.4.8(white or black shell)+ 4G TF Card + Safety Button + Buzzer + PPM Encoder + I2C Expansion Board+ RGB LED + OLED Screen+ 3 Line(4Pin 1.25 ,6Pin 1.25 ,3Pin 2.5.4) + M8N GPS+ GPS Holder+  3DR Power Module+Shock Absorber+433MHZ V5 1000MW Radio telemetry+MINI OSD +PDB

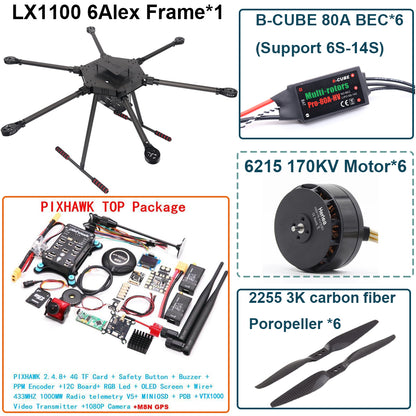

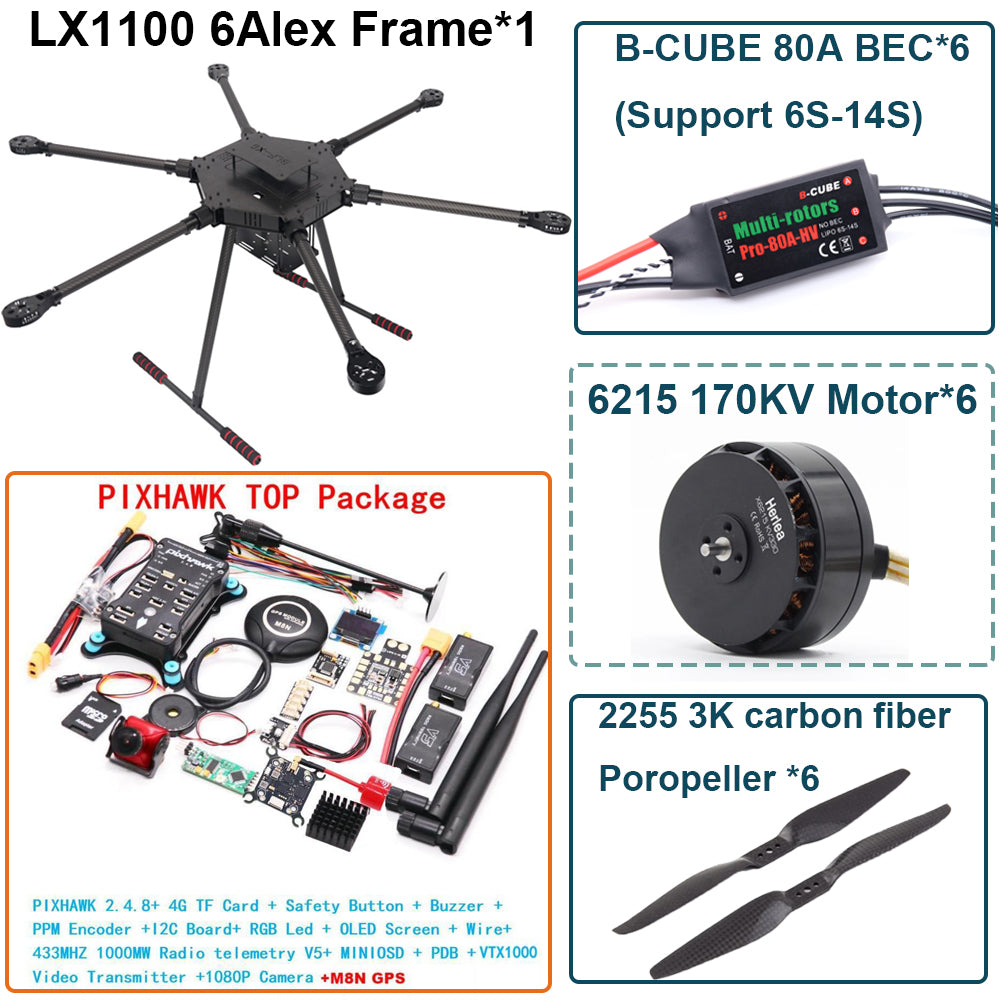

TOP Package:

3 Pairs 3K Carbon Fiber Propeller 2255+6 PCS 6215 170KV Motor+LX1100 Full Carbon Fiber+ 6 pcs B-CUBE 80A Brushless ESC+

PIXHAWK 2.4.8(white or black shell)+ 4G TF Card + Safety Button + Buzzer + PPM Encoder +OLED Module+RGB LED+I2C Expansion Board+ 3 Line(4Pin 1.25 ,6Pin 1.25 ,3Pin 2.5.4) + M8N GPS+ GPS Holder+3DR Power Module+ Shock Absorber +433MHZ 1000MW Radio Telemetry V5+ MINI OSD + PDB +VTX1000 +1080P Camera

LX1100 6Alex Frame*1


6215 170KV Motor Support 6S-12S



B-CUBE-Pro-80A-HV V3 ESC
B-CUBE-Pro-80A-HV V3 for Multicopter
Specification:
Voltage: 6-14S lithium battery. Current 80A. Weight 195g
Without BEC. Without fan (no need for fan)
Power cord (red and black line) No. 12 silicone wire, length: 14cm.
Motor line (3 black lines) No. 14 silicone wire, length: 70cm
Signal line (black and white line) Length: 25cm
Shell waterproof.
Model: B-CUBE-Pro-80A-HV V3 ESC
Drive mode: BLDC
Continues Current :80A
Instantaneous Current (10 seconds) : 100A
Output lithium battery Section number : 6-14s
Parameter Programming Features: Automatic angle (High / medium)

01 Warnings

 Ensure all wires and connections are well insulated before connecting the ESC to related devices, as short circuit will damage your ESC.

 Ensure all devices are well connected to prevent poor connection that may cause your multi-rotor to lose control or other unpredictable issues such
as damage to the device.
 Read through the manuals of all power devices and ensure the power configuration is rational before using this unit.
 Please use a soldering iron (ensuring it’s connected to a GND wire) with the power of at least 60W to solder all input/output wires and connectors.
 Stop using the ESC when its casing temperature exceeds 100℃, otherwise your ESC will get destroyed and may also get your motor damaged.
 Please swap any two ESC-to-motor wires if the motor runs in reverse.
02 Features
 Special core program for multi-rotor controllers greatly improves throttle response.
 Specially optimized software for excellent compatibility with multi-rotor motors.
 Microprocessor powered by independent DC regulator has better anti-interference performance greatly reduces the risk of losing control.
 Separate signal wires for reminding user of RPM output & error states.
 All settings except the timing are preset, making usage simple, high intelligent and adaptive.
 Compatible with various flight-controller and supports a signal frequency of up to 621Hz.
 DEO (Driving Efficiency Optimization) technology for better throttle linearity and higher driving efficiency.
 PWM frequency of 18KHz.

3 Pairs 3K Carbon Fiber Propeller

 The new propeller-type aerial dedicated full carbon paddle paddle-type three-hole installation

Using carbon content of 100% pure imported Toray carbon fiber 3K woven, high temperature and pressure precast precision machining, hardness higher than conventional products market.

M8N GPS :

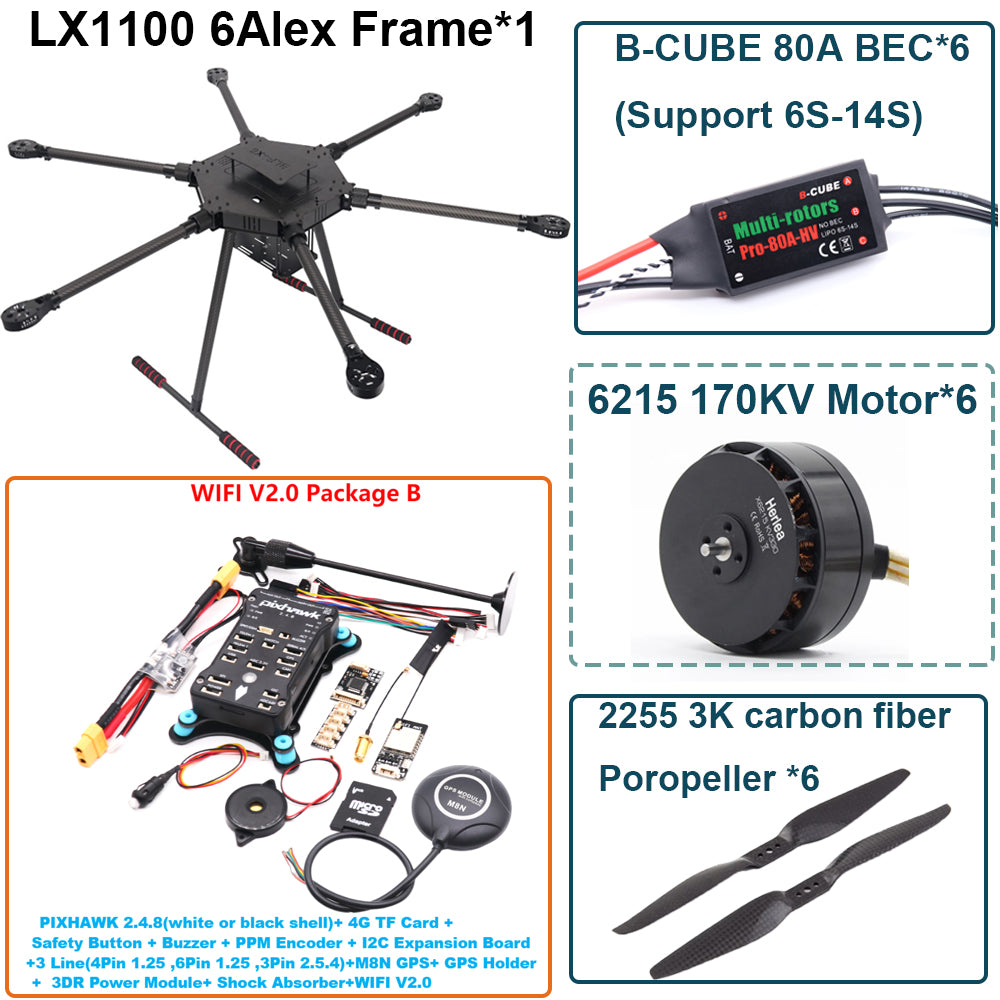

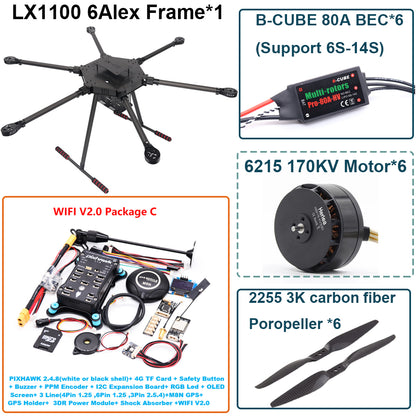

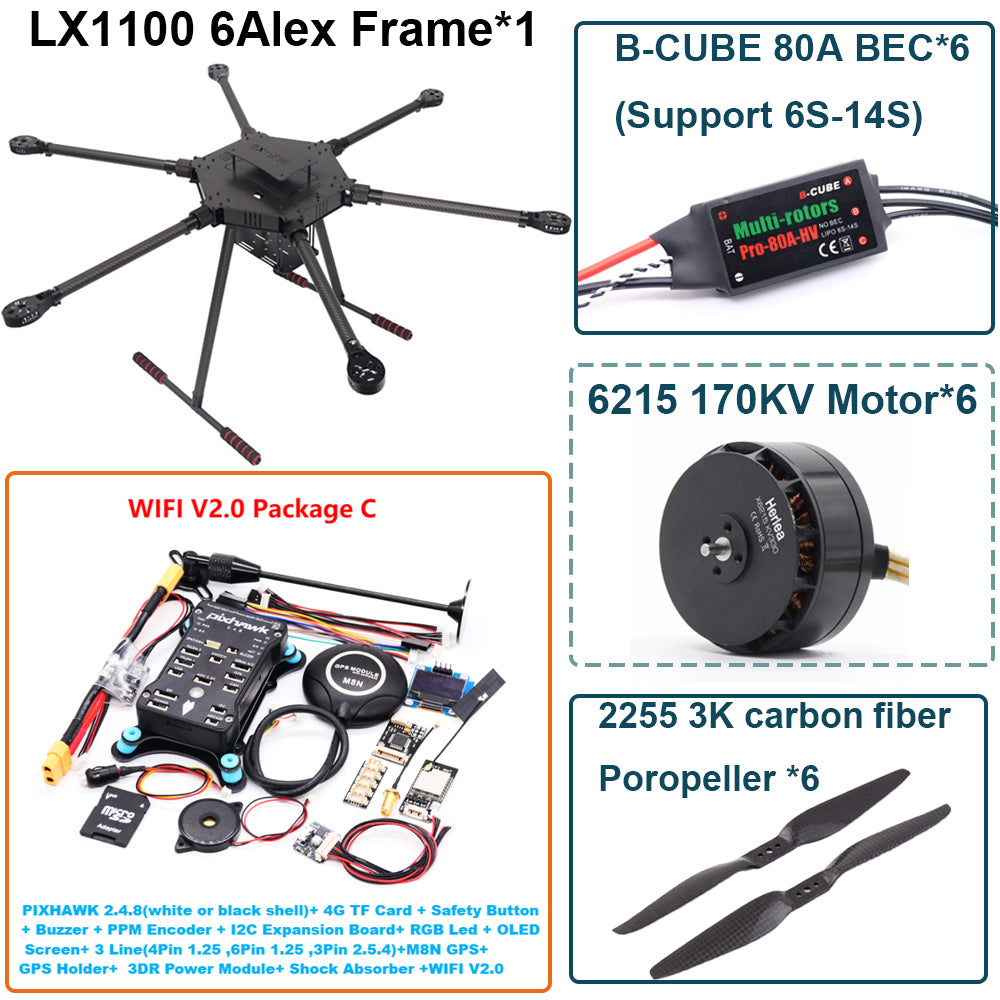

WIFI V1.0 and V2.0 use 8bit CPU, only support UDP

 WIFI V3.0 use 32 BIT CPU, support TCP and UDP.

WIFI V2.0 and V3.0 use external antenna (5DB)

OLED Module can display some message.

MINI OSD:

PDB:

VTX1000 is video transmitter,support 25MW-600MW,48 channel (with heat sink abd 3DBantenna )

FPV Camera

Sensor: 1/2. 7 800TVL CCD
Resolution: D1 1080P
Len: 5MP 2.1mm
Video formats: PAL / NTSC (OSD adjustable Internal)
Signal to noise ratio> 60Db (AGC OFF)
Electronic shutter: PAL: 1 / 50-100,000, NTSC: 1 / 60-100,000
Automatic gain control: YES
Backlight compensation: YES
Illumination intensity: 0.001Lux / 1.2F
Automatic gain control: adjustable
Backlight compensation: adjustable
Power: DC 5V-22V
Shell material: Aluminum alloy
Dimension: 28mm * 26mm * 28mm
Net Weight: 18g



Feature:
Upgraded Mista 800TVL 2.1mm Wide Angle HD 1080P CCD PAL/NTSC Switchable 16:9 OSD FPV Camera.

 Radio telemetry V1

Radio telemetry can be used for wireless communication between pixhawk and computer or mobile phone.
