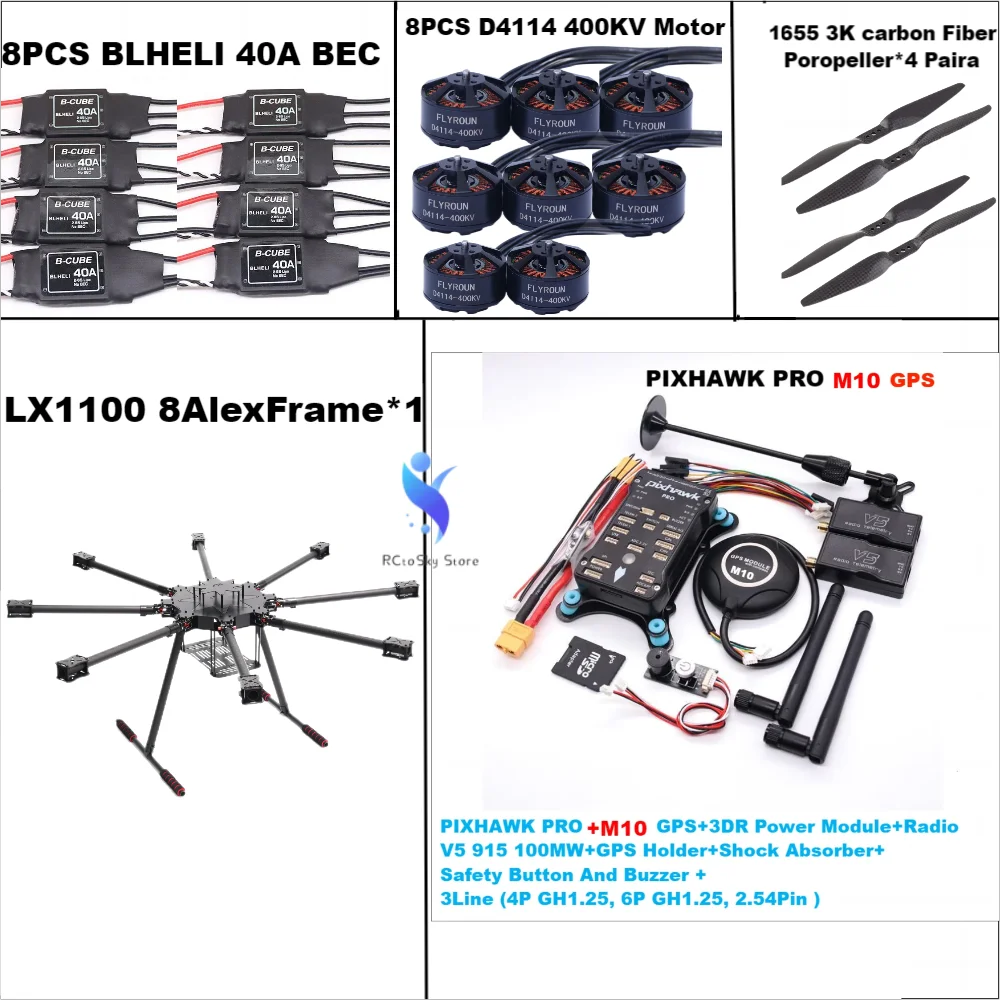

LX1100 Full Carbon Fiber 1100mm Octa-Rotor Frame BLHELI 40A ESC PX4 Pixhawk PRO M10 Flight Comtrol Set D4114 Motor

LX1100 Full Carbon Fiber 1100mm Octa-Rotor Frame BLHELI 40A ESC PX4 Pixhawk PRO M10 Flight Comtrol Set D4114 Motor

$653.12 USD

~~$653.12 USD~~ $653.12 USD

Sale Sold out

Color Simple package Standard package High package 433MHZ 100MW M10 433MHZ 500MW M10 433MHZ 1000MW M10 915MHZ 100MW M10 915MHZ 500MW M10 915MHZ 1000MW M10

Quantity

RCtoSky LX1100 8 Axle Octocopter

Features：

1. Simple folding parts, one-key folding, saving time and effort;

2. The super-large motor base can be built-in ESC to solve the messy wiring on the center board.

3. 2.0MM carbon fiber hollow design center board, saving time for disassembly and assembly.

4. Intelligent electric tripod, remote control one-key contraction, making the flight more beautiful.

Parameters：

Symmetrical motor wheelbase: 1100MM

Arm diameter: 25MM

Pixhawk PRO support the latest official ardupilot firmware and PX4 firmware.

1. The advanced 32-bit ARM CortexM4 high-performance processors STM32F427VIT6(2MB flash), can run NuttX CHIBOS RTOS real-time operating system;

2. 14 PWM / servo output;

3. Bus interface (UART, I2C, SPI, CAN);

4. The integrated backup power and backup controller fails, the primary controller fails over to the backup control is safe;

5. Provide automatic and manual modes;

6. Provide redundant power input and failover;

7. Multicolor LED lights;

8. Provide multi-tone buzzer Interface

9. Micro SD recording flight data;

Specifications:

Interface

1 .5 high voltage compatible UART 1, 2 with hardware flow control

2. 2 CAN

3.Spektrum DSM / DSM2 / DSM-X satellite receiver compatible input

4.Futaba SBUS compatible inputs and outputs

5.PPM Signal Input

6.RSSI (PWM or voltage) Input

7.I2C

8.SPI

9.3.3 and 6.6VADC input

10. External MICRO USB Interface

Simple package:

LX1100 Full Carbon Fiber+ 8 pcs BLHELI 40A Brushless ESC+4 Pairs 3K Carbon Fiber Propeller 1655 + 8 PCS D4114 400KV Motor +

PIXHAWK PRO +M10 GPS+3DR Power Module+ GPS Holde + Shock Absorber+ Shock AbsorberSafety Button And Buzze+3Line(4PGH1.25,6PGH1.25,2.54Pin)

Standard package:

LX1100 Full Carbon Fiber+ 8 pcs BLHELI 40A Brushless ESC+4 Pairs 3K Carbon Fiber Propeller 1655 + 8 PCS D4114 400KV Motor +

PIXHAWK PRO +PPM+I2C+M10 GPS+3DR Power Module GPs Holder+ shock Absorber+ Shock Absorber+Safety

Button And Buzzer+3Line(4P GH1.25,6PGH1.25,2.54Pin

High package:

LX1100 Full Carbon Fiber+ 8 pcs BLHELI 40A Brushless ESC+4 Pairs 3K Carbon Fiber Propeller 1655 + 8 PCS D4114 400KV Motor +

PIXHAWK PRO+PPM+I2C+RGB LED+OLED+M10 GPS+3DR Power Module+ GPS Holder+ Shock Absorber+

Shock Absorber+Safety Button And Buzzer+3Line(4PGH1.25,6PGH1.25,2.54Pin)

433/915MHZ 100MW :

LX1100 Full Carbon Fiber+ 8 pcs BLHELI 40A Brushless ESC+4 Pairs 3K Carbon Fiber Propeller 1655 + 8 PCS D4114 400KV Motor +

PIXHAWK PRO+ 4G TF Card + Safety Button + Buzzer + PPM Encoder + I2C Expansion Board+ 3 Line(4Pin 1.25 ,6Pin 1.25 ,3Pin 2.5.4) +M10 GPS+ GPS Holder+ 3DR Power Module+ Shock Absorber+433/915MHZ 100MW Radio telemetry

433/915MHZ 500MW :

LX1100 Full Carbon Fiber+ 8 pcs BLHELI 40A Brushless ESC+4 Pairs 3K Carbon Fiber Propeller 1655 + 8 PCS D4114 400KV Motor +

PIXHAWK PRO(white or black shell)+ 4G TF Card + Safety Button + Buzzer + PPM Encoder + I2C Expansion Board+ RGB LED + OLED Screen+ 3 Line(4Pin 1.25 ,6Pin 1.25 ,3Pin 2.5.4) +M10 GPS+ GPS Holder+ 3DR Power Module+Shock Absorber+433/915MHZ 500MW Radio telemetry

433/915MHZ 1000MW :

LX1100 Full Carbon Fiber+ 8 pcs BLHELI 40A Brushless ESC+4 Pairs 3K Carbon Fiber Propeller 1655 + 8 PCS D4114 400KV Motor +

PIXHAWK PRO(white or black shell)+ 4G TF Card + Safety Button + Buzzer + PPM Encoder + I2C Expansion Board+ RGB LED + OLED Screen+ 3 Line(4Pin 1.25 ,6Pin 1.25 ,3Pin 2.5.4) +M10 GPS+ GPS Holder+ 3DR Power Module+Shock Absorber+433/915MHZ 1000MW Radio telemetry

LX1100 Full Carbon Fiber

3 Pairs 3K Carbon Fiber Propeller 1655

The new propeller-type aerial dedicated full carbon paddle paddle-type three-hole installation

Using carbon content of 100% pure imported Toray carbon fiber 3K woven, high temperature and pressure precast precision machining, hardness higher than conventional products market.

Features:

- Using Multicopter special program, fast throttle response,surpasses all kinds of open source software;

- Firmware was optimized specifically for disc motor, and it has a very good compatibility;

- Highly intelligent, strong adaptive capacity, reserve the timing setting item (height/middle timing), easy to use;

- Throttle signal line is twisted wire to reduce crosstalk within the transmission signal generated by the copper, so that more stable flight;

- Supports refresh rates up to 621Hz throttle signal, compatible with various flight controllers. (Note: the throttle signal over 500Hz are all non-standard throttle signal);

- Using MOSFET special driver IC, its performance and stability far surpass the driving circuit with discrete components built;

- Ultra-low resistance MOSFET, strong flow capacity.

D4114 400KV Motor

Radio telemetry can be used for wireless communication between pixhawk and computer or mobile phone.

OLED Module can display some message.
