RCtoSky LX1100 8 Axle Octocopter

Features：

1. Simple folding parts, one-key folding, saving time and effort;

2. The super-large motor base can be built-in ESC to solve the messy wiring on the center board.

3.  2.0MM carbon fiber hollow design center board, saving time for disassembly and assembly.

4. Intelligent electric tripod, remote control one-key contraction, making the flight more beautiful.

Parameters：

Symmetrical motor wheelbase: 1100MM

Arm diameter: 25MM

PIXHAWK 6C PRO

The Pixhawk® 6C PRO is the latest update to the successful family of Pixhawk® flight controllers, based on the Pixhawk® FMUv6C Open Standard and Connector Standard. It comes with PX4 Autopilot® pre-installed. STMicroelectronics® based STM32H743, paired with sensor technology from Bosch® & InvenSense®, giving you flexibility and reliability for controlling any autonomous vehicle, suitable for both academic and commercial applications.

The Pixhawk® 6C PRO's H7 microcontroller contain the Arm® Cortex®-M7 core running up to 480 MHz, has 2MB flash memory and 1MB RAM. Thanks to the updated processing power, developers can be more productive and efficient with their development work, allowing for complex algorithms and models.

The Pixhawk 6C PRO includes high-performance, low-noise IMUs on board, designed to be cost effective while having IMU redundancy. A vibration isolation System to filter out high-frequency vibration and reduce noise to ensure accurate readings, allowing vehicles to reach better overall flight performances.

The Pixhawk® 6C PRO is perfect for developers at corporate research labs, startups, academics (research, professors, students), and commercial application.

Key Design Points

High performance STM32H743 Processor with more computing power & RAM

Build-in Buzzer,Build-in RGB LED,support Independent external Safety Button,With Plastic Case

New cost-effective design with low-profile form factor

Newly designed integrated vibration isolation system to filter out high frequency vibration and reduce noise to ensure accurate readings

IMUs are temperature-controlled by onboard heating resistors, allowing optimum working temperature of IMUs

Technical Specification

Processors & Sensors

FMU Processor: STM32H743
32 Bit Arm® Cortex®-M7, 480MHz, 2MB memory, 1MB SRAM

IO Processor: STM32F103
32 Bit Arm® Cortex®-M3, 72MHz, 64KB SRAM

On-board sensors

Accel/Gyro: ICM-42688-P

Accel/Gyro: BMI055

Mag: IST8310

Barometer: MS5611

Electrical data

Voltage Ratings:

Max input voltage: 6V

USB Power Input: 4.75~5.25V

Servo Rail Input: 0~36V

Current Ratings:

TELEM1 Max output current limiter: 1.5A

All other port combined output current limiter: 1.5A

Mechanical data

Dimensions: 85 * 45 * 10 mm

Weight (Plastic Case) : 33g

Simple Package:

LX1100 Full Carbon Fiber+ 8 pcs BLHELI 40A Brushless ESC+4 Pairs 3K Carbon Fiber Propeller 1655  + 8 PCS D4114 400KV Motor  +

PIXHAWK 6C PRO+2'PWM Module+Safety Button+4G TF Card+M8N GPS+GPs Holdor+Shock Absorber+PM02 PowerModulo(support 12S)

High Package:

LX1100 Full Carbon Fiber+ 8 pcs BLHELI 40A Brushless ESC+4 Pairs 3K Carbon Fiber Propeller 1655  + 8 PCS D4114 400KV Motor  +

PIXHAWK 6C PRO+2*PWM Module+I2C Expansion Board +RGB LED Module+ Safety Button+4G TF Card+M8NGPS+GPS Holder+Shock Absorber+PM02 Power Module(support 12S)

WIFI V3.0:

LX1100 Full Carbon Fiber+ 8 pcs BLHELI 40A Brushless ESC+4 Pairs 3K Carbon Fiber Propeller 1655  + 8 PCS D4114 400KV Motor  +

PIXHAWK 6C PRO+2*PWM Module+ Safety Button+

4G TF Card +M8N GPS+GPS holder+Shock Absorber WIFIV3.0+PM02 Power Module(support 12s

433/915MHZ 100MW :

LX1100 Full Carbon Fiber+ 8 pcs BLHELI 40A Brushless ESC+4 Pairs 3K Carbon Fiber Propeller 1655  + 8 PCS D4114 400KV Motor  +

PIXHAWK 6C PRO+2*PWM Module+ Safoty Button+4G TF Card  M8N GPS+GPs Holder+Shock Absorber+PM02 Power Module (support 12S)+RadloTelemetry V6 433/915MHZ 100MW

433/915MHZ 500MW :

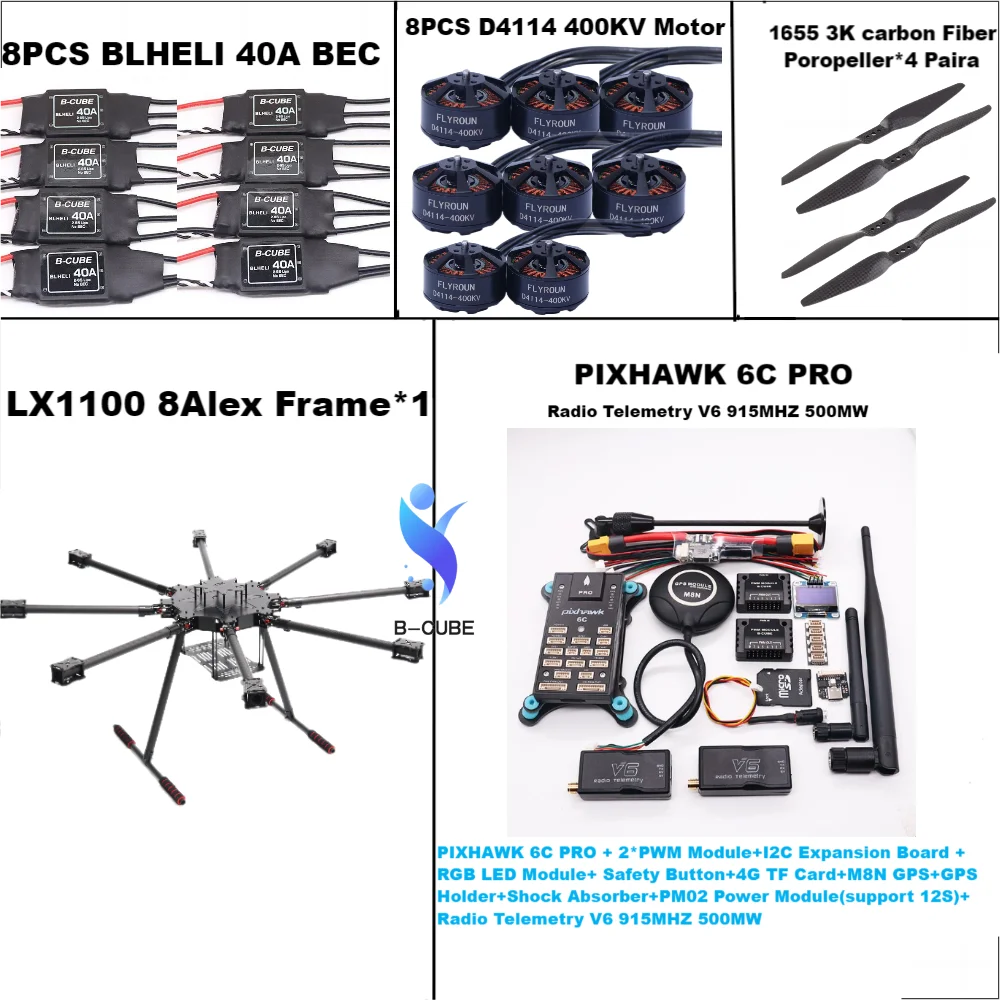

LX1100 Full Carbon Fiber+ 8 pcs BLHELI 40A Brushless ESC+4 Pairs 3K Carbon Fiber Propeller 1655  + 8 PCS D4114 400KV Motor  +

PIXHAWK 6C PRO+2*PWM Module+I2C ExpansIon Board +RGB LED Module+Safety Button+4GTF Card+M8N GPS+GPs Holder+Shock Absorber+PM02 Power Module(support 12S)+ Radio Telemetrv V6 433/915MHZ 500MW

433/915MHZ 1000MW :

LX1100 Full Carbon Fiber+ 8 pcs BLHELI 40A Brushless ESC+4 Pairs 3K Carbon Fiber Propeller 1655  + 8 PCS D4114 400KV Motor  +

PIXHAWK 6C PRO+2*PWM Module+I2C Expansion Board+RGB LED Module+ Safety Button+4G TF Card+M8N GPS+GPs Holder+Shock Absorber+PM02 Power Module(support 12S)+ Radlo Telemetry V6 433/915MHZ 1000MW

LX1100 Full Carbon Fiber

Features:



- Using Multicopter special program, fast throttle response,surpasses all kinds of open source software;

- Firmware was optimized specifically for disc motor, and it has a very good compatibility;

- Highly intelligent, strong adaptive capacity, reserve the timing setting item (height/middle timing), easy to use;

- Throttle signal line is twisted wire to reduce crosstalk within the transmission signal generated by the copper, so that more stable flight;

- Supports refresh rates up to 621Hz throttle signal, compatible with various flight controllers. (Note: the throttle signal over 500Hz are all non-standard throttle signal);

- Using MOSFET special driver IC, its performance and stability far surpass the driving circuit with discrete components built;

- Ultra-low resistance MOSFET, strong flow capacity.

Radio Telemetry V6

OLED Module can display some message.
