LX1100 Full Carbon Fiber 1100mm Octa-Rotor Frame BLHELI 40A ESC PX4 Pixhawk 6C PRO Double M8N Flight Comtrol Set D4114 Motor

LX1100 Full Carbon Fiber 1100mm Octa-Rotor Frame BLHELI 40A ESC PX4 Pixhawk 6C PRO Double M8N Flight Comtrol Set D4114 Motor

$780.88 USD

~~$780.88 USD~~ $780.88 USD

Sale Sold out

Color Simple Package High Package WIFI V3.0 A 433MHZ 100MW M8N 433MHZ 500MW M8N 433MHZ 1000MW M8N 915MHZ 100MW M8N 915MHZ 500MW M8N 915MHZ 1000MW M8N

Quantity

RCtoSky LX1100 8 Axle Octocopter

Features：

1. Simple folding parts, one-key folding, saving time and effort;

2. The super-large motor base can be built-in ESC to solve the messy wiring on the center board.

3. 2.0MM carbon fiber hollow design center board, saving time for disassembly and assembly.

4. Intelligent electric tripod, remote control one-key contraction, making the flight more beautiful.

Parameters：

Symmetrical motor wheelbase: 1100MM

Arm diameter: 25MM

PIXHAWK 6C PRO

Build-in Buzzer,Build-in RGB LED,support Independent external Safety Button,With Plastic Case
Processors & Sensors

Technical Specification
Accel/Gyro: ICM-42688-P
Accel/Gyro: BMI055
Mag: IST8310
Barometer: MS5611
On-board sensors

FMU Processor: STM32H743 32 Bit Arm® Cortex®-M7, 480MHz, 2MB memory, 1MB SRAM
IO Processor: STM32F103 32 Bit Arm® Cortex®-M3, 72MHz, 64KB SRAM

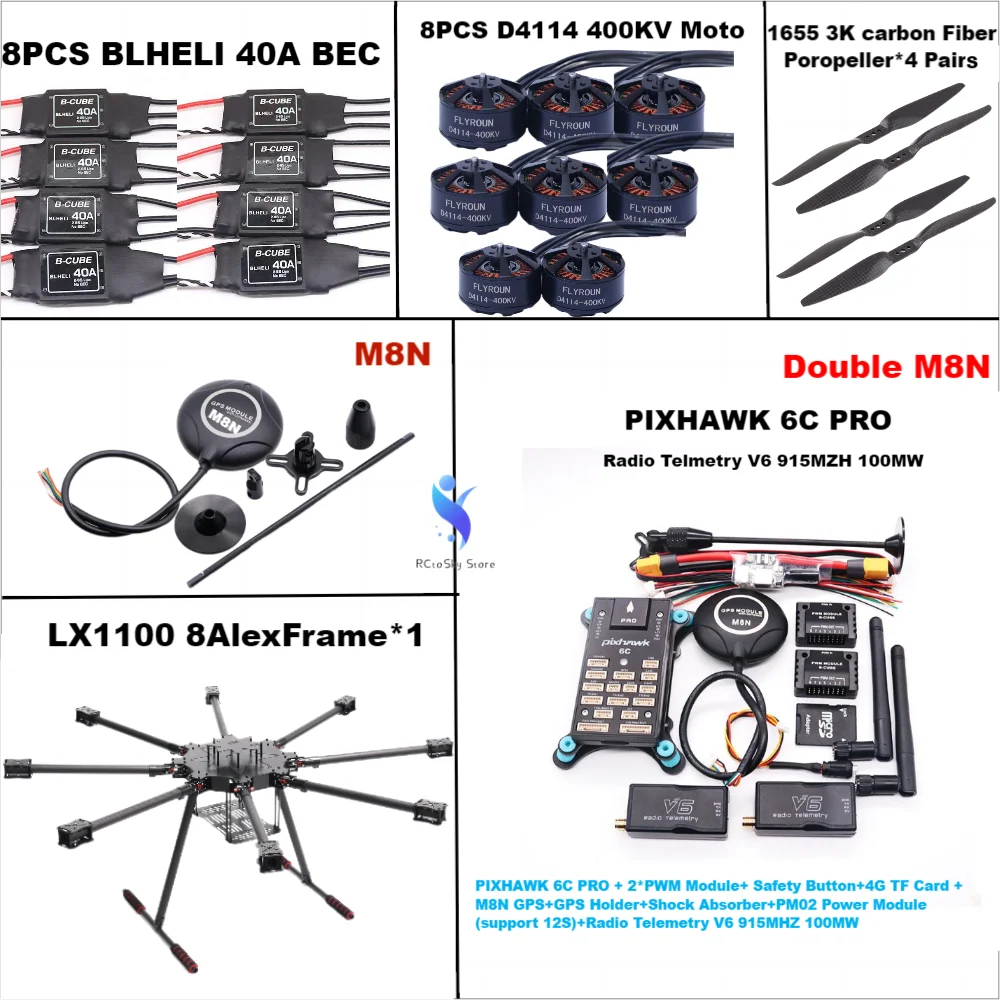

Simple Package:

LX1100 Full Carbon Fiber+ 8 pcs BLHELI 40A Brushless ESC+4 Pairs 3K Carbon Fiber Propeller 1655 + 8 PCS D4114 400KV Motor +

PIXHAWK 6C PRO+2'PWM Module+Safety Button+4G TF Card+M8N GPS+GPs Holdor+Shock Absorber+PM02 PowerModulo(support 12S)+M8N GPS+ GPS Holder

High Pacage:

LX1100 Full Carbon Fiber+ 8 pcs BLHELI 40A Brushless ESC+4 Pairs 3K Carbon Fiber Propeller 1655 + 8 PCS D4114 400KV Motor +

PIXHAWK 6C PRO+2*PWM Module+I2C Expansion Board +RGB LED Module+ Safety Button+4G TF Card+M8NGPS+GPS Holder+Shock Absorber+PM02 Power Module(support 12S)+M8N GPS+ GPS Holder

WIFI V3.0:

LX1100 Full Carbon Fiber+ 8 pcs BLHELI 40A Brushless ESC+4 Pairs 3K Carbon Fiber Propeller 1655 + 8 PCS D4114 400KV Motor +

PIXHAWK 6C PRO+2*PWM Module+ Safety Button+

4G TF Card +M8N GPS+GPS holder+Shock Absorber WIFIV3.0+PM02 Power Module(support 12s)+M8N GPS+ GPS Holder

433/915MHZ 100MW :

LX1100 Full Carbon Fiber+ 8 pcs BLHELI 40A Brushless ESC+4 Pairs 3K Carbon Fiber Propeller 1655 + 8 PCS D4114 400KV Motor +

PIXHAWK 6C PRO+2*PWM Module+ Safoty Button+4G TF Card M8N GPS+GPs Holder+Shock Absorber+PM02 Power Module (support 12S)+RadloTelemetry V6 433/915MHZ 100MW+M8N GPS+ GPS Holder

433/915MHZ 500MW :

LX1100 Full Carbon Fiber+ 8 pcs BLHELI 40A Brushless ESC+4 Pairs 3K Carbon Fiber Propeller 1655 + 8 PCS D4114 400KV Motor +

PIXHAWK 6C PRO+2*PWM Module+I2C ExpansIon Board +RGB LED Module+Safety Button+4GTF Card+M8N GPS+GPs Holder+Shock Absorber+PM02 Power Module(support 12S)+ Radio Telemetrv V6 433/915MHZ 500MW+M8N GPS+ GPS Holder

433/915MHZ 1000MW :

LX1100 Full Carbon Fiber+ 8 pcs BLHELI 40A Brushless ESC+4 Pairs 3K Carbon Fiber Propeller 1655 + 8 PCS D4114 400KV Motor +

PIXHAWK 6C PRO+2*PWM Module+I2C Expansion Board+RGB LED Module+ Safety Button+4G TF Card+M8N GPS+GPs Holder+Shock Absorber+PM02 Power Module(support 12S)+ Radlo Telemetry V6 433/915MHZ 1000MW+M8N GPS+ GPS Holder

LX1100 Full Carbon Fiber

M8N GPS+ GPS Holder

3 Pairs 3K Carbon Fiber Propeller 1655

The new propeller-type aerial dedicated full carbon paddle paddle-type three-hole installation

Using carbon content of 100% pure imported Toray carbon fiber 3K woven, high temperature and pressure precast precision machining, hardness higher than conventional products market.

Features:

- Using Multicopter special program, fast throttle response,surpasses all kinds of open source software;

- Firmware was optimized specifically for disc motor, and it has a very good compatibility;

- Highly intelligent, strong adaptive capacity, reserve the timing setting item (height/middle timing), easy to use;

- Throttle signal line is twisted wire to reduce crosstalk within the transmission signal generated by the copper, so that more stable flight;

- Supports refresh rates up to 621Hz throttle signal, compatible with various flight controllers. (Note: the throttle signal over 500Hz are all non-standard throttle signal);

- Using MOSFET special driver IC, its performance and stability far surpass the driving circuit with discrete components built;

- Ultra-low resistance MOSFET, strong flow capacity.

D4114 400KV Motor

Radio Telemetry V6

OLED Module can display some message.
