B-CUBE.RC - Build Your Drone From here- Build Your Drone From here!

LX1100 Full Carbon Fiber 1100mm Octa-Rotor Frame BLHELI 40A ESC PX4 Pixhawk 6C PRO Double M10 Flight Comtrol Set D4114 Motor

LX1100 Full Carbon Fiber 1100mm Octa-Rotor Frame BLHELI 40A ESC PX4 Pixhawk 6C PRO Double M10 Flight Comtrol Set D4114 Motor

$775.88 USD

~~$775.88 USD~~ $775.88 USD

Sale Sold out

Color M10 Simple Package M10 High Package 433MHZ 100MW M10 433MHZ 500MW M10 433MHZ 1000MW M10 915MHZ 100MW M10 915MHZ 500MW M10 915MHZ 1000MW M10

Quantity

RCtoSky LX1100 8 Axle Octocopter

Features：

1. Simple folding parts, one-key folding, saving time and effort;

2. The super-large motor base can be built-in ESC to solve the messy wiring on the center board.

3. 2.0MM carbon fiber hollow design center board, saving time for disassembly and assembly.

4. Intelligent electric tripod, remote control one-key contraction, making the flight more beautiful.

Parameters：

Symmetrical motor wheelbase: 1100MM

Arm diameter: 25MM

PIXHAWK 6C PRO

Build-in Buzzer,Build-in RGB LED,support Independent external Safety Button,With Plastic Case
Processors & Sensors

Technical Specification
Accel/Gyro: ICM-42688-P
Accel/Gyro: BMI055
Mag: IST8310
Barometer: MS5611
On-board sensors

FMU Processor: STM32H743 32 Bit Arm® Cortex®-M7, 480MHz, 2MB memory, 1MB SRAM
IO Processor: STM32F103 32 Bit Arm® Cortex®-M3, 72MHz, 64KB SRAM

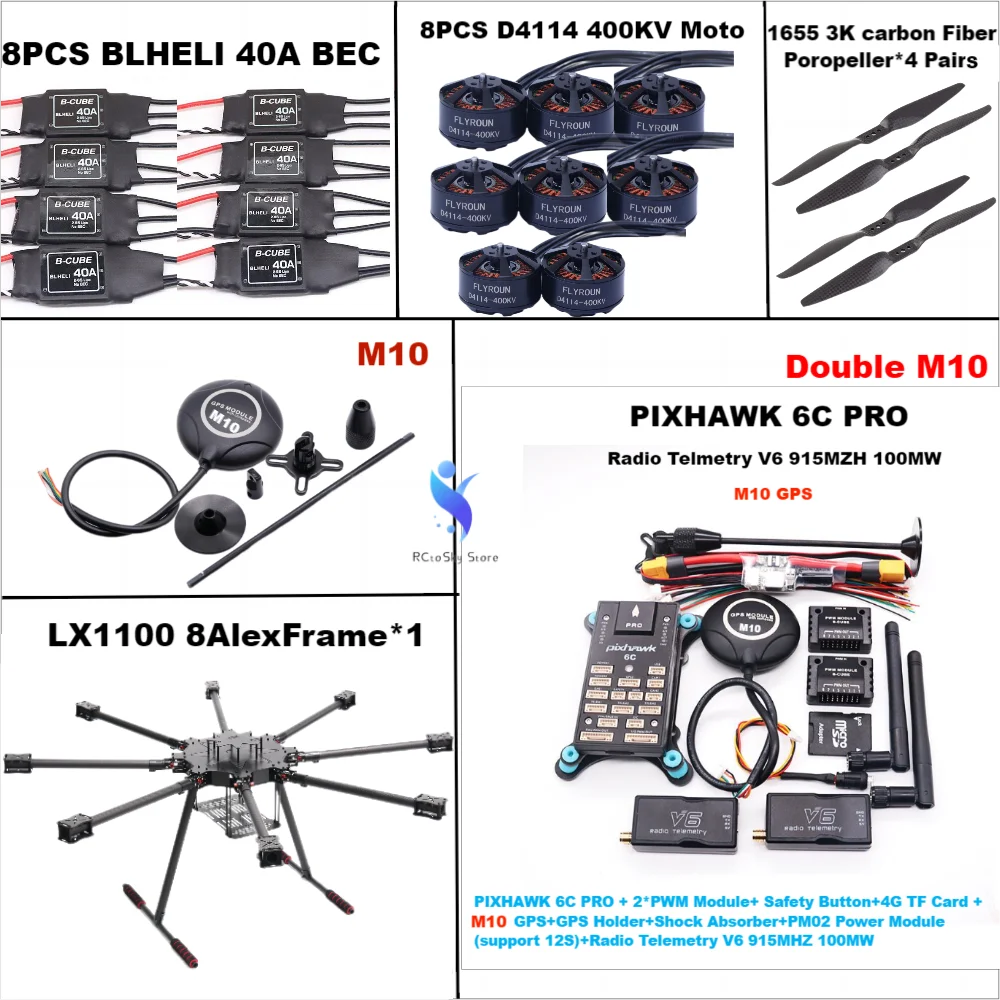

Simple package:

LX1100 Full Carbon Fiber+ 8 pcs BLHELI 40A Brushless ESC+4 Pairs 3K Carbon Fiber Propeller 1655 + 8 PCS D4114 400KV Motor +

PIXHAWK 6C PRO +M10 GPS+3DR Power Module+ GPS Holde + Shock Absorber+ Shock AbsorberSafety Button And Buzze+3Line(4PGH1.25,6PGH1.25,2.54Pin)+M10 GPS+ GPS Holder

High package:

LX1100 Full Carbon Fiber+ 8 pcs BLHELI 40A Brushless ESC+4 Pairs 3K Carbon Fiber Propeller 1655 + 8 PCS D4114 400KV Motor +

PIXHAWK 6C PRO+PPM+I2C+RGB LED+OLED+M10 GPS+3DR Power Module+ GPS Holder+ Shock Absorber+

Shock Absorber+Safety Button And Buzzer+3Line(4PGH1.25,6PGH1.25,2.54Pin)+M10 GPS+ GPS Holder

433/915MHZ 100MW :

LX1100 Full Carbon Fiber+ 8 pcs BLHELI 40A Brushless ESC+4 Pairs 3K Carbon Fiber Propeller 1655 + 8 PCS D4114 400KV Motor +

PIXHAWK 6C PRO+ 4G TF Card + Safety Button + Buzzer + PPM Encoder + I2C Expansion Board+ 3 Line(4Pin 1.25 ,6Pin 1.25 ,3Pin 2.5.4) +M10 GPS+ GPS Holder+ 3DR Power Module+ Shock Absorber+433/915MHZ 100MW Radio telemetry V6+M10 GPS+ GPS Holder

433/915MHZ 500MW :

LX1100 Full Carbon Fiber+ 8 pcs BLHELI 40A Brushless ESC+4 Pairs 3K Carbon Fiber Propeller 1655 + 8 PCS D4114 400KV Motor +

PIXHAWK 6C PRO(white or black shell)+ 4G TF Card + Safety Button + Buzzer + PPM Encoder + I2C Expansion Board+ RGB LED + OLED Screen+ 3 Line(4Pin 1.25 ,6Pin 1.25 ,3Pin 2.5.4) +M10 GPS+ GPS Holder+ 3DR Power Module+Shock Absorber+433/915MHZ 500MW Radio telemetry V6+M10 GPS+ GPS Holder

433/915MHZ 1000MW :

LX1100 Full Carbon Fiber+ 8 pcs BLHELI 40A Brushless ESC+4 Pairs 3K Carbon Fiber Propeller 1655 + 8 PCS D4114 400KV Motor +

PIXHAWK 6C PRO(white or black shell)+ 4G TF Card + Safety Button + Buzzer + PPM Encoder + I2C Expansion Board+ RGB LED + OLED Screen+ 3 Line(4Pin 1.25 ,6Pin 1.25 ,3Pin 2.5.4) +M10 GPS+ GPS Holder+ 3DR Power Module+Shock Absorber+433/915MHZ 1000MW Radio telemetry V6+M10 GPS+ GPS Holder

LX1100 Full Carbon Fiber

M10 GPS+ GPS Holder

3 Pairs 3K Carbon Fiber Propeller 1655

The new propeller-type aerial dedicated full carbon paddle paddle-type three-hole installation

Using carbon content of 100% pure imported Toray carbon fiber 3K woven, high temperature and pressure precast precision machining, hardness higher than conventional products market.

Features:

- Using Multicopter special program, fast throttle response,surpasses all kinds of open source software;

- Firmware was optimized specifically for disc motor, and it has a very good compatibility;

- Highly intelligent, strong adaptive capacity, reserve the timing setting item (height/middle timing), easy to use;

- Throttle signal line is twisted wire to reduce crosstalk within the transmission signal generated by the copper, so that more stable flight;

- Supports refresh rates up to 621Hz throttle signal, compatible with various flight controllers. (Note: the throttle signal over 500Hz are all non-standard throttle signal);

- Using MOSFET special driver IC, its performance and stability far surpass the driving circuit with discrete components built;

- Ultra-low resistance MOSFET, strong flow capacity.

D4114 400KV Motor

Radio Telemetry V6

OLED Module can display some message.
