LX1100 Full Carbon Fiber 1100mm Hexa-Rotor Frame B-CUBE 80A ESC PX4 Pixhawk 2.4.8 6C PRO Flight Control Set 6215 Motor

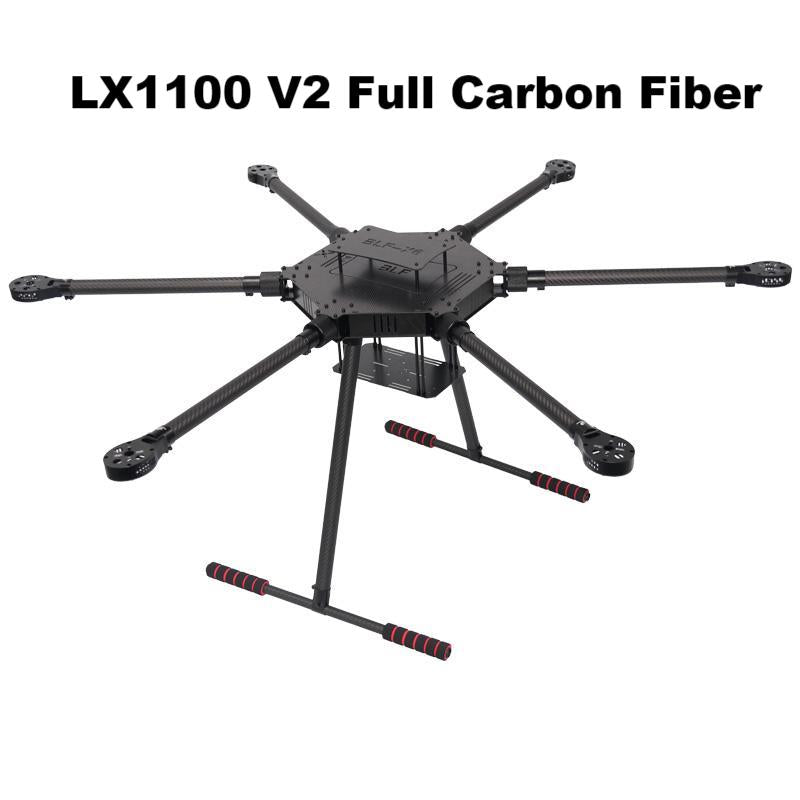

RCtoSky LX1100 6 Axle Hexacopter

Features：

1. Simple folding parts, one-key folding, saving time and effort;

2. The super-large motor base can be built-in ESC to solve the messy wiring on the center board.

3.  2.0MM carbon fiber hollow design center board, saving time for disassembly and assembly.

4. Intelligent electric tripod, remote control one-key contraction, making the flight more beautiful.

Parameters：

Symmetrical motor wheelbase: 1100MM

Arm diameter: 25MM

LX1100 6 Axle Package can lift 10KG(use 6S or 12S Battery)


 PIXHAWK 6C PRO

Build-in Buzzer,Build-in RGB LED,support Independent external Safety Button,With Plastic Case

Technical Specification

Processors & Sensors

• FMU Processor: STM32H743
  32 Bit Arm® Cortex®-M7, 480MHz, 2MB memory, 1MB SRAM

• IO Processor: STM32F103
  32 Bit Arm® Cortex®-M3, 72MHz, 64KB SRAM

On-board sensors

• Accel/Gyro: ICM-42688-P

• Accel/Gyro: BMI055

• Mag: IST8310

• Barometer: MS5611

PIXHAWK 2.4.8 Package include:

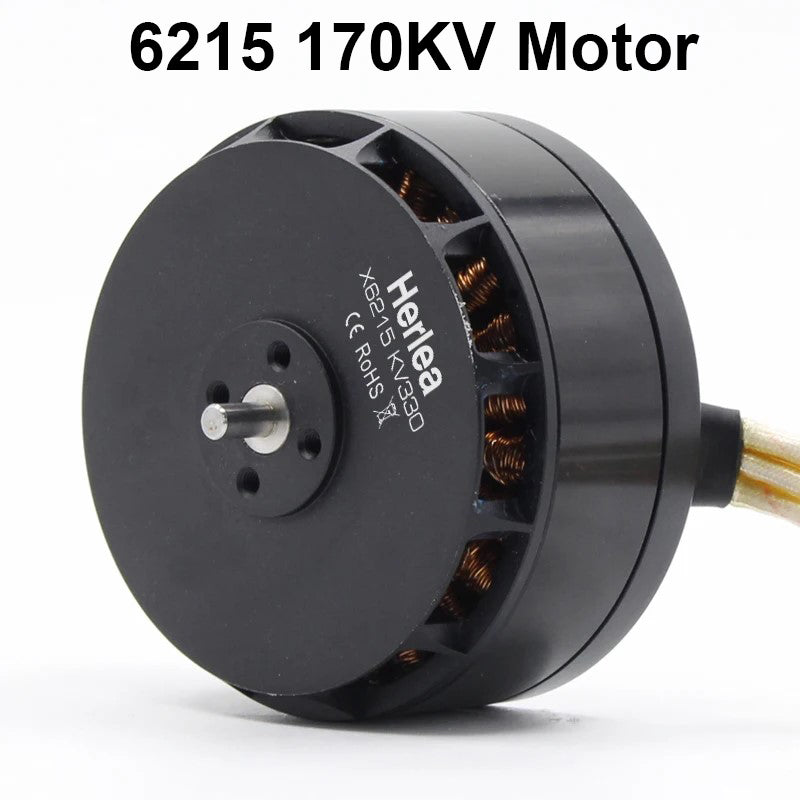

6215 170KV Motor （Support 6S-12S）

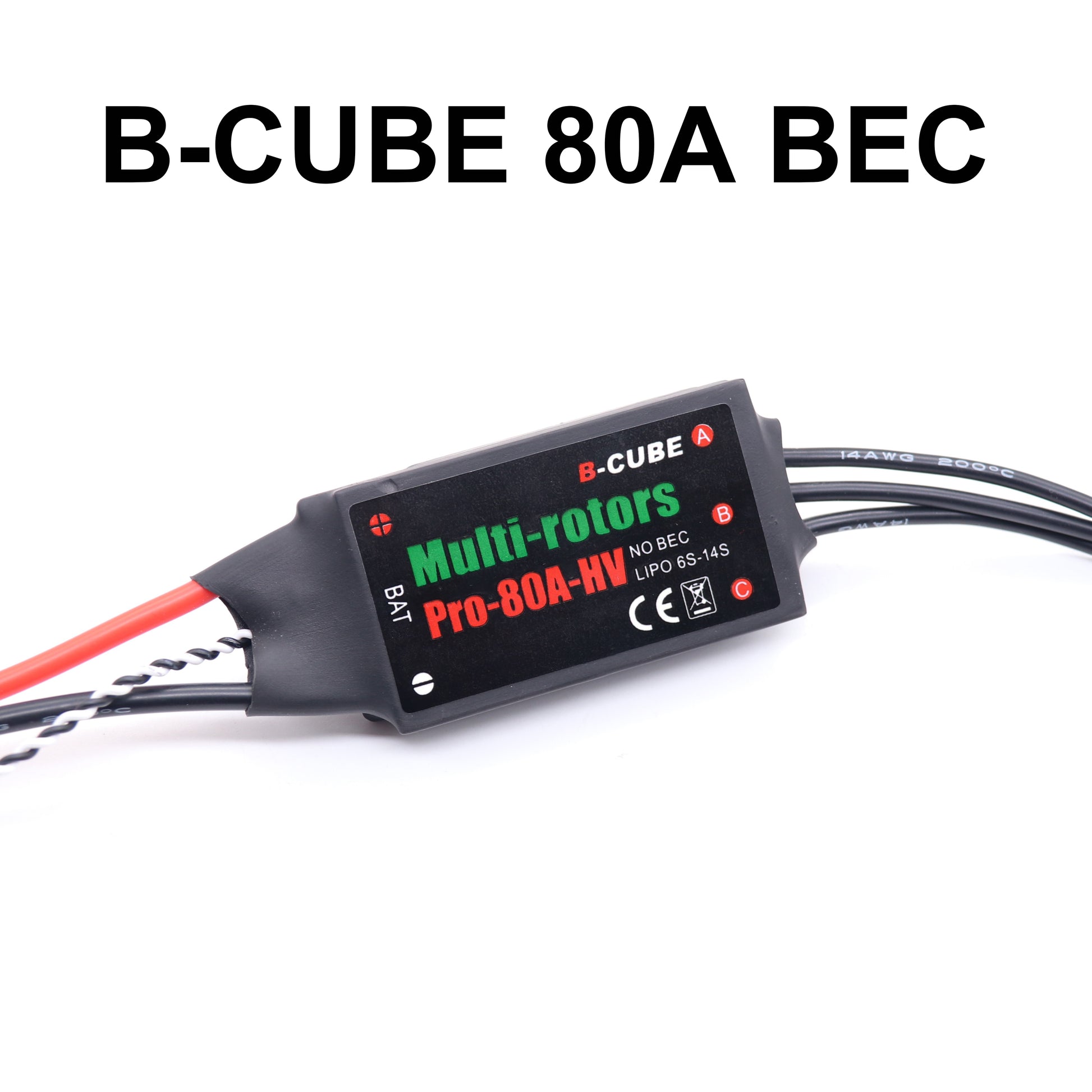

B-CUBE-Pro-80A-HV V3 ESC

B-CUBE-Pro-80A-HV V3 for Multicopter

Specification:

Voltage: 6-14S lithium battery. Current 80A. Weight 195g

Without BEC. Without fan (no need for fan)

Power cord (red and black line) No. 12 silicone wire, length: 14cm.

Motor line (3 black lines) No. 14 silicone wire, length: 70cm

Signal line (black and white line) Length: 25cm

Shell waterproof.

Model: B-CUBE-Pro-80A-HV V3 ESC

Drive mode: BLDC

Continues Current :80A

Instantaneous Current (10 seconds) : 100A

Output lithium battery Section number : 6-14s

Parameter Programming Features: Automatic angle (High / medium)

01 Warnings

 Ensure all wires and connections are well insulated before connecting the ESC to related devices, as short circuit will damage your ESC.

 Ensure all devices are well connected to prevent poor connection that may cause your multi-rotor to lose control or other unpredictable issues such

as damage to the device.

 Read through the manuals of all power devices and ensure the power configuration is rational before using this unit.

 Please use a soldering iron (ensuring it’s connected to a GND wire) with the power of at least 60W to solder all input/output wires and connectors.

 Stop using the ESC when its casing temperature exceeds 100℃, otherwise your ESC will get destroyed and may also get your motor damaged.

 Please swap any two ESC-to-motor wires if the motor runs in reverse.

02 Features

 Special core program for multi-rotor controllers greatly improves throttle response.

 Specially optimized software for excellent compatibility with multi-rotor motors.

 Microprocessor powered by independent DC regulator has better anti-interference performance greatly reduces the risk of losing control.

 Separate signal wires for reminding user of RPM output & error states.

 All settings except the timing are preset, making usage simple, high intelligent and adaptive.

 Compatible with various flight-controller and supports a signal frequency of up to 621Hz.

 DEO (Driving Efficiency Optimization) technology for better throttle linearity and higher driving efficiency.

 PWM frequency of 18KHz.

3 Pairs 3K Carbon Fiber Propeller

The new propeller-type aerial dedicated full carbon paddle paddle-type three-hole installation

Using carbon content of 100% pure imported Toray carbon fiber 3K woven, high temperature and pressure precast precision machining, hardness higher than conventional products market.

Radio Telemetry V6:

Radio telemetry can be used for wireless communication between pixhawk and computer or mobile phone.





OLED Module can display some message.

 PM02 Power Module

• Input Voltage: 2S-12S

• PCB Cont. Current Rating: 60A

• PCB Burst Current Rating: 100A (<60 Sec)

• Max Current Sensing: 120A

• Output: DC 5.2V & 3A Max

• Voltage Divider: 18.182

• Amperes per Volt: 36.364

Description:

This PM02 Power Module provides a simple way to supply regulated 5.2V to flight controller from the battery while providing current consumption and battery voltage measurements via analog signal through a 6 Pin JST-GH cable. It comes with pre-soldered wires, capacitor, and XT60 connector on both ends, along with shrink tubing on the PCBA for physical protection.
