B-CUBE F4DC F4 Flight Control Brushing Motor INAV Betaflight Board Barometer Quadcopter RC Drone FPV Racing

$17.96 USD

~~$17.96 USD~~ $17.96 USD

Sale Sold out

Color F4DC 100MM Package F4DC Flight Control

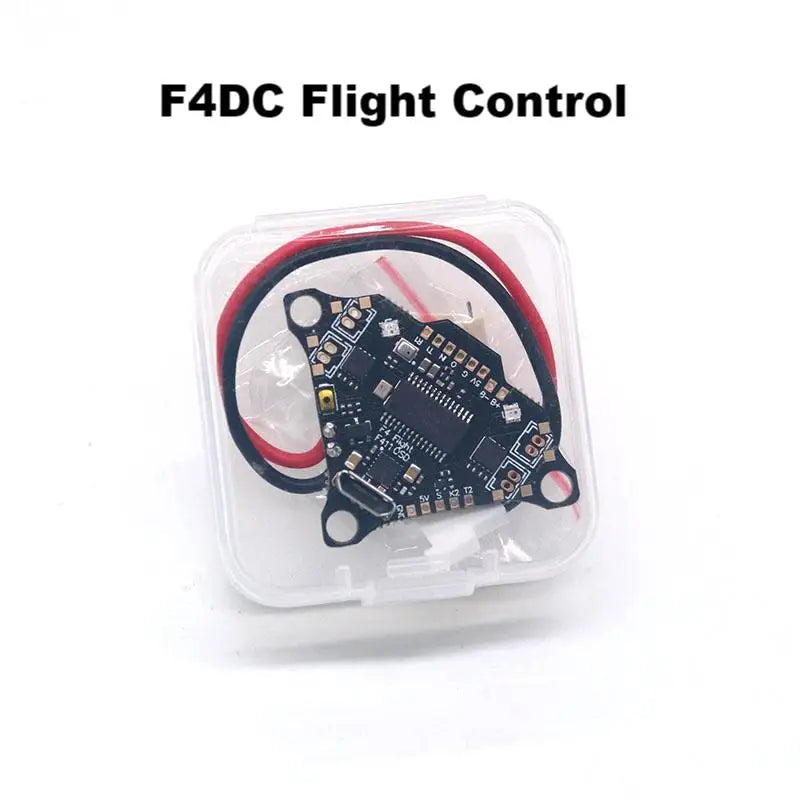

F4DC Flight Control

MCU: STM32F411CEU6

IMU: MPU6500

Barometer: BMP280

OSD: AT7456E

Firmware:MATEK F411

Brushing Motor Supports: 615 716 816 820 8520

Battery input voltage: 1S - 2S (3.0V-8.4V)

1.We had upload the Betaflight / STM32F411 (S411) 4.2.0 firmware and config it ,you can use it directly without uploading firmware.

# version
# Betaflight / STM32F411 (S411) 4.2.0 Jun 14 2020 / 03:04:43 (8f2d21460) MSP API: 1.43
# config: YES
# board: manufacturer_id: MTKS, board_name: MATEKF411

How to upload firmware?

More information you can read here,https://www.uavbb.com/viewtopic.php?t=41

Download Betaflight firmware from here, http://blog.rctoysky.com/invoice/invoice//betaflight_4.2.0_STM32F411.hex

importand! Download the config file from here, http://blog.rctoysky.com/invoice/invoice//F4DC_config.txt

Please note that if you upload the diffrent version Betaflight firmware, the config file is not same, you should know how to set the config file,otherwise the LED is not on.So, I suggest you don't upload the firmware and use it directly.

2.Set UART2 as receiver.

3.Interface Definition Diagram

100mm-Drone Quadcopter

100mm-Drone supports multiple flight modes, including Stabilize mode, Height-hold mode, and Position-hold mode. With simple hardware, clear and extensible code architecture, 100mm-Drone can be used in STEAM education and other fields.
