B-CUBE X100 Drone Frame Kit Carbon Fiber Racing Drone Quadcopter INAV Beatflight F4DC Ardupilot Flight Control

$128.40 USD

Sale Sold out

Type F4DC NO Battery F4DC One Battery A F4DC Three Battery B F4DC NO Battery A F4DC With Battery B F4DC With Battery C

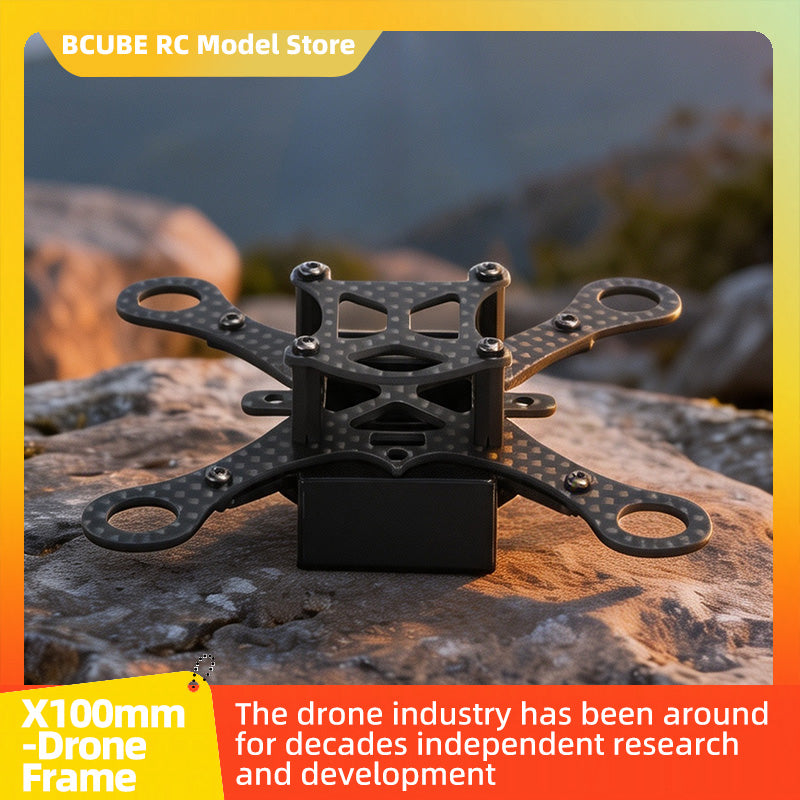

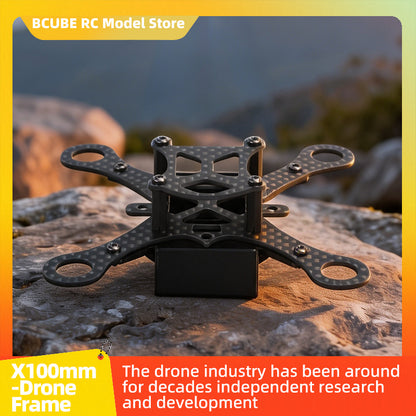

B-CUBE X100mm-Drone Frame

Product parameters:

Wheelbase: 100mm
Weight: Approximately 41g
Thickness: upper plate 1.5mm, arm 1.5mm
Paddle: 55MM AB paddle（Hole Diameter: 1mm）
Flight control hole spacing: 25.5MM*25.5MM (M3)
Motor installation hole positions: Diameter:10mm
Protective Guard：8520 Brushed Motor Bumper Ring 60mm Propeller Protective Guar
Battery: 1s 800mAh

Recommended configuration:

Motor: 8520 brush motor
FC: F4DC
Battery: 1S
Paddle: 55MM AB paddle（Hole Diameter: 1mm）
Protective Guard：8520 Brushed Motor Bumper Ring 60mm Propeller Protective Guar

F4DC Flight Control

MCU: STM32F411CEU6
IMU: MPU6500
Barometer: BMP280
OSD: AT7456E
Firmware:MATEK F411
Brushing Motor Supports: 615 716 816 820 8520
Battery input voltage: 1S - 2S (3.0V-8.4V)

1.We had upload the Betaflight / STM32F411 (S411) 4.2.0 firmware and config it ,you can use it directly without uploading firmware.

# version

# Betaflight / STM32F411 (S411) 4.2.0 Jun 14 2020 / 03:04:43 (8f2d21460) MSP API: 1.43

# config: YES

# board: manufacturer_id: MTKS, board_name: MATEKF411

How to upload firmware?

More information you can read here,https://www.uavbb.com/viewtopic.php?t=41

Download Betaflight firmware from here, http://blog.rctoysky.com/invoice/invoice//betaflight_4.2.0_STM32F411.hex importand! Download the config file from here, http://blog.rctoysky.com/invoice/invoice//F4DC_config.txt

Please note that if you upload the diffrent version Betaflight firmware, the config file is not same, you should know how to set the config file,otherwise the LED is not on.So, I suggest you don't upload the firmware and use it directly.

2.Set UART2 as receiver.

3.Interface Definition Diagram

ELRS 2.4G Receiver RX

Product Description:
ExpressLRS aims to provide the best completely open, high refresh radio control link while maintaining a maximum achievable range at that rate with low latency.

SPECIFICATIONS 1
●Brand:B-CUBE
●Model:ELRS 2.4G NANO
●RF Freq:2.4Ghz
●IC:SX1281+ESP8285
●TX Power:100mW
●Color:Black
●Connector:IPEX 1
●Input Power:3.6-5.5V
●Weight:0.4g(receiver only)
●Size:11mm*18mm
●Firmware: BETAFPV Nano 2400 RX 3.3.0

Package Included:
Nano Receiver x 1
T type receiver antenna x 1
Heat shrink tube x 1
30AWG Silicone Wire x 4

LiteRadio 3 Radio Transmitter

LiteRadio 3 is a remote control radio transmitter designed primarily for RC models, including multirotor, airplanes. It gives you more than you ever thought possible from an entry-level 8-channel radio.
