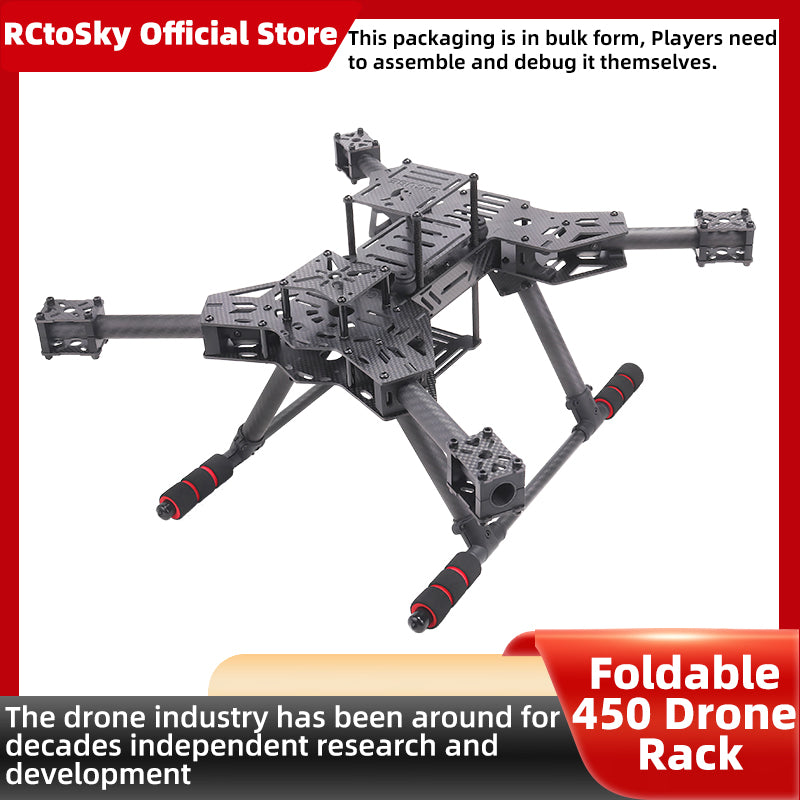

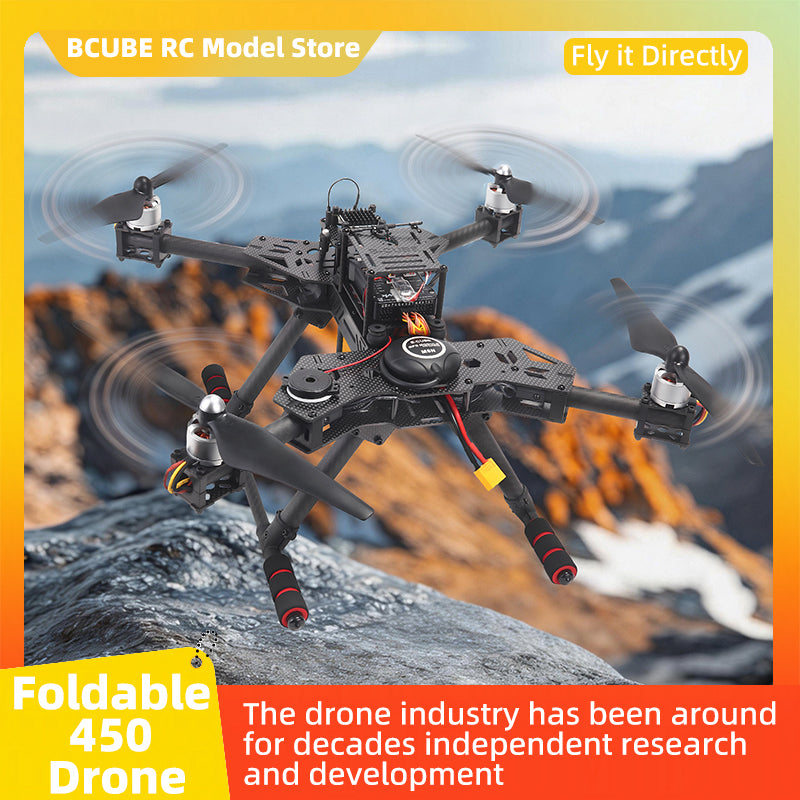

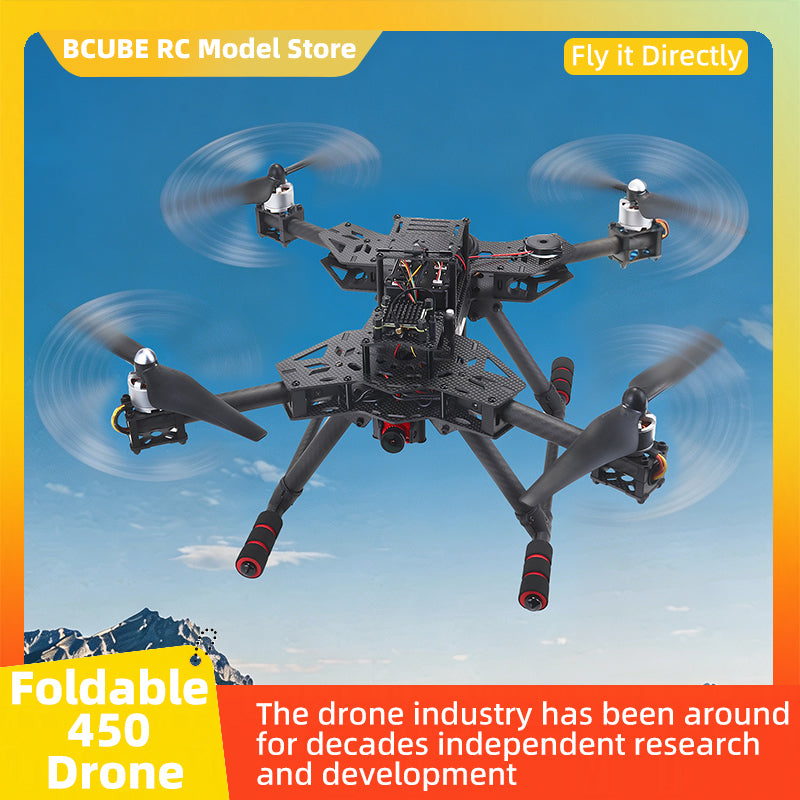

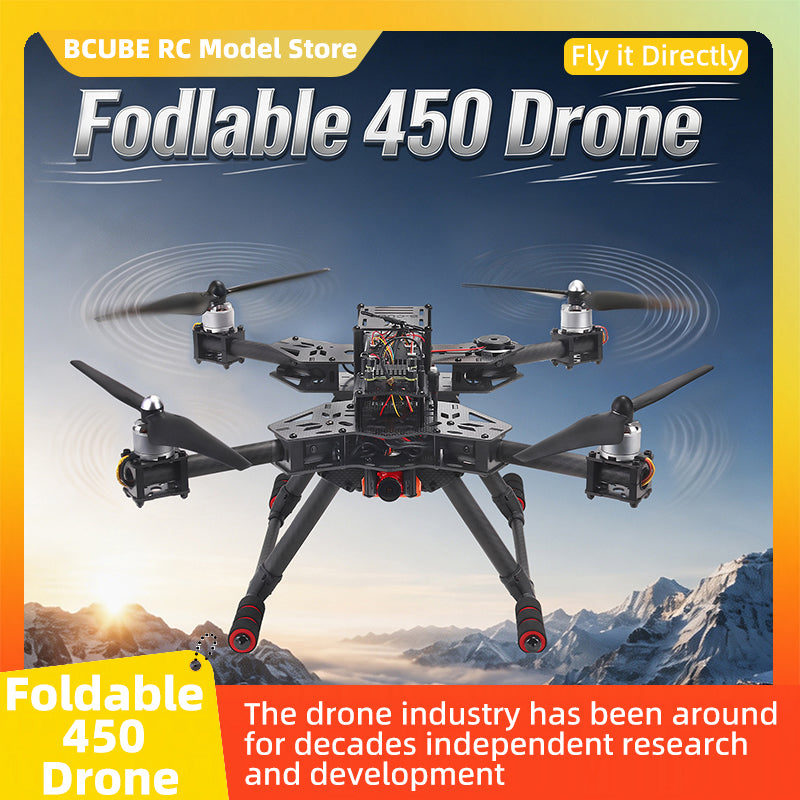

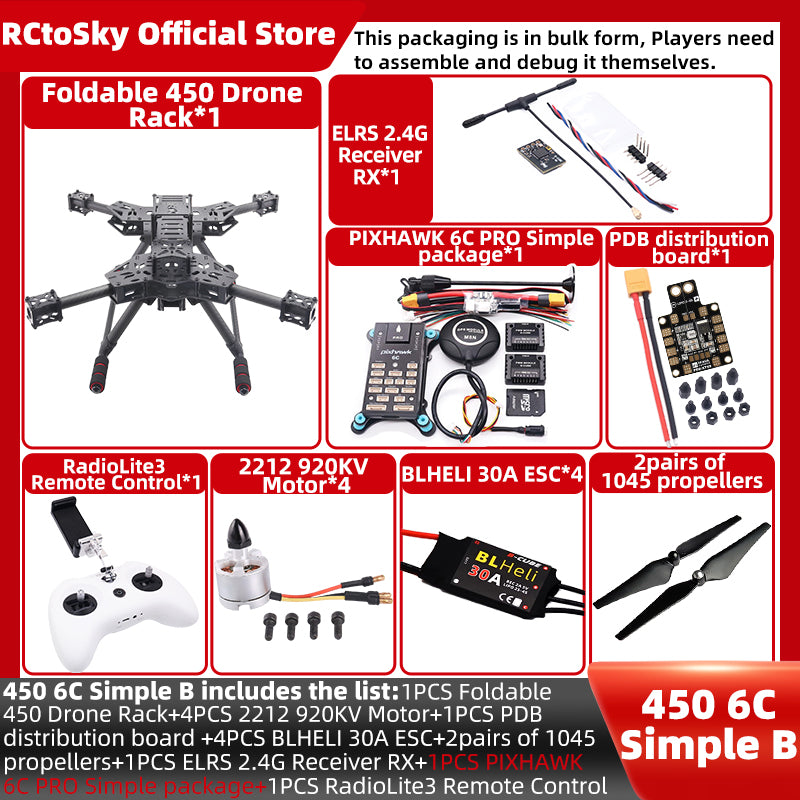

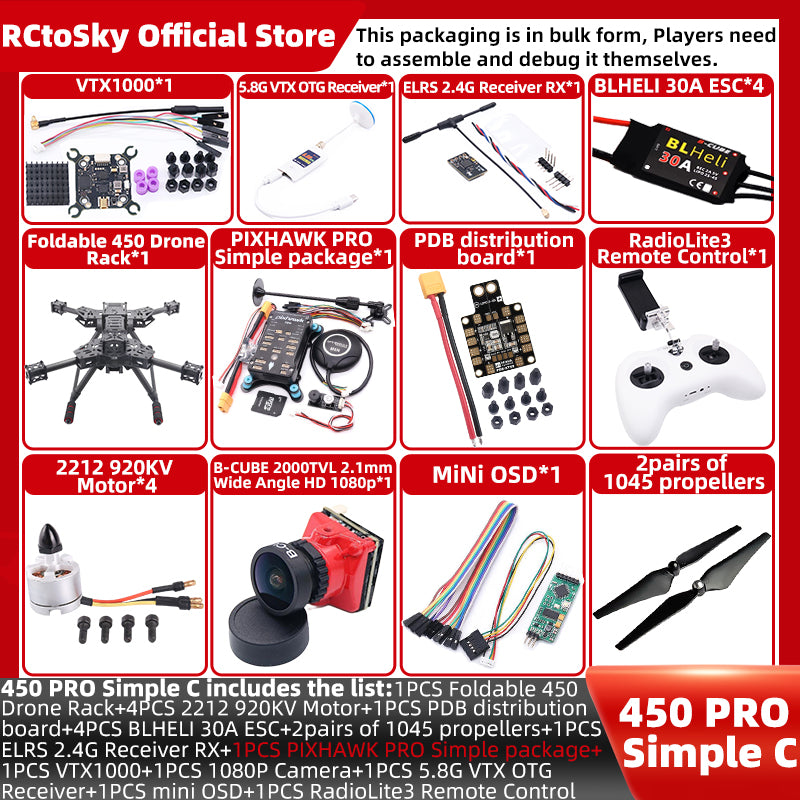

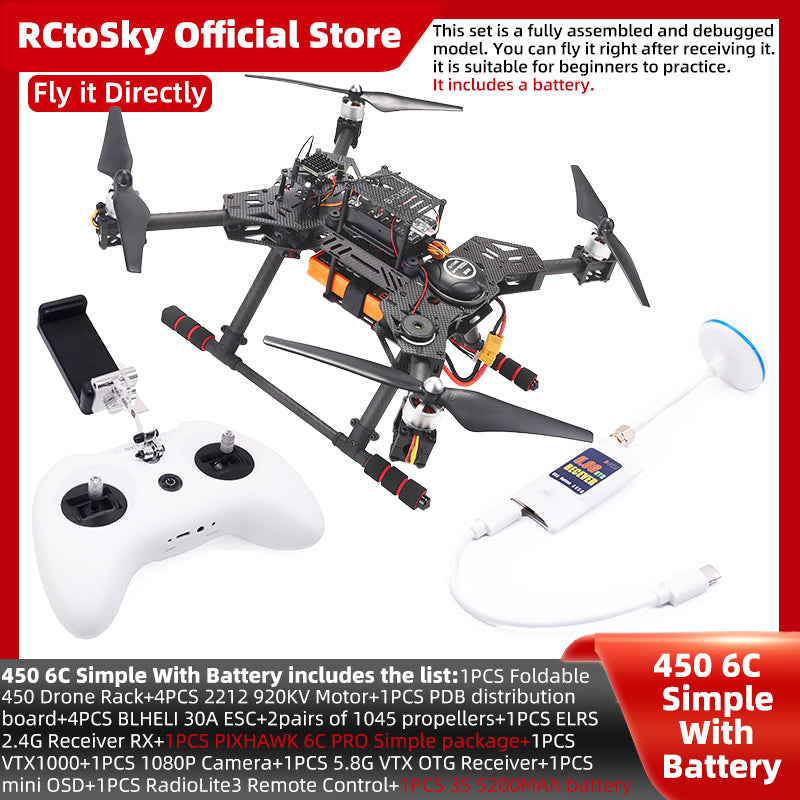

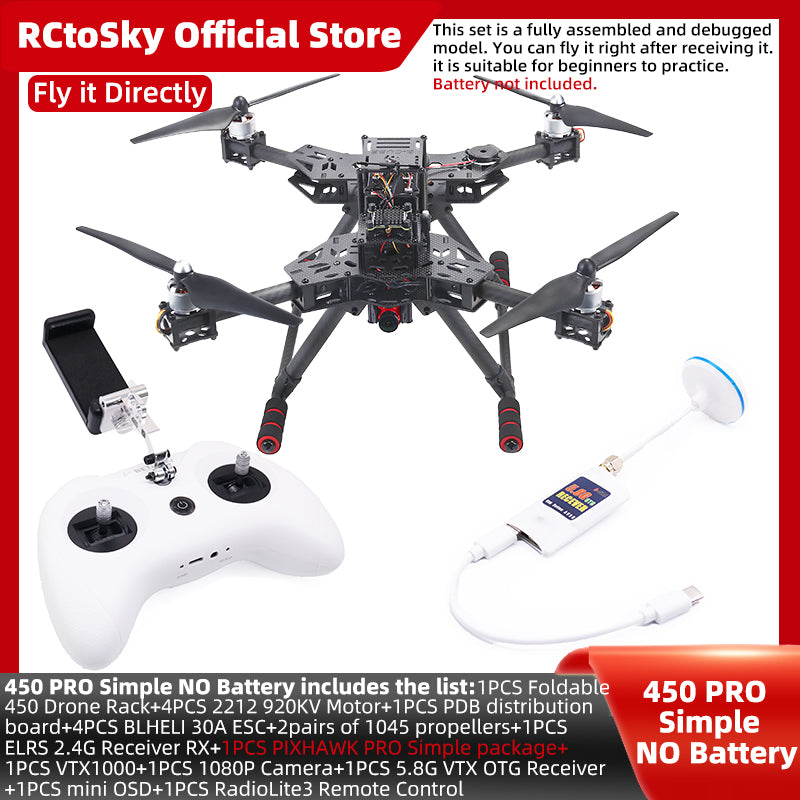

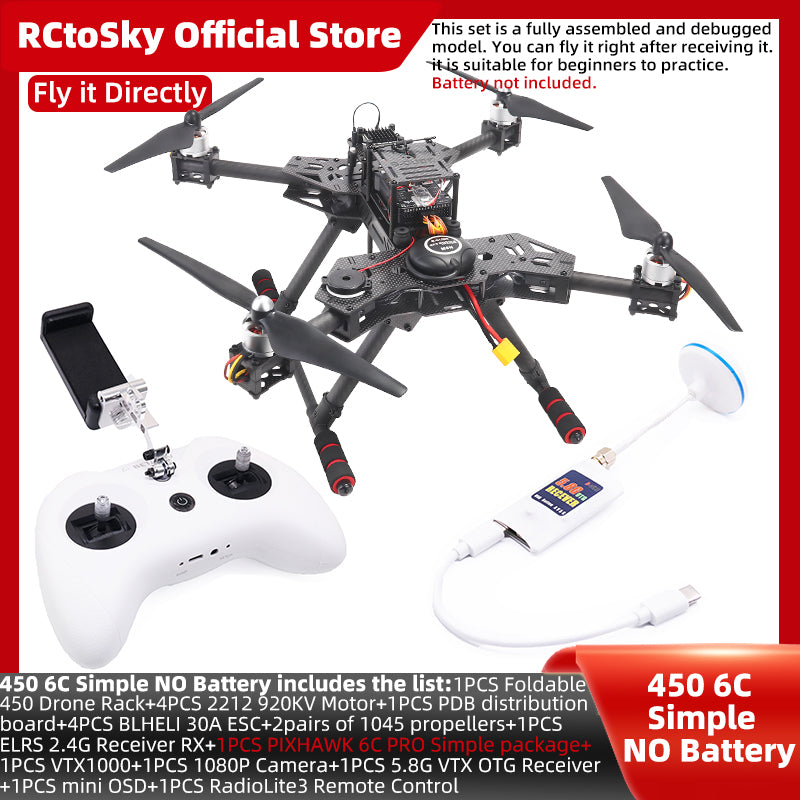

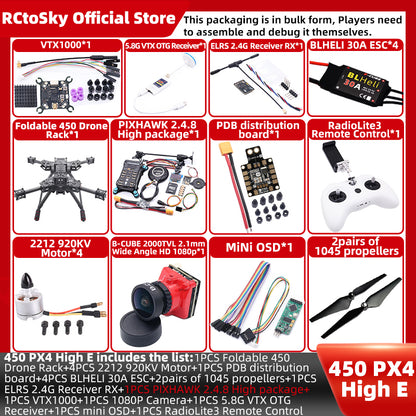

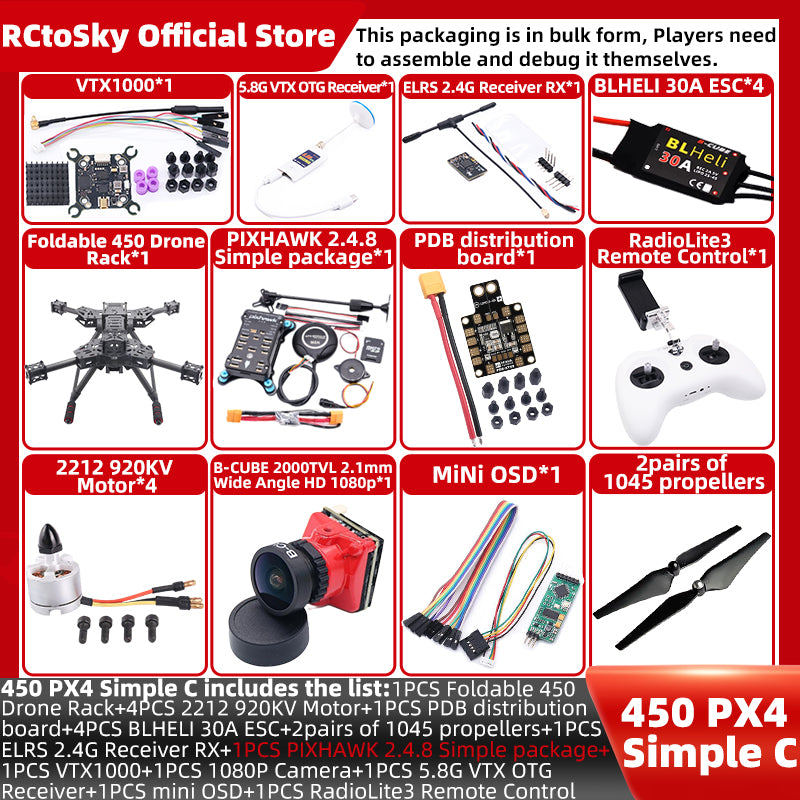

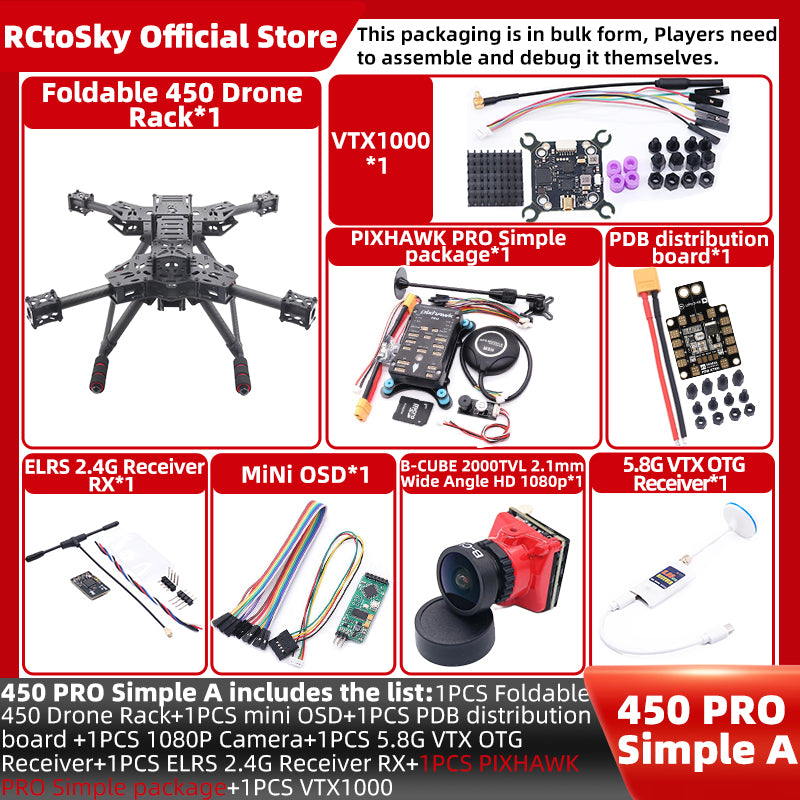

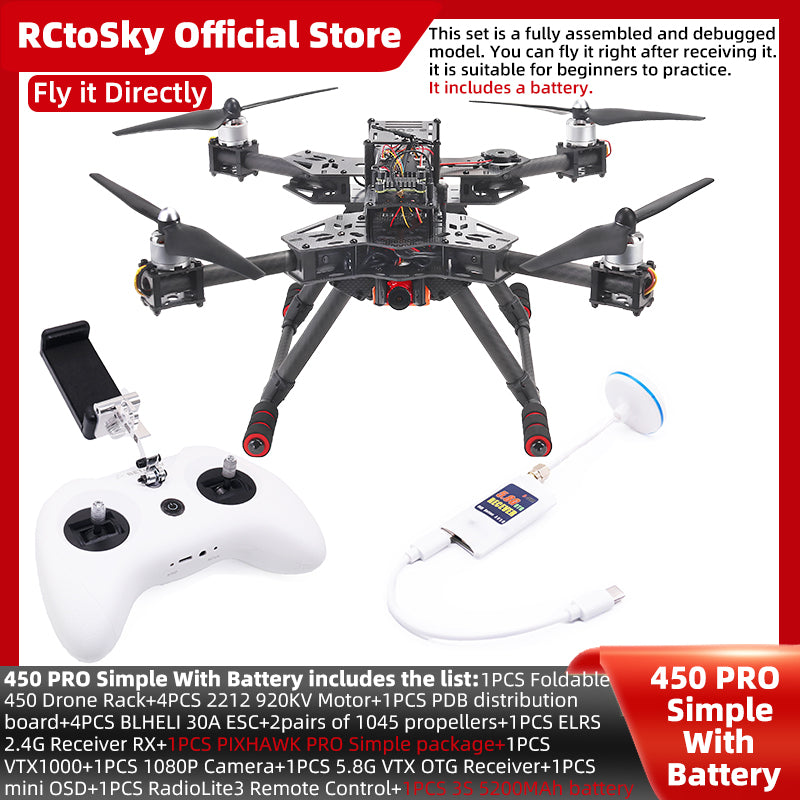

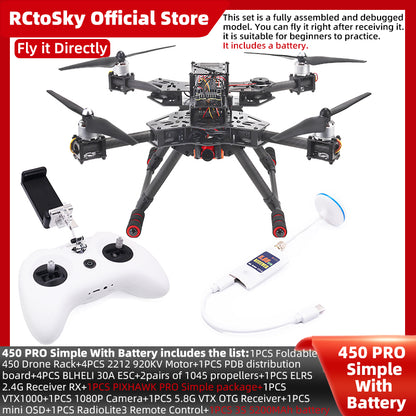

Foldable 450 Drone Rack

Product parameters:
Brand: B-CUBE
Wheelbase: 450mm
Weight: Approximately 585g
Material:3K Carbon Fiber
Thickness: Bottom plate 2mm, upper plate 2mm,
Arm diameter: 16MM
Landing diameter :16MM
Paddle: 1045 paddle
GPS Hold size: 30MM * 30MM(MAX)
Motor installation hole positions: 16mm-25mm (M3)
Battery: 3s

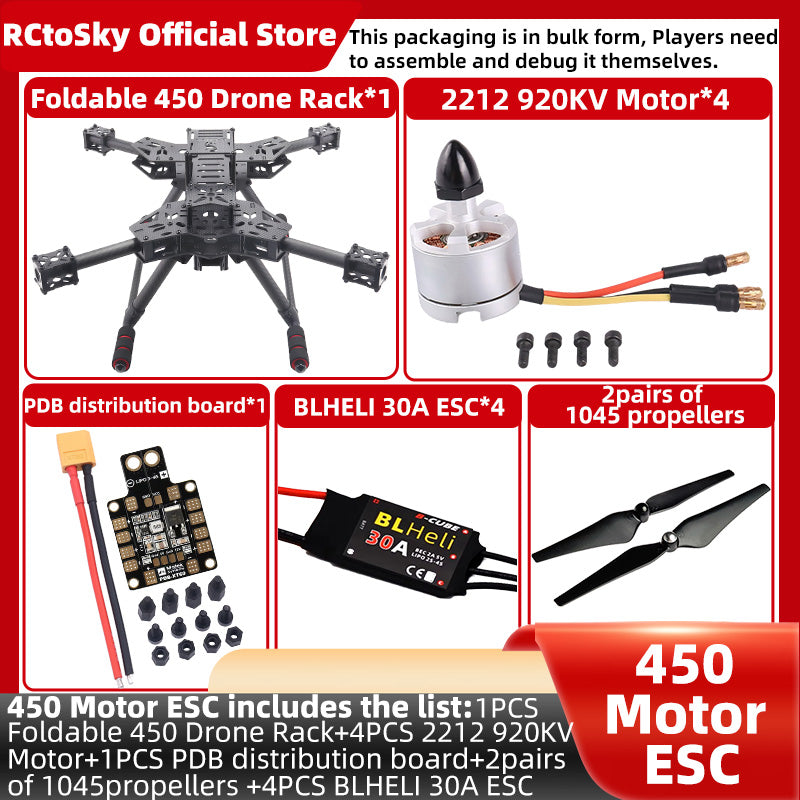

Recommended configuration:

Motor: 2212 920KV motor
ESC: B-CUBE 30A ESC PDB
Battery: 3S
Paddle: 1045 paddle
Video transfer: miniOSD B-CUBE VTX1000 1080 Camera

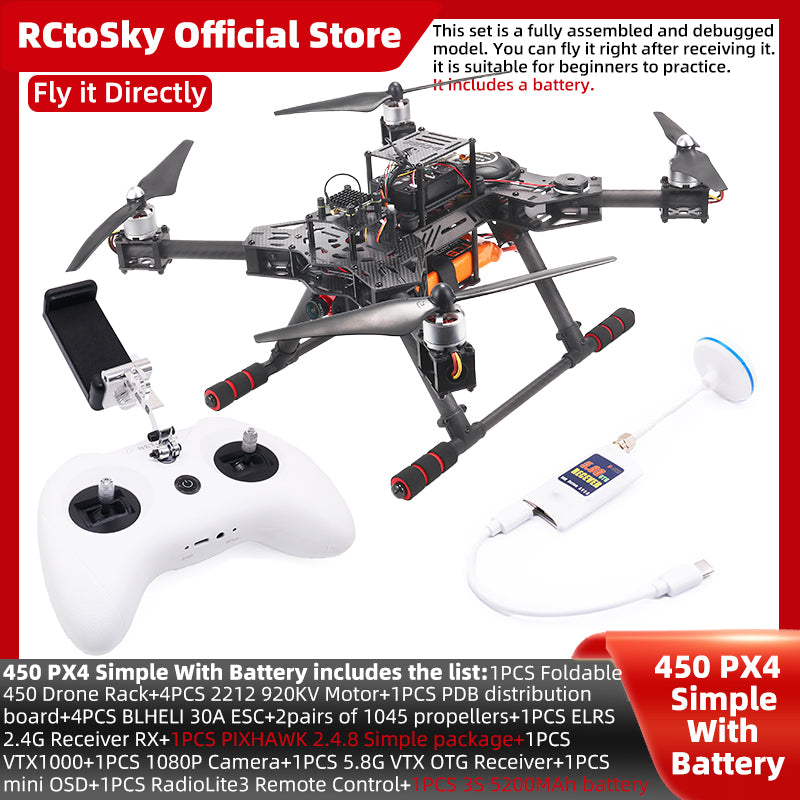

Pixhawk PX4 Autopilot PIX 2.4.8 32 Bit Flight Controller

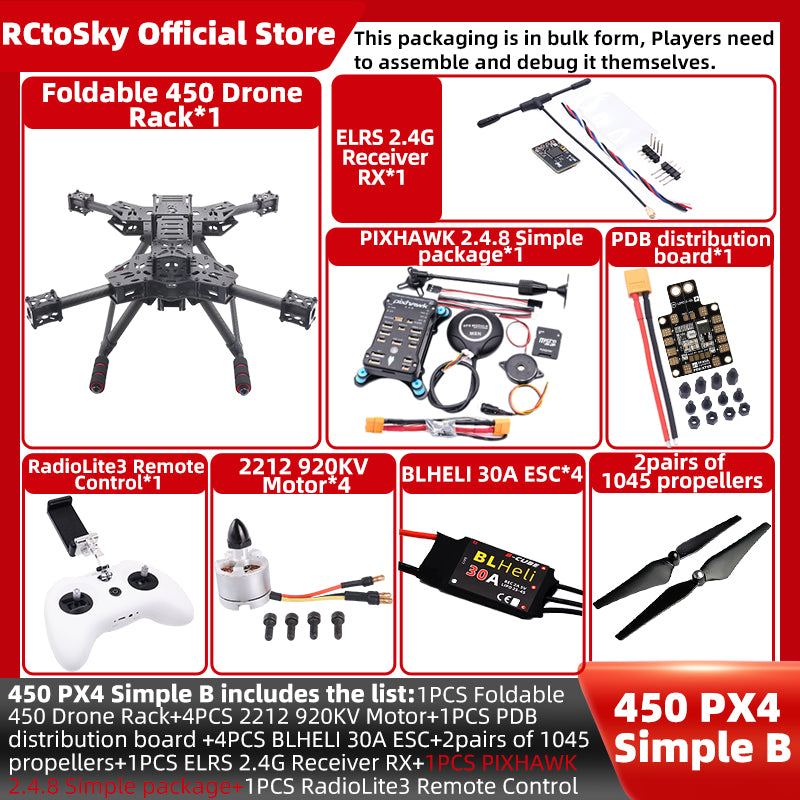

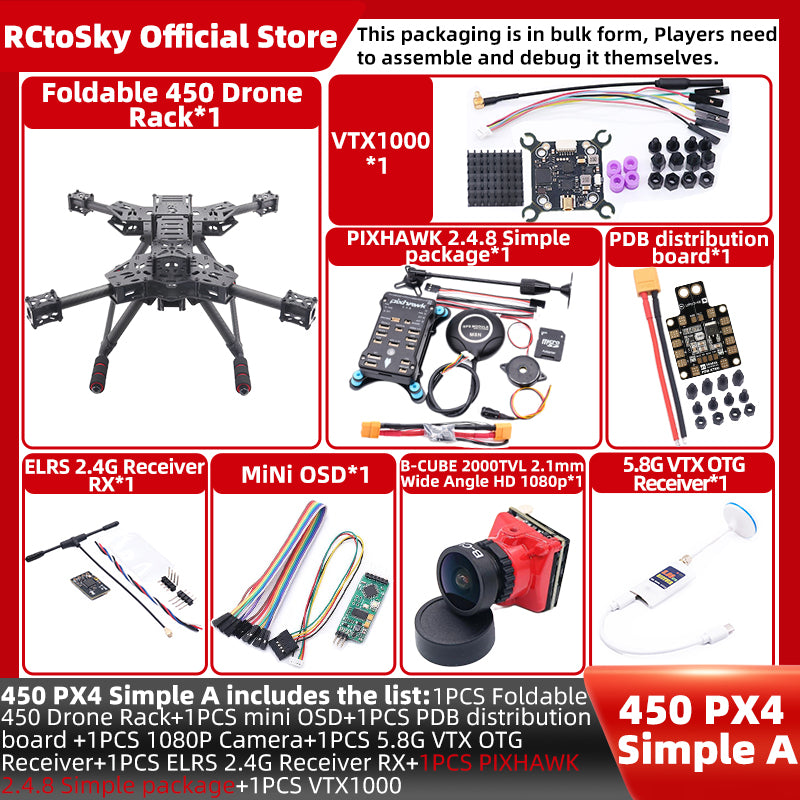

Simple Package:

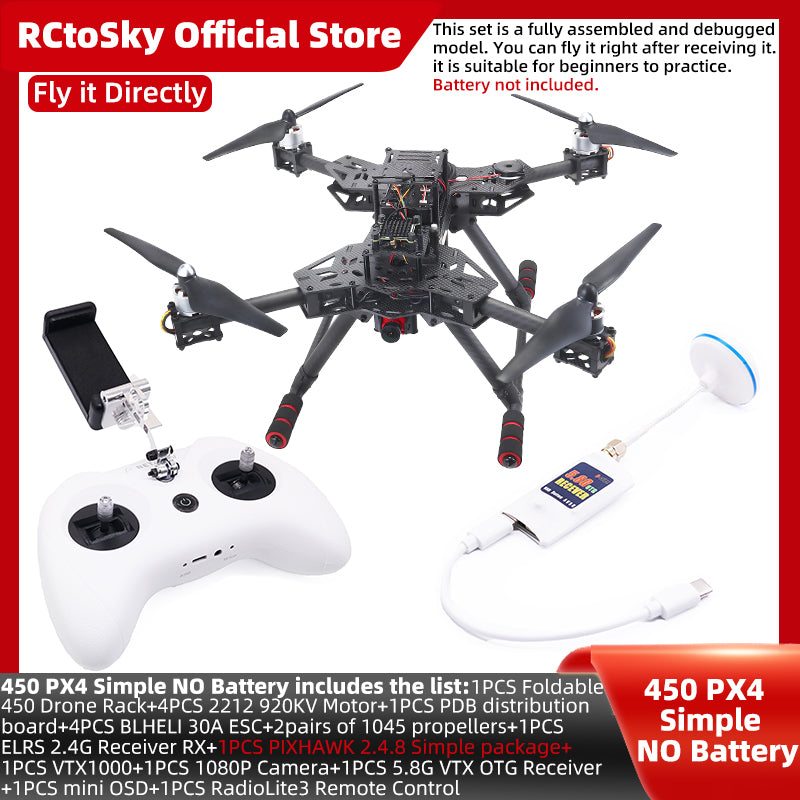

PIXHAWK 2.4.8+4G TF Card+Safety Button+Buzzer+M8N GPS+GPS Holder+3DR Power Module+Shock Absorber+3 Line(4Pin 1.25 ,6Pin 1.25 ,3Pin 2.5.4)

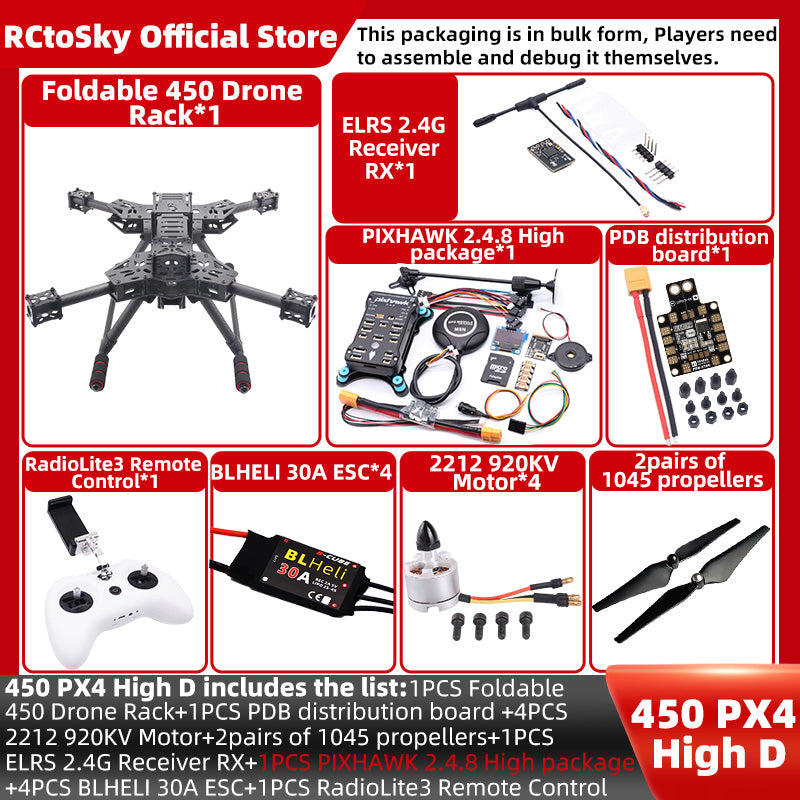

High Package:

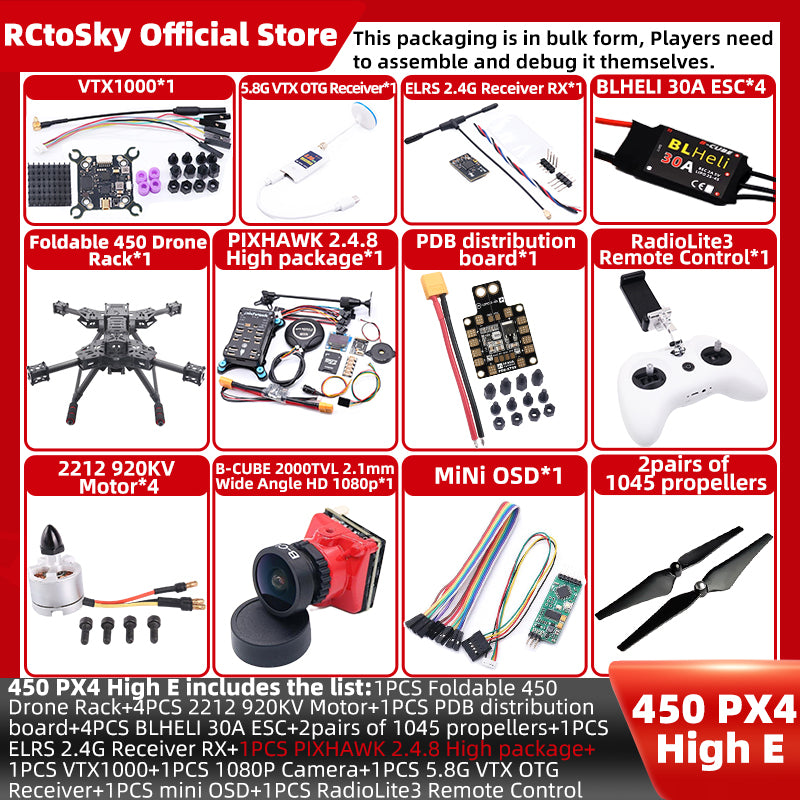

PIXHAWK 2.4.8(white or black shell)+4G TF Card +Safety Button+Buzzer+PPM Encoder+I2C Expansion Board+RGB Led+OLED Screen+3 Line(4Pin 1.25 ,6Pin 1.25 ,3Pin 2.5.4)+M8N GPS+ GPS Holder+3DR Power Module+Shock Absorber

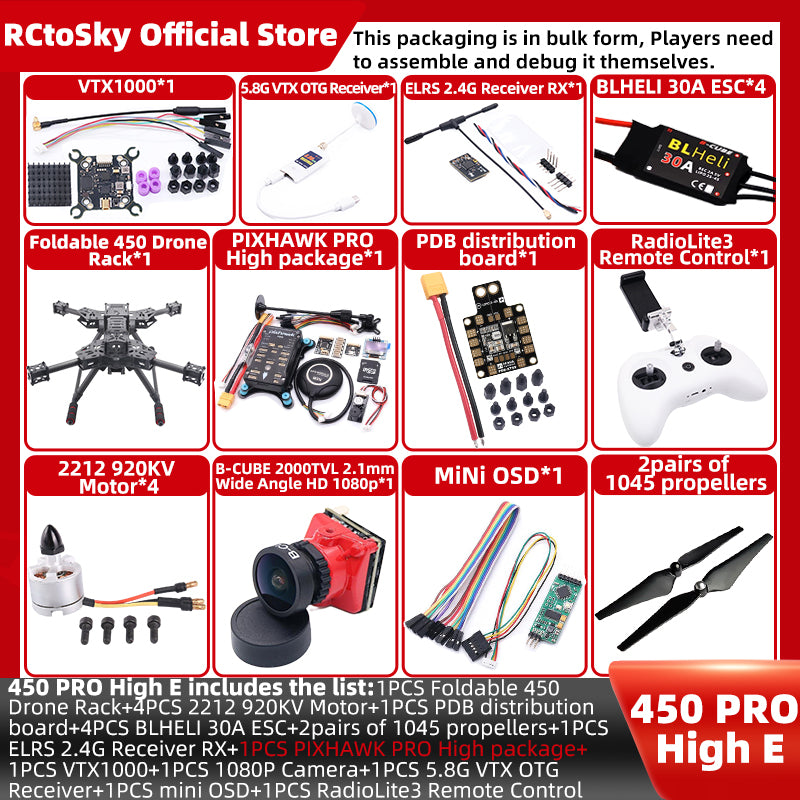

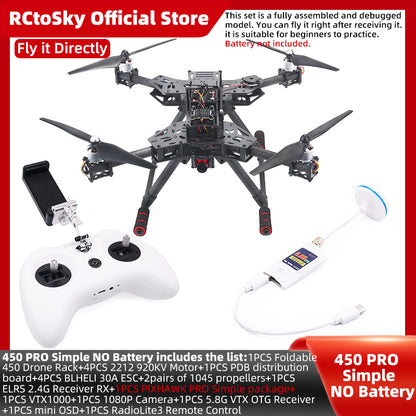

PIXHAWK PRO

Features:

Pixhawk PRO support the latest official ardupilot firmware and PX4 firmware.

1. The advanced 32-bit ARM CortexM4 high-performance processors(2MB flash), can run NuttX RTOS real-time operating system;

2. 14 PWM / servo output;

3. Bus interface (UART, I2C, SPI, CAN);

4. The integrated backup power and backup controller fails, the primary controller fails over to the backup control is safe;

5. Provide automatic and manual modes;

6. Provide redundant power input and failover;

7. Multicolor LED lights;

8. Provide multi-tone buzzer Interface

9. Micro SD recording flight data;

10.TYPE-C USB port

11.GH1.25 port

Specifications:

Interface

1.5 high voltage compatible UART 1, 2 with hardware flow control

2. 2 CAN

3.Spektrum DSM / DSM2 / DSM-X satellite receiver compatible input

4.Futaba SBUS compatible inputs and outputs

5.PPM Signal Input

6.RSSI (PWM or voltage) Input

7.I2C

8.SPI

9.3.3 and 6.6VADC input

10. External TYPEC USB Interface

Simple package:

PIXHAWK PRO +M8N GPS+3DR Power Module+ GPS Holde + Shock Absorber+Safety Button And Buzze+3Line(4PGH1.25,6PGH1.25,2.54Pin)

High package:

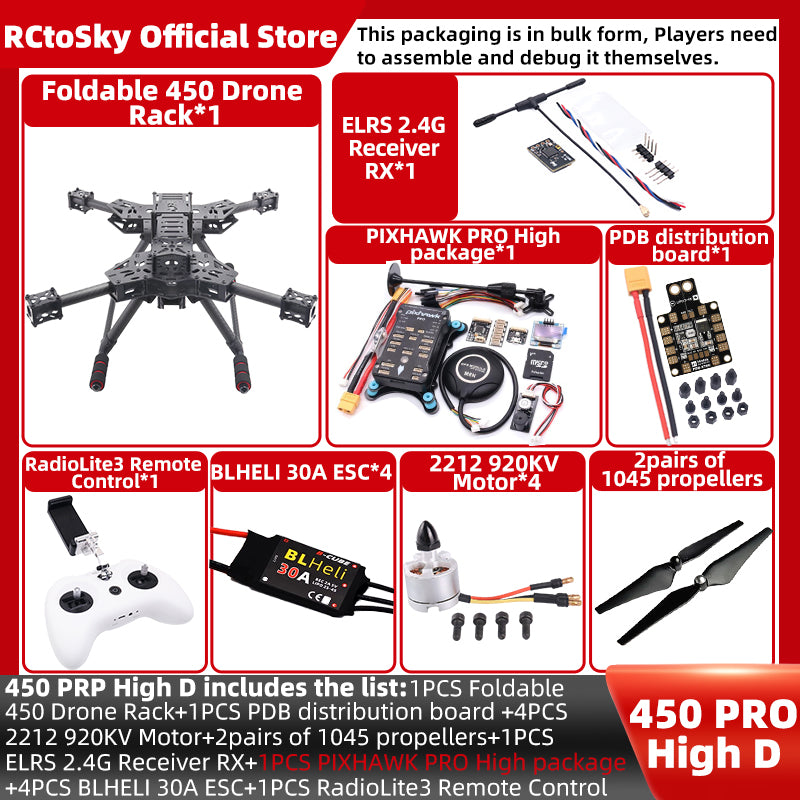

PIXHAWK PRO+PPM+I2C+RGB LED+OLED+M8N GPS+3DR Power Module+ GPS Holder+ Shock Absorber+Safety Button And Buzzer+3Line(4PGH1.25,6PGH1.25,2.54Pin)

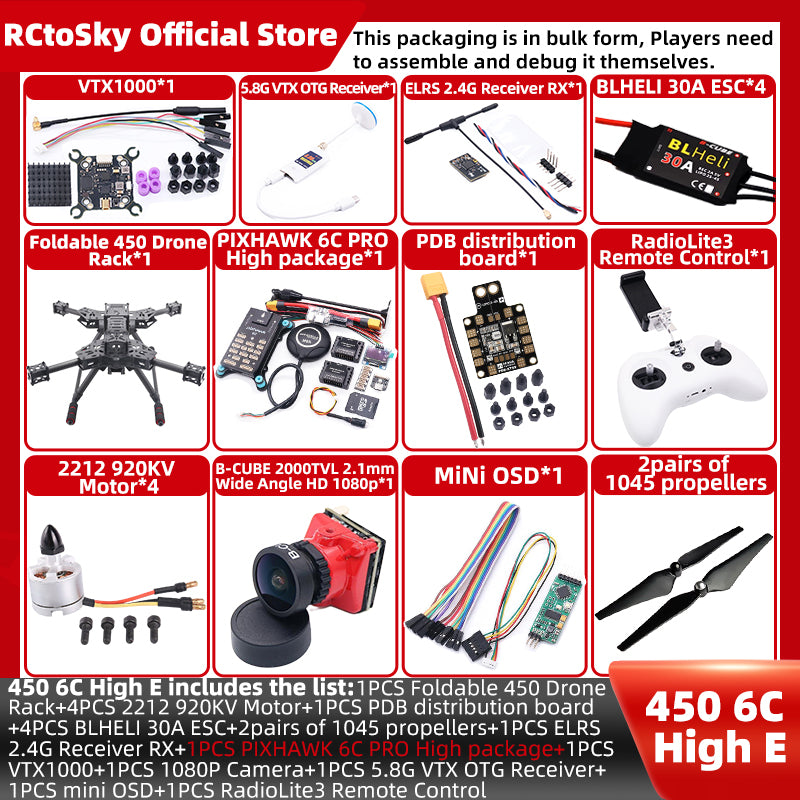

PIXHAWK 6C PRO

The Pixhawk® 6C PRO is the latest update to the successful family of Pixhawk® flight controllers, based on the Pixhawk® FMUv6C Open Standard and Connector Standard. It comes with PX4 Autopilot® pre-installed. STMicroelectronics® based STM32H743, paired with sensor technology from Bosch® & InvenSense®, giving you flexibility and reliability for controlling any autonomous vehicle, suitable for both academic and commercial applications.

The Pixhawk® 6C PRO's H7 microcontroller contain the Arm® Cortex®-M7 core running up to 480 MHz, has 2MB flash memory and 1MB RAM. Thanks to the updated processing power, developers can be more productive and efficient with their development work, allowing for complex algorithms and models.

The Pixhawk 6C PRO includes high-performance, low-noise IMUs on board, designed to be cost effective while having IMU redundancy. A vibration isolation System to filter out high-frequency vibration and reduce noise to ensure accurate readings, allowing vehicles to reach better overall flight performances.

The Pixhawk® 6C PRO is perfect for developers at corporate research labs, startups, academics (research, professors, students), and commercial application.

Key Design Points

High performance STM32H743 Processor with more computing power & RAM

Build-in Buzzer,Build-in RGB LED,support Independent external Safety Button,With Plastic Case

New cost-effective design with low-profile form factor

Newly designed integrated vibration isolation system to filter out high frequency vibration and reduce noise to ensure accurate readings

IMUs are temperature-controlled by onboard heating resistors, allowing optimum working temperature of IMUs

Technical Specification

Processors & Sensors

FMU Processor: STM32H743

32 Bit Arm® Cortex®-M7, 480MHz, 2MB memory, 1MB SRAM

IO Processor: STM32F103

32 Bit Arm® Cortex®-M3, 72MHz, 64KB SRAM

On-board sensors

Accel/Gyro: ICM-42688-P

Accel/Gyro: BMI055

Mag: IST8310

Barometer: MS5611

Electrical data

Voltage Ratings:

Max input voltage: 6V

USB Power Input: 4.75~5.25V

Servo Rail Input: 0~36V

Current Ratings:

TELEM1 Max output current limiter: 1.5A

All other port combined output current limiter: 1.5A

Mechanical data

Dimensions: 85 * 45 * 10 mm

Weight (Plastic Case) : 33g

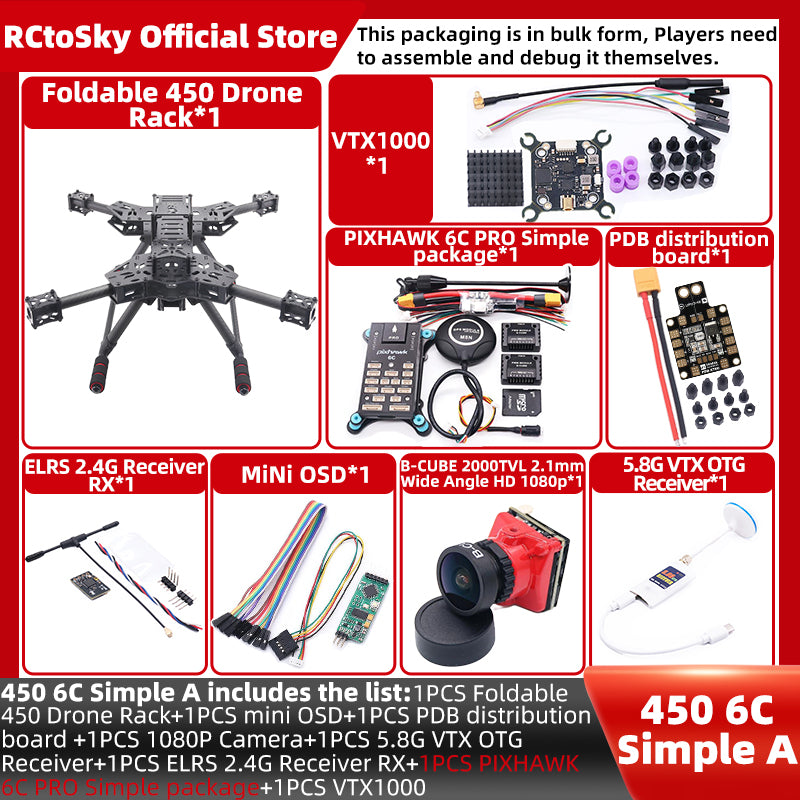

Simple package:

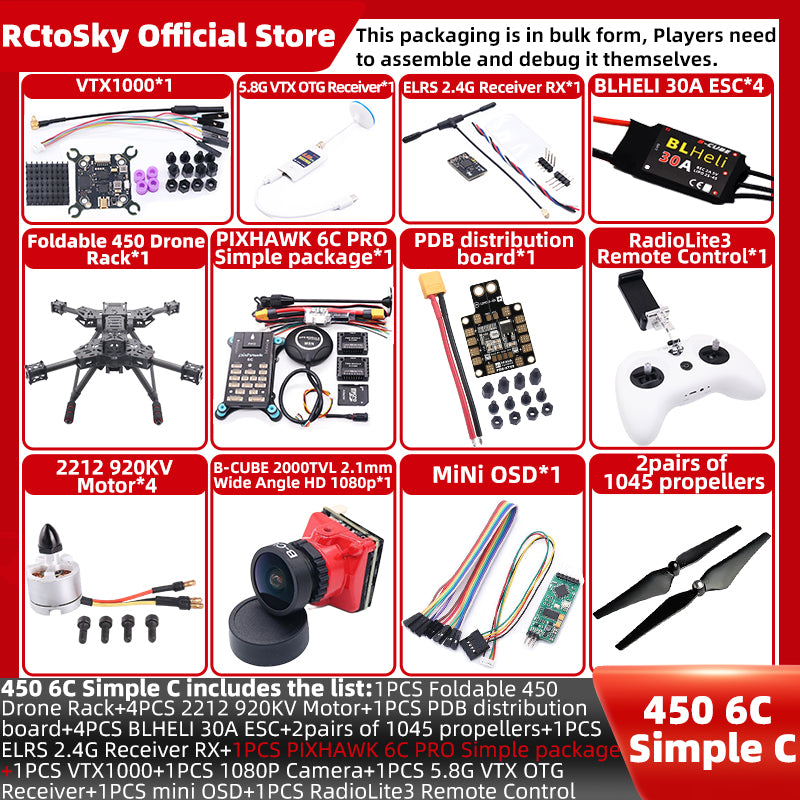

PIXHAWK 6C PRO +M8N GPS+6C PM02 V3.2 Power Module+ GPS Holde + Shock Absorber+Safety Button And Buzze+3Line(4PGH1.25,6PGH1.25,2.54Pin)

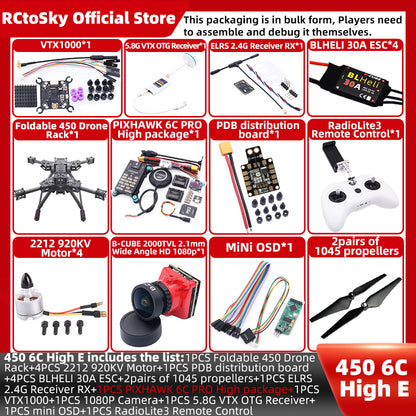

High package:

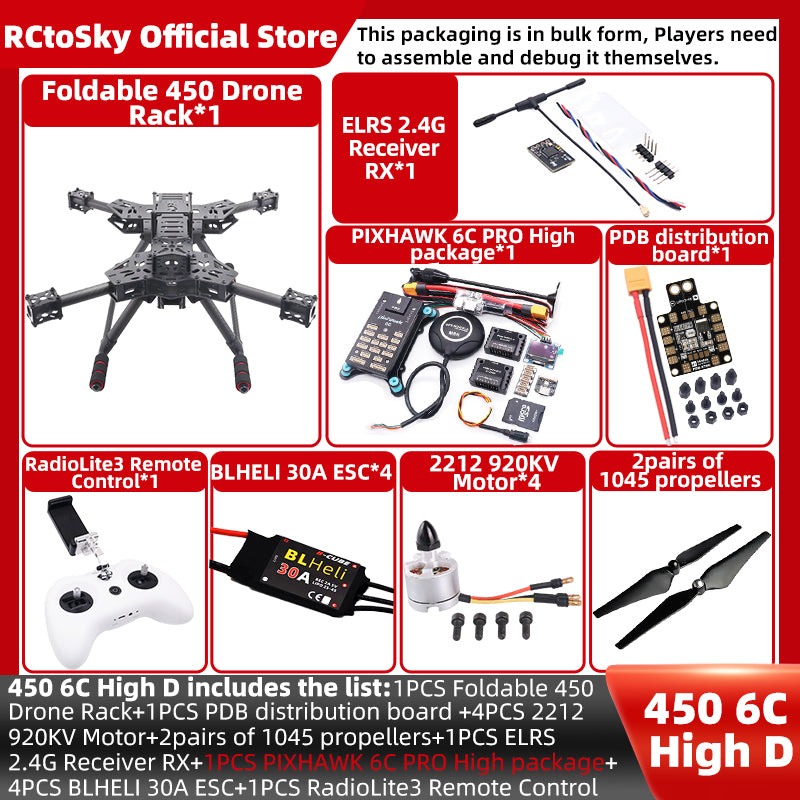

PIXHAWK 6C PRO+I2C+RGB LED+OLED+M8N GPS+6C PM02 V3.2 Power Module+ GPS Holder+ Shock Absorber+Safety Button And Buzzer+3Line(4PGH1.25,6PGH1.25,2.54Pin)

M8N GPS

Description:

Model: MINI MS-1672 FPV cameras

Sensor: 1/1/8 "CMOS D1080H

Horizontal resolution: 2000TVL

Horizontal field of view: 165

Lens: 2.1mm lens

Video format: NTC&PAL (adjustable)

Image scale: 4:3&16:9 (automatic recognition)

Wide Dynamic Range: Super WDR

Noise reduction: 3DNR

Low illumination: 0.001LUX

Video output: CVBS

Day and night: external/internal/black and white/color

Language: (English/Chinese/Traditional Chinese/pyccnna)

ESOABIK/TTASSNO/FRABCAUS/

POSDIM/PORTUGUES/Japanese

Electronic Shutter: PAL: 1/50-100000NTSC: 1/60-100000

Wide voltage input: 5-36V

Working temperature: -20-60

Weight: 110g

Dimensions: 19 19 19mm

Resolution: 960 * 1080



Feature:

Upgraded Mista 2000TVL 2.1mm Wide Angle HD 1080P CCD PAL/NTSC Switchable 16:9 OSD FPV Camera.



Package included:

1 x Upgraded Mista FPV Camera

A1: Use authentic electronic components to ensure high quality and enhance the current endurance ability of the ESC.

A2: Based on BLHeli firmware, optimized for high performance with great linearity and much quicker throttle response.

A3: Special designed for multirotors, and compatible with fixed-wing aircrafts and helicopters.

A4: Multiple protection features including Low-voltage cut-off protection / over-heat protection / throttle signal loss protection.

A5: Throttle range can be configured and is fully compatible with all receivers, providing smooth, linear and precise throttle response.

A6: All parameters can be programmed via using a transmitter, including default settings.B. Productspecification

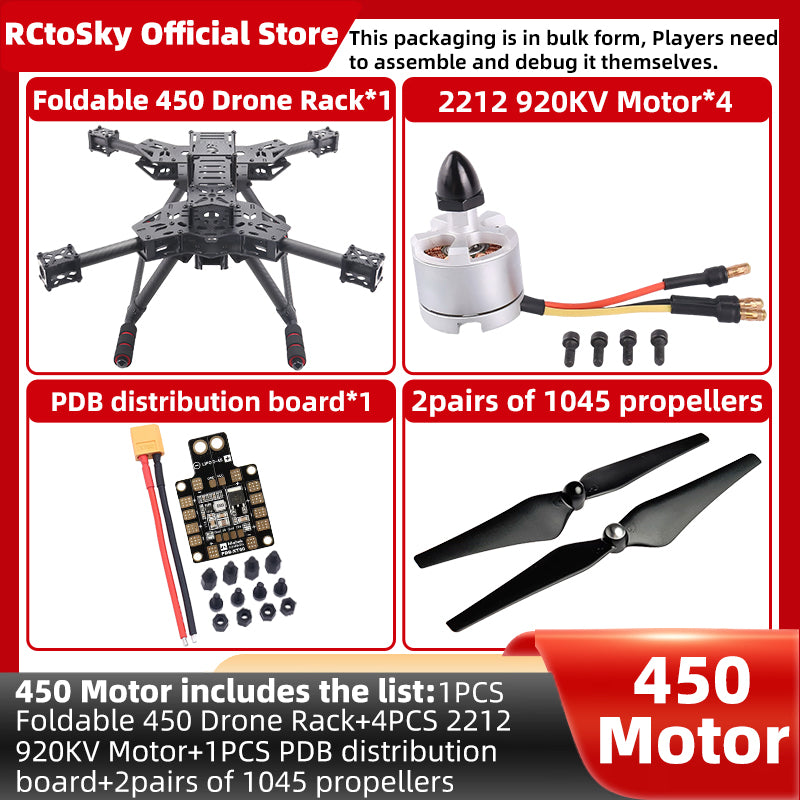

2212 920KV MotorModel: 2212 Brushless Motor

KV value: KV 920

Support lithium battery: 3S-4S LIPO

Adapt to the blades: It is recommended to use 9443 carbon fiber propellers, three-blade propellers, two-blade propellers and white

Self-locking propeller, F450 F550 is recommended to be used with 9443 propeller

Types:Reverse/Orthodontic

Colour:Silver+black/silver

Material:Metal



Package Contents:

1 x brushless motor

1045 Propellers
