B-CUBE 5.8G VTX 800 1000 1600 2500mW 48CH Input Voltage Video Transmitter Power 25 1000mW For Long Range RC Airplane FPV Drone

B-CUBE 5.8G VTX 800 1000 1600 2500mW 48CH Input Voltage Video Transmitter Power 25 1000mW For Long Range RC Airplane FPV Drone

$19.90 USD
$21.90 USD $19.90 USD
Sale Sold out
Color

B-CUBE 5.8GHZ VTX800 800MW image transmission


Attention: The VTX800 supports up to 1600MW, and it is recommended to set it to 800MW when used for a long time. The factory default configuration is 800MW.Before powering on, please make sure to reliably connect the antenna, otherwise it may burn when powered on.

VTX800 will generate heat during use, which is normal. Please do not touch with your hands to avoid burns.The higher the power, the more heat it generates. The PCB uses high-end customized materials, and high temperatures will not burn out the circuit board. VTX800 should be kept away from the flight control and in a ventilated position on the aircraft.The heat dissipation module should face upwards and be in a ventilated position in order to continuously dissipate heat.

Support manual adjustment of power and frequency, support IRC protocol OSD parameter adjustment.

1.Short press to adjust channel (corresponding to blue light, 1-8, a total of 8 times) 2.Long press for 2 seconds to adjust the group (corresponding to green light, A, B, E, F, R, a total of 5 times) 3.Press Press for 5 seconds to adjust the power (corresponding to the red light, a total of 5 times) 4.Long press for more than 10 seconds to open 11 prohibited USA channels. Default does not output prohibited USA channels: 5705,5685,5665,5885,5905,5880,5658,5695,5732,5880,5917

Default output: 5865MHZ (5.865GHZ)/800MW Model: VTX800 Frequency: 5645-5945MHZ Input voltage: 7-26V Output voltage: 5V/1A Channel : 40CH Transmission power: PIT/25MW/200/400/800/1600MW Boundary dimension: 36 * 36MM Screw hole: 30.5 * 30.5MM Screw aperture: 3MM Weight: 7.3g

Packaging List: VTX800 Board * 1 Shock-absorbing ball *4 Fixed Nylon Column *4 Heat dissipation module *1 5.8G 5DB antenna *1 6P * 1.0MM plug cable * 1

Download the VTX table from here: https://github.com/BCUBE-RC/VTX800/archive/refs/tags/v1.0.zip

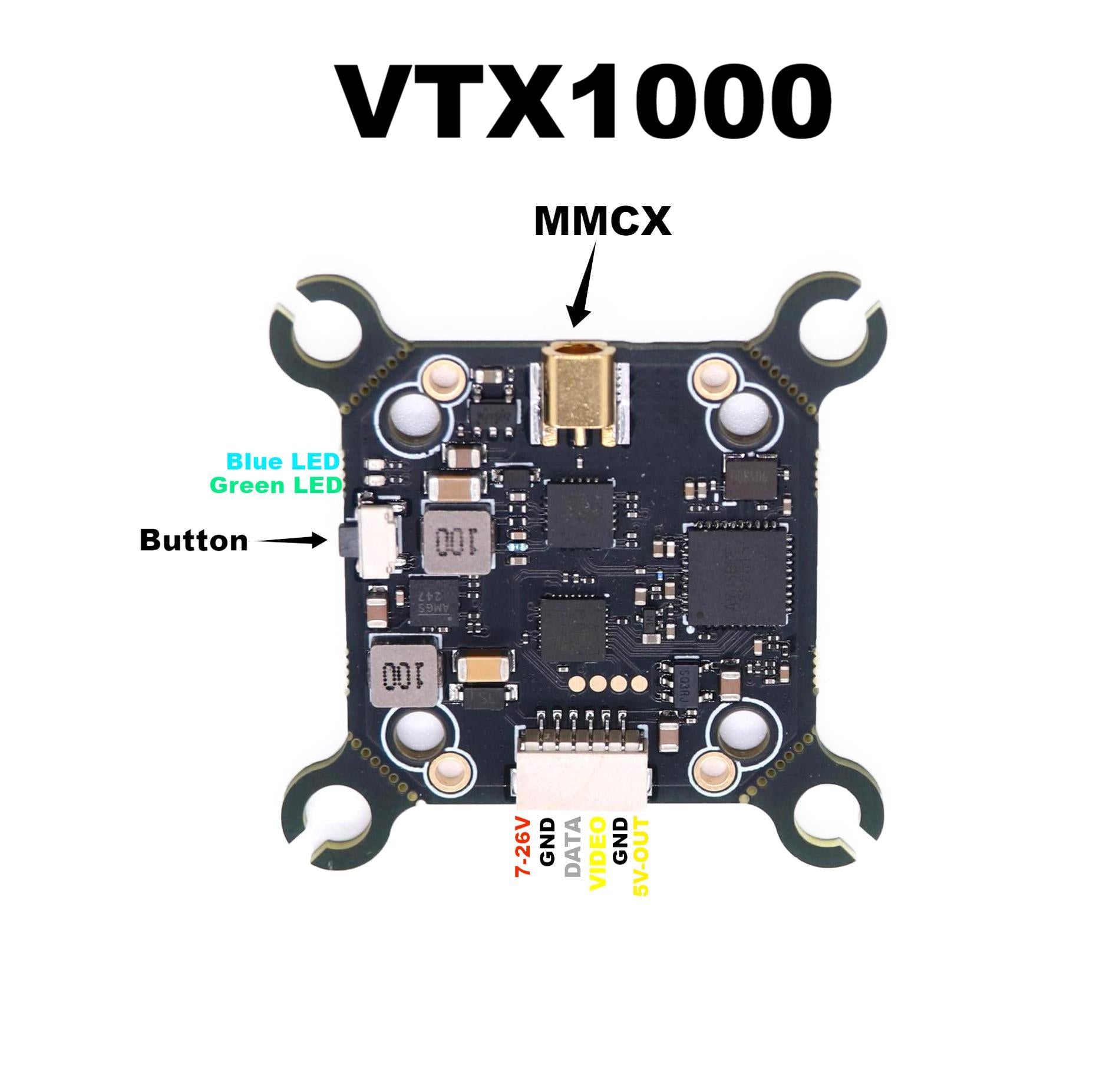

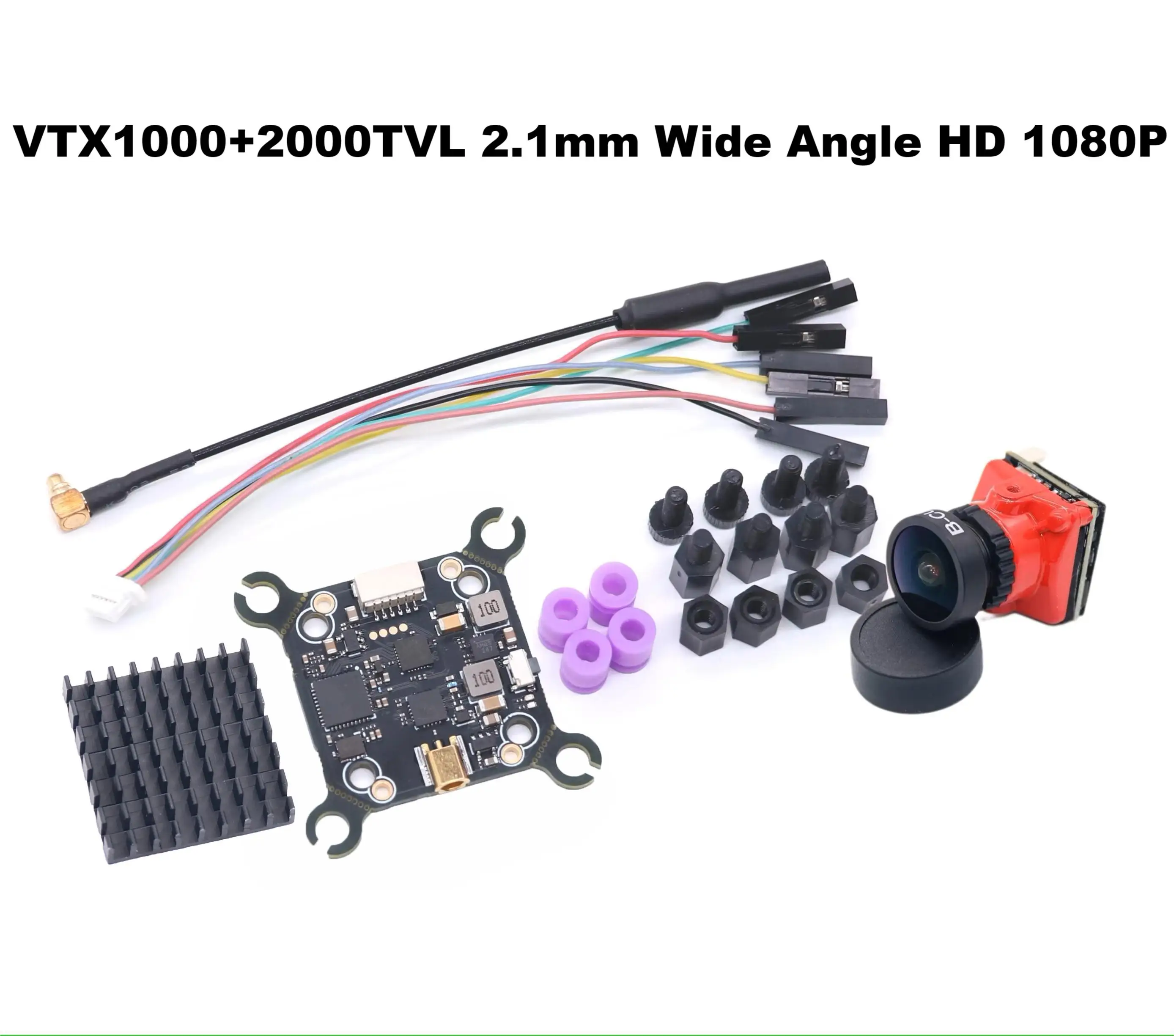

VTX1000 1W Video Transmitter

Download the VTX1000mw.json file from here,

https://blog.rctoysky.com/invoice/invoice/VTX1000mW.json

VTX1600 1.6W Video Transmitter

Attention: Before powering on, please make sure to reliably connect the antenna, otherwise it will burn when powered on.

VTX1600 will generate heat during use, which is normal. Please do not touch with your hands to avoid burns.The higher the power, the more heat it generates. The PCB uses high-end customized materials, and high temperatures will not burn out the circuit board. VTX1600 should be kept away from the flight control and in a ventilated position on the aircraft.The heat dissipation module should face upwards and be in a ventilated position in order to continuously dissipate heat.

Support manual adjustment of power and frequency, support IRC protocol OSD parameter adjustment.Built in microphone for real-time sound transmission.

Short press to adjust channel (corresponding to blue light, 1-8, a total of 8 times) Long press for 2 seconds to adjust the group (corresponding to green light, A, B, E, F, R, a total of 5 times) Long Press for 5 seconds to adjust the power (corresponding to the red light, a total of 5 times) Long press for more than 10 seconds to open 11 prohibited USA channels. Default does not output prohibited USA channels: 5705,5685,5665,5885,5905,5880,5658,5695,5732,5880,5917

Download the VTX table from here: https://github.com/BCUBE-RC/VTX/archive/refs/tags/vtx1600.zip

Default output: 5865MHZ (5.865GHZ)/1.6W Model: VTX1600 Frequency: 5645-5945MHZ Input voltage: 7-26V Output voltage: 5V/1A Channel : 40CH Transmission power: PIT/25MW/200/400/800/1600MW Boundary dimension: 36 * 36MM Screw hole: 30.5 * 30.5MM Screw aperture: 3MM Weight: 7.3g

Packaging List: VTX1600 Board * 1 Shock-absorbing ball *4 Fixed Nylon Column *4 Heat dissipation module *1 5.8G 5DB antenna *1 6P * 1.0MM plug cable * 1

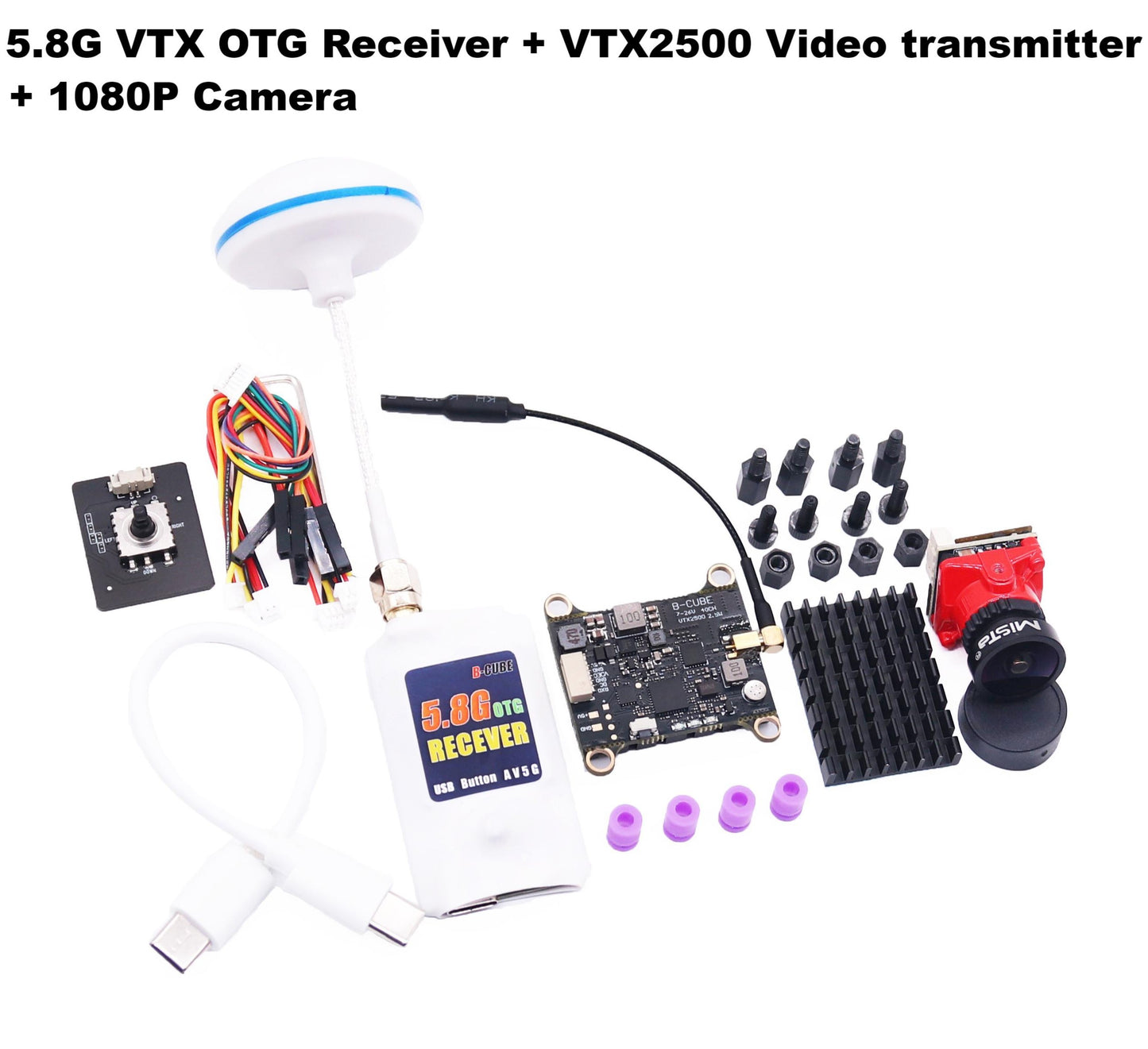

VTX2500 2.5W Video Transmitter

Attention: Before powering on, please make sure to reliably connect the antenna, otherwise it will burn when powered on.


VTX2500 will generate heat during use, which is normal. Please do not touch with your hands to avoid burns.The higher the power, the more heat it generates. The PCB uses high-end customized materials, and high temperatures will not burn out the circuit board. VTX2500 should be kept away from the flight control and in a ventilated position on the aircraft.The heat dissipation module should face upwards and be in a ventilated position in order to continuously dissipate heat.

Support manual adjustment of power and frequency, support IRC protocol OSD parameter adjustment.Built in microphone for real-time sound transmission.

1.Short press to adjust channel (corresponding to blue light, 1-8, a total of 8 times) 2.Long press for 2 seconds to adjust the group (corresponding to green light, A, B, E, F, R, a total of 5 times) 3.Long press for 5 seconds to adjust the power (corresponding to the red light, a total of 5 times) 4.Long press for more than 10 seconds to open 11 prohibited USA channels. Default does not output prohibited USA channels: 5705,5685,5665,5885,5905,5880,5658,5695,5732,5880,5917

Default output: 5865MHZ (5.865GHZ)/2.5W Model: VTX2500 Frequency: 5645-5945MHZ Input voltage: 7-26V Output voltage: 5V/1A Channel : 40CH Transmission power: PIT/25MW/200/400/800/1600MW Boundary dimension: 36 * 36MM Screw hole: 30.5 * 30.5MM Screw aperture: 3MM Weight: 7.3g

Packaging List: VTX2500 Board * 1 Shock-absorbing ball *4 Fixed Nylon Column *4 Heat dissipation module *1 5.8G 5DB antenna *1 6P * 1.0MM plug cable * 1

Description:

Model: MINI MS-1672 FPV cameras Sensor: 1/1/8 "CMOS D1080H Horizontal resolution: 2000TVL Horizontal field of view: 165 Lens: 2.1mm lens Video format: NTC&PAL (adjustable) Image scale: 4:3&16:9 (automatic recognition) Wide Dynamic Range: Super WDR Noise reduction: 3DNR Low illumination: 0.001LUX Video output: CVBS Day and night: external/internal/black and white/color Language: (English/Chinese/Traditional Chinese/pyccnna) ESOABIK/TTASSNO/FRABCAUS/ POSDIM/PORTUGUES/Japanese Electronic Shutter: PAL: 1/50-100000NTSC: 1/60-100000 Wide voltage input: 5-36V Working temperature: -20-60 Weight: 110g Dimensions: 19 * 19 * 19mm Resolution: 960 * 1080 Feature: Upgraded Mista 2000TVL 2.1mm Wide Angle HD 1080P CCD PAL/NTSC Switchable 16:9 OSD FPV Camera.

Package included:

1 x Upgraded Mista FPV Camera

5.8G VTX OTG Receiver

Note:

If you use a 2.4G remote control, some remote controls may interfere with the 5.8G signal after increasing the frequency through the 2.4G frequency band. Using a high-frequency band frequency of 5945MHz for video transmitters can avoid this problem. Or keep the video receiver away from the 2.4G remote control.

Features:

1.150CH 5.8Ghz analog signal, 1500 scans cover all bands. 2.Resolution 640*480 30fps. 3.Mushroom RX antenna, omnidirectional pointing, strong transmission signal. It can greatly improve the stability and distance of 5.8G image to video transmission. 4.Can display frequency spectrum, to check the signal strength of antenna or transmitter. 5.Support dual display on smartphone, can be used as VR goggles. 6.Please calibrate it in open area, and keep away from transmitter more than 30m. Long press the menu button and power on receiver, enter into calibration mode.

Descriptions:

1.Support OTG cable connect to android smartphone or tablet. 2.Single Antenna FPV receiver for Android Tablet PC Monitor.

Specifications:

Frequency: 5645MHz-5945MHz Resolution: 640480 30fps Working Current: USB 5V 190mA Connector: RP-SMA USB: Type-C Working Temp.: -10°~65° Size: 50MM30MM Weight: 26g

Working Methods

Install APP:

1.Download apk app from here,https://github.com/BCUBE-RC/VTX-OTG/ 2.Use OTG cable connect with receiver 3.After it power on, press the menu button for 3 seconds,it will self-search frequency and lock the strongest signal automatically.

PC:

1.Use usb cable to connect it with PC. 2.XP: open the camera;WIN7: install AMCP camera software;WIN10: open camera. Or MP groundstation. 3.After it power on, press the menu button for 3 seconds,it will self-search frequency and lock the strongest signal.

AV:

1.Use 4P cable (should DIY by player), 5V power input. 2.After it power on, press the menu button for 3 seconds,it will self-search frequency and lock the strongest signal.

Note:

1.Do not support IOS system. 2.Some smartphones should open the otg function before use. 3.Some players have complained that it has the issue of flicker or short distance. After testing in open area, the reason has been found to be its high scanning accuracy,that the transmitted frequency is reflected by wall indoors and make the real frequency detected by receiver higher than it should be. So it is quite important to operate it in an open area and keep the receiver and transmitter more than 30m.

Package Included:

1 x 5.8Ghz 150ch Receiver 1 x Type-C OTG cable 1 x Mushroom head RX Antenna
